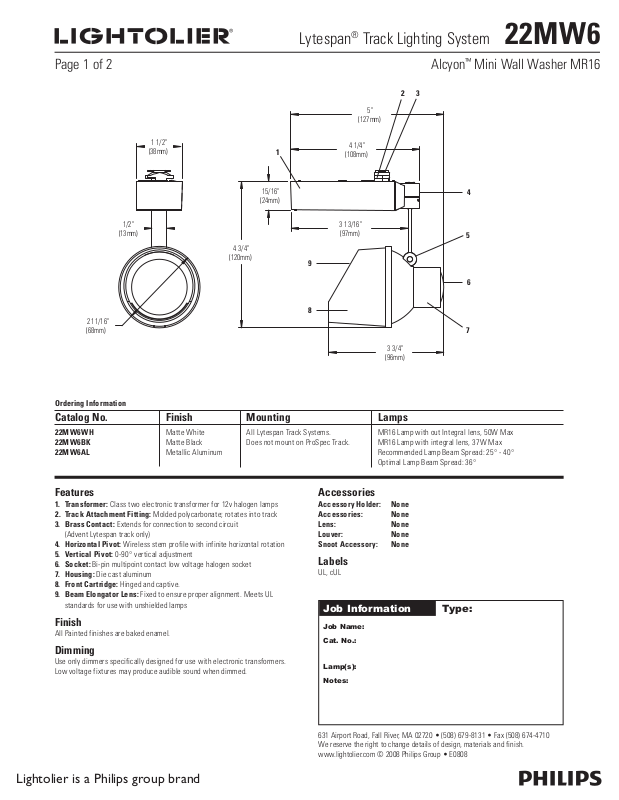

Lightolier 22MW6 User Manual
Lytespan
4 1/4"
(108mm)
5"
(127mm)
15/16"
(24mm)
4 3/4"
(120mm)
3 13/16"
(97mm)
3 3/4"
(96mm)
1 1/2"
(38mm)
1/2"
(13mm)
2 11/16"
(68mm)
®
Track Lighting System 22MW6
Page 1 of 2 Alcyon™ Mini Wall Washer MR16
2 3
1
4
5
9
6
8
7
Ordering Information
Catalog No. Finish Mounting Lamps
22MW6WH Matte White All Lytespan Track Systems. MR16 Lamp with out Integral lens, 50W Max
22MW6BK Matte Black Does not mount on ProSpec Track. MR16 Lamp with integral lens, 37W Max
22MW6AL Metallic Aluminum Recommended Lamp Beam Spread: 25° - 40°
Optimal Lamp Beam Spread: 36°
Features
1. Transformer: Class two electronic transformer for 12v halogen lamps
2. Track At tachment Fitting: Molded polycarbonate; rotates into track
3. Brass Contact: Extends for connection to second circuit
(Advent Lytespan track only)
4. Horizontal Pivot: Wireless stem profile with infinite horizontal rotation
5. Vertical Pivot: 0-90° vertical adjustment
6. Socket: Bi-pin multipoint contact low voltage halogen socket
7. H ousing: Die cast aluminum
8. Front Cartridge: Hinged and captive.
9. Beam Elongator Lens: Fixed to ensure proper alignment. Meets UL
standards for use with unshielded lamps
Finish
All Painted finishes are baked enamel.
Dimming
Use only dimmers specifically designed for use with electronic transformers.
Low voltage fixtures may produce audible sound when dimmed.
Accessories
Accessory Holder: None
Accessories: None
Lens: None
Louver: None
Snoot Accessor y: None
Labels
UL, cUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier is a Philips group brand
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • E0808
Lytespan
48 f.c.
48 f.c.
3'
45 f.c.
3'
2'
®
Track Lighting System 22MW6
Page 2 of 2 Alcyon™ Mini Wall Washer MR16
Lighting Data
Footcandles on wall:
La mp Information:
50W MR16 36° Flood
Lumens: 850
Rated Avg. life: 3,000 hrs.
EXAMPLE: With track located 2' from wall and multiple units
spaced 3' on center and aimed 50° from horizontal, the illumination on wall 3' from ceiling will be 48 f.c. beneath units and 45 f.c.
between units.
Footcandles on Wall
Track 2 Feet From Wall Single Unit Multiple Units
0’ 1’ 2’ 3’ 4’
1’ 15 4 7 1 0
2’ 78 46 14 2 0
3’ 29 19 9 3 1
4’ 9 6 3 1 0
5’ 3 2 2 1 0
6’ 1 1 1 0 0
Distance From Ceiling
7’ 1 0 0 0 0
8’ 0 0 0 0 0
2’
Beam Center
50˚
2’
11 9 11
48 42 48
69 67 69
41 41 41
19 19 19
9 9 9
5 5 5
3 3 3
3’
7 7 7
28 31 28
48 45 48
30 28 30
14 13 14
7 7 7
4 4 4
2 2 2
4 7 4
22 27 22
39 32 39
23 20 23
11 10 11
5 5 5
3 3 3
2 2 2
4’
Track 3 Feet From Wall Single Unit Multiple Units
0’ 1’ 2’ 3’ 4’
1’ 4 3 3 1 0
2’ 20 17 13 4 1
3’ 36 26 15 6 2
4’ 19 15 10 5 2
5’ 8 6 4 3 1
6’ 4 3 2 1 1
Distance From Ceiling
7’ 2 2 1 1 0
8’ 1 1 1 1 0
3’
50˚
Lightolier is a Philips group brand
Beam Center
3’
7 7 7
28 31 28
48 45 48
30 28 30
14 13 14
7 7 7
4 4 4
2 2 2
4 7 4
22 27 22
39 32 39
23 20 23
11 10 11
5 5 5
3 3 3
2 2 2
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • E0808
4’ 5’
4 5 4
21 17 21
37 22 37
20 16 20
9 7 9
5 4 5
3 2 3
1 1 1
