Lightolier 2001L User Manual
Lytecaster
7 1/4"
4 1/2"
2 7/8"
3 5/8"
®

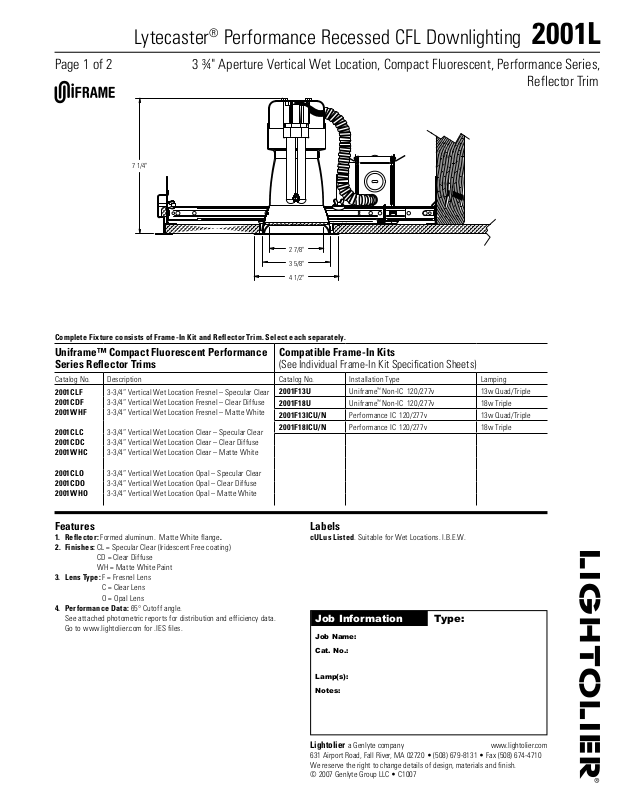

Performance Recessed CFL Downlighting 2001L
Page 1 of 2 3 ¾" Aperture Vertical Wet Location, Compact Fluorescent, Performance Series,
Reflector Trim
Complete Fixture consist s of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe™ Compact Fluorescent Performance
Series Reflector Trims
Catalog No. Description Catalog No. Installation Type Lamping
2001CLF
2001CDF
2001WHF
2001CLC
2001CDC
2001WHC
2001CLO
2001CDO
2001WHO
3-3/4” Vertical Wet Location Fresnel – Specular Clear
3-3/4” Vertical Wet Location Fresnel – Clear Diffuse
3-3/4” Vertical Wet Location Fresnel – Mat te White
3-3/4” Vertical Wet Location Clear – Specular Clear
3-3/4” Vertical Wet Location Clear – Clear Dif fuse
3-3/4” Vertical Wet Location Clear – Matte White
3-3/4” Vertical Wet Location Opal – Specular Clear
3-3/4” Vertical Wet Location Opal – Clear Dif fuse
3-3/4” Vertical Wet Location Opal – Matte White
Features
1. Reflector: Formed aluminum. Matte White flange.
2. Finishes: CL = Specular Clear (Iridescent Free coating)
CD = Clear Diffuse
WH = Matte White Paint
3. Lens Type: F = Fresnel Lens
C = Clear Lens
O = Opal Lens
4. Performance Data: 65° Cutoff angle.
See at tached photometric repor ts for distribution and efficiency data.
Go to w ww.lightolier.com for .IES files.
Compatible Frame-In Kits
(See Individual Frame-In Kit Specification Sheets)
2001F13U
2001F18U
2001F13ICU/N
2001F18ICU/N
Uniframe™ Non-IC 120/277v 13w Quad/ Triple
Uniframe™ Non-IC 120/277v 18w Triple
Performance IC 120/277v 13w Quad/ Triple
Performance IC 120/277v 18w Triple
Labels
cULus Listed. Suitable for Wet Locations. I.B.E.W.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • C1007
Lytecaster
1
1
1
®
Performance Recessed CFL Downlighting 2001L
Page 2 of 2 3 ¾" Aperture Vertical Wet Location, Compact Fluorescent, Performance Series,
18W TRIPLE TUBE L AMP, LUMEN RATING = 1200 LMS, ELECTRONIC BALLAST, CL FINISH TRIM WITH CLEAR LENS
COEFFICIENTS OF UTILIZATION
0 3 6 36 36 36 35 35 3 4 34 32 32 30
1 3 4 33 32 31 32 31 31 30 30 29 27
2 3 2 30 28 27 29 26 2 8 27 26 27 24
3 2 9 27 25 23 26 23 2 6 2 3 25 22 21
4 2 7 24 22 20 24 20 2 3 20 22 20 19
5 25 22 20 18 22 18 21 18 2 0 17 17
6 24 2 0 18 16 20 16 19 16 19 16 15
7 2 2 18 16 14 18 14 18 14 17 14 13
8 2 0 17 14 13 17 13 16 13 16 13 12
9 19 15 13 12 15 12 15 11 15 11 11
10 18 14 12 11 14 10 14 10 14 10 10
Luminai re Input Wa tts = 22.0
50
100
150
200
SC = 1.6
CERTI FIED TEST RE PORT NO. 33 49FR
COMPU TED BY LSI PR OGRAM
**TEST- LITE**
CANDLEPOWER SUMMARY
Angle 0˚ CP
60˚
30˚
ZONA L LUMEN SUMM ARY
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
129
135
150
165
173
172
165
150
131
104
74
46
24
8
3
1
1
0
0
Zone Lumens
0-10 13.37
10-20 46 .72
20-3 0 79.16
30- 40 93.34
40- 50 79.65
50- 60 41.74
60-70 10.17
70-8 0 1.58
80- 90 .14
90-10 0 0
100-110 0
110-120 0
120-130 0
130-140 0
140-150 0
150-160 0
160-170 0
170-180 0
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 13 9.25 11.6 3 8.1
0-40 2 32.59 19.4 63.6
0-60 3 53.98 29 .5 96 .8
0-90 3 65.87 3 0.5 100
90-120 0 0 0
90-130 0 0 0
90-150 0 0 0
90-180 0 0 0
0-180 365. 87 30.5 100
Efficiency = 30.5%**
**
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
Determined In Accordance With Current IES Published Procedures
18W TRIPLE TUBE L AMP, LUMEN RATING = 1200 LMS, ELECTRONIC BALLAST, CL FINISH TRIM WITH FRESNEL LENS
COEFFICIENTS OF UTILIZATION
0 3 5 35 35 35 3 4 34 33 33 31 31 30
1 3 3 3 2 31 30 31 3 0 2 9 28 27 27 26
2 31 2 9 27 26 28 25 27 25 26 24 2 3
3 2 8 26 24 22 25 2 2 24 22 24 21 2 0
4 2 6 23 21 19 2 3 19 22 19 21 19 18
5 24 21 19 17 21 17 20 17 20 17 16
6 2 3 19 17 15 19 15 18 15 18 15 14
7 21 17 15 13 17 13 17 13 16 13 13
8 2 0 16 14 12 16 12 13 15 13 12 11
9 18 15 12 11 15 11 14 11 14 11 10
10 17 14 11 10 13 10 13 10 13 10 9
Luminai re Input Wa tts = 22.0
50
100
150
200
SC = 1.4
CERTI FIED TEST RE PORT NO. 33 48FR
COMPU TED BY LSI PR OGRAM
**TEST- LITE**
CANDLEPOWER SUMMARY
Angle 0˚ CP
60˚
30˚
ZONA L LUMEN SUMM ARY
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
151
152
154
157
159
158
151
138
119
97
71
47
28
16
9
4
1
0
0
Zone Lumens
0-10 14.54
10-20 44. 62
20-3 0 72.45
30- 40 85.51
40- 50 73.84
50- 60 42.8
60-70 16. 63
70-8 0 4.73
80- 90 .14
90-10 0 0
100-110 0
110-120 0
120-130 0
130-140 0
140-150 0
150-160 0
160-170 0
170-180 0
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 131.6 11 37
0-40 2 17.11 18 .1 61.1
0-60 333.76 27.8 93.9
0-90 3 55.26 29.6 100
90-120 0 0 0
90-130 0 0 0
90-150 0 0 0
90-180 0 0 0
0-180 355. 26 2 9.6 100
Efficiency = 29.6%**
**
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
Determined In Accordance With Current IES Published Procedures
Reflector Trim
18W TRIPLE TUBE L AMP, LUMEN RATING = 1200 LMS, ELECTRONIC BALLAST, CL FINISH TRIM WITH OPAL LENS
50
100
150
200
SC = 1.1
CERTI FIED TEST RE PORT NO. 33 50FR
COMPU TED BY LSI PR OGRAM
**TEST- LITE**
CANDLEPOWER SUMMARY
Angle 0˚ CP
0 151
5 150
60˚
10 147
15 142
20 134
25 125
30 115
35 103
40 90
45 76
50 63
55 50
60 37
30˚
65 25
70 15
75 6
80 1
85 0
90 0
ZONA L LUMEN SUMM ARY
Zone Lumens
0-10 14.23
10-20 39. 88
20-3 0 57.54
30- 40 64.16
40- 50 58.87
50- 60 44.41
60-70 25.17
70-8 0 7.09
80- 90 .14
90-10 0 0
100-110 0
110-120 0
120-130 0
130-140 0
140-150 0
150-160 0
160-170 0
170-180 0
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 111.65 9.3 35. 8
0-40 175.81 14.7 56.4
0-60 2 79.09 23.3 89. 6
0-90 311.48 26 100
90-120 0 0 0
90-130 0 0 0
90-150 0 0 0
90-180 0 0 0
0-180 311.48 26 100
Efficiency = 26%**
**
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
0 31 31 31 31 30 30 29 29 28 28 26
1 2 9 2 8 27 26 2 7 26 26 25 25 24 23
2 2 7 2 5 23 22 24 22 23 21 2 3 21 20
3 24 2 2 20 19 2 2 19 21 18 20 18 17
4 2 3 2 0 18 16 20 16 19 16 18 16 15
5 21 18 16 14 18 14 17 14 17 14 13
6 19 6 14 13 16 13 16 12 15 12 12
7 18 15 13 11 15 11 14 11 14 11 11
Room Cavity Ratio
8 17 14 12 10 13 10 13 10 13 10 9
9 16 13 11 9 12 9 12 9 12 9 9
10 15 12 10 8 12 8 11 8 11 8 8
Determined In Accordance With Current IES Published Procedures
Job Information Type:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • C1007
COEFFICIENTS OF UTILIZATION
Luminai re Input Wa tts = 22.0
