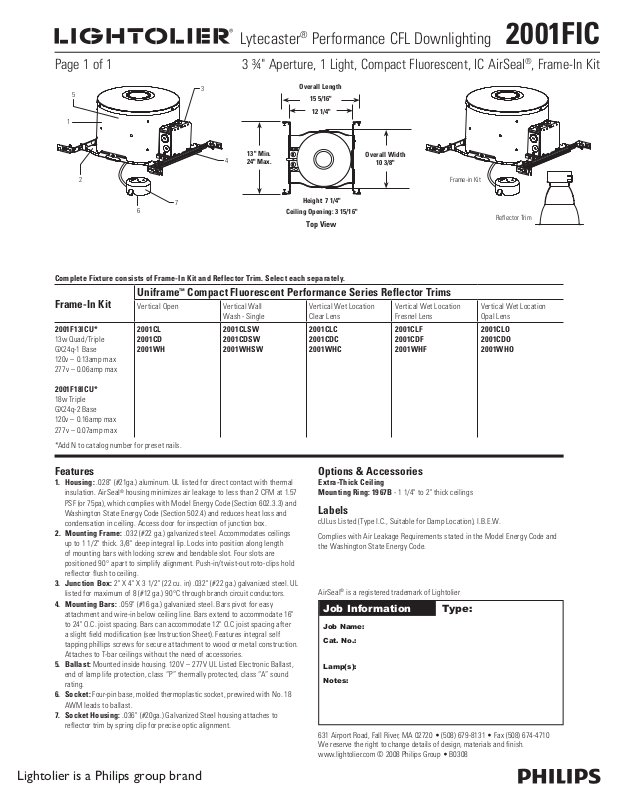

Performance CFL Downlighting 2001FIC

Page 1 of 1 3 ¾" Aperture, 1 Light, Compact Fluorescent, IC AirSeal®, Frame-In Kit

Overall Length

15 5/16"

12 1/4"

13" Min.

24" Max.

Height: 7 1/4"

Ceiling Opening: 3 15/16"

Top View

Complete Fixture consist s of Frame-In Kit and Reflector Trim. Select each separately.

Uniframe™ Compact Fluorescent Performance Series Reflector Trims

Frame-In Kit

2001F13ICU*

13w Quad/Triple

GX24q-1 Base
120v – 0.13amp max
277v – 0.06amp max

2001F18ICU*

18w Triple
GX24q-2 Base
120v – 0.16amp max
277v – 0.07amp max

*Add N to catalog number for preset nails.

Vertical Open Vertical Wall

Wash - Single

20 01CL
20 01CD
2001WH

2001CLSW
20 01CDSW
2001WHSW

Vertical Wet Location
Clear Lens

20 01CLC
20 01CDC
2001WHC

Overall Width

10 3/8"

Vertical Wet Location
Fresnel Lens

20 01CLF
20 01CDF
2001WHF

Vertical Wet Location

Opal Lens

20 01CLO
20 01CDO
2001WHO

Features

1. Housing: .028" (#21ga.) aluminum. UL listed for direct contact with thermal

insulation. AirSeal® housing minimizes air leakage to less than 2 CFM at 1.57

PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3) and
Washington State Energy Code (Section 502.4) and reduces heat loss and
condensation in ceiling. Access door for inspection of junction box.

2. Mounting Frame: .032 (#22 ga.) galvanized steel. Accommodates ceilings
up to 1 1/2" thick. 3/8" deep integral lip. Locks into position along length

of mounting bars with locking screw and bendable slot. Four slots are

positioned 90° apar t to simplify alignment. Push-in/twist-out roto-clips hold

reflector flush to ceiling.

3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in) .032" (#22 ga.) galvanized steel. UL
listed for maximum of 8 (#12 ga.) 90°C through branch circuit conductors.

4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars ex tend to accommodate 16"
to 24" O.C. joist spacing. Bars can accommodate 12" O.C joist spacing af ter
a slight field modification (see Instruction Sheet). Features integral self

tapping phillips screws for secure attachment to wood or metal construction.
Attaches to T-bar ceilings without the need of accessories.

5. Ballast: Mounted inside housing. 120V – 277V UL Listed Electronic Ballast,

end of lamp life protection, class “P” thermally protected, class “A” sound
rating.

6. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18

AWM leads to ballast.

7. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to

reflector trim by spring clip for precise optic alignment.

Lightolier is a Philips group brand

Options & Accessories

Extra-Thick Ceiling
Mounting Ring: 1967B - 1 1/4" to 2" thick ceilings

Labels

cULus Listed (Type I.C., Suitable for Damp Location), I.B.E.W.

Complies with Air Leakage Requirements stated in the Model Energy Code and
the Washington State Energy Code.

AirSeal® is a registered trademark of Lightolier

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.
