READANDUNDERSTANDTHESEINSTRUCTIONSBEFOREINSTALLINGFIXTURE
INSTRUCI’IONSHEETNO.
s fixture is intended for installation in accordance with the National Electrical Code and local
ulations. To assure full compliance with local codes and regulations,
ablation. To prevent electrical shock,turn offelecttici~ at fuse box before proceeding,
Retain these instructions for maintenance reference.
check with your localelectricalinspector before
IS:1920LV
0892
Page 1 of 2

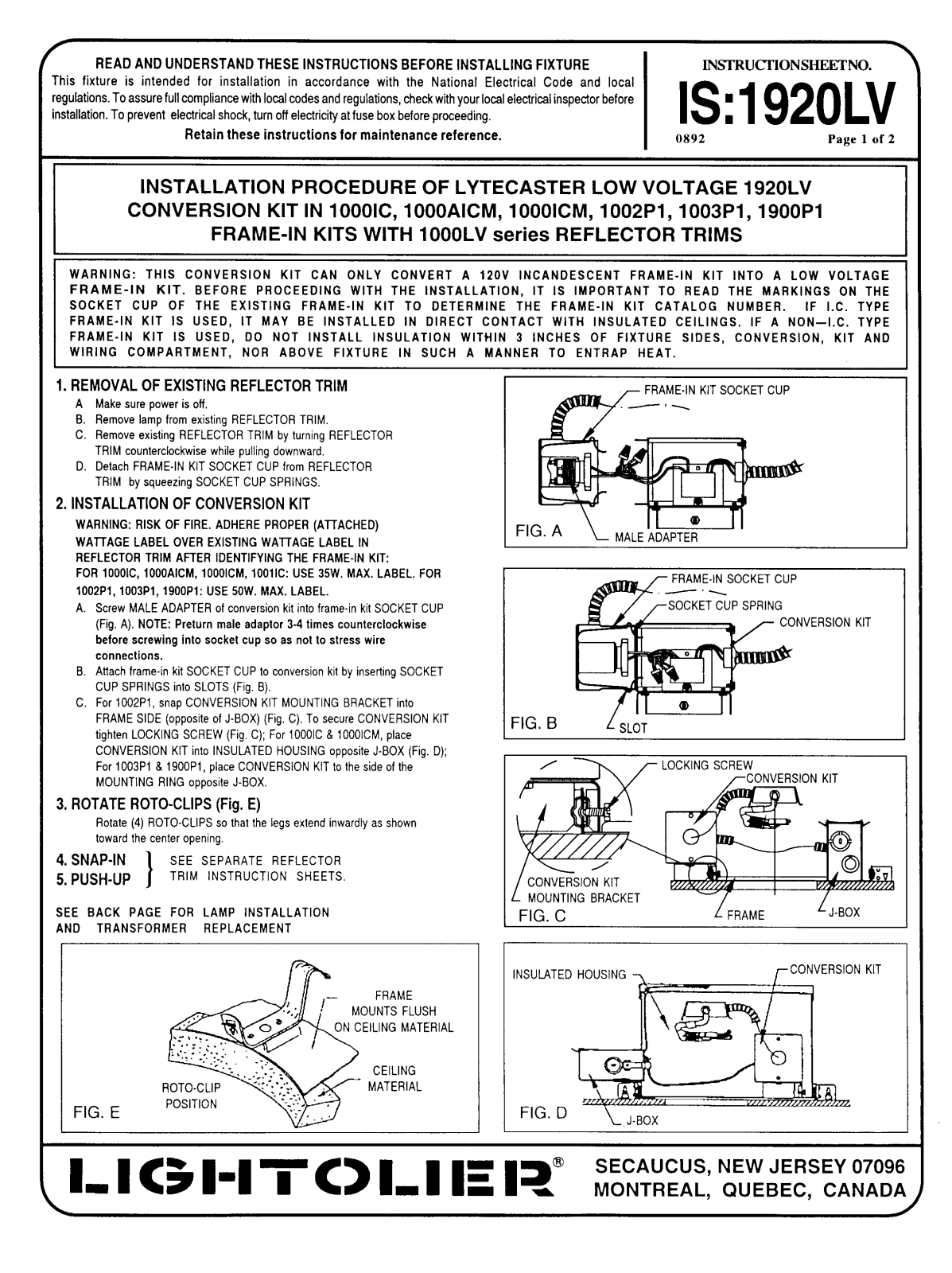

INSTALLATION PROCEDURE OF LYTECASTER LOW VOLTAGE 1920LV
CONVERSION KIT IN 1000IC, 1000AICM,
FRAME-IN KITS WITH 1000LV series REFLECTOR TRIMS
WARNING: THIS CONVERSION KIT CAN ONLY CONVERT A 120V INCANDESCENT FRAME-IN KIT INTO A LOW VOLTAGE
FRAME-IN KIT. BEFORE PROCEEDING WITH THE INSTALLATION, IT IS IMPORTANT TO READ THE MARKINGS ON THE
SOCKET CUP OF THE EXISTING FRAME-IN KIT TO DETERMINE THE FRAME-IN KIT CATALOG NUMBER.
FRAME-IN KIT IS USED, IT MAY BE INSTALLED IN DIRECT CONTACT WITH INSULATED CEILINGS. IF A NON–I.C. TYPE
FRAME-IN KIT IS USED, DO NOT INSTALL INSULATION WITHIN 3 INCHES OF FIXTURE SIDES, CONVERSION, KIT AND
WIRING COMPARTMENT, NOR ABOVE FIXTURE IN SUCH A MANNER TO ENTRAP HEAT.
REMOVALOFEXISTING REFLECTORTRIM
A Makesure poweris off,
B, Removelamp from existing REFLECTORTRIM.
C. Removeexisting REFLECTORTRIM byturning REFLECTOR
TRIMcounterclockwisewhile pullingdownward.
D. DetachFRAME-lNKIT SOCKETCUP from REFLECTOR
TRIM bysqueezing SOCKETCUP SPRINGS,
INSTALLATIONOFCONVERSIONKIT
WARNING:RISK OF FIRE.ADHERE PROPER(ATTACHED)
WAITAGE LABEL OVER EXISTINGWATrAGE LABEL IN
REFLECTORTRIM AFTER IDENTIFYINGTHE FRAME-INKIT:
FOR1000IC, 1000AICM, 1000ICM, 1001IC: USE 35W. MAX. LABEL. FOR
1002P1, 1003P1, 1900P1: USE 50W. MAX. LABEL.
Screw MALE ADAPTER of conversionkit into frame-inkit SOCKETCUP
A.
(Fig,A). NOTE:Preturn male adaptor 3-4 times counterclockwise
before screwing into socket cup so as not to stress wire
connections.
Attachframe-inkit SOCKETCUPto conversionkit byinsertingSOCKET
B.
CUP SPRINGSinto SLOTS(Fig, B),
c.
For 1002P1,snao CONVERSIONKITMOUNTINGBRACKETinto
FRAME SIDE (opposite of J-BOX) (Fig. C). To secure CONVERSION KIT
tighten LOCKING SCREW (Fig. C);
CONVERSION KIT into INSUUTED HOUSING opposite J-BOX (Fig. D);
For1003Pl &1900Pl, placeCONVERS1ONKITtotheside of the
MOUNTINGRINGoppositeJ-BOX.
ROTATEROTO-CLIPS(Fig. E)
Rotate(4) ROTO.CLIPSsothat the legs extendinwardlyas shown
toward the center opening.
SNAP-IN
PUSH-UP
SEE SEPARATE REFLECTOR
TRIM INSTRUCTION SHEETS.
}
For 1000IC & 1000ICM, place
1000ICM, 1002P1, 1003 PI, 1900P1
FI
NVERSION KIT
FIG. B
L“-”
SLOT
IF I.C. TYPE
;E BACK PAGE FOR LAMP INSTALLATION
ID TRANSFORMER REPLACEMENT
m
... . . .. . ...- ..
,- .’.’! . .
FIG. E
POSITION
FRAME
MOUNTS FLUSH
ON CEILING MATERIAL
CEILING
MATERIAL
FIG C
INSULATED HOUSING n
FIG. D
[ FRAME
~ J-BOX
/-Conversion KIT

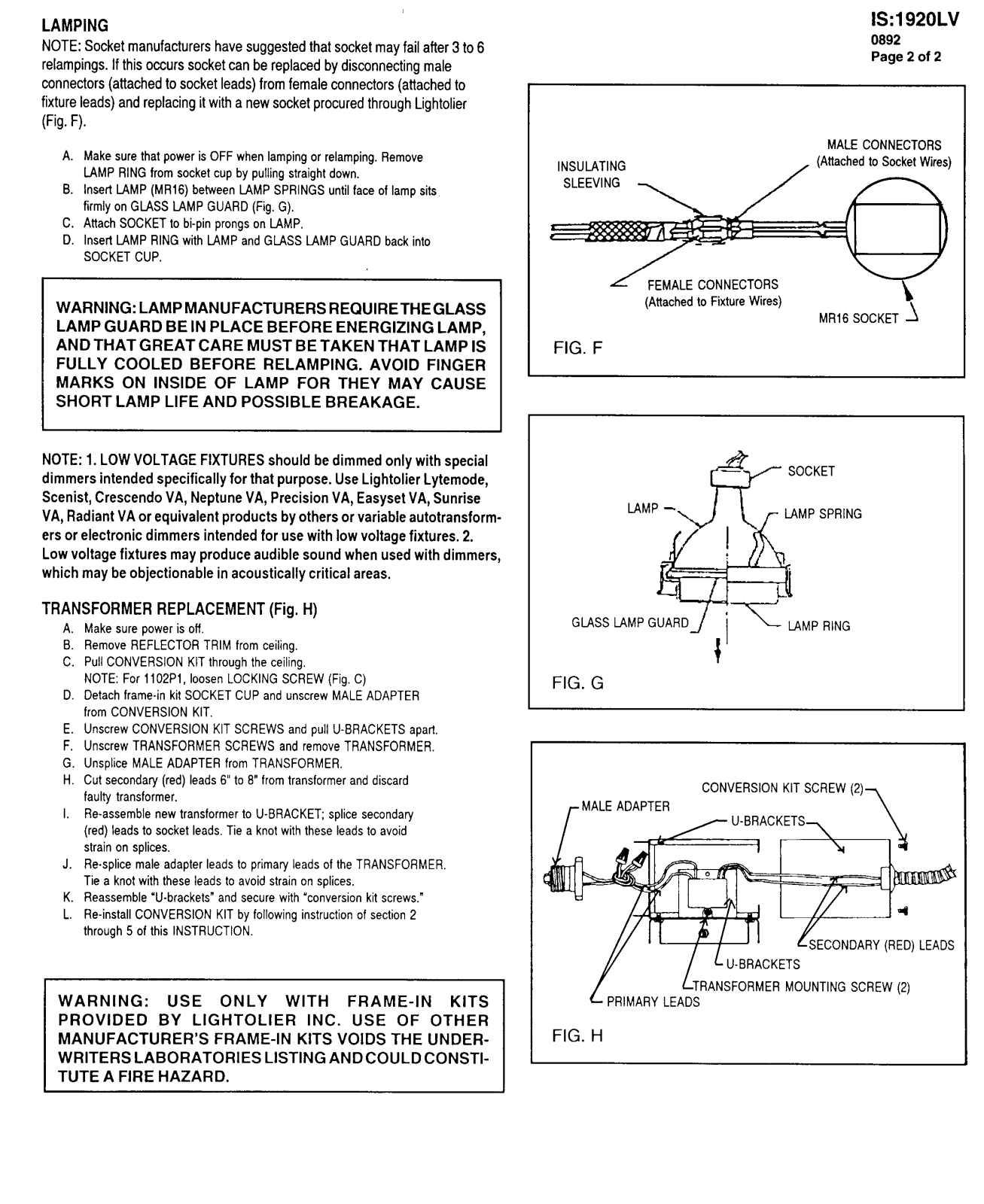

LAMPING
NOTE: Socket manufacturers have suggested that socket may fail after 3 to 6
relampings. If this occurssocketcanbereplacedby disconnectingmale
connectors(attachedto socketleads)fromfemale connectors(attachedto
fixtureleads)andreplacingit witha newsocketprocuredthroughLightolier
F).
(Fig.
Makesurethat poweris OFF
A.
LAMP RING from socket cup by pulling straight down.
Inserl IAMP (MR16) between LAMP SPRINGS until face of lamp sits
B.
firmly on GLASS LAMP GUARD (Fig, G),
Attach SOCKET to hi-pin prongs on LAMP,
c.
Insert
D.
WARNING: LAMP MANUFACTURERS REQUIRE THE GLASS
LAMP GUARD BE IN PLACE BEFORE ENERGIZING LAMP,
AND THAT GREAT CARE MUST BE TAKEN THAT LAMP IS
FULLY COOLED BEFORE RELAMPING. AVOID FINGER
MARKS ON INSIDE OF LAMP FOR THEY MAY CAUSE
SHORT LAMP LIFE AND POSSIBLE BREAKAGE.
IAMP RINGwith IAMP and GLASSlAMP GUARDback into
SOCKETCUP.
when Iamping or relamping. Remove
INSULATING
SLEEVING
FIG. F
z“
FEMALE CONNECTORS
(Attached to Fixture Wires)
IS:1920LV
0892
Page 2 of 2
MALECONNECTORS
(Attached to Socket Wires)
y
MR16 SOCKET
1
NOTE:1. LOWVOLTAGEFIXTURESshould be dimmed only with special
dimmers intended specifically for that purpose. UseLightolier Lytemode,
Scenist, Crescendo VA, Neptune VA, Precision VA, Easyset VA,Sunrise
VA, Radiant VAor equivalent products byothers or variable autotransformers or electronic dimmers intended for use with low voltage fixtures. 2.
Low voltage fixtures may produce audible sound when used with dimmers,
which may be objectionable in acoustically critical areas.
TRANSFORMER REPLACEMENT (Fig. H)
A.
Make sure power is off.
Remove REFLECTOR TRIM from ceiling,
B.
Pull CONVERSION KIT through the ceiling,
c.
NOTE: For 1102P1, loosen LOCKING SCREW (Fig. C)
D.
Detach frame-in kit SOCKET CUP and unscrew MALE ADAPTER
from CONVERSION KIT,
E.
Unscrew CONVERSION KIT SCREWS and pull U-BRACKETS apart,
F.
Unscrew TRANSFORMER SCREWS and remove TRANSFORMER,
G.
Unsplice MALE ADAPTER from TRANSFORMER,
H.
Cut secondary (red) leads 6“ to 8“ from transformer and discard
faulty transformer.
1,
Re-assemble new transformer to U-BRACKET splice secondary
(red) leads to socket leads. Tie a knot with these leads to avoid
strain on splices,
J.
Re-splice male adapter leads to primary leads of the TRANSFORMER
Tie a knot with these leads to avoid strain on splices,
Reassemble “U-brackets” and secure with “conversion kit screws.”
K.
Re-install CONVERSION KIT bv following instruction of section 2
L.
through 5 of this INSTRUCTION. -
LAMP -
R
&
.
!
SOCKET
LAMP SPRING
L
WARNING: USE ONLY WITH FRAME-IN KITS
PROVIDED BY LIGHTOLIER INC. USE
MANUFACTURER’S FRAME-IN KITS VOIDS THE UNDERWRITERS LABORATORIES LISTING AND COULD Constitute A FIRE HAZARD.
OF OTHER
I
~,MARyLE~s‘U-BRACKETS
FIG. H
TRANSFORMER MOUNTING SCREW (2)
