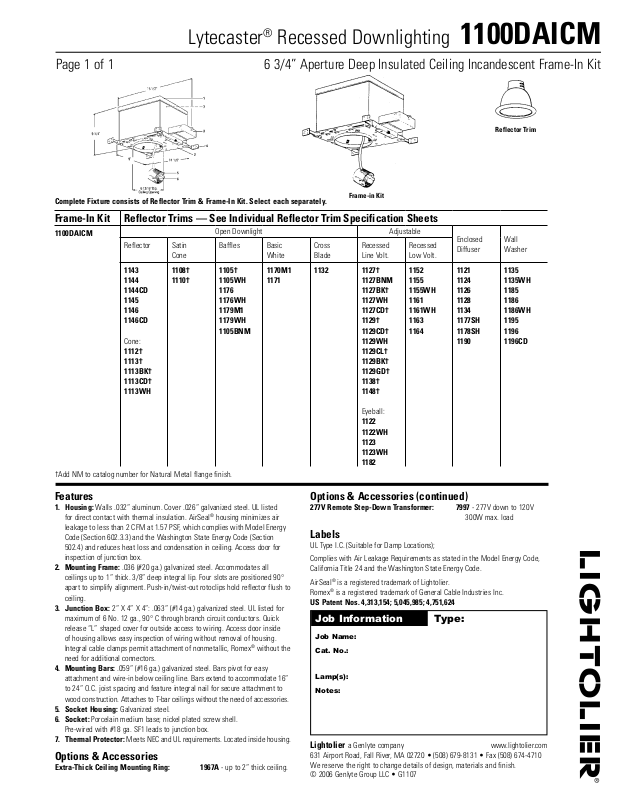

Lytecaster
®
Recessed Downlighting 1100DAICM
Page 1 of 1 6 3/4” Aperture Deep Insulated Ceiling Incandescent Frame-In Kit
Reflector Trim
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-in Kit
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
1100DAICM
Reflector Satin
Cone
1143
1144
1144CD
1145
1146
1146CD
Cone:
1112†
1113†
1113BK†
1113CD†
1113WH
†Add NM to catalog number for Natural Metal flange finish.
1108†
1110†
Open Downlight Adjustable
Baffles Basic
White
1105†
1105WH
1176
1176WH
1179M1
1179WH
1105BNM
1170M1
1171
Cross
Blade
1132 1127†
Recessed
Line Volt.
1127BNM
1127BK†
1127WH
1127CD†
1129†
1129CD†
1129WH
1129CL†
1129BK†
1129GD†
1138†
1148†
Eyeball:
1122
1122WH
1123
1123WH
1182
Recessed
Low Volt.
1152
1155
1155WH
1161
1161WH
1163
1164
Enclosed
Diffuser
1121
1124
1126
1128
1134
1177SH
1178SH
1190
Wall
Washer
1135
1135WH
1185
1186
1186WH
1195
1196
1196CD
Features
1. Housing: Walls .032” aluminum. Cover .026” galvanized steel. UL listed
for direct contact with thermal insulation. AirSeal® housing minimizes air
leakage to less than 2 CFM at 1.57 PSF, which complies with Model Energy
Code (Section 602.3.3) and the Washington State Energy Code (Section
502.4) and reduces heat loss and condensation in ceiling. Access door for
inspection of junction box.
2. Mounting Frame: .036 (#20 ga.) galvanized steel. Accommodates all
ceilings up to 1” thick. 3/8” deep integral lip. Four slots are positioned 90°
apart to simplify alignment. Push-in/twist-out rotoclips hold reflector flush to
ceiling.
3. Junction Box: 2” X 4” X 4”: .063” (#14 ga.) galvanized steel. UL listed for
maximum of 6 No. 12 ga., 90° C through branch circuit conductors. Quick
release “L” shaped cover for outside access to wiring. Access door inside
of housing allows easy inspection of wiring without removal of housing.
Integral cable clamps permit attachment of nonmetallic, Romex® without the
need for additional connectors.
4. Mounting Bars: .059” (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate 16”
to 24” O.C. joist spacing and feature integral nail for secure attachment to
wood construction. Attaches to T-bar ceilings without the need of accessories.
5. Socket Housing: Galvanized steel.
6. Socket: Porcelain medium base; nickel plated screw shell.
Pre-wired with #18 ga. SF1 leads to junction box.
7. Thermal Protector: Meets NEC and UL requirements. Located inside housing.
Options & Accessories
Extra-Thick Ceiling Mounting Ring: 1967A - up to 2” thick ceiling.
Options & Accessories (continued)
277V Remote Step-Down Transformer: 7997 - 277V down to 120V
300W max. load
Labels
UL Type I.C. (Suitable for Damp Locations);
Complies with Air Leakage Requirements as stated in the Model Energy Code,
California Title 24 and the Washington State Energy Code.
AirSeal® is a registered trademark of Lightolier.
Romex® is a registered trademark of General Cable Industries Inc.
US Patent Nos. 4,313,154; 5,045,985; 4,751,624
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • G1107
