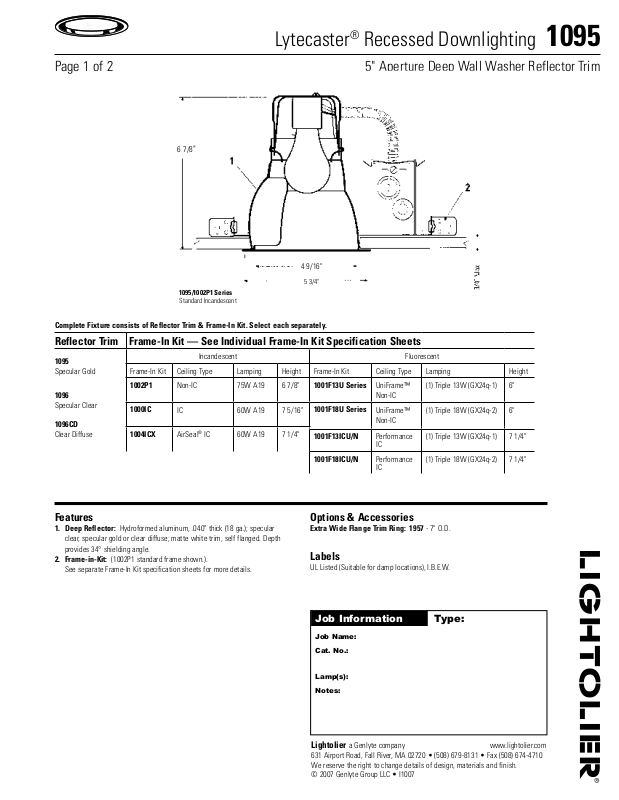

Lightolier 1095 User Manual
Lytecaster
®
Recessed Downlighting 1095
Page 1 of 2 5" Aperture Deep Wall Washer Reflector Trim
6 7/8"
4 9/16"
5 3/4"
1095/1002P1 Series
Standard Incandescent
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
1095
Specular Gold
1096
Specular Clear
1096CD
Clear Diffuse
Frame-In Kit Ceiling Type Lamping Height Frame-In Kit Ceiling Type Lamping Height
1002P1
1000IC
1004ICX
Incandescent Fluorescent
Non-IC 75W A19 6 7/8"
IC 60W A19 7 5/16"
AirSeal® IC 60W A19 7 1/4"
1001F13U Series
1001F18U Series
1001F13ICU/N
UniFrame™
Non-IC
UniFrame™
Non-IC
Performance IC(1) Triple 13W (GX24q-1) 7 1/4"
(1) Triple 13W (GX24q-1) 6"
(1) Triple 18W (GX24q-2) 6"
Features
1. Deep Reflector: Hydroformed aluminum, .040" thick (18 ga.); specular
clear, specular gold or clear diffuse; matte white trim, self flanged. Depth
provides 34° shielding angle.
2. Frame-in-Kit: (1002P1 standard frame shown.).
See separate Frame-In Kit specification sheets for more details.
1001F18ICU/N
Performance IC(1) Triple 18W (GX24q-2) 7 1/4"
Options & Accessories
Extra Wide Flange Trim Ring: 1957 - 7" O.D.
Labels
UL Listed (Suitable for damp locations), I.B.E.W.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • I1007
Lytecaster
Downlight
3’
3’
3’
3’
11 f.c.
9 f.c.
Downlight
3’
3’
3’
3’
11 f.c.
9 f.c.
®
Recessed Downlighting 1095
Page 2 of 2 5" Aperture Deep Wall Washer Reflector Trim
Lighting Data
LIGHTING DATA
EXAMPLE: With specular clear and 75W A-19 units, located 3’
from wall and 3’ on center, (matching downlights 3’ on center),
the illumination on the wall 3’ down from the ceiling is 15 f.c.
beneath and 14 f.c. between fixtures.
Footcandles on Wall From Multiple Units: 75W A19 Specular Clear
UNITS 2 FEET FROM WALL
2’
1
17 17 17
2
23 22 23
3
21 21 21
4
17 16 17
12 12 12
5
9 9 9
6
7 7 7
7
DISTANCE FROM CEILING, FT.
5 5 5
8
4 4 4
9
Footcandle values are averaged and rounded off and are based on a minimum of
five units.
Candlepower Curve
3’
13 9 13
17 14 17
15 14 15
11 11 11
8 8 8
7 7 7
5 5 5
4 4 4
3 3 3
4’
13 5 13
15 8 15
12 10 12
8 9 8
6 7 6
5 5 5
4 4 4
3 3 3
3 3 3
LIGHTING DATA
EXAMPLE: With specular clear and 13W QT, located 3’ from
wall and 3’ on center, (matching downlights 3’ on center), the
illumination on the wall 3’ down from the ceiling is 11 f.c.
beneath and 9 f.c. between fixtures.
Footcandles on Wall From Multiple Units: 75W A19 Specular Clear
UNITS 2 FEET FROM WALL
2’
1
13 12 13
2
17 17 17
3
15 15 15
4
11 11 11
8 8 8
5
6 6 6
6
5 5 5
7
DISTANCE FROM CEILING, FT.
4 4 4
8
3 3 3
9
Footcandle values are averaged and rounded off and are based on a minimum of
five units.
Candlepower Curve
3’
10 7 10
13 10 13
11 9 11
8 7 8
6 6 6
4 4 4
3 3 3
3 3 3
2 2 2
4’
9 4 9
12 6 12
9 7 9
6 5 6
5 4 5
3 3 3
3 3 3
2 2 2
2 2 2
Down Wall
Report 1248FR
DOWNLIGHT SPACING RATIO= 1.2
Efficiency = 49.1%
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50 30 10 0
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 50
1 .54 .52 .51 .53 .52 .50 .51 .50 .49 .49 .48 .47 .47 .47 .46 45
2 .50 .47 .45 .49 .47 .45 .47 .45 .44 .46 .44 .43 .44 .43 .42 41
3 .45 .43 .41 .45 .42 .40 .43 .41 .40 .42 .40 .39 .41 .40 .38 38
4 .42 .39 .37 .41 .39 .36 .40 .38 .36 .39 .37 .36 .38 .37 .35 34
5 .39 .35 .33 .38 .35 .33 .37 .35 .33 .36 .34 .32 .36 .34 .32 31
6 .36 .32 .30 .35 .32 30 .34 .32 .30 .34 .31 .29 .33 .31 .29 28
7 .33 .29 .27 .32 .29 .27 .32 .29 .27 .31 .28 .26 .30 .28 .26 26
8 .30 .27 .24 .30 .26 .24 .29 .26 .24 .29 .26 .24 .28 .26 .24 23
ROOM CAVITY RATIO
9 .28 .24 .22 .27 .24 .22 .27 .24 .22 .26 .24 .22 .26 .23 .22 21
20% FLOOR CAVITY REFLECTANCE
DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES.
Down Wall
Report 1231FR
Efficiency = 51.3%
DOWNLIGHT SPACING RATIO= 1.2
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50 30 10 0
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 51
1 .56 .55 .53 .55 .54 .53 .53 .52 .51 .51 .50 .49 .49 .49 .48 47
2 .52 .49 .47 .51 .49 .47 .49 .47 .46 .47 .46 .45 .46 .45 .44 43
3 .47 .44 .42 .47 .44 .42 .45 .43 .41 .44 .42 .40 .43 .41 .40 39
4 .44 .40 .39 .43 .40 .38 .42 .39 .37 .41 .39 .37 .40 .35 .36 35
5 .40 .37 .34 .40 .36 .34 .39 .36 .34 .38 .35 .33 .37 .35 .33 32
6 .37 .33 .31 .36 .33 31 .36 .33 .30 .35 .32 .30 .34 .32 .30 29
7 .34 .30 .28 .33 .30 .28 .33 .30 .27 .32 .29 .27 .31 .29 .27 26
8 .31 .28 .25 .31 .27 .25 .30 .27 .25 .30 .27 .25 .29 .26 .25 24
ROOM CAVITY RATIO
9 .29 .25 .22 .28 .25 .22 .28 .25 .22 .27 .24 .22 .27 .24 .22 21
20% FLOOR CAVITY REFLECTANCE
DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES.
Job Information Type:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • I1007
