Lytecaster
7 5/8"
4 3/4"
5 7/8"
®

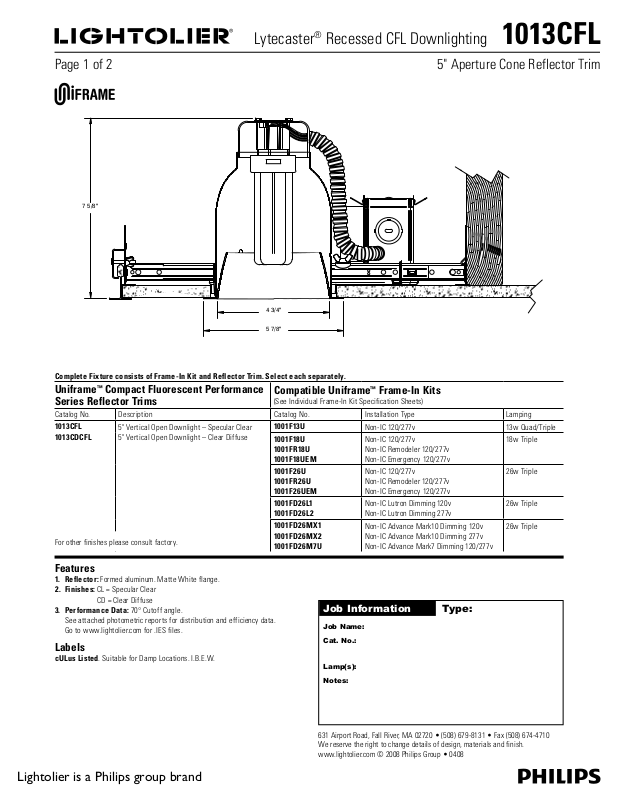

Recessed CFL Downlighting 1013CFL
Page 1 of 2 5" Aperture Cone Reflector Trim
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe™ Compact Fluorescent Performance
Series Reflector Trims
Catalog No. Description Catalog No. Installation Type Lamping
1013CFL
1013CDCFL
For other finishes please consult factory.
5" Vertical Open Downlight – Specular Clear
5" Vertical Open Downlight – Clear Diffuse
Compatible Uniframe
(See Individual Frame-In Kit Specification Sheets)
1001F13U
1001F18U
1001FR18U
1001F18UEM
1001F26U
1001FR26U
1001F26UEM
1001FD26L1
1001FD26L2
1001FD26MX1
1001FD26MX2
1001FD26M7U
™
Frame-In Kits
Non-IC 120/277v 13w Quad/Triple
Non-IC 120/277v
Non-IC Remodeler 120/277v
Non-IC Emergency 120/277v
Non-IC 120/277v
Non-IC Remodeler 120/277v
Non-IC Emergency 120/277v
Non-IC Lutron Dimming 120v
Non-IC Lutron Dimming 277v
Non-IC Advance Mark10 Dimming 120v
Non-IC Advance Mark10 Dimming 277v
Non-IC Advance Mark7 Dimming 120/277v
Features
1. Reflector: Formed aluminum. Matte White flange.
2. Finishes: CL = Specular Clear
CD = Clear Diffuse
3. Performance Data: 70° Cutoff angle.
See at tached photometric reports for distribution and efficiency data.
Go to w ww.lightolier.com for .IES files.
Job Information Type:
Job Name:
Cat. No.:
Labels
cULus Listed. Suitable for Damp Locations. I.B.E.W.
Lamp(s):
Notes:
18w Triple
26w Triple
26w Triple
26w Triple
Lightolier is a Philips group brand
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • 0408
Lytecaster
60°
®
Recessed CFL Downlighting 1013CFL
Page 2 of 2 5" Aperture Cone Reflector Trim
26W Sylvania Dulux T/E Triple Tube. Lumen Rating = 1800 LMS. Specular Clear Trim
Zonal Lumens and Percentages
Zone Lumens % Lamp %luminaire
0-30 294 16.35 34.91
0-40 501 27.86 59.47
0-60 825 45.89 97.96
0-90 843 46.84 100.00
40-90 341 18.99 40.53
60-90 17 .96 2.04
90-180
0-180
100
200
300
400
0 .00 .00
843 46.84 100.00
** Efficiency = 46.8% **
60°
30°
SC = 1.3
Cert ified Test R eport No. 3724FR
Compu ted by LSI Program
**Test-L ite**
Candlepower Summary
Angle M ean Cp Lumen s
0 284
5 302 29
10
320
15
325 94
20 362
25 377 171
30 363
35 330 207
40 296
45 273 208
50 231
55 121 117
60 47
65 9 16
70 1
75 0 1
80 0
85 0 0
90 0
Certified Test Report No. 3724FR
Computed by LSI Program **Test-Lite**
Lytecaster 6.75" Dia. Recessed Vertical Downlight
26W Sylvania Dulux T/E Triple Tube. Lumen Rating = 1800 LMS.
Room
Dimensions
Height 8.5 10.0 13.0 16.0 8.5 10.0 13.0 16.0
W L
20 20 66 59 46 41 66 59 46 41
20 30 66 62 53 43 66 62 53 43
20 40 66 62 53 49 66 62 53 49
20 60 66 63 53 49 66 63 53 49
30 20 66 65 51 42 66 65 51 42
30 30 66 67 58 45 66 67 58 45
30 40 66 67 59 50 66 67 59 50
30 60 66 67 59 51 66 67 59 51
30 80 67 67 59 51 67 67 59 51
40 20 66 65 55 46 66 65 55 46
40 30 66 67 61 49 66 67 60 49
40 40 66 67 61 53 66 67 61 53
40 60 67 67 61 53 67 67 61 53
40 80 67 65 61 53 67 65 61 53
40 100 67 65 61 53 67 65 61 53
60 30 66 67 61 52 66 67 61 52
60 40 67 67 61 55 67 67 61 56
60 60 67 65 61 56 67 65 61 56
60 80 67 65 61 56 67 65 61 56
60 100 67 65 61 56 67 65 61 56
100
100
100
100 100
Cat. # RA-9743A (Elongated)
Universal Ballast #C2642UNVBES
IES Visual Comfort Probability
CC, WALL + FC Reflectance = 80, 50, 20
Work Plane Illuminance = 100.0 Footcandles
Work Plane Height = 2.5 Feet
All Dimensions In Feet
Luminaires Lengthwise Luminaires Crosswise
40 67 65 61 56 67 65 61 56
60 67 65 61 56 67 65 61 56
80 67 65 61 56 67 65 61 56
67 65 61 56 67 65 61 56
CC 80 70 50 30 10
Wall 7 0 50 30 10 70 50 3 0 10 50 30 10 50 30 10 50 30 10 0
RCR Zonal C avity Met hod – Effec tive Floor C avity Refl ectance = . 20
0 .56 .56 .56 .56 .54 .54 .54 .54 .52 .52 .52 .50 .50 .50 .48 .48 .48 .47
1 .53 .51 .50 .49 .52 .50 .49 .48 .48 .47 .46 .46 .46 .45 .45 .44 .44 .43
2 .49 .47 .45 .43 .48 .46 .44 .42 .44 .43 .41 .43 .42 .40 .42 .41 .40 .39
3 .46 .43 .40 .38 .45 .42 .39 .37 .41 .38 .37 .39 .38 .36 .38 .37 .36 .35
4 .43 .39 .36 .33 .42 .38 .36 .33 .37 .35 .33 .36 .34 .32 .35 .34 .32 .31
5 .40 .35 .32 .30 .39 .35 .32 .29 .34 .31 .29 .33 .31 .29 .32 .30 .29 .28
6 .37 .32 .29 .26 .36 .32 .28 .26 .31 .28 .26 .30 .27 .26 .29 .27 .25 .25
7 .34 .29 .25 .23 .33 .28 .25 .23 .28 .25 .23 .27 .24 .22 .26 .24 .22 .21
Room C avity Rat io
8 .32 .26 .22 .20 .31 .26 .22 .20 .25 .22 .20 .25 .22 .20 .24 .21 .20 .19
9 .29 .24 .20 .18 .29 .23 .20 .18 .23 .20 .17 .22 .19 .17 .22 .19 .17 .16
10
.27 .21 .18 .15 .26 .21 .18 .15 .20 .17 .15 .20 .17 .15 .20 .17 .15 .14
Coef ficient s of Utiliz ation
Deter mined In Acc ordance wi th Current I ES Published Pr ocedures
Luminai re Input Wat ts = 29.0
Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • 0408
