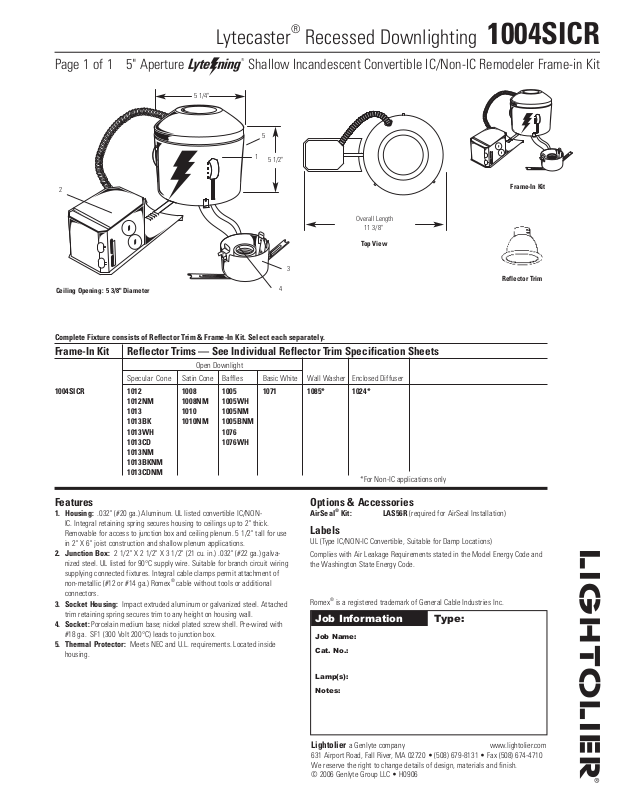

Lightolier 1004SICR User Manual
Lytecaster
4
5
1
3
2
11 3/8"
Overall Length
Frame-In Kit
Top View
5 1/4"
5 1/2"
Page 1 of 1 5" Aperture 0
Ceiling Opening: 5 3/8" Diameter
®
Recessed Downlighting 1004SICR
®
Shallow Incandescent Convertible IC/Non-IC Remodeler Frame-in Kit
Reflector Trim
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Open Downlight
Specular Cone Satin Cone Baffles Basic White Wall Washer Enclosed Diffuser
1004SICR 1012 1008 1005 1071 1085* 1024*
1012NM 1008NM 1005WH
1013 1010 1005NM
1013BK 1010NM 1005BNM
1013WH 1076
1013CD 1076WH
1013NM
1013BKNM
1013CDNM
Features
1. Housing: .032" (#20 ga.) Aluminum. UL listed convertible IC/NON-
IC. Integral retaining spring secures housing to ceilings up to 2" thick.
Removable for access to junction box and ceiling plenum. 5 1/2" tall for use
in 2" X 6" joist construction and shallow plenum applications.
2. Junction Box: 2 1/2" X 2 1/2" X 3 1/2" (21 cu. in.) .032" (#22 ga.) galvanized steel. UL listed for 90°C supply wire. Suitable for branch circuit wiring
supplying connected fixtures. Integral cable clamps permit attachment of
non-metallic (#12 or #14 ga.) Romex® cable without tools or additional
connectors.
3. Socket Housing: Impact extruded aluminum or galvanized steel. Attached
trim retaining spring secures trim to any height on housing wall.
4. Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with
#18 ga. SF1 (300 Volt 200°C) leads to junction box.
5. Thermal Protector: Meets NEC and U.L. requirements. Located inside
housing.
Options & Accessories
AirSeal® Kit: LAS56R (required for AirSeal Installation)
Labels
UL (Type IC/NON-IC Convertible, Suitable for Damp Locations)
Complies with Air Leakage Requirements stated in the Model Energy Code and
the Washington State Energy Code.
Romex® is a registered trademark of General Cable Industries Inc.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
*For Non-IC applications only
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • H0906
