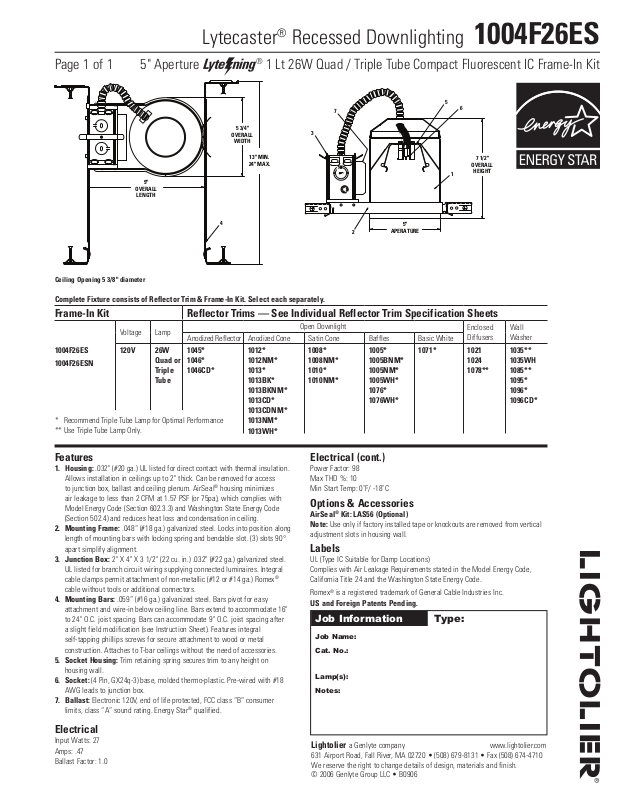

Lightolier 1004F26ES User Manual
Lytecaster
13" MIN.
24" MAX.
9"
OVERALL
LENGTH
5 3/4"
OVERALL
WIDTH
5"
APERATURE
2
3
4
7 1/2"
OVERALL
HEIGHT
1
5
6
7
®
Recessed Downlighting 1004F26ES
Page 1 of 1 5" Aperture 0
Ceiling Opening 5 3/8" diameter
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
®
1 Lt 26W Quad / Triple Tube Compact Fluorescent IC Frame-In Kit
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Voltage Lamp
1004F26ES
1004F26ESN
* Recommend Triple Tube Lamp for Optimal Performance
** Use Triple Tube Lamp Only.
120V 26W
Quad or
Triple
Tube
Anodized Reflector Anodized Cone Satin Cone Baffles Basic White
1045*
1046*
1046CD*
1012*
1012NM*
1013*
1013BK*
1013BKNM*
1013CD*
1013CDNM*
1013NM*
1013WH*
Open Downlight
1008*
1008NM*
1010*
1010NM*
1005*
1005BNM*
1005NM*
1005WH*
1076*
1076WH*
1071* 1021
Enclosed
Diffusers
1024
1078**
Wall
Washer
1035**
1035WH
1085**
1095*
1096*
1096CD*
Features
1. Housing: .032" (#20 ga.) UL listed for direct contact with thermal insulation.
Allows installation in ceilings up to 2" thick. Can be removed for access
to junction box, ballast and ceiling plenum. AirSeal® housing minimizes
air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with
Model Energy Code (Section 602.3.3) and Washington State Energy Code
(Section 502.4) and reduces heat loss and condensation in ceiling.
2. Mounting Frame: .048” (#18 ga.) galvanized steel. Locks into position along
length of mounting bars with locking spring and bendable slot. (3) slots 90°
apart simplify alignment.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.
UL listed for branch circuit wiring supplying connected luminaires. Integral
cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex®
cable without tools or additional connectors.
4. Mounting Bars: .059” (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate 16"
to 24" O.C. joist spacing. Bars can accommodate 9" O.C. joist spacing after
a slight field modification (see Instruction Sheet). Features integral
self-tapping phillips screws for secure attachment to wood or metal
construction. Attaches to T-bar ceilings without the need of accessories.
5. Socket Housing: Trim retaining spring secures trim to any height on
housing wall.
6. Socket: (4 Pin, GX24q-3) base, molded thermo-plastic. Pre-wired with #18
AWG leads to junction box.
7. Ballast: Electronic 120V, end of life protected, FCC class “B” consumer
limits, class “A” sound rating. Energy Star® qualified.
Electrical
Input Watts: 27
Amps: .47
Ballast Factor: 1.0
Electrical (cont.)
Power Factor: 98
Max THD %: 10
Min Start Temp: 0˚F/ -18˚C
Options & Accessories
AirSeal® Kit: LAS56 (Optional)
Note: Use only if factory installed tape or knockouts are removed from vertical
adjustment slots in housing wall.
Labels
UL (Type IC Suitable for Damp Locations)
Complies with Air Leakage Requirements stated in the Model Energy Code,
California Title 24 and the Washington State Energy Code.
Romex® is a registered trademark of General Cable Industries Inc.
US and Foreign Patents Pending.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • B0906
