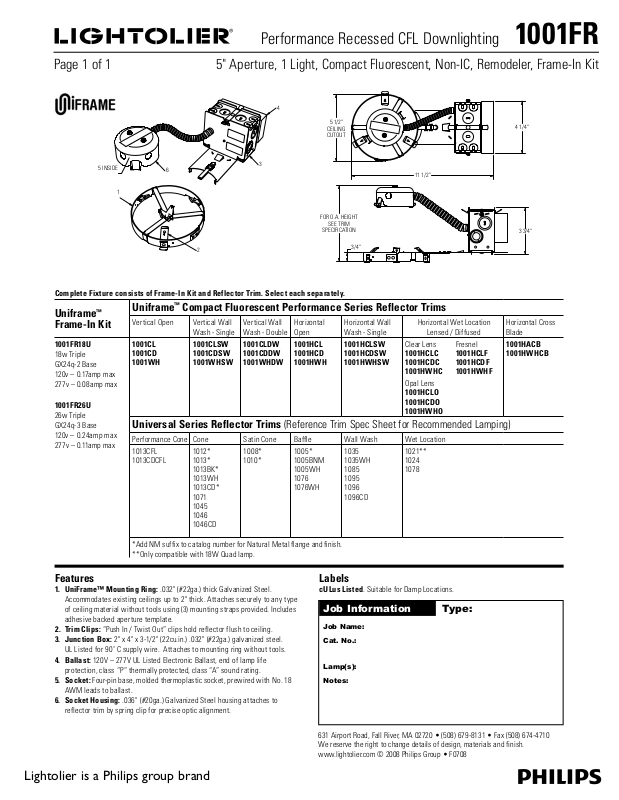

Lightolier 1001FR User Manual

Performance Recessed CFL Downlighting 1001FR

3 3/4"

3/4"

FOR O.A. HEIGHT

SEE TRIM

SPECIFICATION

1

2

3

4

6

5 INSIDE

11 1/2"

4 1/4"

5 1/2"
CEILING
CUTOUT

Page 1 of 1 5" Aperture, 1 Light, Compact Fluorescent, Non-IC, Remodeler, Frame-In Kit

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

Uniframe™
Frame-In Kit

1001FR18 U

18w Triple
GX24q-2 Base
120v – 0.17amp max
277v – 0.08amp max

1001FR26U

26 w Tripl e

GX24q-3 Base
120v – 0.24amp max
277v – 0.11amp max

Uniframe

Vertical Open Vertical Wall

100 1CL
100 1CD
1001WH

Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)

Performance Cone Cone Satin Cone Baffle Wall Wash Wet Location

1013CFL
1013CDCFL

™

Compact Fluorescent Performance Series Reflector Trims

Wash - Single

100 1CLSW
100 1CDSW
1001WHSW

1012*
1013*
1013BK*
1013W H
1013CD*
1071

1045
1046
1046CD

Vertical Wall
Wash - Double

100 1CLDW
100 1CDDW
1001WHDW

1008*

1010*

Horizontal

Open

100 1HCL
100 1HCD
100 1HWH

100 5*
1005BNM
1005WH
1076
1076W H

Horizontal Wall
Wash - Single

100 1HCL SW
100 1HCDSW
100 1HWHSW

1035
1035WH

1085
1095
1096
1096CD

Horizontal Wet Location

Clear Lens Fresnel

100 1HCLC 100 1HCL F
1001HCDC 1001HCDF
100 1HWHC 100 1HWHF

Opal Lens

100 1HCLO
1001HCDO
100 1HWHO

102 1**

1024
1078

Lensed / Diffused

Horizontal Cross

Blade

100 1HACB
100 1HWHCB

*Add NM sufx to catalog number for Natural Metal ange and nish.
**Only compatible with 18W Quad lamp.

Features

1. UniFrame™ Mounting Ring: .032" (#22ga.) thick Galvanized Steel.

Accommodates existing ceilings up to 2" thick. Attaches securely to any type
of ceiling material without tools using (3) mounting straps provided. Includes
adhesive backed aperture template.

2. Trim Clips: “Push In / Twist Out” clips hold reflector flush to ceiling.

3. Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel.

UL Listed for 90˚ C supply wire. Attaches to mounting ring without tools.

4. Ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life

protection, class “P” thermally protected, class “A” sound rating.

5. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18

AWM leads to ballast.

6. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to
reflector trim by spring clip for precise optic alignment.

Lightolier is a Philips group brand

Labels

cULus Listed. Suitable for Damp Locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2008 Philips Group • F0708
