Lightinthebox GS-G90E Instruction Manual

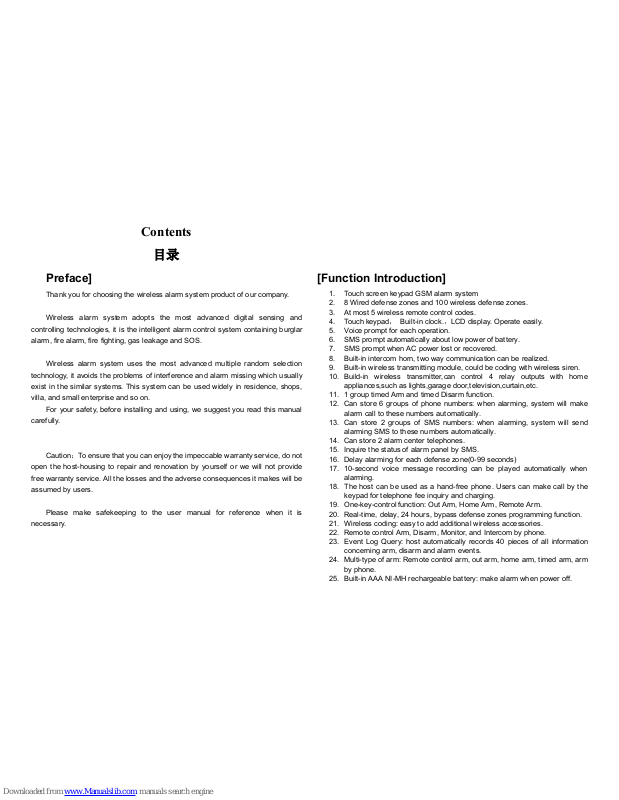

Contents
目录
Preface]
Thank you for choosing the wireless alarm system product of our company.
Wireless alarm system adopts the most advanced digital sensing and
controlling technologies, it is the intelligent alarm control system containing burglar
alarm, fire alarm, fire fighting, gas leakage and SOS.
Wireless alarm system uses the most advanced multiple random selection
technology, it avoids the problems of interference and alarm missing which usually
exist in the similar systems. This system can be used widely in residence, shops,
villa, and small enterprise and so on.
For your safety, before installing and using, we suggest you read this manual
carefully.
Caution：To ensure that you can enjoy the impeccable warranty service, do not
open the host-housing to repair and renovation by yourself or we will not provide
free warranty service. All the losses and the adverse consequences it makes will be
assumed by users.
Please make safekeeping to the user manual for reference when it is
necessary.
[Function Introduction]
1. Touch screen keypad GSM alarm system
2. 8 Wired defense zones and 100 wireless defense zones.
3. At most 5 wireless remote control codes.
4. Touch keypad， Built-in clock.，LCD display. Operate easily.
5. Voice prompt for each operation.
6. SMS prompt automatically about low power of battery.
7. SMS prompt when AC power lost or recovered.
8. Built-in intercom horn, two way communication can be realized.
9. Built-in wireless transmitting module, could be coding with wireless siren.
10. Build-in wireless transmitter,can control 4 relay outputs with home
appliances,such as lights,garage door,television,curtain,etc.
11. 1 group timed Arm and timed Disarm function.
12. Can store 6 groups of phone numbers: when alarming, system will make
alarm call to these numbers automatically.
13. Can store 2 groups of SMS numbers: when alarming, system will send
alarming SMS to these numbers automatically.
14. Can store 2 alarm center telephones.
15. Inquire the status of alarm panel by SMS.
16. Delay alarming for each defense zone(0-99 seconds)
17. 10-second voice message recording can be played automatically when
alarming.
18. The host can be used as a hand-free phone. Users can make call by the
keypad for telephone fee inquiry and charging.
19. One-key-control function: Out Arm, Home Arm, Remote Arm.
20. Real-time, delay, 24 hours, bypass defense zones programming function.
21. Wireless coding: easy to add additional wireless accessories.
22. Remote control Arm, Disarm, Monitor, and Intercom by phone.
23. Event Log Query: host automatically records 40 pieces of all information
concerning arm, disarm and alarm events.
24. Multi-type of arm: Remote control arm, out arm, home arm, timed arm, arm
by phone.
25. Built-in AAA NI-MH rechargeable battery: make alarm when power off.
[Alarm Host Diagram]
The host shall be installed in the Centre of the prevent site which could realize best
receiving effect from all wireless detectors. Please note that keep the host away
from large-sized metallic objects and home appliances producing high-frequency
interference; meanwhile avoid steel-reinforced concrete and fire-proof doors.
Panel schemes:
Installation drawing on the back：
wire connecting terminal：
LCD display：
[Function Setting]
1. Initialization
Please insert SIM card and insert the adapter output terminal into the power hole of
the host, and then power on the system. Alarm panel will take about 1 min to search
the GSM network.in the period of searching GSM network,the alarm panel will be in
Freeze status for a while ,until appear on LCD display,the alarm panel will
work properly.
2. System setting
Press firstly, then input 4- digit password by the keypad on the host. You will
hear a voice prompt: please enter instruction. You can perform different settings
repeatedly as long as the system keeps in setting status and after input different
settings,press to confirm. The system will exit setting mode and return to main
interface if you don't press any keypad button for 40 seconds.
Note: The system default password is [6666].
Operating method: Passwordsetting code
X indicates: 4-digits program password.
LCD display：
3. Exit Setting
Press buttons, the host emits a long beep and exits settings to main-interface.
4. Coding of Remote Controller Setting
The remote controller has to be coded to the alarm host in order to perform
normally.
Press firstly, then input 4- digit password by the keypad on the host,and
input instruction code [21], Press to confirm,then you will hear “remote
control coding” .the [ ] indicator is on without flashing; Press any button on
the wireless remote controller, the host makes a long beep and you will hear
“coding completed” [ ] indicators goes out, indicating the remote controller
succeeds in coding. The code of next remote controller will be displayed on the
LCD screen automatically , when coding completed.
Operating method : Password [21]
Notes: The same remote controller could be coded just one time. You can add
maximum 5 remote controllers.
LCD display:
5. Remote Controller Deleting Setting
The remote controller can’t control the host after it is deleted.
Press firstly, then input 4- digit password by the keypad,and input
instruction code [22], Press to confirm.The main a long beep, You will
hear a voice prompt “delete completed”.
Operating: Password [22]
LCD display:
6. Coding of Wireless Detector Setting
Wireless detectors have to be coded to the host in order to trigger its
alarm.
Press firstly, then input 4- digit password by the keypad,and input instruction
code [23], input the defense zone number you want to code [02~99],Press
to confirm,The host emits a long beep and the corresponding defense zone is
displayed on the screen. You will hear a voice prompt “detector coding”. Then
trigger a wireless detector to emit a wireless signal; after receiving the signal,
the host makes a long beep, and you will hear “ coding completed”, the
[ ] indicator goes out at the same time.
Operating method: Password[23][XX]
XX Indicates：02~99 defense zones number
Example: Password[23][02]
LCD display:
7. Single Wireless Detector Deleting Setting
The wireless detector can’t control the host after it is deleted.
Press firstly, then input 4- digit password by the keypad,input instruction
code [24] and then press the [02~99] defense zone number needs to be deleted,
finally press to confirm. The host emits a long beep ,You will hear a voice
prompt “delete completed”.
Operating method: Password[24][XX]
XX indicates：02～99 defense zones number。
Example：Delete 02 defense zones
Operating method: Password[24][02]
LCD display:
8. All Wireless Detector Deleting Setting
The wireless detector can’t trigger the host to alarm after the whole
deletion.
Press firstly, then input 4- digit password by the keypad,input instruction
code[25],and then press to confirm.The host emits a long beep,and You will
hear a voice prompt “delete completed”.
Operating method: Password[25]
LCD display:
9. Alarm Zone Type Setting
Alarm Zone type is convenient to decide which detector will be alarmed.
There are 4 defense types:
1). Detector alarm type is set to “0”: This detector will not trigger the host to alarm
in any status.
2). Detector alarm type is set to “1”: This detector will trigger the host to alarm
whether in out arm or home arm.
3). Detector alarm type is set to “2”: This detector will trigger the host to alarm
only in Out Arm state; host is in Home Arm state, the detector cannot trigger the
host to alarm.
4). Detector alarm type is set to “3”: This detector will trigger the host to alarm in
any status.
Wireless detector alarm type setting
Press firstly, then input 4- digit password by the keypad,input instruction code
[26], and press the defense zone [02~99] and then input [0~3] about detector
alarm type, finally press to confirm. The host emits a long beep,You will hear a
voice prompt “setting completed”
Operating method: Password[26][XX][Y]
XX indicates: two defense zones number.
Y indicates: one defense zone alarm type
Example: setting 02 defense zone alarm type to be Out Arm or Home Arm.
Operating method: Password[26][02][1]
LCD display:
Wired detector alarm type setting
Press firstly, then input 4- digit password by the keypad,input instruction
code [47], and then press the defense zone [81~88] and then input [0~3] about
detector alarm type, finally press to confirm. The host emits a long beep ,You
will hear a voice prompt “setting completed”
Operating method: Password[47][XX][Y]
XX indicates: two defense zones number.
Y indicates: one defense zone alarm type
Notes: wired defense zone of Z1 is equal to zone of 81, wired defense zone of
Z2 is equal to zone of 82, and wired defense zone of Z8 is equal to zone of 88
in turn.
Example: alarm type about defense zone of 82 is set to out arm or home arm.
Operating method: Password[47][82][1]
LCD display:
10.Wireless Equipment Coding Setting
Press firstly, then input 4- digit password by the keypad,input instruction
code [27] + 8 wireless equipment coding, then enter to confirm. The host
makes a long beep,you will hear a voice prompt “setting completed”.
Note: Wireless equipment coding includes sc2262 coding four data bits & 8
address bits.
Operating method： Password[27][XXXXXXXX]
XXXXXXXX indicates：8 wireless equipment coding
Example: detailed operating of wireless equipment coding is“01020102”
Operating method： Password[27][01020102]
LCD display

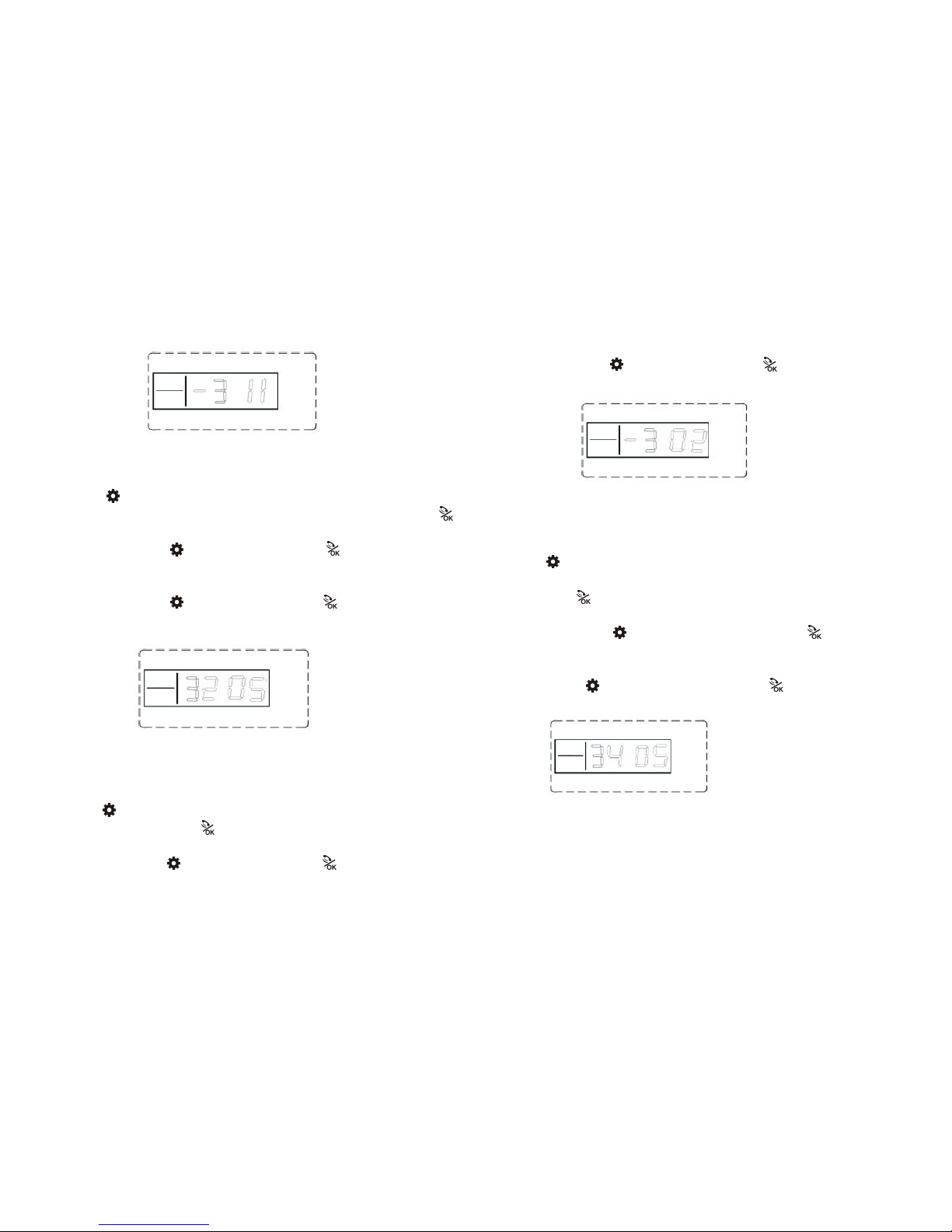

11.Remote Controller Sound Prompt setting
In arm or disarm, external siren prompt arm or disarm.
Press firstly, then input 4- digit password by the keypad,input instruction
code [31] on the keypad, then enter[0~1], finally press ； The host makes a
long beep. You will hear a voice prompt “setting completed”.
Operating method： Password[31][X]
X =“0” indicates：Remote controller Sound Prompt closed；
X =“1” indicates: Remote controller Sound Prompt open；
Example: Detailed operating of external siren prompt open
Operating method： Password[31][1]
LCD display:
