BATTERY W-TRANSMITTER USER MANUAL
Page 2
Introduction
Unpacking: Every transmitter has been thoroughly tested and has been shipped in perfect operating
condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories
necessary to operate the unit has arrived intact. In the case damage has been found or parts are missing,
please contact the manufacturer or your dealer for further instructions. Do not return this unit to your
dealer without first contacting.
Introduction: The Battery W-transmitter is a DMX wireless transmitter, weight and compact which
makes it a great piece for mobile DJ’s and clubs. The unit can also be controlled via DMX controller.
DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by
console ) by wireless way, which solves lighting control issues of wireless transmitting completely
between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited
completely. It can also an ensure without any time delay when signal data is transmitting, signal
data is real time and reliably.
This product adopt global opening 2.4G ISM frequency section without permission limited
High effective GFSK modulate, communication design is 126 channels jumping frequency，high
anti-jamming ability.
Application:
Stage lighting, Disco hall, Large literature performance, Gymnasium lighting, Temporary stage
performance, City lighting system, TV station, Conference center, professional showplace, Topic
park, Bar lighting and so on.
Product Features:
1. Product model: 2.4G DMX512 wireless receiver/transmitter
2. 2X8 bit LCD to display working condition and parameter
3. 4 grade power rate output for option.
4. 126 channels jumping frequency self-moving，self-moving to option non-interfere frequency
section, ensuring communication is reliable.
5. 16 groups ID coding for setting，User can use 16 groups individual wireless net without any
interfere each other in the same place.
6. Input voltage ：9-12VDC 300MA MIN
7. Communication distance：400M（visible distance）
8. Working frequency：2.4G ISM,126 channels
9. Max transmitting power rate：20dBm
10. Receive sensitive：-94dBm
11. DMX single terminal：3PIN male-female socket
12. Dimension：75X147X43 mm
13. Net weight：360g
Page 3

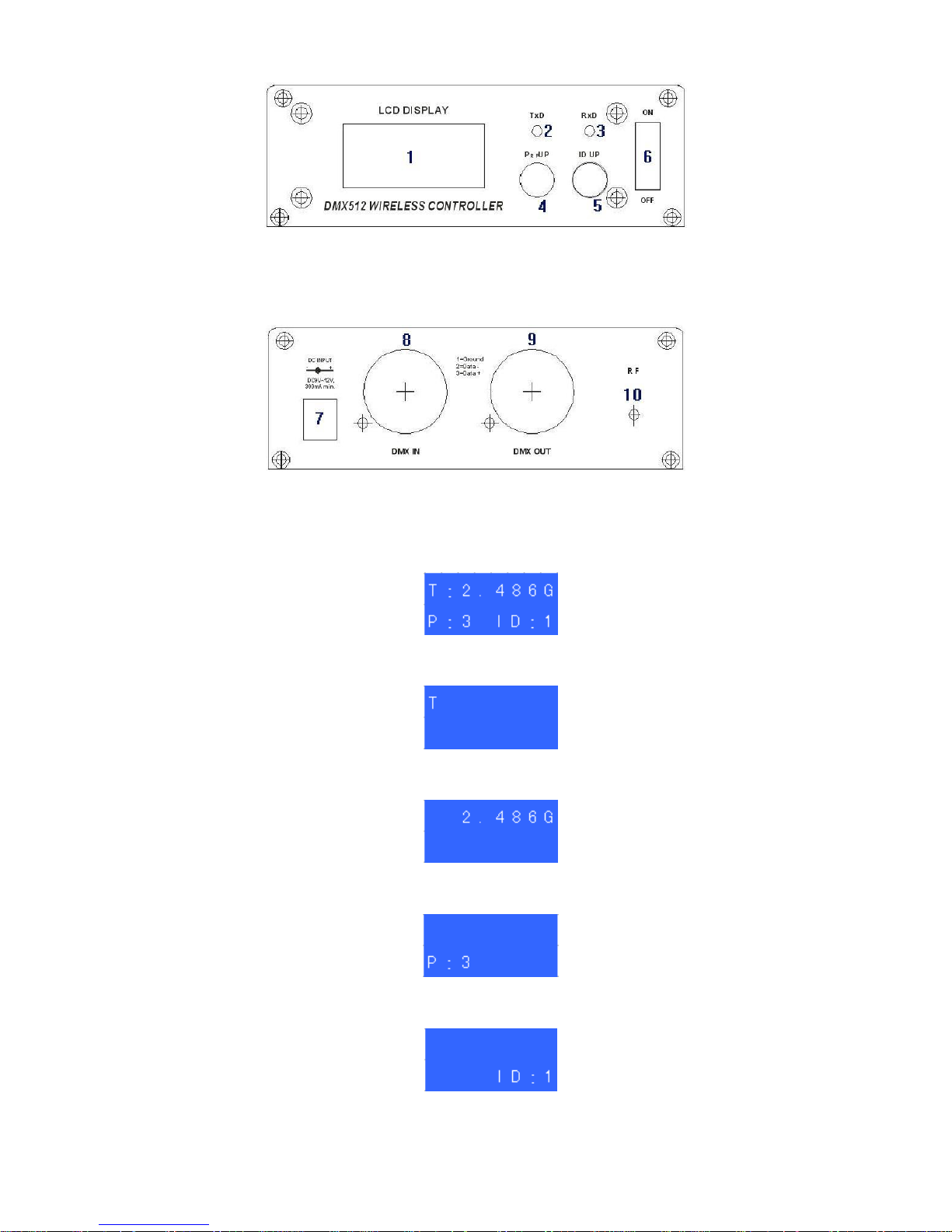

Front board
1：LCD display window 2：Indicator light of transmitting 3：Indicator light of receiver 4： Setting
knob of transmitting power rate 5：ID Option Knob 6：Power Switch
Back board
7: Power supply input jack 8：DMX Input Socket 9：DMX Output Socket 10：RF Antenna
Display describing：
1. LCD display- - - - - - - - - - - - - - - - - - - - Include working condition、RF frequency、
transmitting power rate、ID coding etc.
2. Working condition- - - - - - - - “T”=TXD transmitting ”R”=RXD receiving ”-“ = searching
signal，no setting needed when it works self-moving condition.
3. RF frequency- - - - - - - - - - - - - - - - - - 2. 400-2. 525 G，Total 126 channels，no setting
needed when it works self-moving condition.
4. Transmitting power rate- - - - - - “0”=2dBm “1”=8dBm “2”=14dBm “3”=20dBm ，
Press ”PRF UP” for setting
5. ID Coding- - - -“0-F” 16 groups ID coding，press ”ID UP” setting，Same ID can communicate
each other only.
Page 4

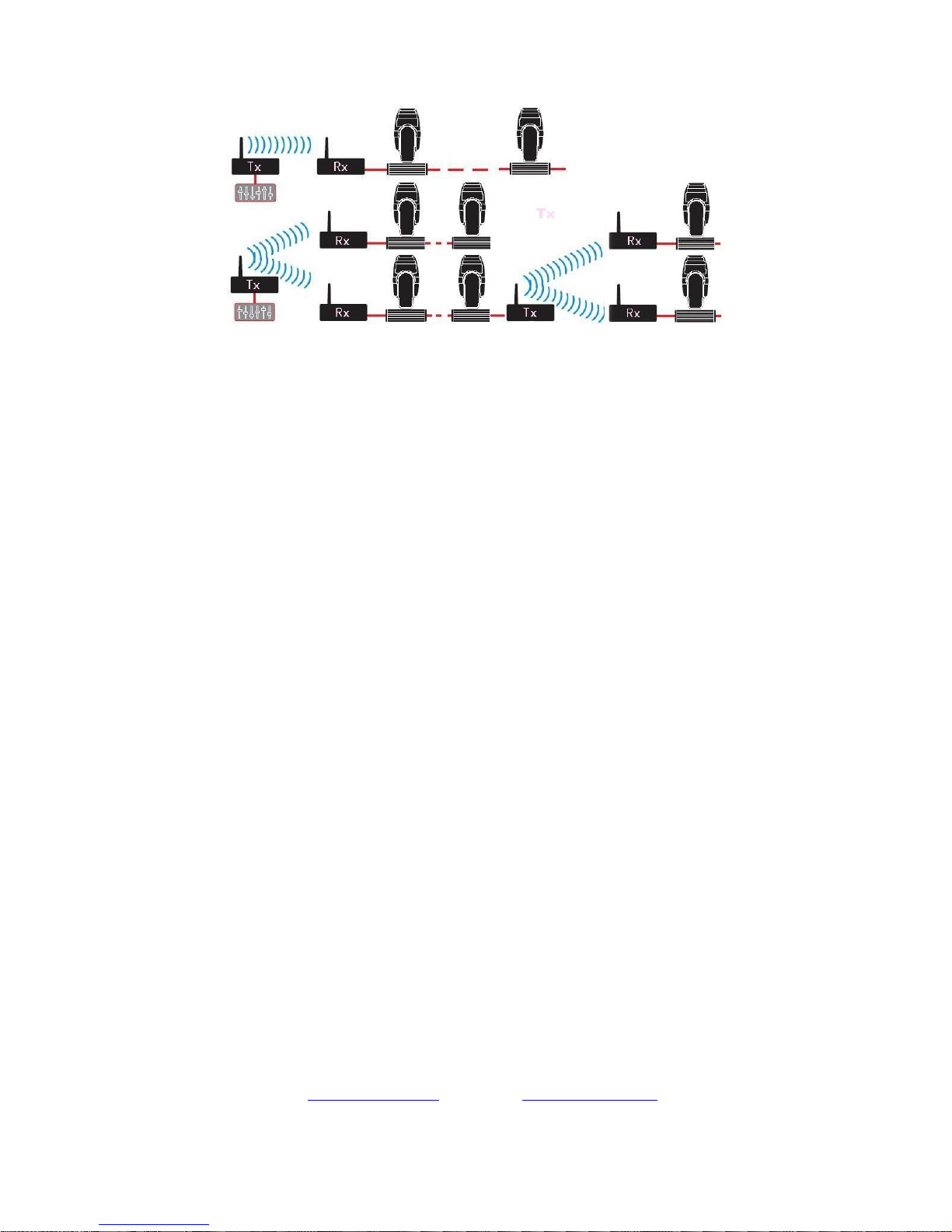

Connecting Scheme：
Establishing Communication：
1. Power on DMX512 wireless receiver/transmitter
2. Press ”PRF UP” to set transmitting power rate value， then press ”ID UP” to set receiver
and transmitter with same ID value。Pay attention, please use different ID value if you need
use more than 1 group wireless net at same time in same place.
3. This equipment start to option non-interfere frequency section for transmitting signal data
after received DMX signal data，receiver start to change communicate frequency section，
then Indicator lights of receiver and transmitter will flash at same time, till received correct
ID value.
4. Communication was established correctly
The information contained in this publication has been carefully prepared and checked.
However, no responsibility will be taken for any errors.
All rights are reserved and this document cannot be copied, photocopied or reproduced, in part or completely, without
prior written consent from Red Lighting.
Red Lighting reserves the right to make any modifications to any of its products without prior notice.
Red Lighting assumes no responsibility for the use or application of the products or circuits described here in.
R&D LIGHTING S.r.l.
Viale dei Mille 60, 50131 Firenze, Italy
Capitale Sociale € 100.000 i/v - Codice Fiscale / Part. IVA 06209690483
