“Canterbury” LightHeaded™ Bed
Assembly Instructions
www.LightHeadedBeds.com
Model #20249Twin size, Chestnut
Model #20277Twin size, Black
Model #20250 Twin size, White
9/17/2015
1168356 B
Before you begin:
• Consider enlisting a family member or friend to help; it will make assembly easier,
faster, and more fun.
• Layout all of the parts listed below.
• Save all packing materials until assembly is complete to avoid accidentally
discarding smaller parts or hardware.
• You will need a Phillips head screw driver (not included)

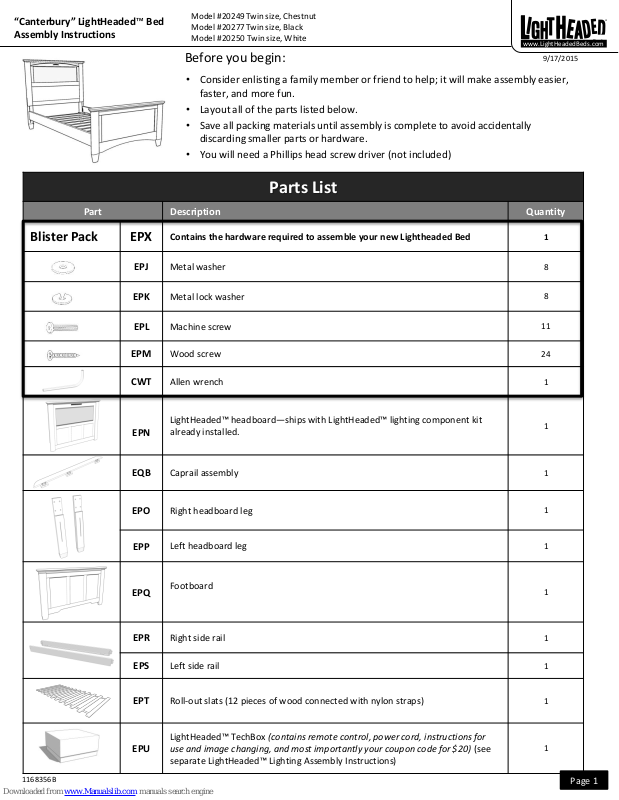

Parts List
Part Description Quantity
Blister Pack
EPX
Contains the hardware required to assemble your new Lightheaded Bed
1
EPJ
Metal washer
8
EPK
Metal lock washer
8
EPL
Machine screw
11
EPM
Wood screw
24
CWT
Allen wrench
1
EPN
LightHeaded™ headboard—ships with LightHeaded™ lighting component kit
already installed.
1
EQB
Caprail assembly
1
EPO
Right headboard leg
1
EPP
Left headboard leg
1
EPQ
Footboard
1
EPR
Right side rail
1
EPS
Left side rail
1
EPT
Roll-out slats (12 pieces of wood connected with nylon straps)
1
EPU
LightHeaded™ TechBox (contains remote control, power cord, instructions for
use and image changing, and most importantly your coupon code for $20) (see
separate LightHeaded™ Lighting Assembly Instructions)
1
Page 1
Page 2
“Canterbury” LightHeaded™ Bed
Assembly Instructions
www.LightHeadedBeds.com
Model #20249Twin size, Chestnut
Model #20277Twin size, Black
Model #20250 Twin size, White
9/17/2015
1168356 B

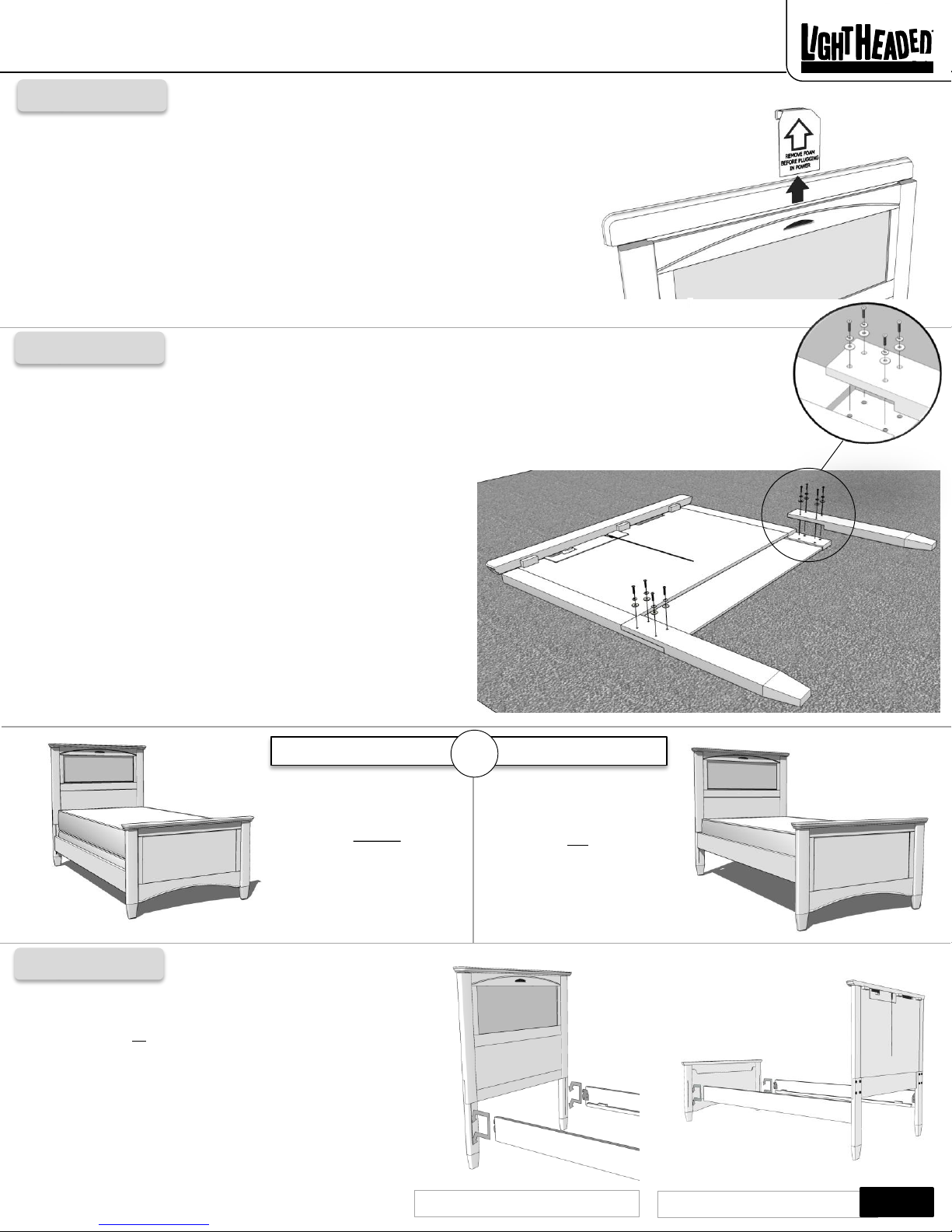

Step 1
1. Orient the caprail (EQB) as shown, and insert the two dowels on each wood block into
the holes at the top of the headboard (EPN). The wood blocks should be flush with the
back surface of the headboard. The center hole of each set of three holes is reserved
for Step 2.
Wood blocks
Step 2
1. Insert one machine screw (EPL) into each wood block to secure the caprail to the headboard.
Wood block
EPL
EPL
EPL
EPN
EQB
Page 2
Page 3
“Canterbury” LightHeaded™ Bed
Assembly Instructions
www.LightHeadedBeds.com
Model #20249Twin size, Chestnut
Model #20277Twin size, Black
Model #20250 Twin size, White
9/17/2015
1168356 B
Step 5
Step 3
Step 4
1. Open the caprail, and remove the protective foam insert and attached paper and
discard.
2. Your LightHeaded™ light component is pre-assembled in the headboard and ready to
use. Please refer to your LightHeaded™ Lighting Assembly Instructions in the TechBox
for information on how to connect power to your light, insert LightHeaded™ Images,
general use, and troubleshooting if necessary.
1. With the help of your assistant, gently lay your LightHeaded™
headboard panel face down on a soft surface with the hinged top in
the open position.
2. Align left leg (EPP) with the left side headboard (EPN).
3. Align the cutout in the top of the leg with the corresponding cutout
in the bottom of the headboard post. The 4 holes in the leg should
align with the 4 threaded inserts in the back of your headboard
panel.
4. Select 4 metal washers (EPJ), 4 metal lock washers (EPK), and 4
machine screws (EPL). Using the Allen wrench (CWT) supplied,
tighten screws into legs through the lock washer then washer.
5. Repeat these steps for the right leg (EPO).
Mattress only
Box Spring & Mattress
or
Hook your wooden
side rails (EPR, EPS)
onto the bottom two
metal pins in the
vertical slot on the
legs.
Hook your wooden
side rails (EPR, EPS)
onto the top two
metal pins in the
vertical slot on the
legs.
Step 3-1
Step 3-2
It’s your choice!
Your LightHeaded™ bed can be assembled to use a box spring
and mattress set or a mattress only. Don’t worry, you can
change it at any time with a couple simple steps and no tools.
1. Hook wooden side rails (EPR, EPS) at your desired height
onto the bottom two metal pins in the vertical slot on the
headboard legs.
2. Hook your wooden side rails (EPR, EPS) onto the bottom
two metal pins in the vertical slot on the footboard.
Page 3
EPN
EPP
EPO
Page 4
“Canterbury” LightHeaded™ Bed
Assembly Instructions
www.LightHeadedBeds.com
Model #20249Twin size, Chestnut
Model #20277Twin size, Black
Model #20250 Twin size, White
9/17/2015
1168356 B

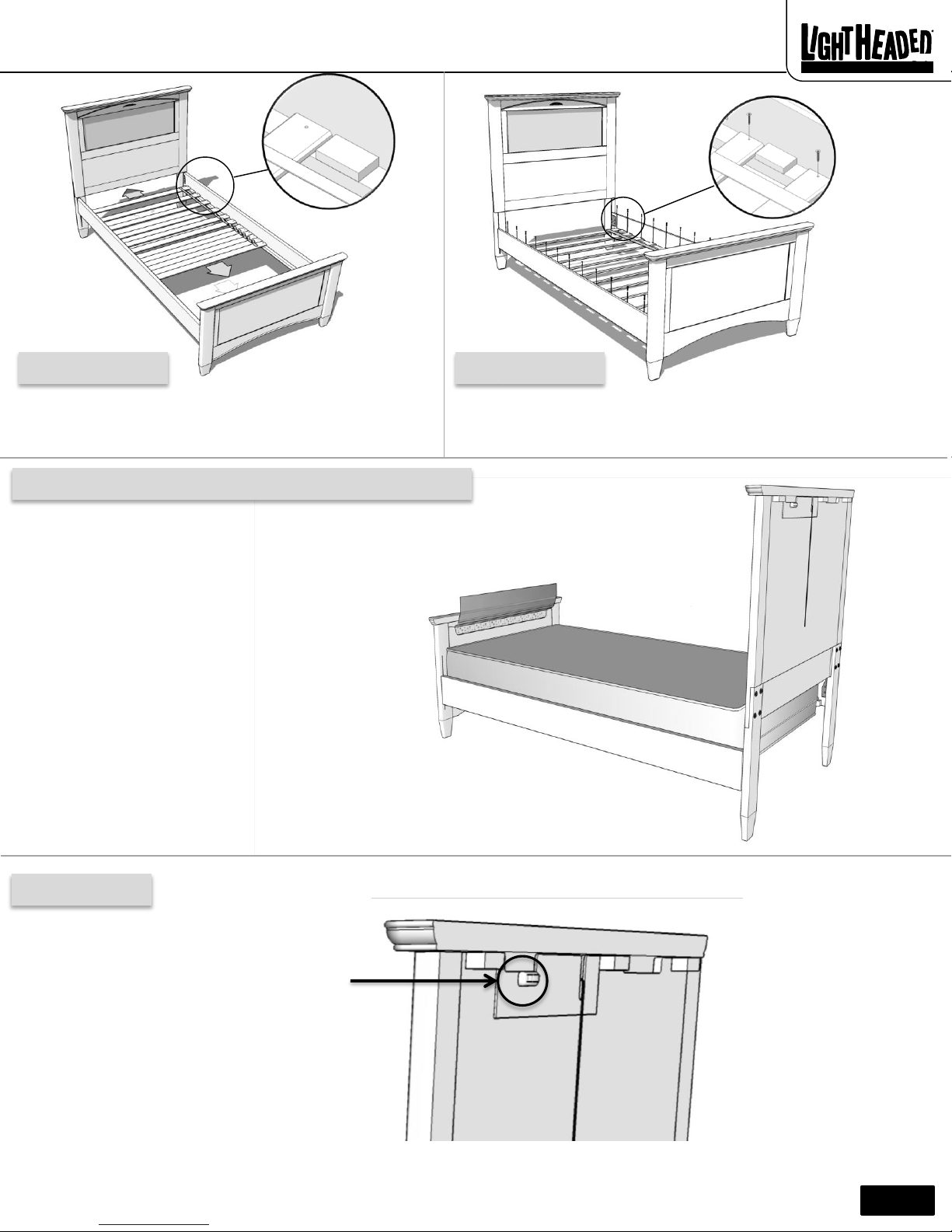

Step 6
Rollout wooden slats (EPT) onto your side rails (EPR, EPS) so
that the two end slats lock into place with the wood blocks
near the headboard and footboard.
Step 7
Secure each slat into the side rails (EPR, EPS) with a wood screw (EPM)
using a Phillips head screwdriver (not included).
Page 4
Your LightHeaded Bed comes with a built-in image
storage on the inside of your footboard. This
specially designed area allows you to organize and
safely store up to 25 interchangeable LightHeaded
graphic images.
Please refer to the Lighting Assembly Instructions in
your TechBox. Locate the page titled Using Your
LightHeaded Bed to easily remove one graphic
image and replace it with another.
Place the image which you just removed from the
Headboard into the storage area in the Footboard
and your image will be ready for the next time you
want to personalize your LightHeaded Bed.
On the back of your LightHeaded headboard,
located just below the hinged top, is an On/Off
switch which can be used to toggle the light
component on or off. Please refer to your user
manual in the TechBox for additional information.
Display in your headboard. Store in your footboard.
On/Off switch
EPT
EPM
EPM
Page 5
“Canterbury” LightHeaded™ Bed
Assembly Instructions
www.LightHeadedBeds.com
Model #20249Twin size, Chestnut
Model #20277Twin size, Black
Model #20250 Twin size, White
9/17/2015
1168356 B
Page 5
How to Obtain Warranty Service
We suggest you complete and return the product registration card that was included with your bed. This will help us to promptly facilitate verification
of the date of your original purchase. If you have any questions regarding this warranty or would like to obtain warranty service, please call (800) 2253865 and a friendly Customer Service Representative will assist you.
One Year Limited Warranty
LightHeaded™ Beds warrants that for a period of one year from the date of purchase,
this product will be free from defects in material and workmanship. LightHeaded™
Beds, at its option, will repair or replace the product or any component of the product
found to be defective during the warranty period. Replacement will be made with a
new or remanufactured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or greater value. This is your
exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail
purchase and is not transferable. Keep the original sales receipt. Proof of purchase is
required for warranty service. LightHeaded™ Beds dealers, service centers, or retail
stores selling LightHeaded™ Beds products do not have the right to alter, modify, or in
any way change the terms and conditions of this warranty.
This warranty does not cover normal wear and tear of parts or damage resulting from
any of the following: negligent use or misuse of the product, use on improper voltage or
current, use contrary to the operating instructions, electronics disassembly, repair or
alteration by anyone other than LightHeaded™ Beds authorized service representatives.
What Are the Limits on LightHeaded™ Beds Liability?
LightHeaded™ Beds shall not be liable for any incidental or consequential damages
caused by the breach of any express, implied, or statutory warranty or condition. Except
to the extent prohibited by applicable law, any implied warranty or condition of
merchantability or fitness for a particular purpose is limited in duration to the duration
of the above warranty. LightHeaded™ Beds disclaims all other warranties, conditions or
representations, express, implied, statutory or otherwise. LightHeaded™ Beds shall not
be liable for any damages of any kind resulting from the purchase, use or misuse of, or
inability to use the product including incidental, special, consequential or similar
damages or loss of profits, or for any breach of contract, fundamental or otherwise, or
for any claim brought against purchaser by any other party.
Congratulations! Your LightHeaded™ bed is assembled and you are
ready for the real fun.
• Hop online and surf our website LightHeadedBeds.com where you can
apply your $20 gift coupon toward your first LightHeaded™ Image and
personalize your bed.
• Create your own custom images or select from our massive gallery of
amazing images and super characters.
Got questions?
Our friendly LightHeaded™
Customer Service Rep can help you
at 800-225-3865 or e-mail us at
Assembly videos are available on
You-Tube. Thanks from the folks at
www.LightHeadedBeds.com
