Lightful Moving Head Beam Bar User Manual

USER MANUAL

Moving Head Beam Bar

Professional Stage Lighting Laser show

1

Introduction

Thank you for purchasing this Lightful product.

To ensure proper operation, please read this manual carefully before
using the product.
After reading it, keep it in a safe place for future reference.

This product has been tested at our factory before shipping to you,
there is no assembly required.

Once after receiving this product , please take and put carefully. And
check cautiously that whether the product was damaged or not
during the transportation.

Checking Parts

Please check if the following parts are included:
1 x Laser
1 x Power cable
1 x User manual

Danger Laser Radiation!
Avoid direct eye exposure!
Laser radiation can cause eye damage or skin damage
All protective measures for a safe operation of this laser must
be applied.

2

Installation

1. Please check the voltage whether is the same with the one
showed on the equipment or not.

2. It must ask for the technical person and set the light safety when
installation. And let the light beam at the suitable angle.

3. When install this equipment please make sure there's no
flammable surfaces (decorated things, etc) within at least 2.5M and
maintain minimum distance of 0.5M from the equipment to the walls.

4. Please make sure that there's no other equipment or decorating
materials obstructed the exhaust fan and the vent-pipe.

5. Products should be install immobility.

6. In case of safety, it's very important that to connect the earth with
line.

Attention

1. Please do not open the bottom cover yourself without permission.
Operate it accord the user manual. Call the technician when the
machine breaks down.

2. Please do not see the laser beam directly to avoid any damage.

3. Before connect or disconnect the power, please adjust the
luminance of the laser diode to the least to avoid any damage to the
laser diode.

4. This unit should be keep dry, do not use in the rain and dusty
environment. It can be use in the outdoor with the water-proof cover
protector.

5. Set the light immobility and try to avoid strong shake or hit.

3

6. Prevent dust into the equipment to avoid problems.

7. Please keep that there's no other equipment or decorating
materials obstructed the exhaust fan and the vent-pipe when the
equipment was working.

8. Before connect power, check the plug is immobility or not, power
line should be connect well.

9. Please do not open or close the equipment frequently that's to
avoid any affect to the life span of the laser diode, and try the best to
avoid the long time working.

10. Due to the characteristic of the laser diode, after four hours
working, it should be close at least 25 minutes until the laser diode
cooling then work again.

11. Don't touch the light or draw the power line when your hand was
wet. And do not pull the electronic power line.

12. Maintain the distance at least 3M above from the equipment to
the object.

13. This equipment does not have any parts can repair for the users,
please do not open the equipment.

14. When the laser diode became dim or damaged please contact
the dealer timely.

15. When you want to re-transfer the product, you'd better use the

original package to shockproof.

4

LCD Function Menu

Menu

Secondary menu

DMX address

DMX address 001-512

Channel mode

11CH/23CH/30CH

Mode select

DMX512

Master

Slave 1

Slave2

Auto Run mode

Auto 0-16

Speed 0-9

Sound mode

Show 0-16

Sound sense

0-100

Back lights

On/Off

Pan Inverse

Yes/No

Tilt Inverse

Yes/No

Auto Test

Test

Fixture

Fixture T

Firmware Version

V1.0

Motor Reset

Reset

Default

Yes/No

5

DMX Setting

Number

Address

LCD display(No.)

1

1

001

2

12 or 24 or 31

012 or 024 or 031

3

23 or 47 or 61

023 or 047 or 061

┇

┇

┇

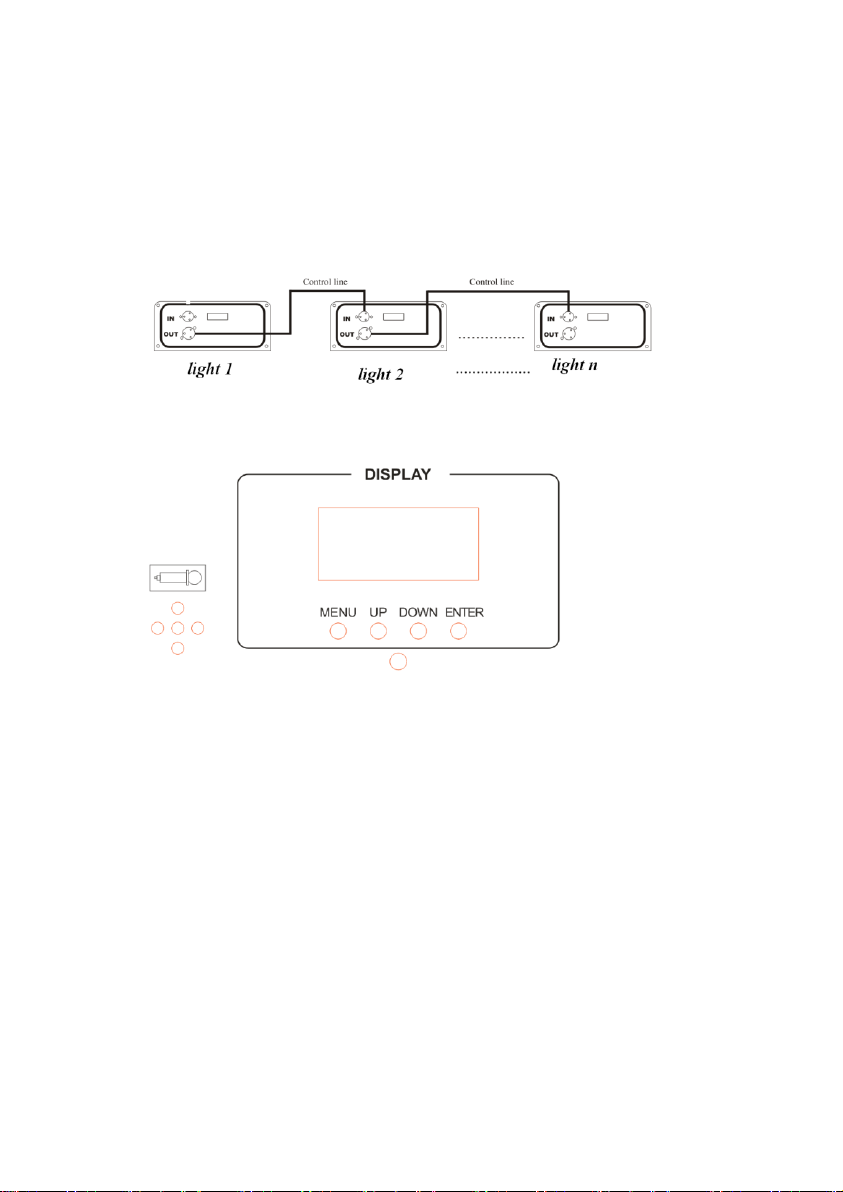

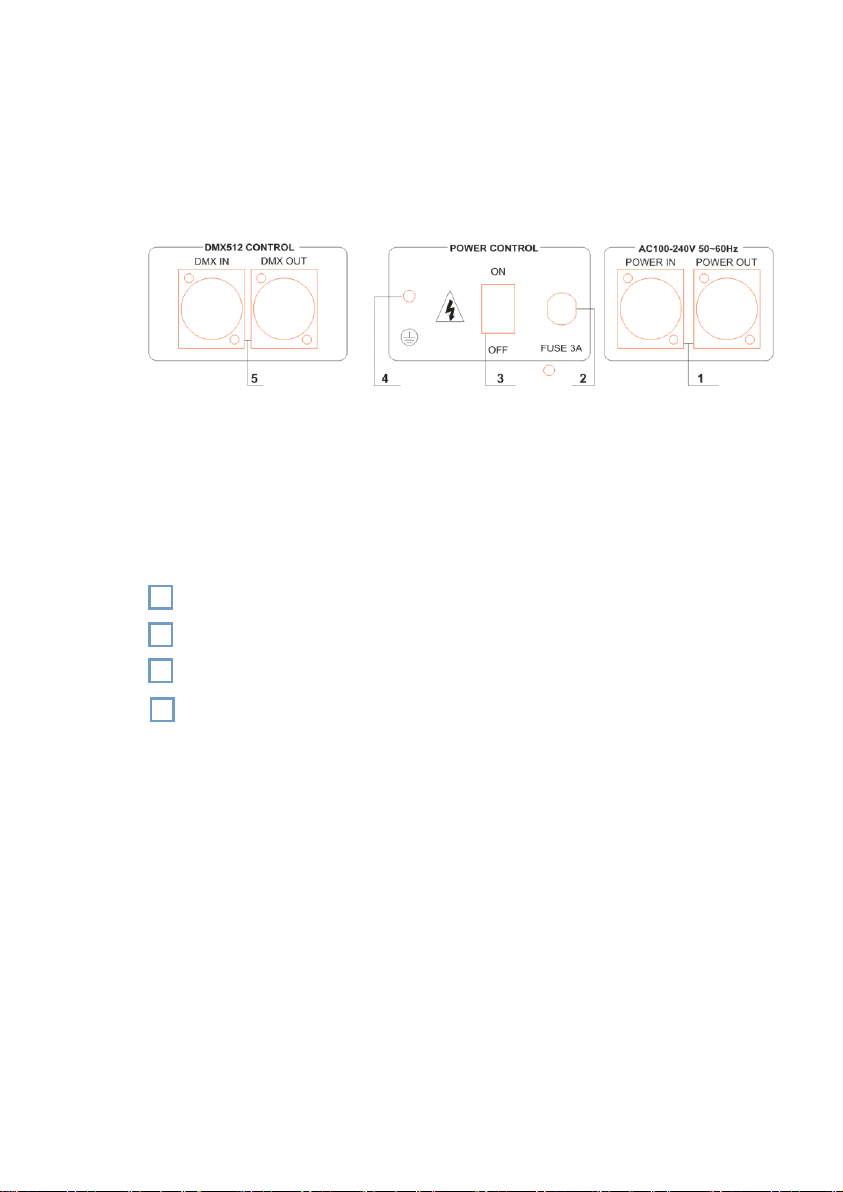

Input DMX signal, and the link the DMX controller and the lights by
the control line as the following picture, you can control the lights by
the controller.

When using any controller, each one must be have its own address.
The fist light address is set to 1, the second light address code is set
to 12 or 24 (the first light address code 1 plus 11 or 23 channel), the
third set of lights on the 23 or 47 position. So on (This setting also
need to be based on different console to set, now only by general
practice)
DMX - 512 control mode as following :
