INSTRUCTION DATA

PRODUCT: SUPPORT-A-LIGHT
VER: 2.0
DATE: MARCH 2008

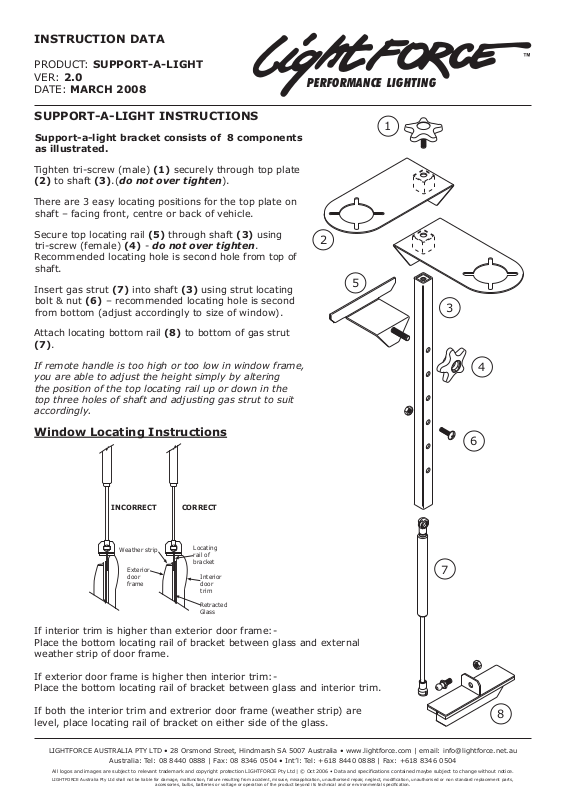

SUPPORT-A-LIGHT INSTRUCTIONS

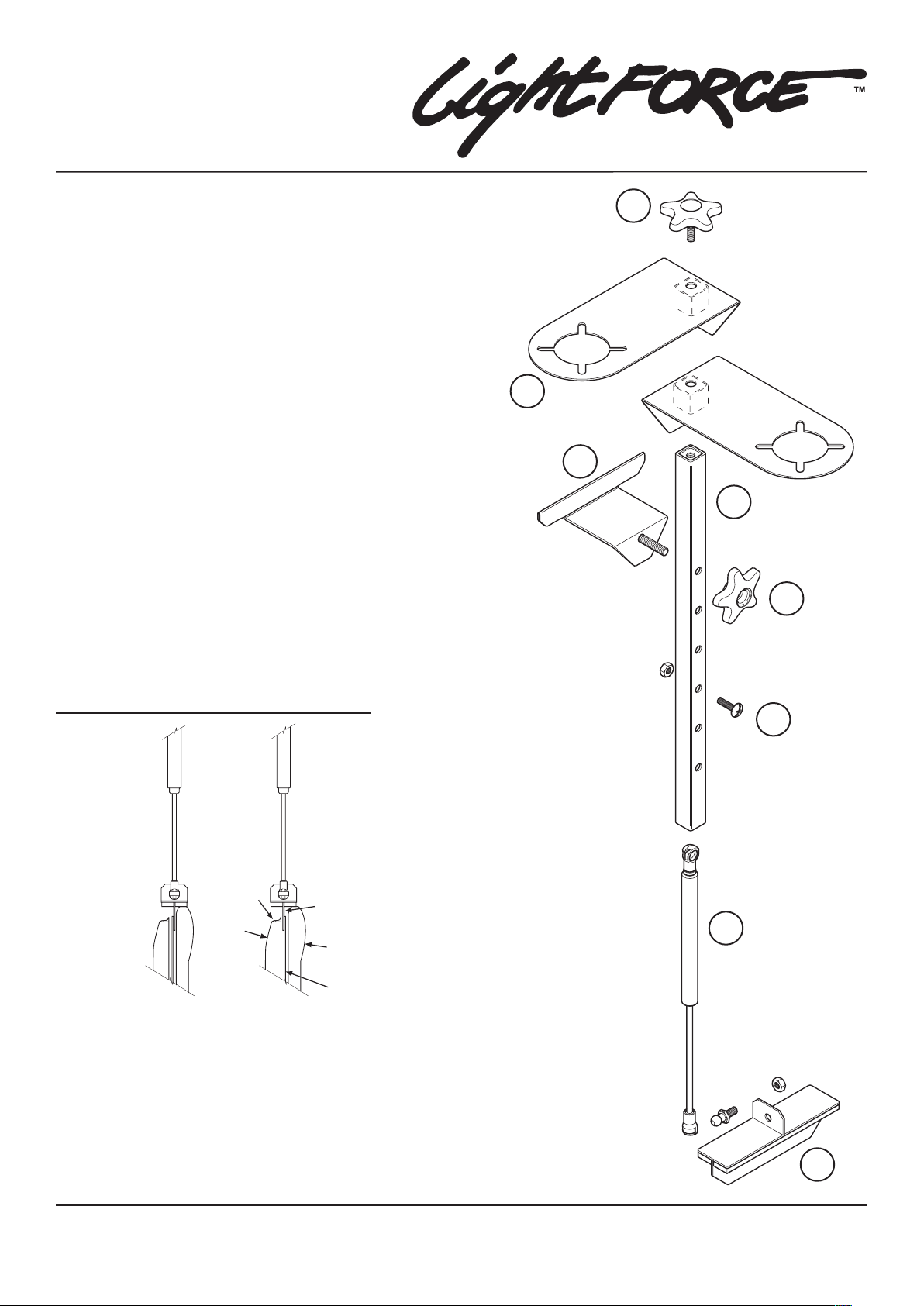

Support-a-light bracket consists of 8 components
as illustrated.

Tighten tri-screw (male) (1) securely through top plate
(2) to shaft (3).(do not over tighten).

There are 3 easy locating positions for the top plate on

shaft – facing front, centre or back of vehicle.

Secure top locating rail (5) through shaft (3) using
tri-screw (female) (4) - do not over tighten.
Recommended locating hole is second hole from top of
shaft.

Insert gas strut (7) into shaft (3) using strut locating
bolt & nut (6) – recommended locating hole is second
from bottom (adjust accordingly to size of window).

Attach locating bottom rail (8) to bottom of gas strut
(7).

If remote handle is too high or too low in window frame,
you are able to adjust the height simply by altering

the position of the top locating rail up or down in the
top three holes of shaft and adjusting gas strut to suit
accordingly.

PERFORMANCE LIGHTING

1

6

2

3

4

5

8

7

If interior trim is higher than exterior door frame:­Place the bottom locating rail of bracket between glass and external
weather strip of door frame.

If exterior door frame is higher then interior trim:­Place the bottom locating rail of bracket between glass and interior trim.

If both the interior trim and extrerior door frame (weather strip) are
level, place locating rail of bracket on either side of the glass.

Locating
rail of
bracket

Interior
door
trim

Retracted
Glass

Exterior
door
frame

Weather strip

CORRECTINCORRECT

Window Locating Instructions
