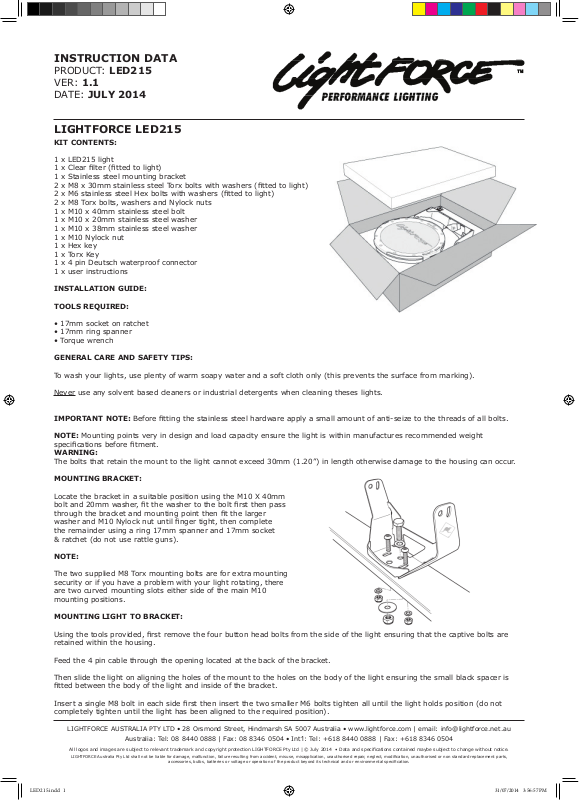

INSTRUCTION DATA

PRODUCT: LED215 VER: 1.1 DATE: JULY 2014

LIGHTFORCE LED215

KIT CONTENTS:

1 x LED215 light 1 x Clear lter (tted to light) 1 x Stainless steel mounting bracket 2 x M8 x 30mm stainless steel Torx bolts with washers (tted to light) 2 x M6 stainless steel Hex bolts with washers (tted to light) 2 x M8 Torx bolts, washers and Nylock nuts 1 x M10 x 40mm stainless steel bolt 1 x M10 x 20mm stainless steel washer 1 x M10 x 38mm stainless steel washer 1 x M10 Nylock nut 1 x Hex key 1 x Torx Key 1 x 4 pin Deutsch waterproof connector 1 x user instructions

INSTALLATION GUIDE:

TOOLS REQUIRED:

• 17mm socket on ratchet

• 17mm ring spanner

• Torque wrench

GENERAL CARE AND SAFETY TIPS:

To wash your lights, use plenty of warm soapy water and a soft cloth only (this prevents the surface from marking).

Never use any solvent based cleaners or industrial detergents when cleaning theses lights.

IMPORTANT NOTE: Before tting the stainless steel hardware apply a small amount of anti-seize to the threads of all bolts.

NOTE: Mounting points very in design and load capacity ensure the light is within manufactures recommended weight

specications before tment.

WARNING:

The bolts that retain the mount to the light cannot exceed 30mm (1.20”) in length otherwise damage to the housing can occur.

MOUNTING BRACKET:

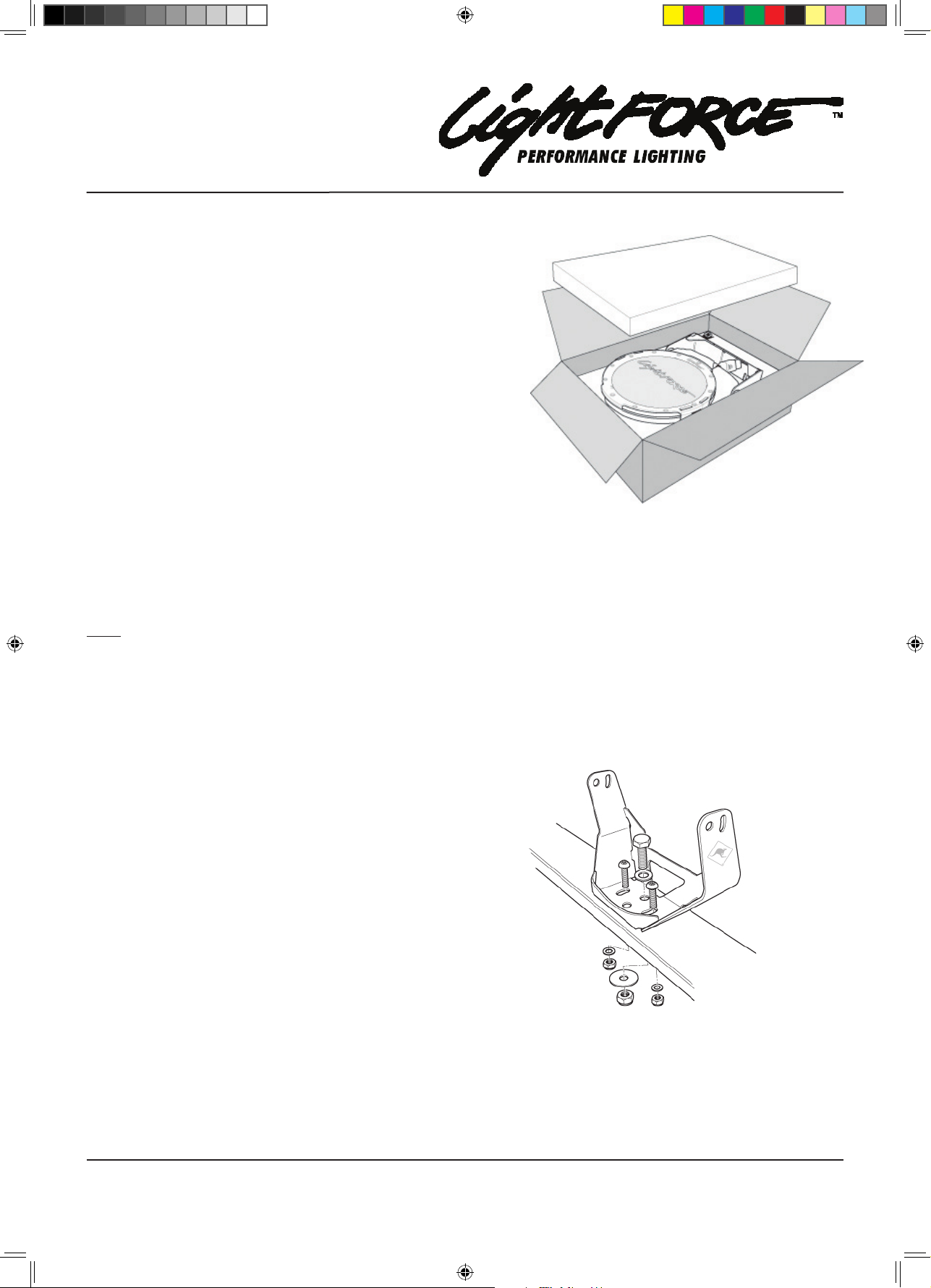

Locate the bracket in a suitable position using the M10 X 40mm bolt and 20mm washer, t the washer to the bolt rst then pass through the bracket and mounting point then t the larger washer and M10 Nylock nut until nger tight, then complete the remainder using a ring 17mm spanner and 17mm socket & ratchet (do not use rattle guns).

NOTE:

The two supplied M8 Torx mounting bolts are for extra mounting security or if you have a problem with your light rotating, there are two curved mounting slots either side of the main M10 mounting positions.

MOUNTING LIGHT TO BRACKET:

Using the tools provided, rst remove the four button head bolts from the side of the light ensuring that the captive bolts are retained within the housing.

Feed the 4 pin cable through the opening located at the back of the bracket.

Then slide the light on aligning the holes of the mount to the holes on the body of the light ensuring the small black spacer is tted between the body of the light and inside of the bracket.

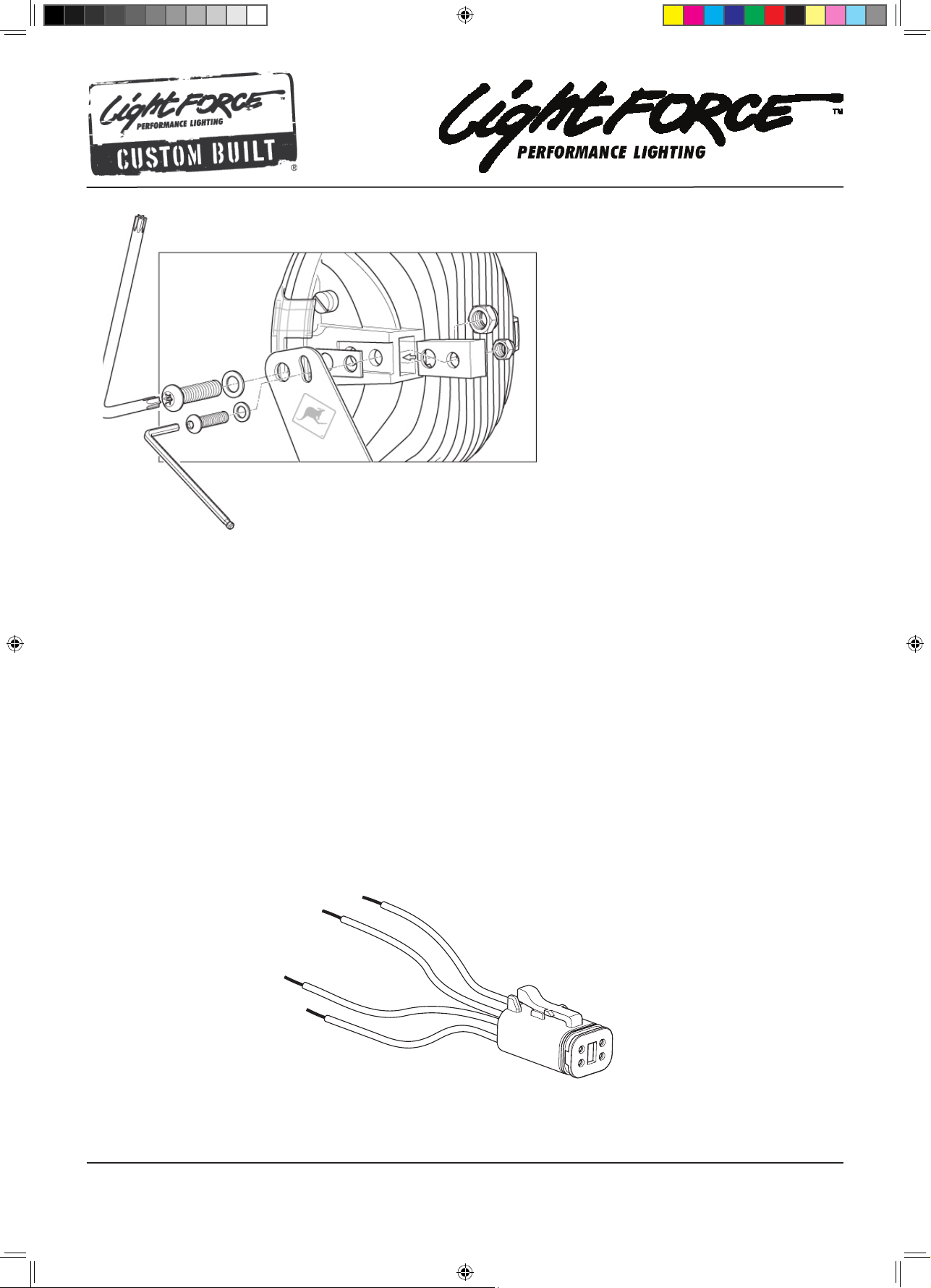

Insert a single M8 bolt in each side rst then insert the two smaller M6 bolts tighten all until the light holds position (do not completely tighten until the light has been aligned to the required position).

LIGHTFORCE AUSTRALIA PTY LTD • 28 Orsmond Street, Hindmarsh SA 5007 Australia • www.lightforce.com | email: [email protected]

Australia: Tel: 08 8440 0888 | Fax: 08 8346 0504 • Int’l: Tel: +618 8440 0888 | Fax: +618 8346 0504

All logos and images are subject to relevant trademark and copyright protection LIGHTFORCE Pty Ltd | © July 2014 • Data and specications contained maybe subject to change without notice.

LIGHTFORCE Australia Pty Ltd shall not be liable for damage, malfunction, failure resulting from accident, misuse, misapplication, unauthorised repair, neglect, modication, unauthorised or non standard replacement parts,

LED215.indd 1 31/07/2014 3:56:57 PM

accessories, bulbs, batteries or voltage or operation of the product beyond its technical and or environmental specication.

Page 2

ELECTRICAL CONNECTIONS:

The LED215 is tted with a waterproof 4 pin electrical connector, included is the mating connector tted with short lengths of cable for integration with an existing wiring harness.

The LED215 is also tted with dual LED positioning lights located on each side of the housing, for the positioning LEDs to activate they must rst be connected to the park light or low beam circuit.

If using the optional wiring harness (Part number CBLFDLH4) follow the installation instructions included with the harness.

If using an existing wiring harness the included connector needs to be tted directly to your existing driving light harness and park or low beam light circuit.

CONNECTOR WIRE COLOUR IDENIFICATION

1. Black: Negative - Connect to negative (earth) wire on harness

2. Red: Positive – Connect to positive wire on harness

3. Blue: Negative - LED positing lights, connect to negative park or low beam light circuit

4. Yellow: Positive - LED positing lights, connect to positive park or low beam light circuit

LIGHTFORCE AUSTRALIA PTY LTD • 28 Orsmond Street, Hindmarsh SA 5007 Australia • www.lightforce.com | email: [email protected]

Australia: Tel: 08 8440 0888 | Fax: 08 8346 0504 • Int’l: Tel: +618 8440 0888 | Fax: +618 8346 0504

All logos and images are subject to relevant trademark and copyright protection LIGHTFORCE Pty Ltd | © July 2014 • Data and specications contained maybe subject to change without notice.

LED215.indd 2 31/07/2014 3:56:59 PM

accessories, bulbs, batteries or voltage or operation of the product beyond its technical and or environmental specication.

Page 3

Once all the electrical connections have been made, align the light to the desired position and then tighten all bolts as per recommended torque specications (see specications section).

CAUTION

Improper installation of the connector will affect the reliability and operation of your lights. Do not remove waterproof connector from the driving light cable; this will lead to water ingress and void warranty.

TECHNICAL SPECIFICATIONS:

• Power: 108 W (36 x 3w European chipsets)

• Raw Lumens: 7794

• Input voltage range: 10-36V DC

• Current draw: 8.7A @ 13.2v

• Colour temperature: 5000K

• LED Lifespan: Up to 50,000 hours

• Input cable length: 450mm (17.72”)

• Operating temperature -40°C to 63°C (-40°F to 145°F)

• Dimensions 215mm (W) x 196mm (H) x 97mm (D)

8.46“(W) x 7.71” (H) x 3.82” (D)

• Weight including bracket 3.3kg (7.3lb)

RECOMMENDED WIRE SIZE

2.0mm2 (14AWG) Minimum

MOUNTING FASTENER TORQUE SPECIFICATIONS

M10 x 30mm bottom mount bolt - 35Nm (26lb-ft) M8 x Torx bolt - 20Nm (15lb-ft)
