WWW.LIGHTEMOTION.COM.AU
RAZORTRI
2 X 8 W QUAD LED effect light
User’s instruction manual
This manual contains important information about the safe installation and use of this product
Please read this instruction manual carefully before installing or operating
Please keep these instructions in a safe place for future reference
www.lightemotion.com.au
Page 2
2
Congratulations on the purchase of your RAZORTRI by Light Emotion. We are confident
that you will be satisfied with your purchase. We have prepared this manual to assist you
with the operation of this item.
CONTENTS
SECTION Page
WHAT IS INCLUDED, SAFETY INSTRUCIONTS 2
INSTALLATION, POWER, FUSE 3
OPERATION 4
SPECIFICATIONS 5
Please note that as part of out ongoing commitment to continuous improvement and
product development, the specifications in this manual are subject to change without
notice. Whilst every care has been taken in the preparation of this manual we reserve the
right to change specifications in the course of product improvement.
WHAT IS INCLUDED:
• 1x RAZORTRI
• 1x Warranty Card
• 1x User Manual
SAFETY INSTRUCTIONS:
Please read these instructions carefully. It includes important information about the
installation usage and maintenance of this product.
• Please keep this User Manual for future consultation. If you sell the unit to
another user, be sure that they also receive this instruction booklet.
• Always make sure that you are connecting to the proper voltage and that the line
voltage you are connecting to is not higher than that stated on the rear panel of the
fixture.
• This product is intended for indoor use only! To prevent risk of fire or shock, do
not expose fixture to rain or moisture.
• Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 50cm
from adjacent surface. Be sure that no ventilation slots are blocked.
• Always disconnect from power source before servicing or replacing fuse and be
sure to replace with same fuse source.
• Secure fixture to fastening device using a safety chain.
• Maximum ambient temperature is 40˚C. Do not operate fixture at temperatures
higher than this.
• In the event of serious operating problem, stop using the unit immediately. Never
try to repair the unit by yourself. Repairs carried out by unskilled people can lead
to damage or malfunction. Please contact the nearest authorized technical
assistance center.
• Never connect the device to dimmer pack.
• Make sure power cord is never crimped or damaged.
Page 3
3
• Never disconnect power cord by pulling or tugging on the cord.
• Never carry the fixture directly from the cord. Always use the hanging/mounting
bracket.
• Avoid direct eye exposure to the light source while it is on.
INSTALLATION:
CAUTION:
• For safe mounting read the following instructions
carefully
• Use a suitable hook clamps* for hanging the lighting
effect
• Use a safety wire* with a breaking strain of more than
double the lighting effect
• This lighting effect can get extremely hot
• Make sure the lighting effect has suitable ventilation as
per the instructions below
• This lighting effect is intended for indoor use only
• Never look directly into the light source
• To avoid electrical shock keep away from rain and
moisture
• Keep unit out of reach from children

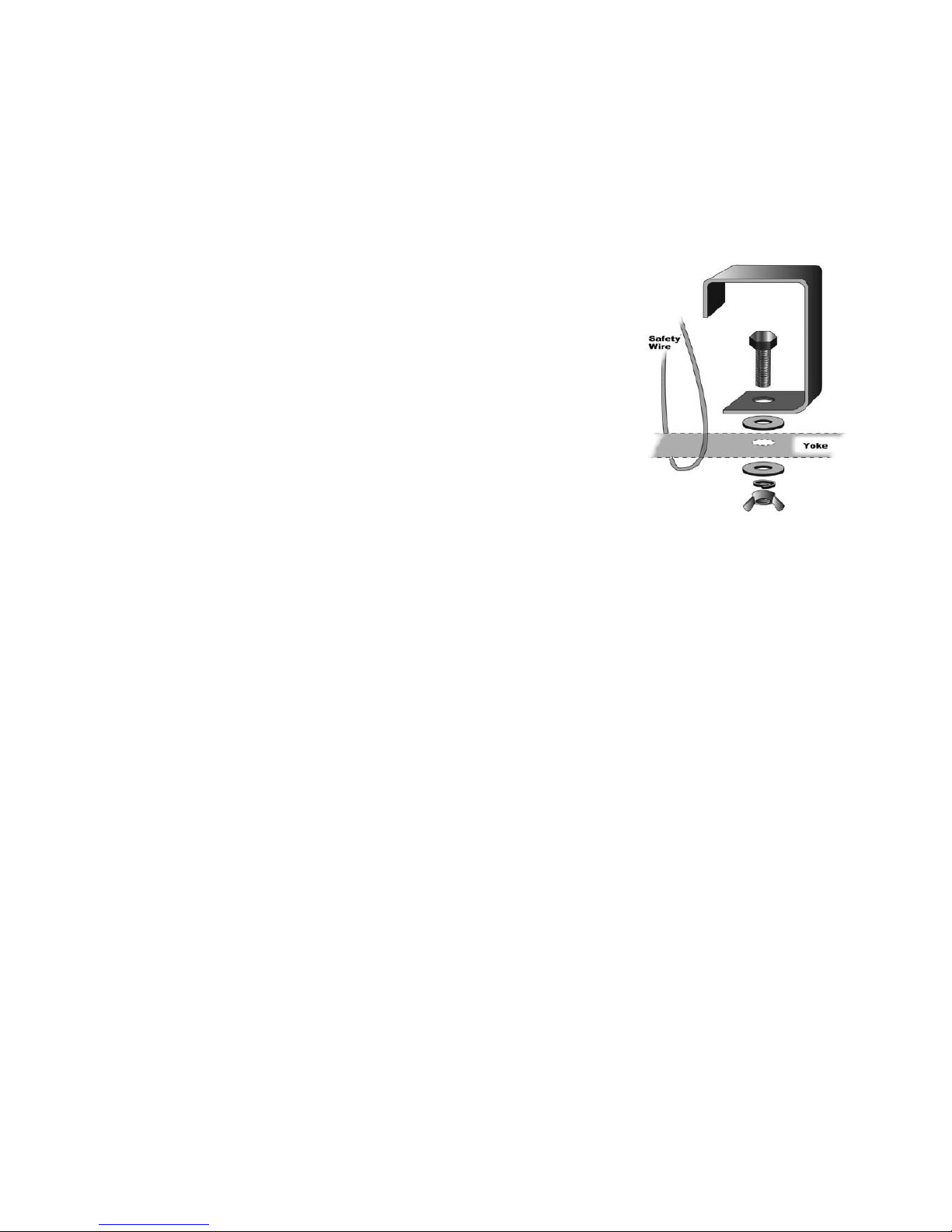

NOTE: Use washers* and spring washers* when attaching your hook clamp* to the yoke
1. For installation of the hook clamp* and safety wire*.
2. This lighting effect must be 0.5m away from any flammable materials or any walls or
ceilings.
Light Emotion has various hook clamps* and safety wire* suitable for your Blazer Please
contact your local dealer for more information *Not included
POWER:
CAUTION: This lighting effect is designed to operate on 240VAC
Fuse: M205 2A fast blow
FUSE:
CAUTION: Only use the correct fuse
as specified on the rear panel of the
lighting effect. Disconnect the lighting
effect from the mains before
attempting to replace the fuse.
To replace the fuse please follow the
following steps:
1. Remove the fuse holder cover with a screwdriver.
2. Remove existing fuse.
3. Fit new fuse.
4. Refit the fuse holder.
Page 4
4
OPEARATION:
Unit has 3 buttons LED control panel.
Sound active mode:
Press the Mode button till “SoU” to set the Sound active control function then use UP
and Down button to adjust the sound sensitivity level from 00-99.
DMX:
Press Mode button till “Add” to set the DMX mode, then use UP and DOWN button
to set up DMX address from 001-512.
DMX chart
Channel 1 Channel 2 Channel 3
Value Function
000-004 BLACKOUT
005-009 Red
010-014 Green
015-019 Blue
020-024 White
025-029 Amber
030-034 R+G
035-039 G+B
040-044 B+W
045-049 W+A
050-054 R+A
055-059 G+A
060-064 B+A
065-069 R+B
070-074 R+W
075-079 G+W
076-084 R+G+B
085-089 G+B+W
090-094 B+W+A
095-099 R+W+A
100-104 G+W+A
105-109 R+G+W
110-114 R+G+A
115-119 R+B+A
120-124 R+B+W
125-129 G+A+B
130-134 R+G+B+W
135-139 G+B+W+A
140-144 R+G+B+A
145-149 R+G+W+A
150-154 R+G+B+W+A
155-200 Colorchange (slow-fast)
201-250 Colordream (slow-fast)
000
LED stays on
001-255
Strobe (Slow to fast)
000-255
Step motor ( Slow to
fast)
251-155 Sound Active mode with random
color
(000-255) to set up
sound sensitivity
N/L
SLA:
1. Set up the master unit on DMX mode or Sound active mode.
2. Set up the slave unit on Slave mode: press the Mode button till “SLA” to set
Page 5
5
slave mode.
3. Use the DMX cable to link them together.
SPECIFICATIONS:
• Lens: 16pcs
• Mode: DMX, Sound active, Master/slave
• Power input: AC 110-240V 50Hz/60Hz
• Power Consumption: 90W
• Fuse: F2A/250V.
• Weight: 4.6 Kg
• Size: 340 X 370 X 285 mm
• LED: 1x8W Quad RGBW + 1x8W Quad RGBA
• Number of DMX channels: 3
• DMX512 connection: 3-pin XLR
• Sound-control: via built-in microphone
• Number of LEDs: 2
• Beam angle: 100°
• Maximum ambient temperature Ta: 45° C
• Maximum housing temperature Tc: 50° C
• Min. distance from flammable surfaces: 0.5 m
• Min. distance to lighted object: 0.1 m
