Light Efficient Design LED-8027M Installation Manual

11.The recessed luminaire can not use with through-branch wiring.

14.3
7

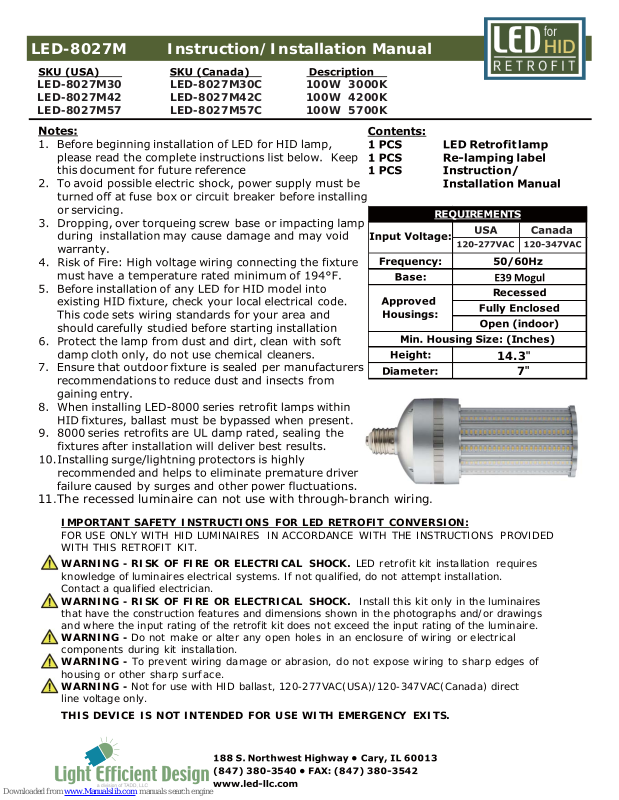

LED-8027M Instruction/Installation Manual

LED-8027M30 LED-8027M30C
LED-8027M42 LED-8027M42C
LED-8027M57 LED-8027M57C

100W 3000K
100W 4200K
100W 5700K

IMPORT ANT SAFETY INST RUCTIONS FOR LED RETROFIT CONVERSION:

F OR USE O NLY WITH HID LUM INA IRES IN A CCOR DA NCE WIT H T HE INST RUCT IONS PRO VIDE D
WITH THIS RETROFIT KIT.

WARNING - RISK OF FIRE OR ELECTRICAL SHOCK. L ED r et ro f it kit in st alla tion re quir e s

WARNING - RISK OF FIRE OR ELECTRICAL SHOCK. Install this kit only in the luminaires

that have the construction features and dimensions shown in the photographs and/or drawings
and where the input rating of the retrofit kit does not exceed the input rating of the luminaire.
WARNING - Do not ma k e or a lter any o pe n holes in a n e nc los ur e of wir ing o r e le c tr ic a l
co m pon ent s d ur ing k it ins ta llat ion.
WARNING - To prev e nt wir ing dam a ge or abra sion, do

not expo se wiring to sharp edges of
housing or o the r sha r p s urfac e .
WARNING - Not for use with HID ballast, 120-277VAC(USA)/120-347VAC(Canada) direct
line voltage only.

THIS DEVICE IS NOT INTENDED FOR U SE WITH EMERGENCY EXITS.

knowledge of luminaires electrical systems. If not qualified, do not attempt installation.
Contact a qualified electrician.

LED-8027M Instruction/Installation Manual

LED-8027M30 LED-8027M30C
LED-8027M42 LED-8027M42C
LED-8027M57 LED-8027M57C

100W 3000K
100W 4200K
100W 5700K

Attach the retrofit lamp to the female socket of the existing luminaire.
To avoid damaging lamp do not over-torque or overtighten lamp.
The E39 mogul female lamp holder should have suitable mounting
strength to securely hold lamp in place.
