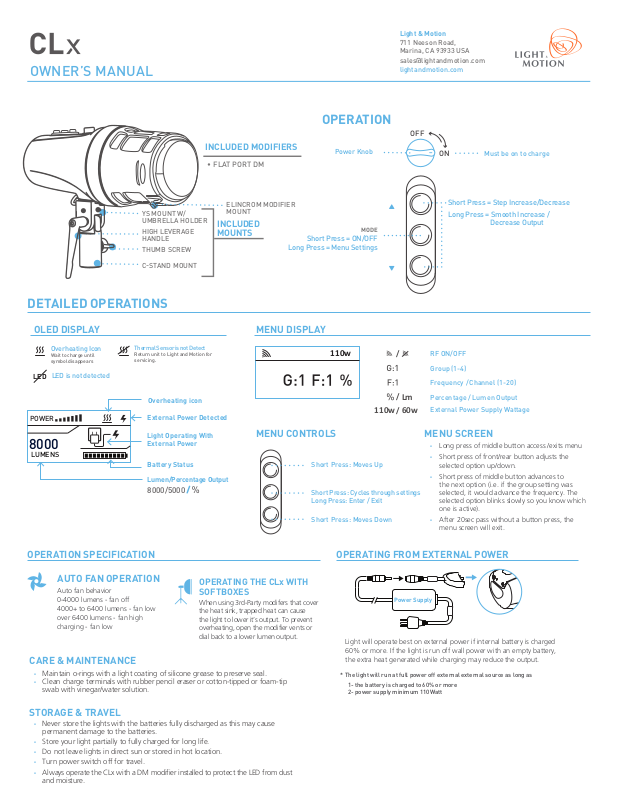

Light Motion CLX User Manual

OWNER’S MANUAL

INCLUDED MODIFIERS

• FLAT PORT DM

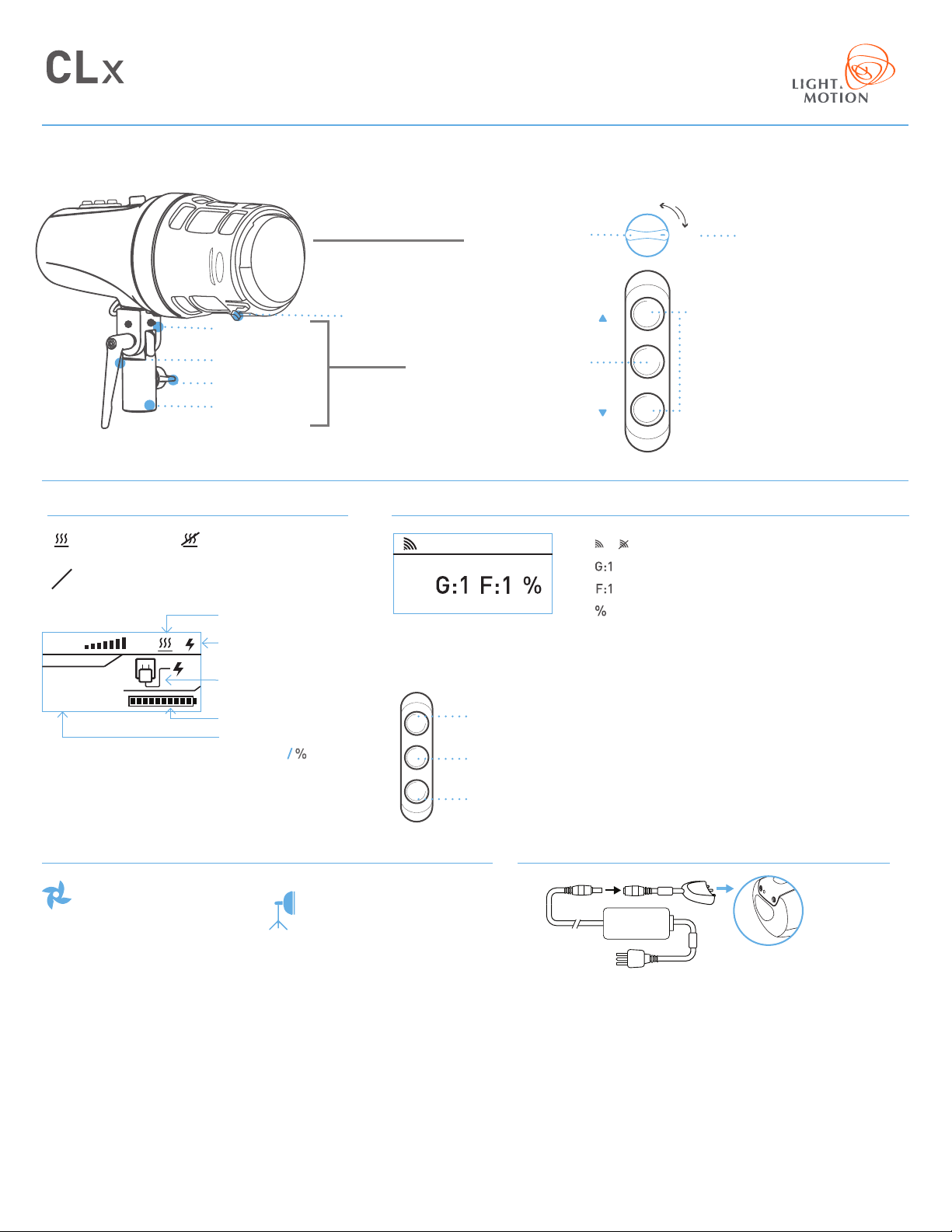

OPERATION

Power Knob

Light & Motion

711 Neeson Road,
Marina, CA 93933 USA

[email protected]

lightandmotion.com

OFF

ON

Must be on to charge

YS MOUNT W/
UMBRELLA HOLDER

HIGH LEVERAGE
HANDLE

THUMB SCREW

CSTAND MOUNT

DETAILED OPERATIONS

OLED DISPLAY

Overheating Icon

Wait to charge until
symbol disappears

LED is not detected

LED

POWER

8000

LUMENS

90

Thermal Sensor is not Detect

Return unit to Light and Motion for
servicing.

Overheating icon

External Power Detected

MIN

Light Operating With
External Power

Battery Status

Lumen/Percentage Output

8000/5000

ELINCROM MODIFIER
MOUNT

INCLUDED
MOUNTS

MENU DISPLAY

MENU CONTROLS

Short Press = ON/OFF

MODE

Long Press = Menu Settings

110w

Short Press: Moves Up

Short Press: Cycles through settings
Long Press: Enter / Exit

Short Press: Moves Down

/

/

/

RF ON/OFF

Group (1-4)

Frequency / Channel (1-20)

Percentage / Lumen Output

Lm

External Power Supply Wattage

60w110w

MENU SCREEN

• Long press of middle button access /exits menu

• Short press of front/rear button adjusts the

• Short press of middle button advances to

• After 20sec pass without a button press, the

Short Press = Step Increase/Decrease

Long Press = Smooth Increase /
Decrease Output

selected option up/down.

the next option (i.e. if the group setting was
selected, it would advance the frequency. The
selected option blinks slowly so you know which
one is active).

menu screen will exit.

OPERATION SPECIFICATION

AUTO FAN OPERATION

Auto fan behavior
0-4000 lumens - fan off
4000+ to 6400 lumens - fan low
over 6400 lumens - fan high
charging - fan low

OPERATING THE CLx WITH
SOFTBOXES

When using 3rd-Party modifers that cover
the heat sink, trapped heat can cause
the light to lower it’s output. To prevent
overheating, open the modifier vents or
dial back to a lower lumen output.

CARE & MAINTENANCE

• Maintain o-rings with a light coating of silicone grease to preserve seal.

• Clean charge terminals with rubber pencil eraser or cotton-tipped or foam-tip

swab with vinegar/water solution.

STORAGE & TRAVEL

• Never store the lights with the batteries fully discharged as this may cause

permanent damage to the batteries.

• Store your light partially to fully charged for long life.

• Do not leave lights in direct sun or stored in hot location.

• Turn power switch off for travel.

• Always operate the CLx with a DM modifier installed to protect the LED from dust

and moisture.

OPERATING FROM EXTERNAL POWER

Power Supply

Light will operate best on external power if internal battery is charged
60% or more. If the light is run off wall power with an empty battery,
the extra heat generated while charging may reduce the output.

* The light will run at full power off external external source as long as
1- the battery is charged to 60% or more

2- power supply minimum 110Watt

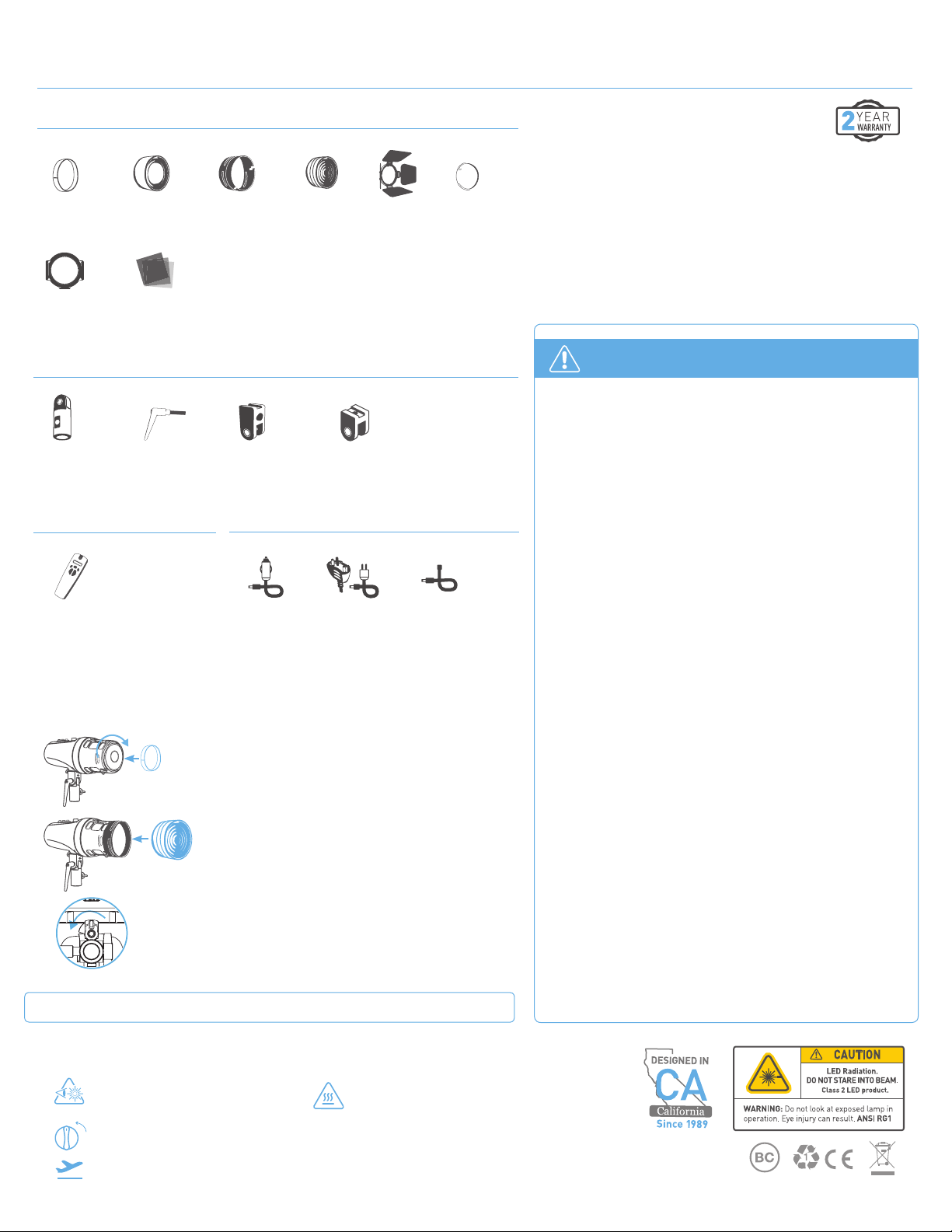

ACCESSORIES

LIGHT MODIFIERS

Flat Port DM

800-0340

Speedring
Gel Holder

800-0283
800-0344 (Gel Frame)

50˚Focus Optic DM

800-0337

3 CTO Set (Full, 1/2, 1/4)

800-0350 (Acrylic)
800-0341 (DM glass)

Press On Modifier
Interface

800-0343

Fresnel 25˚

800-0302

*Use of the 3 CTO set needs can tolerate

low heat up to 2000 lumens. For higher
output use Glass 3 CTO set.

*Speed ring, Barn doors and 25 degree

Fresnel require Press-on modifier interface

MOUNTS

C-Stand Mount

800-0291

High Leverage Handle

800-0306

YSMount Base w/
Umbrella Holder

800-0307

OTHER ACCESSORIES

Remote Control

800-0325

CHARGERS & POWER

Car Cable Pro (12v)

800-0300

ADDING MODIFIERS/MOUNTS

* DM = DIRECT MODIFIER
** All other modifiers are attached via the Press on Modifier Interface

DIRECT MOUNT MODIFIERS

• DM- Direct Mount modifiers require a press in

and 1/8 turn to lock/remove. Always operate the
CLx with a DM modifier installed.

“PRESSON” MODIFIER INTERFACE

• Press-on mount using “Press-on” modifier Interface

BEZEL LOCK

• To remove LED plate, flip the bezel lock and twist

off the bezel. Gently pull the metal heat sink
directly off. Take care to protect connector pins
from damage when removed.

YS Mount Pro

800-0311

24V 110W Power Supply

800-0356 (US/JP)

CAUTION!

Barn Doors

800-0284

Dome Port DM

800-0335

Stella 6L Power Cable
Extention, 6ft

800-0317

WARRANTY

Your Light & Motion product is covered against defects in workmanship
and materials under normal use and service for 2 years from the date of
purchase. Rentals carry a 1 year warranty.

WARRANTY LIMITS & EXCEPTIONS

• Batteries have a limited 1 year warranty

• Cosmetic discoloration from wear and use is not covered.

• Light & Motion is not liable for any loss damages or expenses

including incidental or consequential damages directly or indirectly
arising from the sale or use of this product.

DECLARATION OF EU CONFORMITY

Any changes/modifications to this equipment not approved by Light &
Motion could void the user’s authority to operate the equipment under
regulatory guidelines.

This device receives and transmits radio signals at 2.4GHz.

Please observe the following precautions:

This device may interfere with medical or navigational equipment. Do not
operate with the radio control feature enabled in a hospital or on an
airplane without first obtaining permission of hospital or airline staff.

Be aware the performance of the radio control feature can be affected by
electrical currents, magnetic fields, radio signals, wireless routers,
cellular phones, and other electronic devices.

Environmental objects such as large buildings, wall, trees, fences, or
cars can also affect radio link performance.

CAN ICES-3 (B)/NMB-3(B)

FCC COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may

cause undesired operation.

FCC WARNING

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful inerference to
radio communications.

However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the EQUIPMENT off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

To comply with the limits for an FCC Class B computing device, always use the included
power cables with the common-mode ferrite cores attached as supplied

Product name:

CLx

Name of Responsible Party:

Light & Motion Industries, 711 Neeson Rd, Marina, CA 93933, [phone]

CLx is a professional light that can produce high amounts of heat - Adequate
ventilation is required for proper use.

OFF

905-0479-02

• Never look directly at the white

light output when turned on

• Stella is safe for air travel when

ON

the power is off and the switch
is locked

• !CAUTION, the metal

and bezel surfaces
can get hot during
operation and must be
allowed to cool after
switching the light off
and before handling.

Go to support.lightandmotion.com & elinchrom.com for additional information.
