Light INTUGEN2 Users Manual

User Manual
Light Control Module

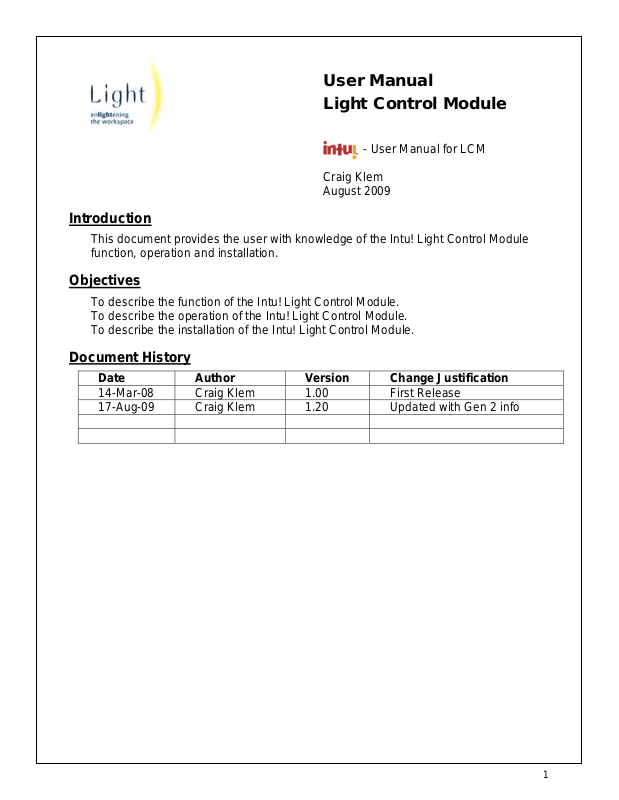

Introduction

This document provides the user with knowledge of the Intu! Light Control Module
function, operation and installation.

Objectives

To describe the function of the Intu! Light Control Module.
To describe the operation of the Intu! Light Control Module.
To describe the installation of the Intu! Light Control Module.

- User Manual for LCM
Craig Klem

August 2009

Document History

Date Author Version Change Justification

14-Mar-08 Craig Klem 1.00 First Release
17-Aug-09 Craig Klem 1.20 Updated with Gen 2 info

1

Block Diagram

Public
Server

Functional Description – Lighting Control Module

 Input power from 120/ 277
 Powered continually. No battery operation.
 Installed a maximum of 150’ from the nearest ballast controller.
 Control up to 3 ballasts.
 Maximum continuous current draw of 100mA.
 LEDs to indicate its status.
 Controller will not include switches. Operation and configuration will be

accomplished with Zigbee messages.

 Certified Zigbee and Zigbee Pro mesh stack
 Zigbee “router” operation. Messages will be routed to other Light Control Modules
 Respond to Zigbee messages to turn on its ballast(s).
 Support over the air boot-loading for SW field upgrades.
 Diagnostic port for RS232 type messages.
 There will be two types of ballast controllers: basic controllers and advanced

controllers.

2
