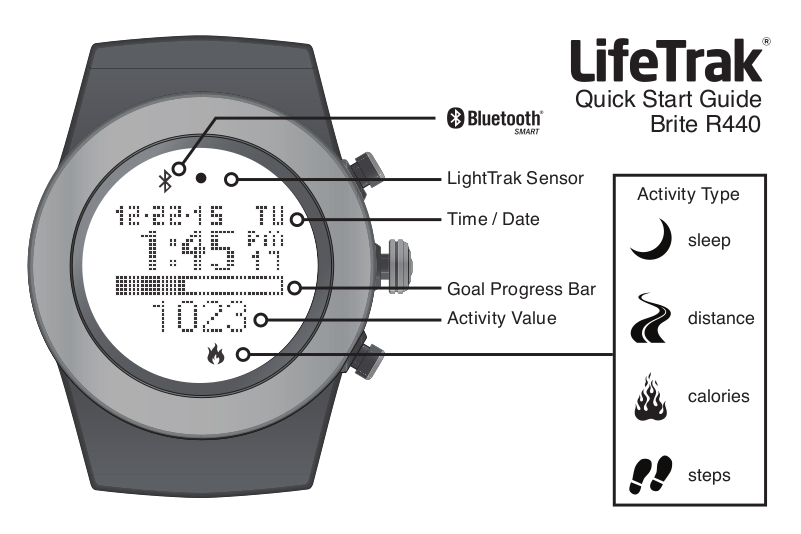

Page 1
Quick Start Guide
Brite R440
®
LightTrak Sensor
Time / Date
Goal Progress Bar
Activity Value
Activity Type
sleep
distance
calories
steps
Page 2
Welcome to LifeTrak. Let ’s take a quick tour of the basic featur es.
• To turn on your tness tracker, press and hold any button.
Learn more
• For support, tips, product information and full instructions, please visit:
www.lifetrakusa.com/support/help-center/
NOTE: Actual model / screen images may vary from images shown.
NOTE: This is NOT a medical device. Please visit our website to view
cautions and warranty information in the full instruction manual.
CUSTOMER SERVICE
If you have questions about your
LifeTrak activity tracker, please
contact our customer service team
Copyright © 2016 LifeTrak, Inc. All rights reserved. Duplication or copying of all or part of this manual without
the express written consent of LifeTrak, Inc. is prohibited.
Page 3
TABLE OF CONTENTS
Button Layout............................................................................................................................................................
Setting Alarms...........................................................................................................................................................
Intelligent Wake-Up Alarm .............................................................................................................................
LightTrak Alarms ...........................................................................................................................................
Inactivity Alarm ....................................................................................................................................................
Setting Goals............................................................................................................................................................
Setting Time..............................................................................................................................................................
Setting User Info......................................................................................................................................................
Sleep Tracker....................................................................................................................................................
Modes of Operation : Workout.............................................................................................................................
Heart Rate Monitor (Two Ways) : Finger Touch vs BLE Chest Belt............................................................
Pair Your Chest Belt...........................................................................................................................................
Set HR Log Rate................................................................................................................................................
Sessions............................................................................................................................................................
View Recorded Data.........................................................................................................................................
Storage Remaining............................................................................................................................................
Delete Recorded Data.......................................................................................................................................
Modes of Operation : Hourly Display..........................................................................................................
Modes of Operation : Weekly Display................................................................................................................
Advanced Settings..........................................................................................................................................
Sync Fitness Data / LifeTrak App....................................................................................................................
FCC / IC Cautions...........................................................................................................................................
Helpful Hints....................................................................................................................................................
Warnings & Cautions...........................................................................................................................
11 - 12
14 - 16
23 - 24
26 - 28
29 - 30
31 - 32
33 - 36
BACK COVER
3 - 4
5 - 6
1
2
7
8
9
10
13
17
18
19
20
21
22
25
Page 4
BUTTON
LAYOUT
MODE
Press to change modes:
Time Workout Ho urly Weekly
VIEW
Press to view:
sleep distance calories steps
Press & hold to read your heart rate
BACKLIGHT
To a c t i va t e t h e ba c k li g h t , d o ub l e - cl i c k VIEW
1
START / STOP
Press to start and stop in
Workout Mode
NOTE:
The buttons are
NOT intended for
use under water.
If used, water
could leak in and
cause damage.
Page 5
SETTING
ALARMS
Alarms can be
adjusted on your
tness tracker or
the LifeTrak App
(via Settings)
1
In Time,
hold
MODE
for
3 sec
Select
2
ALARMS
wake up
inactive
daylight
nitelight
INSIDE
SETTING
MODE
Increase value
Press to go to next setting
Press & hold to
exit setting mode
Decrease value
2
Page 6
INTELLIGENT WAKE-UP
You r L if eT ra k B ri te R4 40 f e at ur es In te ll i ge nt W ak e- U p wi th Vi br a- Al e rt . Th is vi br at i on
alarm can be set to wake you at your optimal time.
The Intelligent Wake-Up feature can be adjusted
Alarm Indicator
3
on your tness tracker (instructions on next page)
or on the LifeTrak App (via Settings).
After setting the alarm time, you have the option of
setting an Intelligent Wake-Up window (0-59 mins)
which will activate prior to the alarm time. During
this window, the vibration alarm will activate only if
you are no longer in a deep sleep stage.
If you are still in a deep sleep stage during the
Intelligent Wake-Up window, the vibration alarm
will activate at the set alarm time.
Page 7
INTELLIGENT WAKE-UP
INSIDE
SETTING
MODE
1
In Time,
hold
MODE
for
3 sec
Increase value
Press to go to next setting
Press & hold to
exit setting mode
Decrease value
2
Select
ALARMS
WAK EUP
set alert
on/off
alarm time
(minute)
alarm time
(hour)
adjust
alert start
4
Page 8
LIGHTTRAK
ALERT
LightTrak Alerts
can be adjusted
on your tness
tracker or the
LifeTrak App
(via Settings)
INSIDE
SETTING
MODE
5
Daylight alert will vibrate if you should get more light during the day.
1
In Time,
hold
MODE
for
3 sec
Select
2
ALARMS
DAYLIGHT
set alert
exposure
Increase value
duration
Press to go to next setting
Press & hold to
exit setting mode
Decrease value
on/off
level
Page 9
LIGHTTRAK
ALERT
LightTrak Alerts
can be adjusted
on your tness
tracker or the
LifeTrak App
(via Settings)
INSIDE
SETTING
MODE
Nitelight alert will vibrate if you should reduce light prior to bedtime.
1
In Time,
hold
MODE
for
3 sec
Select
2
ALARMS
NITELIGHT
set alert
exposure
Increase value
duration
Press to go to next setting
Press & hold to
exit setting mode
Decrease value
on/off
level
6
Page 10
INACTIVITY
ALERT
Inactivity Alerts
can be adjusted
on your tness
tracker or the
LifeTrak App
(via Settings)
INSIDE
SETTING
MODE
7
Helps motivate you with alerts if you have been inactive.
1
In Time,
hold
MODE
for
3 sec
Increase value
Press: go to next setting
Press & hold: exit setting mode
Decrease value
Select
2
ALARMS
INACTIVE
set alert
set inactive
time length
(min/hr)
set step
threshold
start time
end time
on/off
Page 11
SETTING
GOALS
Goals can be
adjusted on your
tness tracker or
the LifeTrak App
(via Settings)
1
In Time,
hold
MODE
for
3 sec
Select
2
GOALS
steps
distance
calories
sleep
INSIDE
SETTING
MODE
Increase value
Press to go to next setting
Press & hold to
exit setting mode
Decrease value
8
Page 12
SETTING
TIME
Time Setup
can be adjusted
on your tness
tracker or the
LifeTrak App
(via Settings)
INSIDE
SETTING
MODE
9
1
In Time,
hold
MODE
for
3 sec
Increase value
Press to go to next setting
Press & hold to
exit setting mode
Decrease value
2
Select
TIME
seconds
minutes
hour
year
month
date
month-day
format
12/24 hr
format
Page 13
SETTING
USER INFO
User Info can be
adjusted on your
tness tracker or
the LifeTrak App
(via Settings)
INSIDE
SETTING
MODE
1
In Time,
hold
MODE
for
3 sec
Increase value
Press to go to next setting
Press & hold to
exit setting mode
Decrease value
2
Select
USER INFO
gender
birthday
(year)
birthday
(month)
birthday
(day)
unit format
weight
height
10
Page 14
SLEEP TRACKER
The sleep tracker monitors the duration and quality of sleep. It automatically detects
the beginning and end of your sleep session.
For full control, you can also manually
operate the feature by double-clicking
START/ STOP while in Time Mode.
Sleep tracker indicator
(only in manual sleep mode)
START / STOP
Double-click to manually start / stop the sleep
tracker (must be in Time mode)
11
Page 15
SLEEP TRACKER
total sleep
time
Total sleep time is accumulated during all
sleep sessions that end on a particular day.
For example, if you fell asleep last night and
woke up this morning, your sleep duration will
be added to today’s total sleep time.
However, if you fell asleep last night at 10:00
p.m. and woke up at 11:00 p.m., that hour
of sleep would be added to yesterday’s total
sleep time.
NOTE: Once you wake up, the total sleep time
will update after a brief period.
12
Page 16
MODES OF OPERATION : WORKOUT
13
From Time Mode,
press MODE
until you reach
Workout Mode
VIEW
Press to view:
continuous heart rate (via chest belt),
distance, calories, steps
START / STOP
Press to start / stop your workout
Press & Hold to reset and record data
NOTE: Workout must be stopped
before you can record
Page 17
HEART RATE MONITOR
You r h ea rt is a t t he c en t er o f e ve ry th i ng y ou do – f u el in g y ou r li f e an d d ri vi ng yo ur p a ss io ns .
Monitoring your heart rate and using it in activity tracking is the most accurate way to set
your tness goals and help you reach them.
Why measure heart rate?
- Taking your heart rate will help you stay in your workout zones and help calculate your
calorie burn more accurately.
MEASURE YOUR HEART RATE TWO WAYS
1. VIA CHEST BELT
The Brite R440 is BLE chest belt compatible (sold separately). This additional
feature lets you record continuous heart rate readings to your watch, so you can
capture complete heart rate and calorie burn data during your workout. To h e l p
you track your results, you can also sync your cardio data to the LifeTrak app after
your workout - so you know if you need to push harder next time.
2. VIA FINGER TOUCH
Don’t want to wear a chest belt, but you want a heart rate reading? Get your
ECG heart rate reading at the press of a button - no chest strap needed!
14
Page 18
FINGER TOUCH HEART RATE
This feature will NOT be available when you are using
your compatible BLE chest belt in Workout Mode.
15
1. Wear snugly around your wrist.
2. Gently press and hold VIEW
seconds until your heart rate appears.
for 3 to 8
Heart Rate (beats per minute)
% of Maximum Heart Rate
VIEW
Press & hold to read your heart rate
Pulse Indicator
Page 19
CONTINUOUS HEART RATE (BLE CHEST BELT)
Place your compatible* Bluetooth®
chest belt (chest belt not included)
around your rib cage, just below
your pectoral muscles.
Adjust the elastic strap so it is
tight enough not to move during
your workout, but not so tight that
it restricts breathing.
For optimal results, wear the chest belt
for a few minutes and allow it to ‘warm
up’ before starting your workout.
*Please visit the LifeTrak website
www.lifetrakusa.com to purchase or
view a list of compatible BLE heart
rate chest belts / transmitters.
16
Page 20
PAI R YOU R
CHEST BELT
INSIDE
SETTING
MODE
17
You must be wearing your BLE chest belt to PAIR to your Brite R440
1
In Workout,
hold
MODE
for
3 sec
Press to start the
pairing process
Press & hold to
exit setting mode
* Clear and Info will not
appear the rst time you
PAIR your BLE chest belt.
After your BLE chest belt
successfully pairs, you can
then unpair (clear) or view
chest belt (info).
2
Select
PAI R CHR
clear*
new
info*
Page 21
SET HR
LOG RATE
INSIDE
SETTING
MODE
This is how often your heart rate readings will be logged.
Select 1-5 seconds.
1
In Workout,
hold
MODE
for
3 sec
Increase value
Press to go to next setting
Press & hold to
exit setting mode
Decrease value
2
Select
LOG RATE
1
2
3
4
5
18
Page 22
WORKOUT : SESSIONS
19
After resetting your workout data, it will be
saved automatically. You can view the last
10 workout sessions on your Brite R440.
All recorded sessions will be available for
review once uploaded to the app.
Record Number
Date Recorded
Note: You MUST reset & record your
Workout BEFORE you sync to your app.
If you simply pause your workout without
recording, the data will not sync to your app.
Note: Workout is automatically stopped
if there is no movement for 30 minutes.
Page 23
WORKOUT : VIEW RECORDED DATA
1
In Workout,
hold
MODE
for
3 sec
2
Select
SESSIONS
*Only continuous
heart rate readings
(via chest belt) are
recorded during
workouts
INSIDE
SETTING
MODE
Toggle through sessions (1-10)
Press to review workout data: *Heart Rate,
Exercise Time, Steps, Distance, Calories
Press & hold to exit setting mode
Toggle through sessions (1-10)
20
Page 24
WORKOUT : STORAGE REMAINING
The R440 can store up to 10 recorded workouts. You can review your remaining
workout storage to determine if you need to sync your workouts to the LifeTrak
app & delete data from your watch before your next workout.
1
In Workout,
hold
MODE
for
3 sec
- Your workout will automatically stop if the memory becomes full (during your workout)
21
- If the memory is already full (pre-workout), the workout will not start
2
Select
STORAGE
Page 25
WORKOUT : DELETE DATA
1
In Workout,
hold
MODE
for
3 sec
2
Select
RESET DB
INSIDE
SETTING
MODE
Press to
delete all
recorded
workout
data.
Only your recorded workout sessions
will be deleted from your watch. Your
daily and weekly information will NOT
be deleted. If you want to track your
workouts on the app - make sure you
SYNC BEFORE YOU DELETE!!!
22
Page 26
MODES OF OPERATION : HOURLY DISPLAY
Shows your progress throughout the day with
a 24-hour graph. The bars are scaled to t the
data from the 24-hour period.
From Time Mode,
press MODE until you reach
Hourly Display
VIEW
Press to view:
sleep, distance, calories, steps
23
Page 27
HOURLY DISPLAY : ACTIGRAPHY
The hourly actigraphy view provides a summary of your sleep and activity levels.
Active: Displays your activity levels while
awake. Bars represent three categories:
Normal, Active and Very Active.
Active graph
Sleep graph
Sleep: Displays your sleep levels.
Bars represent three categories:
Light, Medium and Deep Sleep.
24
Page 28
MODES OF OPERATION : WEEKLY DISPLAY
From Time Mode,
Press MODE until you reach
Weekly Display (“Today”)
VIEW
Press to view:
distance, calories, steps, sleep
START / STOP
Press to browse through the past
7 days
NOTE: Use the LifeTrak app to see trends and insights over weeks, months and years.
25
Page 29
ADVANCED SETTINGS
The calibrations are already programmed with ideal settings. But if you must
adjust it, there is a setting option you can access.
In Time Mode,
1
hold MODE for
3 sec
Press & hold START / STOP
2
for 3 sec. “CALIB” will appear
in the display.
Scroll down &
3
Select CALIB
26
Page 30
ADVANCED : STEP CALIBRATION
Advanced Settings can be adjusted on your tness tracker or the
LifeTrak App (via Settings)
27
Default: Optimal setting for most
people and conditions. This is the
recommended setting.
Option A: For those with low impact
movements
(e.g., person who treads lightly)
Option B: For those with high impact
movements
(e.g., person who treads heavily)
Page 31
ADVANCED : DISTANCE CALIBRATION
Advanced Settings can be adjusted on your tness tracker or the
LifeTrak App (via Settings)
After selecting one of the three STEP
CALIBRATION options (Default, Option
A or Option B), you will also be able to
adjust the distance calibration, if desired.
The DISTANCE CALIBRATION
range is from -25% to +25%.
Adjust as needed and once
complete, press DONE.
28
Page 32
SYNC FITNESS DATA
1. Make sure Bluetooth is active on your smartphone / tablet.
2. Install the LifeTrak App on your compatible smartphone / tablet, then open the app.
3. Follow prompts in the LifeTrak App to connect your device
Activate the Bluetooth on your
LifeTrak Brite R440:
Bluetooth Indicator
START / STOP
From TIME MODE, PRESS & HOLD
to begin pairing. Button can be released once
the Bluetooth icon appears in the display.
NOTE: For best results, keep your devices within
29
7 feet / 2 meters of each other when pairing.
Page 33
SYNC FITNESS DATA
Indicator
Status
(activity tracker)
Solid: Bluetooth is
on and linking to a
device
No icon: Bluetooth is
off / not working
You wi ll n e ed t o s yn c yo u r t ne s s da ta ma nu al l y wi th a si mp l e
two-step process each time you wish to transfer the data.
To transfer your tness data, simply
1. Open your app and click on the reload button in the top right corner.
2. Press & Hold START / STOP on your Brite R440 to
activate Bluetooth and start the sync process.
Remember: Bluetooth must be active on your
LifeTrak Brite R440 and your smartphone / tablet
to complete the data transfer (sync).
30
Page 34
FCC CAUTION
§ 15.19 Labelling requirements
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
§ 15.21 Changes or modication warning
Any Changes or modications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
*RF warning for Portable device:
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
31
Page 35
IC CAUTION
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’encompromettre le fonctionnement.
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003
du Canada.
32
Page 36
HELPFUL HINTS ABOUT TOUCH HEART RATE
If you are having difculty acquiring your heart rate, try the following:
Make sure your LifeTrak tness tracker is snugly strapped to your wrist.
1.
A loose t makes it more difcult to properly measure your heart rate.
2. Upon putting on for the rst time, allow a one-minute “warm up” before trying to
acquire your heart rate.
3. When touching the heart sensor button (VIEW), make sure you are using the soft,
at pads of your ngers, not the tips of your ngers.
4. Touch gently with enough pressure to activate the heart sensor button (VIEW).
Pressing too hard can make it difcult to measure your heart rate.
5. Make sure the back metal plate is lying at on your skin.
6. Make sure your wrist and ngers are clean and free from dirt, oils,
or lotions.
7. Clean the heart sensor button (VIEW) and back metal plate with a mild soap and
water, or similar cleaning solution.
8. Moisten with water the pads of the ngers you are using to contact the heart sensor
button (VIEW).
9. Moisten the surface between the back metal plate and the skin on your wrist with
water.
33
Page 37
HELPFUL HINTS ABOUT HEART RATE ZONES
WARNING: Before starting a new exercise routine, please consult your doctor or health
care professional to help you determine your maximum heart rate, upper and lower limits,
exercise frequency and duration appropriate for your age, condition and specic goals.
You can get your Maximum Heart Rate (MHR) from a MHR test (consult your doctor),
or you can estimate it using the following formula:
Women Maximum Heart Rate = 226 - age
Men Maximum Heart Rate = 220 - age
Here are some common Heart Rate Zones:
Light
Fat Burn
Endurance
Performance
Peak
50% - 60% MHR
60% - 70% MHR
70% - 80% MHR
80% - 90% MHR
90% - 100% MHR
Example based on a 35 year old
male
220 - 35 (age) = 185 (MHR)
To calculate the HR ZONES, multiply
185 (MHR) by the percentages to the
left. This will help you determine the
LO and HI levels of each zone.
For a Medium Intensity (Endurance):
185 x 0.7 = 130 (LO) and
185 x 0.8 = 148 (HI)
34
Page 38
HELPFUL HINTS ABOUT ALL-DAY CALORIE TRACKING
• Your body is always burning calories, even when sleeping or not in motion.
Our All-Day Calorie Tracker accounts for these calories burned.
• You will see calories burned even when you’re not wearing your LifeTrak.
This is normal as it is estimating the calories your body typically burns throughout
the day.
• You get more accurate calorie burn information by calculating in your heart rate
readings, so remember to take your heart rate throughout the day and more frequently
during your exercise.
35
Page 39
HELPFUL HINTS ABOUT LIGHTTRAK
• Monitoring your exposure to overall blue light levels can help you improve mood,
ght fatigue and keep your circadian rhythm running smoothly. The Brite R440
tracks your light levels and provides alerts to let you know when to get more or
less light. You can view charts and durations on the LifeTrak app.
HELPFUL HINTS ABOUT INACTIVITY ALARM
• The Brite R440 will let you know when you have been inactive.
Activate this alarm to receive a vibration alert letting you know when you should get
moving.
36
Page 40
WARNINGS & CAUTIONS
THIS IS NOT A MEDICAL DEVICE.
WAR NING : Before starting any exercise program, please visit your doctor for a
complete physical and to discuss your exercise plans.
PLEASE READ all of the information in this instruction manual before using the unit.
Make sure you fully understand the functions and limitations of this product before
using it.
NOTICE TO PEOPLE WEARING PACEMAKERS: While the heart rate monitor
is a passive system and should have no direct effect on a pacemaker, we strongly
recommend anyone tted with such a device contact their physician or cardiologist
before using this product or starting an exercise program.
NEVER expose the heart rate monitor to chemicals or cleaning solvents.
Exposure to insect repellent and sunscreen may also damage the unit.
NOTICE: While the heart rate monitor (watch) is 30M water resistant, IT IS NOT
WATER PRO OF. Do NOT press buttons under water - this will cause damage.
37
Visit ou r website for more helpful tips: www.lifet rakusa.com • 1-855-903-9030
Loading...
