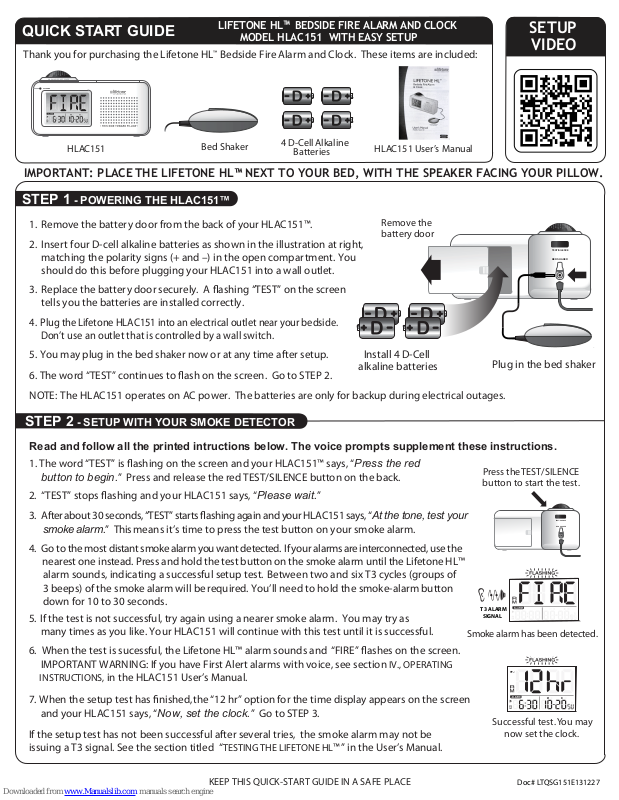

LIFETONE HLAC151 Quick Start Manual

QUICK START GUIDE

Thank you for purchasing the Lifetone HL Bedside Fire Alarm and Clock. These items are included:

WARNING! DO NOT COVER

AC POWER

LIFETONE HL
MODEL HLAC151 WITH EASY SETUP

™

™

BEDSIDE FIRE ALARM AND CLOCK

SETUP

VIDEO

HLAC151

Bed Shaker

4 D-Cell Alkaline

Batteries

HLAC151 User’s Manual

IMPORTANT: PLACE THE LIFETONE HL™ NEXT TO YOUR BED, WITH THE SPEAKER FACING YOUR PILLOW.

STEP 1

1. Remove the battery door from the back of your HLAC151

2. Insert four D-cell alkaline batteries as shown in the illustration at right,

matching the polarity signs (+ and –) in the open compartment. You
should do this before plugging your HLAC151 into a wall outlet.

3. Replace the battery door securely. A ashing “TEST” on the screen
tells you the batteries are installed correctly.

4. Plug the Lifetone HLAC151 into an electrical outlet near your bedside.
Don’t use an outlet that is controlled by a wall switch.

5. You may plug in the bed shaker now or at any time after setup.

6. The word “TEST” continues to ash on the screen. Go to STEP 2.

NOTE: The HLAC151 operates on AC power. The batteries are only for backup during electrical outages.

STEP 2

- POWERING THE HLAC151™

- SETUP WITH YOUR SMOKE DETECTOR

™

.

Remove the
battery door

TEST/SILENCE

BED SHAKER

Install 4 D-Cell

alkaline batteries

Plug in the bed shaker

Read and follow all the printed intructions below. The voice prompts supplement these instructions.

1. The word “TEST” is ashing on the screen and your HLAC151
button to begin.” Press and release the red TEST/SILENCE button on the back.

™

says, “Press the red

Press the TEST/SILENCE
button to start the test.

2. “TEST” stops ashing and your HLAC151 says, “Please wait.”

3. After about 30 seconds, “TEST” starts ashing again and your HLAC151 says, “At the tone, test your
smoke alarm.” This means it’s time to press the test button on your smoke alarm.

4. Go to the most distant smoke alarm you want detected. If your alarms are interconnected, use the
nearest one instead. Press and hold the test button on the smoke alarm until the Lifetone HL™
alarm sounds, indicating a successful setup test. Between two and six T3 cycles (groups of
3 beeps) of the smoke alarm will be required. You’ll need to hold the smoke-alarm button
down for 10 to 30 seconds.

5. If the test is not successful, try again using a nearer smoke alarm. You may try as
many times as you like. Your HLAC151 will continue with this test until it is successful.

T3 ALARM
SIGNAL

Smoke alarm has been detected.

6. When the test is sucessful, the Lifetone HL™ alarm sounds and “ F I R E ” ashes on the screen.
IMPORTANT WARNING: If you have First Alert alarms with voice, see section

INSTRUCTIONS,

in the HLAC151 User’s Manual.

IV., OPERATING

7. When the setup test has nished, the “12 hr” option for the time display appears on the screen
and your HLAC151 says, “Now, set the clock.” Go to STEP 3.

If the setup test has not been successful after several tries, the smoke alarm may not be
issuing a T3 signal. See the section titled “

TESTING THE LIFETONE HL

™ ” in the User’s Manual.

Successful test. You may

now set the clock.

TEST/SILENCE

BED SHAKER

KEEP THIS QUICK-START GUIDE IN A SAFE PLACE

Doc# LTQSG151E131227

STEP 3 - SETTING THE CLOCK

Buttons on the Top of the Lifetone HL™

1. On the time display, “12

hr” appears. To select 24-hour time, press + or – .

2. Press SET CLOCK. The hour will ash. To change the hour, press + or – .

3. Press SET CLOCK. The minute will ash. To change the minute, press + or – .

4. Press SET CLOCK. The year will ash. To change the year, press + or – .

5. Press SET CLOCK. The small “

M” and “D” will ash. To change to a day-rst

display of the date, press + or –.

6. Press SET CLOCK. The month will ash. To change the month, press + or – .

7. Press SET CLOCK. The day of the month will ash. To change the day, press + or – .

8 . Press SET CLOCK. The “E” (for English) will ash. To change to
Spanish (”S”) or French (”F”), press + or – . Press SET CLOCK again.

9. The clock will show the day of the week to the right of the date.
If you prefer to display the year instead, press SET CLOCK again.

NOTE: When you need to reset the clock, press and hold SET CLOCK until

hr” appears. Release the button, and then repeat all parts of STEP 3.

“12

STEP 4 - SETTING THE WAKE-UP ALARM

1. If the wake-up hour isn’t already ashing, press and hold SET ALARM. Release the
button when the wake-up hour ashes. To change the hour, press + or – .

2. Press SET ALARM. The wake-up minute will ash. To change the minute, press + or – .

3. Press ON/OFF to enable or disable the wake-up alarm. The bell icon at lower
left appears when the alarm is enabled and disappears when the alarm is disabled.

HOUR MINUTE

MONTH OR
DAY FIRST

(OR DAY) (OR MONTH)

BELL

YEAR,
LANGUAGE,
DAY OF WEEK

DAYMONTH

You can use the HI LO slide switch to adjust the volume of the wake-up alarm.
The emergency alarm always sounds at full volume.

NOTE: To change the wake-up alarm time, press and hold SET ALARM until the
wake-up hour ashes. Release the button, and then repeat all parts of STEP 4.

ERROR MESSAGES

Batteries: If the clock is ashing “BATT” and beeping at one-minute intervals, the
batteries were not installed correctly or are below the required voltage. Remove
and reinsert them, or replace them if necessary. Be sure to match the polarity signs
(+ and –) in the battery compartment. To keep the setup with your smoke alarm,
leave the clock plugged in while you change batteries.

Bed shaker: If the screen is ashing “beds” and the clock is beeping, the bed shaker

has probably come unplugged. Seat the bed-shaker plug rmly into the jack.

NOTE: If you want to stop using the bed shaker after it has been installed, unplug
it and then press and hold the red TEST/SILENCE button for 2 seconds. That starts
a manual self-test that will display “TEST” for 10 to 20 seconds, sound the re alarm
briey, and “retrain” the HL to operate without a bed shaker. If you decide to start

using the bed shaker again, simply plug it in.

PLEASE READ THE USER’S MANUAL COMPLETELY AND THOROUGHLY FOR
FURTHER DIRECTIONS, PRODUCT FEATURES, AND WARRANTY INFORMATION.

BEEP!

BEEP!

WAKE-UP TIME

Battery Error

Bed-Shaker Error
