COMPETITION SERIES XL POWER

LIFT® BASKETBALL SYSTEM

MODEL #71525

WWW.LIFETIME.COM

**U.S. and Canada customers ONLY**

IF ASSISTANCE IS NEEDED,

**Call or visit our Web site for Saturday hours**

8/28/2007

WARNING

Failure to comply with any of the warnings in these instructions may result in serious personal injuries such as cuts, broken bones, nerve damage, paralysis, brain injury, or death. Failure to comply may also result in property damage. Please heed all warnings and cautions. To ensure your safety, do not attempt to assemble this system without reading and following all instructions carefully. Identify and inventory the parts using the Parts List.

Save this instruction in the event that the manufacturer has to be contacted for replacement parts.

INSTRUCTION #1017998 D

ASSEMBLY INSTRUCTIONS AND OWNER’S MANUAL

**A MINIMUM OF TWO ADULTS ARE

REQUIRED FOR ASSEMBLY**

PARTS LIST

ID Part # Description Qty

TP 1006441 Top Pole 1 MP 1006443 Middle Pole 1 BP ZA08004 Bottom Pole 1 AB DD00800 Net 1 AC 502027H Handle 1 AD 502049G Trigger 1 AE 830020 Extension Arm (Long) 2 AA 830204 Extension Arm (Short) 2 AF 502056 Plastic Guard 1 AK CA00885 Zip Tie 2 AL 604084 Height Sticker 1 AM 800133 Spring Bracket 1 AN HA00800 Gas Spring 1 AO 825619 Rim 1 AP AM05404 Backboard Bracket Right 1 AQ AM05304 Backboard Bracket Left 1 AR 830222F Rear Lifter Arm 2 AS ZA10185 Bellows 1 AU 1012021 Backboard 1 AW 500096 Pole Cap 1 AX 800165 Rim Cover Plate 1 FL CA00299 Left Frame Pad 1 FR CA00399 Right Frame Pad 1 FB CA00999 Bottom Frame Pad 2 FM FS16500 Sticker, Warning (Applied) 1 AJ 700506 Wood Block 1

Rim Hardware (1013678)

RA BS01000 #7 x 3/8” Screw 4 RB 300104 3/8” Push Nut 2 RC 300106 5/16” x 2” Carriage Bolt 2 RD 300128 Jam Nut 2 RE 302079 3 1/2” x 5” x 5/16” U-Bolt 1 RF 302090 5/16” Nylock Flange Nut 4 RG 1001137 Compression Spring 2 RH 510038 3/8” x 5 1/2” Axle 1 RI 804018 Rim Pivot Bracket 1 RJ 804033 Spring Retainer Plate 1

Pole Joint Hardware (1005748)

PA BS02000 1/4” x 3/4” Screw 2 PB 1004620 Self-Tapping Screw 2

Frame Pad Hardware (HH00700)

FA BS00100 #10 x 3/4” Self-Drilling Screw 10

HARDWARE IS ACTUAL SIZE

(Unless otherwise indicated)

RCRA RD

(Not actual size)

Tools and Materials Required for Assembly

(Not Included)

1. Adjustable Wrench

2. Phillips Screwdriver

3. 1/2” Wrenches (2)

4. 9/16” Wrenches (2)

5. 3/4” Wrenches (2)

6. 11/16” Wrench

7. Hammer or Mallet

8. 6 - 50 lb bags of Cement

9. Tape Measure

10. Punch/Dowel or similar tool

11. Pliers

12. Scissors/Wire Cutters

13. Scrap Wood or Cardboard

14. Electric Drill

15. Socket Wrench

16. 1/2” x 3’ Rebar

BEFORE BEGINNING ASSEMBLY

A. Identify and inventory all parts using the checklist boxes on the Parts

List. Keep the hardware bags and their contents separate. If any parts are missing, call our Customer Service Department.

B. TesttallBoltsbyinsertingthemintotheirrespectiveholes.Ifnecessary,

carefully scrape away any excess powder coating buildup from inside the holes. Do not scrape away all of the powder coating. Bare metal may rust. You may need to pound some Bolts into place with a hammer or mallet.

PARTS LIST

ID Part # Description Qty Handle Hardware (1017923)

HA 302007 3/8” x 6 1/2” Hex Bolt 2 HB 300101 Release Pin 1 HC 302008 3/8” Centerlock Nut 2 HD 300187 1/2” x 6 1/2” Hex Bolt 1 MH 301008 1/2” Centerlock Nut 1

Main Hardware (HD9185)

MA 300029 1/2” x 7 1/8” Hex Bolt 5 MB 300022 1/4” Centerlock Nut 2 MD 300043 Cotter Pin 1 ME 300055 1 1/2” Metal Pin 1 MH 301008 1/2” Centerlock Nut 5 MI 300110 1/4” x 2 3/4” Hex Bolt 2 MJ 302053 3/8” x 4” Hex Bolt 2 ML 800324 1/2” x 2.31 Steel Spacer 2 MN 500032 1/2” x 1/8” Spacer 4 MO 500015 3/8” x 1/2” Handle Spacer 2 MQ 500081 Grease Packet 1 MR 800331 .62” x .706” x 3.20” Spacer 1 MT 800239 1/2” x 3.41” Spacer 2 MX 302011 5/16” x 1 1/4” Carriage Bolt 2 MY 302090 5/16” Nylock Flange Nut 2 MZ 500013 .69 x .592 Black Spacer 4 BC 300031 3/8” Flat Washer 2 HC 302008 3/8” Centerlock Nut 2

HARDWARE IS ACTUAL SIZE

(Unless otherwise indicated)

Thread lengths may vary

(Not actual size)

(Not actual

size)

SAFETY INSTRUCTIONS

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR

PROPERTY DAMAGE AND WILL VOID WARRANTY.

Owner must ensure that all players know and follow these rules for safe operation of

the system.

To ensure safety, do not attempt to assemble this system without following the instructions carefully. Check entire box and inside all packing material for parts and/ or additional instruction material. Before beginning assembly, read the instructions and identify parts using the hardware identier and parts list in this document. Proper and complete assembly, use and supervision are essential for proper orientation and to reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, and operated properly.

• If using a ladder during assembly, use extreme caution.

• Three capable adults are recommended for this operation.

• Assemble the pole sections properly. Failure to do so could cause the pole sections to separate during play.

• Before digging, contact utility company to locate underground power cables, gas, and water lines. Ensure that there are no overhead power lines within 20 ft. (7m) radius of pole location.

• Minimum operational height is 7’6” (2,23m) to the rim.

Most injuries are caused by misuse and/or not following instructions. Use

caution when using this system.

POLE SECTION IDENTIFICATION

Identify the pole sections before beginning assembly. Failure to assemble the

pole sections correctly may result in severe personal injury or property damage

as described on Page One.

ONCE THE POLE SECTIONS HAVE BEEN SEATED, THEY

CANNOT BE SEPARATED.

Top Pole:

Four holes at the top of the pole, four holes in the middle, two holes near the bottom and one small hole at the bottom.

MP BP

Middle Pole:

One slot at the top of the pole and one small hole at the bottom. Warning Sticker.

Bottom Pole:

One slot at the top of the pole and a dimpled end at the bottom.

For a nonpermanent installation of your basketball system, a Ground Sleeve provides an alternative to cementing the pole into the ground. See Page 14 for more information.

1.1 Dig a round hole 24” deep and

18” in diameter. The edge of the

hole should be ush with the edge of the

playing surface.

18”

1.2 Make a mark 14.5” up from

the dimpled end of the Bottom Pole (BP) (do not scratch the

powder coating).

2.1 Mix 5 1/2 bags of concrete, following the directions on the concrete

bags. Keep in mind that a thicker mix of concrete will dry stronger.

Important: Save a 1/2 bag of concrete mix to use later in the assembly.

2.2 Fill the hole to the top with concrete.

2.3 Insert the dimpled end of the Bottom Pole

into the cement up to the 14.5” mark and 4” away from the playing surface.

24”

3.1 The slots in the Bottom Pole must be parallel

to the playing surface. If necessary, insert a straight object (a ruler, wire, etc.) through the slots in the Bottom Pole. Rotate the pole until the straight object is parallel to the playing surface.

Note: Form the cement into a downward slope away from the pole to allow water runoff. Failure to do so may

result in premature rusting of the pole.

4.1 Place the 1/2” x 3’ rebar (not included) inside the Bottom Pole

(BP).

4.2 Check the pole several times within the rst hour

to make sure that all sides are vertical and that the pole does not sink into the concrete. The 14.5” mark must remain level with the playing surface.

14.5”

Playing Surface

Rebar

4”

Warning: If the pole is buried too deep or too shallow, the Rim will not be at the correct height.

Important: Do not continue until the concrete has set for 1-4 hours.

5.1 Remove the straight object from the top of the pole.

5.2 Mix the remaining 1/2 bag of concrete and pour the concrete into the Bottom Pole until it is just below the slots in the top of the pole.

Important: Do not overll the pole, or you may not be able to

assemble the rest of the pole sections.

5.3 Tamp the concrete down in the Bottom Pole with a broom handle to remove any air pockets.

5.4 Clean all excess concrete off the outside surface of the pole.

Important: Allow 1-4 hours for the concrete to set.

STOP!

The concrete must cure for at least 72 hours (3 days) before installing the rest of the system. In humid climates or wet weather, allow additional time for the concrete to cure. Do not proceed until the curing process is complete.

Required For This Page:

9/16” Wrenches

Screwriver

(2)

HD9185

6.1 Completely tighten the Nuts.

7.1 Apply the Height Sticker (AL) so it wraps

around the opposite side of the pole as the

Spring Bracket (AM).

8.1 Align the hole in the Top Pole with the

slot in the Middle Pole and slide the Top

Pole over the Middle Pole.

Do not jam the poles together until instructed.

8.2 Insert a 1/4” x 3/4” Screw (PA) through the small hole in the Top Pole

and into the Middle Pole.

(2)

MT (2)

(2)

Small holes

Large

holes

HCMTBC

This step cannot be reversed.

9.1 Strike each end of the Pole rmly 5 to 6 times on a

piece of scrap wood or cardboard.

Warning: If the Top and Middle Poles do not

completely cover the slots on the Middle and Bottom Poles after seating, DO NOT COMPLETE ASSEMBLY. Call our Customer

Service Department.

Note: The small notch in the Sticker

ts around the hole in the pole.

10.1 The bottom of the Bellows (AS) overlaps the Gas Spring (AN) by 1”. The top is 1/2” from the top of the Spring.

Larger

End

Zip Tie (AK)

Note: There are two screw holes at the bottom of the pole. The correct hole will be slightly larger and slightly higher up

on the pole.

Note: The Screw will spin freely once

installed.

1005748

(1)

Warning: Do not hit your feet with the pole

sections, as serious injury could occur.

WARNING

The poles must be seated together!! Even if the poles cover the slots

before seating, you must strike them on the wood ve to six times!!

Failure to seat the poles correctly could allow the poles to separate during use, which could lead to serious personal injuries or property damage as listed on Page One.

10.2 Use pliers to tighten the Zip Ties (AK) securely. Cut off the ends of the Zip

Ties.

Required For This Page:

1017923

1/2” Wrenches

9/16” Wrenches 3/4” Wrenches

Scissors/ Wire Cutters/ Pliers

Hammer/ Mallet

(1)

11.2 Tighten the Nut until it is ush

with the Bolt.

11.1 Line up the Rear Lifter Arms (AR) with the Gas Spring (AN).

above.

12.1 Use pliers to bend the

Cotter Pin (MD) as shown

13.1 Tighten the Nut until it is ush

with the Bolt.

HD9185

(1)*

(2)

(1)*

*(Not actual

size)

(2)

at the end of the Gas Spring (AN).

14.1 Slide the Release Pin (HB) through the oval holes of the clevis

15.1 The Release Pin (HB)

should t into the channels in the

Trigger (AD).

16.1 Tighten the Nut (HC)

until it is ush with the Bolt.

Required For This Page:

9/16” Wrenches

Pliers

1003678

(2)

(1)

17. 1 Ho ld th e Ba c kboard

Brackets (AP & AQ) together and slide the U-Bolt (RE) through the holes as shown.

(2)

18.2 Completely tighten the Nuts (MA).

18.1 Ensure the U-Bolt (RE) is in the notches.

through each hole in the Rim Pivot Bracket (RI).

19.1 Insert a 5/16” x 1

1/4” Carriage Bolt (RC)

out.

20.1 The Push Nuts (RB)

should be convex side

(Not actual size)

HD9185

(2)

21.1 Lay the Backboard (AU) on a table or bench.

(2)

Note: The U-Bolt (RE) goes through the upper openings as shown.

(AO) holes exposed over the edge of the table. Bolts will go through the Backboard and the Backboard Brackets on the back.

22.1 Lay the Backboard (AU) face up with the Rim

far as they will go.

23.1 Tighten the Jam Nuts (RD) onto the U-Bolt (RE) as

Required For This Page:

1003678

1/2” Wrench 3/4” Wrenches Electric Drill/ Screwdriver

24.1 Place the Compression

Springs (RG) over the ends of the

U-Bolt (RE).

Flange Nuts (RF).

25.1 Place the Spring Retainer Plate (RJ) and secure with Nylock

26.1 Slide a Carriage Bolt (MX) into the

crimped slot in each Backboard channel.

(2)

(4)

HD9185

(2)

RJ (1)

(Not actual size)

27.1 Attach the Rim Cover Plate (AX) to the Rim using

#7 x 3/8” Screws (RA).

Note: Do not overtighten the Nuts (RF).

28.1 Bend the Backboard Brackets (AP &

AQ) out and over the Carriage Bolt (MX).

(2)

Note: The lower holes should go

28.2 Secure Brackets with 5/16 “

Note: Do not overtighten the Nuts (MY).

over the Carriage Bolts.

Nylock Flange Nuts (MY).

28.3 Completely tighten all Rim hardware.

Required For This Page:

1/2” Wrench

3/4” Wrenches

Electric Drill/ Screwdriver

(2)

29.1 Tighten the Nut until it is ush with the Bolt.

30.2 Tighten the Nut until it is ush with the Bolt.

30.1 Attach this end of the Long Extension Arms (AE) to the Backboard Brackets (AP & AQ).

HD9185

(2)

(4)

31.1 Rest the Backboard (AU) and Rim (AO) on cardboard to prevent scratching.

MZ MA

Required For This Page:

3/4” Wrenches

1/2” Socket Wrench Hammer/Mallet

Electric Drill

HD9185

(4)

(3)

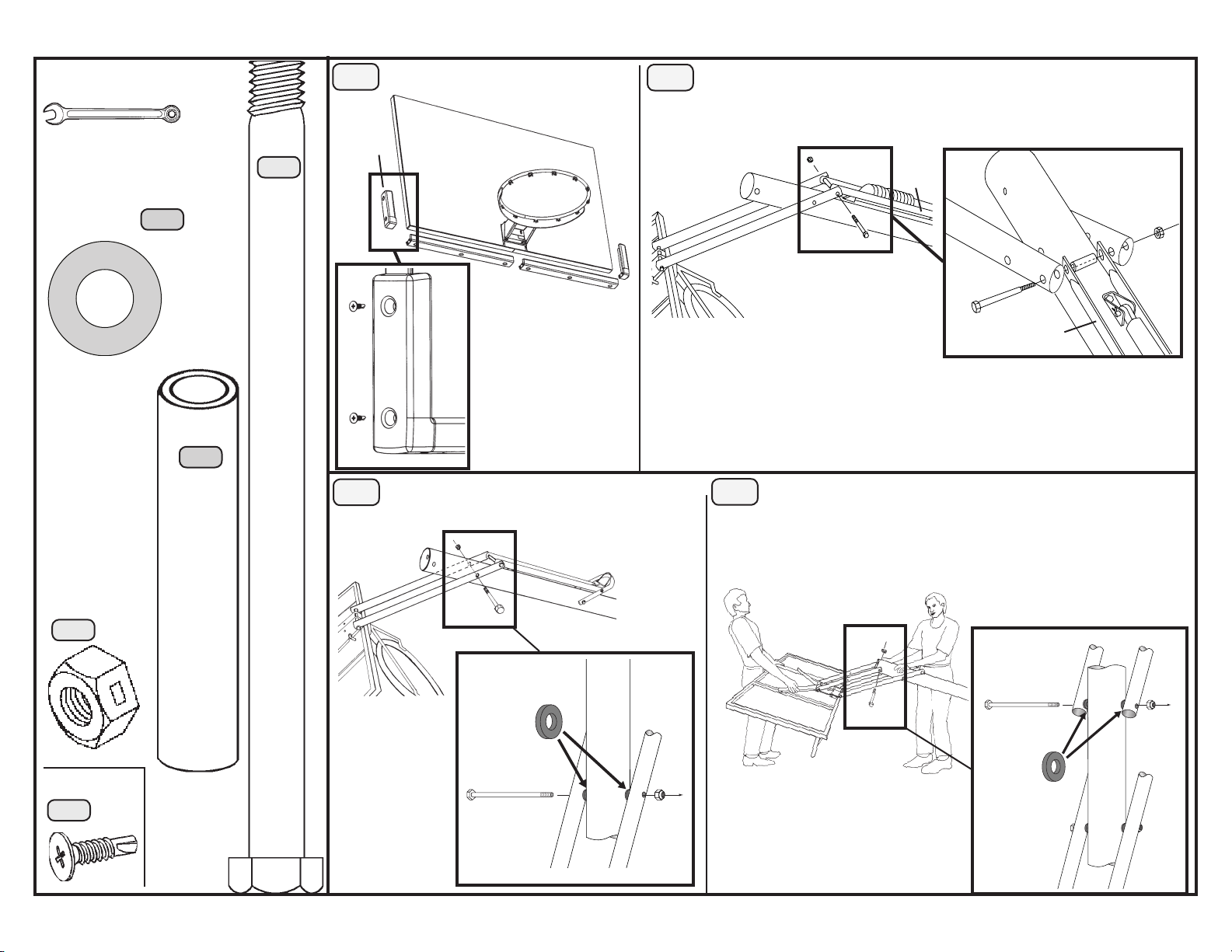

32.1 Remove the plastic lm from the

Backboard.

33.1 Lift the pole up until the Long Extension Arms (AE) line up with the holes in the Rear Lifter Arms (AR).

(3)

(1)

pole.

33.2 Only nger tighten the Nut.

32.2 Use an electric drill to

insert the Screws (FA).

34.1 There must be a 1/2” x 1/8” Spacer (MN) between each Long Extension Arm (AE) and the

Note: The Rear Lifter Arms (AR) must be on the inside of the Extension Arms (AE).

35.1 Place a 1/2” x 1/8” Spacer (MN) between each Short

Extension Arm (AA) and the pole.

HH00700

(10)

34.2 Only nger

tighten the Nut.

AE AE

35.2 Completely tighten the Nuts from steps 32 through 34.

Note: Please call our Customer Service Department at the number on Page One to obtain replacement Nets. Our Nets are shorter than average to reduce the risk of entanglement.

36.1 Attach the Net (AB).

38.1 Slowly lift the pole and rotate the Backboard assembly upside

down again.

CAUTION: DO NOT APPLY EXCESSIVE WEIGHT TO THE HANDLE. Do not hang anything from the Handle, as this will damage the system and void the product warranty.

37.1 Apply the Grease (MQ) to these areas.

38.2 Grasp the Handle and Trigger as shown. Squeeze the Trigger and

push down on the pole to compress the Gas Spring.

38.3 Release the Handle before letting go of the pole.

CAUTION: When compressing the Gas Spring, use extreme caution to prevent the pole from extending.

Required For This Page:

Screwdriver Hammer/Mallet Electric Drill

1005748

PA (1)

**AT LEAST 2 ADULTS REQUIRED FOR THIS STEP**

39.1 Ensure the Backboard faces the playing surface and align the small hole in the Middle Pole (MP) with the correct

slot in the Bottom Pole (BP). Slide the Middle Pole over the Bottom Pole.

39.2 Insert the remaining 1/4” x 3/4” Screw (PA) through the small hole in the Middle Pole and into the Bottom Pole. The Screw will

spin freely once installed.

Note: There are two screw holes at the bottom of the pole. The correct hole will be slightly larger and slightly higher up on the pole.

39.3 Place the Wood Block (AJ) on top of the pole and strike with a hammer six

or seven times.

(2)

Warning: If the Middle Pole does not completely cover the slot on the Bottom Pole after seating, DO NOT COMPLETE ASSEMBLY. Call our Customer Service Department.

39.5 After setting the poles in step 39.3, Insert

39.4 Place a Self-tapping Screw (PB) directly into

the chuck of the Electric Drill and insert the screw into the back of the poles at the locations shown.

Note: To ensure that the concrete can fully set, do not play aggressively on your

basketball system for a week.

the Pole Cap (AW) into the pole.

WARNING

Use extreme caution when standing on ladders to perform assembly steps. Follow all warnings and cautions on the ladder. Failure to follow all of these instructions and warnings could lead to serious personal injury or property damage.

Operation of the height adjustment system

The adjustable system may be adjusted from 7 1/2 feet to 10 feet. Hold the Handle tightly and squeeze the Trigger to engage the Gas Spring. Raise the Handle to lower the Backboard, or lower the Handle to raise the Backboard.

WHILE TRANSPORTING THE PORTABLE SYSTEM, USE CAUTION TO PREVENT THE

MECHANISM FROM ADJUSTING.

Moving the system

WARNING: e system must only be moved by people capable of handling its weight. Children should not be allowed to move the system.

a. Adjust the system to its lowest position. b. Stand in front of the system and pull on the pole until the unit is balanced on its Wheels. c. Move the system to the desired location and carefully set the Base down.

POLE CARE AND SYSTEM MAINTENANCE

The life of your basketball system depends on many variables. The climate, exposure to corrosives

such as salt, pesticides, or herbicides, and excessive use or misuse can all contribute to pole failure, which may cause property damage or personal injury.

Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion.

For safety reasons, and to prolong the life of your basketball system, you must take the following

preventive measures. a. Check all Nuts and Bolts. If any are loose, tighten them. b. Check all parts for excessive wear and tear. If necessary, replace any parts that have been worn

or damaged through usage. Check the Pole Cap for cracks or tears that could let water into the

pole. Contact our Customer Service Department for replacement parts. c. Inspect the Warning Sticker on the pole. If it is ripped, faded, or illegible, call our Customer

Service Department to request a replacement Sticker. d. Check all pole sections for visible rust or chipped or cracked paint. If either are present, do the

following:

1. Use an emery cloth to completely remove any rust or chipped paint.

2. Clean the area with a damp cloth and allow it to dry.

3. Apply two coats of a rust preventative, high gloss enamel paint to the area. Allow the paint

to dry between coats.

IF RUST HAS PENETRATED THROUGH THE POLE ANYWHERE, REPLACE IT

IMMEDIATELY!

ACCESSORIES AVAILABLE FOR MORE BASKETBALL FUN!

PRODUCT DESCRIPTION MODEL #

Intermediate Size Basketball 594201 Universal Ground Sleeve 0023

Contact Customer Service at the number

on Page Two for prices and freight cost.

Universal Ground Sleeve #0023

The Universal Ground Sleeve enables the pole to be ce-

mented in, yet still removable. The sleeve sits ush with

the ground after installation. Fits 3.5” diameter poles.

Only clean the Backboard with the approved cleaning materials

listed below:

Windex

Joy2

Mr. Clean

Fantastik

Formula 409

The use of other chemicals will void the warranty.

Registered Trademark of the Drackett Products Company.

Registered Trademarks of Procter & Gamble.

Registered Trademark of Texize, Division of Norton Norwich Products Inc.

Registered Trademark of the Clorox Company.

FAUTE DE NE PAS SUIVRE CES AVERTISSEMENTS,

VOUS RISQUEZ DE CAUSER DES BLESSURES

GRAVES ET/OU DES DOMMAGES À L’ÉQUIPEMENT.

SI NO SE OBEDECEN ESTAS ADVERTENCIAS

PUEDEN PRODUCIRSE GRAVES LESIONES Y/O

DAÑOS A LA PROPIEDAD.

Le propriétaire doit s’assurer que tous les joueurs

connaissent et appliquent les règles suivantes an

d’utiliser l’équipement en toute sécurité.

WARNING

El propietario del sistema debe asegurarse de que

todos los jugadores conozcan y respeten estas reglas

para que el sistema se use en forma segura.

FAILURE TO FOLLOW THESE WARNINGS MAY

RESULT IN SERIOUS INJURY AND/OR PROPERTY

DAMAGE.

Owners must ensure that all players know and follow

these rules for safe operation of the system.

• Cuélguese del aro sólo en forma breve, para recuperar el

equilibrio o evitar lesionar a otros jugadores. Suéltese del

aro lo más pronto que pueda hacerlo con seguridad.

• Durante el juego, especialmente al embocar violentamente

de alto, la cara de los jugadores debe mantenerse alejada

del tablero, el aro y la red. Pueden producirse lesiones

graves si los dientes o la cara entran en contacto con

el tablero, el aro o la red. Los jugadores deben usar un

protector bucal durante el juego.

• No se deslice, no trepe ni juegue sobre el poste.

• Mantenga las manos y los dedos alejados de las piezas

movibles cuando regule la altura del sistema.

• No deje que los niños regulen el sistema.

• No use joyas (anillos, relojes, collares o gargantillas, etc.)

durante el juego. Estos objetos pueden engancharse en la

red.

• No permita que la base del poste entre en contacto con

materiales orgánicos. El pasto, los desechos animales, etc.,

pueden causar corrosión y/o deterioros.

• Controle el poste y todas las piezas metálicas una vez al

mes en busca de signos visibles de corrosión (oxidación,

picaduras, escamado). Elimine todo rastro de óxido y

vuelva a pintar con esmalte para exteriores. Si el óxido ha

penetrado cualquier pieza de acero, reemplace esa pieza

de inmediato.

• Inspeccione el sistema antes de cada uso para vericar

que los elementos de jación no estén ojos, que no haya

desgaste excesivo, inestabilidad ni signos de corrosión.

Si encuentra irregularidades, repárelas antes de usar el

sistema.

• Nunca juegue con un equipo dañado.

• No use el sistema para levantar ningún objeto. El

mecanismo está diseñado para elevar solamente el peso

del tablero con el aro. No cuelgue nada de la agarradera, el

aro, el tablero ni los brazos de elevación, ya que esto puede

dañar el sistema y anular la garantía.

•Ne vous suspendez pas à l’anneau plus que nécessaire

pour retrouver votre équilibre ou éviter de blesser les autres

joueurs. Relâchez l’anneau aussitôt que possible.

• Lors d’un match, particulièrement dans le cas des smashs,

le visage du joueur ne doit pas faire face au panneau, à

l’anneau, ni au let. Le joueur risque de graves blessures si

ses dents ou son visage entrent en contact avec le panneau,

l’anneau, ou le let. Les joueurs doivent toujours porter un

protège-dents lorsqu’ils jouent.

• Ne glissez pas, ne grimpez pas, et ne jouez pas sur la base

ou le poteau.

• Lorsque vous ajustez la hauteur ou l’équipement, gardez

vos mains et doigts loin des pièces mobiles.

• N’autorisez pas les enfants à ajuster l’équipement.

• Ne portez pas de bijoux (bagues, montres, colliers, etc.)

lorsque vous jouez. Ces objets pourraient s’accrocher au

let.

• Gardez la base du poteau libre de toute matière organique.

L’herbe, les déchets, etc. peuvent la corroder et la

détériorer.

• Une fois par mois, vériez que le poteau et toutes les pièces

en métal ne montrent pas de signes de corrosion (rouille,

piqûres, écaillage). Enlevez toute la rouille et repeignez

complètement avec une peinture pour extérieur. Si la rouille

a pénétré une des pièces en acier, vous devrez remplacer

immédiatement la pièce en question.

• A chaque fois que vous allez utiliser l’équipement, vériez

d’abord l’équilibre, la possibilité de pièces desserrées ou

usées, la stabilité de l’équipement et tout signe de corrosion

ou réparation nécessaire avant utilisation.

• Ne jouez jamais avec un équipement endommagé.

• N’utilisez pas l’équipement pour lever ou soulever quoique

ce soit. Son mécanisme a été conçu uniquement pour

soutenir le poids du panneau et de l’anneau. N’accrochez

rien au manche, à l’anneau, au panneau ni aux leviers sous

peine d’endommager l’équipement et d’annuler la garantie.

ADVERTENCIA

AVERTISSEMENT

Only hang from the rim briey to regain balance or avoid

injuring others. Release the rim as soon as safely possible.

During play, especially when performing dunk type activities,

keep player’s face away from the backboard, rim, and net.

Serious injury could occur if teeth/face come in contact with

the backboard, rim, or net. Player should wear a mouth

guard during play.

Do not slide, climb, or play on pole.

When adjusting height or moving system, keep hands and

ngers away from moving parts.

Do not allow children to move or adjust system.

Do not wear jewelry (rings, watches, necklaces, etc.) during

play. Objects may entangle in net.

Keep organic material away from pole base. Grass, litter,

etc. could cause corrosion and/or deterioration.

Once a month check pole and all metal parts for signs of

corrosion (rust, pitting, chipping). Completely remove rust

and repaint with exterior enamel. If rust has penetrated any

steel part, replace that part immediately.

 Check s ystem before each use for loose hardware,

excessive wear, instability, and signs of corrosion and repair

before use.

 ever play on damaged equipment.

 Do not use the system to lift or hoist anything. The

mechanism is designed to lift only the weight of the

backboard and rim. Do not hang anything from the handle,

rim backboard, or lifter arms as this will damage the system

and void the warranty.

#FS16500

10/12/2004

www.lifetime.com

LIFETIME BASKETBALL EQUIPMENT

5-YEAR LIMITED FACTORY WARRANTY

THE MANUFACTURER RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE.

1. Lifetime basketball systems are warranted to the original purchaser to be free from defects in material or workmanship for a period of five years from the date of original retail purchase. The word “defects” is defined as imperfections that impair the use of the product. Defects resulting from misuse, abuse or negligence will void this warranty. This warranty does not cover defects due to improper installation, alteration or accident. This warranty does not cover damage caused by vandalism, rusting, “acts of nature” or any other event beyond the control of the manufacturer.

2. This warranty is nontransferable and is expressly limited to the repair or replacement of defective basketball equipment. If the equipment is defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective parts at no cost to the purchaser. Shipping charges to and from the factory are not covered and are the responsibility of the purchaser. Labor charges and related expenses for removal, installation or replacement of the basketball system or its components are not covered under this warranty.

3. This warranty does not cover scratching or scuffing of the product that may result from normal usage. In addition, defects resulting from intentional damage, negligence, unreasonable use or hanging from the net or rim will void this warranty.

4. Liability for incidental or consequential damages is excluded to the extent permitted by law. While every attempt is made to embody the highest degree of safety in all equipment, freedom from injury cannot be guaranteed. The user assumes all risk of injury resulting from the use of this product. All merchandise is sold on this condition, and no representative of the company may waive or change this policy.

5. This product is not intended for institutional or commercial use; Lifetime Products, Inc. does not assume any liability for such use. Institutional or commercial use will void the warranty.

6. This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability or fitness for use. Neither Lifetime Products, Inc., nor any representative assumes any other liability in connection with this product.

ALL WARRANTY CLAIMS MUST BE ACCOMPANIED BY A SALES RECEIPT.

REPORT PRODUCT DEFECTS IN WRITING TO:

Lifetime Products, Inc., PO Box 160010 Clearfield, UT 84016-0010

or call (800) 225-3865 M-F 8 a.m. to 5 p.m. MST.

Please include your dated sales receipt and photographs of damaged parts.

To Register Your Product, Visit Our Website at www.lifetime.com

Lifetime 7525 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
