Page 1
1
HYPERJUMP 2
SPRING TRAMPOLINE
OWNER'S MANUAL
IMPORTANT:
The owner’s manual contains safety, assembly, use and maintenance instructions. The product must be assembled by an adult who
has read and understood these instructions. Keep the packaging away from children and dispose of all packaging before use.
For the installer and your children’s safety, it is important to fully read and understand the instructions and safety hazards before
commencing the assembly of the
product.
WARNING!
The disassembled trampoline
contains small parts which
pose a choking hazard to
children under 3.
Page 2
2
TABLE OF CONTENTS
1. GENERAL SAFETY INSTRUCTIONS 4
1.1. PURPOSE 4
1.2. DANGER FOR CHILDREN 4
1.3. RISK OF INJURIES 4
1.4. PRODUCT DAMAGE 5
1.5. ASSEMBLY ADVICE 5
2. SAFETY INSTRUCTIONS 7
2.1. ACCIDENT CATEGORIES 9
3. ASSEMBLY INSTRUCTIONS 11
3.1. PARTS 12
3.2. FRAME ASSEMBLY 13
3.3. MAT ASSEMBLY 15
3.4. FRAME PADDING ASSEMBLY 16
3.5. UPRIGHT POLE ASSEMBLY 17
3.6. SAFETY NET ASSEMBLY 17
3.7. NET ATTACHMENT 18
3.8. LADDER ASSEMBLY 19
Page 3
3
4. SAFETY NET PRECAUTIONS 20
5. MAINTENANCE 21
6. CLEANING 22

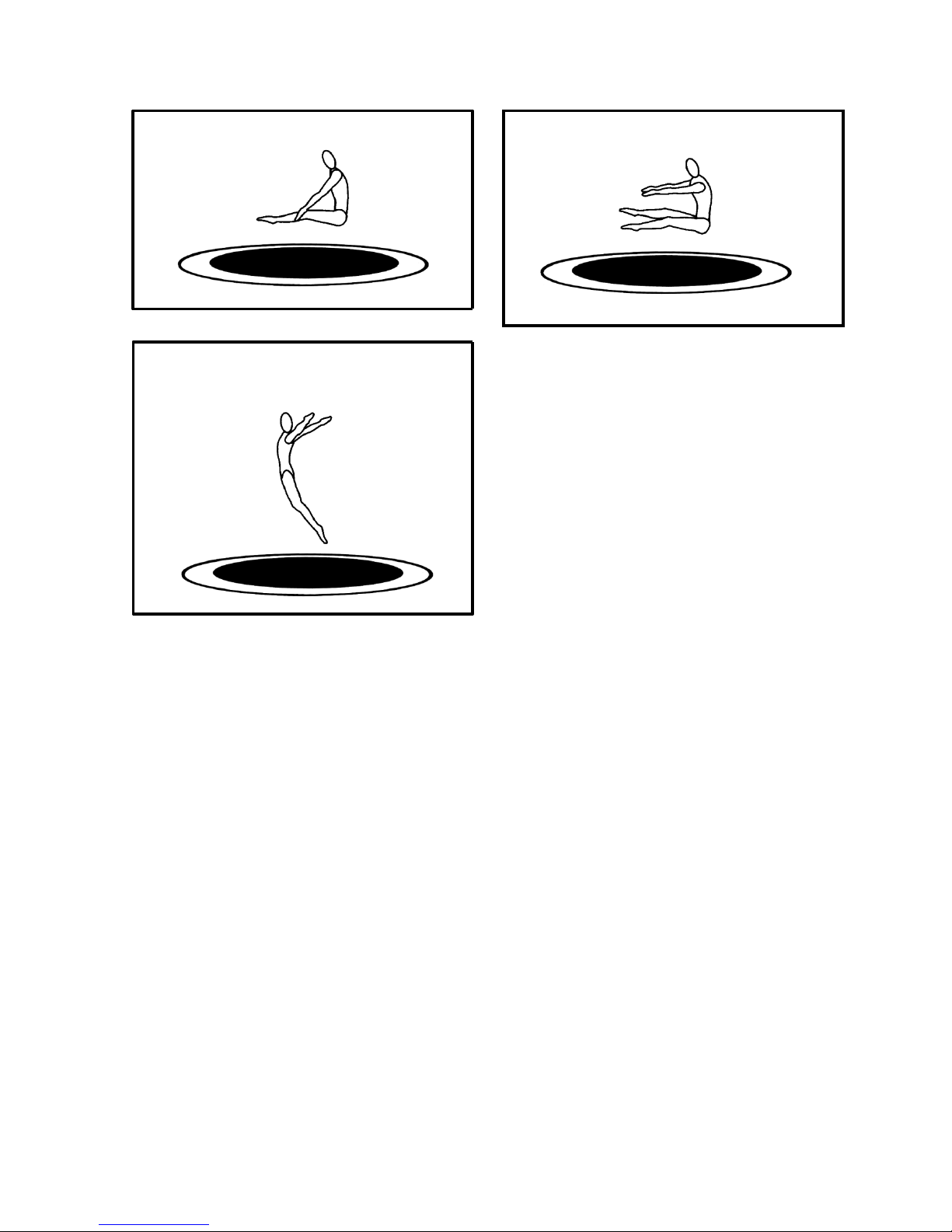

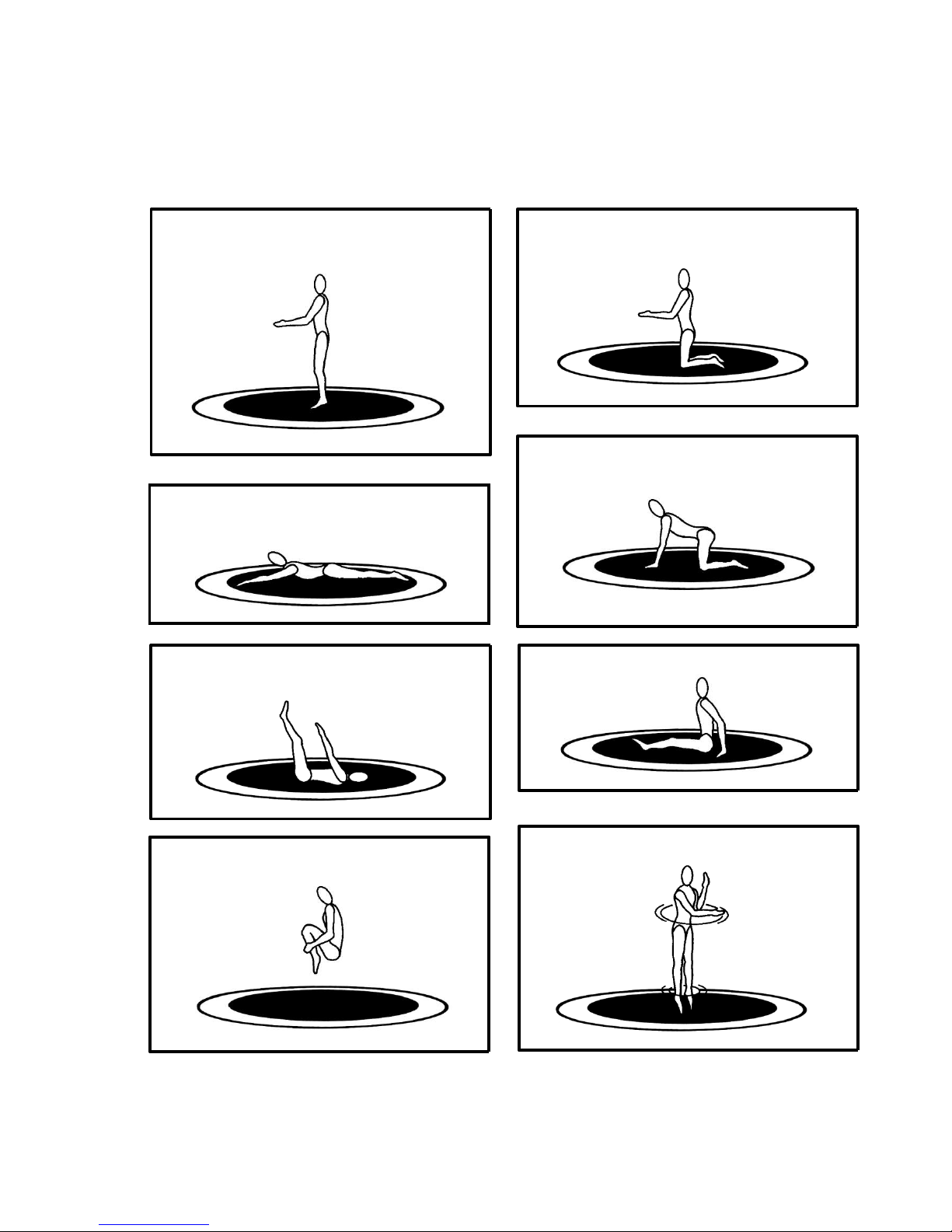

7 EXERCISE DIAGRAMS 23
8. WARRANTY 25
Page 4
4
1 GENERAL SAFETY INSTRUCTIONS
1.1 PURPOSE
This product is intended for indoor and outdoor, home, domestic use only. It is not suitable
for commercial or medical use.
Do not exceed the weight limit of the trampoline
Size
8ft
10ft
16ft
Weight Limit
100kg
110kg
140kg
1.2 DANGER FOR CHILDREN
WARNING! Trampolines over 51cm (20 inches) in height are not recommended
for children under six years of age.
WARNING! No eating while jumping
Children do not recognize potential dangers from this product. The product must be
stored out of reach of children and pets.
This product may only be used with adult supervision at all times.
The packaging material is not suitable for children due to choking and suffocation
hazards.
1.3 RISK OF INJURIES
Do not use the product if it is damaged or defective. If it is damaged or defective,
please contact a qualified technician.
Check the product before each use. Defective parts must be changed immediately as
they can impair the function and the safety of the product.
No more than one person to use the product at the same time.
Use the product only on even and non-slip surfaces. Never use it near water and
keep sufficient space around for safety.
Page 5
5
Beware of moving parts such as the springs or elastics, which could catch arms and
legs. Do not place any objects or body parts in the product’s openings.
1.4 PRODUCT DAMAGE
Do not make alterations to the product. Only use original spare parts. Only qualified
technicians should carry out repairs – improper repairs can lead to danger for the
user. Use this product only as described in this manual.
Protect the product against splashes, humidity, high temperature and direct sunlight.
1.5 ASSEMBLY ADVICE
The assembly of the product must be done carefully and by two able-bodied adults. If
in any doubt, ask a technically qualified person.
Before you start with the assembly, read the instructions carefully.
Remove all packaging materials and lay down all parts on an open space. This gives
you an overview and simplifies the assembly procedure.
Check with the parts list that all parts are available. Dispose of the packaging
material when the assembly is completed.
Beware that when using tools or doing technical work, there is always a risk of
injuries. Assemble the product with care.
Create a danger free environment; for example, do not let tools lay around the
workspace. Store the packaging material in a way that cannot cause any danger.
After installing the product according to the instruction manual, ensure all screws,
bolts and nuts are correctly installed and tightened and that all joints are secure.
A free space of at least 9.5 m is necessary above the trampoline. Reasonable space
must be kept between the trampoline and possible sources of danger, such as power
lines, tree branches, Playing devices, Swimming pools and fences,
The trampoline must be assembled correctly before use.
Page 6
6
Never set up the trampoline in heavy rain, wind or storm conditions, especially
lightning conditions. It is recommended that the trampoline be taken apart and stored
in bad weather.
Place the trampoline on a level surface at least 2 m from any structure or obstruction
such as a fence, garage, house, overhanging branches, laundry lines or electrical
wires.
Trampolines shall neither be installed over concrete, asphalt or any other hard
surface nor at proximity of other conflicting installations (e.g. paddling pools, swings,
slides, climbing frames).
Modifications made to the original trampoline (e.g. the adding of an accessory) shall
be carried out according to the instructions of the manufacturer.
The metal frame of the trampoline will conduct electricity. Lightning, extension cords
and all electrical equipment must never be allowed to come in contact with the
trampoline.
The trampoline must always be used in a well-lit area.
Do not place anything under the trampoline.
Use gloves during assembly and disassembly
Outdoor trampolines should be equipped with a device that in strong wind conditions
avoid displacement due to wind (e.g. steel bars in the ground or loads like sand bag
or water bags) and/or items catching wind like net and mat should be removed.
In certain areas during winter, snow buildup and the low temperatures can damage
the trampoline. It is recommended to remove snow buildup and to store the mat and
the enclosure indoor.
Replace the enclosure after 2 years of usage. This time indication is highly effected
by weather conditions and the amount of UV exposure the trampoline is subject to.
We strongly recommend visual inspections every 3 months to insure the integrity of
the entire trampoline. Replace any parts as necessary.
Page 7
7
2 SAFETY INSTRUCTIONS
WARNING
Do not land on the head or
neck. There is the danger of
paralysis or death, even if
landing in the center of the
trampoline.
No somersaults should be
attempted, in order to avoid
danger of a head or neck
landing.
One person only at a time may use the
trampoline. All children must be
supervised while using the trampoline.
Several persons jumping at the same
time on the trampoline will increase
the danger of control loss, collision or
falls. This can lead to serious injury.
Page 8
8
The safety instructions of the trampoline should always be considered and obeyed.
Using the trampoline may result in permanent injury such as paralysis, or even death.
Even landings on the trampoline may lead to injuries, particularly to the back, neck or
head.
Trampolines are jumping devices, enabling the user to jump into unusual heights as
well as into a multiplicity of body movements. Jumping in the Trampoline, hitting the
frame, cushioning or incorrect landing on the Trampoline can lead to injuries.
No clothes with hooks or lose parts should be worn when carried during trampoline
usage in order to avoid hooks getting caught and causing injury.
Strong winds can result in the trampoline being blown away or damaged. If strong
winds are predicted the trampoline must be disassembled and moved to a sheltered
area or sufficiently anchored down.
Moving the trampoline whilst assembled may affect the integrity of the frame. Should
it be necessary to move the trampoline, please consider the following:
1.) At least four people must be evenly spaced around the frame to lift the
trampoline off the ground
2.) The trampoline must be carried horizontally
3.) Use caution whilst moving as it could bend the trampoline frame. If this
occurs, use four people to draw the trampoline in shape.
Users should be familiar with the assembly manual. This manual contains assembly
guidance; selected precautionary measures as well as recommendations for
servicing and maintenance of the trampoline, in order to ensure a secured and fun
use of the Trampoline.
It is the responsibility of the owner or the supervisor to guarantee that all users of the
trampoline are informed sufficiently of all warning references and safety instructions.
Page 9
9
For the supervisor:
The supervisor’s role is to make sure users are aware of all safety precautions and that
these precautions are enforced. When a supervisor is not available, the trampoline may be
disassembled or covered to limit access.
Do not recommend this trampoline for children under 3 years of age.
The trampoline can be only used, if the jumping mat is clean and dry. Worn or
damaged jumping mats should immediately be replaced.
Objects, which could be dangerous to the user, should be away from the trampoline
Avoid unauthorized and unsupervised use of the trampoline.
Do not use the trampoline under influence of alcohol or drugs (incl. medicines).
Learn the fundamental jump and body positions carefully, before trying difficult
jumps.
Stop jumping by bending your knees when your feet come to contact with the
trampoline. The skill of braking should be used whenever you lose balance or control
from a previous manoeuvre. Loss of balance or control will increase the risk of injury
from landing on the frame, springs or completely off the trampoline. A controlled jump
is considered landing on the same spot that you took off from .If you do lose control
when you are jumping on the trampoline, bend your knees sharply when you land
and this will allow you to regain control and stop your jump.
Climb onto the trampoline. Do not jump on it directly. Do not use the trampoline as
jumping board for other articles.
2.1 Accident Categories
Somersaults
: A landing on the head or neck increases the risk of neck and back injuries,
which can lead to paralysis and sometimes death. This can occur if the user makes an error
and falls forward or backward. No
somersaults
should be attempted on the trampoline.
Page 10
10
Climbing on or off the trampoline: The trampoline’s jumping mat is approximately one meter
above the ground. Jumping off the trampoline onto the ground or another surface can lead to
an injury. Jumping onto the trampoline from a building roof, a terrace or other objects can
lead to injury. Small children need assistance when climbing on or off the trampoline. Be
careful when climbing on and off the trampoline. Do not step on the padding or the
framework. Do not use the framework for climbing on or off the trampoline.
Hitting the framework or the springs: Stay in the centre of the mat when playing jumping on
the trampoline. This will reduce the risk of injury from landing on the frame or springs.
Always keep the padding covering the frame of the trampoline. DO NOT jump or step onto
the frame pad directly since it is not intended to support the weight of a person.
Loss of control: when users lose control of their jump, they can land incorrectly, on the
framework, on the padding or fall off the trampoline. A controlled jump is one where the
jumper lands and jumps from the same spot. If a manoeuvre is attempted, which exceeds
the abilities of the jumper; there is a danger of losing control and increased chance of injury.
In order to regain control of the jump and land correctly, knees should be completely bent
upon landing.
Under influence of drugs or alcohol: The probability of an injury rises if the user is under the
influence of alcohol or drugs. These substances weaken the response, the faculty of
judgment, the space awareness, the co-ordination and the motor functions of the user.
Collision with objects: while using the trampoline, persons, animals or articles under it will
increase the probability of an injury. Jumping on the trampoline whilst carrying an article,
increases the probability of an injury. Placing the trampoline too close to electric wires, tree
branches or other obstacles will also increase the probability of an injury.
Bad maintenance of the trampoline: Users can hurt themselves if the trampoline is in bad
condition. A torn jumping mat, bent framework, missing cushioning or missing framework
Page 11
11
must be replaced before using the trampoline again. The trampoline should be examined
before each use.
Weather conditions: A wet jumping mat is too slippery for safe jumping. Gusty or strong
winds can lead to a loss of jump control when jumping. In order to lower the probability of an
injury, the trampoline should be used under suitable weather conditions only.
3 ASSEMBLY INSTRUCTIONS
MODEL
8’
10’
16’
Size
244cm
304cm
487cm
Total Height
246cm
270cm
270cm
Jumping mat
76cm
90cm
90cm
Frame Specifications
MODEL
8’
10’
16’
Frame cover
1 1 1
Jumping mat
1 1 1
Top rail
6 6 8
Metal Clips
42
60
112
Leg
6 6 8
Tools
1 1 1
Ladder
1 1 1
Page 12
Tools
8FT MF083801 6pcs
10FT MF103801 6pcs
12FT MF124201 8pcs
14FT MF144201 8pcs
16FT MF164201 8pcs
8FT JP0842 1pcs
10FT JP1060 1pcs
12FT JP1272 1pcs
14FT JP1480 1pcs
16FT JP16112 1pcs
8FT ML3801 6pcs
10FT ML3802 6pcs
12FT ML3802 8pcs
14FT ML3802 8pcs
16FT ML3802 8pcs
8FT MF082501 6pcs
10FT MF102501 12p cs
12FT MF122501 16p cs
14FT MF142501 16p cs
16FT MF162501 16p cs
8FT P0801 1pcs
10FT P1001 1pcs
12FT P1201 1pcs
14FT P1401 1pcs
16FT P1601 1pcs
8FT B8638 12pcs
10FT B8638 12pcs
12FT B8642 16pcs
14FT B8642 16pcs
16FT B8642 16pcs
8FT S1401 42pcs
10FT S1401 60pcs
12FT S1781 72pcs
14FT S1781 80pcs
16FT S2141 112pcs
8FT / 10FT B6070 6pcs
12FT / 14FT / 16FT B6070 8 pcs
8FT / 10FT MP2501 6pcs
12FT / 14FT / 16FT MP2501 8pcs
8FT / 10FT MP2501 6pcs
12FT / 14FT / 16FT MP2502 8pcs
8FT / 10FT Sleeve 6pcs
12FT / 14FT / 16FT Sleeve 8p cs
8FT S0801 1pcs
10FT S1001 1pcs
12FT S1201 1pcs
14FT S1301 1pcs
16FT S1401 1pcs
12
FRA ME RAIL, T OP
LE G
FR AME RA IL, BOTT OM A
SPRIN G TOOL
ALLEN K EY
SP RIN G MAT
PAD
SP RIN GS
BO LT 2
NET P OLE , B OTTOM
NET POLE, TOP
SLEEV E
SAFET Y NE T
PLASTIC
CONNE CTOR A
PLASTIC
CONNE CTOR B
8FT MF082501 6pcs
10FT MF102501 6pcs
12FT MF122501 8pcs
14FT MF142501 8pcs
16FT MF162501 8pcs
LEG BA SE
TOP BO TTOM
BO LT 1
METAL SURROUND CIRCLE A
METAL SURROUND CIRCLE B
METAL SURROUND CIRCLE C
8FT / 10FT / 12FT / 14FT / 16FT N5 110 1pcs
8FT / 10FT / 12FT / 14FT / 16FT N5 112 1pcs
8FT N5111 6pcs 10FT N5111 8pcs
12FT N5111 10pcs 14FT N5111 12 pcs
16FT N5111 14pcs
10FT B6032 6pcs
12FT / 14F
T / 16FT B6032 8pcs
BO LT 3
3.1. PARTS
8FT PT252 6pcs
10FT PT252 6pcs
12FT PT252 8pcs
14FT PT252 8pcs
16FT PT252 8pcs
8FT PT251 6pcs
10FT PT251 6pcs
12FT PT251 8pcs
14FT PT251 8pcs
16FT PT251 8pcs
Page 13
13
1
2
3.2. FRAME ASSEMBLY
Page 14
MF102502
MF142502
MF162502
MF102501
MF142501
MF162501
14
3.2. (A) 10FT, 14FT FRAME ASSEMBLY
3.2. (B) 8FT, 12FT FRAME ASSEMBLY
Page 15
15
3.3. MAT ASSEMBL Y
Page 16
16
3.4. FRAME PADDING ASSEMBLY
1. Attach pads to springs
2. Attach pads to frame rail
How to thread removable cable tie
Page 17
17
Start fro m the r ob wi th red t abEnd at th e rob w ith b lue ta b
A B
C
D
E
3.5. UPRIGHT POLE ASSEMBLY
3.6. SAFETY KEY ASSEMBLY
Page 18
18
3.7. NET ATTACHMENT
Step 1
Step 2
Align net and pads with ladder holes
Page 19
18
Screw B6055 6pcs
LF2501 2pcs
LF2502 3pcs
LF2503 1pcs
3.8. LADDER ASSEMBLY
Page 20
20
4 SAFETY NET PRECAUTIONS
In addition to the instructions and precautions provided with your trampoline, the
following precautions must be observed while using the Trampoline Safety
Enclosure.
The metal frame of the trampoline enclosure will conduct electricity. Lights, extension
cords, and all such electrical equipment must never be allowed to come in contact
with the enclosure.
Inspect the enclosure before each use. Make sure the straps and all parts are
correctly and securely positioned and attached. Tighten any loose hardware.
Replace any worn, defective, or missing parts.
Wear comfortable clothing free of hooks, snaps, drawstrings for anything which
or catch in the safety enclosure mesh. Remove jewellery, necklaces, and
earrings.
Climb on and off the trampoline only through the safety enclosure entrance and
securely close entrance when trampoline is in use. Users, especially children, must
not attempt to enter or exit between the trampoline frame and the enclosure. Doing
this may pose a strangulation risk.
Do not touch or rebound off the safety enclosure mesh while using the
trampoline. Read all instructions and complete all assembly before using
the safety enclosure.
Do not touch or hang off the safety ring (fibre pipe) at the top of the
enclosure
Use trampoline and trampoline enclosure only with mature, knowledgeable
supervision. Adequate overhead clearance is essential. A minimum of 9.5m from
ground level is recommended. Provide clearance for wires, tree limbs, and other
possible hazards. Lateral clearance is essential. Place the trampoline and
Page 21
21
trampoline enclosure away from walls, structures, fences, and other play areas.
Maintain a clear space on all sides of the trampoline and trampoline enclosure. A
minimum of 2 metres from frame edge is recommended.
The trampoline is heavy and is under heavy tension. Three adults are required to set
it up. Use appropriate clothing and shoes. Failure to follow these instructions may
lead to injury or damage to the trampoline.
Place the trampoline and trampoline enclosure on a level surface before use.
Use the trampoline and trampoline enclosure in a well-lit area. Artificial illumination
may be required for indoor or shady areas.
Secure the trampoline and trampoline enclosure against unauthorized and
unsupervised use.
Remove any obstructions from beneath the trampoline and trampoline enclosure.
The owner and supervisors of the trampoline and trampoline enclosure are
responsible to make all users aware of practices specified in the “Use Instructions”.
The trampoline enclosure is only to be used as an enclosure for a trampoline
and the trampoline must be of the appropriate size covered by the specific
enclosure.
Do not allow more than one person on the trampoline or inside the trampoline
enclosure. Use by more than one person at the same time can result in serious
injuries.
Use trampoline and trampoline enclosure only with mature, knowledgeable
supervision.
Never set-up the trampoline in heavy rain, wind or storm conditions, especially
lightning storms. It is recommended that the trampoline be taken apart and stored
in bad weather. When moving the assembled trampoline and trampoline
enclosure have at least four people evenly spaced around the frame (NSEW) to
lift the trampoline off the ground. Inspect that trampoline and trampoline
Page 22
22
enclosure before each use. Make sure that frame cover, barrier and, enclosure
support padding are correctly and securely positioned.
Replace any worn, defective, or missing parts.
5 MAINTENANCE
Inspect the trampoline and trampoline enclosure before each use and replace any worn, defective,
or missing parts.
The following conditions could represent potential hazards:
1. Missing, improperly positioned, or insecurely attached frame padding, barrier or enclosure
support system (frame) padding and pole caps.
2. Punctures, frays, tears, or holes worn in the bed or frame padding, barrier or enclosure support
system (frame) padding and pole caps.
3. Deterioration in the stitching or fabric of the bed or frame padding, barrier or enclosure support
system (frame) padding and pole caps.
4. Ruptured springs or bands.
5. A bent or broken frame or support system.
6. A sagging barrier or bed.
7. Sharp protrusions on the support (frame) or suspension system.
8. Loosened or missing hardware.
6 CLEANING
Do not use any abrasive cleansers for the cleaning. Use a soft, damp cloth to eliminate dirt and dust.
Page 23
23
SEAT DROP
7 EXERCISE DIAGRAMS
FUNDAMENTAL BOUNCES
STANDING BOUNCE
KNEE BOUNCE
HANDS & KNEE DROP
FRONT DROP
BACK DROP
PIROUETTE
TUCK POSITION
Page 24
24
PIKE POSITION
LAYOUT POSITION
STRADDLE POSITION
Page 25
25
8 WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition,
they come with guarantees that cannot be excluded under the Australian Consumer law.
You are entitled to a replacement or refund for a major failure and compensation for any
other reasonably foreseeable loss or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure. Full details of your consumer rights
may be found at www.consumerlaw.gov.au
Please visit our website to view our full warranty terms and conditions:
http://www.lifespankids.com.au/Warranty-Policy-Kids
Please send all warranty and support inquiries through our ticketing system via the email
address: [email protected].
Head Office and Customer Service:
Global Fitness and Leisure Pty Ltd
17 Fordson Rd
Campbellfield
VIC, 3061
Australia
PH: 03 9357 2166
Loading...
