USER’S
MANUAL
STYLE
Page 2
Special tips:
1. Before installation and operation, please read this operation manual
carefully.
2. Please save this manual for future reference.
3. Product may vary slightly from the item pictured due to model upgrades
ATTENTION
1、 Before starting any exercise program, consult with your physician or health professional.
2、 Check all the bolts locked.
3、 Never put the treadmill in the wet areas ,.
4、 We take no responsibility for any injuires due to above.
5、 Please use correct sporting shoes before using treadmill
6、 Not recommend to do exercise within 40 minutes after meal.
7、 To prevent injury , please warm up before exercise.
8、 Consult with doctor before exercise if you have high blood pressure or any underlying conditions.
9、 The treadmill is for adults use only.
10、 Please Provide supervision for , elderly, children and handicapped with good care, guideince
11、Do not plug anything into any parts of this equipment,or it may cause damage to machine
12、Do not change power lead lenght or change the cable plug;do not put any thing heavy on cable or
put the cable near the heat source;do not use power board socket with multiple outlets ,these may
This is HIGH-POWER item; please DO NOT USE THE SAME OUTLET WITH
OTHER HIGH-POWER HOUSEHOLD APPLIANCE like air-conditioning etc.
Please choose an outlet exclusively for the machine and make sure the
fuse is 10A.
Page 3
cause over load .
13、 Turn off the power at wall outlet when the equipment is not in use. Do not pull on power lead to
unplug always use the plug to remove from wall .
IMPORTANT SAFETY PRECAUSTION
1. Plug the power cord of the treadmill directly into a dedicated grounded circuit carrying 10 amps.
Grounding Instructions:
This product must be grounded. If it has breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.
2. Position the treadmill on a clear, level surface. Do not place the treadmill on thick carpet as it may
interfere with proper ventilation. Do not place the treadmill near water or outdoors.
3. Position treadmill so that the wall plug is visible and accessible.
4. Never start the treadmill while you are standing on the walking belt. After turning the power on and
adjusting the speed control, there may be a pause before the walking belt begins to move, always stand
on the foot rails on the sides of the frame until the belt is moving.
5.Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting clothing
that may be caught in the treadmill. Always wear running or aerobic shoes with rubber soles.
6. Always unplug the power cord before remove the treadmill motor cover.
7. Keep small children away from the treadmill during operation.
8. Always hold the handrails when initially walking or running on the treadmill, until you are comfortable
with the use of the treadmill.
9. Always attach the safety key to your clothing when using the treadmill. If the treadmill should
suddenly increase in speed due to an electronics failure or the speed being inadvertently increased, the
treadmill will come to a sudden stop when the pull pin is disengaged from the console.
10. When the treadmill is not being used, the power cord should be unplugged and the safety key
removed.
11. Before starting any exercise program, consult with your physician or health professional. He or she
can help establish the exercise frequency, intensity (target heart zone) and time appropriate for your
particular age and condition. If you have any pain or tightness in your chest, an irregular heartbeat,
shortness of breath, feel faint or have any discomfort while you exercise, STOP! Consult your physician
before continuing.
Page 4
ASSEMBLY INSTRUCTIONS

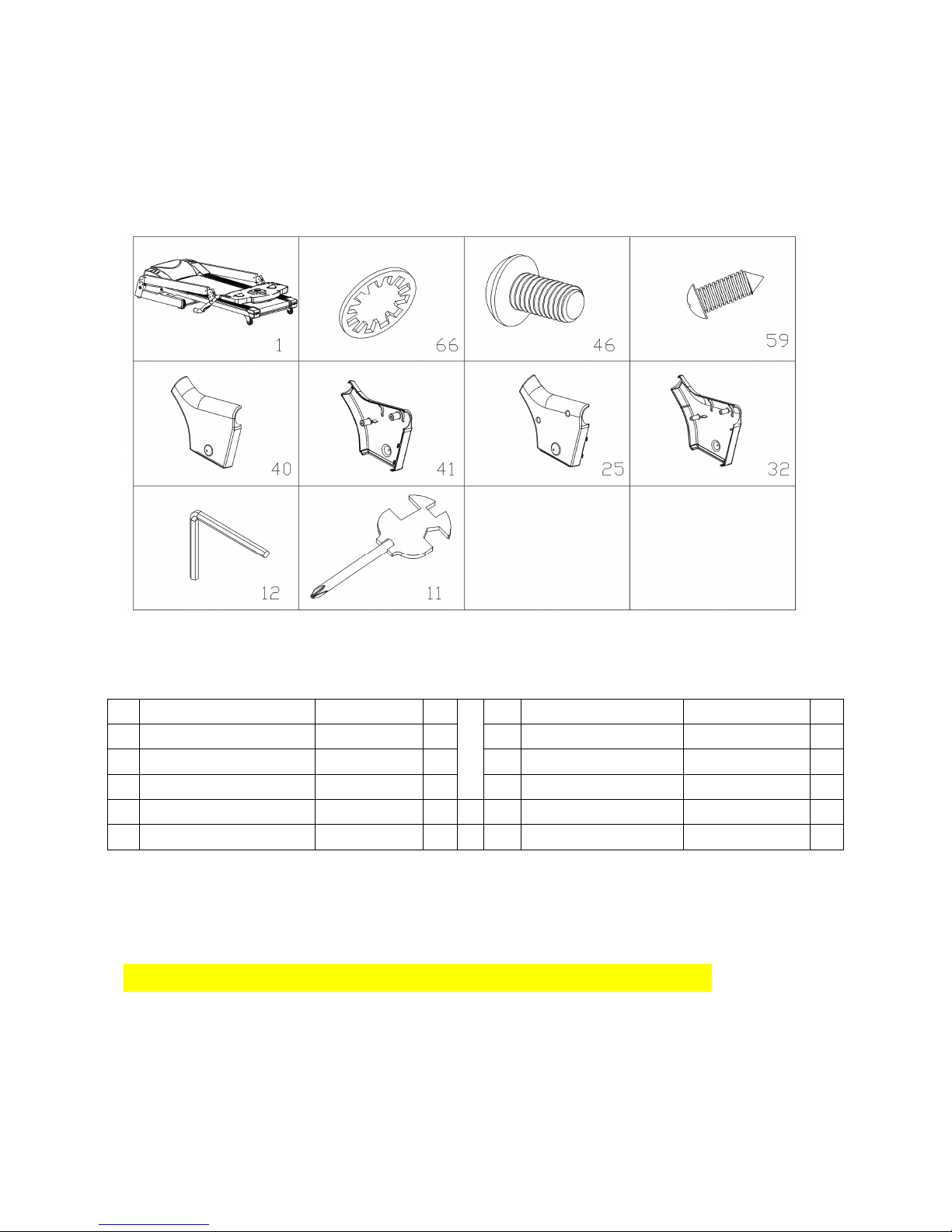

When you open the carton, you will find the below spare parts:
Spare parts list:
NO.
DES. Specification Nos.
NO.
DES. specification Nos.
1
main frame
1 66
Lock washer 8 10
11
lock washer
S=13、14、15 1
12
5# Allen Wrench 5mm 1
46
Bolt M8*16 10
59
Screw ST4.2*12 4
40 Left handle bar cover L 1
41
Left handlebar cover R 1
25 Right handle bar cover L 1
32
Right handlebar cover R
1
FIXING TOOLS:
5#ALLEN WRENCH 5mm 1pcs、
WRENCH W/SCREW DRIVER S=13、14、15 1pcs
Notice: Do not connect to power source before assembly is completed
Page 5

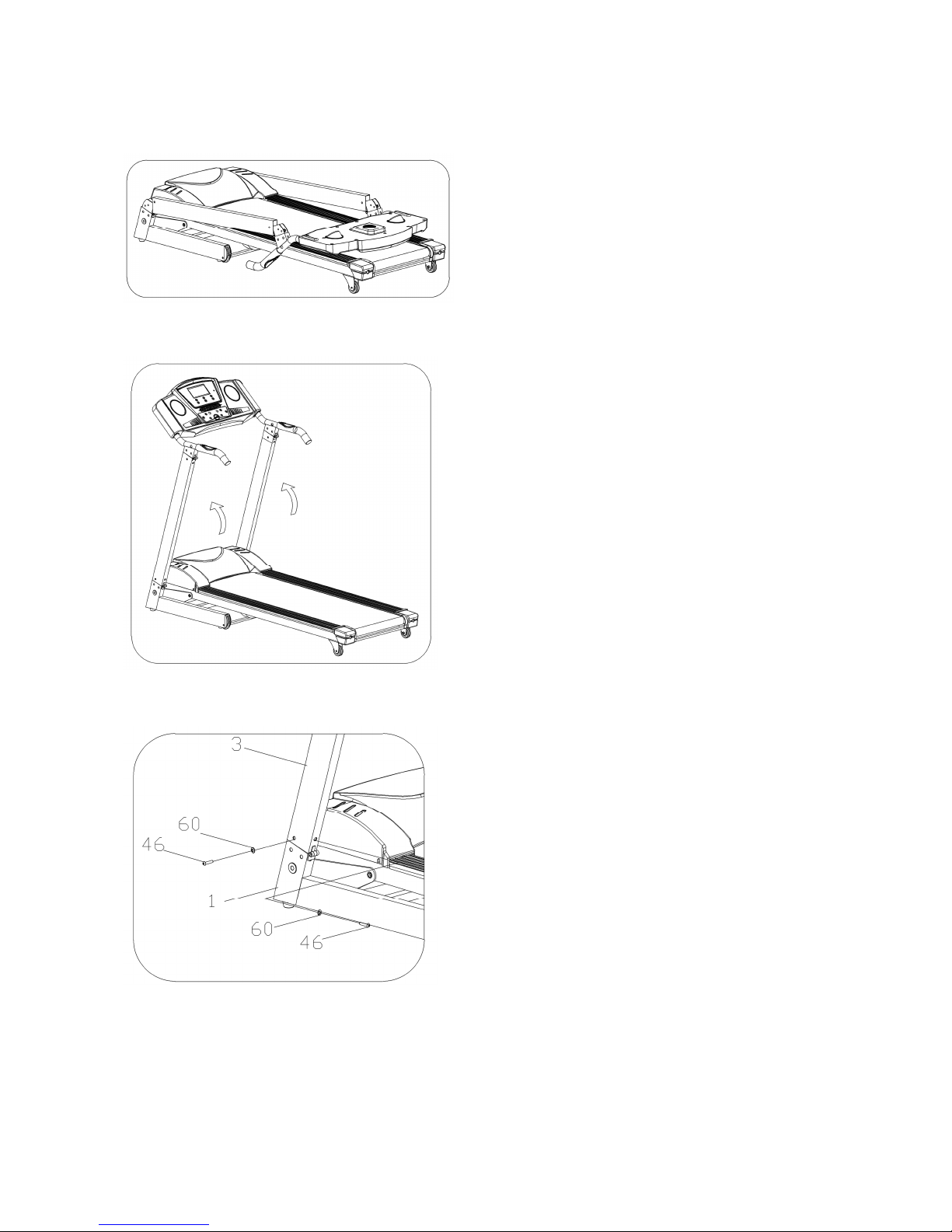

ASSEMBLY STEP ONE：
ASSEMBLY STEP TWO:
ASSEMBLY STEP THREE:
Open the carton，get out the above spare
parts ， put the MAIN FRAME on the
ground.
Pull up the computer and upright as
arrow direction.
Notice: When you pull up them, make
sure the upright not press the wires in
upright; keep touch the upright and
computer by hand, that they will not fall
down escaping any hurt.
Use the 5# allen wrench, drill through the
bolt (46) to Lock washer(66), then lock
the Left upright (3) onto MAIN FRAME
(1)
Notice: Support the Left upright with
hand, avoid falling down to have any
hurt.
Page 6

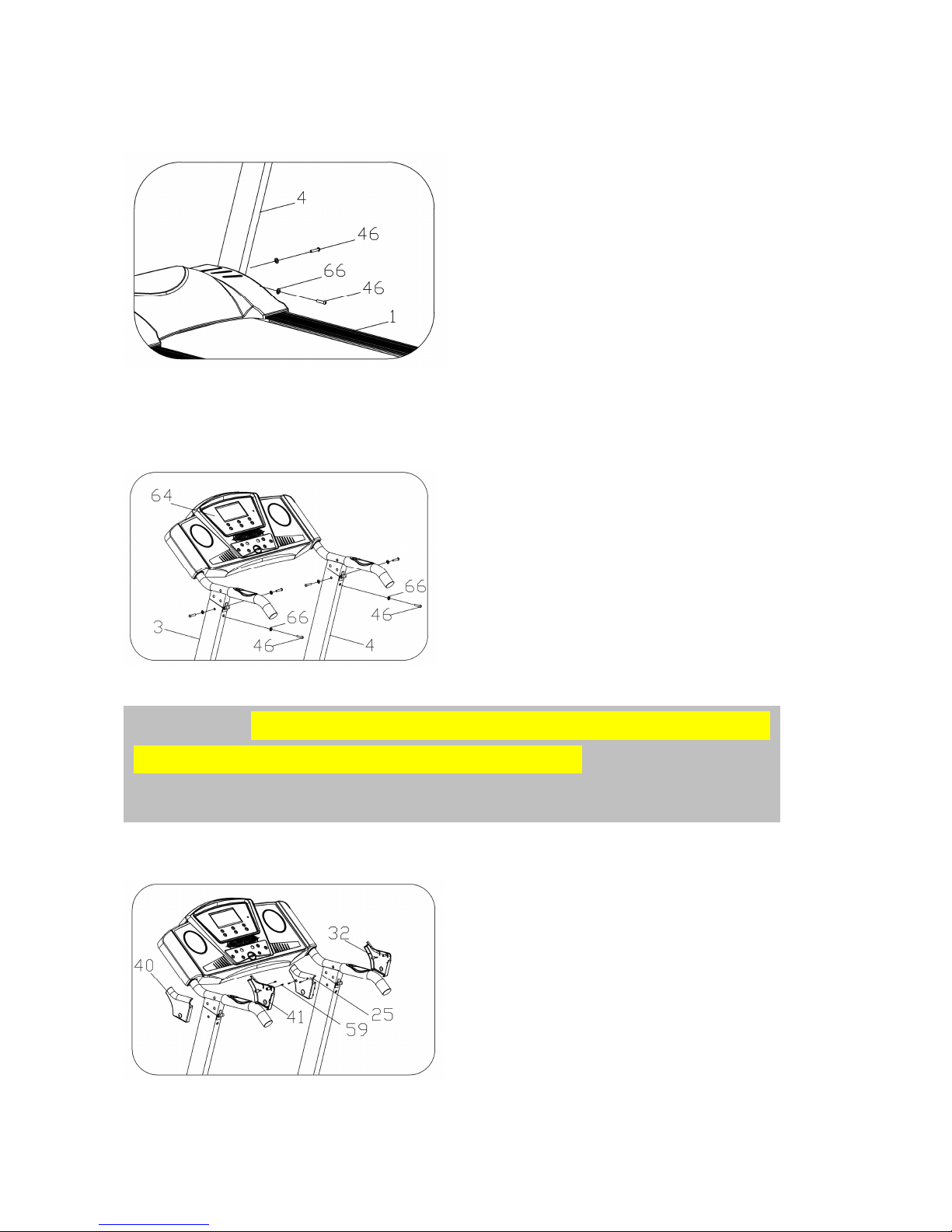

ASSEMBLY STEP FOUR:
ASSEMBLY STEP FIVE:
ASSEMBLY STEP SIX:
Use the 5# allen wrench, drill through
the bolt (46) to Lock washer(66), then
lock the Right upright (4) onto MAIN
FRAME (1)
ATTENTION：please make sure that assembly is completed as the required
to above instructions and all bolts are tightened. Before you use the
treadmill, please read the instruction carefully.
Use the 5# allen wrench, drill through
the bolt (46) to Lock washer(66), then
lock the COMPUTER (64) onto R&L
upright (3,4).
With ST4.2*12 Screw(59),Insert the
UPRIGHT COVER（25、32、40、41）
onto the L&R handle bar.
Page 7
FOLDING INSTRUCTION
Pulling up:
Pulling down:

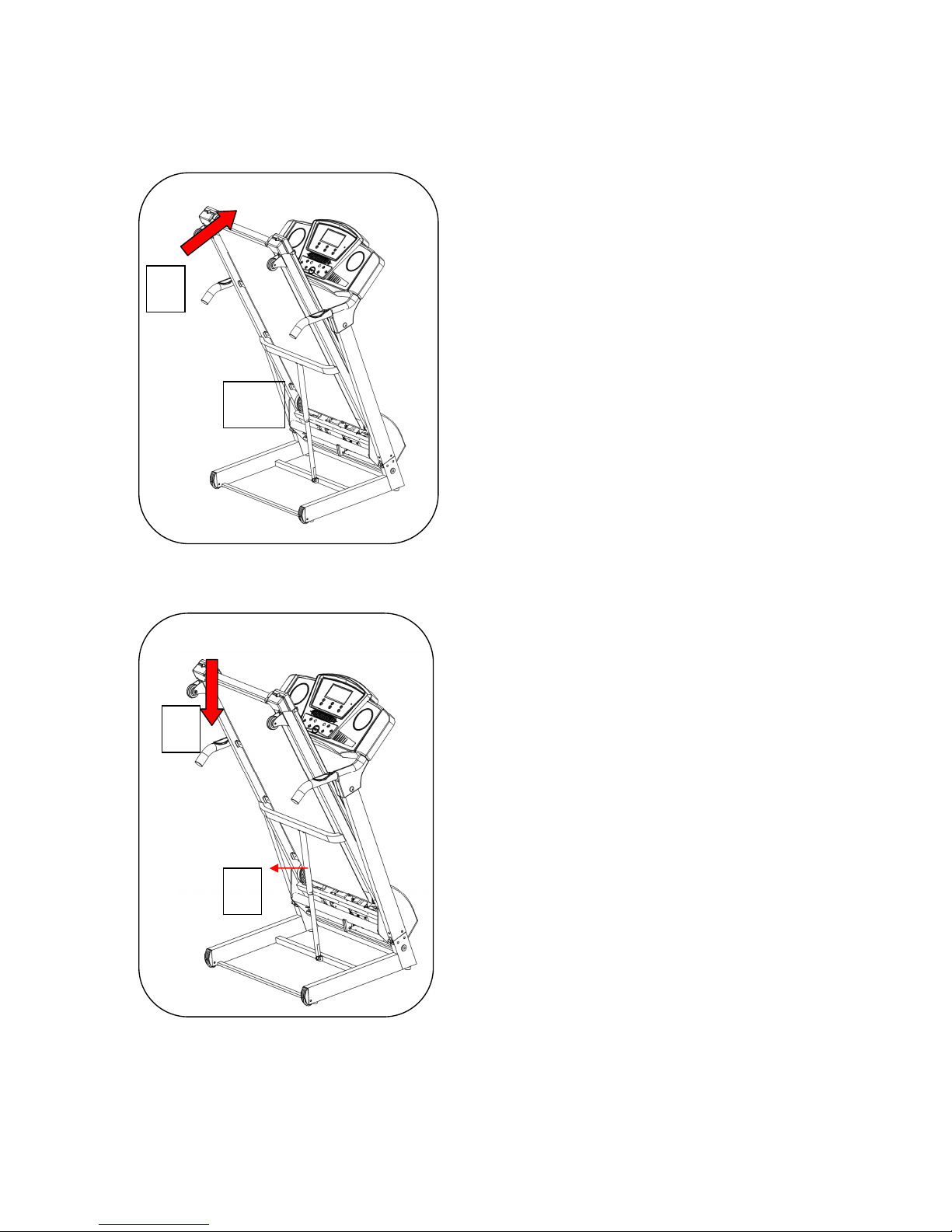

Support place A with hand, then pull up
following the arrow direction, till hearing
the sound that the cylinder (10) is
locked into the round tube
Support place A with hand , depress the
place B of air pressure control bar, then
the base frame will fall down
automaticlly
A B A
Page 8
TECHNICAL PARAMETER
This product must be grounded. If it should malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This
product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided with the
product – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 220-volt circuit and has a grounding plug that
looks like the plug illustrated in sketch A in following figure. Make that the product is
connected to an outlet having the same configuration as the plug. No adapter should be
used with this product.
OPERATION GUIDE
Page 9

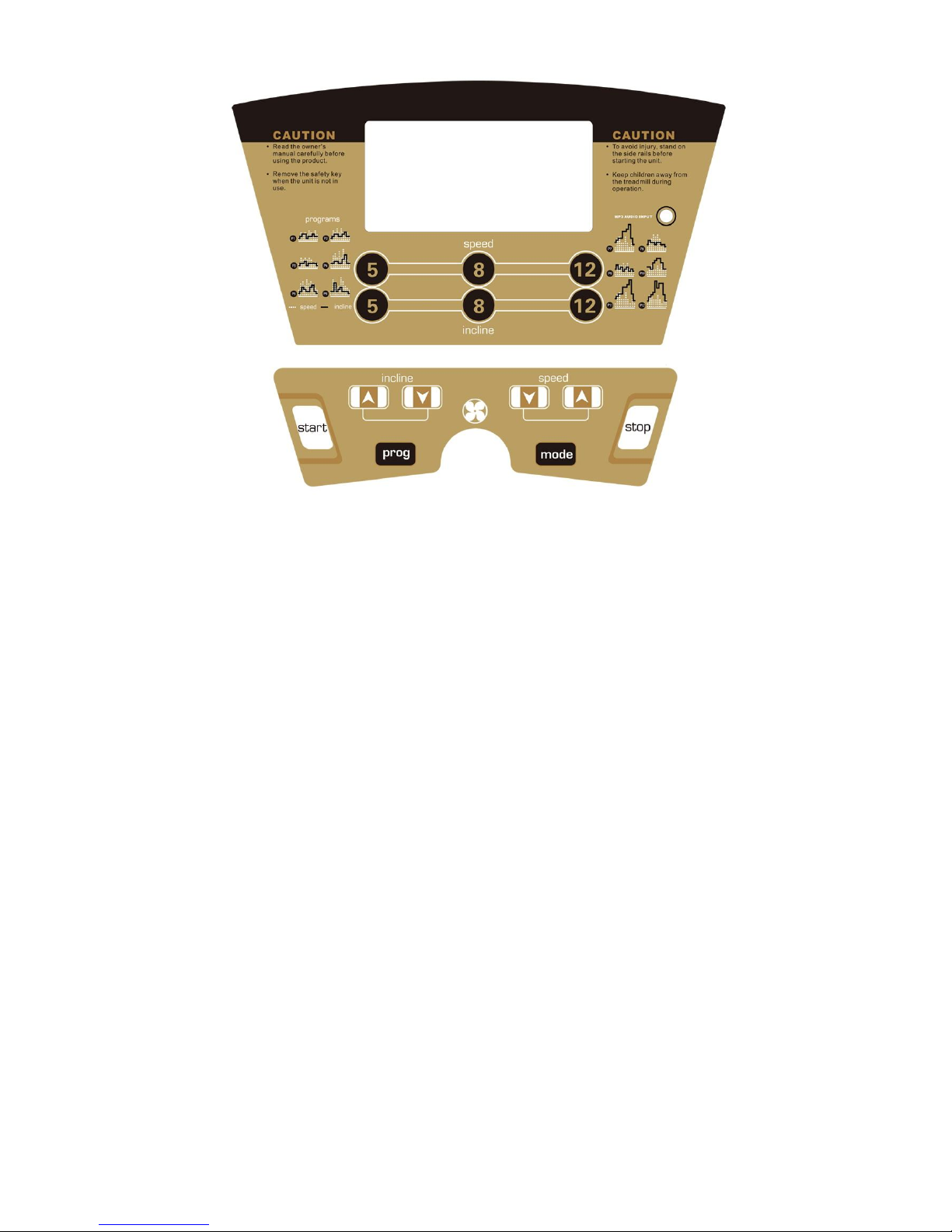

WINDOW DISPLAY:
1.“SPEED” window:Display speed, show range: 1.0-18KM/h.
2.“INCL” window：Show the incline, the incline range is 0-20 level;
3、“TIME” window:Show the running time, count from 0:00 to 99:59. When up to 99:59,
The machine will stop smoothly and show ‘END’ in the computer; When you set the time count down, it
will count down from the setting data to 0, when down to 0:00, the machine will stop smoothly and
show ‘END’ in the computer.
4、“DIS”window: Show running distance，count from 0.00 to 99.9, when up to 99.9, the machine will
clear the data, and recount from 0; When you set the distance count down, it will count from the
setting data to 0. when down to 0, the machine will stop smoothly and show ‘END’ in the computer,
after 5 seconds, the machine will be in the default state.
5、“CAL /PULSE” window: Display runner calories and pulse. When show calories, count from 0 to 999,
to 999 will spill over to clear 0; when calories count down, it will count down from setting data to 0, then
the machine will stop smoothly and show ‘End’, enter the beginning state after 5 seconds. When
runner grasps the hand pulse, it will test pulse after 5 seconds and show the data in window, the
relevant direct light will show at the same time, pulse range is 40 to 200 hypo/min ( the data is just for
reference, can not be as medicinal data.
BUTTON FUNCTION:
1. “PROGRAM” Button：When the treadmill is not running, press SELECT button can circle choose
and setupthe exercise time and program from “0：00”
“ P1-P2-P3-P4-P5-P6-P7-P8-P9-P10-P11-P12-FAT”. Manual mode is the default program, the default
speed in kilometer is 1KM/H. (0:00 is manual mode,pre-set program :P1-P12 )
2. “MODE” Button：Press this button to choose circle modes: “0：00” “15：00”、“1.0”、“50” (“0：00” is
manual model, “15：00” is the time count down, “1.0” is distance count down and “50” calorie count
down); when you choose every mode,you can press the speed button and incline button to set
Page 10
count,after that ,press the START button to start this treadmill.
3．“START”button：when start the power and attach the magnet end of the safety pulling rope to the
computer. Press the button at any time, it can start motor.
4. “STOP”button: press this button while running,it can stop motor and set program default;
5. “SPEED+”、“SPEED-” Button：set default count;to adjust speed when treadmill start,the scope is
0.1km/hypo in kilometer. Press the button more than 0.5 seconds,will be up or down duratively.
6. “INCLINE+”、“INCLINE-” Button: set the default incline; to adjust incline when treadmill start, the
scope is 1 section;
7.“SPEED：5、8、12” speed shortcut button：set the speed quickly
8.“INCL：5、8、12”incline shortcut button: set the incline quickly
9. Fan button：open or stop the fan （optional）.
START-UP QUICKLY(MANUAL)
1. Open the power switch, attach the magnet end of the safety pulling rope to the computer.
2. Press STATR/STOP button，the system will enter into 3 seconds count down, the buzzer will make
sound and the time window display count down, the speed will run 1.0km/hour after 3 seconds.
3. After start-up, you can use “SPEED+”、 “SPEED -” to adjust the speed up or down; use “INCLINE+”、
“INCLINE -” to adjust the incline up or down.
The operation of exercise process:
1. Press speed-down will reduce the running speed.
2. Press speed-up will increase the running speed.
3. Press incline down will reduce the incline section.
4. Press incline up will increase the incline section.
5. Press STOP will reduce until it stopped.
6. When the user hold the hand pulse by both hand, the computer will show the user’s pulse data after
5 seconds
Manual mode:
1. If you do not make any setting and press START button directly, the treadmill will start to run from
the speed 1.0km/h, incline 0. The other windows will start to count from positive direction from windows
default, press “SPEED+”, “SPEED-” change the speed, press “INCLINE+”、“INCLINE -”to change the
incline;
2. set up the Time, press “MODE” button to enter into time count down, the TIME window will
display“15：00” and glittering. Press “SPEED+”, “SPEED-” , “INCLINE+”、 “INCLINE –“ to set up the
time what you need. The setting range is 5:00-99:00.
3.In Time setting model, press “ MODE “ button to enter into distance count down, the DISTANCE
window will display “1.0” and glittering. Press “SPEED+”, “SPEED-”, “INCLINE+”、 “INCLINE –“ to set
up the distance what you need. The setting range is 0.5—99.9.
4、To set up the Calories, press “MODE” button to enter into calories count down, the CAL window will
display “50’ and glittering. Press “SPEED+”, “SPEED-” , “INCLINE+”、 “INCLINE –“ to set up the
calories what you need. The setting range is 10-999.
5、When setting is finished, press “START” button to start up, the treadmill will run after 3 seconds,
press “SPEED+”, “SPEED-”, “INCLINE+”、 “INCLINE –“ to adjust the speed and the incline; press
Page 11
the STOP, the treadmill will stop.
Inner install program
Press “PROGRAM” button SPEED window will display P1-P12 to choose the program you like. Setting
of running time, then the TIME window display glittering. Display the advance setting time10:00, press
“SPEED+”, “SPEED-”, “INCLINE+”、 “INCLINE –“ to set up the exercise time what you need. Press
“START” button to start the inner install program, the inner install program is divided into 10 sect. Each
exercise time=the setting time/10. When the system enter into the next sect will make 3 sound
“B—B—“ and the speed will be changed according to the setting program, then press “SPEED+”,
“SPEED-”, “INCLINE+”、 “INCLINE –“ to change the SPEED and INCLINE, When the program enter
next sect will come back to the current speed and incline, and run the one program, the system will
make 3 sound “B—B—“ and change to the manual program automatically.
Program exercise chart
Each program will divide into 10 grade for the exercise time and each time sect has the speed and
incline accordingly.
TIME INTERVAL
Time Mode
1 2 3 4 5 6 7 8 9 10
SPEED 2 4 3 4 3 5 4 2 5 3
P1
INCLINE 1 2 3 3 1 2 2 3 2 2
SPEED 2 5 4 6 4 6 4 2 4 2
P2
INCLINE 1 2 3 3 2 2 3 4 2 2
SPEED 2 5 4 5 4 5 4 2 3 2
P3
INCLINE 1 2 2 3 1 2 2 2 2 1
SPEED 3 6 7 5 8 5 9 6 4 3
P4
INCLINE 2 2 3 3 2 2 4 6 2 2
SPEED 3 6 7 5 8 6 7 6 4 3
P5
INCLINE 1 2 4 3 2 2 4 5 2 1
SPEED 2 8 6 4 5 9 7 5 4 3
P6
INCLINE 2 2 6 2 3 4 2 2 2 1
SPEED 2 6 7 4 4 7 4 2 4 2
P7
INCLINE 4 5 6 6 9 9 10 12 6 3
SPEED 2 4 6 8 7 8 6 2 3 2
P8
INCLINE 3 5 4 4 3 4 4 3 3 2
SPEED 2 4 5 5 6 5 6 3 3 2
P9
INCLINE 3 5 3 4 2 3 4 2 3 2
SPEED 2 3 5 3 3 5 3 6 3 3
P10
INCLINE 4 4 3 6 7 8 8 6 3 3
SPEED 2 5 8 10
6 9 5 3 2 2
P11
INCLINE 1 3 5 8 10 7 6 3 2 3
SPEED 2 5 5 4 4 6 4 2 3 4
P12
INCLINE 3 5 6 7 12 9 11 11 6 3
Range of program
PROGRAM
BEGIN SET UP RANGE DISPLAY RANGE
Page 12
TIME(MIN:SECOND)
0:00 15:00 5:00-99:00 0:00－99:59
INCLINE(LEVEL) 0 0 0-20 0-20
SPEED(K/h) 1.0 1.0 1.0-18 1.0-18
DISTANCE(K) 0 1.0 0.5-99.9 0.00－99.9
PULSE(hypo/min) P N/A N/A 50-200
CALORIE(THERM) 0 50 10-999 0－999
BODY TESTER:
At the beginning state, press “ PROGRAM” continuely entering FAT body fat tester, press “ MODE
“ enter F-1、F-2、F-3、F-4、F-5 ( F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT, F-5 FAT TESTER ),
Press “SPEED+”、“SPEED -” to set F-1 – F4 ( refer to the following chart), after that, press “ MODE” to
set F-5, grasp the hand pulse, the window will display your body quality index after 3 senconds. The
body quality index is to test the relation between height and weight. The body FAT suits for any male
and female, to adjust the weight according it together with other body quality index. The idea FAT
should be 20-25, if under 19, it means too thin. If between 25 and 29, it means overweight, if over 30, it
means obesity. ( The data is just for reference, can not be as medicinal data)
F-1 Seg
01 male 02 female
F-2 Age 10------99
F-3 Hight 100----200
F-4 Weight 20-----150
FAT ≤19 Underweight
FAT =(20---25) Normalweight
FAT =(25---29) Overweight
F-5
FAT ≥30 Obesity
Safety lock function:
Pull out the safety pulling rope, then the treadmill will stop immediately. All the windows
display“―――”，the buzzer will make 3 sound “B—B—”,now the treadmill must be stop. Attach the
magnet end of the safety pulling rope to the computer, the treadmill will be at the beginning of running.
Save on power function:
The system is with saving on power function, at the state of waiting for operation, if without any operate,
the saving on power function will be available after 10 mins, the display will be closed up. You can
press any button to wake up the display.
MP3 function( Option, if have)
When the power on, Contacting the external MP3 equipment, the computer will play. The voice is
adjustable from operate the external MP3 equipment, the voice should be adjusted on the proper
section to protect the computer loudhailer.
Close up:
Page 13
Colse up the power: You can close up the power to stop the treadmill, it won’t be damaged at any time.
Caution:
1. We recommend that you maintain a slow speed at the beginning of a session and hold on to the
handrails until you become comfortable and familiar with the treadmill.
2. Attach the magnet end of the safety pulling rope to the computer and also attach the clip of the
safety pulling rope to your clothing.
3. To end your workout safely, press the PAUSE button or pull out the safety pulling rope, then the
treadmill will stop immediately.
EXERCISE INSTRUCTIONS
1. The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working properly. It will also
reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown
below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into
a stretch - if it hurts, STOP.
2. The Exercise Phase
This is the stage where you put the effort in. After regular use , the muscles in your legs will
become Stronger. Work to your but it is very important to maintain a steady tempo throughout. The

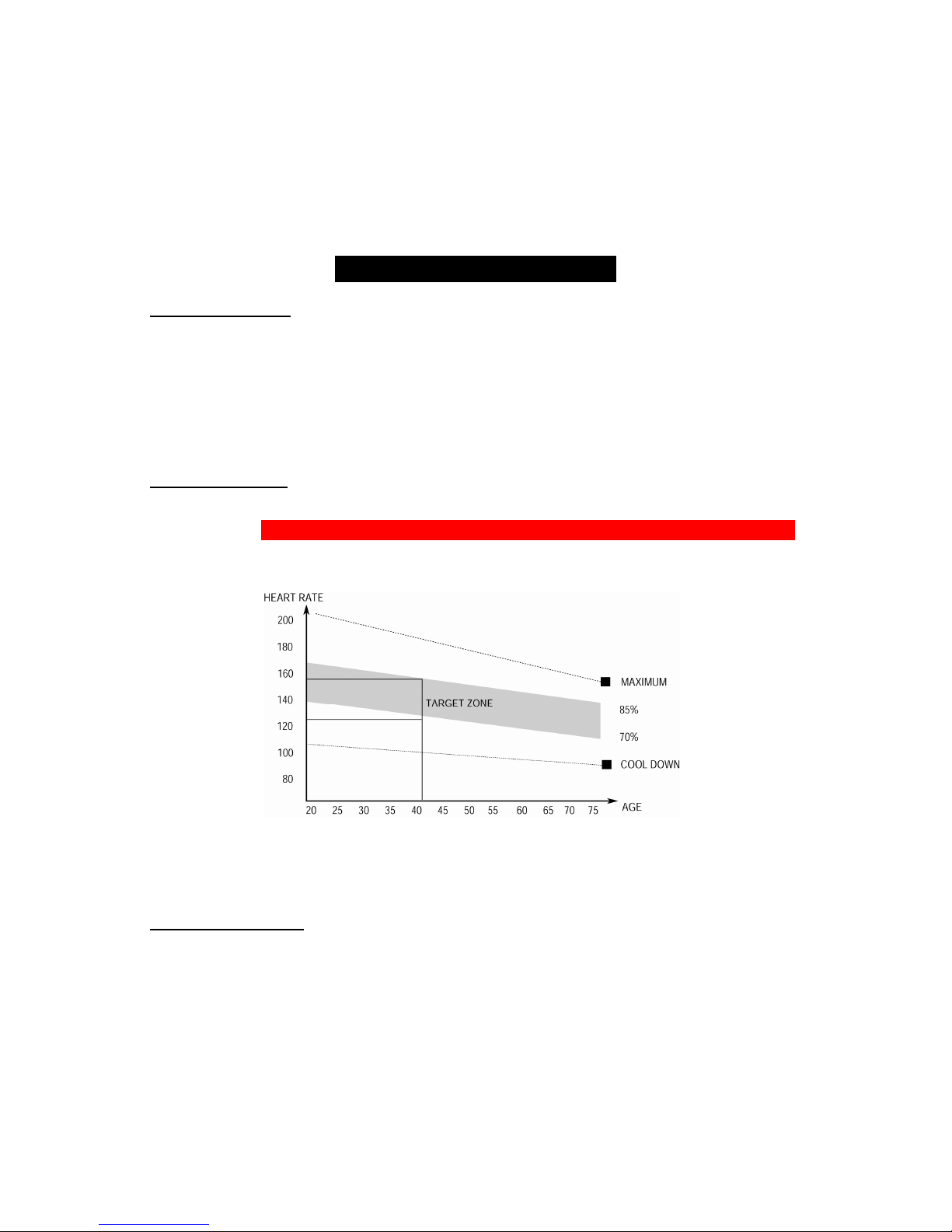

rate of work should be sufficient to raise your heart beat into the target zone shown on the graph below.
This stage should last for a minimum of 12 minutes though most people
start at about 15-20 minutes
3. The Cool Down Phase
This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the
warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching
exercises should now be repeated, again remembering not to force or jerk your muscles into the
stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at least three times a
week, and if possible space your workouts evenly throughout the week
Page 14
To tone muscle while on your Treadmill you will need to have the resistance set quite high. This will
put more strain on our leg muscles and may mean you cannot train for as long as you would like. If you
are also trying to improve your fitness you need to alter your training program. You should train as
normal during the warm up and cool down phases, but towards the end of the exercise phase you
should increase resistance, making your legs work harden than normal. You may have to reduce your
speed to keep your heart rate in the target zone.
The important factor here is the amount of effort you put in. The harder and longer you work the more
calories you will burn. Effectively this is the same as if you were training to improve your fitness, the
difference is the goal.
Maintenance
Reasonable cleaning/lubricating should be made to extend the life time of this
unit. Performance is maximized when the belt and mat are kept as clean as
possible.
WARNING: THE MAT/DECK FRICTION MAY PLAY A MAJOR ROLE IN THE
FUNCTION AND LIFE OF YOUR TREADMILL AND THAT IS WHY WE
RECOMMEND YOU CONSTANTLY LUBRICATE THIS FRICTION POINT TO
PROLONG THE USEFUL LIFE OF YOUR TREADMILL. FAILING TO DO
THIS MAY VOID YOUR WARRANTY.
WARNING: UNPLUG POWER CORD BEFORE MAINTENANCE.
WARNING: STOP TREADMILL BEFORE FOLDING.
Maintenance and servicing
AFTER EACH USE (DAILY)
Clean and inspect, following these steps:
• Turn off the treadmill with the on/off switch, then unplug the power cord at
the wall outlet.
• Wipe down the running belt, deck, motor cover, and console casing with a
damp cloth. Never use solvents, as they can cause damage to the treadmill.
• Inspect the power cord. If the power cord is damaged, contact Lifespan
Fitness.
• Make sure the power cord is not underneath the treadmill or in any other
area where it can become pinched or cut.
• Check the tension and alignment of the running belt. Make sure that the
treadmill belt will not damage any other components on the treadmill by being
misaligned.
Page 15
EVERY WEEK
Clean underneath the treadmill, following these steps:
• Turn off the treadmill with the on/off switch, then unplugs the power cord at
the wall outlet.
• Fold the treadmill into the upright position, making sure that the lock latch is
secure.
• Move the treadmill to a remote location.
• Wipe or vacuum any dust particles or other objects that may have
accumulated underneath the treadmill.
• Return the treadmill to its previous position.
EVERY MONTH -IMPORTANT!
• Inspect all assembly bolts of the machine for proper tightness.
• Turn off the treadmill with the on/off switch, then unplug the power cord and
wait 60 seconds.
• Remove the motor cover. Wait until ALL LED lights turn off.
• Clean the motor and lower board area to eliminate any lint or dust particles
that may have accumulated.
Failure to do so may result in premature failure of key electrical components.
EVERY 6 MONTHS
It may be necessary to lubricate your treadmill running deck at least once
every six months to maintain optimal performance of your treadmill (refer to
section 4.4 for information). Only use lubricant provided by Lifespan Fitness!
Please contact Lifespan Fitness with questions about applying lubricant to your
treadmill.
• Turn off the treadmill with the on/off switch, then unplug the power cord at
the wall outlet.
• Loosen both the rear roller bolts. (For best results, place two removable
marks on both sides of the frame and note roller position).Once the belt is
loosened, take the bottle of lubricant and apply it to the entire top surface of
the running deck. Tighten both rear roller bolts (matching up the marks for
proper position) to original position. After you have applied lubricant, plug in
the power cord, key, start the treadmill and walk on the belt for two minutes to
spread the lubricant.
• Lubricate the air shocks with Teflon based spray.
EVERY 2 YEARS
It is necessary that you change your treadmill motor brushes once every 2
years to avoid damaging your motor. If you fail to change the brushes this may
cause the motor to burn out, voiding any warranty.
Page 16
SERVICING: IF YOU FAIL TO COMPLY WITH LIFESPAN’S
MAINTENANCE AND SERVICING STEPS ABOVE, YOU MAY VOID YOUR
WARRANTY. IF YOU REQUIRE A SKILLED LIFESPAN REPRESENTATIVE
TO UNDERTAKE ONE OF THE STEPS ABOVE, PLEASE EMAIL US AT
General Cleaning
Use a soft, damp cloth to wipe the edge of the belt and the area between
the belt edge and frame. A mild soap and water solution along with a
nylon scrub brush will clean the top of the textured belt. This task should
be done once a month. Allow to dry before using.
On a monthly basis, vacuum underneath your treadmill to prevent dust
build up. Once a year, you should remove the black motor shield and
vacuum out dirt that may accumulate.
General Care
Check parts for wear before use.
Pay particular attention to the fixing knobs and make sure they are tight.
Always replace the mat if worn and any other defective parts.
If in doubt, do not use the treadmill and contact our helpline.
TAKE CARE TO PROTECT CARPETS AND FLOOR in case of leakages. This
product is a machine that contains moving parts which have been greased /
lubricated and could leak.
Belt/Deck/Roller Lubrication
The mat/deck friction may play a major role in the function and life of your
treadmill and that is why we recommend you constantly lubricate this friction
point to prolong the useful life of your treadmill.
Lubrication is provided with this unit. You should apply the enclosed lubrication
after approximately the first 50 hours of operation. We recommend lubrication
of the deck according to the following timetable:
Light use (less that 3 hours per week) every 6 months
Medium use (3-5 hours a week) every 3 months
Heavy use (more than 5 hours per week) every 6-8 weeks.
See below procedures for lubricating:
Page 17
1) Use a soft, dry cloth to wipe the area between the belt and deck.
2) Spread lubricant onto the inside surface of belt and deck evenly (make sure
the machine is turned off and power is disconnected).
3) Periodically lubricate the front and rear rollers to keep them at there peak
performance.
If the treadmill belt/deck/roller is kept reasonably clean, it is possible to expect
over 1200 hours before additional re-lubing is necessary.
How to check the running mat for proper lubrication
1) Disconnect the main power supply.
2) Fold the treadmill up into the storage position.
3) Feel the back surface of the running mat.
If the surface is slick when touched, then no further lubrication is needed.
If the surface is dry to the touch, apply a suitable silicone lubricant.
We recommend you use a silicone based spray to lubricate your
Lifespan Treadmill. This can be purchased from your local sports
Retailer or a local hardware store.
Belt Adjustment
Belt Tension Adjustment-It is very important for joggers and runners in order
to provide a smooth, steady running surface. Adjustment must be made from
the right and left rear roller in order to adjust tension with the Allen Key

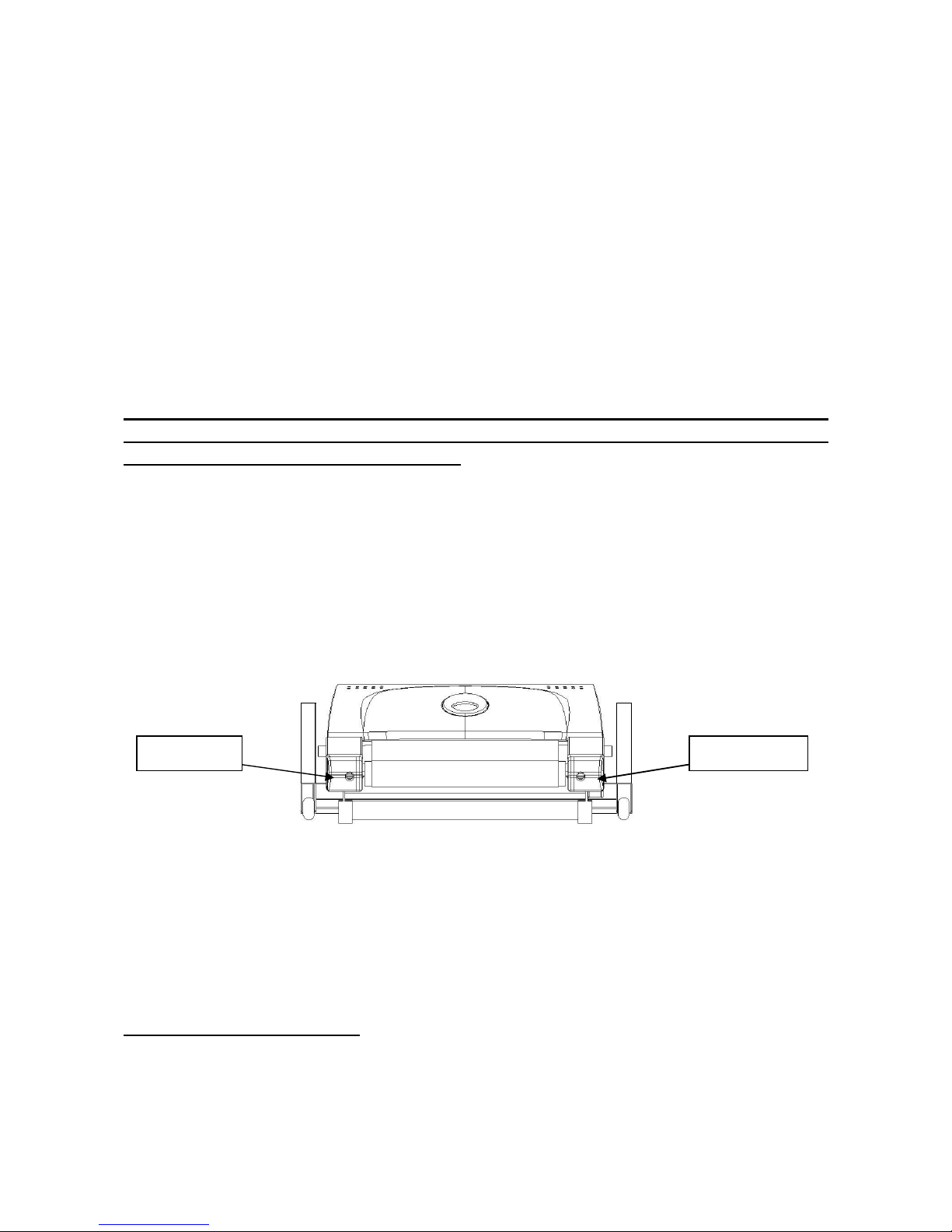

provided in the parts package. The adjustment bolt is located at the end of the
rails as noted in diagram below:
Note: Adjustment is thru small hold of end cap
Tighten the rear roller only enough to prevent slippage at the front roller. Turn
both the right and left bolt clockwise one full turn and inspect for proper
tension. When an adjustment is made to the belt tension, you must also make
a tracking adjustment to compensate for the change in belt tension.
DO NOT OVER TIGHTEN - Over tightening will cause belt damage and
premature bearing failure. This may also cause reduced motor performance
and excessive roller wear.
PLEASE NOTE: When properly tightened, the sides of belt can be raised
Left bolt Right bolt
Page 18
approximate 2-3 inches off the board.
Belt Tracking Adjustment
This treadmill is designed to keep the belt reasonably centred while in use. It
is normal for some belts to drift near one side while the belt is running with
no one on it. After a few minutes of use, the belt should have a tendency to
centre itself. If during use, the belt continues to move toward one side,
adjustments are necessary. The procedures are as below:
▲ First set speed at approximately 3.5km/h.
▲ Second check the belt shifts to which side.
If the belt shifts to right, tighten the right bolt and loosen the left bolt by
using 6mm Allen Key, until the belt is centered itself; If belt shifts to left,
tighten the left bolt and loosen the right bolt by using 6mm Allen Key, until
the belt is centered. When adjusting the belt using the 6 mm Allen Key, it is
important to adjust the belt in half turn increments. Over adjusting the belt
can cause damage to the mat.

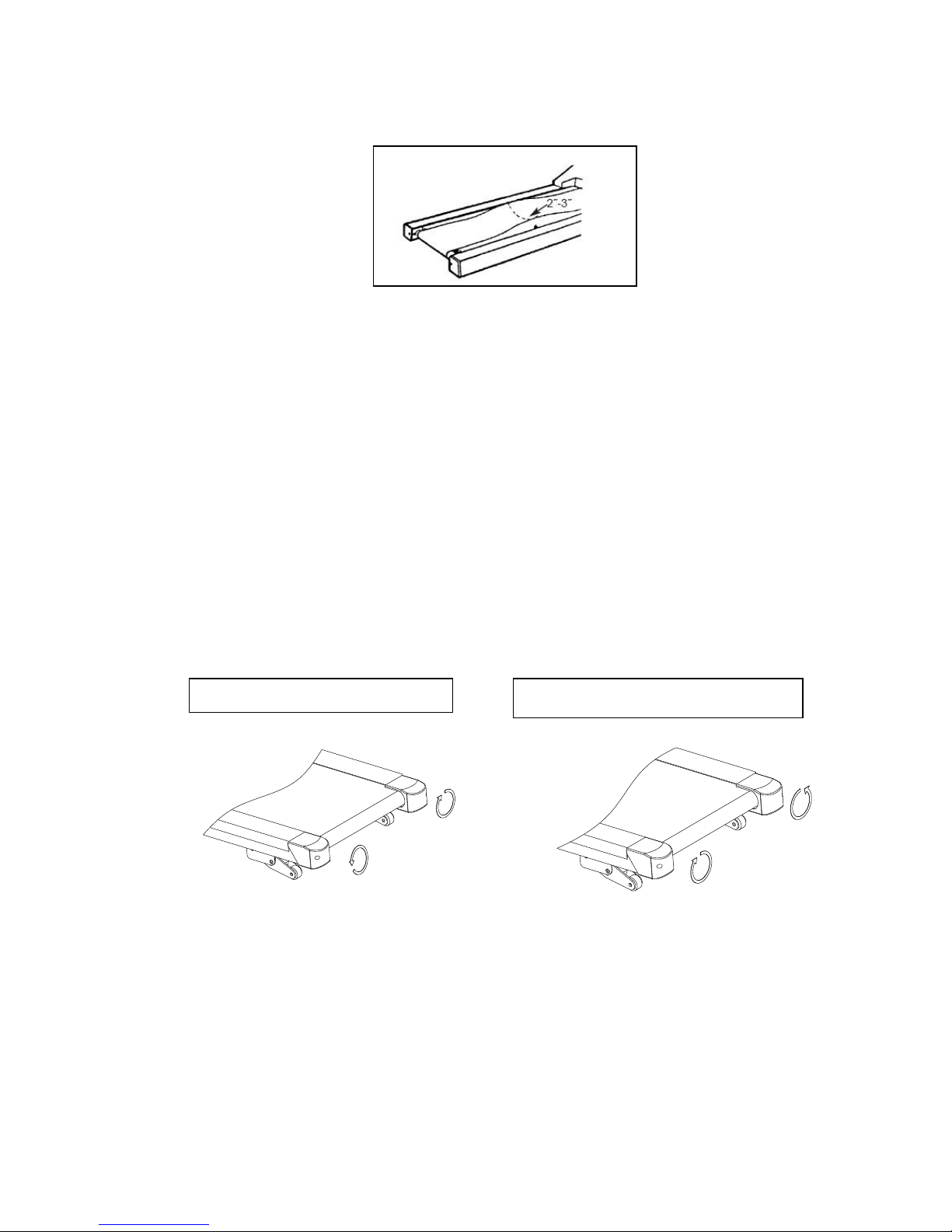

EXPLODED DRAWING
If the belts has drifted to the RIGHT If the belts has drifted to the LEFT
Page 19
PARTS LIST
Page 20
#. DESCRIPTION REMARK QTY #. DESCRIPTION REMARK
QTY
1 MAIN FRAME 1 38 LEFT BOTTLE BRACKET
1
2 BASE FRAME 1 39
RIGHT BOTTLE
BRACKET
1
3 LEFT UPRIGHT 1 40
LEFT HANDLEBAR
COVER L 1
4 RIGHT UPRIGHT 1 41
LEFT HANDLEBAR
COVER R 1
5 COMPUTER BRACKET 1 42
LOCK NUT M10 2
6 MOTOR BRACKET 1 43
BOLT
M8*30
L15 4
7 INCLINE MOTOR BRACKET
1 44
LOCK NUT M6 8
8 TURNING BUSHING 2 45
LOCK NUT M8 8
9 FRONT ROLLER 1 46
BOLT M8*16 10
10
REAR ROLLER 1 47
BOLT
M8*25
L15 3
11
WRENCH W/SCREW
DRIVER
S=13、14、15
1 48
BOLT
M8*40
L20 4
12
5#ALLEN WRENCH 5mm 1 49
BOLT
M10*20 2
13
CYLINDER 1 50
BOLT
M10*55 2
14
SAFETY KEY IRON SLIP 1 51
BOLT
M6*55 3
15
MOTOR TOP COVER 1 52
BOLT M8*35 5
16 MOTOR BOTTOM COVER 1 53
BOLT M6*35 8
17 COMPUTER TOP COVER 1 54
SCREW ST2.9*8 2
18
COMPUTER BOTTOM
COVER 1 55
BOLT M5*16 6
19
COMPUTER PANEL 1 56
BOLT M5*8 10
20
LEFT BACK COVER 1 57
BOLT M6*16 4
21
RIGHT BACK COVER 1 58
SCREW ST2.9*6.5 20
22
SIDE RAIL 2 59
SCREW ST4.2*12 19
23 BOTTOM COVER BOARD 1 60
SCREW ST4.0*25 2
24
RUNNING BELT 1 61
SCREW ST2.9*8 2
25
RIGHT HANDLEBAR COVER
R 2 62
BOLT M8*30 1
26
WHEEL COVER 2 63
SCREW ST4.2*12 18
27
MOTOR BELT 1 64
TRANSFORMER 1
28
BLUE CUSHION PAD
4 65
LOCK WASHER 6 3
29
BLACK CUSHION PAD
4 66
LOCK WASHER 8 18
30
TRANSPORT WHEEL 2 67
LOCK WASHER 10 4
31
FOOT PAD 4 68
SPRING WASHER 8 6
32
ADJUSTABLE WHEEL 2 69
FLAT WASHER 8 6
33
RING PROTECTING WIRE
PLUG 2 70
COMPUTER 1
34
POWER WIRE BUCKLE 1 71
CONTROL BOARD 1
35 SAFETY KEY SPRING BALL
1 72
PULSE WITH SWITCH 1
36
INNER END CAP 2 73
PULSE WITH SPEED 1
37
FOAM 2 74
MAGNETIC SENSOR 1
Page 21
PARTS LIST
75 PULSE UP WIRE 1 111
76
PULE WITH SWITCH UP
WIRE 1 112
77 PULSE SPEED UP WIRE 1 113
78 COMPUTER UP WIRE 1 1 114
79 COMPUTER UP WIRE 1 115
80
COMPUTER MIDDLE WIRE
1 116
81 COMPUTER BOTTOM WIRE
1 117
82 LABEL 2 118
83 SAFETY KEY 1 119
84 SWITCH BOARD 1 120
85 POWER WIRE 1 121
86 SQUARE SWITCH 1 122
87 OVERLOAD PROTECTER 1 123
88
AC SINGLE LINE
BROWN 150 1 124
89
AC SINGLE LINE
BLUE 150 1 125
90
AC SINGLE LINE
BROWN 150 1 126
91 DC MOTOR 1 127
92 RUNNING BOARD 1 128
93 MAGNETIC CORE 1 129
94 MAGNETIC RING 1 130
95 FLAT WASHER 10 2 131
96 INCLINE MOTOR 1 132
97 BOLT M10*30 L15 1 133
98 BOLT M10*50 L15 1 134
99 SPEAKER PLASTIC BOARD
2 135
100
SPEAKER 2 136
101
AMPLIFIER BOARD 1 137
102
SCREW ST4.2*12 4 138
103
SCREW ST2.9*6.5 4 139
104
MP3 CONNECT WIRE 1 140
105
FAN 1 141
106
SCREW ST3.5*40 2 142
107
SCREW ST4.2*12 2 143
108
FILTER 1 144
109
BOLT M4*8 4 145
110
146
TROUBLESHOOTING GUIDE
1、Probable reason for computer not workable after power start: The wire from computer to bottom
Page 22
control board didn’t connected well or the transformer was burnt out. Check the each wire from
computer to control board, make sure they are connected well. If the wire is destroyed , change it. If the
above can not settle the problem, try to change a good transformer.
2、E01: Message failure. Probable reason: The wires from computer and bottom control board didn’t
connect well, please check each wire. If the wire was destroyed, change a good one.
3、E02: Burst clash. Check
the power is right, if not, use correct power to test; Check if the bottom
control was burnt out, change a good one; reconnect the motor wire.
4、E03: No sensor signal. Sensor wire badness, change good wire; It is no use for the motor magnetic,
change the magnetic or reset the magnetic;
5.E04: Incline learning defeated, Check VR wire of incline motor whether connect well. If not, reconnect
VR to make it firm; Check AC wire of motor whether connect well, and AC wire of motor whet
her insert
well with correct sign of control board; Check connection line of motor whether is destroyed, exchange
it or incline motor. And press “learning” botton of bottom control board to relearn after checked
everything is well.
6、E05: Current overload protecting. Over rated loaded or the motor is stuck, cause excessive current,
machine will start self-protecting system. Adjust the machine and restart; Check if the motor has noise
from motor or if the mo
tor / bottom control board were burnt out, if burnt out, change good motor and
bottom control; Use right voltage.
7、If the motor can not work after pressing START button, the probable reason: the motor wire is broken;
the safety pipe is broken or fell; motor wire is not conneted well; IGBT on bottom control board is
burnt out. Test the above reasons and change the relevant part.
Warranty
Please visit the following link to complete the product warranty form online. Please visit
http://warrantyform.lifespanfitness.com.au/
PLEASE NOTE: YOUR WARRANTY IS ONLY VALID IF YOU CAN PROVE YOU ARE
THE ORIGINAL PURCHASER ON THIS ITEM (i.e. A copy of the receipt, invoice,
delivery date or internet confirmation).
Loading...
