LifeSpan GS5, GS5 GYM MULTI STATION User Manual

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

GS5 GYM MULTI

STATION USER MANUAL

2

GS5 GYM MULTI STATION

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. ASSEMBLY INSTRUCTIONS 4

3. PARTS LIST 32

4. WARRANTY 34

3

GS5 GYM MULTI STATION

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this machine.

 Install the product on a flat level surface
 Place your unit on a solid, level surface when in use
 Never allow children on or near the machine.
 Keep hands away from all moving parts.
 Never drop or insert any object into any openings.
 Care must be taken when lifting or moving the equipment so as not to injure your back. Always use

proper lifting techniques and/or seek assistance if necessary.

 Keep children and pets away from the machine at all times. DO NOT leave children unattended in

the same room with the machine.

 Only one person at a time should use the machine.
 If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the

workout at once. CONSULT A PHYSICIAN IMMEDIATELY

 Do not use the machine near water or outdoors.
 Keep hands away from all moving parts.
 Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing

that could become caught in the machine. Running or aerobic shoes are also required when using
the machine.

 Use the machine only for its intended use as described in this manual. DO NOT use attachments not

recommended by the manufacturer.

 Do not place any sharp objects around the machine.
 Disabled person should not use the machine without a qualified person or physician in attendance.
 Never operate the machine if the machine is not functioning properly.
 A spotter is recommended during exercise.

4

GS5 GYM MULTI STATION

2. ASSEMBLY INSTRUCTIONS

5

GS5 GYM MULTI STATION

6

GS5 GYM MULTI STATION

7

GS5 GYM MULTI STATION

Tools required for assembling the machine: Two Adjustable Wrenches, two Allen Wrenches, and one

Philips Screwdriver.

Note: It is strongly recommended this machine to be assembled by two or more people to reduce

chance of injury.

STEP 1

1. Attach the Front Vertical Frame (#3) to the Main Base Frame (#8).Secure it with two
M10x70mm Carriage Bolts(#77), one 140x51mm bracket (#25), two φ10 washers (#80), and
two M10 Aircraft Nuts (#82). DO NOT tighten all the nuts and bolts yet.

2. Push two φ2 ½” Guide Rod Rubber Bumpers (#62) onto the Guide Rods (#20).Secure it with
two M10x25mm Allen Bolts (#70) and two φ10 Washers (#80) from the bottom of the Rear Base
Frame (#2).

3. Connect the Main Base Frame (#8) to the Rear Base frame (#2). Secure it with two M10x70mm
carriage bolts (#77), one rear base frame bracket (#26), two φ10washers (#80). And two M10
Aircraft Nuts (#82).

8

GS5 GYM MULTI STATION

9

GS5 GYM MULTI STATION

STEP 2

1. Slide the 14 Weight Plates (#29) onto the Guide Rods (#20). Align the holes of the Weight
Plates. Insert the Selector Rod (#13) through the centre hole. Use the L-shaped Pin (#30) to
select the number of plates.

2. Slide the Selector Stem (#28) onto the Guide Rods (#20).

3. Attach the Upper Frame (#4) onto the Guide Rods (#20). Place the Upper Frame (#4) onto the
Front Vertical Frame (#3).

4. Secure the Upper Frame to the Guide Rods with two M10x25mm Allen Bolts (#70) and two
φ10Washers (#80).

5. Secure the Upper Frame (#4) to the Front Vertical Frame (#3) with two M10x90mm Carriage
Bolts (#76), one 140x51mm Bracket (#25), two φ10Washers (#80), and two M10 Aircraft Nuts
(#82). Tighten all bolts and nuts previously installed.

10

GS5 GYM MULTI STATION

11

GS5 GYM MULTI STATION

STEP 3

1. Attach the Right Upright (#117) and Left Upright (#131), to the Upper Frame (#4). Secure with
two Carriage Bolts M10x90mm (#76), two Aircraft Nuts (#82) and two φ10 washers (#80).

2. Attach the Right Upright (#117) and Left Upright (#116) to the two lower tubes (#92) and (#94).

Four Carriage Bolts M10x70mm (#77), two Brackets (#25), four Aircraft Nuts (#82) and four

φ10washers (#80).

3. Attach the two Handles (#118, #119) to the Right Upright (#117), secured with two M10x70mm
Carriage Bolts (#77).

12

GS5 GYM MULTI STATION

13

GS5 GYM MULTI STATION

STEP 4

1. Attach the Front Press Base (#11) to the Upper Frame (#4). Secure it with one Long Axle (#43),
two φ10 Washers (#80), and two M10 Aircraft Nuts (#82).

2. Attach the Right Butterfly (#6) to the Front Press Base (#11). Secure it with one M6x33mm Hex
Bolt (#75), Lock Ring (#37), and M6 Aircraft Nut (#83).

3. Slide a Butterfly Foam Roam Roll (#59) onto the Right Butterfly arm (#6). Attach a Front Press
Handle (#12) to the Right Butterfly (#6). Secure it with one M10x85mm Allen Bolt (#67).

4. Repeat the Step B&C above to install the Left Butterfly (#5).

5. Attach the Butterfly Pulley Bracket (#9) to the Front Vertical Frame (#3). Secure it with one
M10x110mm Allen Bolt (#66), two φ10 Washers (#80), and one M10 Aircraft Nut (#82).

6. Attach Swivel Pulley Brackets (#18) to each end of the Butterfly Pulley Bracket (#9). Secure

each Bracket with one M10x65mm Allen Bolt (#68), two φ10 Washers (#80), and one M10

Aircraft Nut (#82). Do not over tighten; make sure the bracket (#18) is able to swivel freely.

7. Attach the Backrest Board (#35) to the Front Vertical Frame (#3). Secure it with two M8x85mm
Allen Bolts (#72) and two φ8Washers (#81).

14

GS5 GYM MULTI STATION

15

GS5 GYM MULTI STATION

STEP 5

1. Attach the Main Seat Support (#1) to the Front Vertical Frame (#3).Secure it with two
M10x90mm Carriage Bolts (#76), one 120x50mm Bracket (#24), two φ10 Washers (#80), and
two M10 Aircraft Nuts (#82).

2. Attach the Leg Developer (#7) to the bracket on the Main Seat Support (#1). Secure it with a
Leg Developer Axle (#44), two M10x15mm Allen Bolts (#71), and two φ10 Washers (#80).

3. Insert two Foam Tubes (#23) halfway through the holes on the Leg Developer (#7) and Main
Seat Support (#1). Insert the Foam Roils (#58) into the two foam tubes (#23) from both ends.
Plug four Foam Roll End Caps (#57) onto the ends.

4. Place the Seat (#34) onto the Main Seat Support (#1). Secure it with two M8x65mm Allen Bolts
(#73) and two φ8Washers (#81).

5. Attach the Arm Curl Pad (#36) to the Arm Curl Stand (#40). Secure it with two M8x15mm Allen
bolts (#74) and two φ8Washers (#81).

6. Insert the Arm Curl Stand (#10) into the front opening on the Main Seat Support (#1). Secure it
with a Lock Knob (#10).

7. Attach two Foot Plates (#27) to the Main Base Frame (#8). Secure them with two M10x90
Carriage Bolts (#76), two φ10 Washers (#80) and two M10 Aircraft Nuts (#82).

8. Attach the Tube (#90) to the Main Seat Support (#1) and Main Base Frame (#8), secured with
one 120x50mm Bracket (#24), two M10X70mm Carriage Bolts (#77), two φ10 Washers (#80)
and two M10 Aircraft Nuts (#82).

16

GS5 GYM MULTI STATION

17

GS5 GYM MULTI STATION

STEP 6

1. Attach the Board (#119) to U-tube (#120), secured with one M10X70mm (#77), two φ¾〞

Washer (#80) and one M10 Aircraft Nut (#82).

2. The board (#119) can then be attached to the right Upright (#117), secured with Pin (#127).

3. Attach the two Elbow Pads (#121) to the handles. Secure with four M8x65mm (#125) and four
φ8Washers (#81).

4. Attach Back Cushion (#122) to the right Upright (#117), secure with two M8x75mm (#126) and
two φ8Washers (#81).

5. Put the four Foams (#123) onto the two Foam Tubes (#23).

18

GS5 GYM MULTI STATION

19

GS5 GYM MULTI STATION

STEP 7

1. Attach the two Back Uprights (#103) the Tube (#107), secured with four M10x90mm Carriage

Bolts (#76), two120x50mm Bracket (#24), four M10 Aircraft Nuts (#82) and four φ10 Washers

(#80).

2. Slide the Adjustable Tube (#105) onto the tube (#104). Secure to the Front Upright (#100) with
two M10X20mm (#115) and two φ10 Washers (#80).

3.

a) Attach the Tube pair (#106) to the two Back Pad Tubes (#108) using with one

M10X190mm Carriage Bolt (#112), one M10 Aircraft Nut (#82) and one φ10 Washer

(#80).

b) Secure the Back Pad (#109) onto the two Back Pad Tubes (#108) with four M6X35mm

Carriage Bolts (#113) and four Ø6 Washers (#114).

c) Attach the Tube pair (#106) to the Adjustable Tube (#105). Secure with Carriage Bolt

M10X130mm (#111).

4. Attach the Seat Pad (#110) to the Tube (#104) with four M8x20mm (#116).

5. Attach the Adjustable Foam Tube (#101) onto the Front Upright (#100) using Lock Knob (#10).

Insert the Foam Tube (#23) through the Adjustable Foam Tube (#101) and attach the two Foam

Rolls (#58).

6. Insert the two tubes (#102) into the two Back Uprights (#103). Secure with Lock Knob (#10).

20

GS5 GYM MULTI STATION

21

GS5 GYM MULTI STATION

STEP 8

1. Secure the Weight Bench (#128) to the tube (#130) with two M10x70mm Carriage Bolts (#77),
two Aircraft Nuts (#82) and two φ10 Washers (#80).

2. Attach the assembly to the Left Upright (#116). Secure with two M10x70mm Carriage Bolts
(#77), two Aircraft Nuts (#82) and two φ10 Washers (#80).

3. Attach the Beam support tube (#129) to the Left lower tube (#94), secured with two M10x70mm
Carriage Bolts (#77), two Aircraft Nuts (#82) and two φ10washers (#80).

4. Connect the Weight Bench to the tube (#129) with one M10x70mm Carriage Bolt (#77), one
Aircraft Nut (#82) and one φ10 Washer (#80).

22

GS5 GYM MULTI STATION

23

GS5 GYM MULTI STATION

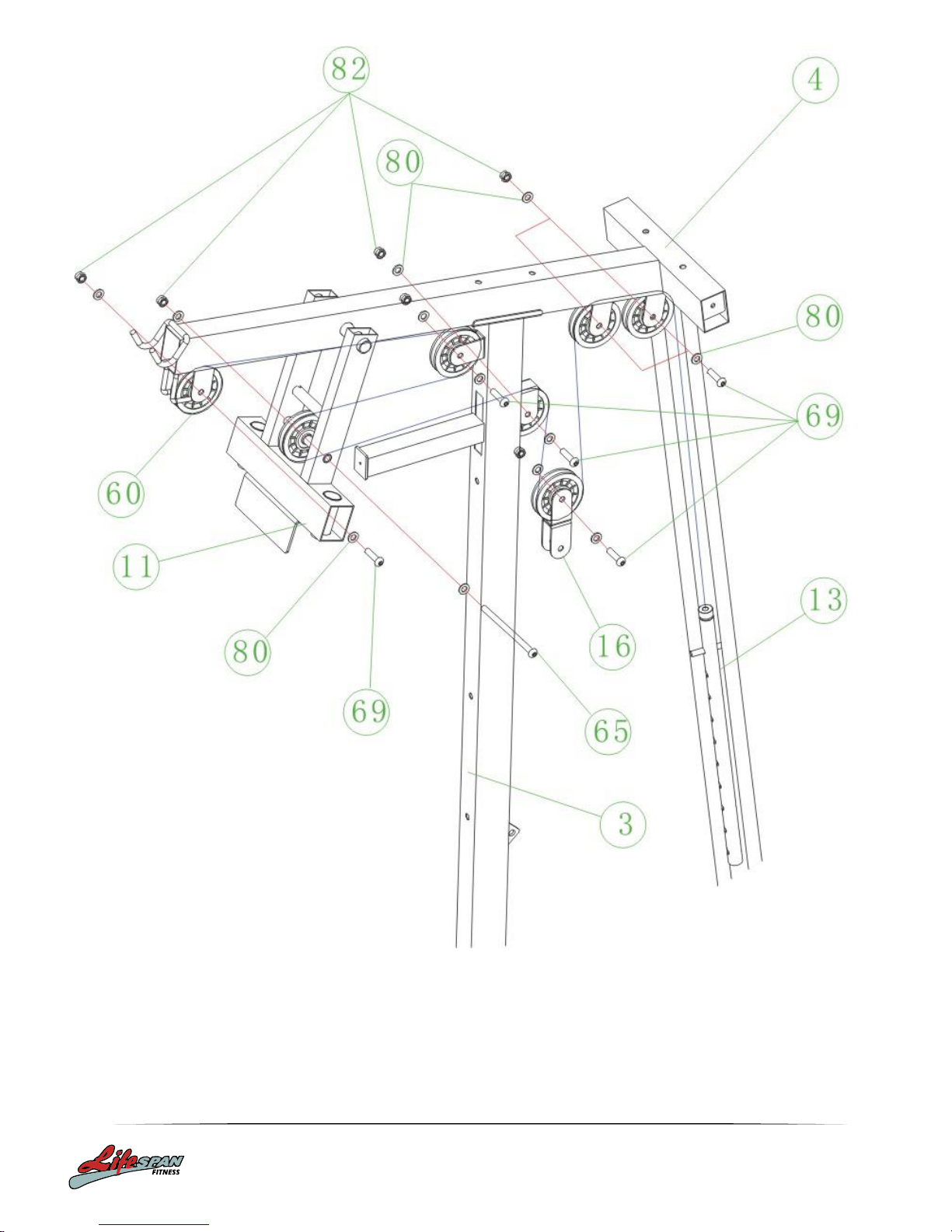

STEP 9

1. Attach the 333cm Upper Cable (#31) to the opening at the front of the Upper Frame (#4). Note:
The Ball Stopper on the cable should be underneath the Frame.

2. Attach a Pulley (#60) to the open bracket as per the diagram. The cable should sit between the
Pulley (#60) and the opening.

Secure it with one M10x45mm Allen Bolt (#69), two φ10 Washers (#80), and one M10 Aircraft

Nut (#82).

3. Draw the 333cm Upper Cable (#31) through towards the back of the machine to the open
bracket on the Front Vertical Frame (#3). Repeat step 2 above to install a Pulley (#60).

4. Draw the 333cm Upper Cable (#31) around the Pulley (#60) then pull back towards the opening
on the Front Press Base (#11).

Attach a Pulley to the opening on the Front Press Base. Secure the Pulley with one

M10x175mm Allen Bolt (#65) and one M10 Aircraft Nut (#82).

5. Draw the 333cm Upper Cable (#31) around the Pulley (#60) and through the opening to the

open bracket on the Front Vertical Beam (#3). Repeat step B above to install another Pulley

(#60).

6. Draw the 333cm Upper Cable (#31) around the Pulley (#60) then pull the 333cm Upper Cable

(#31) downwards. Attach the 3327mm Upper Cable (#31) to a Double Floating Pulley Bracket

(#16). Install another Pulley (#60) following Step 2. Leave the bracket hanging for now.

7. Pull the 333cm Upper Cable (#31) through the two open brackets at the rear of the Upper
Frame (#4). Install two pulleys to the bracket following Step 2.

8. Pull the 333cm Upper Cable (#31) downward between the two Guide Rods to the Selector Rod
(#13) to secure the Cable.

24

GS5 GYM MULTI STATION

25

GS5 GYM MULTI STATION

STEP 10

1. Attach one end of the 302cm Butterfly Cable (#33) to the hook on the Right Butterfly (#6).

2. Draw the 302cm Butterfly Cable (#33) through the right Swivel Pulley Bracket (#18).

3. Attach a Pulley (#60) to the bracket. Secure it with one M10x45mm Allen Bolt (#69), two φ10
Washers (#80), and one M10 Aircraft Nut (#82).

4. Draw the 302cm Butterfly Cable (#33) around the Pulley (#60) then downward. Attach the Cable
to the Crossed Double Floating Pulley Bracket (#17).

5. Install another Pulley. (#60) as per step 3. Leave the Crossed Double Floating Pulley Bracket
(#17) hanging for now.

6. Pull the 302cm Butterfly Cable (#33) around the Pulley (#60) then upward to the left Swivel
Pulley Bracket (#18). Repeat Step 3 above to install a Pulley (#60).

7. Draw the 302cm Butterfly Cable (#33) to the left Butterfly (#5). Attach the end of the cable to the
hook on the Left Butterfly (#5).

26

GS5 GYM MULTI STATION

27

GS5 GYM MULTI STATION

STEP 11

1. Attach the 325cm Lower Cable (#32) to the open bracket at the bottom of the Leg Developer
(#7).

2. Attach a Pulley (#60) to the bracket. Secure it with one M10x45mm Allen Bolt (#69), two φ10
Washers (#80), and one M10 Aircraft Nut (#82).

3. Draw the 325cm Lower Cable (#32) underneath the Pulley (#60) to the open bracket on the
Main Base Frame (#8). Repeat Step 2 above to install a Pulley (#60).

4. Draw the 325cm Lower Cable (#32) underneath the Pulley (#60) along the top of the Main Base

Frame through the hole at the bottom of the Front Vertical Frame (#3) to the open bracket.

Install another Pulley (#60) as per Step 2.

5. Pull the 325cm Lower Cable (#32) upward and through the Crossed Double Floating Pulley
Bracket (#17) previously installed in Part 10. Install another Pulley (#60) as per Step 2.

6. Draw the 325cm Lower Cable (#32) around the Pulley (#60) then downward to the open bracket
on the Main Base Frame (#8). Install another Pulley (#60) as per Step 2.

7. Pull the 325cm Lower Cable (#32) around the Pulley (#60)then upward to the Double Floating
Pulley Bracket (#16) previously installed in Part 9. Install another (#60) as per Step 2.

8. Draw the 325cm Lower Cable (#32) around the Pulley (#60) then pull downward. Connect the
Cable to a C-clip (#50) then connect the C-clip (#50) to the Short Chain (#46).

9. Connect the Short Chain (#46) to the bracket located at the rear of the Front Vertical Frame

(#3). Secure with one M10x25mm Allen Bolt (#70), two φ10 Washers (#80), and one M10

Aircraft Nut (#82).

10. Adjust the tension of the Cable by adjusting the length of the Short Chain (#46). For best

performance of the machine, adjust the Chain so the Selector Stem (Top Plate) on the weight

stack is 54mm above the first plate. While adjusting the weight stack, push down on the

Selector Stem (#28) to close up the gap then pin the plates. This will remove the slack in the

cable system so the range of motion is smooth and tight.

28

GS5 GYM MULTI STATION

29

GS5 GYM MULTI STATION

STEP 12

A.) Attach a Short Chain (#46) to the 333cm Upper Cable (#31) using a C-clip (#50). The chain length

can be freely adjusted depending on the desired exercise.

B.) Attach a Long Chain (#45) to the 325cm Lower Cable (#32) using a C-clip (#50). Attach the Arm

Curl Handle (#15) to the Long Chain (#45) using another C-clip. The chain length can be freely

adjusted depending on the desired exercise. Remove the Chain and the Handle when using the

Leg Developer (#7).

C.) Attach Left & Right Weight Stack Covers (#21, #22) to the Upper Frame (#4), Main Base Frame

(#8), and Rear Base Frame (#2). Secure with six M10x15mm Allen Bolts (#71) and six φ10

Washers (#80).

D.) From the back of the Covers, secure the two covers together with four M5x10mm (#79) Philips

Screws and four M5 Aircraft Nuts (#38).

30

GS5 GYM MULTI STATION

31

GS5 GYM MULTI STATION

32

GS5 GYM MULTI STATION

3. PARTS LIST

NO. DESCRIPTION QTY NO. DESCRIPTION QTY
1 Main Seat Support 1 43 Long Axle 1

2 Rear Base Frame 1 44 Leg Developer Axle 1
3 Front Vertical Frame 1 45 Long Chain 1
4 Upper Frame 1 46 Short Chain 2
5 Left Butterfly 1 47 Sliding Sleeve 1
6 Right Butterfly 1 48 Handle Grip 4
7 Leg Developer 1 49 Lat Bar Grip 2
8 Main Base Frame 1 50 C-clip 5
9 Butterfly Pulley Bracket 1 51 Front Base Frame End Cap 1
10 Lock Knob 5 52 Rear Base Frame End Cap 2
11 Front Press Base 1 53 2”x1” End Cap 2
12 Front Press Handle 2 54 23/4” x 2 End Cap 3
13 Selector Rod 1 55 2” Square End Cap 2
14 Lat Bar 1 56 φ1” Cone-shaped End Cap 3
15 Arm Curl Handle 1 57 Foam Roll End Cap 4
16 Double Floating Pulley Bracket 1 58 Foam Roll 4
17 Crossed Double Floating Pulley Bracket 1 59 Butterfly Foam Roll 2
18 Swivel Pulley Bracket 2 60 Pulley 16
19 Arm Curl Handle Tube 1 61 φ11/2” Rubber Bumper 1
20 Guide Rod 2 62 φ21/2” Guide Rod Rubber Bumper 2
21 Left Weight Stack Cover 1 63 φ13/4” Rubber Bumper 1
22 Right Weight Stack Cover 1 64 φ1 Bushing 8
23 Foam Tube 2 65 M10x175mm Allen Bolt 1
24 120x50mm Bracket 1 66 M10x110mm Allen Bolt 1
25 140x51mm Bracket 2 67 M10x85mm Allen Bolt 2
26 Rear Base Frame Bracket 1 68 M10x65mm Allen Bolt 2
27 Foot Plate 2 69 M10x45mm Allen Bolt 15
28 Selector Stem 1 70 M10x25mmAllen Bolt 5
29 Weight Plate 9 71 M10x15mm Allen Bolt 8
30 L-shaped Pin 1 72 M8x85mm Allen Bolt 2
31 333cm Upper Cable 1 73 M8x65mm 1/2” Allen Bolt 2
32 325cm Lower Cable 1 74 M8x15mm Allen Bolt 2
33 302cm Butterfly Cable 1 75 M6x33mm Hex Bolt 2
34 Seat 1 76 M10x90mmCarriage Bolt 6
35 Backrest Board 1 77 M10x70mm Carriage Bolt 4
36 Arm Curl Pad 1 78 M6x5/8”Philips Screw 2
37 Lock Ring 2 79 M5x10” Philips Screw 4
38 M5 Aircraft Nut 4 80 φ10 Washer 62
39 Ankle Strap 1 81 φ8 Washer 6
40 Arm Curl Stand 1 82 M10 Aircraft Nut 32
41 φ1 1/8, Bushing 2 83 M6 Aircraft Nut 2
42 φ1 ½” Bushing 2 92 Right lower tube 1

94 Left lower tube 1

33

GS5 GYM MULTI STATION

NO. DESCRIPTION QTY NO. DESCRIPTION QTY
100 Front Upright 1 128 Weight Bench 1

101 Foam Tube 1 129 Beam support tube 1
102 Bar support tube 1 130 Tube bracket 2
103 Back Upright 1 131 Left upright 1
104 Main Tube 1
105 Adjustable Tube 1
106 Seat tube 1
107 Beam tube 1
108 Back Pad Tube 1
109 Back Pad 1
110 Seat Pad 1
111 M10x130mm Carriage Bolts 1
112 M10x190mm Carriage Bolts 1
113 M6x35mm Carriage Bolts 4
114 φ6 washes 4
115 M10x20mm Bolts 2
116 M8x20 Allen Bolts 4
117 Right Upright 1
118 Handles 2
119 Board 1
120 U-tube 1
121 Elbow Pad 2
122 Back Cushion 1
123 Foams 6
124 Bolts for pads 4
125 M8x75mm Bolts 4
126 Pin 1

34

GS5 GYM MULTI STATION

4. WARRANTY

AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with

guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. Full details of your consumer rights may be found at

www.consumerlaw.gov.au

Please visit our website to view our full warranty terms and conditions:

http://www.lifespanfitness.com.au/warranty-repairs

Warranty and Support:

Please email us at [e-mail] for all warranty or support issues.
For all warranty or support related enquiries an email must be sent before contacting us via any other
means.
