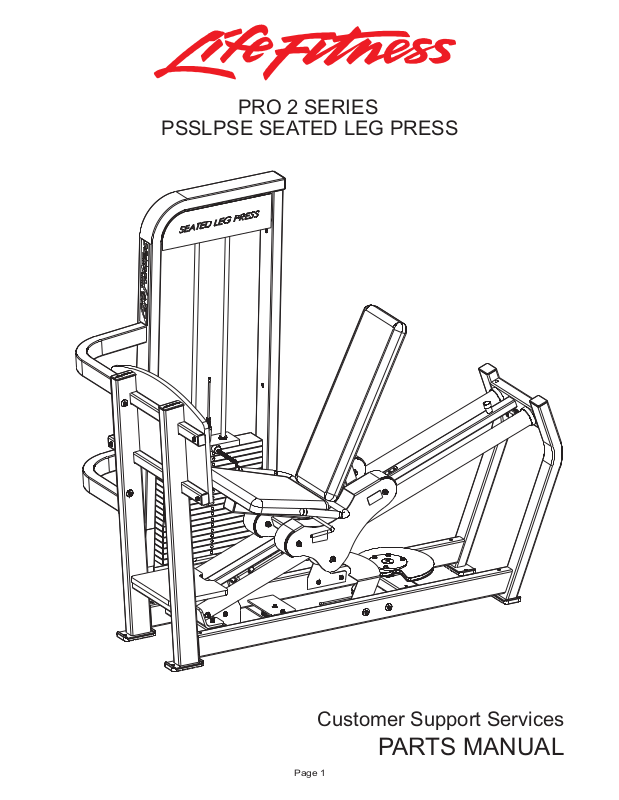

Page 1
PRO 2 SERIES
PSSLPSE SEATED LEG PRESS
Customer Support Services
PARTS MANUAL
Page 1
Page 2
PSSLPSE SEATED LEG PRESS
Page
COMPONENT ASSEMBLY 3
COMPONENT ASSEMBLY LEGEND 4
SIDE FRAME ASSEMBLY 5
SIDE FRAME ASSEMBLY LEGEND 6
BASE FRAME ASSEMBLY 7
BASE FRAME ASSEMBLY LEGEND 8
SEAT ASSEMBLY 9
SEAT ASSEMBLY LEGEND 10
SEAT ADJUSTMENT ASSEMBLY 11
SEAT ADJUSTMENT ASSEMBLY LEGEND 12
SEAT HANDLE ASSEMBLY 13
LOWER CAM ASSEMBLY 14
LOWER CAM ASSEMBLY LEGEND 15
5LB INCREMENT WEIGHT ASSEMBLY 16
INCREMENT WEIGHT ASSEMBLY W/STRIKER 17
WEIGHT STACK (390LB) 18
REAR SHROUD KIT 19
OPTIONAL FULL SHROUD KIT 20
CABLE ROUTING 21
IMAGE 22
CONTENTS
________________________________________
Page 2
Page 3
PSSLPSE SEATED LEG PRESS
3
2
7
9
9
6
9
8
5
1
4
10
11
16
26
13
15
11
14
11
12
11
13
11
19
17
17
18
15
11
22
21
20
23
24
27
28
COMPONENT ASSEMBLY
________________________________________
SEE PAGE 4 FOR LEGEND
Page 3
Page 4
PSSLPSE SEATED LEG PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7450401 ASSY, PSSLP BASE FRAME
2 1 7450601 ASSY, PSSLP SEAT
3 1 7450501 ASSY, PSSLP SIDE FRAME
4 1 7422901 ASSY, FZ/PS-SLP SEAT ADJ
5 2 3251501 ROLLER ASSY
6 1 7450701 ASSY, FZ/PS-SLP SEAT HANDLE
7 1 73991xx PAD, 17 X 18 1/2
8 1 7409895 SHIELD, FZ/PS-SLP CAM SG
9 4 3236602 WASHER, 3/8 ID X 1.25 OD SS
10 2 3236211 SCREW, M10 X1.5 70MM
11 20 3236601 WASHER, 3/8 SAE SS
12 6 3236801 NUT, M10 HEX NYLOCK SS
13 4 3236212 SCREW, M10 X1.5 75MM
14 4 3236210 SCREW, M10 X1.5 65MM
15 8 3236204 SCREW, M10 X1.5 35MM
16 2 3236201 SCREW, M10 X1.5 20MM
17 4 3241401 WASHER, FLAT 12MM SS
18 1 3241320 SCREW, M12 X1.75 120MM
19 2 3236803 NUT, M12 HEX NYLOCK SS
20 1 7414501 CAM, FZ/PS-SLP OBLONG
21 1 7342201 PLATE, CABLE END
22 1 7511295 PLATE, FZ/PS-SLP TORQUE SG
23 1 7322301 PLATE, 1.97 OD X .44 ID 10GA
24 1 3236202 SCREW, M10 X1.5 25MM
25 1 3241319 SCREW, M12 X1.75 110MM
26 1 3238502 CAP, 1/2 X 3
27 1 7524401 LABEL, 1-13 STRAIGHT
28 1 73540xx PAD, BACK 32-1/2 X 11-1/4
COMPONENT ASSEMBLY LEGEND
________________________________________
Page 4
Page 5
3
1
9
8
7
9
6
5
6
2
6
4
4
10
18
19
20
11
13
11
12
11
15
11
16
17
12
14
29
24
22
23
25
26
27
21
28
21
PSSLPSE SEATED LEG PRESS
SIDE FRAME ASSEMBLY - 7450501
________________________________________
SEE PAGE 6 FOR LEGEND
Page 5
Page 6
PSSLPSE SEATED LEG PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7449201 WLDMT, SIDE FRAME
2 2 7352101 CUSHION, WEIGHT STACK
3 1 7353601 ASSY, 390LB STACK
4 4 3237801 PULLEY, 4.5" OD
5 1 7301101 PLATE, PULLEY
6 6 3237401 PLUG, 7/16" HOLE
7 1 7352401 CAP, END 2 X 4
8 12 7544202 PAD, DUAL LOCK 250 1.5" X 2.0"
9 2 7606702 COVER, STACK-PRO2 WIDE
10 2 7328606 GUIDE ROD, .75 OD SOLID 59.63
11 6 3236601 WASHER, 3/8 SAE SS
12 3 3236206 SCREW, M10 X1.5 45MM
13 2 3236901 NUT, M10 X 1.5 JAM
14 1 7348101 WASHER, SPACER
15 1 7335401 NUT, M10 X 1.5 SOCKET HEAD
16 1 3236207 SCREW, M10 X1.5 50MM
17 1 3236801 NUT, M10 HEX NYLOCK SS
18 2 3240501 M10 X 1.5 HXS NO CUP ST BO
19 2 7402301 RETAINER, GUIDEROD
20 2 3232421 RING, BRE .940, 5100-100 ST PP B
21 2 7388201 FOOTPAD, PS RUBBER
22 1 7423721 CABLE, PSSLP-1 145
23 1 3236902 NUT, M16 X 2 HEX JAM SS
24 6 3238101 NUT, BLIND INSERT M10 X 1.5
25 1 7490201 LABEL, PSSLP PLACARD
26 1 7491301 LABEL, PSSLP LOGO PANEL
27 1 7422004 LABEL, 2" ASTM WARN
28 1 7571301 LABEL, SERIAL NUMBER
29 1 7348001 LABEL, LIFE FITNESS LOGO
SIDE FRAME ASSEMBLY LEGEND
________________________________________
Page 6
Page 7
PSSLPSE SEATED LEG PRESS
3
7
6
1
3
6
2
5
9
8
4
10
30
21
22
16
14
12
13
24
29
14
16
25
28
14
26
27
14
15
17
16
19
14
14
16
14
15
20
14
18
19
11
14
16
14
15
BASE FRAME ASSEMBLY - 7450401
________________________________________
SEE PAGE 8 FOR LEGEND
Page 7
Page 8
PSSLPSE SEATED LEG PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7447201 WLDMT, PSSLP MAIN FRAME
2 1 3237801 PULLEY, 4.5" OD
3 2 7352001 BUMPER, 2-1/8 X 4-5/8
4 1 7450901 BOARD, PSSLP LINEXED
5 1 7494301 BOARD, PSSLP LINEXED
6 10 3237401 PLUG, 7/16" HOLE
7 2 7352301 CAP, END 2 X 3
8 2 7352401 CAP, END 2 X 4
9 4 7352201 CAP, END 1-1/2 X 2
10 2 7408895 WLDMT, FZ/PS-SLP RAIL BRKT SG
11 1 3239601 PULLEY, 6" OD x 10MM ID
12 2 7961101 TUBE, RAIL
13 2 7444601 BUMBER, DONUT
14 23 3236601 WASHER, 3/8 SAE SS
15 9 3236208 SCREW, M10 X1.5 55MM
16 9 3236801 NUT, M10 HEX NYLOCK SS
17 2 3236204 SCREW, M10 X1.5 35MM
18 2 3236212 SCREW, M10 X1.5 75MM
19 2 7348101 WASHER, SPACER
20 1 3236207 SCREW, M10 X1.5 50MM
21 2 3241315 SCREW, M12 X1.75 90MM
22 2 3236803 NUT, M12 HEX NYLOCK SS
23 4 7388201 FOOTPAD, PS RUBBER
24 1 7511801 ASSY, FZ/PS-SLP RND CAM
25 1 3243201 BEARING, 6007 BALL
26 1 7511395 WLDMT, FZ/PS-SLP HUB SG
27 1 7511601 KEY, .375 SQUARE X 1.25
28 1 7690101 BUMPER, SLEEVE - 1 INCH DIA
29 2 3236213 SCREW, M10 X1.5 80MM
30 4 3241401 WASHER, FLAT 12MM SS
BASE FRAME ASSEMBLY LEGEND
________________________________________
Page 8
Page 9
PSSLPSE SEATED LEG PRESS
3
6
7
7
2
5
9
8
2
1
4
10
15
14
11
12
13
SEAT ASSEMBLY - 7450601
________________________________________
SEE PAGE 10 FOR LEGEND
Page 9
Page 10
PSSLPSE SEATED LEG PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7448701 WLDMT, PSSLP CARRIAGE
2 2 7352301 CAP, END 2 X 3
3 2 3235801 GRIP, 1.25 OD OPEN END
4 2 7662901 CAP, GRIP 1.25 OD
5 4 3251501 ROLLER ASSY
6 2 7662801 RING, GRIP 1.25 OD
7 8 3247701 M4 X .7 HXS NO CUP ST BO
8 8 3241401 WASHER, FLAT 12MM SS
9 4 3241320 SCREW, M12 X1.75 120MM
10 4 3236803 NUT, M12 HEX NYLOCK SS
11 1 73540xx PAD, BACK 32-1/2 X 11-1/4
12 4 3236601 WASHER, 3/8 SAE SS
13 4 3236204 SCREW, M10 X1.5 35MM
14 1 7422001 LABEL, SEAT INST
15 2 7422003 LABEL, MOVING PARTS
SEAT ASSEMBLY LEGEND
________________________________________
Page 10
Page 11
PSSLPSE SEATED LEG PRESS
3
1
7
6
5
2
9
8
6
4
10
13
14
11
12
16
15
SEAT ADJUSTMENT ASSEMBLY - 7422901
________________________________________
SEE PAGE 12 FOR LEGEND
Page 11
Page 12
PSSLPSE SEATED LEG PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7409095 WLDMT, FZ/PS-SLP SEAT ADJ SG
2 4 7778501 BLOCK, FZ/PS-SLP DELRIN
3 1 7409502 WLDMT, FZ/PS-SLP ADJ PLATED
4 1 7414301 STUD, M10 BALL END M10 X 1.5
5 1 7354301 SPACER, 7/16 ID X .75 OD X 1
6 2 3236601 WASHER, 3/8 SAE SS
7 1 3236205 SCREW, M10 X1.5 40MM
8 1 3239401 SPRING,GAS-135N- 300
9 1 7351300 PIN, PULL
10 1 7351501 SPRING; PULL PIN LARGE
11 1 6140701 GLIDE 1 X 1
12 4 3241707 SCREW, M6 X1 50MM
13 4 3241801 WASHER, FLAT 6MM SS
14 4 3236802 NUT, M6 HEX NYLOCK SS
15 1 3236701 WASHER, FENDER 3/8" ID X 1.5" OD SS
16 1 3102802 NUT, NYLOCK 3/8-16
SEAT ADJUSTMENT ASSEMBLY LEGEND
________________________________________
Page 12
Page 13
PSSLPSE SEATED LEG PRESS
2
3
2
1
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7412295 WLDMT, FZ/PS-SLP LEVER SG
2 2 3104901 .75" ID 1.00" OD BRONZE BUSHING
3 1 7324802 SHAFT, TAPPED 0.75 DIA X 1.800
SEAT HANDLE ASSEMBLY - 7450701
________________________________________
Page 13
Page 14
PSSLPSE SEATED LEG PRESS
3
2
8
7
9
5
6
1
4
10
LOWER CAM ASSEMBLY - 7511801
________________________________________
SEE PAGE 15 FOR LEGEND
Page 14
Page 15
PSSLPSE SEATED LEG PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7511495 WLDMT, FZ/PS-SLP CAM SHAFT SG
2 1 7511501 SPACER, FZ/PS INTERNAL .403
3 1 7511502 SPACER, FZ/PS INTERNAL 1.845
4 1 3243201 BEARING, 6007 BALL
5 1 7414401 CAM, FZ/PS-SLP RND
6 1 7511195 PLATE, FZ/PS-SLP CAM THRD SG
7 4 3236601 WASHER, 3/8 SAE SS
8 4 3236204 SCREW, M10 X1.5 35MM
9 1 7342201 PLATE, CABLE END
10 1 7423803 CABLE, PSSLP-2
LOWER CAM ASSEMBLY LEGEND
________________________________________
Page 15
Page 16
3
2
5
1
4
4
4
ITEM NO QTY PART NO DESCRIPTION
1 1 7446602 BODY, 5LB INCREMENT WEIGHT
2 1 7446901 PIN, RETAINING
3 1 7447001 SPRING, COMPRESSION
4 3 7560001 BUSHING, MTS, INC WEIGHT
5 1 7351401 KNOB, TULIP STYLE
PSSLPSE SEATED LEG PRESS
5LB INCREMENT WEIGHT ASSEMBLY - 7446501
________________________________________
Page 16
Page 17
3
2
6
5
1
4
ITEM NO QTY PART NO DESCRIPTION
1 2 7446501 ASSY, 5LB INCREMENT WEIGHT
2 1 8002601 PLATE, INCR. WT STRIKER
3 2 3236202 SCREW, M10 X1.5 25MM
4 2 3236801 NUT, M10 HEX NYLOCK SS
5 2 7767601 BUMPER, PS INCREMENT WT
6 2 3237401 PLUG, 7/16" HOLE
PSSLPSE SEATED LEG PRESS
INCREMENT WEIGHT W/STRIKER - 7415101
________________________________________
Page 17
Page 18
3
5
1
2
7
8
9
4
5
WEIGHT PLATE LABELS
PART NO. DESCRIPTION
7927201 LABEL, 390 LB STACK
7927301 LABEL, 195 KG STACK
PSSLPSE SEATED LEG PRESS
ITEM NO QTY PART NO DESCRIPTION
1 1 7353901 HEADPLATE, WT. STACK
2 1 7356601 STEM, PRO2 19 HOLE
3 19 7328401 WEIGHT PLATE, 20 LB
4 1 3236001 BUSHING, SPRING PIN
5 2 7338001 HEADPLATE BUSHING & CLIP
7 1 7353001 ASSY, SELECTOR PIN
8 1 7356501 PLUG, LANYARD ATTACHMENT
9 1 7523601 CRIMP, CABLE
WEIGHT STACK ASSY 390LB - 7353601
________________________________________
Page 18
Page 19
3
3
2
4
4
1
PSSLPSE SEATED LEG PRESS
REAR SHROUD KIT WIDE-TALL - 7415205
________________________________________
ITEM NO. QTY. PA RT NO. DES CRIPTION
1 1 7376 80 5 S HIEL D, PS REAR
2 6 7655 30 1 BRACKET, PS REAR S HIEL D
3 12 323 66 01 W A S HER, 3/8 S A E S S
4 12 323 62 01 S CREW , M10 X1 .5 2 0M M
Page 19
Page 20
3
3
2
5
6
7
8
1
7
9
4
4
PSSLPSE SEATED LEG PRESS
OPTIONAL FULL SHROUD KIT WIDE-TALL - 7539605
________________________________________
ITEM NO. QTY. PART NO. DES CRIPTION
1 1 737 6 805 S HIELD, PS REA R
2 6 765 5 301 B RACKET, PS REA R S HIEL D
3 18 3 236 6 01 W AS HER, 3/8 S A E S S
4 12 3 236 2 01 S CREW , M1 0 X1.5 2 0 MM
5 6 323 6 203 S CREW , M10 X1.5 3 0 MM
6 6 737 6 601 B RACKET, PS FRONT S HIELD
7 2 737 6 905 S HIELD, PS - FRONT
8 2 757 0 901 PL A TE, PS S HIEL D S TA N D-OFF
9 2 765 7 401 PL A TE, PRO2 S HROUD S PCR
Page 20
Page 21
THROUGH
SLOT
7423803 LOWER CAM CABLE
7423721 WEIGHT STACK CABLE
PSSLPSE SEATED LEG PRESS
CABLE ROUTING
________________________________________
Note: Some components removed for display purposes.
Page 21
Page 22
PSSLPSE SEATED LEG PRESS
________________________________________
Page 22
