PRO 2 SERIES
PSLR LATERAL RAISE
Customer Support Services
PARTS MANUAL
Page 1
PSLR LATERAL RAISE
Page
COMPONENT ASSEMBLY 3
COMPONENT ASSEMBLY LEGEND 4
LEFT WORK ARM ASSEMBLY 5
LEFT WORK ARM ASSEMBLY LEGEND 6
RIGHT WORK ARM ASSEMBLY 7
RIGHT WORK ARM ASSEMBLY LEGEND 8
FLOATING PULLEY ASSEMBLY 9
90 SEAT ASSEMBLY 10
90 SEAT ASSEMBLY LEGEND 11
ADD-ON INCREMENT WEIGHT ASSEMBLY 12
WEIGHT STACK (200LB) 13
OPTIONAL REAR SHROUD KIT 14
CABLE ROUTING 15
CONTENTS
________________________________________
Page 2
PSLR LATERAL RAISE
3
5
5
2
3
5
6
1
8
9
7
4
4
4
4
4
10
11
19
18
11
14
13
15
12
19
16
17
22
42
36
36
37
35
25
26
27
29
28
31
23
34
38
39
20
23
30
33
21
33
34
20
32
24
42
43
45
46
40
44
41
46
47
COMPONENT ASSEMBLY
________________________________________
Page 3
SEE PAGE 4 FOR LEGEND
PSLR LATERAL RAISE
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7388701 WLDMT, PSLR MAIN
2 4 3237701 ASSY, PILLOW BLOCK 4.88 X 2.75
3 14 3236801 NUT, M10 HEX NYLOCK SS
4 32 3236601 WASHER, 3/8 SAE SS
5 10 3236204 SCREW, M10 X1.5 35MM
6 4 3237801 PULLEY, 4.5" OD
7 1 7390101 ASSY, PSLR FLOAT PULLEY
8 1 73993xx PAD, 7 X 11-1/4
9 2 7348101 WASHER, SPACER
10 2 7335401 NUT, M10 X 1.5 SOCKET HEAD
11 4 3236206 SCREW, M10 X1.5 45MM
12 1 7352201 CAP, END 1-1/2 X 2
13 3 7352301 CAP, END 2 X 3
14 1 7352401 CAP, END 2 X 4
15 1 7390301 WLDMT, PSLR SHROUD
16 1 7390601 ASSY, PSLR L WORKARM
17 1 7390801 ASSY, PSLR R WORKARM
18 2 3236901 NUT, M10 X 1.5 JAM
19 2 7352001 BUMPER, 2-1/8 X 4-5/8
20 4 3236205 SCREW, M10 X1.5 40MM
21 2 3236217 SCREW, M10 X1.5 100MM
22 4 3236209 SCREW, M10 X1.5 60MM
23 2 7606602 COVER, STACK-PRO2 STD
24 1 7353401 ASSY, 200LB STACK
25 2 7352101 CUSHION, WEIGHT STACK
26 2 7328604 GUIDE ROD, .75 OD SOLID 43.88
27 2 7402301 RETAINER, GUIDEROD
28 2 3232421 RING, BRE .940, 5100-100 ST PP B
29 2 3240501 M10 X 1.5 HXS NO CUP ST BO
30 1 7444101 LABEL, PSLR PLACARD
31 1 7491001 LABEL, PSLR LOGO PANEL
32 1 7348001 LABEL, LIFE FITNESS LOGO
33 2 7422003 LABEL, MOVING PARTS
34 12 7544202 PAD, DUAL LOCK 250 1.5" X 2.0"
35 1 7423801 CABLE, PSLR-2
36 3 7388201 FOOTPAD, PS RUBBER
37 2 3236212 SCREW, M10 X1.5 75MM
38 1 7423703 CABLE, PSLR
39 1 3236902 NUT, M16 X 2 HEX JAM SS
40 6 3238101 NUT, BLIND INSERT M10 X 1.5
41 1 7422004 LABEL, 2" ASTM WARN
42 2 73923xx PAD, FOREARM
43 1 73519xx PAD, SADDLE
44 1 7571301 LABEL, SERIAL NUMBER
45 2 7488701 LABEL, AXIS OF ROTATION
46 3 3237401 PLUG, 7/16" HOLE
47 1 7401801 ASSY, 90 DEG SEAT
COMPONENT ASSEMBLY LEGEND
________________________________________
Page 4
PSLR LATERAL RAISE
3
5
8
7
3
2
9
6
2
1
4
10
15
11
14
13
12
13
LEFT WORK ARM ASSEMBLY - 7390601
________________________________________
SEE PAGE 6 FOR LEGEND
Page 5
PSLR LATERAL RAISE
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7795701 WLDMT, PSLR LEFT WORKARM
2 2 3249502 WASHER, NYLON FLAT - .765 X 1.250 x .080
3 2 7352201 CAP, END 1-1/2 X 2
4 2 3236601 WASHER, 3/8 SAE SS
5 2 3236203 SCREW, M10 X1.5 30MM
6 1 7391895 WLDMT, PSLR HANDLE
7 1 7662901 CAP, GRIP 1.25 OD
8 1 3238501 CAP, 1/2 X 5/8
9 1 7662801 RING, GRIP 1.25 OD
10 1 3103301 SHAFT COLLAR, 3/4 I.D. ZINC
11 1 7802501 WEIGHT, COUNTER LG
12 1 3235801 GRIP, 1.25 OD OPEN END
13 4 3247701 M4 X .7 HXS NO CUP ST BO
14 1 6912805 SLEEVE, ACCRDN 1.0 ID X 5.5
15 1 6912804 SLEEVE, ACCRDN 1.0 ID X 2
LEFT WORK ARM ASSEMBLY LEGEND
________________________________________
Page 6
PSLR LATERAL RAISE
3
3
5
1
2
8
2
6
9
7
4
10
11
12
13
13
14
15
RIGHT WORK ARM ASSEMBLY - 7390801
________________________________________
SEE PAGE 8 FOR LEGEND
Page 7
PSLR LATERAL RAISE
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7795801 WLDMT, PSLR RIGHT WORKARM
2 2 3249502 WASHER, NYLON FLAT - .765 X 1.250 x .080
3 2 7352201 CAP, END 1-1/2 X 2
4 2 3236601 WASHER, 3/8 SAE SS
5 2 3236203 SCREW, M10 X1.5 30MM
6 1 3238501 CAP, 1/2 X 5/8
7 1 7391895 WLDMT, PSLR HANDLE
8 1 3103301 SHAFT COLLAR, 3/4 I.D. ZINC
9 1 7662801 RING, GRIP 1.25 OD
10 1 7802501 WEIGHT, COUNTER LG
11 1 7662901 CAP, GRIP 1.25 OD
12 1 3235801 GRIP, 1.25 OD OPEN END
13 4 3247701 M4 X .7 HXS NO CUP ST BO
14 1 6912805 SLEEVE, ACCRDN 1.0 ID X 5.5
15 1 6912804 SLEEVE, ACCRDN 1.0 ID X 2
RIGHT WORK ARM ASSEMBLY LEGEND
________________________________________
Page 8
PSLR LATERAL RAISE
ITEM NO. QTY. PART NO. DESCRIPTION
1 2 3237801 PULLEY, 4.5" OD
2 2 7390295 BRKT, PSLR FLOAT PULLEY
3 2 3236206 SCREW, M10 X1.5 45MM
4 4 3236601 WASHER, 3/8 SAE SS
5 2 3236801 NUT, M10 HEX NYLOCK SS
3
2
2
5
1
4
4

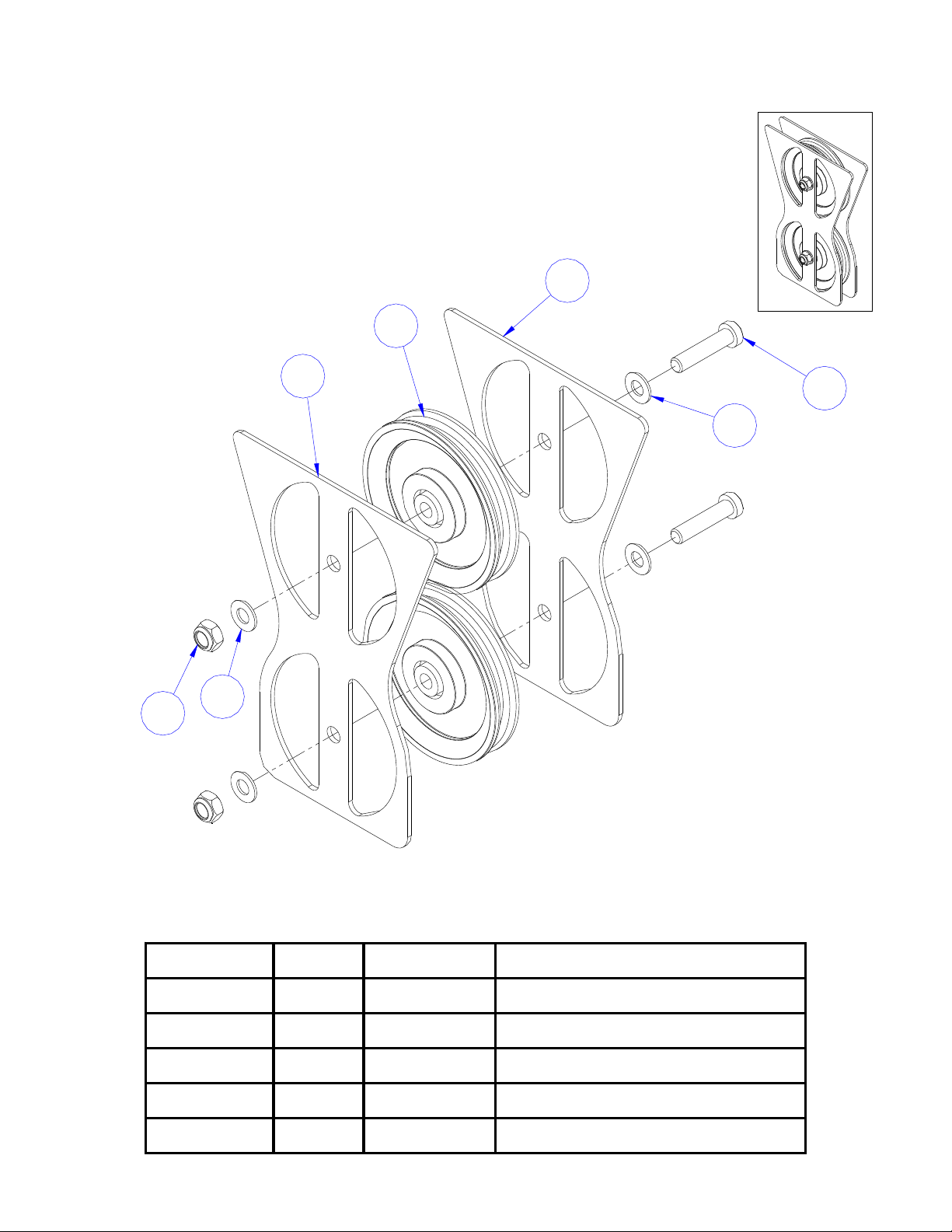

FLOATING PULLEY ASSEMBLY - 7390101
________________________________________
Page 9
PSLR LATERAL RAISE
7
2
1
6
6
8
9
10
5
11
12
10
12
4
3
8

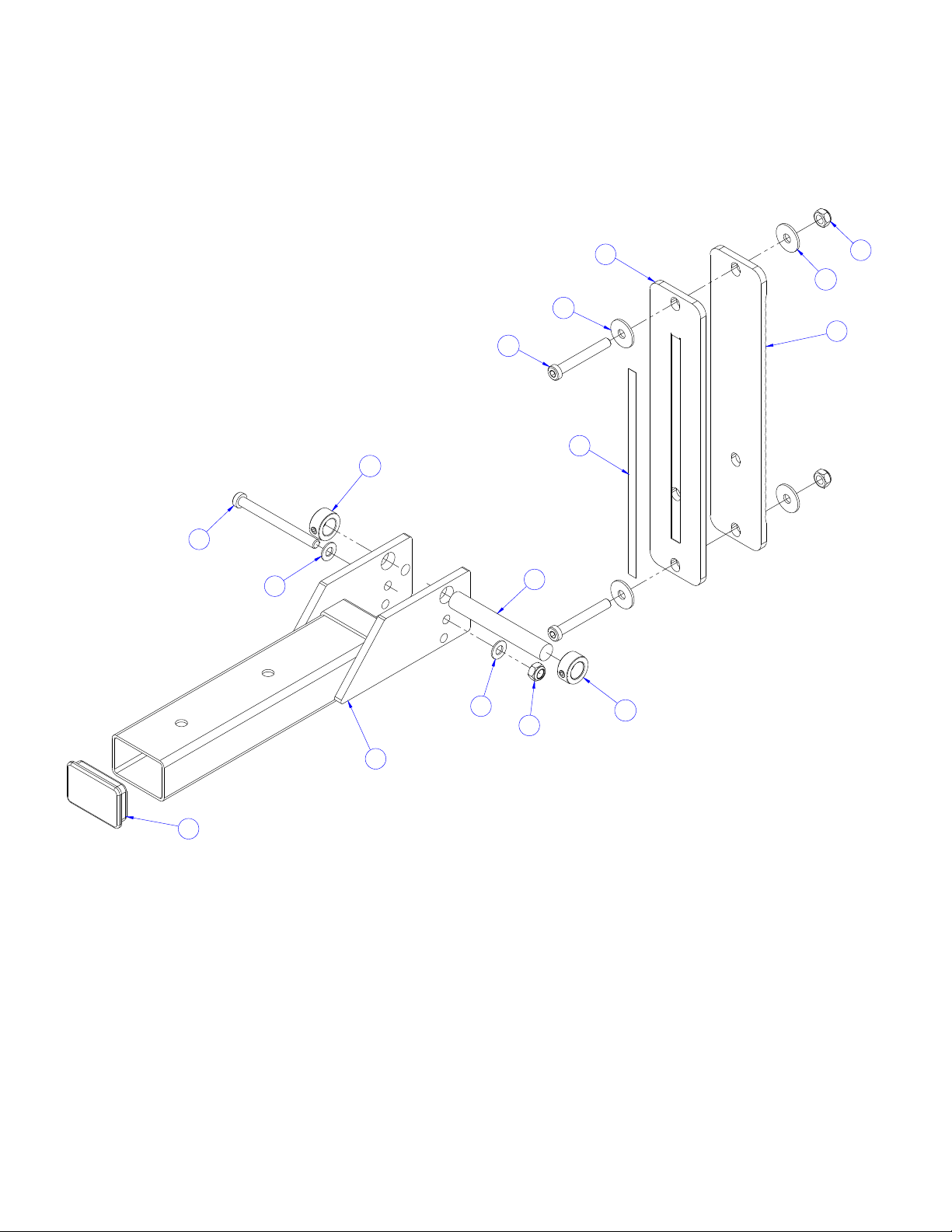

90º SEAT ASSEMBLY - 7401801
________________________________________
SEE PAGE 11 FOR LEGEND
Page 10
PSLR LATERAL RAISE
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7358701 WLDMT, 90 DEG. STD. HAMMER SEAT
2 1 7352301 CAP, END 2 X 3
3 1 7359701 SEATRACK FRONT
4 1 7359801 SEATRACK BACK
5 1 7422002 LABEL, SEAT ADJUST
6 2 3236601 WASHER, 3/8 SAE SS
7 1 3236218 SCREW, M10 X1.5 110MM
8 3 3236801 NUT, M10 HEX NYLOCK SS
9 1 7359301 .75" SS ROUND SEAT PIN
10 2 3103301 SHAFT COLLAR, 3/4 I.D. ZINC
11 2 3236212 SCREW, M10 X1.5 75MM
12 4 3236602 WASHER, 3/8 ID X 1.25 OD SS

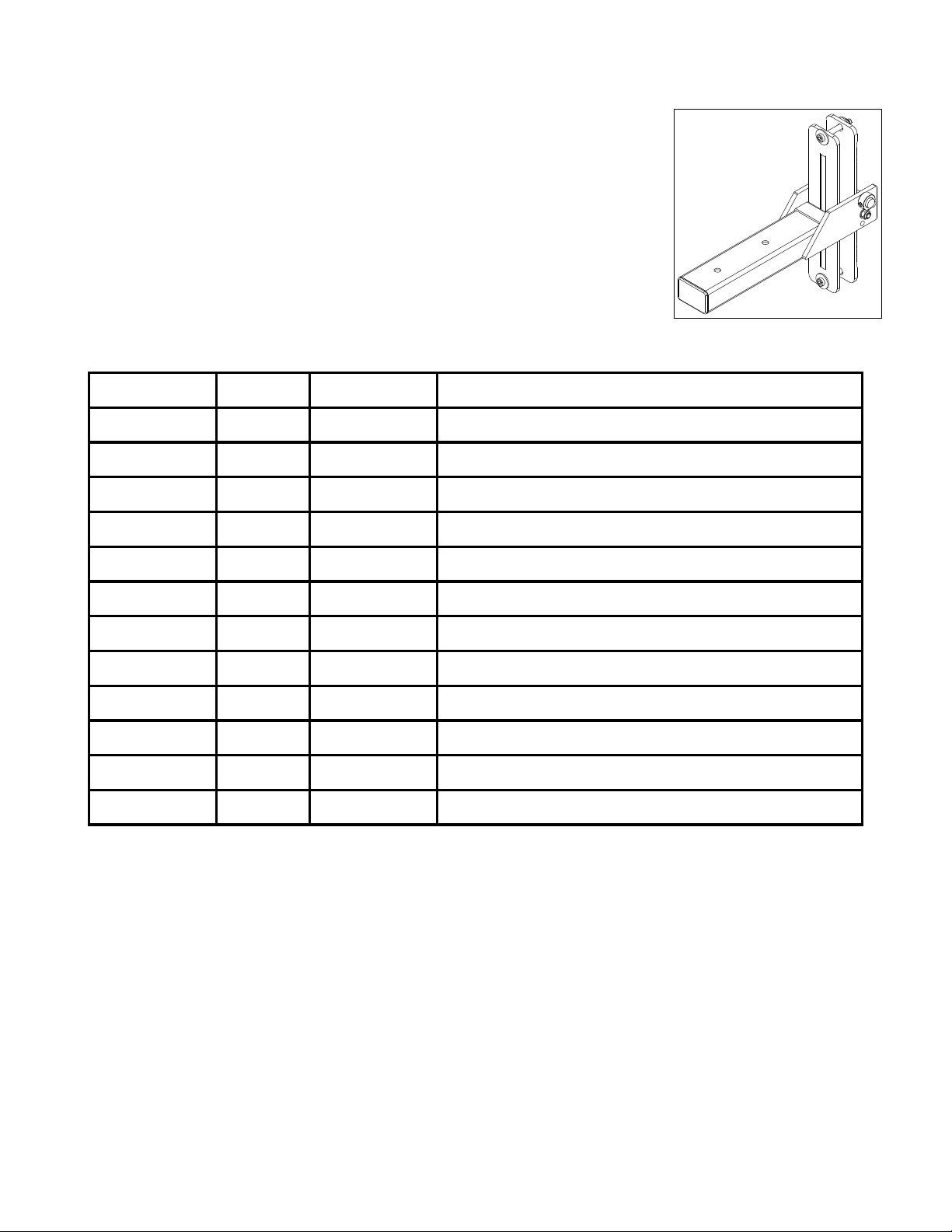

90º SEAT ASSEMBLY LEGEND
________________________________________
Page 11
PSLR LATERAL RAISE
3
1
2
4

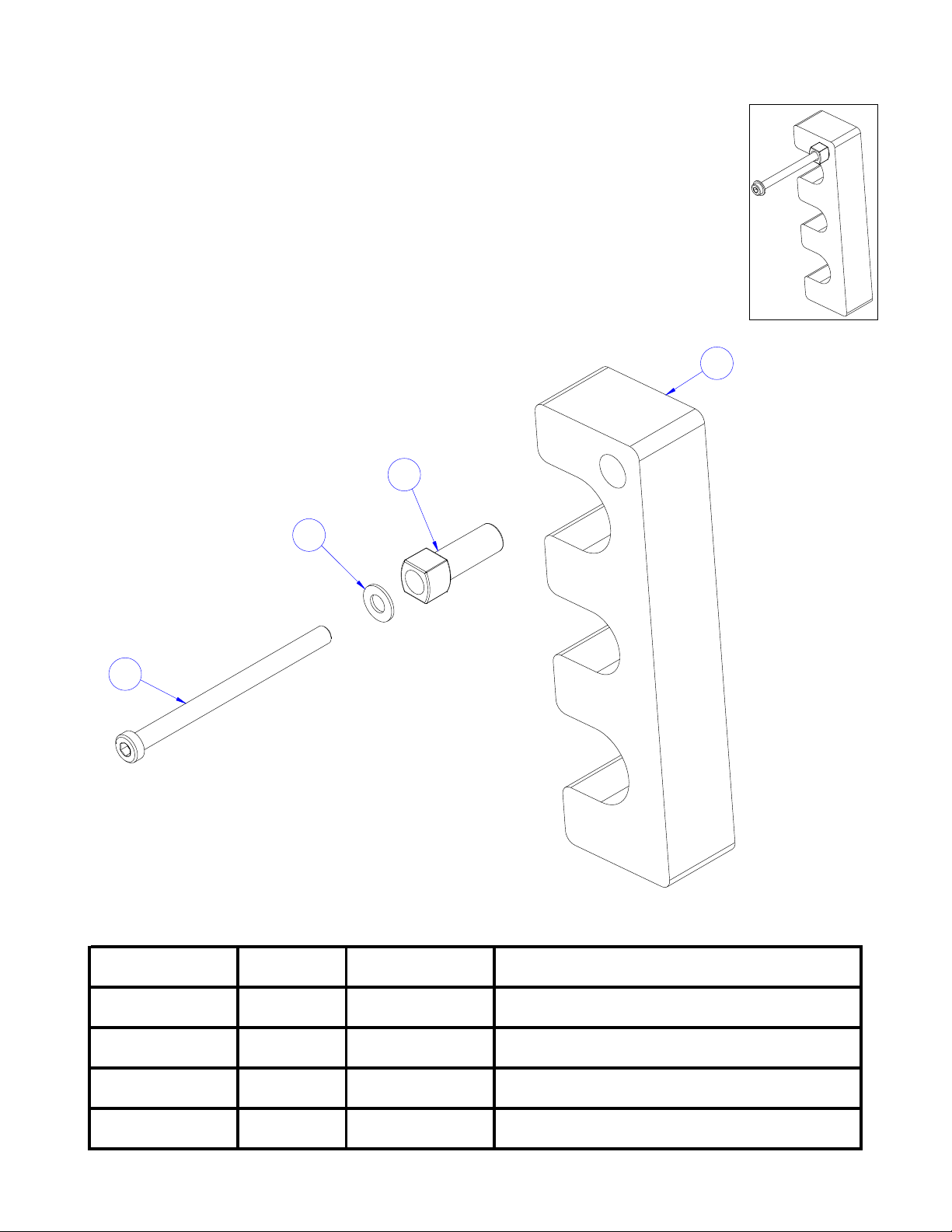

ITEM NO. QTY. PART NO. DESCRIPTION
1 1 3236601 WASHER, 3/8 SAE SS
2 1 3236221 SCREW, M10 X1.5 140MM
3 1 7401701 COVER, PLASTIC PEG 2-1/4
4 1 7366101 WEIGHT, 7.5 LB. ADD-ON
ADD-ON INCREMENT WEIGHT ASSEMBLY - 7415001
________________________________________
Page 12

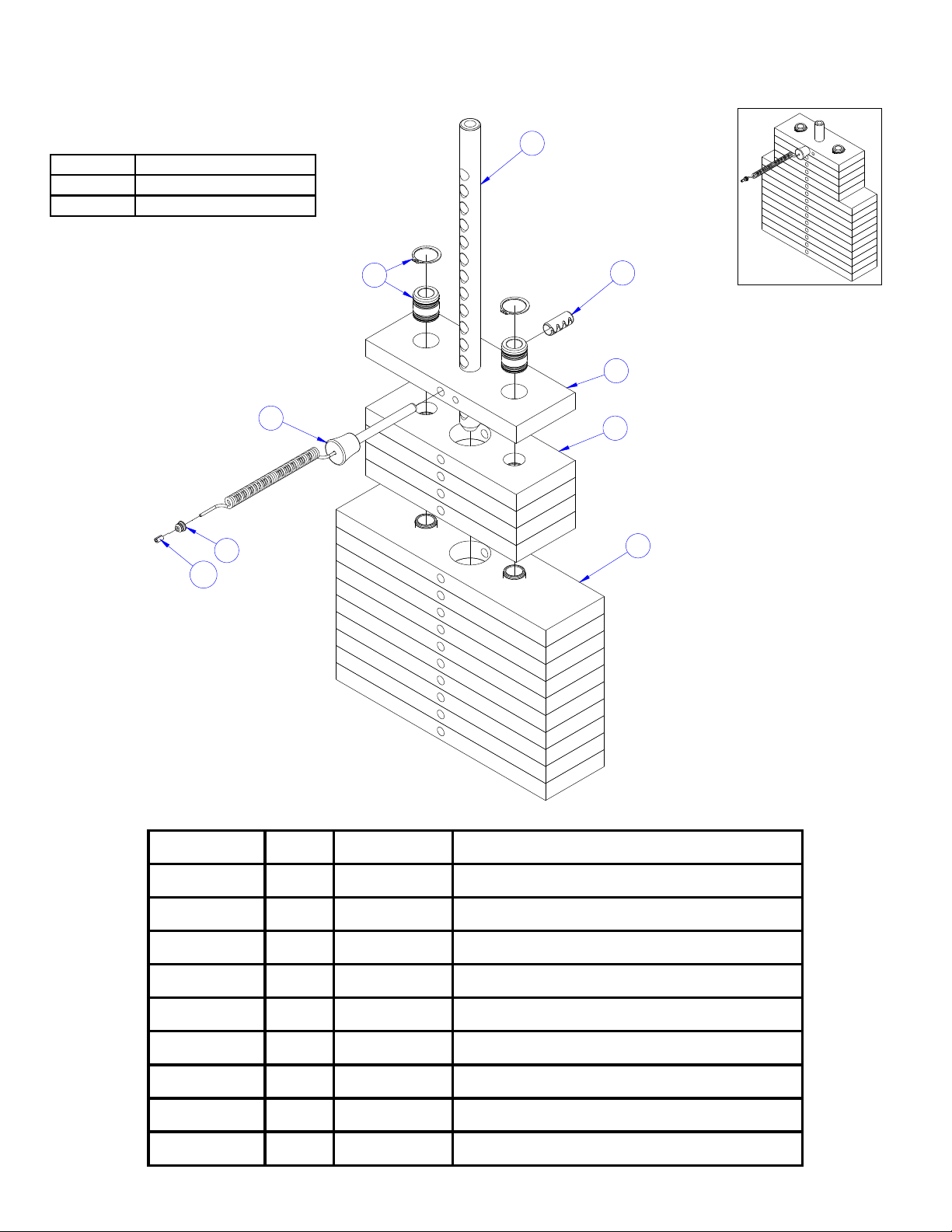

ITEM NO QTY PART NO DESCRIPTION
1 1 7353901 HEADPLATE, WT. STACK
2 1 7352601 BAYONET, 14 PLATE
3 2 / 2 7338001 HEADPLATE BUSHING & CLIP
5 1 3236001 BUSHING, SPRING PIN
6 1 7353001 ASSY, SELECTOR PIN
7 1 7356501 PLUG, LANYARD ATTACHMENT
8 4 7353701 ASSY, 10 LB PLATE
9 10 7353801 ASSY, 15 LB PLATE
10 1 7523601 CRIMP, CABLE
5
3
2
1
8
9
6
7
10
PART NO DESCRIPTION
7987001 LABEL, 200 LB STACK
7987301 LABEL, 95 KG STACK
WEIGHT STACK LABELS
PSLR LATERAL RAISE
WEIGHT STACK ASSY 200LB - 7353401
________________________________________
Page 13
ITEM NO QTY PART NO DESCRIPTION
1 1 7376801 SHIELD, PS REAR
2 6 7655301 BRACKET, PS REAR SHIELD
3 12 3236601 WASHER, 3/8 SAE SS
4 12 3236201 SCREW, M10 X1.5 20MM
3
3
2
1
4
4
PSLR LATERAL RAISE
OPTIONAL REAR SHROUD KIT STD-SHORT - 7415201
________________________________________
Page 14
7423703 - WEIGHT STACK CABLE
7423801 - CAM CABLE
PSLR LATERAL RAISE
CABLE ROUTING
________________________________________
Note: Some components removed for display purposes.
Page 15
