Life Fitness PSFPDSE User Manual

PRO 2 SERIES

PSFPDSE FIXED PULL DOWN

Customer Support Services

PARTS MANUAL

Page 1

PSFPDSE FIXED PULL DOWN

Page

COMPONENT ASSEMBLY 3

COMPONENT ASSEMBLY LEGEND 4

SIDE FRAME ASSEMBLY 5

SIDE FRAME ASSEMBLY LEGEND 6

SEAT FRAME ASSEMBLY 7

SEAT FRAME ASSEMBLY LEGEND 8

90 ROLLER SEAT ASSEMBLY 9

90 ROLLER SEAT ASSEMBLYLEGEND 10

WORK ARM ASSEMBLY 11

WORK ARM ASSEMBLY LEGEND 12

5LB INCREMENT WEIGHT ASSEMBLY 13

INCREMENT WEIGHT ASSEMBLY W/STRIKER 14

WEIGHT STACK (300LB) 15

REAR SHROUD KIT 16

OPTIONAL FULL SHROUD KIT 17

IMAGE 18

CONTENTS

________________________________________

Page 2

PSFPDSE FIXED PULL DOWN

3

8

6

9

7

2

1

4

4

14

10

12

11

13

5

4

15

COMPONENT ASSEMBLY

________________________________________

SEE PAGE 4 FOR LEGEND

Page 3

PSFPDSE FIXED PULL DOWN

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7783101 ASSY, PSFPD SEAT FRAME

2 1 7784001 ASSY, PSFPD SIDE FRAME

3 1 73519xx PAD, SADDLE

4 8 3236601 WASHER, 3/8 SAE SS

5 2 3236212 SCREW, M10 X1.5 75MM

6 2 7357901 SHAFT COLLAR, 1-1/2" ID ALUM

7 1 7784801 ASSY, PSFPD WRKARM

8 2 74247xx ASSY, ROLLER PAD - SHORT

9 2 7347301 NUT, SPIDER M10 X 1.5

10 2 7322301 PLATE, 1.97 OD X .44 ID 10GA

11 2 3236204 SCREW, M10 X1.5 35MM

12 2 7308701 CAP, BEARING HOUSING

13 3 3236220 SCREW, M10 X1.5 130MM

14 3 3236801 NUT, M10 HEX NYLOCK SS

15 1 7396701 ASSY, 90 DEG ROLLER SEAT

COMPONENT ASSEMBLY LEGEND

________________________________________

Page 4

3

7

6

8

9

3

3

1

2

5

4

10

11

12

19

17

19

14

13

15

18

18

17

22

23

24

26

25

27

20

29

28

30

30

21

16

PSFPDSE FIXED PULL DOWN

SIDE FRAME ASSEMBLY - 7784001

________________________________________

SEE PAGE 6 FOR LEGEND

Page 5

PSFPDSE FIXED PULL DOWN

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7784101 WLDMT, PSFPD SIDE FRAME

2 2 7388201 FOOTPAD, PS RUBBER

3 4 3237801 PULLEY, 4.5" OD

4 1 7352401 CAP, END 2 X 4

5 2 7352101 CUSHION, WEIGHT STACK

6 1 7353501 ASSY, 300LB STACK

7 2 7328605 GUIDE ROD, .75 OD SOLID 52.38

8 2 7402301 RETAINER, GUIDEROD

9 2 3240501 M10 X 1.5 HXS NO CUP ST BO

10 2 3232421 RING, BRE .940, 5100-100 ST PP B

11 1 7915701 CABLE, PSFPD 177-1/2

12 1 3236902 NUT, M16 X 2 HEX JAM SS

13 2 7606602 COVER, STACK-PRO2 STD

14 1 7794101 LABEL, PSFPD LOGO PANEL

15 12 7544202 PAD, DUAL LOCK 250 1.5" X 2.0"

16 1 7784701 LABEL, PSFPD PLACARD

17 6 7348101 WASHER, SPACER

18 6 7335401 NUT, M10 X 1.5 SOCKET HEAD

19 4 3236205 SCREW, M10 X1.5 40MM

20 2 3236206 SCREW, M10 X1.5 45MM

21 6 3238101 NUT, BLIND INSERT M10 X 1.5

22 1 7422000 LABEL, 2" ASTM WARN

23 1 7571301 LABEL, SERIAL NUMBER

24 1 7348001 LABEL, LIFE FITNESS LOGO

25 2 3236601 WASHER, 3/8 SAE SS

26 1 3236207 SCREW, M10 X1.5 50MM

27 1 3236801 NUT, M10 HEX NYLOCK SS

28 1 3237901 ROD END, METRIC FEMALE

29 1 3236901 NUT, M10 X 1.5 JAM

30 2 7489402 BSHNG, .500 OD X .402 ID

SIDE FRAME ASSEMBLY LEGEND

________________________________________

Page 6

PSFPDSE FIXED PULL DOWN

3

3

3

8

6

5

9

2

5

1

7

4

10

11

SEAT FRAME ASSEMBLY - 7783101

________________________________________

SEE PAGE 8 FOR LEGEND

Page 7

PSFPDSE FIXED PULL DOWN

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7783201 WLDMT, PSFPD SEAT FRAME

2 1 3237801 PULLEY, 4.5" OD

3 5 3236601 WASHER, 3/8 SAE SS

4 1 7335401 NUT, M10 X 1.5 SOCKET HEAD

5 3 3236205 SCREW, M10 X1.5 40MM

6 1 7352401 CAP, END 2 X 4

7 2 7388201 FOOTPAD, PS RUBBER

8 2 6912804 SLEEVE, ACCRDN 1.0 ID X 2

9 1 7352001 BUMPER, 2-1/8 X 4-5/8

10 2 3236801 NUT, M10 HEX NYLOCK SS

11 1 7301101 PLATE, PULLEY

SEAT FRAME ASSEMBLY LEGEND

________________________________________

Page 8

PSFPDSE FIXED PULL DOWN

3

7

7

1

5

6

6

9

8

2

16

15

14

18

17

11

13

10

19

19

12

4

90 DEGREE ROLLER SEAT ASSEMBLY - 7396701

________________________________________

SEE PAGE 10 FOR LEGEND

Page 9

PSFPDSE FIXED PULL DOWN

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7396801 WELDMNT, 90 DEG ROLLER SEAT

2 3 7564201 ASSY, SEAT ROLLER

3 1 7387595 WELDMNT, PS-ROLLER SEAT HANDLE

4 5 3236217 SCREW, M10 X1.5 100MM

5 5 3236601 WASHER, 3/8 SAE SS

6 6 3236801 NUT, M10 HEX NYLOCK SS

7 2 7352301 CAP, END 2 X 3

8 1 7564301 SEATRACK, ROLLER SERRATED

9 1 7564401 SEATRACK, FLAT

10 1 3236212 SCREW, M10 X1.5 75MM

11 1 3238312 M10x1.5x75mm

12 1 7442601 SPRING, PRO2 ROLLER SEAT

13 1 7422002 LABEL, SEAT ADJUST

14 1 7422001 LABEL, SEAT INST

15 1 7442701 SPRNG, PRO2 HANDLE TORSION

16 1 3238502 CAP, 1/2 X 3

17 1 7570601 STOP, ROLLER SEAT

18 1 3235802 GRIP, SHADOW GRAY, 1.5"

19 2 3236602 WASHER, 3/8 ID X 1.25 OD SS

90 DEGREE ROLLER SEAT ASSEMBLY LEGEND

________________________________________

Page 10

PSFPDSE FIXED PULL DOWN

3

1

7

8

8

5

5

9

2

6

3

4

15

12

13

14

13

16

17

18

10

11

WORK ARM ASSEMBLY - 7784801

________________________________________

SEE PAGE 12 FOR LEGEND

Page 11

PSFPDSE FIXED PULL DOWN

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7784901 WLDMT, PSFPD WRKARM

2 2 3237701 ASSY, PILLOW BLOCK 4.88 X 2.75

3 4 7352301 CAP, END 2 X 3

4 4 3236602 WASHER, 3/8 ID X 1.25 OD SS

5 4 3236212 SCREW, M10 X1.5 75MM

6 4 3236801 NUT, M10 HEX NYLOCK SS

7 2 7662901 CAP, GRIP 1.25 OD

8 8 3247701 M4 X .7 HXS NO CUP ST BO

9 1 7802501 WEIGHT, COUNTER LG

10 2 7662801 RING, GRIP 1.25 OD

11 2 3235801 GRIP, 1" ID X 1.25 OD

12 2 3236203 SCREW, M10 X1.5 30MM

13 3 3236601 WASHER, 3/8 SAE SS

14 1 3237801 PULLEY, 4.5" OD

15 1 7335401 NUT, M10 X 1.5 SOCKET HEAD

16 1 3236205 SCREW, M10 X1.5 40MM

17 1 7301101 PLATE, PULLEY

18 2 7422003 LABEL, MOVING PARTS

WORK ARM ASSEMBLY LEGEND

________________________________________

Page 12

3

2

5

1

4

4

4

ITEM NO QTY PART NO DESCRIPTION

1 1 7446602 BODY, 5LB INCREMENT WEIGHT

2 1 7446901 PIN, RETAINING

3 1 7447001 SPRING, COMPRESSION

4 3 7560001 BUSHING, MTS, INC WEIGHT

5 1 7351401 KNOB, TULIP STYLE

PSFPDSE FIXED PULL DOWN

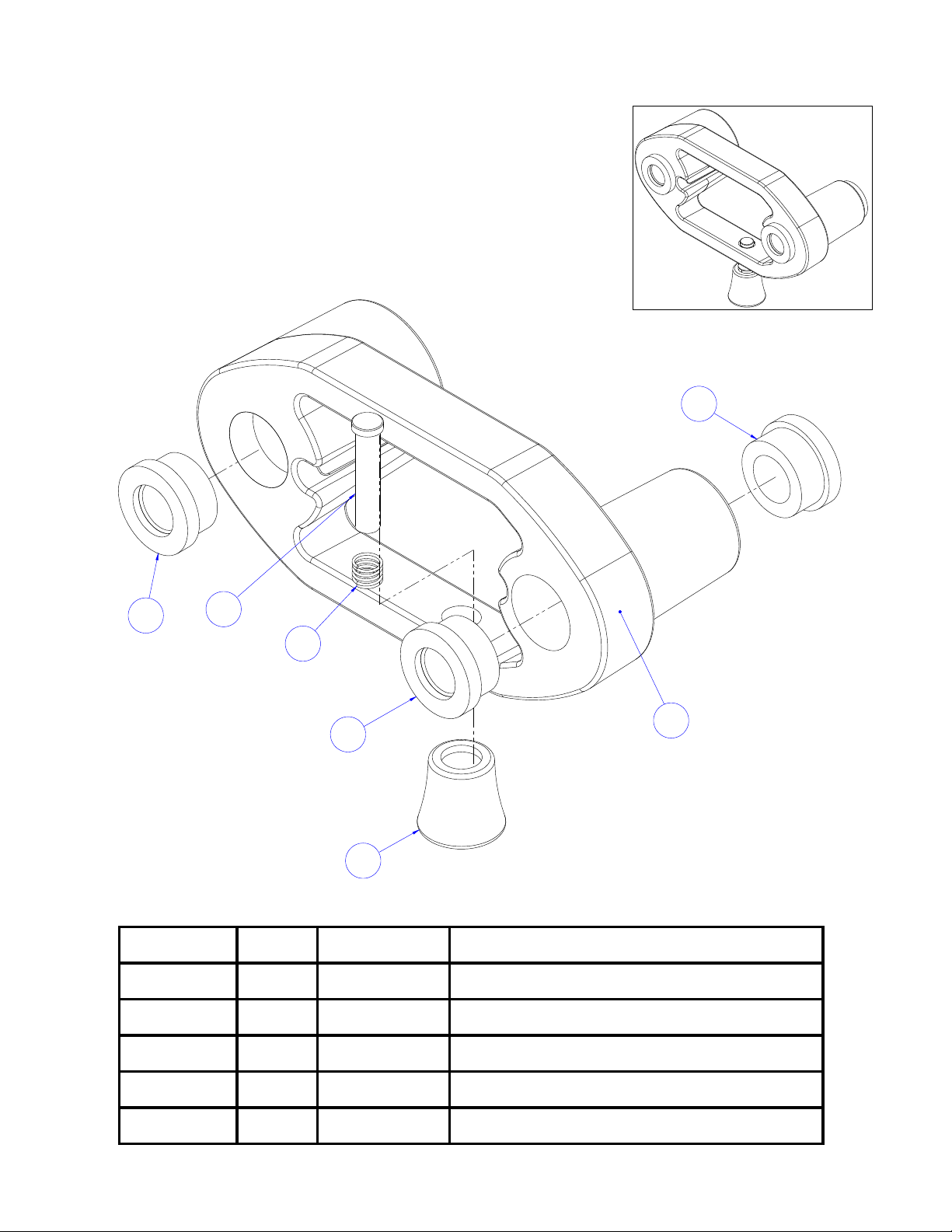

5LB INCREMENT WEIGHT ASSEMBLY - 7446501

________________________________________

Page 13

3

2

6

5

1

4

ITEM NO QTY PART NO DESCRIPTION

1 2 7446501 ASSY, 5LB INCREMENT WEIGHT
2 1 8002601 PLATE, INCR. WT STRIKER
3 2 3236202 SCREW, M10 X1.5 25MM
4 2 3236801 NUT, M10 HEX NYLOCK SS
5 2 7767601 BUMPER, PS INCREMENT WT
6 2 3237401 PLUG, 7/16" HOLE

PSFPDSE FIXED PULL DOWN

INCREMENT WEIGHT W/STRIKER - 7415101

________________________________________

Page 14

3

2

6

1

8

5

9

4

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7353901 HEADPLATE, WT. STACK

2 1 7356600 STEM, PRO2 19 HOLE

3 2 7338001 BUSHING, HEADPLATE

4 1 7353001 ASSY, SELECTOR PIN

5 1 7356501 PLUG, LANYARD ATTACHMENT

6 1 3236001 BUSHING, SPRING PIN

8 19 7353801 ASSY, 15 LB PLATE

9 1 7523601 CRIMP, CABLE

WEIGHT STACK LABELS

PART NO. DESCRIPTION

7987201 LABEL, 300 LB STACK
7987401 LABEL, 138 KG STACK

PSFPDSE FIXED PULL DOWN
WEIGHT STACK ASSY 300LB - 7353501

________________________________________

Page 15

3

3

2

1

4

4

PSFPDSE FIXED PULL DOWN

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7376802 SHIELD, PS REAR

2 6 7655301 BRACKET, PS REAR SHIELD

3 12 3236601 WASHER, 3/8 SAE SS

4 12 3236201 SCREW, M10 X1.5 20MM

REAR SHROUD KIT STD-MED - 7415202

________________________________________

Page 16

3

3

2

5

6

7

8

1

7

9

4

4

PSFPDSE FIXED PULL DOWN

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7376802 SHIELD, PS REAR

2 6 7655301 BRACKET, PS REAR SHIELD

3 18 3236601 WASHER, 3/8 SAE SS

4 12 3236201 SCREW, M10 X1.5 20MM

5 6 3236203 SCREW, M10 X1.5 30MM

6 6 7376601 BRACKET, PS FRONT SHIELD

7 2 7376902 SHIELD, PS - FRONT

8 2 7570901 PLATE, PS SHIELD STAND-OFF

9 2 7657401 PLATE, PRO2 SHROUD SPCR

OPTIONAL FULL SHROUD KIT STD-MED - 7539602

________________________________________

Page 17

PSFPDSE FIXED PULL DOWN
