PRO 2 SERIES
PSFLY PECTORAL FLY/REAR DELTOID
Customer Support Services
PARTS MANUAL
Page 1
PSFLY PECTORAL FLY/REAR DELTOID
Page
COMPONENT ASSEMBLY 3
COMPONENT ASSEMBLY LEGEND 4
STACK FRAME ASSEMBLY 5
STACK FRAME ASSEMBLY LEGEND 6
RIGHT WORK ARM ASSEMBLY 7
RIGHT WORK ARM ASSEMBLY LEGEND 8
LEFT WORK ARM ASSEMBLY 9
LEFT WORK ARM ASSEMBLY LEGEND 10
90° ROLLER SEAT ASSEMBLY 11
90° ROLLER SEAT ASSEMBLYLEGEND 12
ADD-ON INCREMENT WEIGHT ASSEMBLY 13
WEIGHT STACK (300LB) 14
OPTIONAL REAR SHROUD KIT 15
CONTENTS
________________________________________
Page 2
PSFLY PECTORAL FLY/REAR DELTOID
15
3
5
6
4
9
2
8
1
8
9
13
14
12
11
1
0
5
7
COMPONENT ASSEMBLY
________________________________________
SEE PAGE 4 FOR LEGEND
Page 3

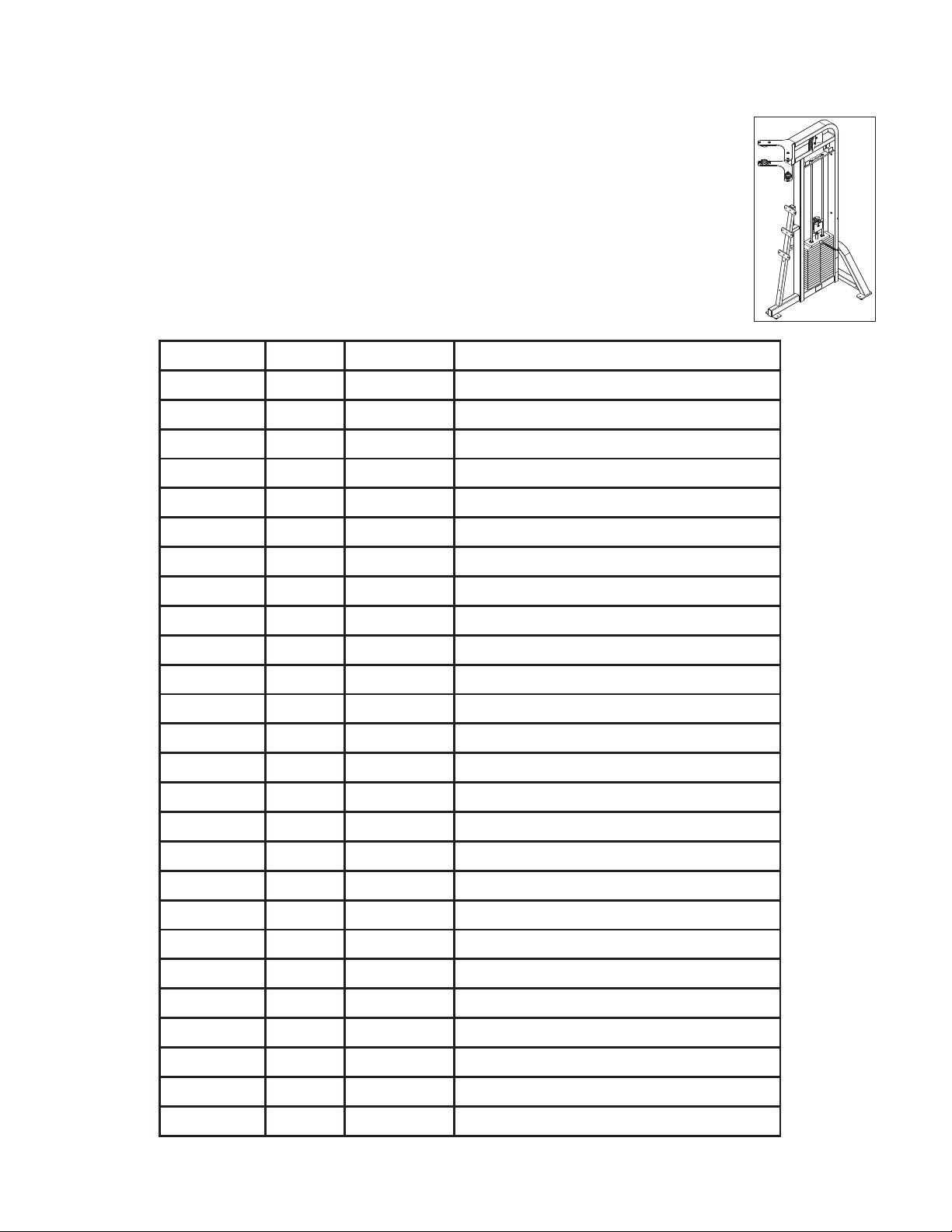

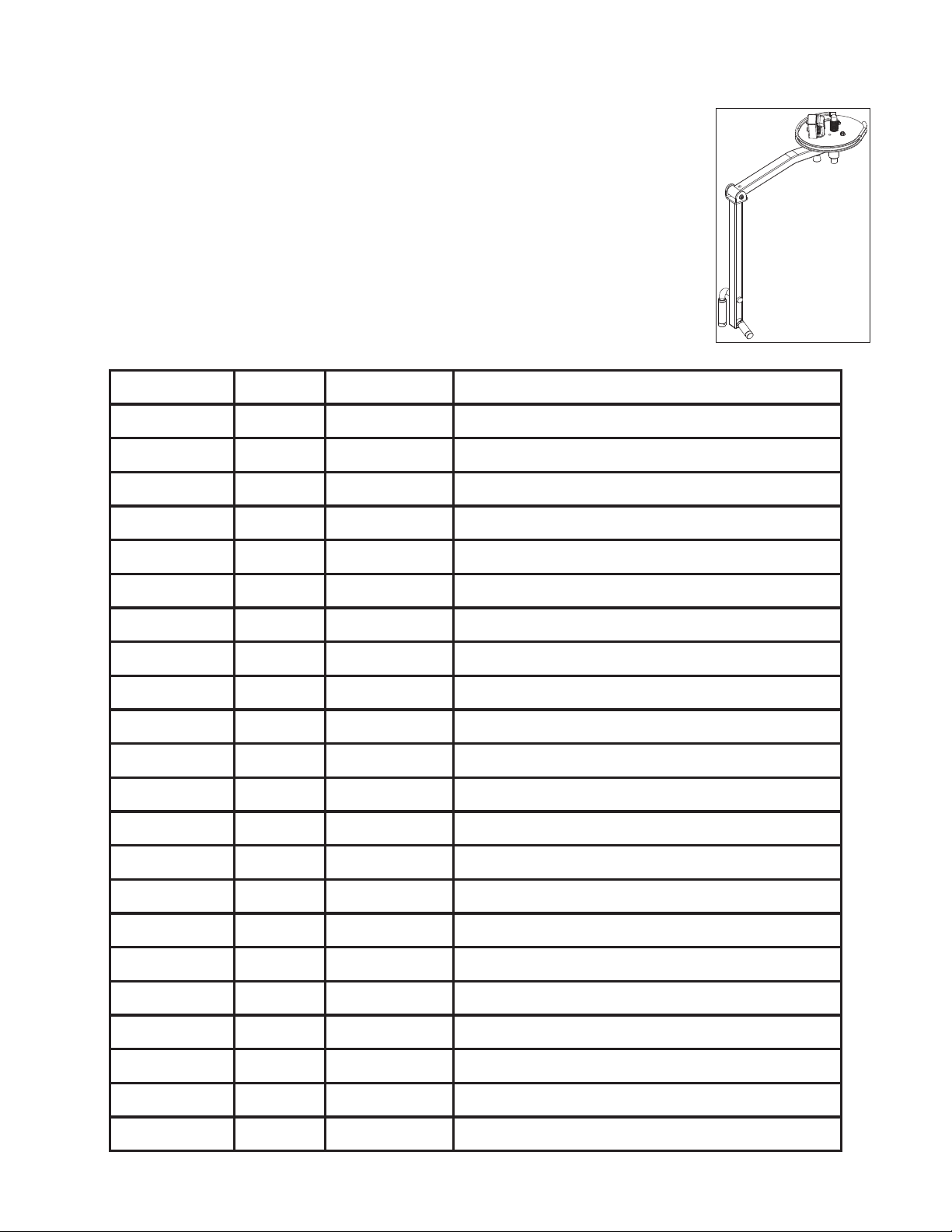

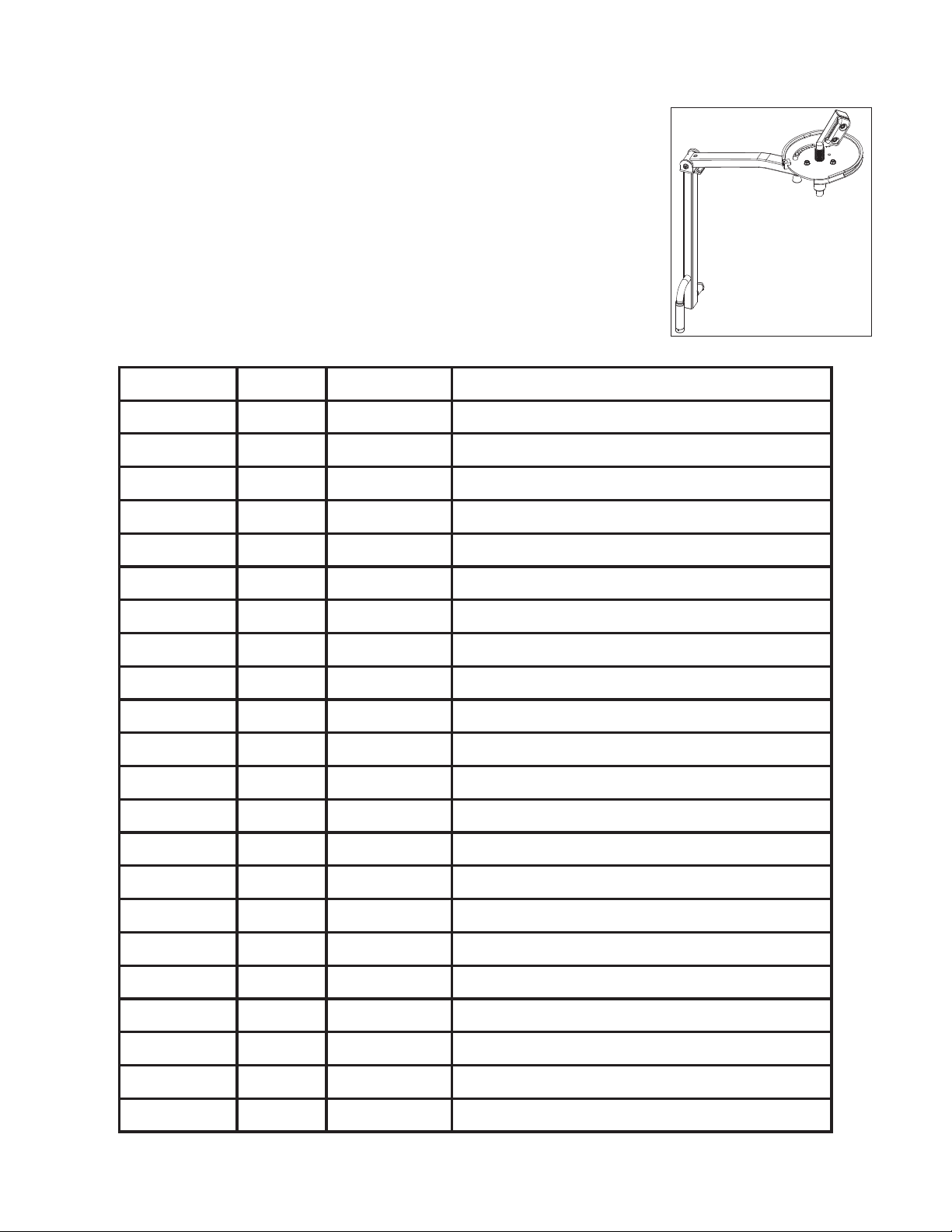

PSFLY PECTORAL FLY/REAR DELTOID
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7425801 ASSY, PSFLY STACK FRAME
2 1 7874201 ASSY, PSFLY WORKARM - RT
3 1 7874301 ASSY, PSFLY WORKARM - LT
4 1 73988xx PAD, BACK 25 X 11-1/4
5 6 3236601 WASHER, 3/8 SAE SS
6 4 3236204 SCREW, M10 X1.5 35MM
7 2 3236212 SCREW, M10 X1.5 75MM
8 12 7544202 PAD, DUAL LOCK 250 1.5" X 2.0"
9 2 7415402 COVER, STACK-PRO2 RECT.
10 1 73989xx PAD, SEAT 13-1/4 X 8-1/4
11 1 7446201 LABEL, PSFLY PLACARD
12 1 7490901 LABEL, PSFLY LOGO PANEL
13 1 7423808 CABLE, PSFLY/PEC 150-1/2
14 3 7388201 FOOTPAD, PS RUBBER
15 1 7401801 90 DEG, SEAT ASSY.
COMPONENT ASSEMBLY LEGEND
________________________________________
Page 4
3
5
7
6
4
2
1
8
6
5
7
9
13
10
17
18
12
11
15
14
16
19
13
25
21
23
20
26
22
24
PSFLY PECTORAL FLY/REAR DELTOID
STACK FRAME ASSEMBLY - 7425801
________________________________________
SEE PAGE 6 FOR LEGEND
Page 5
PSFLY PECTORAL FLY/REAR DELTOID
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7425901 WELDMT, PSFLY MAIN
2 2 7352101 CUSHION, WEIGHT STACK
3 2 7328606 GUIDE ROD, .75 OD SOLID 59.63
4 1 7353501 ASSY, 300LB STACK
5 3 3237801 PULLEY, 4.5" OD
6 3 7348101 WASHER, SPACER
7 3 7335401 NUT, M10 X 1.5 SOCKET HEAD
8 2 3236206 SCREW, M10 X1.5 45MM
9 4 3237701 ASSY, PILLOW BLOCK 4.88 X 2.75
10 8 3236801 NUT, M10 HEX NYLOCK SS
11 8 3236601 WASHER, 3/8 SAE SS
12 8 3236204 SCREW, M10 X1.5 35MM
13 8 3237401 PLUG, 7/16" HOLE
14 2 7402301 RETAINER, GUIDEROD
15 2 3232421 RING, BRE .940, 5100-100 ST PP B
16 2 3240501 M10 X 1.5 HXS NO CUP ST BO
17 1 3236205 SCREW, M10 X1.5 40MM
18 1 7425795 WELDMENT, FLOATING PULLEY
19 1 7352301 CAP, END 2 X 3
20 1 7352201 CAP, END 1-1/2 X 2
21 1 7422004 LABEL, 2" ASTM WARN
22 1 7348001 LABEL, LIFE FITNESS LOGO
23 6 3238101 NUT, BLIND INSERT M10 X 1.5
24 2 7570801 GUARD, PAINT 1.25"x.75"x.25"
25 1 7571301 LABEL, SERIAL NUMBER
26 1 3236902 NUT, M16 X 2 HEX JAM SS
STACK FRAME ASSEMBLY LEGEND
________________________________________
Page 6
PSFLY PECTORAL FLY/REAR DELTOID
3
5
6
8
9
8
6
6
1
7
6
5
6
7
2
4
4
4
16
16
15
17
17
15
12
19
10
18
13
14
20
21
22
RIGHT WORK ARM ASSEMBLY
________________________________________
SEE PAGE 8 FOR LEGEND
Page 7
PSFLY PECTORAL FLY/REAR DELTOID
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 8103601 WLDMT, PSFLY/PEC CAM - RT
2 1 7428001 WELDMENT, PS TOP WORKARM
3 1 7874601 WLDMT, PSFLY SWINGARM - RT
4 4 3104903 1.00" ID 1.25" OD BRONZ BUSHING
5 2 7352201 CAP, END 1-1/2 X 2
6 12 3236601 WASHER, 3/8 SAE SS
7 5 3236801 NUT, M10 HEX NYLOCK SS
8 5 3236202 SCREW, M10 X1.5 25MM
9 1 7351501 SPRING; PULL PIN LARGE
10 1 7351301 PIN, PULL X 4.375
11 1 7351401 KNOB, TULIP STYLE
12 1 7324903 SHAFT, TAPPED 1 DIA X 2.813
13 1 7352001 BUMPER, 2-1/8 X 4-5/8
14 2 3236210 SCREW, M10 X1.5 65MM
15 2 7662900 CAP, GRIP
16 2 7662801 RING, GRIP 1.25 OD
17 2 3235801 GRIP, 1.25 OD OPEN END
18 1 7428301 FLANGE, PSFLY RANGE RIGHT
19 1 7422003 LABEL, MOVING PARTS
20 1 6912804 SLEEVE, ACCRDN 1.0 ID X 2
21 2 3237401 PLUG, 7/16" HOLE
22 1 7570801 GUARD, PAINT 1.25"x.75"x.25"
RIGHT WORK ARM ASSEMBLY LEGEND
________________________________________
Page 8
PSFLY PECTORAL FLY/REAR DELTOID
3
9
5
9
5
1
7
6
2
4
9
8
4
4
10
10
20
16
18
11
19
12
21
15
14
13
13
14
15
11
22
21
17

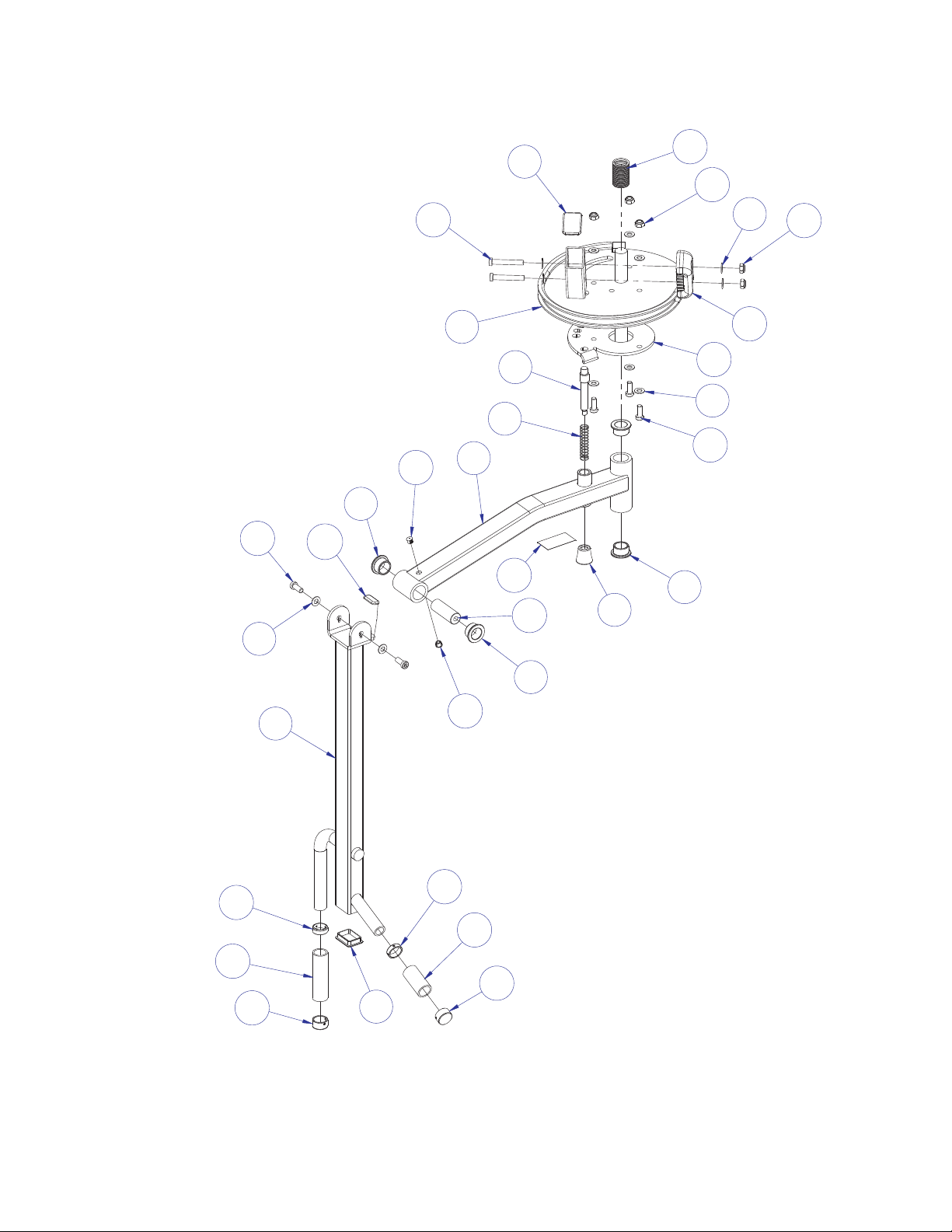

LEFT WORK ARM ASSEMBLY
________________________________________
SEE PAGE 10 FOR LEGEND
Page 9
PSFLY PECTORAL FLY/REAR DELTOID
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 8103701 WLDMT, PSFLY/PEC CAM - LT
2 1 7428001 WELDMENT, PS TOP WORKARM
3 1 7874701 WLDMT, PSFLY SWINGARM - LT
4 4 3104903 1.00" ID 1.25" OD BRONZ BUSHING
5 2 7352201 CAP, END 1-1/2 X 2
6 1 7351501 SPRING; PULL PIN LARGE
7 1 7351301 PIN, PULL X 4.375
8 1 7351401 KNOB, TULIP STYLE
9 12 3236601 WASHER, 3/8 SAE SS
10 5 3236801 NUT, M10 HEX NYLOCK SS
11 5 3236202 SCREW, M10 X1.5 25MM
12 1 7324903 SHAFT, TAPPED 1 DIA X 2.813
13 2 7662900 CAP, GRIP
14 2 3235801 GRIP, 1.25 OD OPEN END
15 2 7662801 RING, GRIP 1.25 OD
16 1 7352001 BUMPER, 2-1/8 X 4-5/8
17 2 3236210 SCREW, M10 X1.5 65MM
18 1 7429101 FLANGE, PSFLY RANGE LEFT
19 1 7422003 LABEL, MOVING PARTS
20 1 6912804 SLEEVE, ACCRDN 1.0 ID X 2
21 2 3237401 PLUG, 7/16" HOLE
22 1 7570801 GUARD, PAINT 1.25"x.75"x.25"
LEFT WORK ARM ASSEMBLY LEGEND
________________________________________
Page 10
PSFLY PECTORAL FLY/REAR DELTOID
10
12
4
3
8
7
2
1
6
6
8
9
10
5
11
12

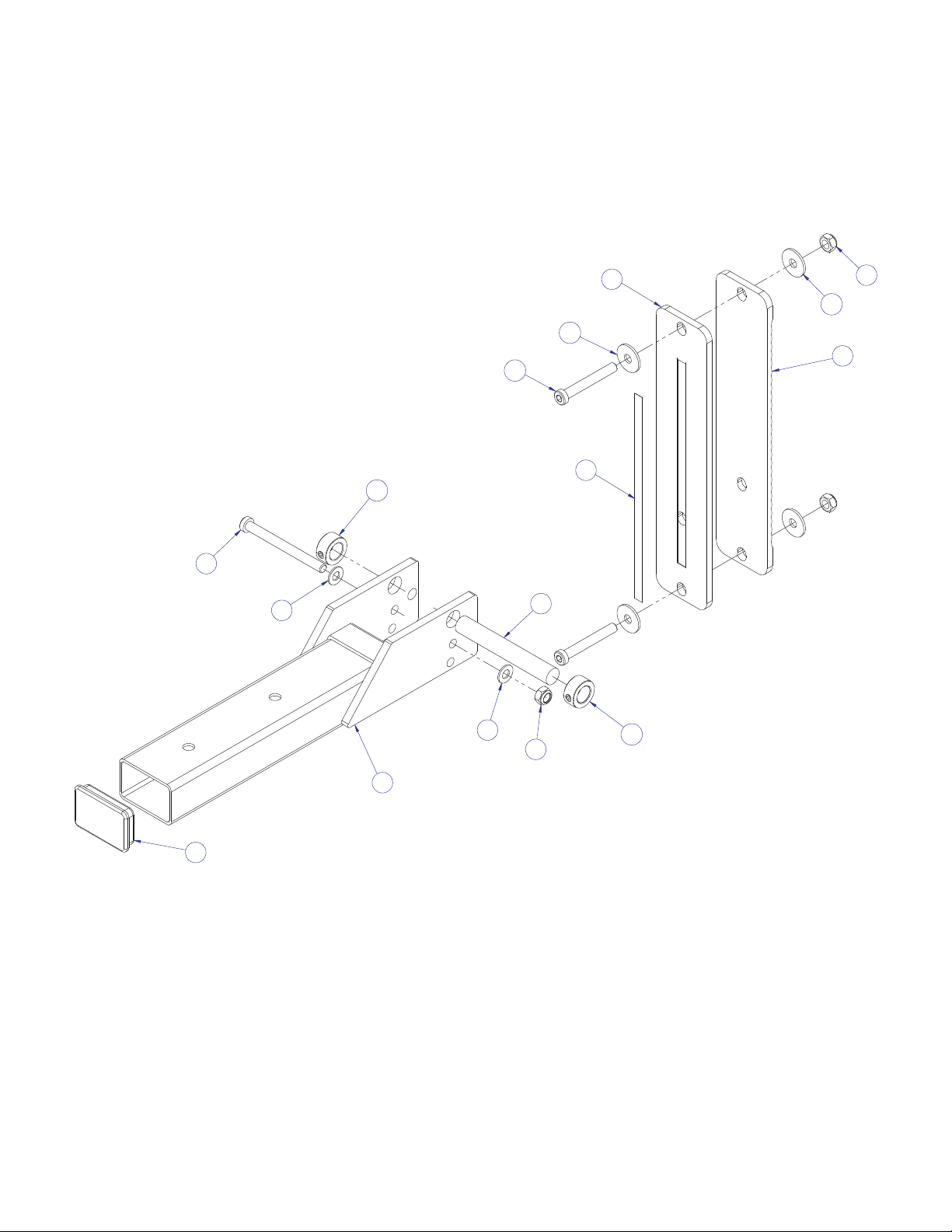

90° SEAT ASSEMBLY - 7401801
________________________________________
SEE PAGE 12 FOR LEGEND
Page 11
PSFLY PECTORAL FLY/REAR DELTOID
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7358701 WLDMT, 90 DEG. STD. HAMMER SEAT
2 1 7352301 CAP, END 2 X 3
3 1 7359701 SEATRACK FRONT
4 1 7359801 SEATRACK BACK
5 1 7422002 LABEL, SEAT ADJUST
6 2 3236601 WASHER, 3/8 SAE SS
7 1 3236218 SCREW, M10 X1.5 110MM
8 3 3236801 NUT, M10 HEX NYLOCK SS
9 1 7359301 .75" SS ROUND SEAT PIN
10 2 3103301 SHAFT COLLAR, 3/4 I.D. ZINC
11 2 3236212 SCREW, M10 X1.5 75MM
12 4 3236602 WASHER, 3/8 ID X 1.25 OD SS
90° SEAT ASSEMBLY LEGEND
________________________________________
Page 12
PSFLY PECTORAL FLY/REAR DELTOID
3
1
2
4
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 3236601 WASHER, 3/8 SAE SS
2 1 3236221 SCREW, M10 X1.5 140MM
3 1 7401701 COVER, PLASTIC PEG 2-1/4
4 1 7366101 WEIGHT, 7.5 LB. ADD-ON

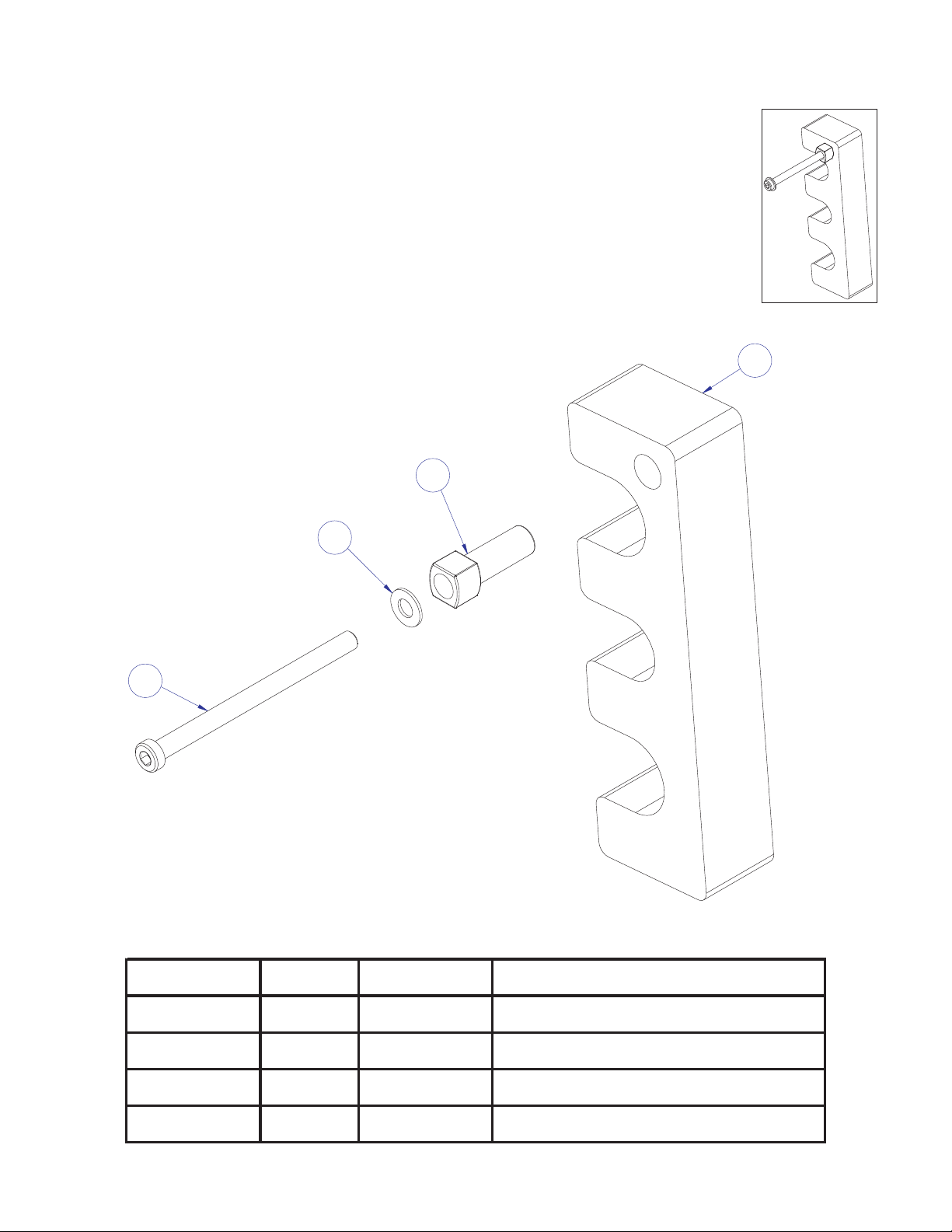

ADD-ON INCREMENT WEIGHT ASSEMBLY - 7415001
________________________________________
Page 13
3
2
6
1
8
5
9
4
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7353901 HEADPLATE, WT. STACK
2 1 7356600 STEM, PRO2 19 HOLE
3 2 7338001 BUSHING, HEADPLATE
4 1 7353001 ASSY, SELECTOR PIN
5 1 7356501 PLUG, LANYARD ATTACHMENT
6 1 3236001 BUSHING, SPRING PIN
8 19 7353801 ASSY, 15 LB PLATE
9 1 7523601 CRIMP, CABLE
WEIGHT STACK LABELS
PART NO. DESCRIPTION
7987201 LABEL, 300 LB STACK
7987401 LABEL, 138 KG STACK
PSFLY PECTORAL FLY/REAR DELTOID

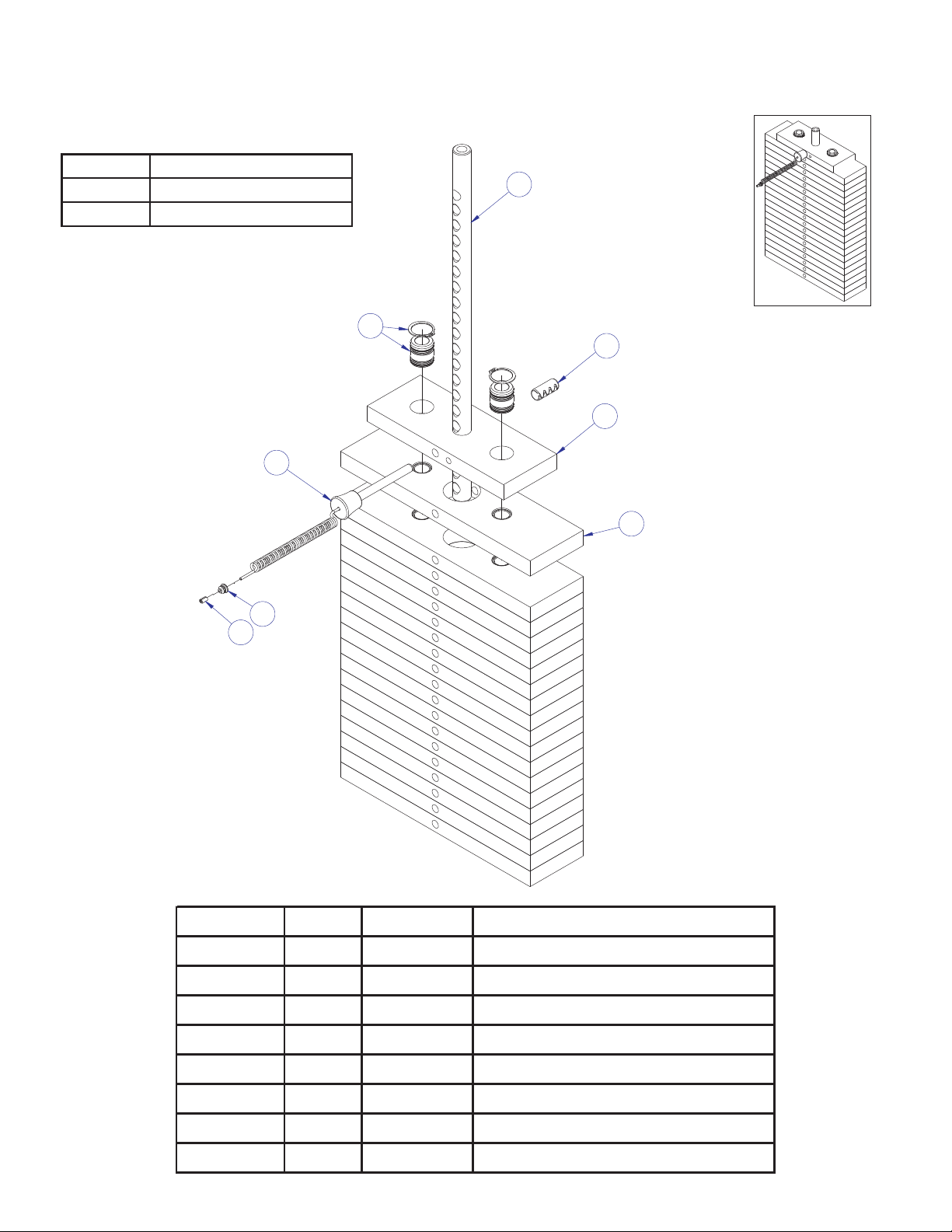

WEIGHT STACK ASSY 300LB - 7353501
________________________________________
Page 14
PSFLY PECTORAL FLY/REAR DELTOID
3
2
5
2
3
4
1
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7600895 GUARD, PSFLY KNEE
2 12 3236601 WASHER, 3/8 SAE SS
3 12 3236201 SCREW, M10 X1.5 20MM
4 1 7376806 SHIELD, PS REAR
5 6 7655301 BRACKET, PS REAR SHIELD

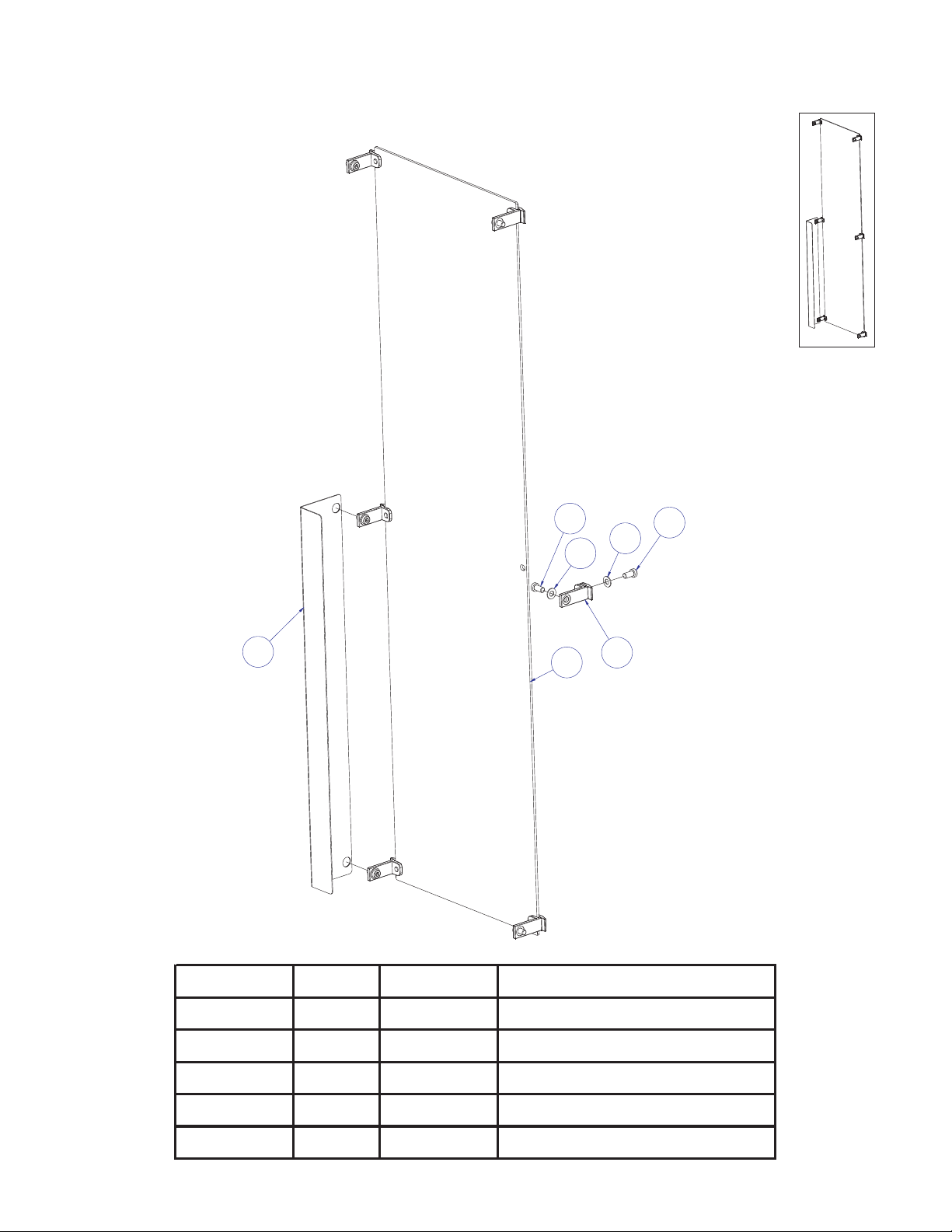

OPTIONAL REAR SHROUD KIT STD-TALL - 7601001
________________________________________
Page 15
