Life Fitness LC5500 RE User Manual

LC-5500(RE)

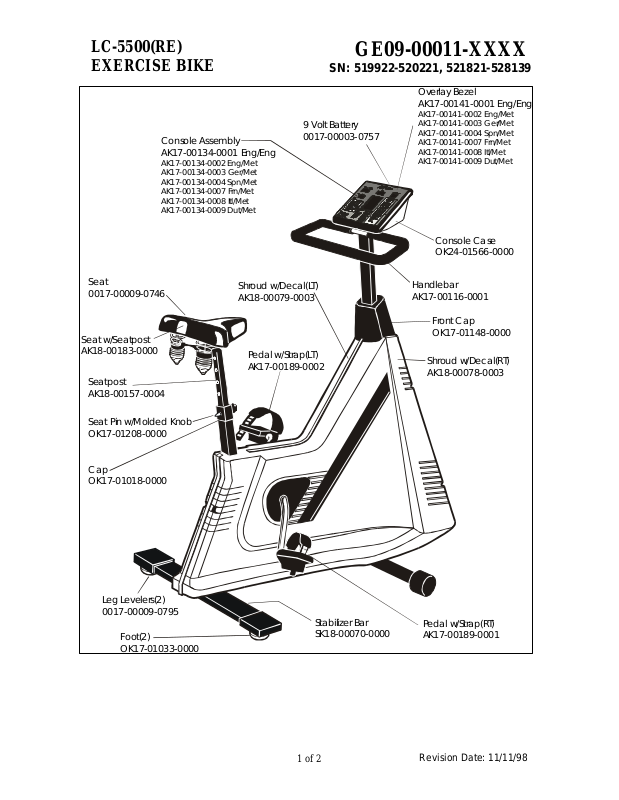

Console Assembly

Overlay Bezel

AK17-00141-0001 Eng/Eng

AK17-00141-0002 Eng/Met

AK17-00141-0003 Ger/Met

AK17-00141-0004 Spn/Met

AK17-00141-0007 Frn/Met

AK17-00141-0008 Itl/Met

AK17-00141-0009 Dut/Met

SK18-00070-0000

Pedal w/Strap(RT)

Pedal w/Strap(LT)

9 Volt Battery

0017-00003-0757

OK17-01033-0000

EXERCISE BIKE

AK17-00134-0001 Eng/Eng

AK17-00134-0002 Eng/Met
AK17-00134-0003 Ger/Met
AK17-00134-0004 Spn/Met
AK17-00134-0007 Frn/Met
AK17-00134-0008 Itl/Met
AK17-00134-0009 Dut/Met

GE09-00011-XXXX

SN: 519922-520221, 521821-528139

Console Case
OK24-01566-0000

Seat
0017-00009-0746

Seat w/Seatpost
AK18-00183-0000

Seatpost
AK18-00157-0004

Seat Pin w/Molded Knob
OK17-01208-0000

Cap
OK17-01018-0000

Shroud w/Decal(LT)
AK18-00079-0003

AK17-00189-0002

Handlebar
AK17-00116-0001

Front Cap
OK17-01148-0000

Shroud w/Decal(RT)
AK18-00078-0003

Leg Levelers(2)
0017-00009-0795

Foot(2)

Stabilizer Bar

1 of 2

AK17-00189-0001

Revision Date: 11/11/98

LC-5500(RE)

Alternator Control Assembly

Master Link Assembly

Tabbled Lockwasher

Bearing Nut(LT)

AK18-00029-0001

Bearing Nut(RT)

AK18-00116-0003

Crankarm Bearing Kit

EXERCISE BIKE

Poly V-Belt
0017-00009-0735

Pulley w/Shaft
OK17-01175-0000

GE09-00011-XXXX

SN: 519922-520221, 521821-528139

Main Cable Assembly
AK17-00122-000

Freewheel Gear Assembly
AK41-00023-0000

AK17-00144-0000

Crankarm w/Sprocket
SK18-00019-0001
Crankarm (only)
OK18-01281-0000

GK18-00004-0002

Alternator, Mando
0017-00009-0841
Conversion Plug Kit
GK18-00004-0003

Drive Chain
OK17-01107-0000

OK18-01280-0000

GK18-00004-0024

Crankarm Locknut
OK18-01059-0001

2 of 2

Revision Date: 11/11/98
