Inspire�7-inch�LCD�Console
PM CN 07DN-xxxxx-xx, 07DT-xxxxx-xx
Parts�Manual
18.01.12
Table of Contents
Serial Number Table 2
Console PCBs and Cables 3
PCB and Cable Locator 3
PCBs (All) 4
Cables (All) 5
Bezels 6
Tape 7
Display Components 8
Option Panel and Other Hardware 9
1
Serial Number Table
Item Number Alpha Code (Prefix) Starting Serial Number Ending Serial Number
07DT-DOMXX-01 DTX 100000
07DT-DOMXX-01 DTX 300000
07DT-INTXX-01 ITX 100000
07DT-INTXX-01 ITX 300000
07DN-ALLXX-01 ANX 100000
07DN-ALLXX-01 ANX 300000
2
Console PCBs and Cables
PCB and Cable Locator
3
PCBs (All)
PCB Parts List (All)
Item Alpha Code Part Number Description
PCB-001 DTX, ITX, ANX B084-92353-0000 PCB-ASSY: APOLLO; ESD PCB
PCB-002 DTX, ITX, ANX B084-92331-0000 PCB ASSY: APOLLO 7-SEG DATA DISPLAY TM
ONLY
PCB-003 Used with Pre LED backlight
LCD (AK70-00036-0000).
PCB-004 DTX, ITX, ANX B084-92349-0002 PCB ASSY: APOLLO AUTHENTICATION
PCB-005 All non-treadmill consoles:
ANX, ANN, ANP
PCB-006 DTX, ITX, ANX A084-92336-0001 PROGRAMMED PCB: B084-92336-0001 SINGLE
PCB-007 DTX, ITX, ANX A084-92334-0000 PROG DSP PCB ASSY: APOLLO MACHINE
PCB-008 ANX B084-92355-0000
PCB-009 DTX, ITX B084-92355-0002
Note 1: Used to mount Life Pulse ESD Board. 0K70-01069-0000 (Foam Tape). See page 7.
Note 2: When ordering PCB-009 also order:
1 ea Tape TP1 (page 7)
1 ea Cable CBL-006 (page 5)
1 ea Cable CBL-007 (page 5)
AK32-00193-0000
(comes with cable)
118E-00001-0244 HEART RATE RECEIVER: CODED; RE07L
(see Note 1)
(see Note 2)
INVERTER W/CBL ASSY: PURCH.
COPROCESSOR IPOD
BOARD COMPUTER (SBC)
INTERFACE BOARD (MIB)
LIFEPULSE ESD BOARD HR ESD NON-TREAD
LIFEPULSE ESD BOARD HR ESD TREAD
4

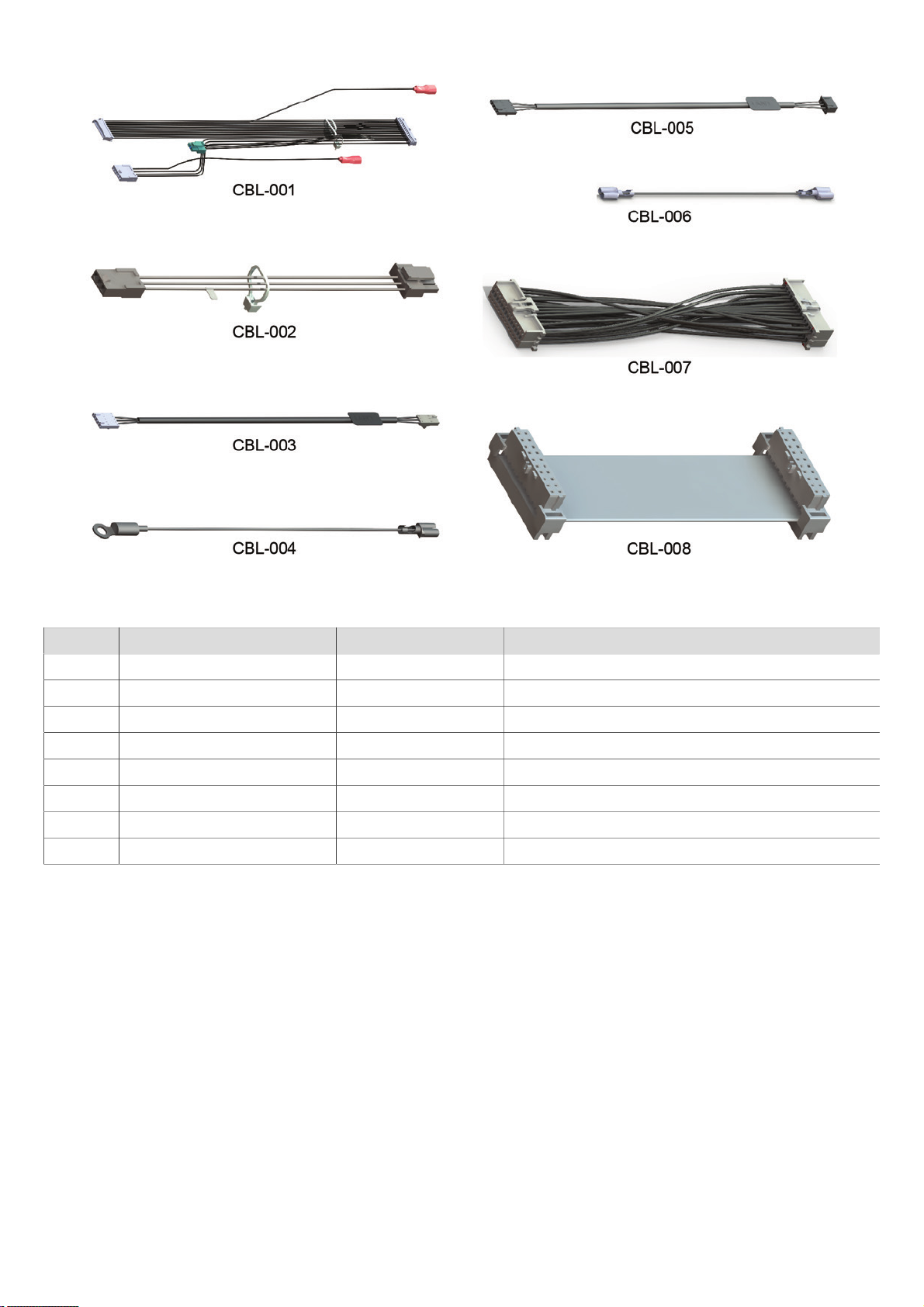

Cables (All)
Parts List
Item Alpha Code Part Number Description
CBL-001 DTX, ITX, ANX AK65-00041-0000 CABLE ASSY: SBC - USER OPTION PANEL
CBL-002 DTX, ITX, ANX AK65-00102-0001 CBL: ASSY; HEADPHONE EXT.
CBL-003 DTX, ITX AK70-00037-0000 CABLE ASSY: UNCODED POLAR
CBL-004 DTX, ITX AK65-00103-0000 CBL ASSY: GROUND ESD
CBL-005 ANX AK69-00119-0000 CBL ASSY: CODED POLAR PCB TO MIB
CBL-006 ANX AK69-00142-0000 CABLE ASSY: GROUND LP ESD
CBL-007 ANX AK70-00063-0000 CBL-ASSY: CONSOLE; ESD
CBL-008 DTX, ITX, ANX AK65-00045-0000 CABLE ASSY: DATA DISPLAY - MIB
5
Bezels
Parts List
Item Alpha Code Part Number Description
BZ-001 ITX AK70-00021-0000 ASSY: FRONT BEZEL "I" TREAD WORLD
BZ-002 DTX, ITX AK70-00021-0001 ASSY: FRONT BEZEL "I" TREAD DOMESTIC
BZ-003 DTX, ITX AK70-00014-0000 Bezel Back Assy - Tread
BZ-004 ANX AK70-00022-0001 ASSY: FRONT BEZEL "I" NON-TREAD UNIVERSAL (see Note 3)
BZ-005 ANX AK70-00023-0000 Bezel Back Assy - non-Tread
SC-001 ANX, DTX, ITX 0017-00101-1972 Bezel Back Mounting Screw (6)
Note 3: Comes with 118E-00001-0244 (PCB-005) and 0K39-01044-0000 (TP-002)
6
Tape
Parts List
Item Alpha Code Part Number
TP-001 ANX 0K70-01069-0000 Tape, Foam, Double-sided, Mount HR ESD Board.
TP-002 ANX 0K39-01044-0000 TAPE: ADHESIVE B (to secure the in-console heart rate receiver)
Description
7

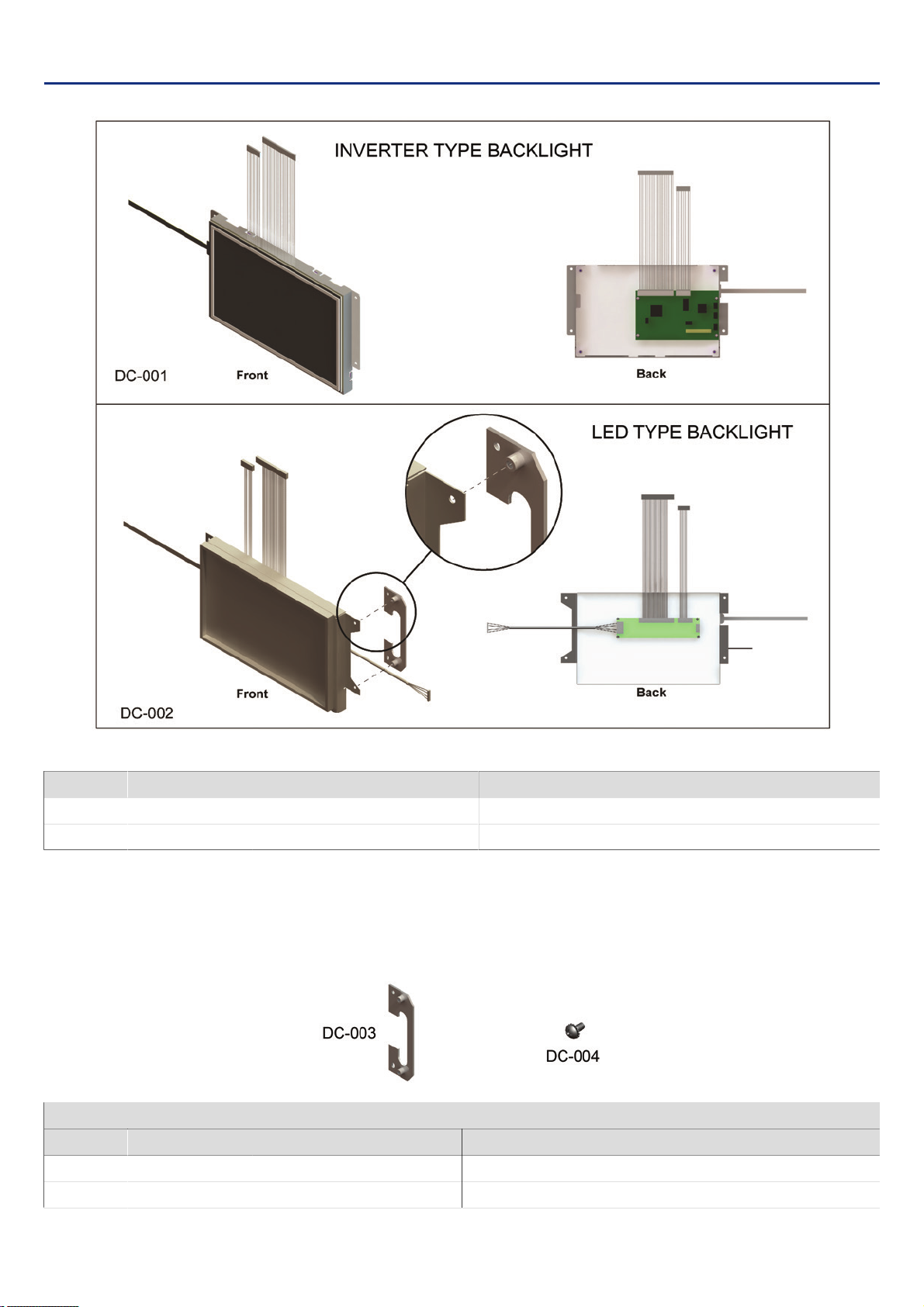

Display Components
Item Alpha Code Part Number Description
DC-001 DTX, ITX, ANX AK70-00036-0000 (see Note 4) LCD Assembly Purch 7.0 800 X 480 W/O LED backlight
DC-002 DTX, ITX, ANX AK70-00036-0001 (see Note 5) CD Assembly: Purch; 7.0"; 800 X 480 w/LED backlight
Note 4: If this part number is no longer available, use AK70-00036-0001 (DC-002).
Note 5: When changing from AK70-00036-0000 (DC-001) to AK70-00036-0001 (DC-002), order also
0K70-01087-0001 (DC-003) and 0017-00101-1971 (DC-004) from table below.
Parts Needed to change from AK70-00036-0000 to AK70-00036-0001 LCD
Item Alpha Code Part Number Description
DC-003 DTX, ITX, ANX 0K70-01087-0001 Bracket: 'C"; Mounting
DC-004 DTX, ITX, ANX 0017-00101-1971 Screw M3 X 6.0 mm (Qty 4)
8
Option Panel and Other Hardware
Parts List
Item Alpha Code Part Number Description
OP-001 DTX, ITX, ANX AK32-00227-0000 Options Panel (see Note 1)
OP-003 ANX, ITX 121E-00001-0025 CLAMP FILTER: FERRITE CORE W/CASE; Z-CAT SERIES
OP-004 AK65-00040-0000 USB Cable Assembly (see Note 2)
OP-005 DTX, ITX, ANX 0017-00101-1970 Options Panel Mounting Screw (2)
Note 1: When replacing the options panel, transfer ferrites from the old option panel to the new option panel.
Note 2: Used with AK32-00227-0000 - Options Panel.
9
