Page 1
s
LifeCycle LC9500XXL
LifeCycle L
LC95-0000-13, LC95-0601-13

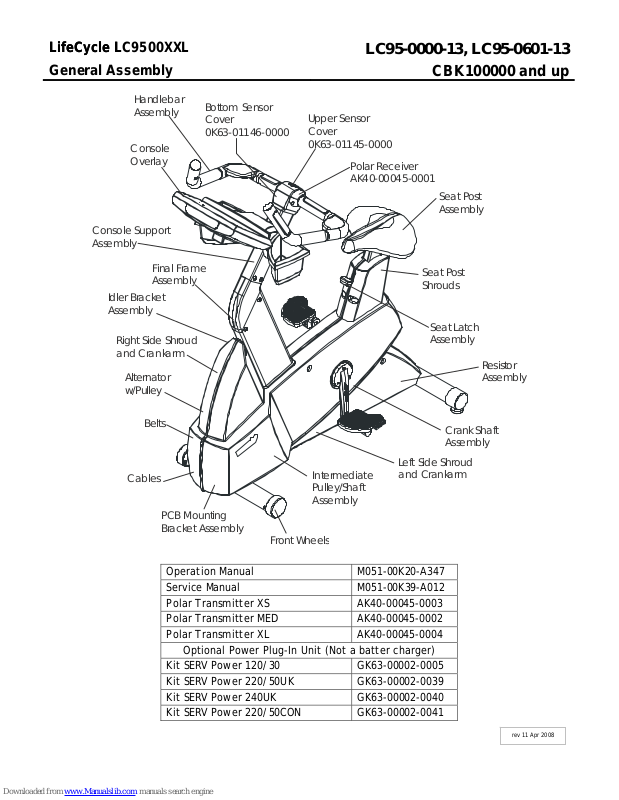

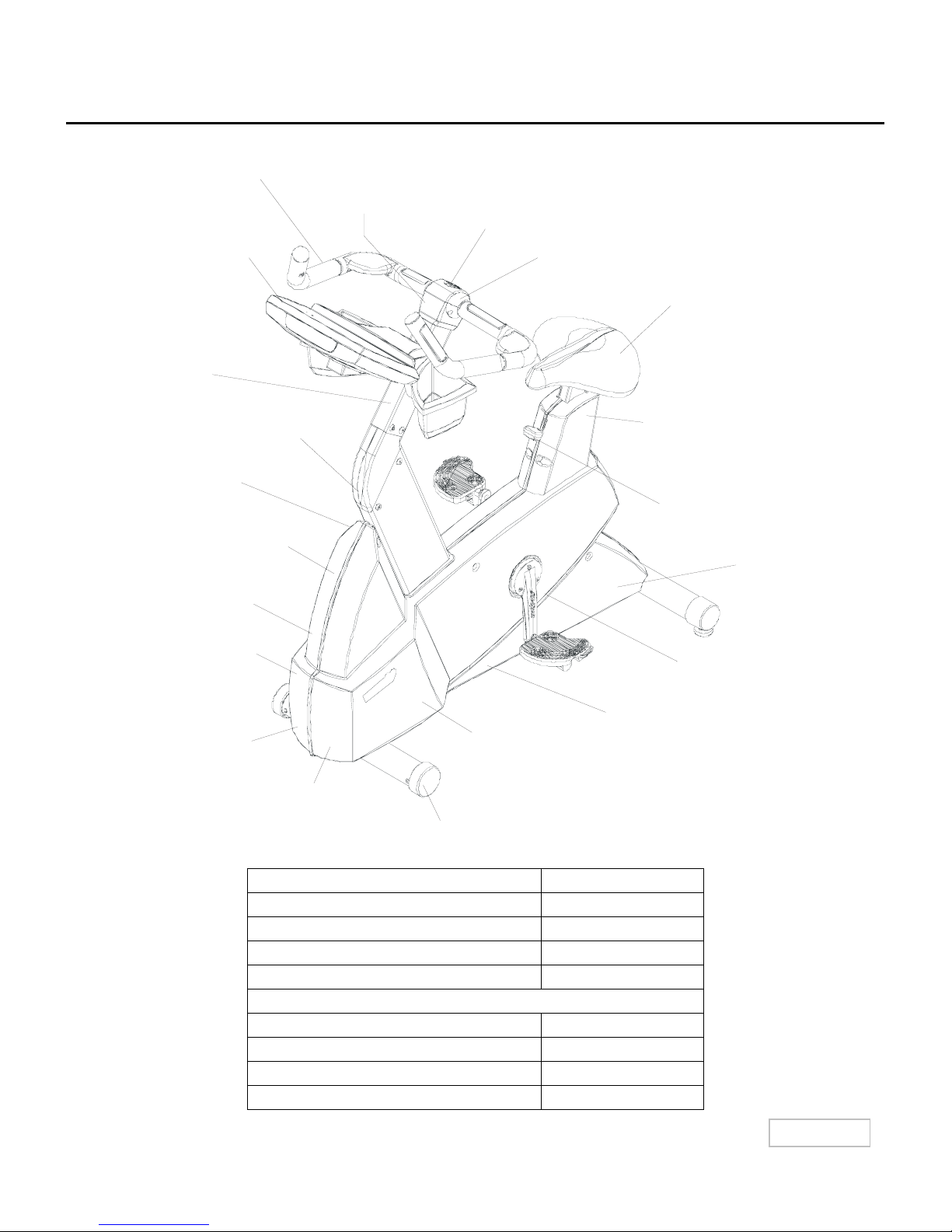

General Assembly
Handlebar
Assembly
Console
Overlay
Con sole Sup por t
Assembly
Final Frame
Assembly
Idler Bracket
Assembly
Right Side Shroud
and Crankarm
Alternator
w/Pulley
Bottom Sensor
Cover
0K63-01146-0000
CBK100000 and up
Upper Sensor
Cover
0K63-01145-0000
Polar Rece i ver
AK40-00045-0001
Seat Post
Assembly
Seat Post
Shrouds
Seat Latch
Assembly
Resistor
Assembly
Belts
Cables
PCB Mounting
Bracket Assembly
Intermediate
Pulley/Shaft
Assembly
Front Whe el
Left Side Shroud
and Crankarm
Crank Shaft
Assembly
Operation Manual M051-00K20-A347
Service Manual M051-00K39-A012
Polar Transmitter XS AK40-00045-0003
Polar Transmitter MED AK40-00045-0002
Polar Transmitter XL AK40-00045-0004
Optional Power Plug-In Unit (Not a batter charger)
Kit SERV Power 120/30 GK63-00002-0005
Kit SERV Power 220/50UK GK63-00002-0039
Kit SERV Power 240UK GK63-00002-0040
Kit SERV Power 220/50CON GK63-00002-0041
rev 11 Apr 2008
Page 2
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

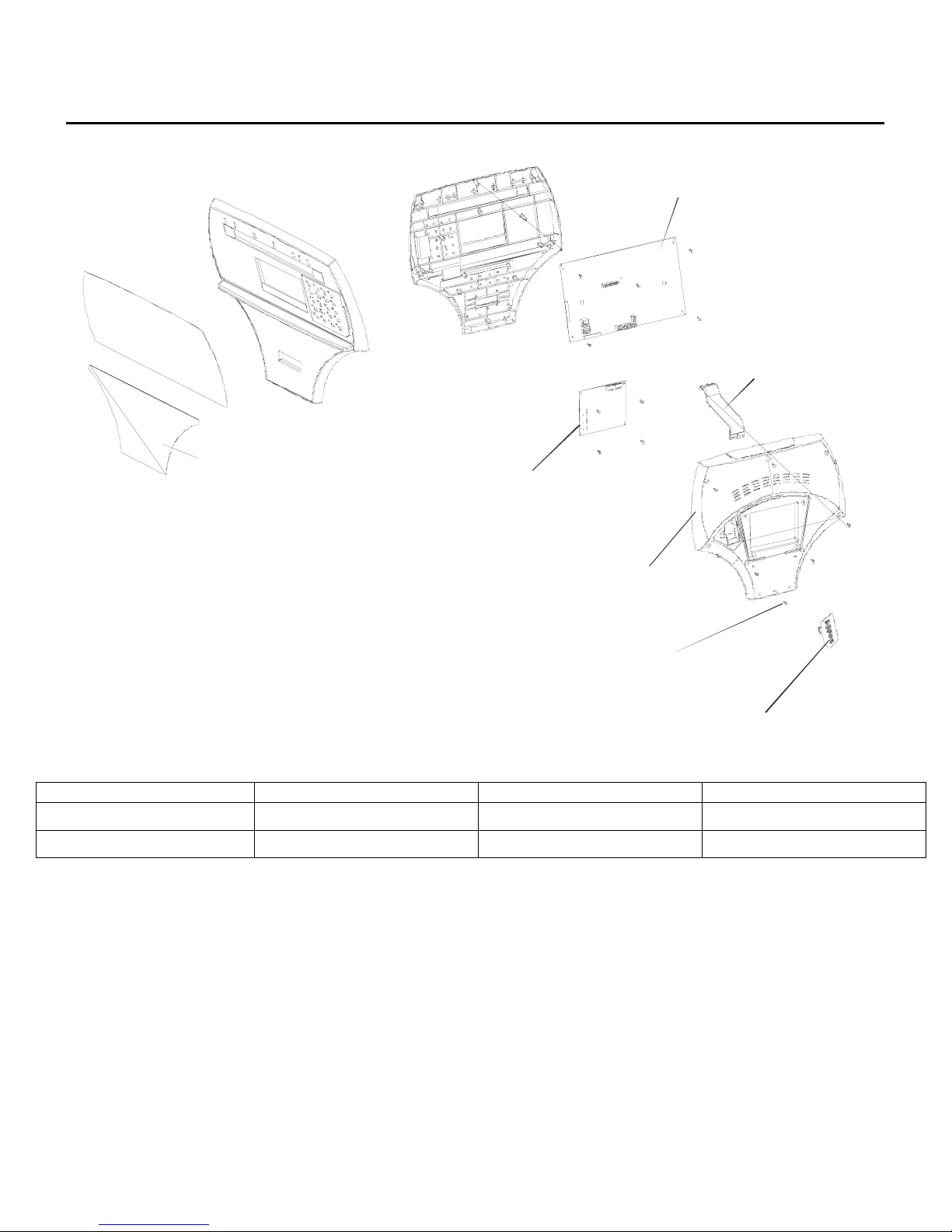

Console Overlay Bezel Assembly
Lower Overlay
CBK100000 and up
Upper Console Board
A084-92219-A001
Lower Display
Console Cable
AK63-00038-0000
Lower Console Board
B084-92222-B000
Console Case
Assembly
AK63-00121-0000
Phillips Pan Screws(17)
0017-00101-1650
Battery Door
0K63-01029-0000
Console Assembly Overlay Bezel
AK63-00141-0001 Eng Met AK63-00142-0001 Eng Met 0K63-01255-0001 Eng Met 0K63-01098-0001 Eng Met
AK63-00141-0009 Eng Met AK63-00142-0009 Eng Met 0K63-01255-0009 Eng Met 0K63-01098-0009 Eng Met
Upper Overlay
Lower Overlay
2
Page 3
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13
A

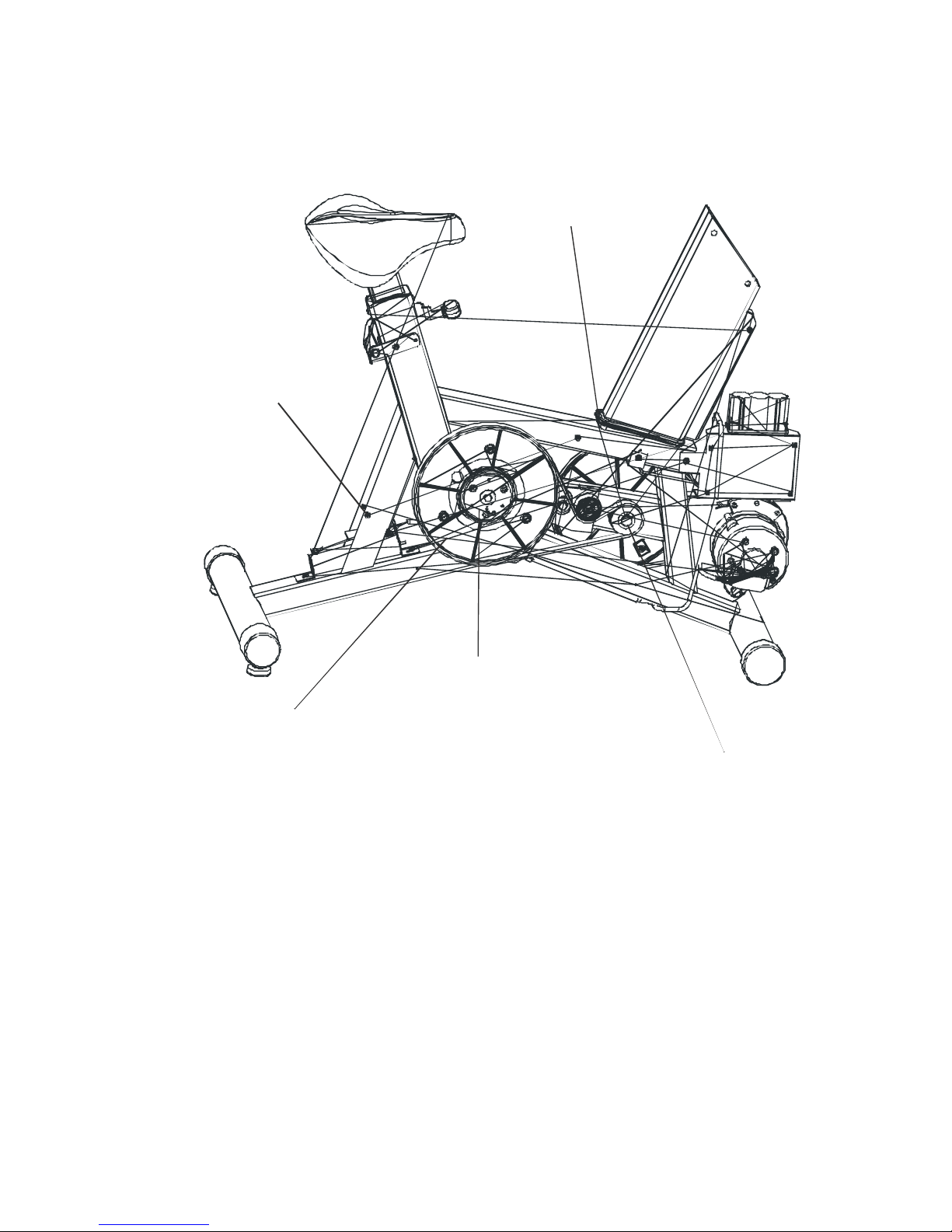

Final Frame Assembly
Grommet
0017-00042-1134
CBK100000 and up
Frame Gask et
0K63-01007-0001
Crank Pulley Assy
AK63-00051-0000
Crank Disc
0K63-01095-0001
Clutc h Asse mbly
K63-00026-0000
3
Page 4
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

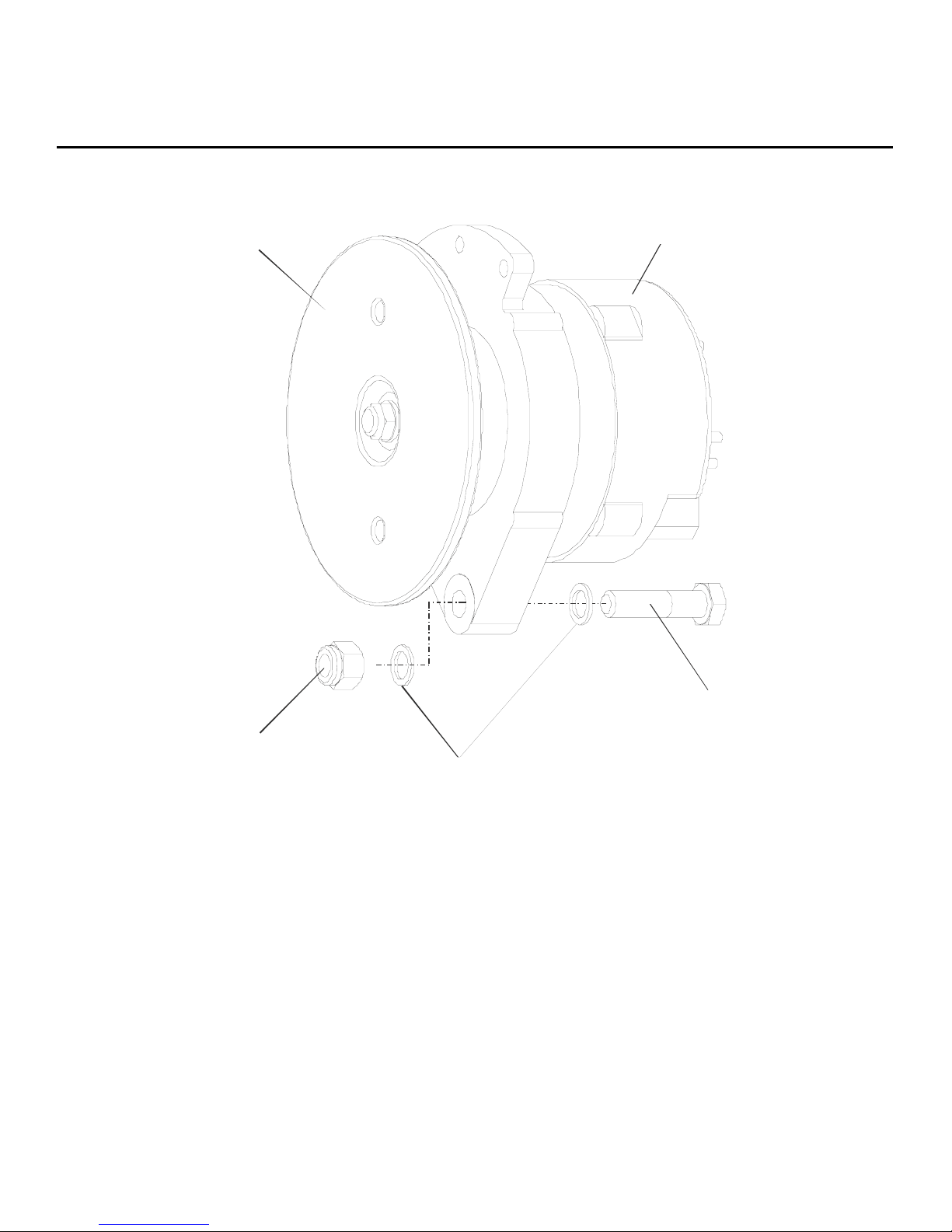

Alternator w/Pulley – AK63-00093-
0000
Alternator Pulley
0K61-02500-0001
CBK100000 and up
Alternator
0017-00009-0841
Locki ng Nut
0017-00103-0117
Bolt
0017-00101-0956
Washer
4
Page 5
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

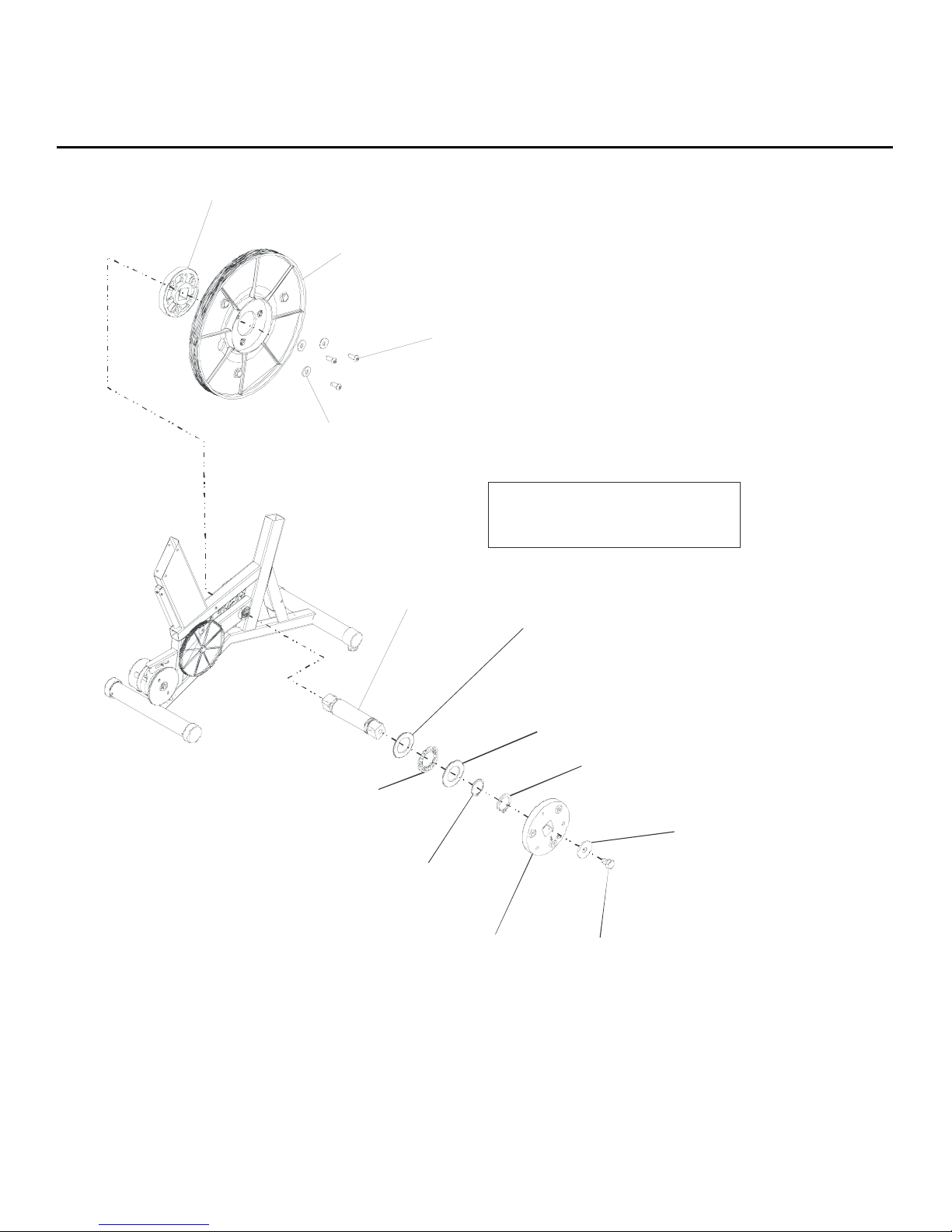

Crank Shaft and Crank Bearing
Assembly – GK63-00002-0006
Crank Arm Hu b
Pulley Assemlby
AK63-00051-0000
Pully
0K63-01018-0000
Washers(3)
0017-00104-00458
CBK100000 and up
Flyw h eel Screws (3)
0017-00101-1715
*Crank Shaft & Bearing Kit
GK63-00002-0077
*Crank S h aft
*Small T h rust Washer(2)
0K63-01129-0000
*Large Thrust Washer(2)
0K63-01129-0001
*Bowed Retainer Ring(2)
*Needle Bearing(2)
0K63-01128-0000
*Small Snap Ring(2)
0017-00100-0241
Crank Arm Hub(2)
0K63-01095-0001
0017-00100-0243
Washer(2)
0017-00104-0409
Bolt(2)
0017-00101-1705
5
Page 6
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

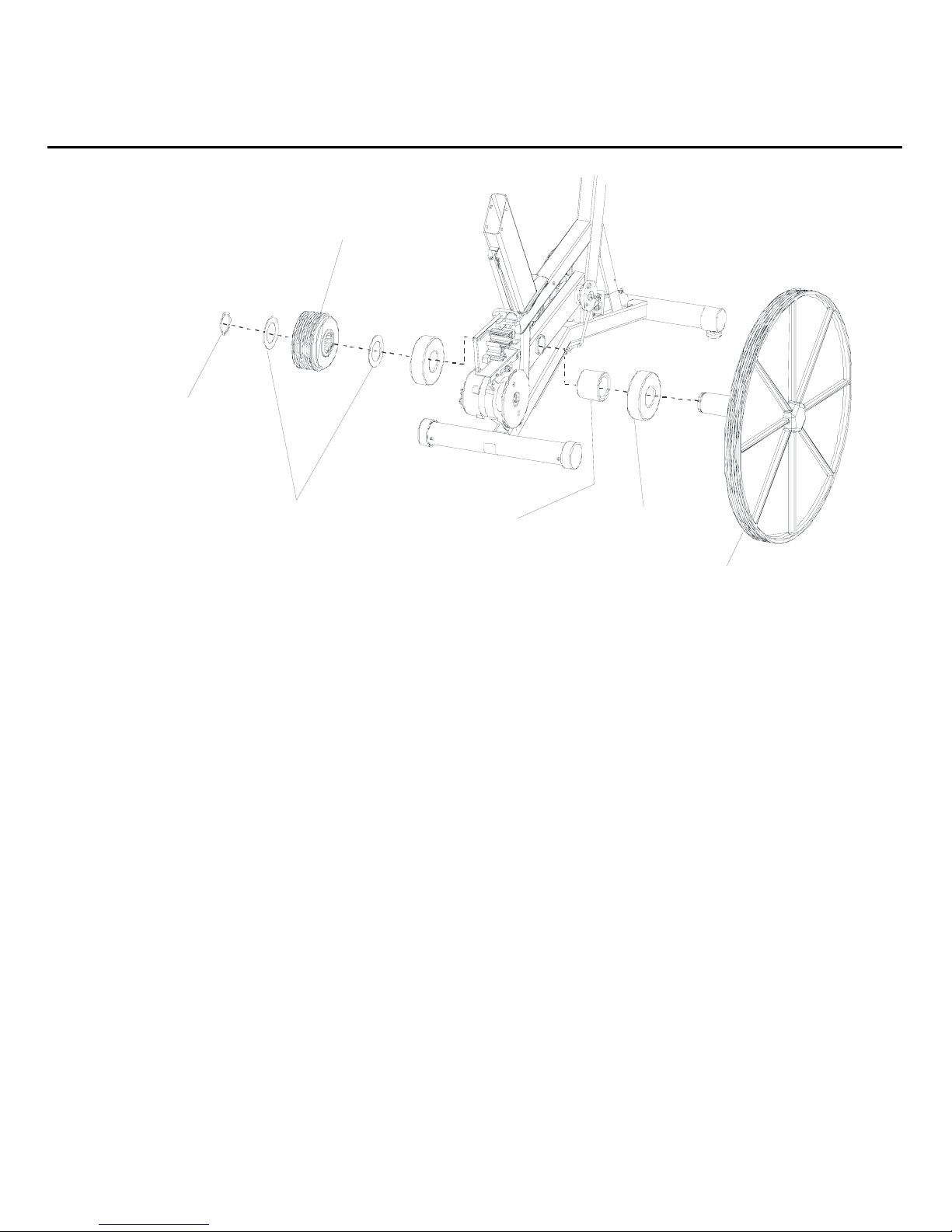

Intermediate Shaft and Bearing
Assembly – GK63-00002-0007
Clutch As semb ly
AK63-00026-0000
Retain ing Ring
0017-00100-0242
DELRIN Washers
0017-00104-0455
*Spacer
CBK100000 and up
*Bearing
Note: GK63-00002-0007 Kit includes all parts shown.
Items with asterisks (*) cannot be purchased separately.
*Pulley
6
Page 7
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

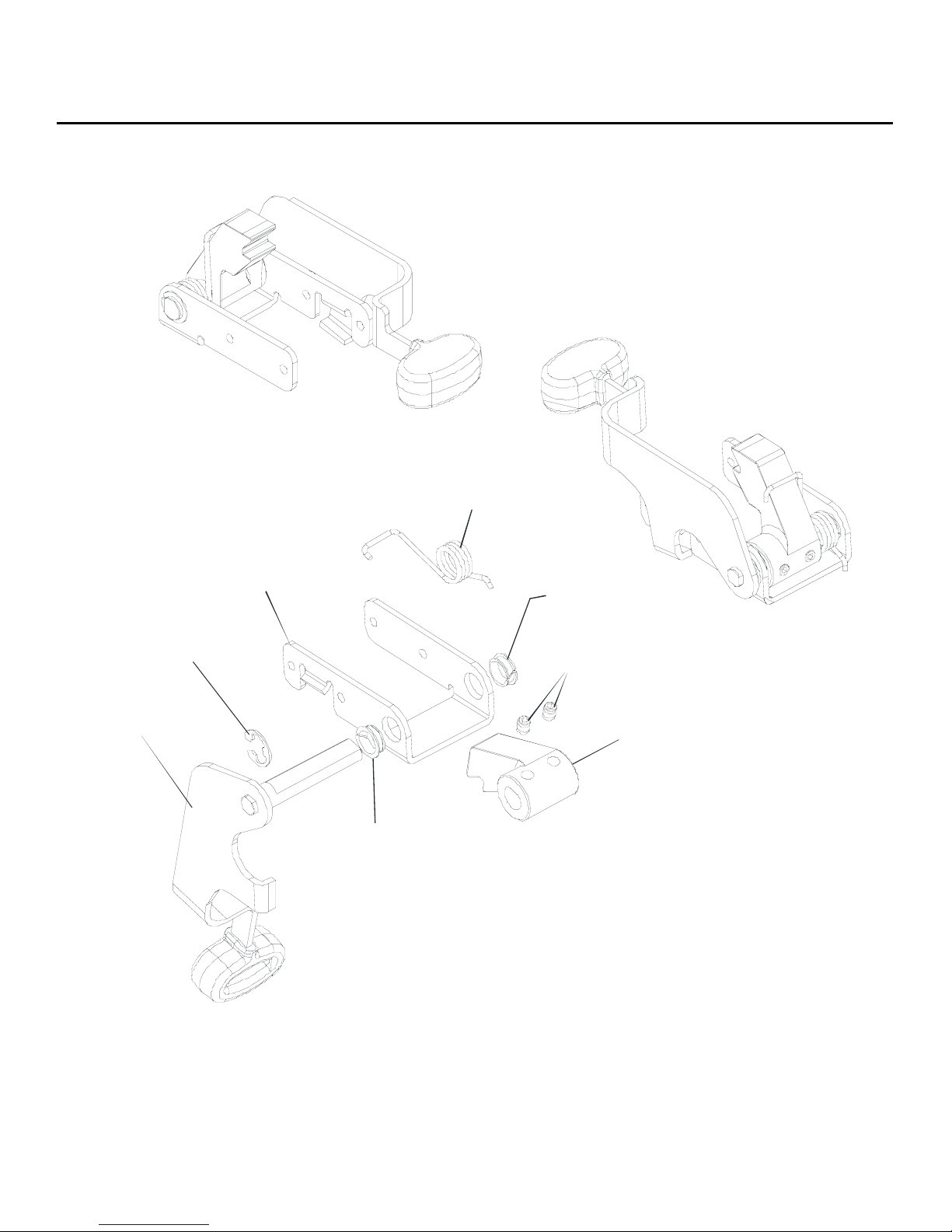

Seat Latch Assembly
CBK100000 and up
Latch Spring
0K63-01117-000
Latch Bracket
0K63-01064-0000
E-Ring
0017-00100-0050
Link Shaft
AK63-00113-0000
NYLINER
0017-00042-1129
Set Sc re ws (2 )
0017-00101-0333
Latch Rack
0K63-01061-0000
NYLINER
0017-00042-1129
7
Page 8
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13
e

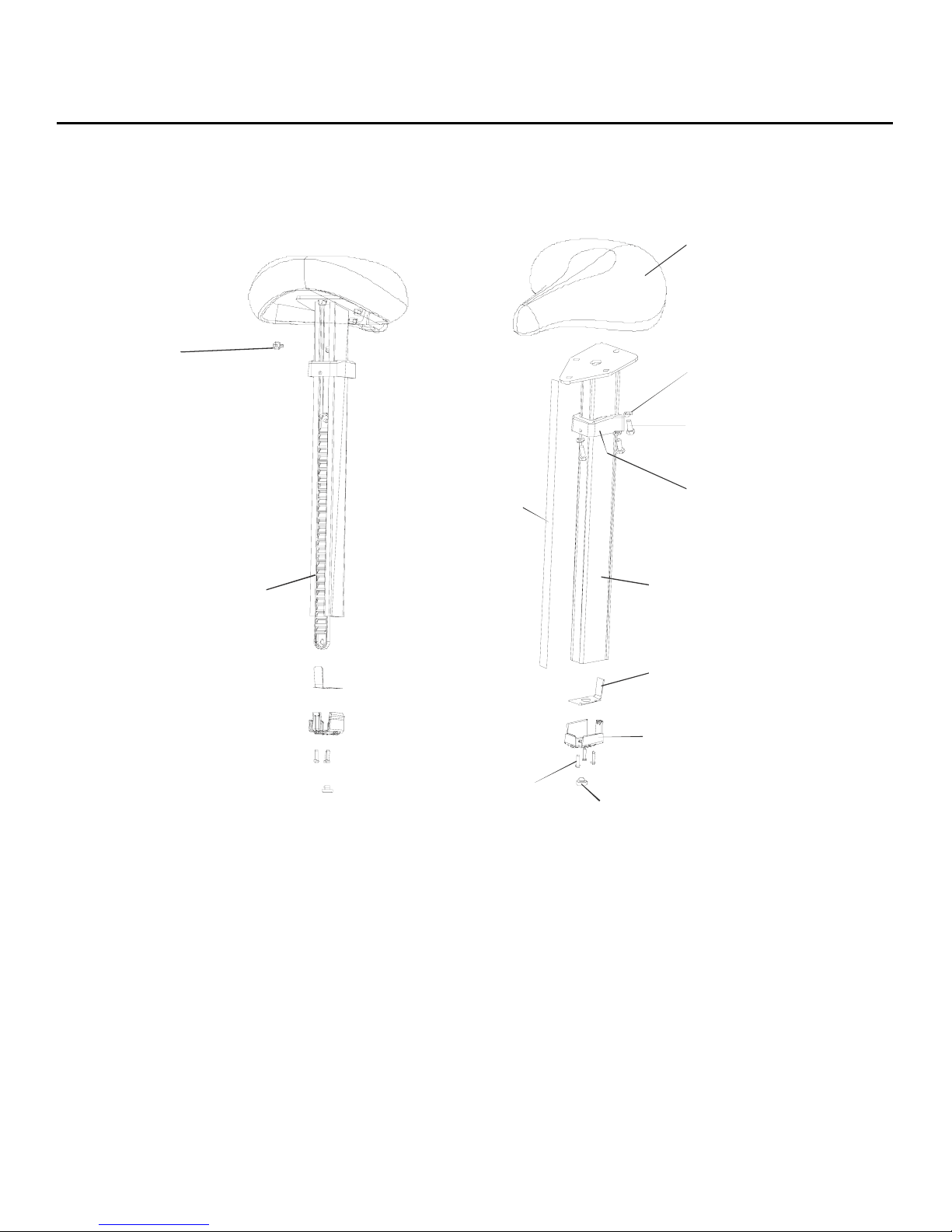

Seat Post Assembly
Screw
0017-00101-1623
Seat Post Decal
0K63-01249-0000
CBK100000 and up
Seat-Delux
0K63-01058- 0000
Lock Washer(4)
0017-00104-0064
Hex Bolt( 4)
0017-00101-1121
Extrusion
Guide Cap
0K63-01044- 0000
Seat Adju stment Rack
0K63-01049- 0000
Pan Screws(3)
0017-00101-1614
Seat Post Asse mb l y
AK63-00129-0000
Spr in g Support Brack et
0K63-01210- 0000
Guide Base
0K63-01045- 0000
P olyla stomer Bu mpe r
-
-
8
Page 9
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

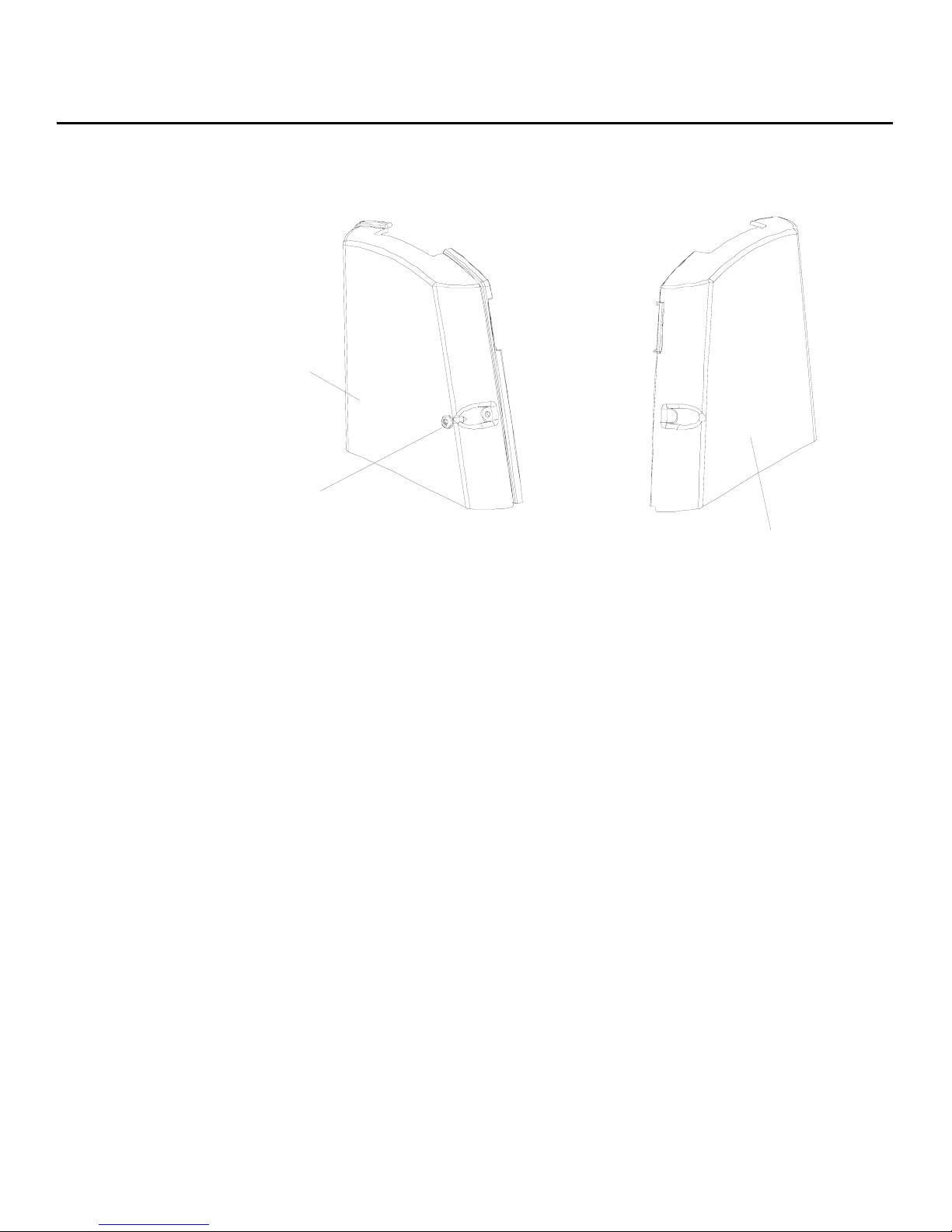

Seat Post Shrouds
Left Seat Post Sh ro ud
0K63-01092-0006
CBK100000 and up
Screw
0017-00101-0991
Right Sea t P ost Shroud
0K63-01092-0005
9
Page 10
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13
A

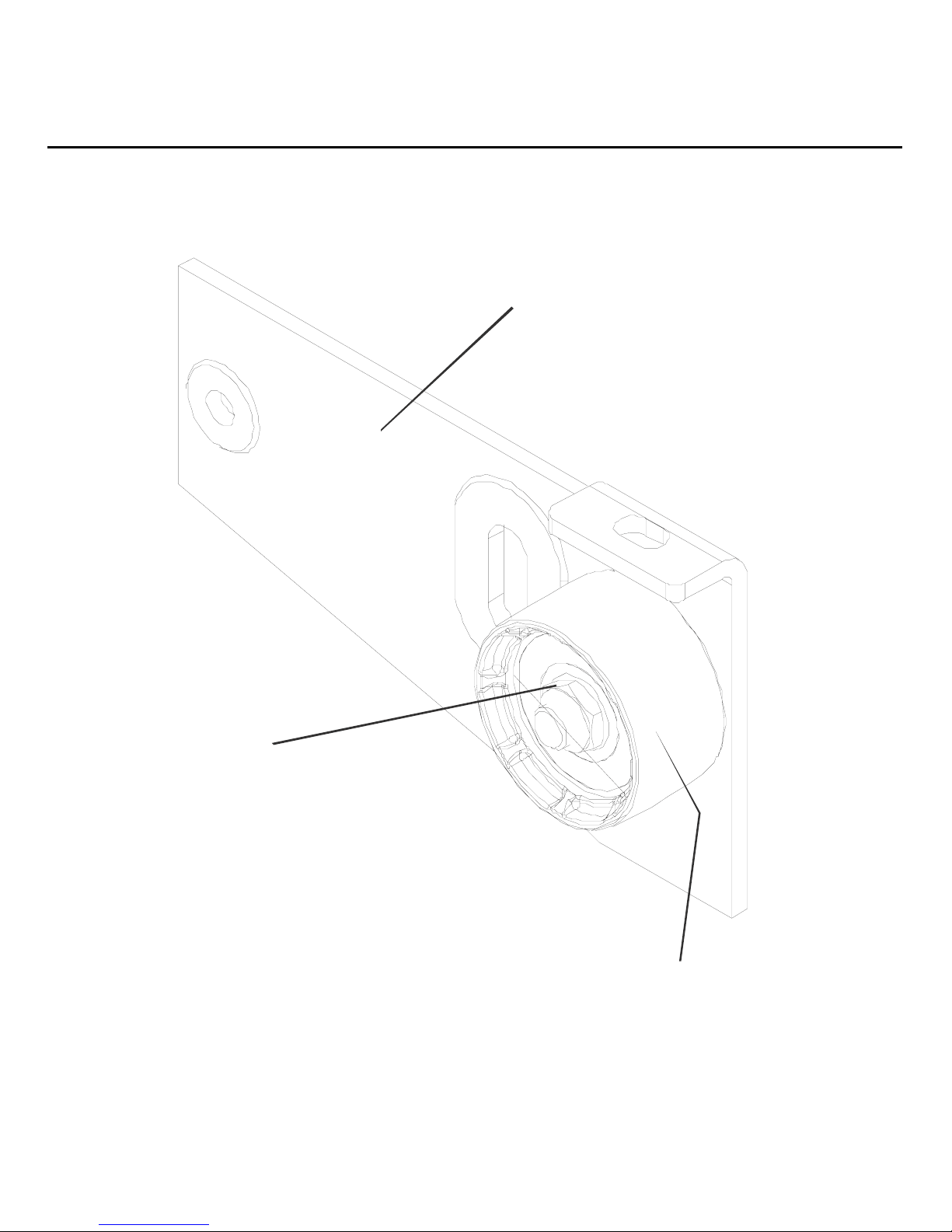

Idler Bracket Assembly – AK63-000210000
CBK100000 and up
Idler Bracket
0K63-01050-0000
Lock Nut
0017-00103-0218
10
Idler Bearing
K63-00008-0000
Page 11
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13
r

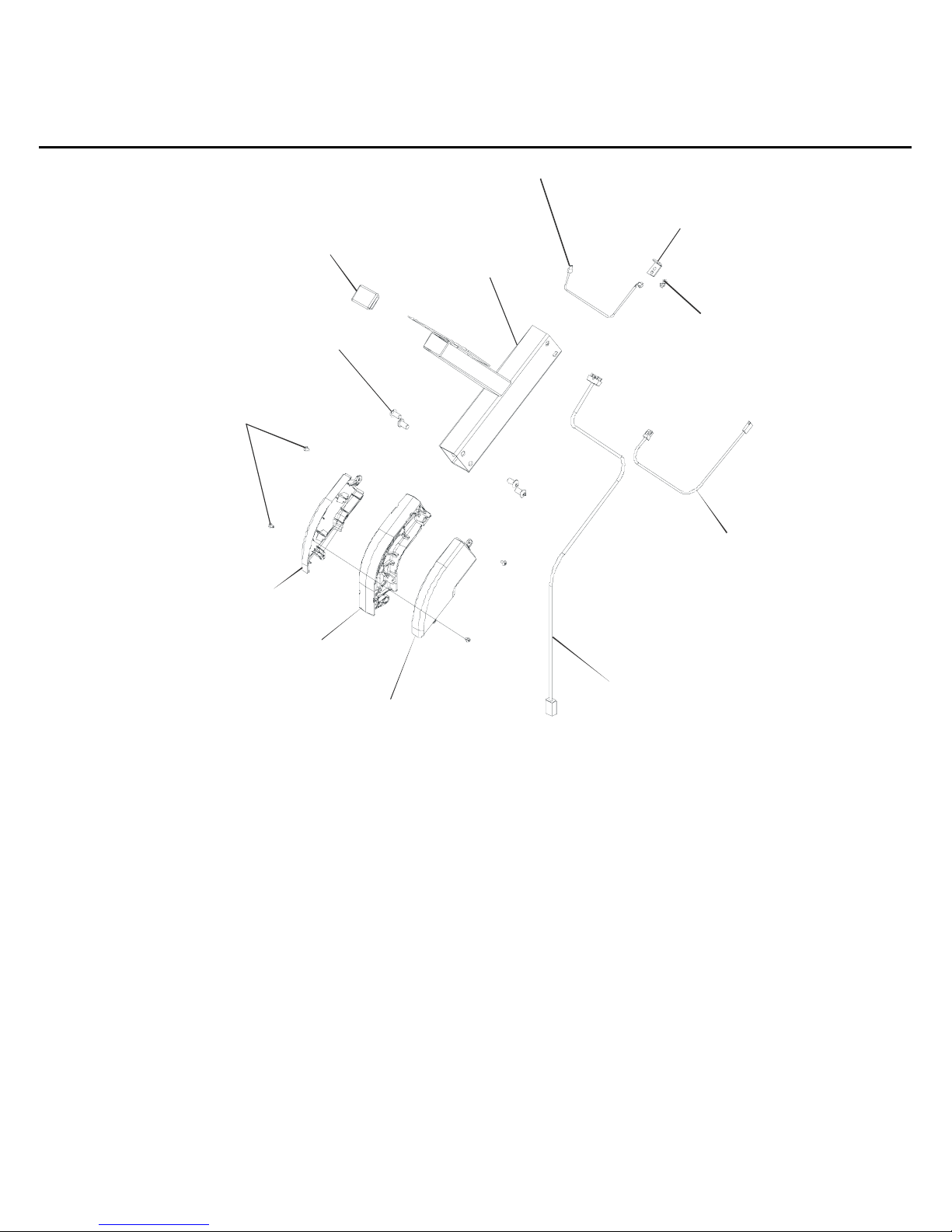

Console Support Assembly – AK6300139-0000
End Cap
0017-00042-1132
Sup por t Scr ews (4 )
0017-00101-1704
Pan Scr ews(4 )
0017-00101-1721
CBK100000 and up
*Cable Assy: Jack/H
Polar Brac ket
0K63-01113-0000
Console Support
Weldment Assy
AK63-00089-0000
Nut(2)
0017-00103-0318
*HR Electrode Cable
Handlebar Cover-RT
0K63-01192-0001
I-Beam Joint
0K63-01178-0002
Handlebar Cover-LT
0k63-01192-0002
Note: AK63-00 139-0000 Kit includes all parts above.
Items with asterisks (*) cannot be purchased separately.
*Console Cable
11
Page 12
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

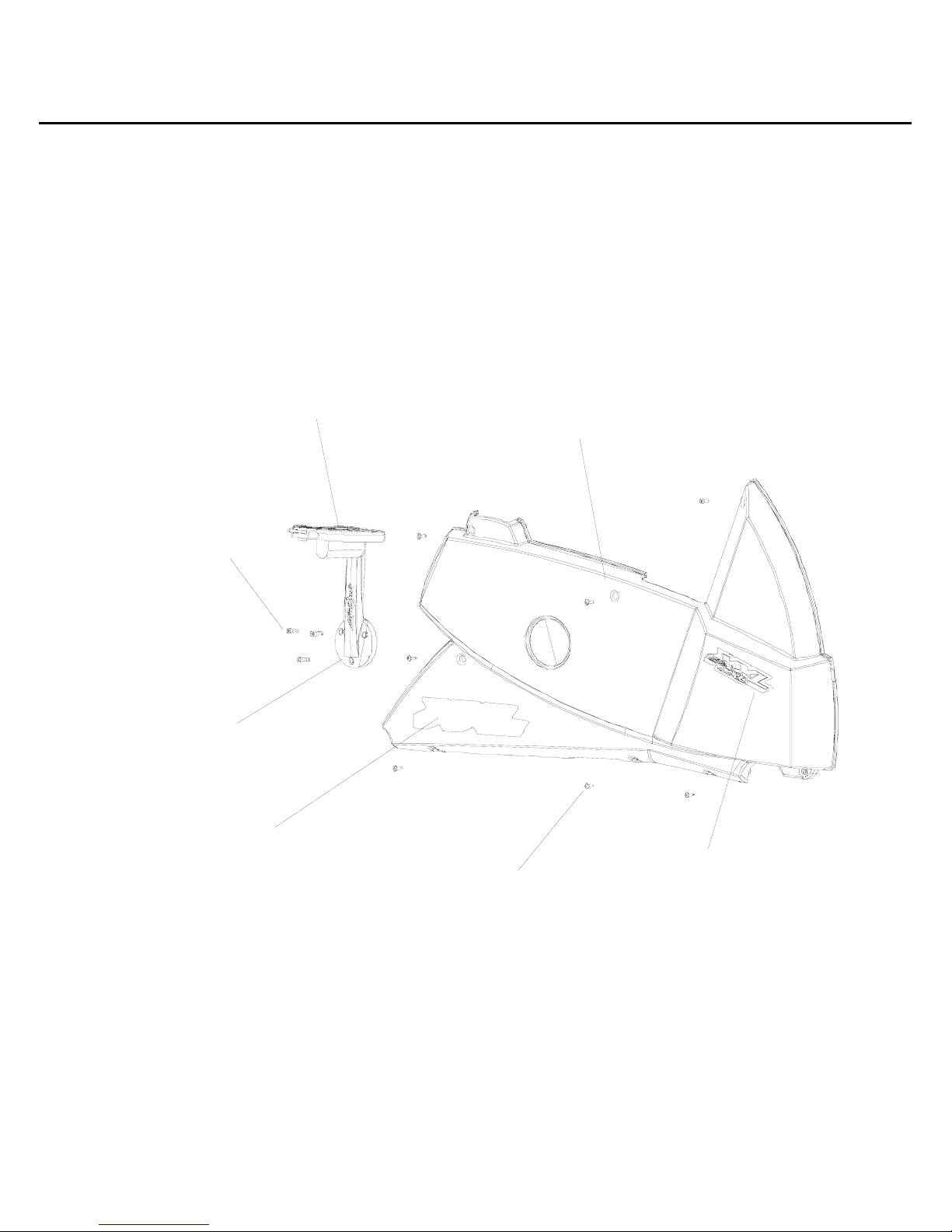

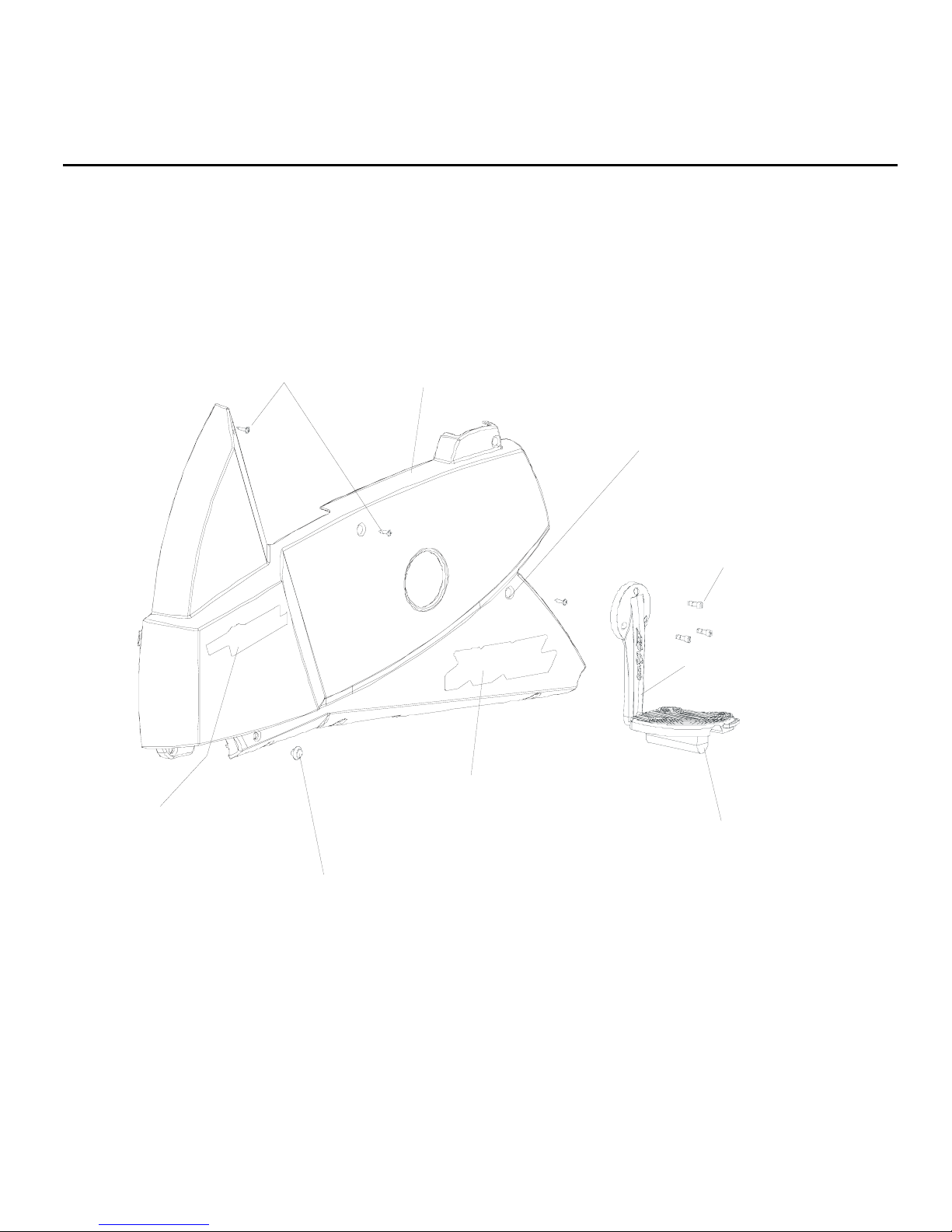

Left Side Shroud and Crankarm
Shro ud Sc re ws( 3)
0017-00101-0991
CBK100000 and up
Left Side Sh ro ud
AK63-00138-0000
Washer(2)
0017-00104-0280
Crank Arm Screws(3)
Decal
0K63-01251-0000
Decal
0K63-01265-0000
Shro ud Plug
0K63-01084-0000
0017-00101-1702
Crank Ar m, LT
0K63-01209-0002
Left Pedal
AK63-00124-0002
Left Strap
0K63-01238-0002
12
Page 13
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13
l
Right Side Shroud and Crankarm
Right Peda
AK63-00124-0001
Right Strap
0K63-01238-0001
Crank Arm Screws(3)
0017-00101-1702
CBK100000 and up
Right Side Shroud
AK63-00137-0000
Crank Arm, RT
0K63-01209-0001
Decal
0K63-01251-0000
Right Sid e
Shroud Screws(8)
0017-00101-0991
13
Decal
0K63-01251-0000
Page 14
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

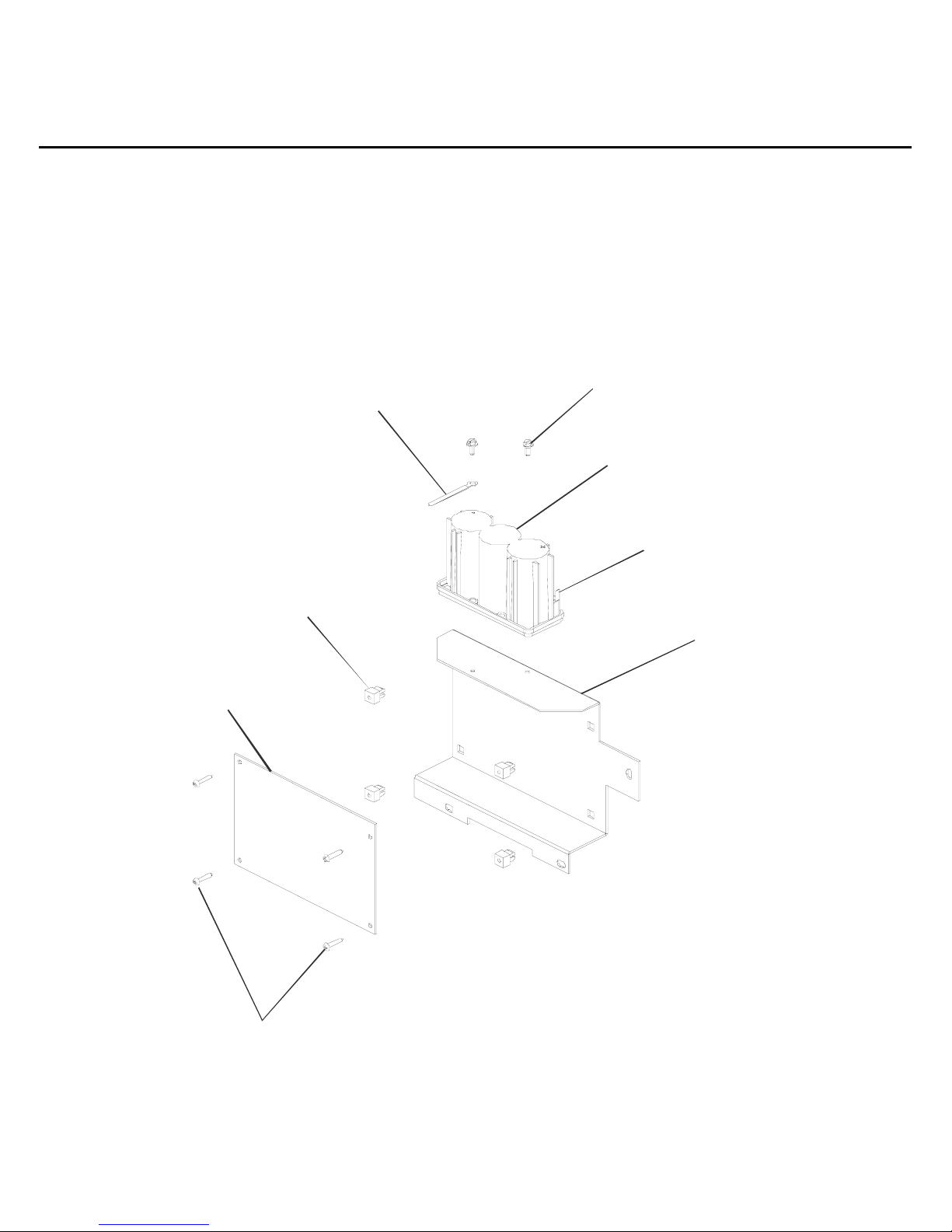

P.C.B. Mounting Bracket Assembly –
AK63-00049-0000
Cable-Insulated Clamp
0017-00009-0915
Plastic Grommet(4)
0017-00042-0821
PCB Circuit Boa rd
B084-92218-C000
CBK100000 and up
Batte ry Screw s(2 )
0017-00101-0975
Batte ry - 6V
0017-00003-0685
Positive
Terminal
Battery Mounting
Bracket
0K63-01211-0000
Pan S cr ews ( 4 )
0017-00101-0863
14
Page 15
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

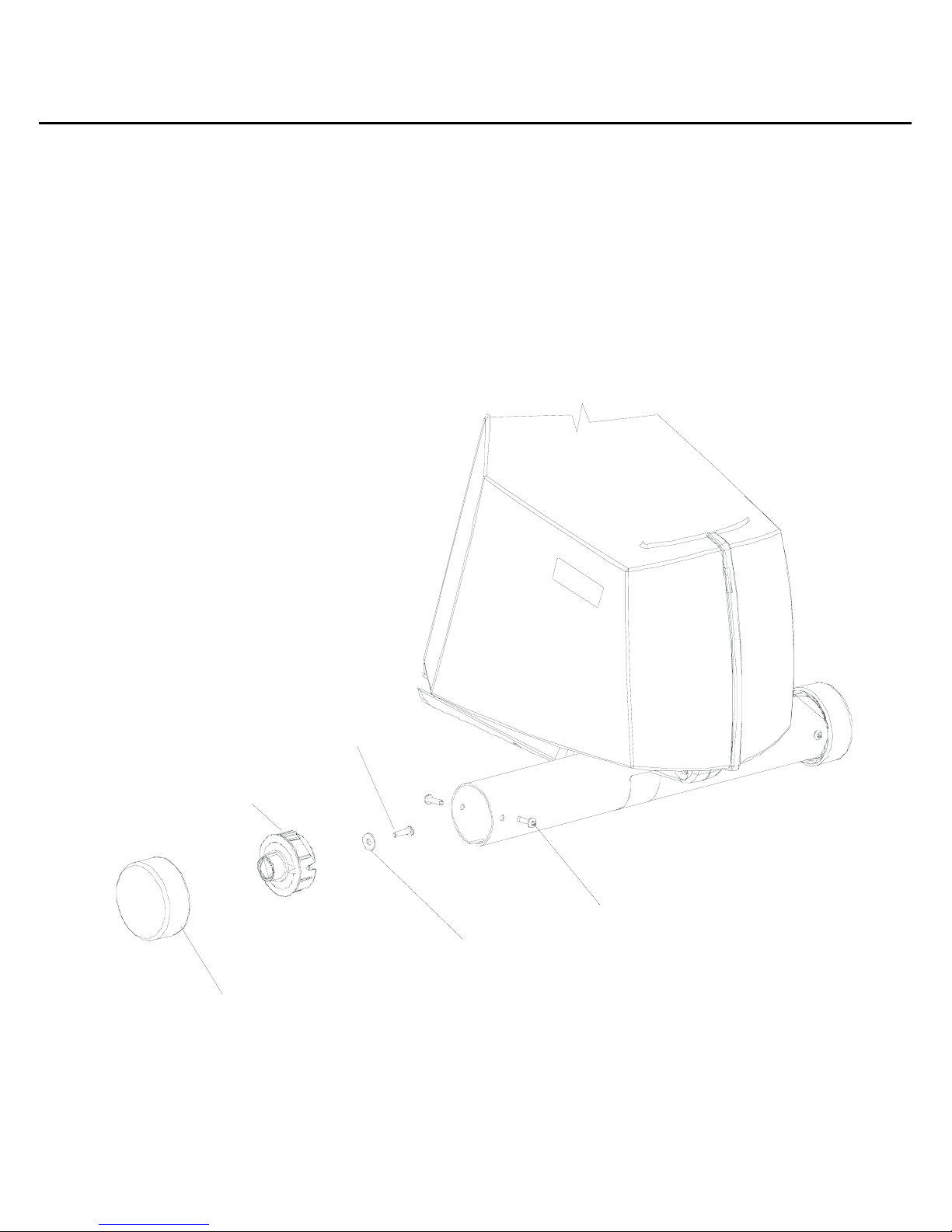

Front Wheels – AK63-00017-00000
CBK100000 and up
*Wheel Screw
*Wheel Insert
*Flat Washer
*Wheel/Bearing Assembly
Note: AK63-00017-0000 Assembly includes all parts shown.
15
Items with asterisks (*) cannot be purchased separately.
Pan Screw(2)
0017-00101-1611
Page 16
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

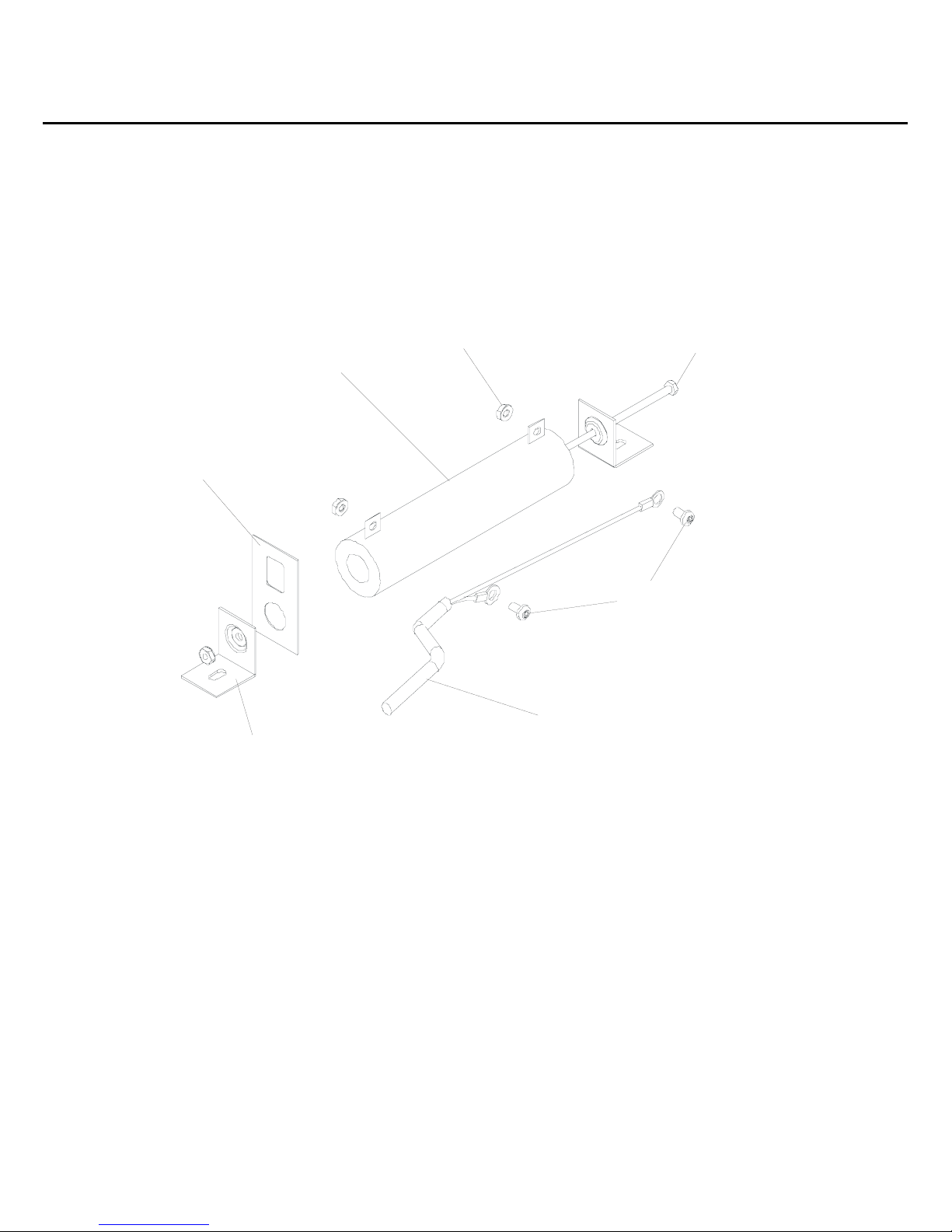

Resistor Assembly
Resistor
.5 OHM 240 Watt
100E -00002-0084
Retainer
0K63-01215-0000
Nut(3)
0017-00103-0081
CBK100000 and up
Resistor Mounting Rod
0K63-01166-0000
Resistor Bracket(2)
0K63-01165-0000
TORX Screw(20)
0017-00101-1282
*Power Control
Cable Assembly
16
Page 17
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13
0

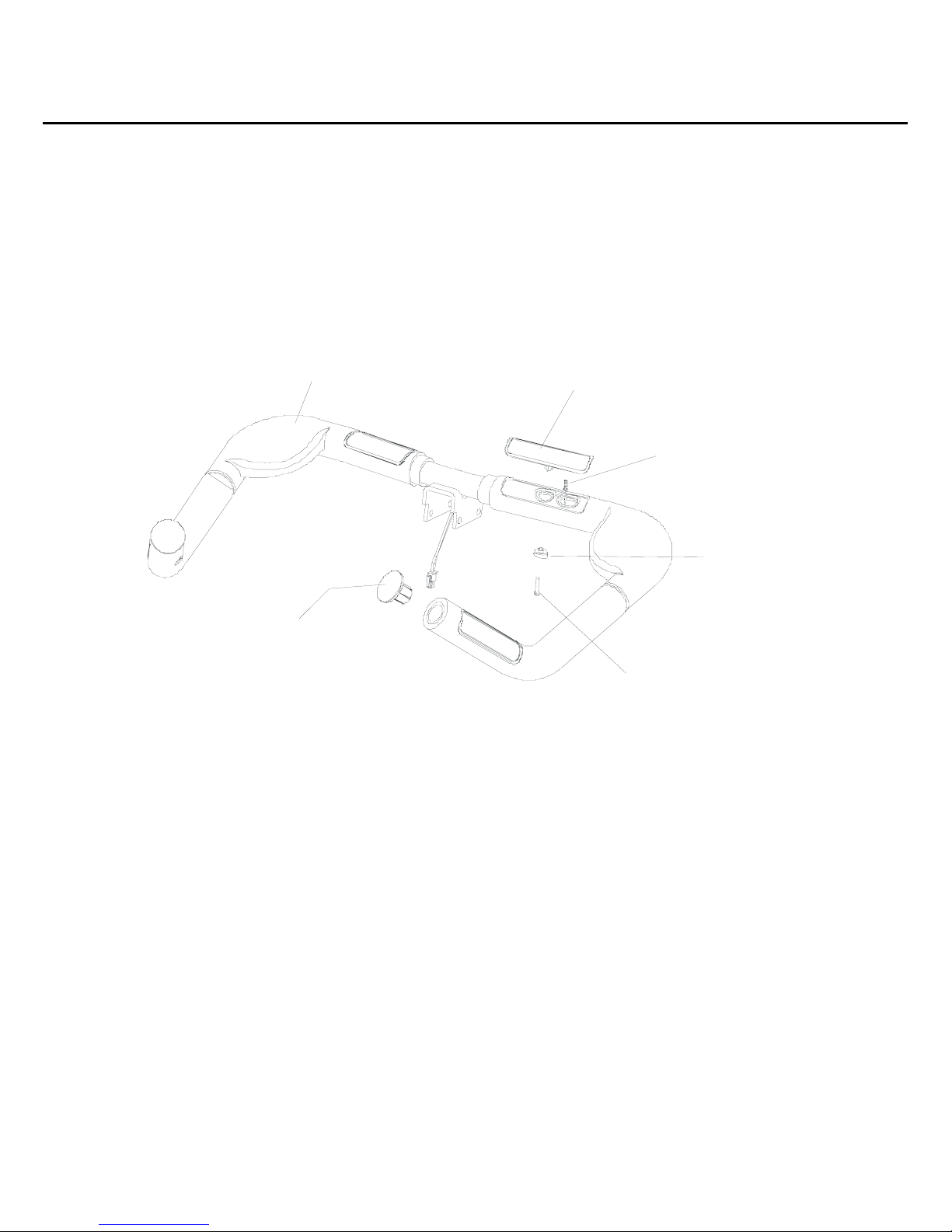

Handlebar Assembly – AK63-00091-0000
Molder Grip
Handlebar
AK63-00083-0000
CBK100000 and up
Electrode
Molded Insert(4)
AK63-00014-0001
*Electrode Cable
Assembly
Handlebar
End Cap(2)
0K63-01114-0000
Note: AK63-00091-0000 Assembly includes all parts shown.
Insulated Plug(4 )
0K63-01167-000
Phillips Screw(4)
0017-00101-172 0
17
Page 18
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

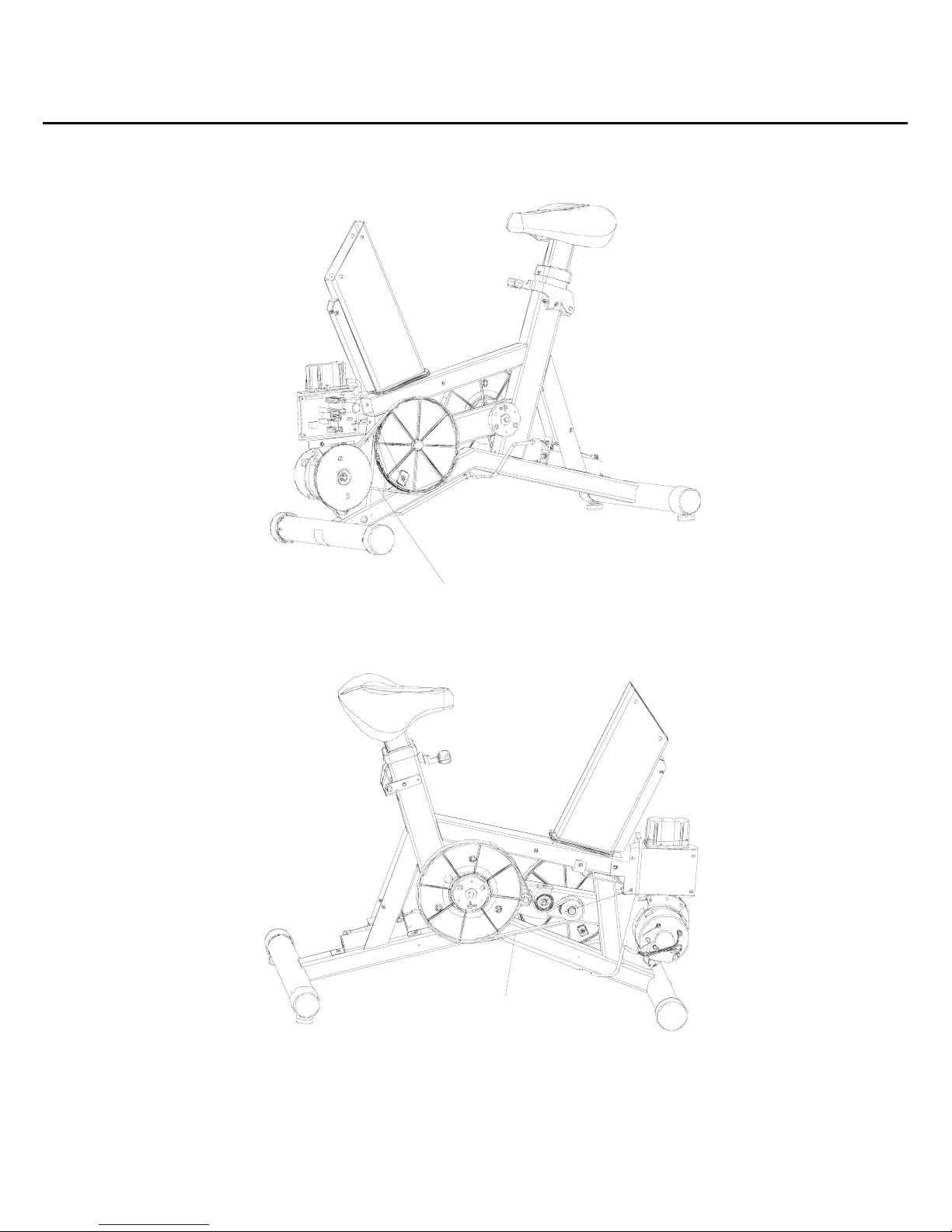

Belts
CBK100000 and up
Al t erna t or Bel t
0K63-01065-0000
Intermediate Belt
0K63-01066-0001
18
Page 19
LifeCycle LC9500XXL LC95-0000-13, LC95-0601-13

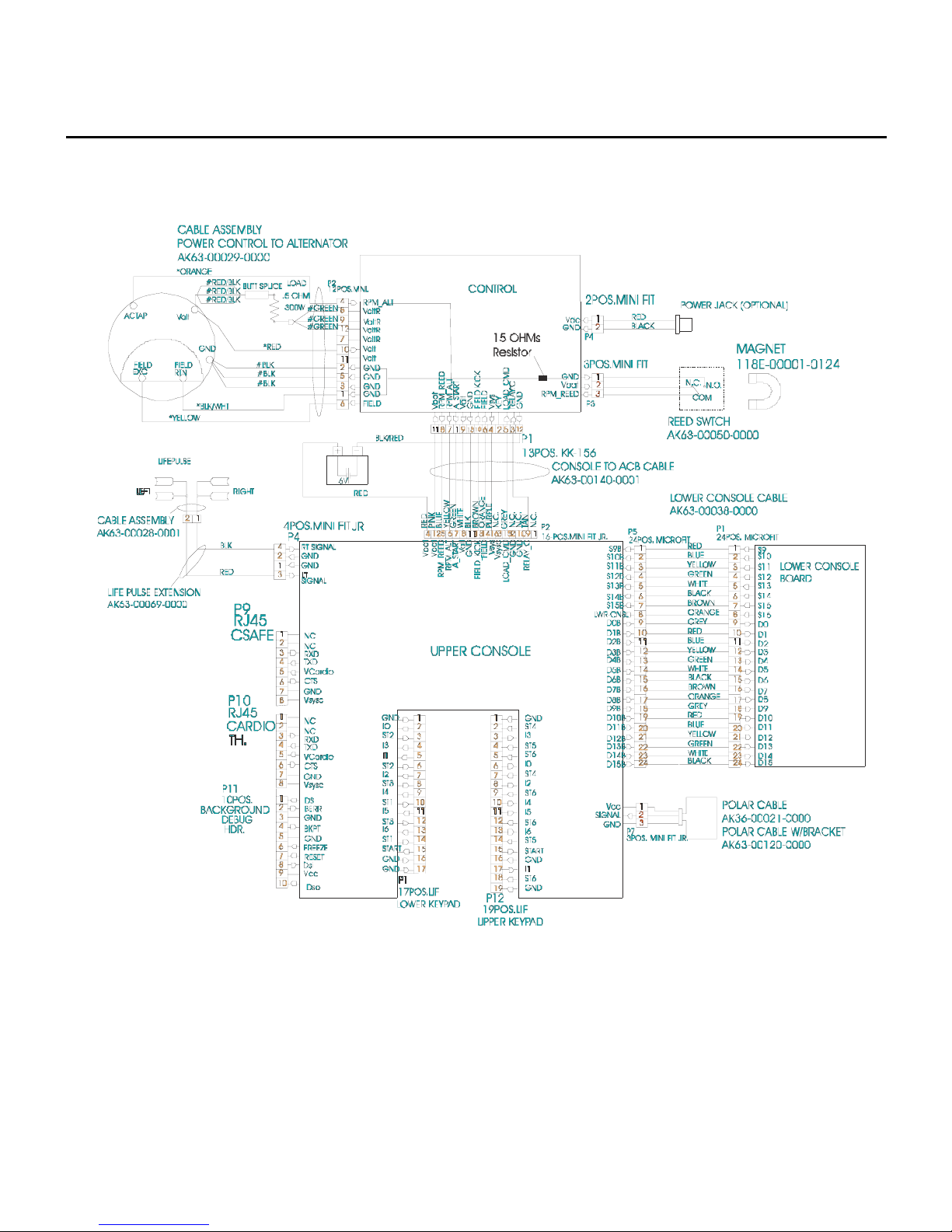

Cables
CBK100000 and up
19
