Page 1

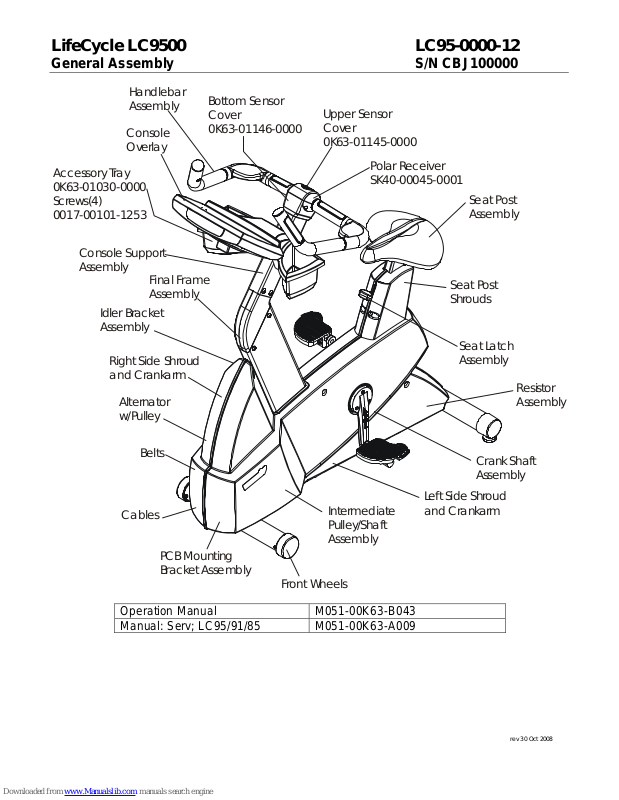

LifeCycle LC9500 LC95-0000-12

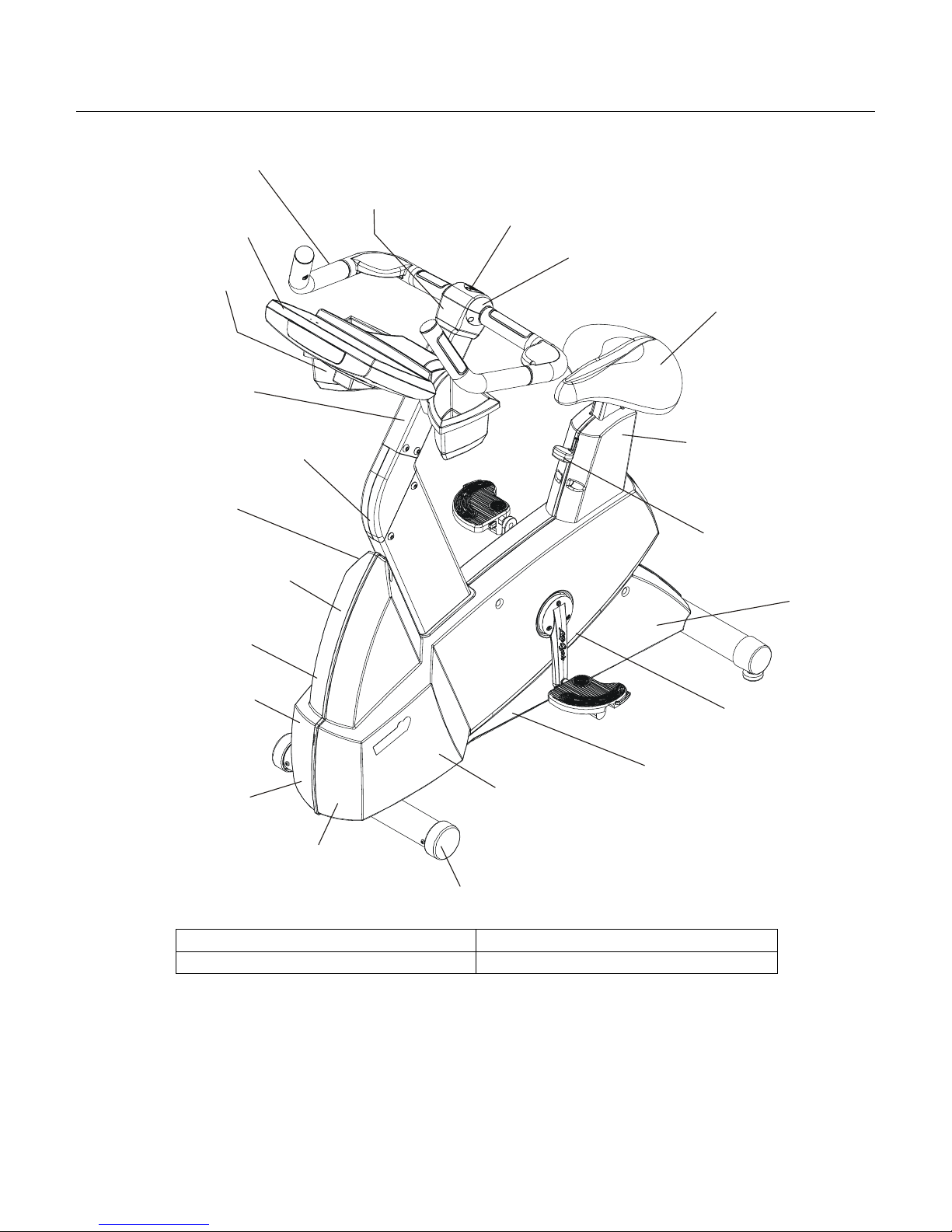

General Assembly S/N CBJ100000
Handlebar
Assembly
Console
Overlay
Bottom Sensor
Cover
0K63-01146-0000
Upper Sensor
Cover
0K63-01145-0000
Accessory Tray
0K63-01030-0000
Screws(4)
0017-00101-1253
Console Support
Assembly
Idler Bra cket
Assembly
Right Side Shroud
and Cra nkarm
Alternator
w/Pulley
Final Frame
Assembly
Belts
Polar Receiver
SK40-00045-0001
Seat Post
Assembly
Seat Post
Shrouds
Seat Latch
Assembly
Resistor
Assembly
Crank Shaft
Assembly
Left Side Shroud
Cables
Intermediate
and Crankarm
Pulley/Shaft
Assembly
PCB Mounting
Bracket Assembly
Front Wheels
Operation Manual M051-00K63-B043
Manual: Serv; LC95/91/85 M051-00K63-A009
rev 30 Oct 2008
Page 2
LifeCycle LC9500 LC95-0000-12

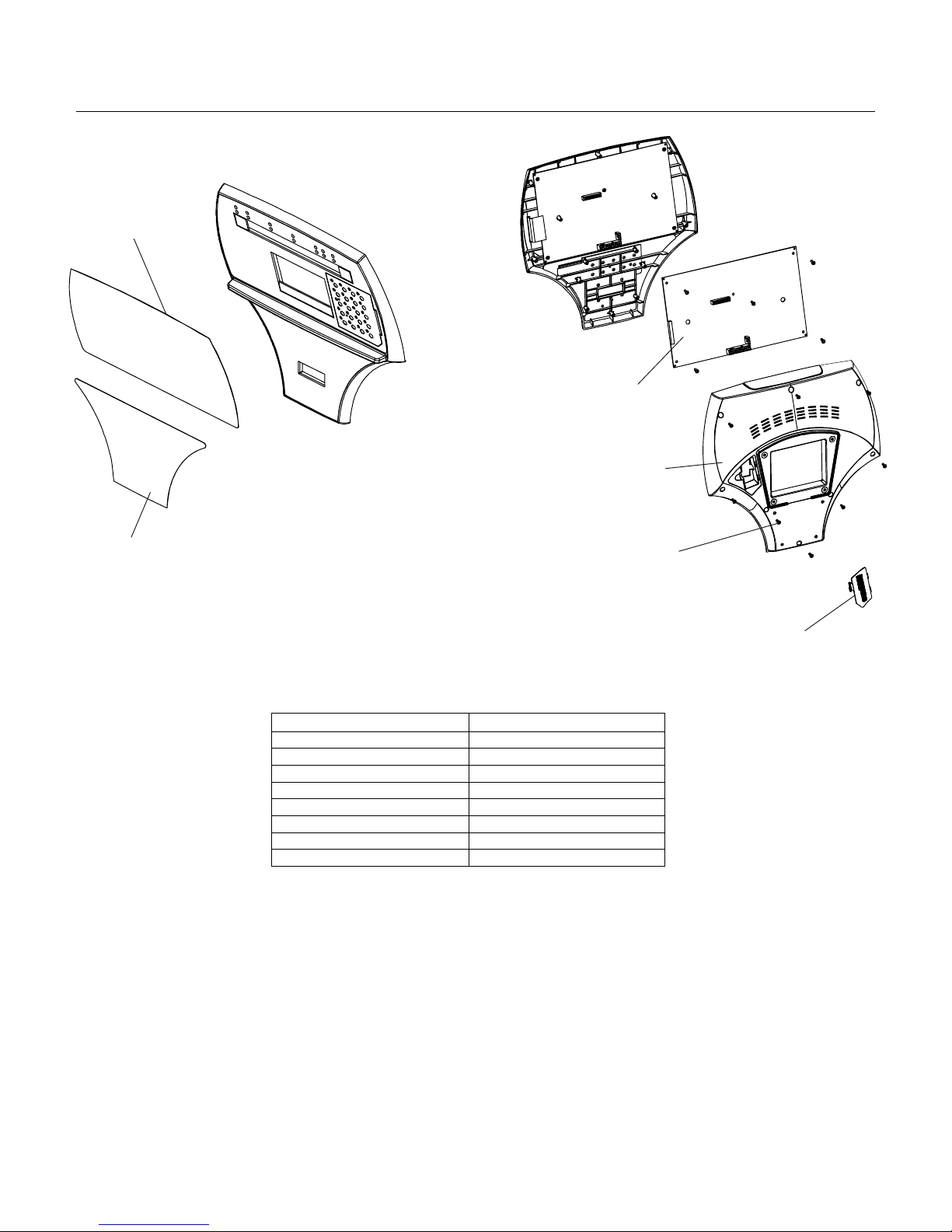

Console Overlay Bezel Assembly S/N CBJ100000
Upper O verlay
Console Board - Upper
A084-92219-A001
Console Case Assembly
AK63-00121 -0000
Lower Overlay
Phillips Pan Screws(13)
9917-00101-1650
Battery Door
0K63-01029-0000
Console Assembly Overlay Bezel
AK63-00070-0001 Eng Met AK63-00063-0001 Eng Met
AK63-00070-0003 Ger Met AK63-00063-0003 Ger Met
AK63-00070-0004 Spn Met AK63-00063-0004 Spn Met
AK63-00070-0006 Jap Met AK63-00063-0006 Jap Met
AK63-00070-0007 Frn Met AK63-00063-0007 Frn Met
AK63-00070-0008 Itl Met AK63-00063-0008 Itl Met
AK63-00070-0009 Itl Met AK63-00063-0009 Itl Met
AK63-00070-0010 Por Met AK63-00063-0010 Por Met
2
Page 3
LifeCycle LC9500 LC95-0000-12

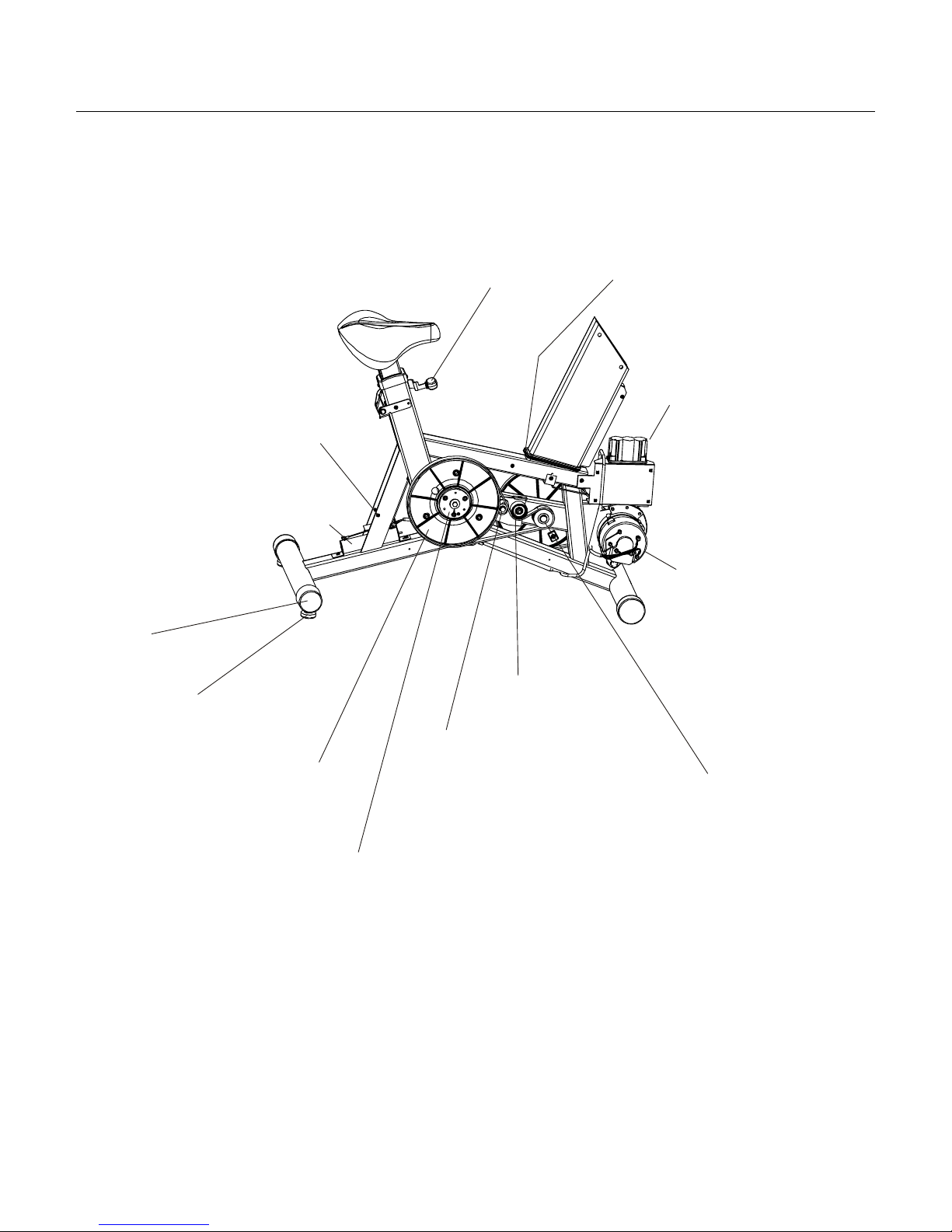

Final Frame Assembly S/N CBJ100000
Resistor Assy
AK63-00047-0001

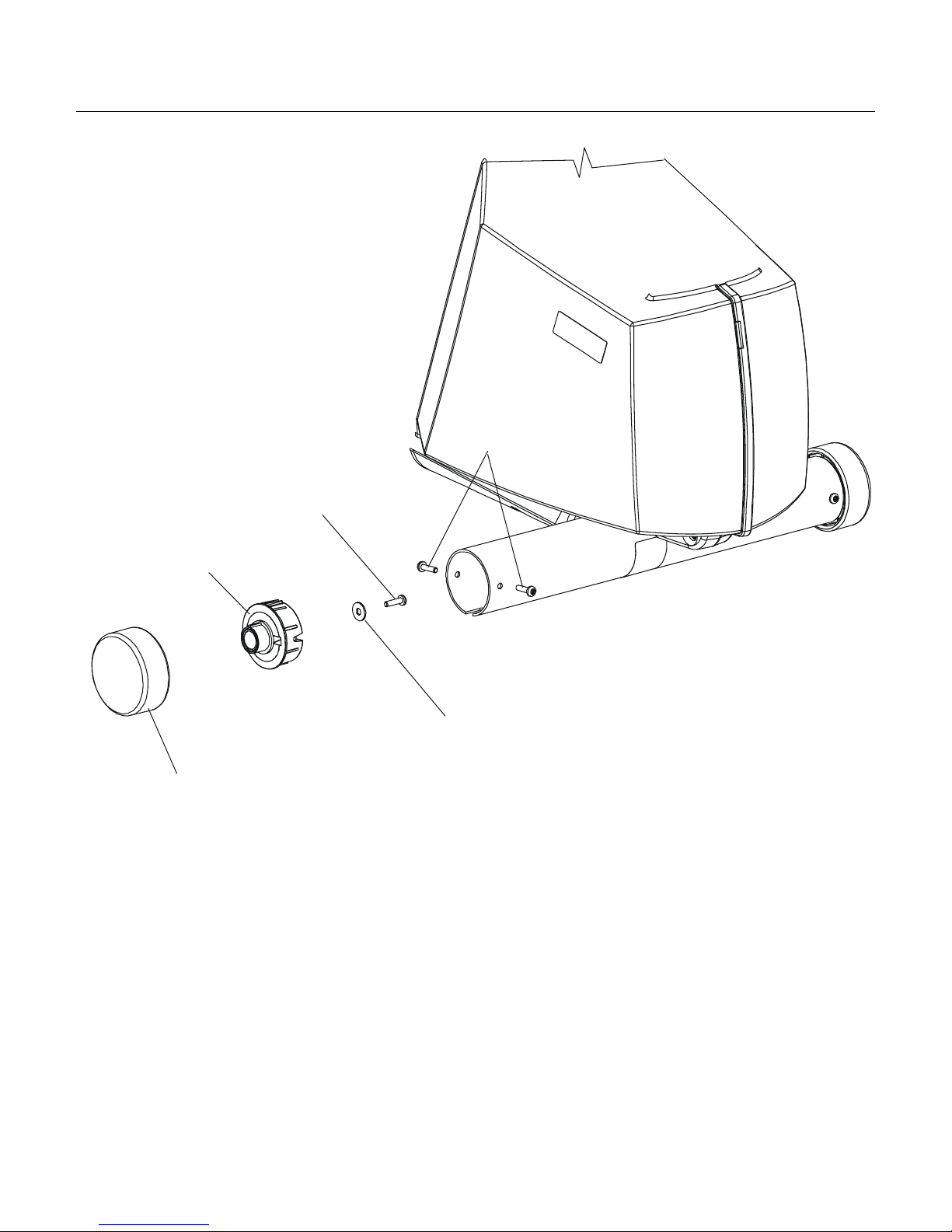

End Cap
0K63-01219-0000
Leveler
Ak61-00035-0000
Crank Pulley Assy
AK63-00051-0000
Grommet
0017-00042-1134
Seat Latch Assy
AK63-00043-0000
Idler Pulley Assy
AK63-00021-0000
5/16 x 18 x 12 HXW Bolt
0017-00101-1183
Frame Gasket
0K63-01007-0001
Power Control Board
and Battery Assembly
AK63-00049-0000
Alternator w/Pulley
AK63-00093-0000
Clutch Assembly
AK63-00026-0000
Crank Disc
0K63-01095-0001
3
Page 4
LifeCycle LC9500 LC95-0000-12
A
A
4

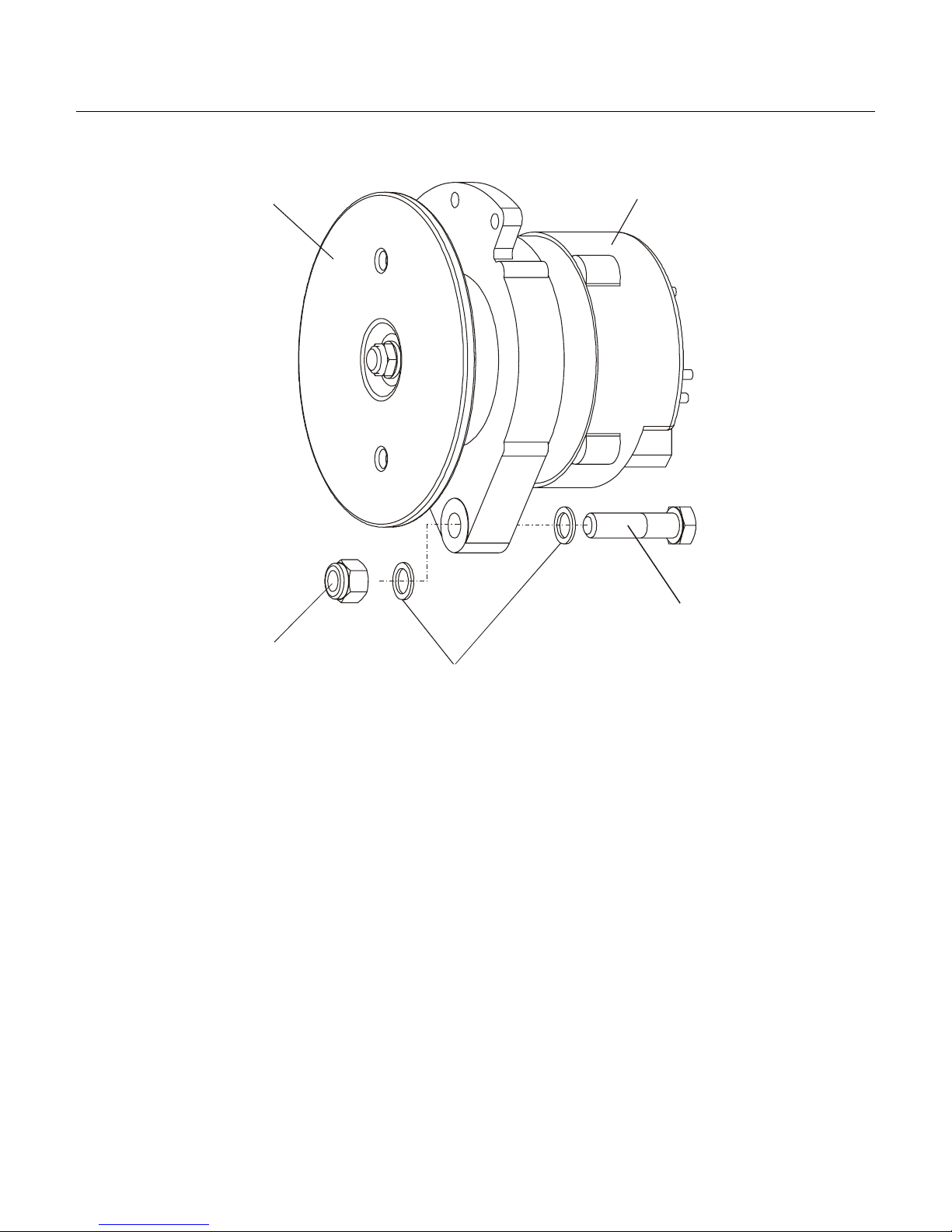

Alternator w/Pulley - AK63-00093-0000 S/N CBJ100000
lternator Pulley
0K61-02500-0001
Locking Nu t
0017-00103- 0117
lternator
0017-00009- 0841
Bolt
0017-00101-0956
Washer
0017-00104- 004
4
Page 5
Lif LifeCycle LC9500 LC95-0000-12
9
1

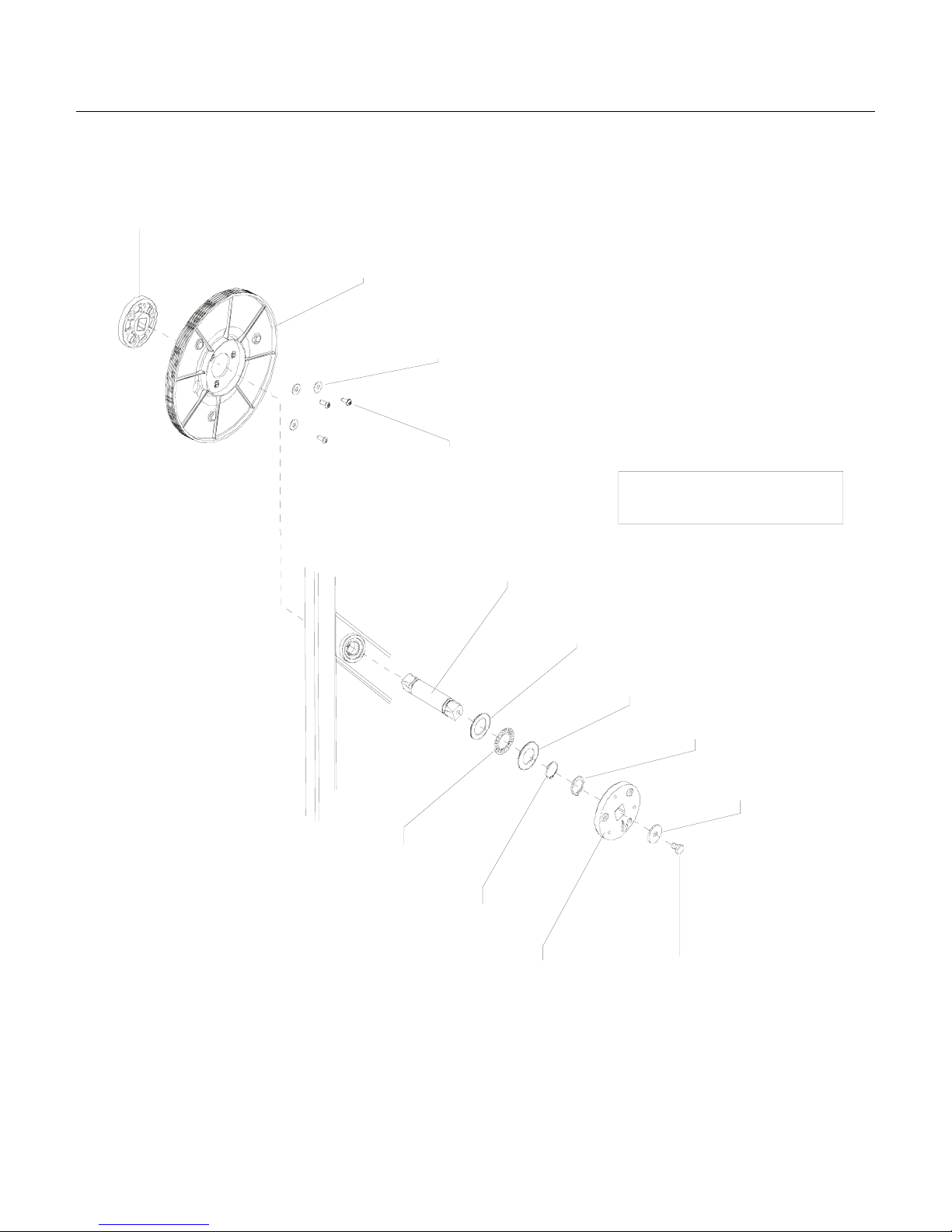

Crank Shaft & Bearing Assembly S/N CBJ100000
Crank Arm Hub
0K63-01095-0001
Pulley Assembly
AK63-00051-0000
Pulley
0K63-01018-0000
Wa shers (3)
0017-00104-0458
Flyw heel S crews (3 )
0017-00101-1715
*Crankshaft & Be ar ing Ki t
GK 63-00002-0077
*Crankshaft
0K63-01012-0001
*Small Thrust Washer (2)
0K63-01129-0000
*Needle Bearing (2)
0K63-01344-0000
*Small Snap Ring (2)
0017-00100-0241
Crank Arm Hub (2)
0K63-01095-000
*Large Thrust Washer (2)
0K63-01129-0001
*Bowed Retainer Ring (2 )
0017-00100-0243
Wa sher (2)
0017-00104-040
Bolt (2)
0017-00101-1705
5
Page 6
LifeCycle LC9500 LC95-0000-12

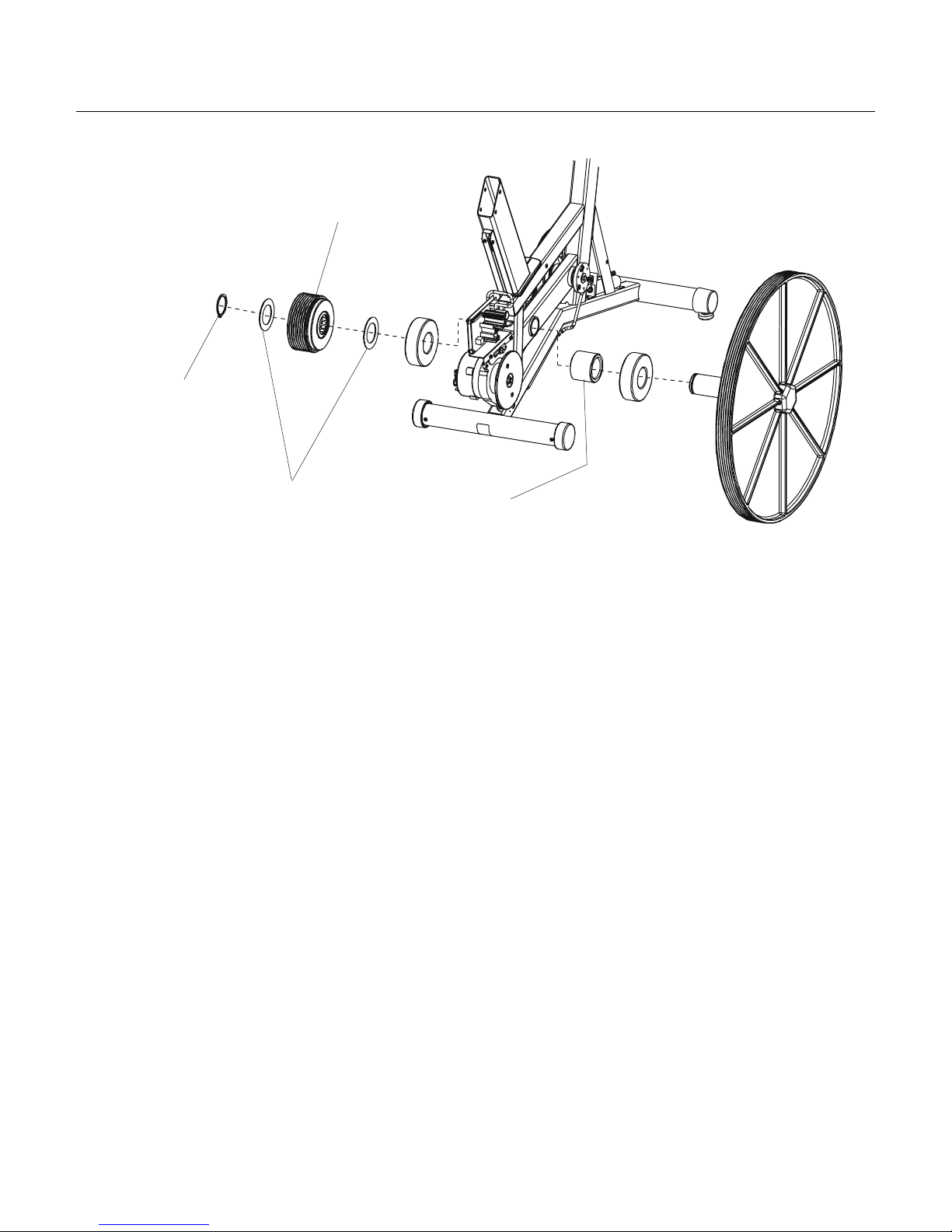

Intermediate Shaft & Bearing Assembly – GK63-00002-0007 S/N CBJ100000
Clutch Assembly
AK63-00026-0000
Retaini ng Ring
0017-00100-0242
DELRIN Washers
0017-00104-0455
Spacer
6
Page 7
LifeCycle LC9500 LC95-0000-12

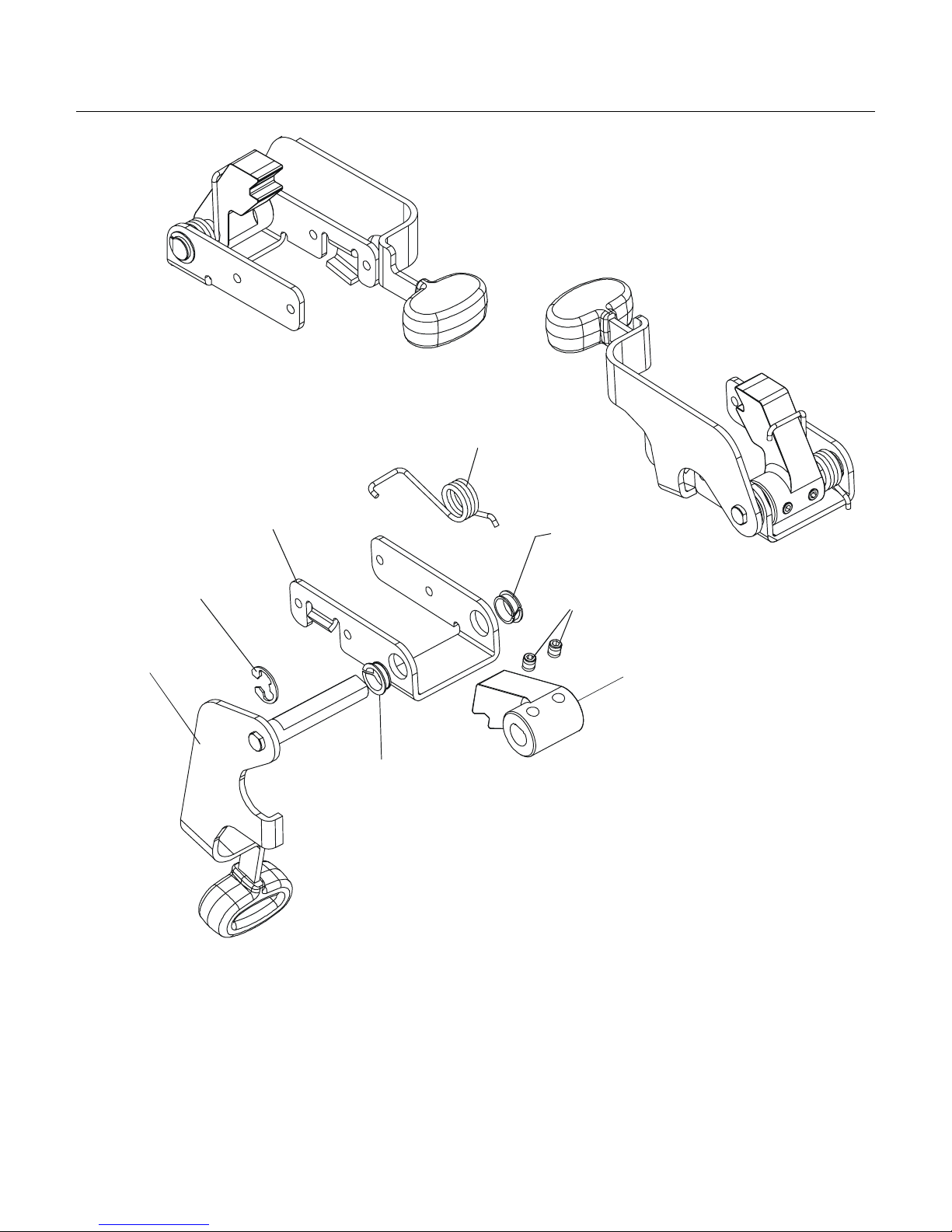

Seat Latch Assembly - AK63-00043-0000 S/N CBJ100000
Latch Spring
0K63-01117-000
Latch Bracket
0K63-01064-0000
NYLINER
0017-00042-1129
E-Ring
0017-00100-0050
Link Shaft
AK63-00113-0000
Set Screws (2)
0017-00101-0333
Latch Rack
0K63-01061-0000
NYLINER
0017-00042-1129
7
Page 8
LifeCycle LC9500 LC95-0000-12

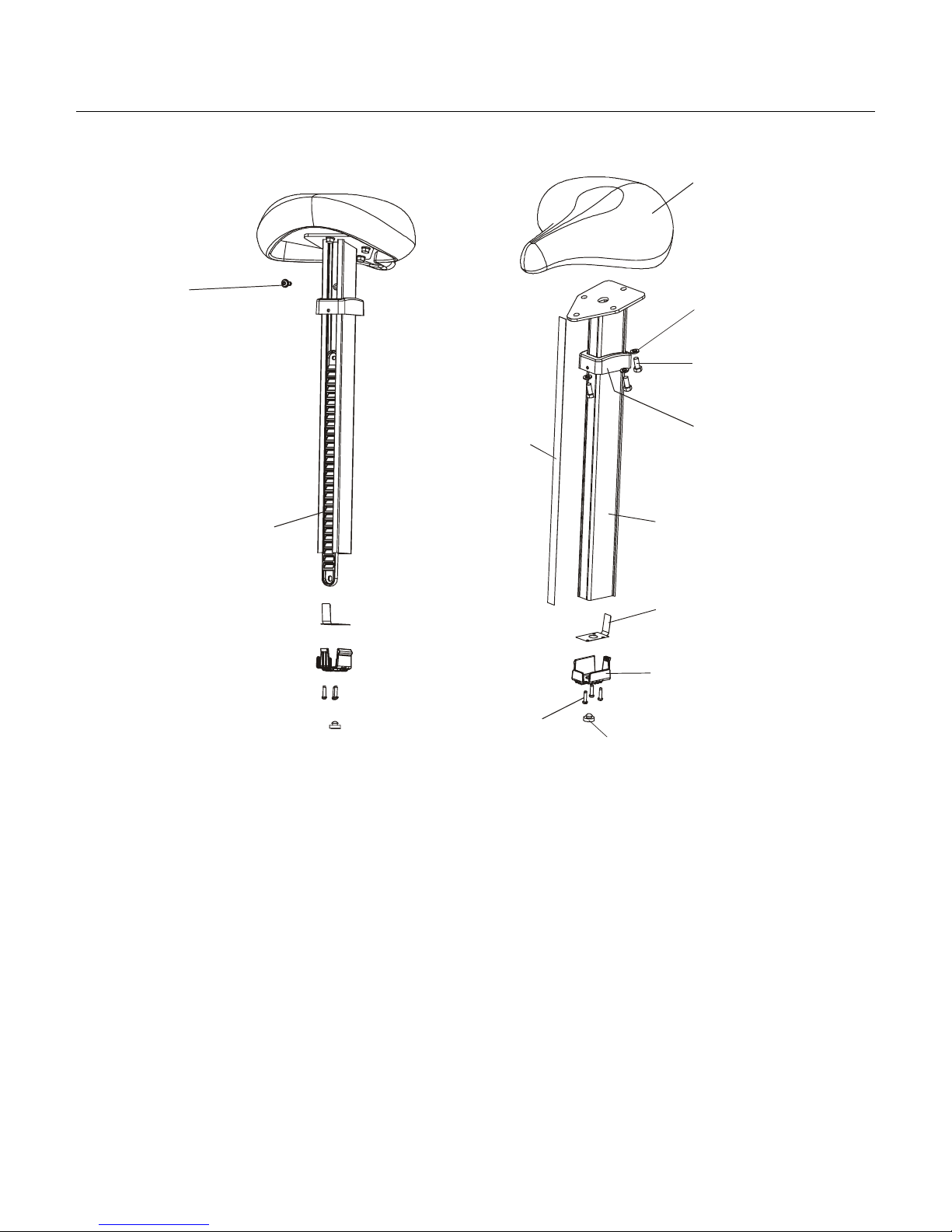

Seat Post Assembly - AK63-00232-0000 S/N CBJ100000
Seat-Deluxe
AK63-00229-0001
Screw
0017-00101 -1623
Seat Adjustment Rack
0K63-01049-0000
Seat Post Decal
0K63-01151-0000
Pa n S cre ws (3 )
0017-00101 -1614
Lock Wa s he r ( 4)
0017-00104 -0064
Hex Bolt(4)
0017-00101 -1121
Extrusion
Guide Cap
0K63-01044-0000
Seat Post Assembly
AK63-00099-000 1
Spring Support Bracket
0K63-01210-0000
Guide Base
0K63-01045-0000
Polylastomer Bump er
0017-00042 -1131
8
Page 9
LifeCycle LC9500 LC95-0000-12
2

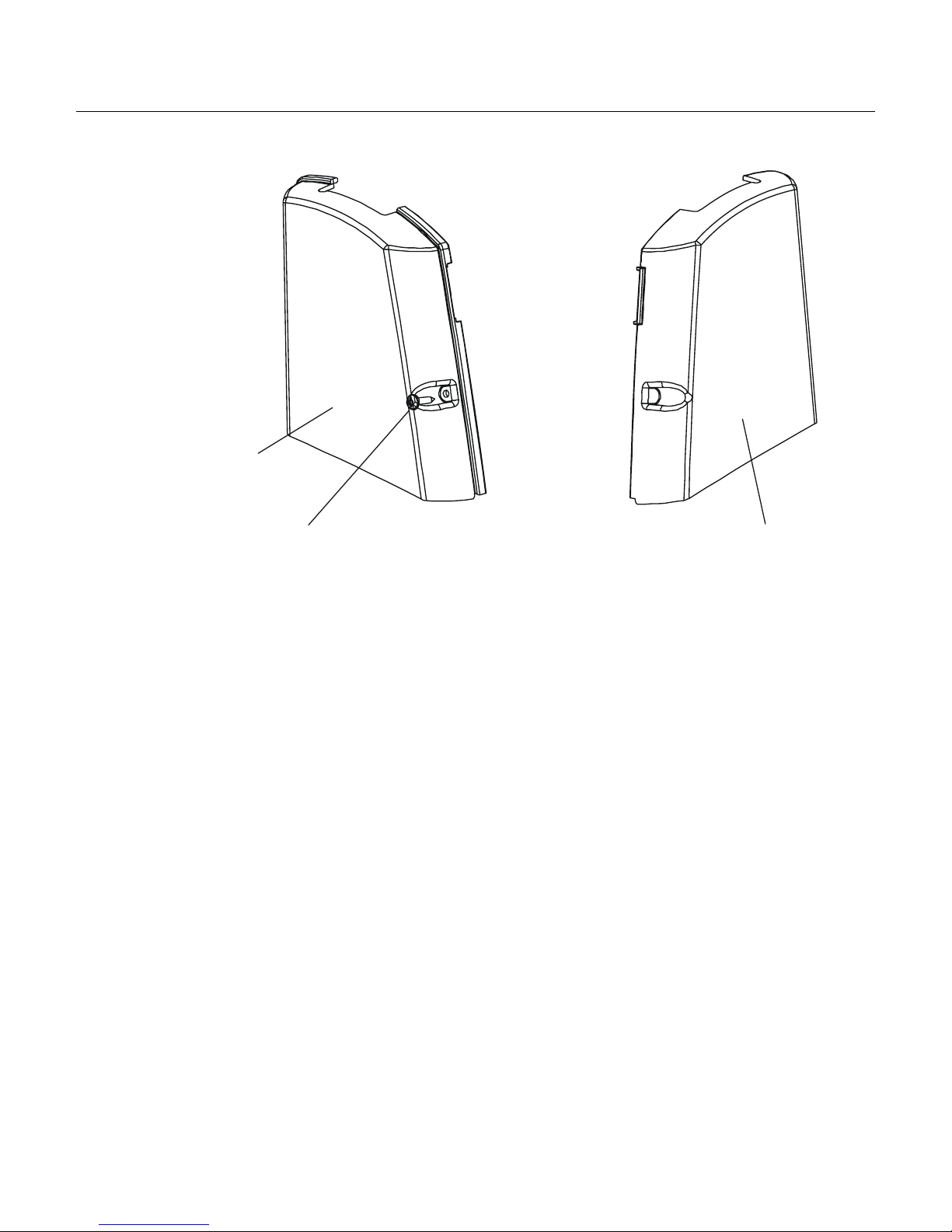

Seat Post Shrouds S/N CBJ100000
Left Se a t Pos t Shroud
0K63-01092-0001
Screw
0017-00101-0991
Right Seat Post Shroud
0K63-01092-000
9
Page 10
LifeCycle LC9500 LC95-0000-12

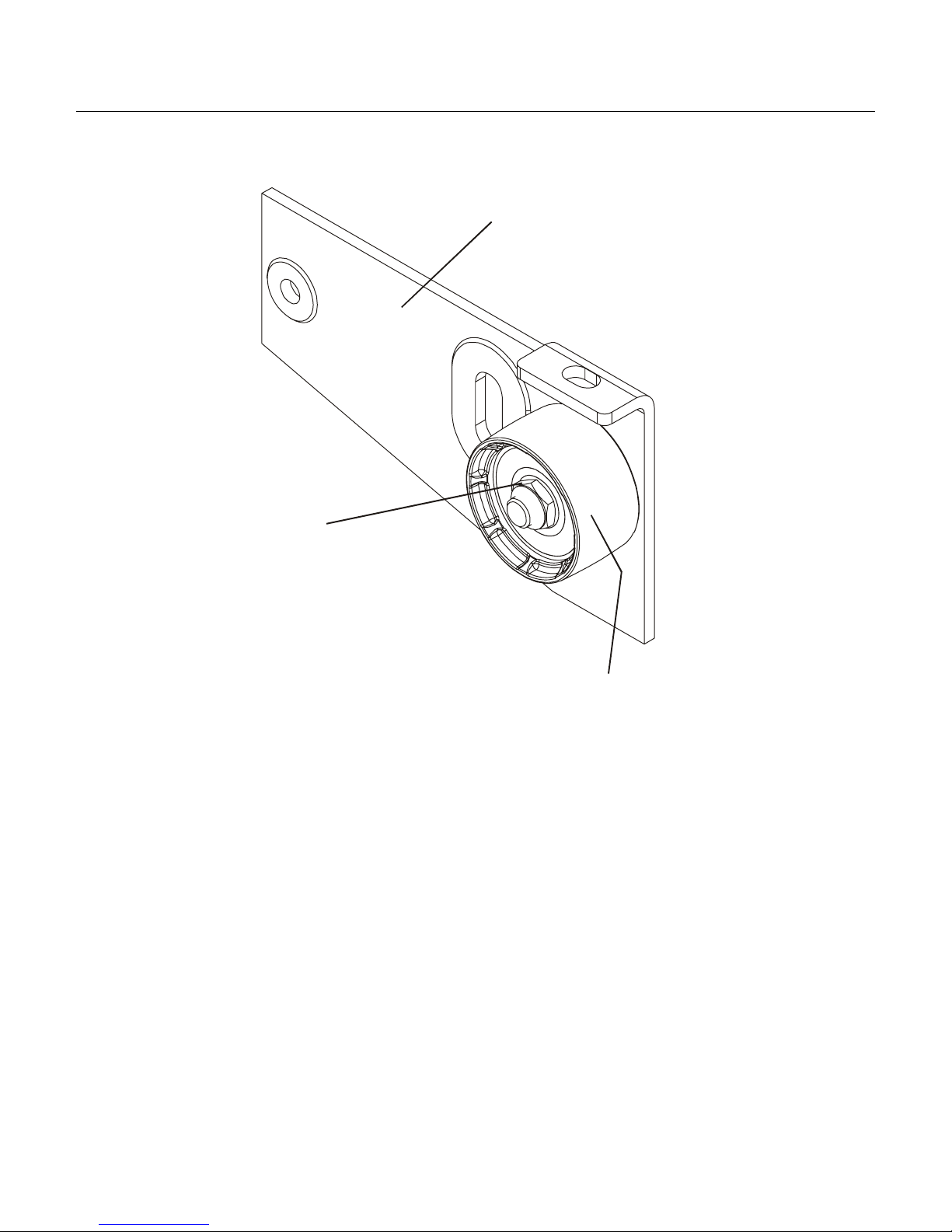

Idler Bracket Assembly - AK63-00021-0000 S/N CBJ100000
Idler Bracket
0K63-01050-0000
Lock Nut
0017-00103-0218
Idle r Bearing
AK63-00008-0000
10
Page 11
LifeCycle LC9500 LC95-0000-12

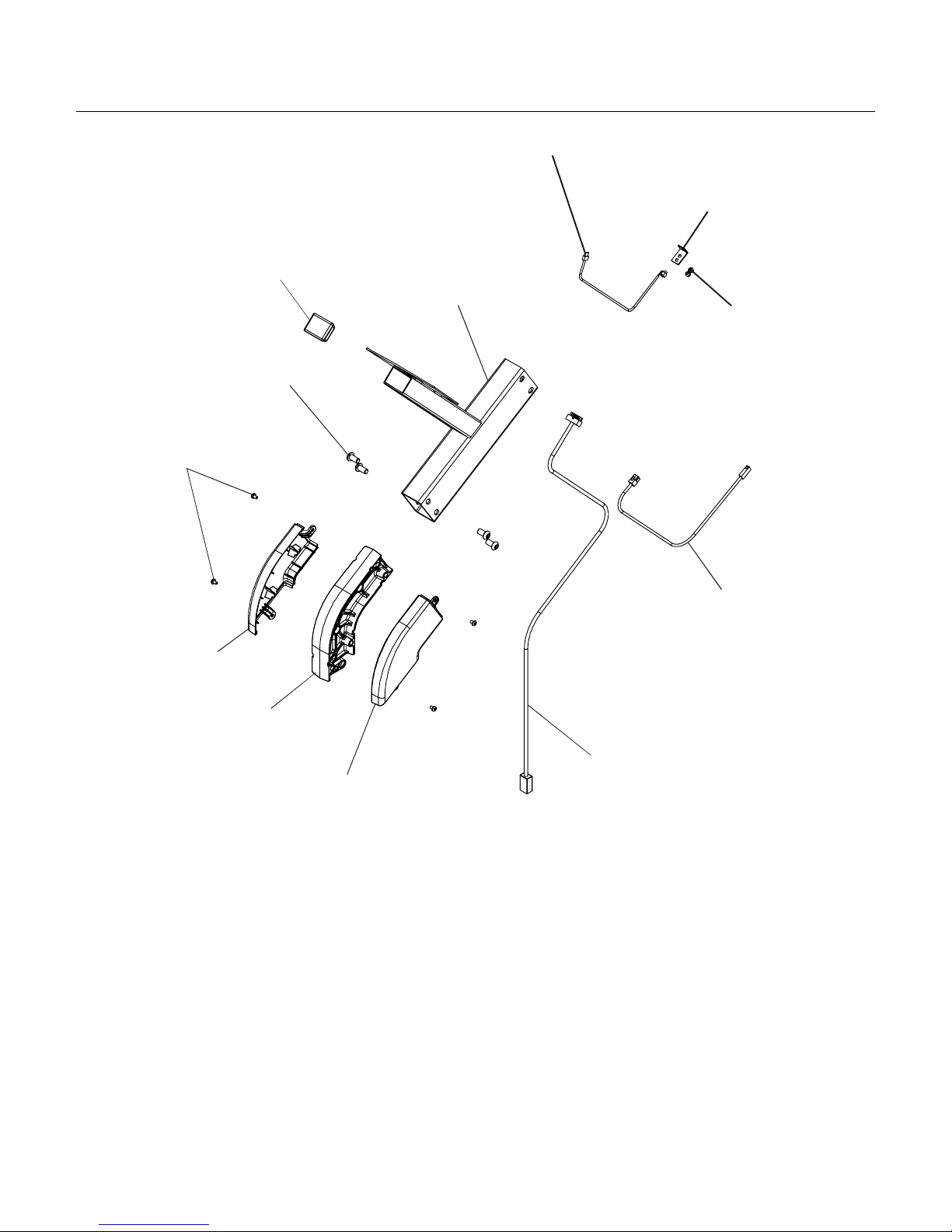

Console Support Assembly - AK63-00065-0000 S/N CBJ100000
Cable Assy: Jack/Hr
Pol ar B r ac k et
0K63-01113-0000
End Cap
0017-00042-1132
Support Screws (4)
0017-00101- 173 6
Pa n Sc re ws (4)
0017-00101-1721
Handlebar Cover-RT
0k63-01192-0001
Console Support
Weldment Assy
AK63-00089 -0000
Nut(2)
0017-00103-0318
Screws
0017-00101-1710
HR Electrode Cable
I-Beam Joint
0K63-01178-0002
Handlebar Cover-LT
0k63-01192-0002
Console Cable
11
Page 12
LifeCycle LC9500 LC95-0000-12

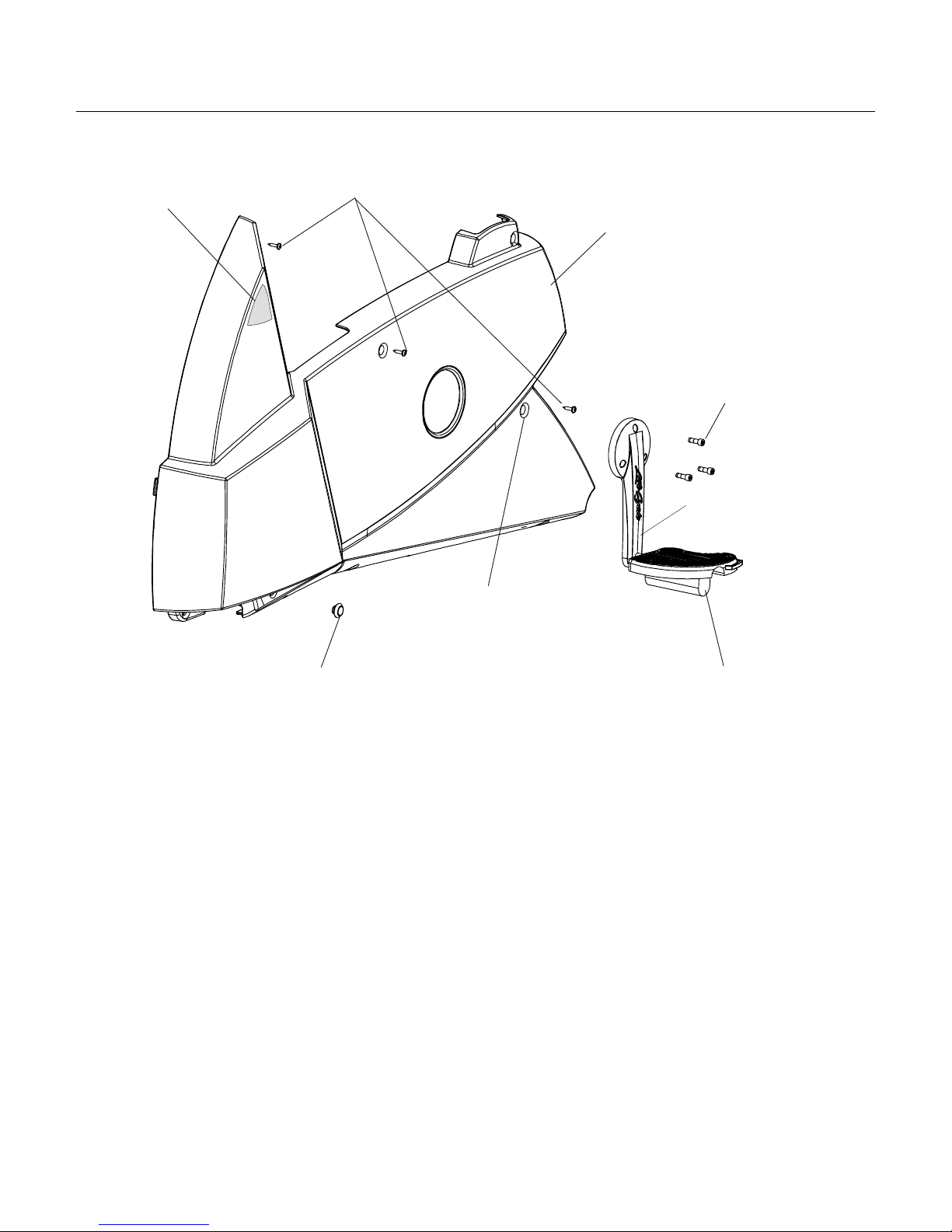

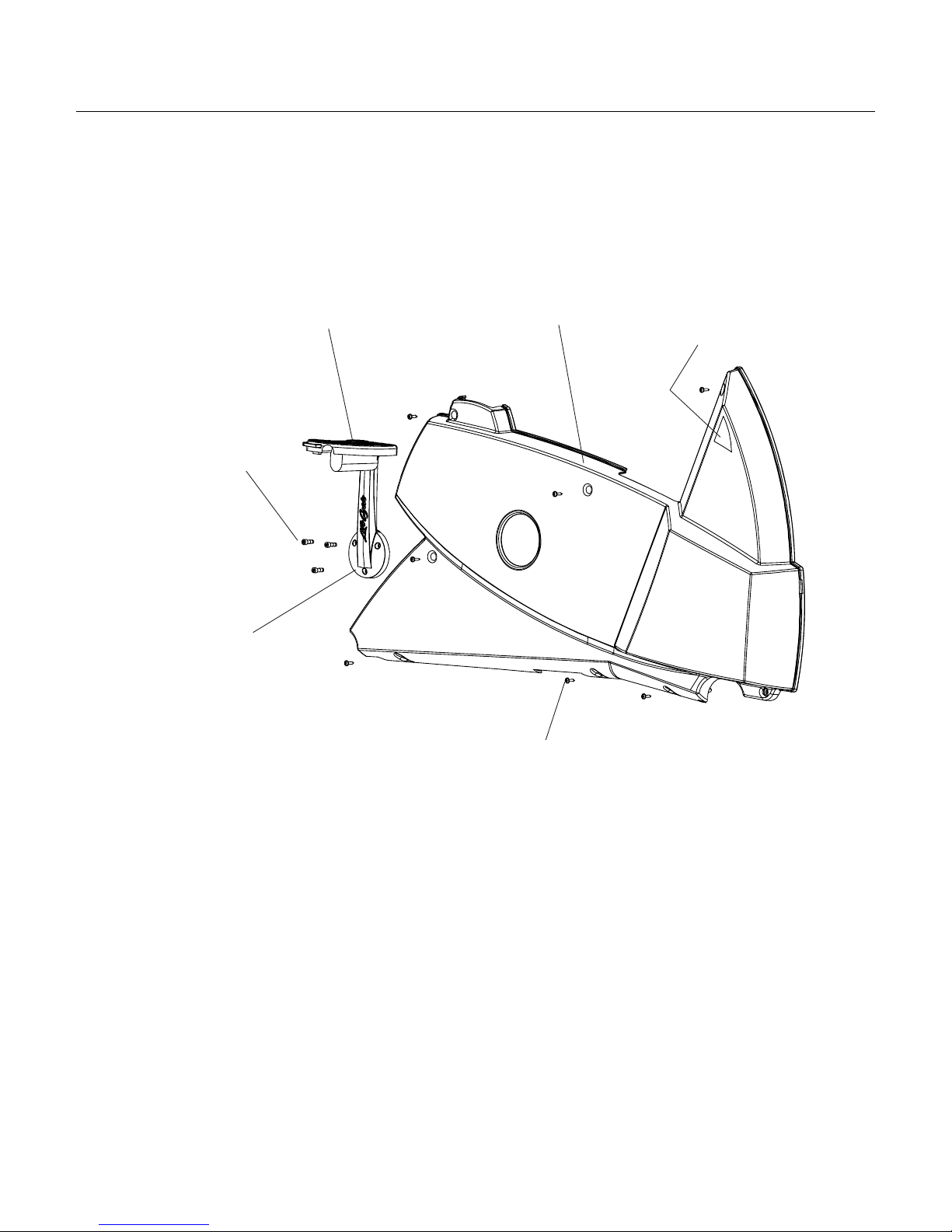

Left Side Shroud and Crankarm S/N CBJ100000
Decal
0K63-01153-0000
Shroud Screws(3)
0017-00101-0991
Left Side Shroud
AK63-00058-0002
Crank Arm Screws(3 )
0017-00101-1702
Crank Arm, LT
OK39-1042-0006
Washer(2)
0017-00104-0280
Shroud Plug
0K63-01084-0000
Left Pedal
AK63-00263-0002
Left Strap
0K63-01238-0002
12
Page 13
LifeCycle LC9500 LC95-0000-12
Right Side Shroud and Crankarm S/N CBJ100000
Right Pedal
AK63-00263-0001
Right Strap
0K63-01238-0001
Crank Arm Screws(3)
0017-00101-1702
Right Side Shroud
AK63-00058-0001
Decal
0K63-01153-0000
Crank Arm, RT
OK39-1042-0005
Right Side Shroud Screws(8)
0017-00101-0991
13
Page 14
LifeCycle LC9500 LC95-0000-12

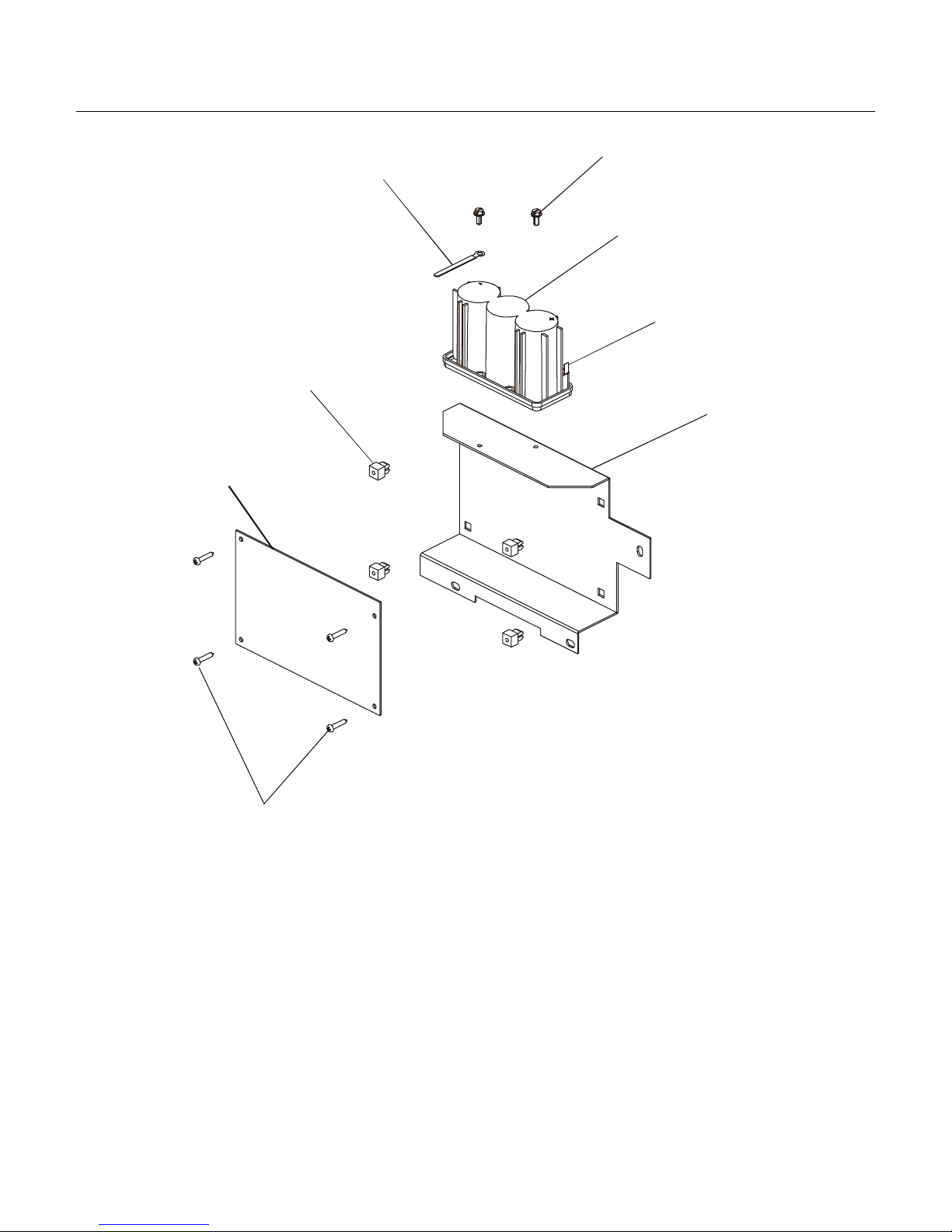

PCB Mounting Bracket Assembly – AK63-00049-0000 S/N CBJ100000
Plastic Grommet(4)
0017-00042-0821
PCB Circuit Board
B084-92218-D002
Cable-Insulated Clamp
0017-00009-0915
Battery Screws(2)
0017-00101-0975
Battery - 6V
0017-00003-0685
Positive
Terminal
Battery Mounting
Bracket
0K63-01211-0000
Pan Screws(4)
0017-00101-0823
14
Page 15
LifeCycle LC9500 LC95-0000-12
A
Front Wheels – AK63-00017-0000 S/N CBJ100000
Pa n Sc rew( 2)
0017-00101- 1611
Wheel Screw
0017-00101-1611
Wheel Insert
0K63-010 39-0000
Wheel/Bearing Assembly
K63-00016-0000
Flat Washer
0K63-01041-00 00
15
Page 16
LifeCycle LC9500 LC95-0000-12

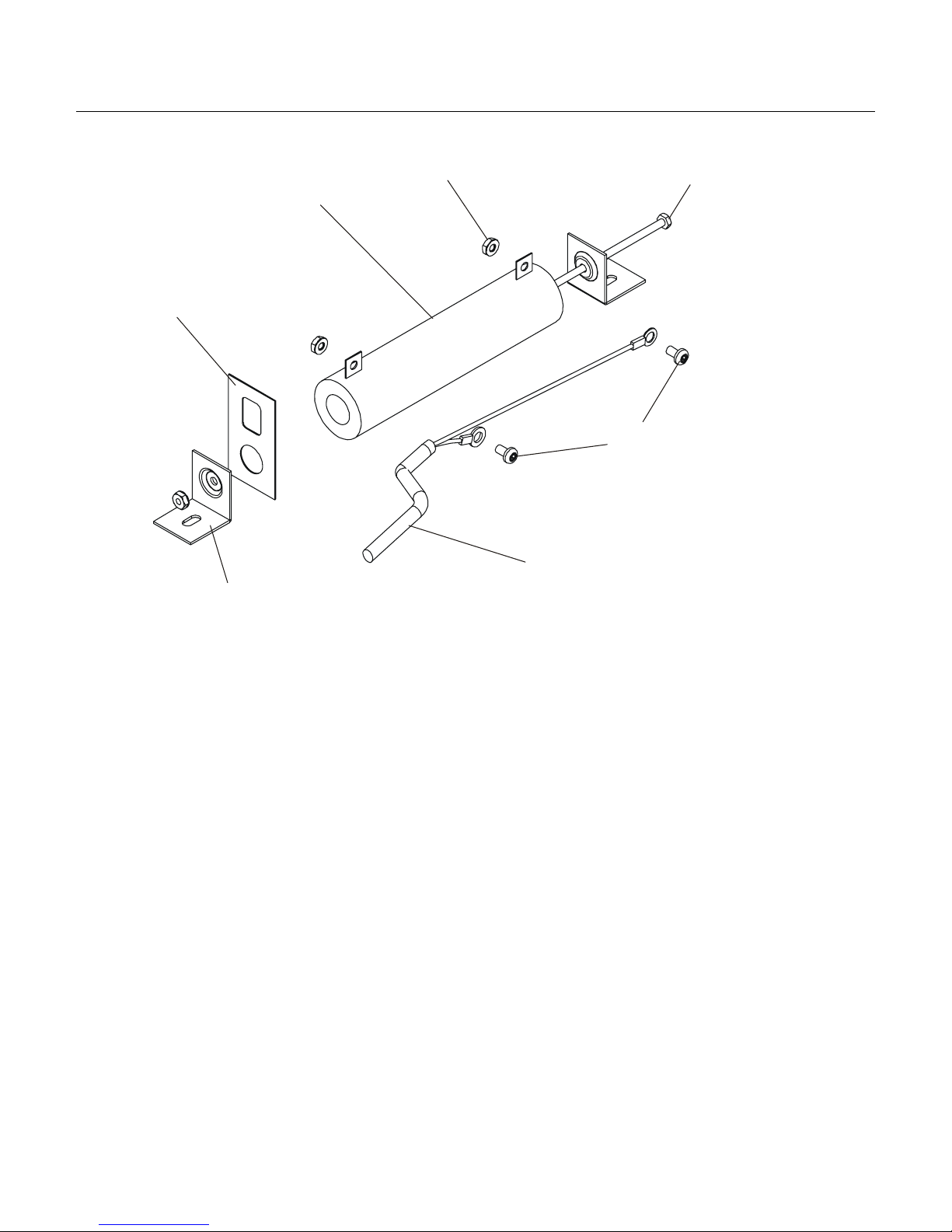

Resistor Assembly - AK63-00047-0001 S/N CBJ100000
Resistor
.5 OHM 240 Watt
100E-00002-0084
Retainer
0K63-012 15-0000
Nut(3)
0017-00103-0081
Resistor Mountin g Rod
0K63-01166-00 00
TORX Screw(20)
0017-00101-1282
Resistor Bracket(2)
0K63-011 65-0000
Power Control
Cable Assembly
16
Page 17
LifeCycle LC9500 LC95-0000-12

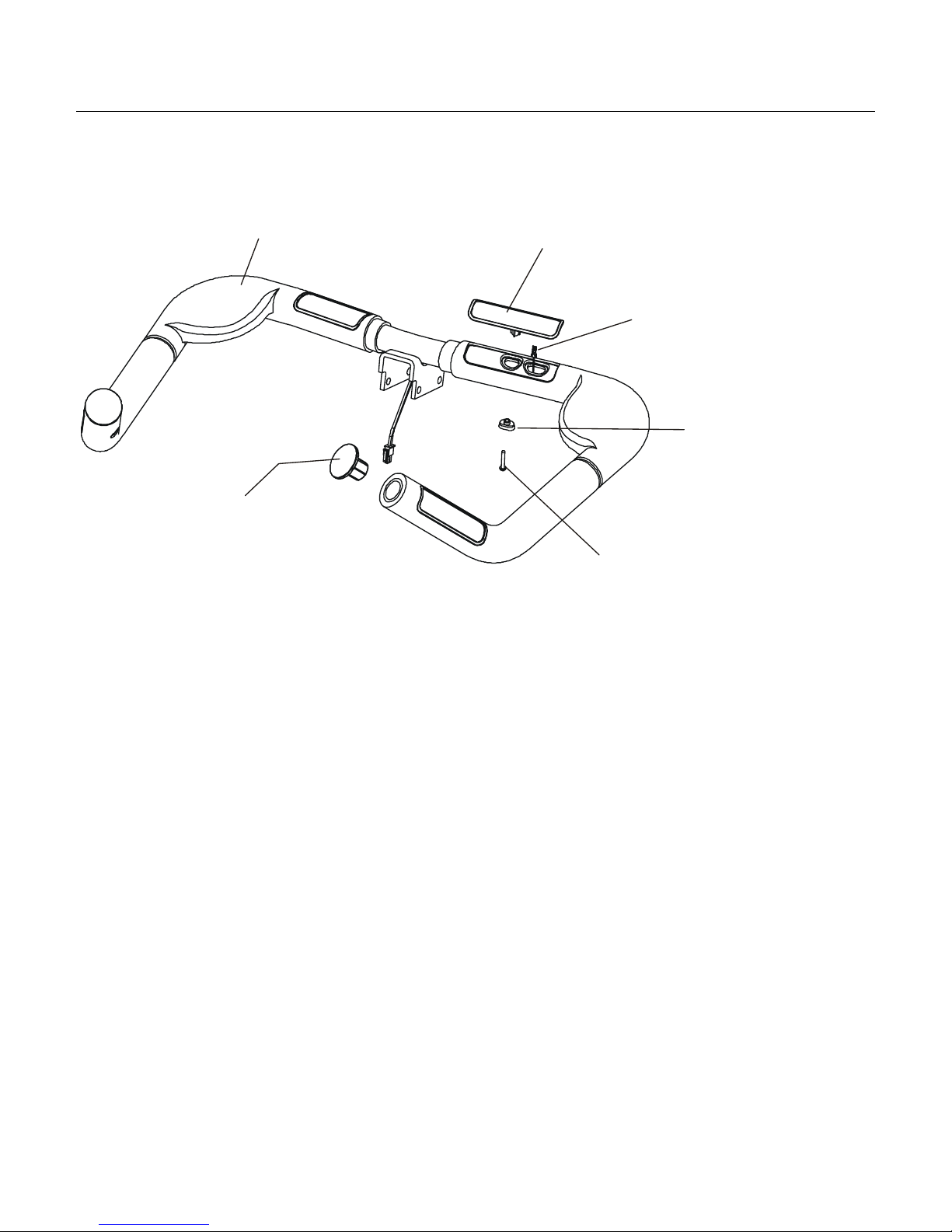

Handlebar Assembly - AK63-00091-0000 S/N CBJ100000
Molder Grip
Handlebar
AK63-00083-0000
Handlebar
End Cap(2)
0K63-01114-0000
Electrode
Molded Insert(4)
AK63-00014-0002
Elec t ro d e Cable
Assembly
Insulated Plug(4)
0K63-01167-0000
Phillips Screw(4)
0017-00101-1720
17
Page 18
LifeCycle LC9500 LC95-0000-12

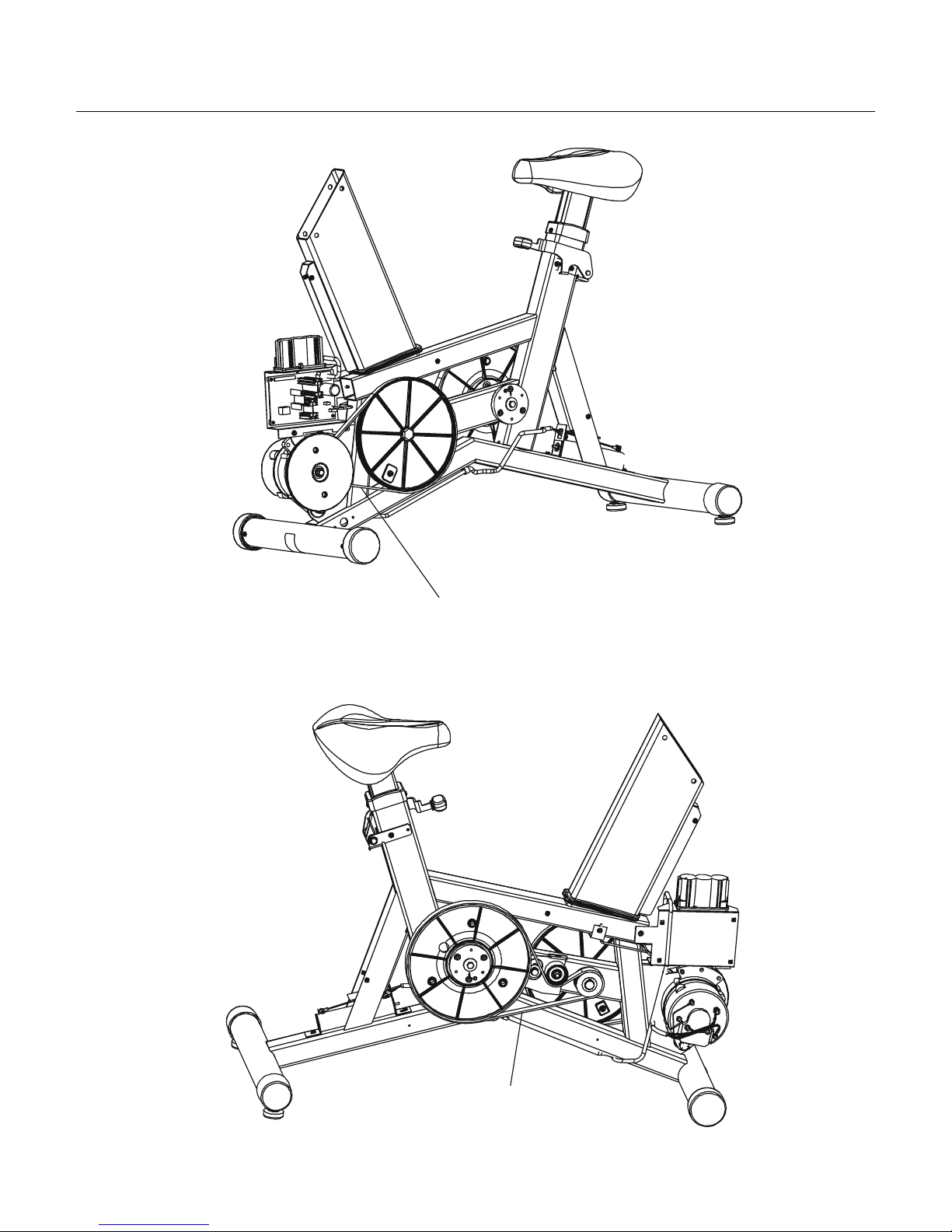

Belts S/N CBJ100000
Alternator Belt
0K63-01065-0000
Intermediate Belt
0K63-01066-0001
18
Page 19
LifeCycle LC9500 LC95-0000-12

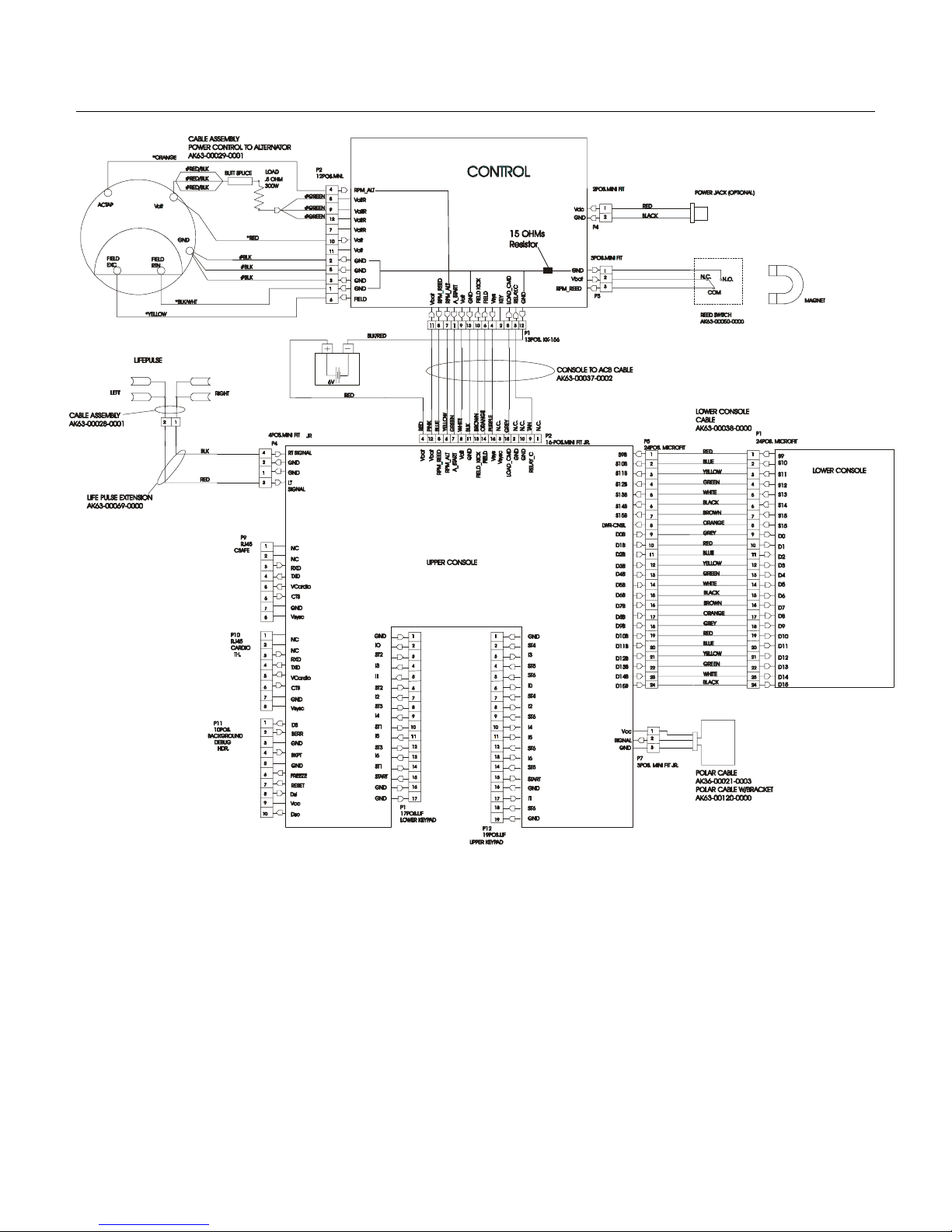

Cables S/N CBJ100000
19
