Many thanks for your trust.
Congratulations on your purchase of this wine cooler. In buying this product, which is
distinguished by its perfect user-friendliness, impeccable reliability and high quality, you
have chosen a top class appliance. We wish you a lot of pleasure with your new wine
cooler – and a lot of enjoyment from your wines.
The fewer the grapes produced in an area, the
better the wine.
Poor, well-drained soils are best for good wines. The properties of the soil influence the
vitality of the vine, which in turn affects the quality of the grape. Climate is another
factor that is important for wine. Because light and air humidity are important for the
development of the flavour of the wine.
The right environment for your wines.
A vine is an extremely sensitive plant. From the time it is planted to its maturing period
and the time the grapes are harvested and the wine is made, it is dependent on three factors: light, air humidity and ambient temperature. This sensitivity continues even once
the wine is bottled. To allow the flavour of the wine to fully develop or to preserve the
excellent aroma, the wine has to be stored perfectly – and your wine cooler offers the
best conditions for this.
16
GB
Contents Page
Setting up ............................................................................................................................ 18
Dimensions ......................................................................................................................... 18
Electrical requirement ........................................................................................................ 18
Operating and control elements ........................................................................................ 19
Switching the appliance on and off .................................................................................. 19
Cooling wine ....................................................................................................................... 19
Setting the temperature ..................................................................................................... 20
Audible warning signal ..................................................................................................... 20
Additional functions .......................................................................................................... 21
Equipment ........................................................................................................................... 22
Humidifier ........................................................................................................................... 23
Storage diagram for 750 ml Bordeaux bottles .................................................................. 23
Defrosting, Cleaning .......................................................................................................... 24
Malfunctions ....................................................................................................................... 25
Shutting your appliance down .......................................................................................... 25
Changing over door hinges ................................................................................................ 26
Safety instructions and warnings ...................................................................................... 28
General information ........................................................................................................... 28
Disposal notes ..................................................................................................................... 29
Description of appliance and equipment
Operating and
control elements
Bottle grid
Activated charcoal filter
Type plate
Adjustable- height feet
17
Setting up
• Avoid locating it in direct sunlight or near heat sources such as an oven or a radiator.
• The floor should be level and even. You can compensate for an uneven floor by adjusting the adjustable feet.
• Please make sure the appliance is properly ventilated.
• Standard EN 378 specifies that the room in which you install your appliance must
have a volume of 1 m3 per 8 g of R 600a refrigerant used in the appliance, so as to
avoid the formation of inflammable gas/air mixtures in the room where the appliance
is located in the event of a leak in the refrigerant circuit. The quantity of refrigerant
used in your appliance is indicated on the type plate on the inside of the appliance.
• The appliance is set to operate within specific ambient temperature limits according
to its climate rating. These temperature limits should not be exceeded. The correct
climate rating for your appliance is indicated on the type plate.
SN - ST = +10°C to +38°C
SN - T = +8°C to +43°C
Dimensions
WT 4176: height: 1644 mm, width: 660 mm, depth: 671 mm
Electrical requirement
Power supply (AC) and voltage at the operating point must comply with the details on
the type plate. The type plate is located on the top left-hand side on the inside of the
appliance. The socket must be fused with a 10 A fuse or higher, it must be away from
the rear of the appliance and must be easily accessible.
18
GB
Operating and control elements
Lower compartment temperature display
Upper compartment temperature display
Lower compartment temperature setting buttons
Upper compartment temperature setting buttons
Audible warning on/off button
Child-proof lock
On/off button
Switching the appliance on and off
You are recommended to clean the appliance before switching it on for the first time
(see Cleaning). Connect the appliance to the mains - the appliance is switched on.
• To switch the appliance off:
so that the temperature display goes out.
• To switch the appliance on:
lights up.
Keep the ON / OFF button pressed for 3 sec.
Press the ON / OFF button until the Display
Cooling wine
The wine cooler enables you to bring your wines gradually
and evenly to the right temperature for drinking in 6 different temperature zones.The table on the left indicates the
temperature settings in each compartment, which are preset in the factory. The appliance is delivered with the grid
shelves in the right positions to achieve these temperatures.
The specified temperatures are guide values. Depending on
the number of bottles in the appliance, the ambient temperature and the position in the various compartments, the temperatures may differ.
19

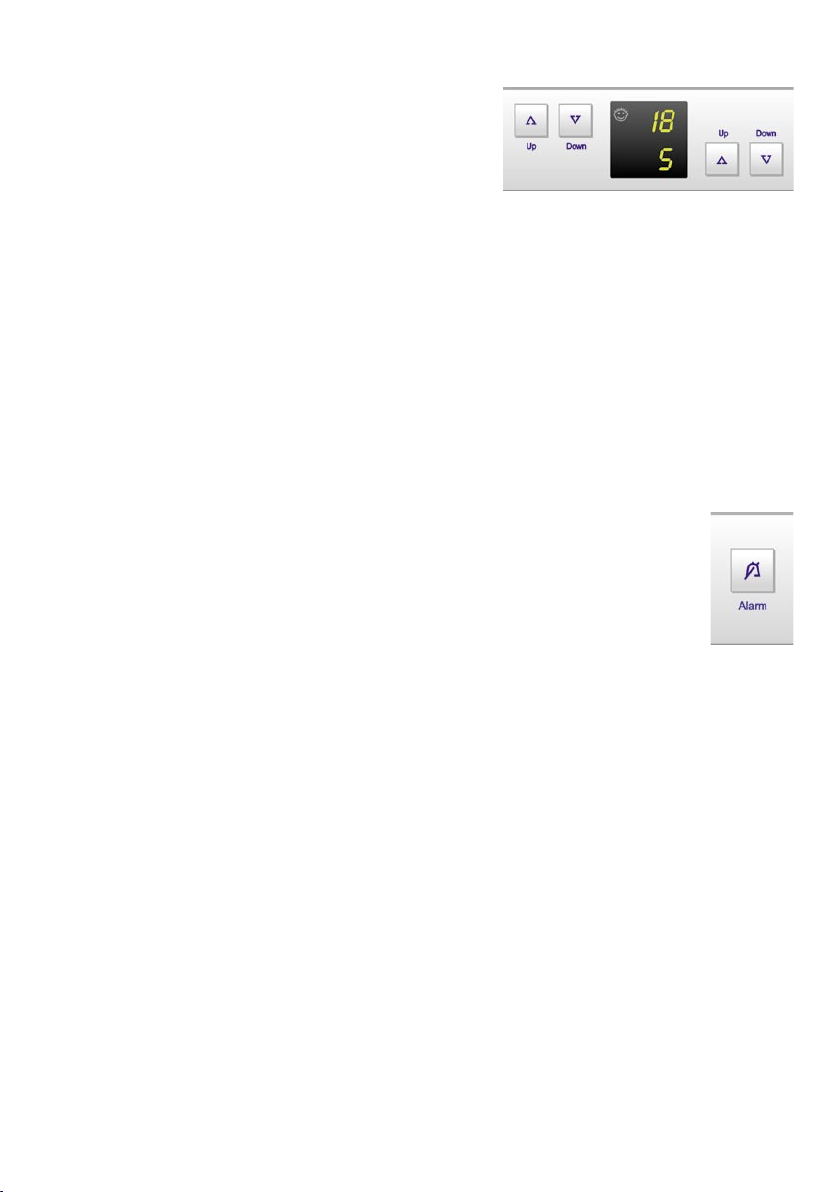

Setting the temperature
The temperature may be adjusted slightly in the
top and bottom storage compartment.
+16°C to +18°C.
Top:
Bottom: +5°C to +7°C.
The temperatures in the central zones will thus change accordingly.
To reduce the temperature:
To increase the temperature: Press the button UP ▲
- While you are entering the temperature, the set temperature will flash on the display.
- You can change the settings in increments of 1°C briefly pressing the button again.
- The electronic controls will switch over automatically about 5 seconds after the
last time you pressed the button, and the actual temperature will be displayed.
Press the button DOWN ▼
Audible warning signal
The audible warning signal helps to protect your wines against excessive temperature
fluctuations.
- It sounds when the door has been left open for longer than about 60 seconds. The audible warning device is switched off by pressing the Alarm
button.
- It sounds when the interior gets too warm or too cold. The temperature
display will also flash. The audible warning device is switched off by
pressing the Alarm button. The temperature display will continue to flash
until the cause of the alarm has been rectified.
20
GB
Additional functions
In set-up mode you can set the child-proof lock and adjust the brightness of the display. The child-proof lock is designed to protect the appliance from being switched off
accidentally by children.
Activating set-up mode:
• Press
Note: the value to be altered flashes.
• Select the required function by pressing
c = child-proof lock, h = brightness of the
• Now select/acknowledge function by pressing Alarm button briefly:
> For
press the Up/Down button to select
c1 = child-proof lock on or
c0 = child-proof lock off and acknowledge with the Alarm button.
When the symbol is lit, the child-proof lock is activated.
Alarm button for approx. 5 secs
- the display shows c for child-proof lock.
the Up/Down button:
display
c = child-proof lock,
> For h = brightness,
h1= minimum to
h5 = maximum brightness and acknowledge with Alarm button.
Exit set-up mode:
• Exit the set-up mode by pressing the On/Off button; after 2 min. the electronic system switches over automatically. The normal operating mode is activated again.
press Up/Down button to select
21
Equipment
Labels
The appliance is supplied with a label holder
with labels for each shelf. Use these to label the
type of wine stored on each shelf. Additional
labels can be obtained from your dealer.
Installation:
and slide the label in from the side.
Click the label holder into place
Lock
If required, the enclosed lock can be
fitted.
Locking the appliance:
• Insert the key as shown by arrow 1.
• Turn the key 90°.
To unlock the appliance, the same proce
dure must be repeated in the same order.
-
Air exchange with activated carbon filter
The way in which wines continue to mature depends on
the ambient conditions. The quality of the air is therefore
decisive for preserving the wine. An activated carbon
filter has been fitted in the lower area of the rear wall of
the appliance to ensure that the air throughput remains
at an optimum quality.
We recommend that you replace the filter once a year.
Filters can be obtained from your dealer.
Changing the filter: Take the filter by the handle. Turn it
90° to the left or right and remove.
Inserting the filter:
position. Turn it 90° to the left or right until it clicks into place.
Insert with the handle in a vertical
22
GB
Humidifier
The right humidity is vitally important for the proper storage of wine. Your wine
cooler is fitted with a special humidifying device that increases the humidity inside the
appliance.
Spread out the lava stones provided along the defrost water drain gulley along the bottom of the interior. Make sure the drain pipe is not blocked. Then fill the gulley with
water up to the top edge of the pipe.
In normal operation, the lava stones are
regularly humidified by the defrost water
that accumulates in the appliance. Note that
if the humidity in the area in which your appliance is installed is particularly high, the
interior of your wine cooler will also be relatively more humid. This may result in bottles
misting up when the door is opened or labels
peeling off.
Storage diagram for 750 ml Bordeaux bottles
The loading pattern illustrated
is only an example: the appliance can be loaded with different quantities depending on
how the shelves are arranged.
WT 4176
182 bottles
210
mm
210
mm
270
mm
270
mm
230
mm
23
Defrosting
The appliance defrosts automatically. The water that forms on the rear wall drains
into a reservoir at the back of the appliance and evaporates automatically through the
compressor heat.
Cleaning
Before cleaning always switch off the appliance. Pull out the mains plug or remove/
unscrew the fuse.
Never use abrasive or acidic cleaning agents or chemical solvents. We recommend the
use of an all-purpose cleaner with neutral pH.
Do not use steam cleaners because of the risk of injury and damage.
• Do not use abrasive sponges or scourers, do not use concentrated cleaning agents and
never use cleaning agents containing sand, chloride or acid or chemical solvents, as
these would damage the surfaces and could cause corrosion.
• Use a glass cleaner to clean the glass surfaces and a commercially available stainlesssteel cleaning agent for the stainless-steel surfaces.
• Clean the inside and equipment with lukewarm water and a little detergent, with the
exception of the wooden trims on the grid shelves.
• Ensure that no cleaning water penetrates into the electrical components.
• Dry all parts well with a cloth.
• Do not remove the type plate from the inside of the appliance; it is important for
after-sales servicing.
24
GB
Malfunctions
Your appliance is designed and manufactured for a lengthy, reliable operating life with
no malfunctions. If a malfunction nonetheless occurs during operation, check whether
it is due to an operating error. Please note that even during the warranty period the
resultant servicing costs in this case will have to be borne by the owner.
You may be able to rectify the following faults by checking the possible causes your
self:
• Appliance does not function:
- Check that the appliance is properly connected to the mains.
- Is the socket fuse intact?
• Loud running noise: Check that the appliance is standing firmly on the ground.
Please note that it is impossible to avoid flowing noises in the refrigeration circuit.
• The temperature inside your wine cooler is too warm: Check the setting in accord
ance with the section "Setting the temperature".
- Does the separately installed thermometer show the correct reading?
- Is the air extraction working properly?
- Is the wine cooler too close to a heat source?
• Please note that, as can happen with other forms of storage, slight mould may form
depending on the type of adhesive on the labels. This can be rectified by carefully cleaning
any adhesive residues off the bottles.
If none of the above causes apply and you cannot rectify the fault yourself, contact the nearest
customer service department stating the type
of appliance, index and appliance number
as indicated on the type plate. The type plate is
located on the left-hand inside wall.
-
-
Shutting your appliance down
If your appliance is to be shut down for any length of time, switch it off and disconnect
the plug or remove the fuse. Clean the appliance and leave the door open in order to
prevent unpleasant smells.
25
Changing over door hinges

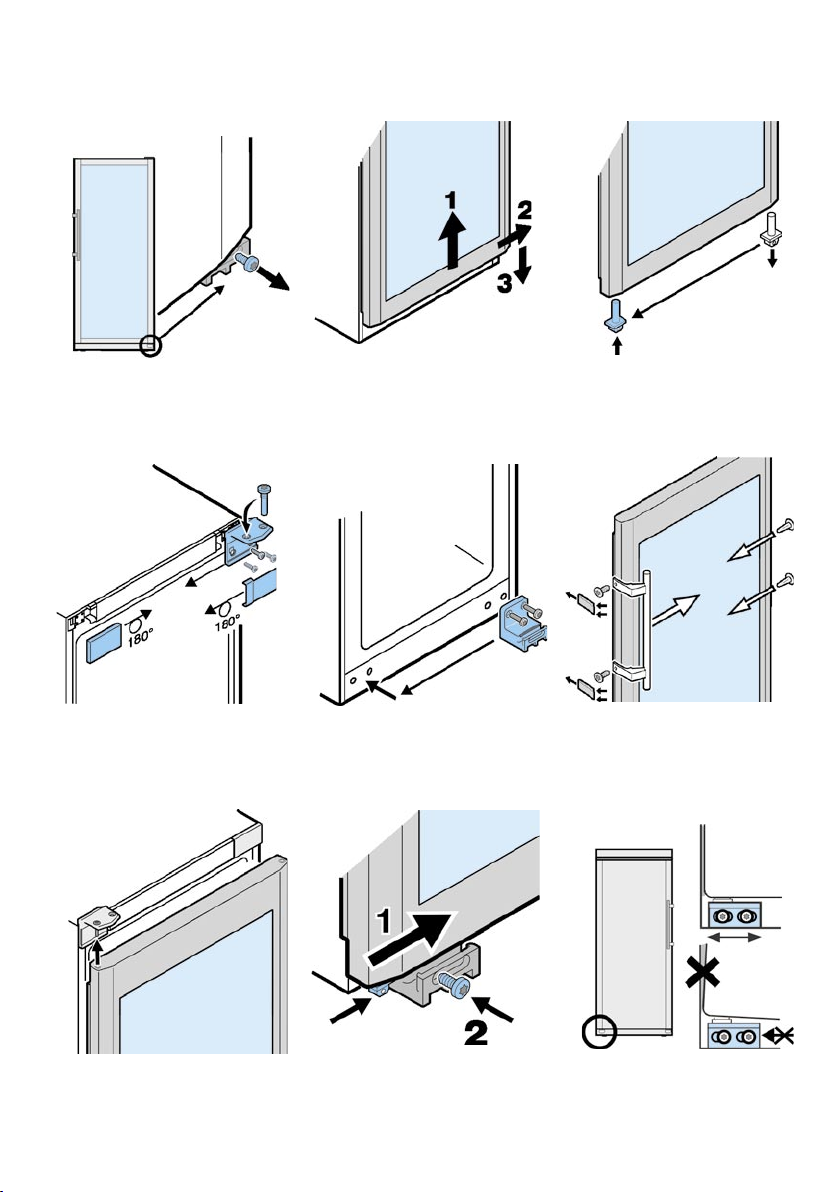

1 2 3
Remove screw from lower
hinge bracket.
Lift door
and remove 3.
1, tilt to the right 2
4 5 6
Tran sfe r up per hi nge
components to the op
posite side.
-
Transfer lower hinge bracket to
the opposite side.
7 8 9
Transfer pin to the opposite
side of the door.
Transfer handle to the
opposite side.
Locate door on upper pin. Tilt door inwards from the left 1.
Secure hinge pin with screw 2.
26
If the door is not flush with
the body of the appliance,
adjust it using the slots on
the hinge bracket.
If required, the enclosed lock can be fitted.
With the door hinges being on the left-hand side, the lock has to be adapted accordingly.
10 11 12
GB
Remove screw. Insert key
remove pin 3.
1, turn 2, and
13 14 15
Insert key 1 and turn 2. Remove door latch 1, turn
over 2 and reassemble 3.
16 17 18
Remove lock.
Insert lock.
Insert pin
2 and turn 3.
1, insert key
Insert screw.
Screw on lock bracket.
27
Safety instructions and warnings
• To prevent injury or damage to the unit, the appliance should be unpacked and set
up by two people.
• In the event that the appliance is damaged on delivery, contact the supplier immediately before connecting to the mains.
• To guarantee safe operation, ensure that the appliance is set up and connected as
described in these operating instructions.
• Disconnect the appliance from the mains if any fault occurs. Pull out the plug,
switch off or remove the fuse.
• When disconnecting the appliance, pull on the plug, not on the cable.
• Any repairs and work on the appliance should only be carried out by the customer
service department, as unauthorised work could prove highly dangerous for the
user. The same applies to changing the mains power cable.
• Do not stand on the plinth, drawers or doors or use them to support anything else.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge unless
they have been given initial supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
• Avoid prolonged skin contact with cold surfaces or chilled/frozen food. This could
cause pain, numbness and frostbite. In the case of prolonged skin contact, protective
measures should be taken, e.g. gloves should be worn.
• If you have a lockable appliance, do not keep the key near the appliance or within
reach of children.
• Do not use electrical appliances inside the appliance.
• Do not damage the refrigerant circuit pipes.
• Do not allow naked flames or ignition sources to enter the appliance. When trans-
porting and cleaning the appliance ensure that the refrigerant circuit is not damaged. In the event of damage, make sure that there are no ignition sources nearby
and keep the room well ventilated.
General information
The refrigerant circuit has been tested for leaks.
The appliance is radio-suppressed to EN 55014 and thus complies with EC Directive
87/308/EEC.
All types and models are subject to continuous improvement and the manufacturer
therefore reserves the right to make modifications to the shape, equipment and technology.
28
GB
Disposal notes
The packaging is made of recyclable materials.
- Corrugated board/board
- EPS moulded parts
- Polythene sheets
- Polypropylene straps
• Keep packaging materials away from children - polythene sheets and bags can suffocate!
• Please return the packaging material to an official collection point.
Your old appliance: This contains some reusable materials and should be
disposed of properly - not simply with unsorted household refuse.
• Disable discarded appliances by removing the plug and cutting through
the connection cable. Render the catch unusable so that children cannot
become trapped inside.
• Ensure that the refrigerant circuit is not damaged when the appliance that is no
longer needed is taken away for disposal.
• Details of the refrigerant used can be found on the type plate.
• Appliances which are no longer needed must be disposed of in a professional and
appropriate way, in accordance with the current local regulations and laws.
29
Loading...
