Liebherr SIKB3550LH, SIKB3550RH, SIKB3550LHSIGN3576RH, SIKB3550RHSIGN3576LH User Manual
Operating instructions
Refrigerator with BioFresh compartment for integrated use, door-on-door
200514
7085410 - 01
IKB/ IKBP ... LP
Appliance at a glance
Contents
1 Appliance at a glance............................................ 2
1.1 Description of appliance and equipment.................. 2
1.2 Range of appliance use............................................ 2
1.3 Conformity................................................................ 3
1.4 Saving energy.......................................................... 3
2 General safety information................................... 3
3 Controls and displays........................................... 4
3.1 Operating and control elements............................... 4
3.2 Temperature display................................................. 4
4 Putting into operation............................................ 4
4.1 Switching on the appliance....................................... 4
5 Control.................................................................... 4
5.1 Child proofing........................................................... 4
5.2 Door alarm................................................................ 5
5.3 Refrigerator compartment........................................ 5

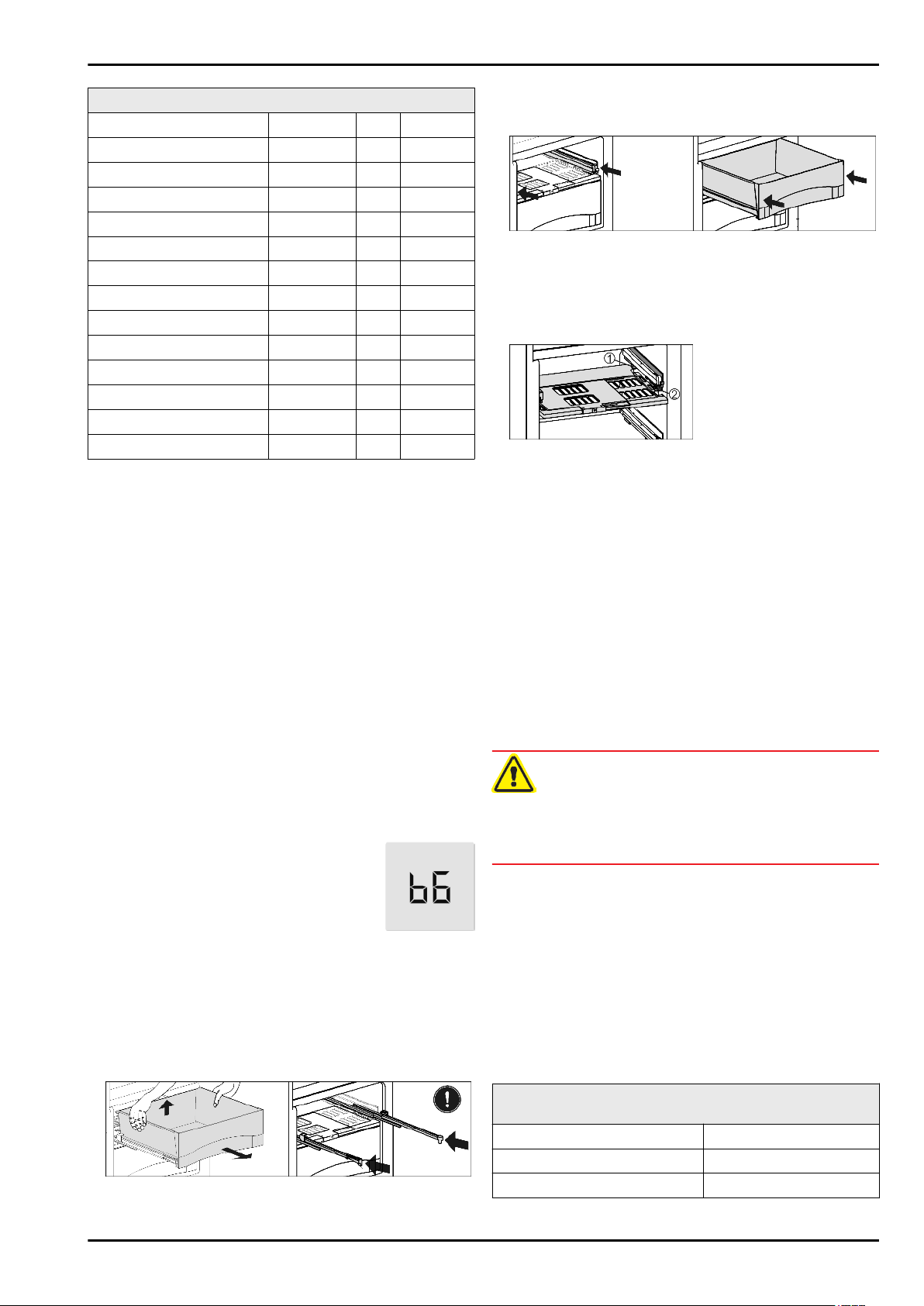

5.4 BioFresh compartment............................................. 7
5.5 Freezer compartment............................................... 8
6 Maintenance........................................................... 9
6.1 Defrosting................................................................. 9
6.2 Cleaning the appliance............................................. 9
6.3 Customer service..................................................... 9
7 Malfunction............................................................. 10
8 Decommissioning.................................................. 11
8.1 Switching off the appliance....................................... 11
8.2 Taking the appliance out of service.......................... 11
9 Disposing of the appliance................................... 11
1 Appliance at a glance
1.1 Description of appliance and equipment
The manufacturer works constantly on the further development
of all the types and models. Therefore please understand that
we have to reserve the right to make design, equipment and
technical modifications.
To get to know all the benefits of your new appliance, please
read the information contained in these instructions carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked with
an asterisk (*).
Instructions for action are marked with a , the results of
action are marked with a .
Fig. 1
(1) Operating and control
elements
(2) Freezer compartment (12) Bottle holder
(3) Fan (13) LED lighting, BioFresh
(4) LED light column,
double sided
(5) Shelf (15) Humidity control plate
(6) Shelf, sectioned (16) HydroSafe
(7) VarioSafe* (17) Drain hole
(8) Adjustable bottle shelf* (18) Soft stop mechanism
(9) Package rack (19) Type plate
(10) Can rack
Note
Place food inside the appliance as shown in the diagram.
u
This allows the appliance to save energy during operation.
Shelves, drawers and baskets are arranged for optimum
u
energy efficiency on delivery.
(11) Bottle rack
compartment
(14) DrySafe
1.2 Range of appliance use
Intended use
The appliance is suitable solely for cooling food
in a domestic environment or similar. This
includes use in, for example
-
in staff kitchenettes, bed and breakfast establishments,
-
by guests in country cottages, hotels, motels
and other accommodation,
-
for catering and similar services in the wholesale trade.
2 * Depending on model and options
Use the appliance solely in a domestic type of
environment. All other applications are inadmissible.
Foreseeable misuse
The following applications are expressly
prohibited:
-
Storage and cooling of medicines, blood
plasma, laboratory compounds or similar
materials and products subject to the Medical
Devices Directive 2007/47/EC
-
Use in potentially explosive areas
Improper use of the appliance can lead to
damage to or spoilage of the stored goods.
Climate rating definitions
The appliance is set to operate within specific
ambient temperature limits according to its
climate rating. The correct climate rating for
your appliance is indicated on the type plate.
Note
Compliance with the ambient temperatures
u
indicated is required, otherwise the cooling
performance is reduced.
Climate
rating
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
for ambient temperatures of
1.3 Conformity
The refrigerant circuit is tested for leakage. When built-in the
appliance complies with the relevant safety regulations and EC
Directives 2006/95/EC, 2004/108/EC, 2009/125/EC and
2010/30/EU.
The BioFresh compartment satisfies the requirements of a chill
compartment to EN ISO 15502.
Note for test institutions:
Tests are to be carried out according to the applicable
standards and guidelines.
Preparation and testing of the appliances must be carried
out taking the manufacturer's loading plans and the
notes in the operating manual into account.
1.4 Saving energy
Always ensure good ventilation. Do not cover ventilation
-
openings or grille.
Always keep fan louvres clear.
-
Do not place appliance in areas of direct sunlight or next to a
-
stove, heater or similar object.
The energy consumption depends on the installation condi-
-
tions, e.g. the ambient temperature (see 1.2) .
Keep the time the appliance is open to a minimum.
-
The lower the temperature setting, the higher the power
-
consumption.
Store food logically. (see Appliance at a glance).
-
General safety information
Ensure that all food is well packed and covered for storage.
-
This will prevent frost from forming.
Remove food as needed in order that it does not warm too
-
much.
First cool warm food to room temperature before storing it .
-
Defrost frozen food in the refrigerator.*
-
If there is a thick layer of frost in the appliance: defrost the
-
appliance.*
2 General safety information
Danger for the user:
-
This appliance can be used by children of 8
years old and over, and also by persons with
restricted physical, sensory or mental
capacity or lack of experience and knowledge, if they are supervised or have been
instructed on safe use of the appliance and
understand the resulting risks. Children must
not be allowed to play with the appliance.
Cleaning and user maintenance must not be
carried out by children without supervision.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains plug
or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Have any repairs to or intervention in the
appliance, and any change of the mains
power cable, carried out by the customer
service only or by other specialised personnel
trained for the purpose.
-
Only install, connect and dispose of the appliance according to the instructions.
-
Only use the appliance when it is installed.
-
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
-
Special-purpose lamps (incandescent lamps,
LEDs, fluorescent tubes) in the appliance
serve to illuminate the appliance interior and
are not suited for room illumination.
Fire hazard:
-
The refrigerant R 600a is environmentally
friendly but flammable. Escaping refrigerant
may ignite.
•
Do not damage the refrigerant circuit pipes.
•
Do not allow naked flames or ignition
sources to enter the appliance.
•
Do not use any electrical appliances in the
interior (e.g. steam cleaners, heaters, ice
cream maker etc.).
•
If refrigerant escapes: remove any naked
flames or sources of ignition from the
* Depending on model and options 3
Controls and displays
leakage area. Ventilate the room well.
Notify the after-sales service.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list of
contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Please be sure to store alcoholic drinks or
other packaging containing alcohol in tightly
closed containers. Any alcohol that leaks out
may be ignited by electrical components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc.
as a step or for support. This applies particularly to children.
Danger of food poisoning:
-
Do not consume food which has been stored
too long.
Danger of frostbite, numbness and pain:
-
Avoid lasting skin contact with cold surfaces
or refrigerated/frozen food or take protective
steps, e.g. wear gloves. Do not consume ice
cream, water ice or ice cubes immediately
and do not consume them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment,
open flames or defrosting sprays to defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing
-
Do not reach into the soft stop mechanism.
Fingers may be trapped when the door is
closed.
Please observe the specific information in
the other sections:
DANGER identifies a situation involving direct
danger which, if not obviated, may
result in death or severe bodily
injury.
WARNING identifies a dangerous situation
which, if not obviated, may result in
death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result in
minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result in
damage to property.
Note identifies useful information and tips.
3 Controls and displays
3.1 Operating and control elements
Fig. 2
(1) On/Off button (6) SuperCool symbol
(2) Temperature display (7) Alarm button
(3) Up setting button (8) Menu symbol
(4) Down setting button (9) Child lock symbol
(5) SuperCool button
3.2 Temperature display
The following are displayed in normal operation:
the average cooling temperature
-
The following displays indicate malfunction. Possible causes
and corrective action (see Malfunction).
-
F0 to F9
4 Putting into operation
4.1 Switching on the appliance
Switch on the appliance approx. 2 hours before
adding frozen food for the first time.*
Open the door.
u
Press On/Off button
u
The temperature display indicates the current temperature.
w
The interior light is on when the door is open.
w
If “DEMO” is displayed, demo mode is activated. Please
w
contact the after sales service.
Fig. 2 (1)
.
5 Control
5.1 Child proofing
The child-proofing function enables you to make
sure that the appliance is not inadvertently switched
off by playing children.
5.1.1 Setting the child lock function
To activate the setting mode: press SuperCool button
u
Fig. 2 (5)
w
The display indicates c.
The menu symbol
w
Briefly press theSuperCool button
u
for about 5 s.
Fig. 2 (8)
shines.
Fig. 2 (5)
to confirm.
4 * Depending on model and options
