Liebert PSI
High Performance Power Protection for Servers and Networking Equipment
750VA to 3kVA
Liebert PSI is a feature-rich UPS system with industry leading 0.9 power factor. Its high power output delivers superior performance
on power factor corrected (PFC) power supply and satisfactory backup time in the high demand environment. Liebert Multilink UPS
software protects servers through local USB communication or via network. Matching external battery cabinets offer UPS backup time to
several hours in the extended requirements (for Liebert PSI-XR models only).
Features
Lowest Total Cost of Ownership
Operates at a high 0.9 power factor that makes it ideal
for today’s modern IT equipment, providing 29% more
power than typical UPS
Reduced installation time and costs - shipped with
batteries connected and charged
Two-year warranty - no-hassle replacement
Supports Liebert Multilink shutdown software
Higher Availability
Greater than three to fi ve minutes of internal battery
backup time at 100% load provides ample time for an
orderly shutdown of equipment.
Buck/boost automatic voltage regulation technology
protects against utility voltage fl uctuation by raising
and lowering utility power to the level needed by
connected equipment
Flexibility
Eight to nine battery-backed outlets for Liebert PSI
models, six to sever battery-backed outlets for Liebert
PSI-XR models
User replaceable and hot-swappable batteries
Rack/Tower Convertible with rotatable display panel,
2U in height on all models
Multiple remote communications and shutdown
options provide remote monitoring and power
management - EB/ SNMP, USB, contact closure and
remote power off
The Liebert PSI Is Ideally Suited For:
Network Computers
Servers
Network Closets
Computer Rooms
Large Network Peripherals
Network Storage Devices
Bringing our Enterprise Level IT Expertise to your SMB
Emerson Network Power offers a full range of power protection solutions suitable for every requirement or scenario. From desktop
computing, network equipment, computer rooms to large scale data centers, we make sure you get the same level of protection the
Fortune 500 companies enjoy with Emerson. It is our way of Bringing Enterprise Level IT expertise to your SMB.
Desktop
Computing
Liebert PSP
Liebert PSA
Network /
Computer Room
ert
I
Liebert GXT
Data Center
Liebert ITA
Liebert NX
Liebert Hipulse
Liebert ITA
1
Reliable UPS Protection And Extended Battery Time
s
rs
230
ly)
To Keep Your Network Up And Running
The flexible design of Liebert PSI allows the unit to be configured as a self-standing tower or to be rack-mounted within a 2U space.
It is available in four capacities, in both 120V or 230V models.
The UPS features an innovative design incorporating buck/boost automatic voltage regulation technology. This protects against utility
voltage fl uctuation by raising and lowering utility power to the level needed by the connected equipment. It also allows the UPS to prolong
battery life by maximizing its time on utility power before going to battery.
Rotatable Display Panel 90 degrees
rotatable LED display panel rotates 90° to
make the readout of the LED display easy
to see in rack or tower position.
Automatic Frequency Sensing The
UPS automatically adjusts to the input
frequency, 50Hz or 60Hz.
Optional Liebert MicroPOD Output Distribution And
Maintenance Bypass Module
Liebert Multilink software provides you:
Warnings to computer users of power loss, and graceful
operating system shutdown when needed
Full functionality and automatic shutdown protection
right out of box - virtually no confi guration is required
Intergration with Liebert Web card and network
shutdown capability
Optional Liebert IntelliSlot Web Card
provides SNMP and web-based management

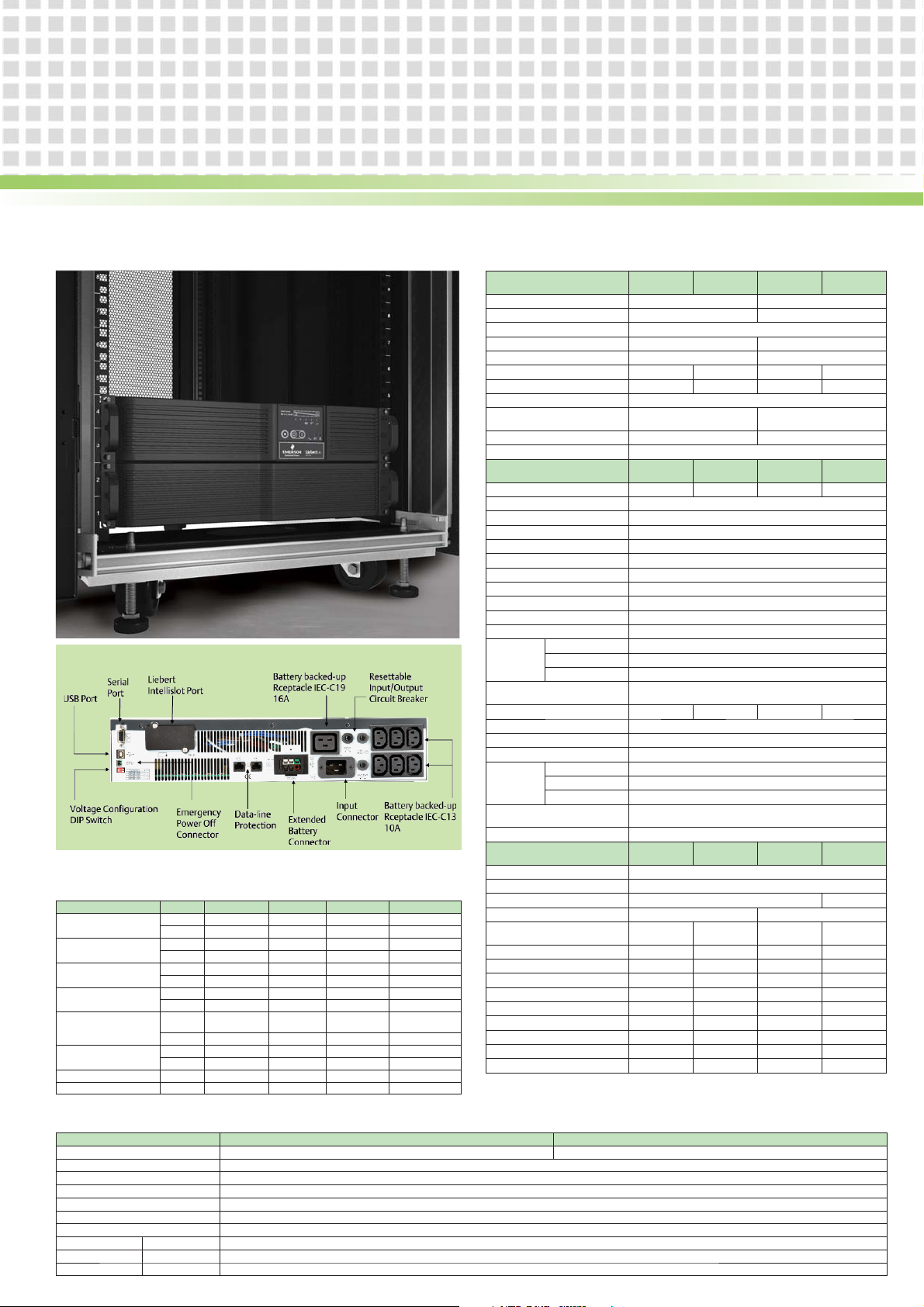

Liebert PSI Rear View Parts
RS232
(DB-9)
Port
Liebert
Intellislot
Port
RJ-45
Data Line
Connectors
When your computer system can’t be without power,
even for scheduled UPS maintenance, the Liebert
MicroPOD Maintenance Bypass and Output Distribution
Unit ensures continuous uptime. It allows you to
manually transfer connected equipment to utility power
via a maintenance bypass switch, permitting scheduled
service or UPS replacement without the need to shut
down connected equipment. Features include:
2U height minimizes rack space requirements
Installs with plug-and-play ease
Two-year, no-hassle replacement warranty
Receptacles
IEC320-C19
(PS2200RT3-230
PS3000RT3-230 only)
-
on
Output
Circuit
Breakers
Breaker
Voltage
Confi guration
DIP Switch
Input socket
USB
750/1000/1500VA: IEC320-C14
Port
2200/3000VA: IEC320-C20
2
Receptacles
IEC320-C13 x 8
Input Circuit
Breakers
Liebert PSI-XR
High Performance Power Protection for Server and
Networking Equipment with Extended Run Capability
For servers and networks requiring extended runtime, Liebert PSI-XR provides longer backup time with additional features on top of Liebert PSI.
Liebert PSI-XR
has matching external battery cabinets that enables longer backup time to several hours in the extended requirements. It provides greater than fi ve minutes
of internal battery backup time at 100% load measured at pf 0.9.
Liebert PSI-XR Rear View Parts
Battery Runtime Chart of Liebert PSI-XR
(Runtimes are in minutes, assuming fully charged batteries at 25°C)
Number of batteries %Load PS100RT3-230XR PSI500RT3-230XR PS2200RT3-230XR PS3000RT3-230XR
Internal Battery 50 15 13 14 13
Internal Battery+1 External 50 73 55 45 31
Battery Cabinet 100 31 18 15 12
Internal Battery+2 External 50 129 95 67 56
Battery Cabinets 100 65 46 29 18
Internal Battery+3 External 50 181 131 95 73
Battery Cabinets 100 96 64 48 31
Internal Battery+4 External
Battery Cabinets 50 233 167 143 95
Battery Cabinets 100 124 82 72 47
Internal Battery+5 External 50 185 203 167 113
Battery Cabinets 100 151 109 84 56
Internal Battery +6 External 50 336 239 191 131
Battery Cabinets 100 179 124 102 65
* For connecting more external battery cabinets, please contact Emerson staff
100 6 55 5
Model Number PS1000RT3-
Input Connection IEC-320 C14 IEC-320 C20
Output Connection IEC-320 C13 x 6 IEC-320 C13 x 6 + C19 x 1
Communication Interface REPO, USB, Serial, Intellislot
Dimensions: (mm) 88(2U) x 440 x 490.5 88 (2U) x 440 x 700.5
Shipping Dimensions: (mm) 228 x 560 x 612 228 x 560 x 821
Net Weight: (kg) 25 28 42 46
Shipping Weight: kg 29 32 47 51
Form Factor Rack/Tower Convertible, Tower Stand included
Input Power Cable Nil “Shucko” CEE 7/7 and BS1363
Number of Output Cable 2 3
Software Liebert Multilink 4, support for Windows NT/2000/XP/Vista
Operation PS1500RT3-
Capacity (Volt-Amps, Watts) 1000/900 1500/1350 2200/1980 3000/2700
Norminal Input Voltage 220/230/240VAC (confi gurable)
Input Voltage Window 165-300VAC
Input Frequency Window 45-65Hz
Input Protection Type Resettable Circuit Breaker
Default frequency 50Hz
Boost Mode Voltage Input Voltage x 117%
Buck Mode Voltage Input Voltage ¸ 115%
Transfer Time (AC to DC) 4-6 ms typical
Effi ciency >96% on Line Mode
Surge Protection 220 J
Output
(battery
mode)
Battery type Sealed, non-spillage, maintenance-free, lead acid with 5 year
Backup Time at full load pf 0.9 >6 minutes >5 minutes >5 minutes >5 minutes
Typical Recharge Time 5 hours to 90%
Hot Swappable Battery Yes
EMI Classifi cation IEC/EN/AS62040-2
Agency
Approvals
Operation Condition 3,000 meter max. elevation, 0-90% humidity non-condensing
Noise Level >40dBA on Line Mode
Accessories PS1000RT3-
Rack Mount Kit RAILKITPS3G-AEC
SNMP/WEB Management Card IS-WEBRT3
Maintenance Bypass Switch MP2-210K MP2-220L
Extended Battery Cabinets PSRT3-24VBXR PSRT3-48VBXR
Typical Runtime (VA/W) PS1000RT3-
200/180 55 minutes 70 minutes 85 minutes 110 minutes
400/360 25 minutes 32 minutes 55 minutes 70 minutes
600/540 14 minutes 20 minutes 31 minutes 46 minutes
800/720 9 minutes 13 minutes 23 minutes 32 minutes
1000/900 6 minutes 10 minutes 18 minutes 24 minutes
1500/1350 - 5 minutes 11 miuntes 13 minutes
2000/1800 - - 7 minutes 10 minutes
2500/2350 - - - 7 minutes
3000/2700 - - - 5 minutes
Voltage 220/230/240VAC (confi gurable)
Voltage Regulation >± 5%
Wave Form Pure Sine Wave
Safety IEC/EN/AS62040-1-1
Transportation ISTA Procedure 1A Certifi cation
WEEE and ROHS Yes
230XR
230XR
230XR
PS1500RT3-
230XR
230XR
typical lifetime
PS1500RT3-
230XR
PS1500RT3-
230XR
0-40 deg. C
PS2200RT3-
230XR
to IEC-320-C19
PS2200RT3-
230XR
PS2200RT3-
230XR
PS2200RT3-
230XR
PS3000RT3-
230XR
PS3000RT3-
230XR
PS3000RT3-
230XR
PS3000RT3-
230XR
Battery Cabinet Specifications
Model Number PSRT3-24VBXR PSRT3-48VBXR
Used w/ UPS Model PS1000RT3-230XR / PSI500RT3-230XR PS2200RT3-230XR / PS3000RT3-230XR
Unit Dimensions/ Shipping Dim. : (mm) 88(2U) x 440 x 490.5 / 560 x 675
Net Weight / Shipping Weight: kg 29 / 33
Battery Type Sealed, non-spillage, maintenance-free, lead acid with 5 year typical lifetime
Operation Condition 3,000 meter max. elevation, 0-90% humidity non condensing 0-40 deg. C
Form Factor Rack/ Tower Convertible, Tower Stand and rail kit included
EMI Classifi cation IEC/EN/AS62040-2 2nd Ed Class A
Agency Approvals Transportation ISTA Procedure IA Certifi cation
Safety IEC/EN/ AS62040-1-1
WEEE and ROHS Yes
3
Battery Runtime Chart of Liebert PSI
(Runtimes are in minutes, assuming fully charged batteries at 25°C)
Typical Runtime
(Watts)
200 25 45 60 85 120
400 10 15 20 45 65
600 5 8 12 20 30
800 - 5 8 14 18
1000 - - 5 11 14
1500 - - - 6 8
2000 - - - - 5
2500 - - - - 4
100% load >4 minutes >4 minutes >3 minutes >3 minutes >3 minutes
Actual runtime may vary depending on operating conditions.
PS750RT3-230 PS1000RT3-230 PS1500RT3-230 PS2200RT3-230 PS3000RT3-230
Liebert PSI Specifications
Model Number PS750RT3-230 PS1000RT3-230 PS1500RT3-230 PS2200RT3-230 PS3000RT3-230
Input Connection IEC-320 C14 IEC-320 C20
Output Connection IEC-320 C13 x 8 IEC-320 C13 x 8 + C19 x 1
Communication Interface REPO, USB, Contact Closure, Intellislot
Dimensions: (mm) 88(2U) x 440 x 412 88 (2U) x 440 x 657
Shipping Dimensions: (mm) 228 x 560 x 595 228 x 560 x 776
Net Weight: (kg) 15.0 19.4 20.9 33.8 37.2
Shipping Weight: kg 18.2 22.6 24.1 38.3 41.5
Form Factor Rack/Tower Convertible, Tower Stand included
Input Power Cable Nil “Shucko” CEE 7/7 and BS1363 to IEC-320-C19
Number of Output Cable 2 3
Software Liebert Multilink, support for Windows NT/2000/XP/Vista, Linux
Operation PS750RT3-230 PS1000RT3-230 PS1500RT3-230 PS2200RT3-230 PS3000RT3-230
Capacity 750VA/675W 1000VA/900W 1500VA/1350W 2200VA/1980W 3000VA/2700W
Norminal Input Voltage 220/230/240VAC ± 10% (confi gurable)
Input Voltage Window 165-300VAC
Input Frequency Window 45-65Hz ± 0.5Hz
Input Protection Type Resettable Circuit Breaker
Default frequency 50Hz
Boost Mode Voltage Input Voltage x 117%
Buck Mode Voltage Input Voltage / 115%
Transfer Time (AC to DC) 4-6 ms typical
Effi ciency >96% on Line Mode
Surge Protection 220 J
Output
(battery
mode)
Battery type Sealed, non-spillage, maintenance-free, lead acid with 5 year typical lifetime
Quantity x Voltage x Ah 2 x 12 x 7.2 3 x 12 x 7.2 3 x 12 x 9 6 x 12 x 7.2 6 x 12 x 9
Backup Time at full load pf 0.7 >6 minutes >6 minutes >5 minutes >6 minutes >5 minutes
Backup Time at full load pf 0.9 >4 minutes >4 minutes >3 minutes >3 minutes >3 minutes
Typical Recharge Time 5 hours to 90% of rated capacity, after full discharge into resistive load
Hot Swappable Battery Yes
Electrical Fast Transient IEC/EN/AS62040-2 2nd Ed Class A
Agency
Approvals
Operation Condition 3,000 meter max. elevation, 0-90% humidity non-condensing 0-40 deg. C
Noise Level <45dBA on Line Mode
Accessories PS750RT3-230 PS1000RT3-230 PS1500RT3-230 PS2200RT3-230 PS3000RT3-230
SNMP/WEB Management Card IS-WEBRT3
Maintenance Bypass Switch MP2-210K MP2-220L
Voltage 220/230/240VAC (confi gurable)
Voltage Regulation ± 5%
Wave Form Pure Sine Wave
Safety IEC/EN/AS 62040-1-1
Surge IEC/EN/AS 61000-4-2
ESD IEC/EN/AS 61000-4-3
Susceptibility IEC/EN/AS 61000-4-4
Emission IEC/EN/AS 61000-4-6
Conducted Immunity IEC/EN/AS 61000-3-2
Harmonics IEC/EN/AS 61000-4-6
Transportation ISTA Procedure 1A Certifi cation
WEEE and ROHS Yes
4
Emerson Network Power Asia Pacific
Australia
T: 1800-065345 F: 61-2-97438737
China
T: 86-755-86010808 F: 86-755-86010909
Hong Kong
T: 852-25722201 F: 852-28310114
India
T: 91-22-25807000 / 2388 F: 91-22-25828358
Indonesia
T: 62-21-2513003 F: 62-21-2510622
Japan
T: 81-3-54038594 F: 81-3-54032924
Korea
T: 82-2-34831502 F: 82-2-5927883
Malaysia
T: 603-7884 5000 F: 603-7884 5188
New Zealand
T: 64-3-3392060 F: 64-3-3392063
Philippines
T: 63-2-620 3600 F: 63-2-6203693
Singapore
T: 65-64672211 F: 65-64670130
Tai wa n
T: 886-2-2528 3535 F: 886-2-2528 3100
Thailand
T: 66-2-6178260 F: 66-2-6178277 / 278
Vietnam
T: 84-4-762 8908 F: 84-4-762 8909
Emerson Network Power.
The global leader in enabling
business-critical continuity.
AC Power Systems
Connectivity
DC Power Systems
Embedded Power
Integrated Cabinet Solutions
Outside Plant
Power Switching and Control
Precision Cooling
Site Monitoring
Surge Protection
Embedded Computing
Services
www.EmersonNetworkPower-Partner.com
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2009 Emerson Electric Co.
AP09DPG-PSIV1-B
Loading...
