IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important safety instructions that should be fol­lowed during the installation and maintenance of the Uninterruptible
Power System (UPS) and its batteries. Please read this manual thor­oughly before attempting to install or operate this UPS.

Read all safety, installation, and operating instructions before operat­ing the UPS. Adhere to all warnings on the unit and in this manual.
Follow all operating and user instructions.

This equipment is designed for Commercial, Industrial or Residential
use. Liebert Corporation neither recommends nor knowingly sells this
product for use in life support applications or with other designated
critical devices.

This equipment can be installed and operated by individuals without
previous training.

WARNING

!

SAFETY PRECAUTIONS

• To prevent the risk of fire or electric shock, install the UPS
in a temperature and humidity controlled room, free of
conductive contaminants, moisture, flammable liquids,
gases and corrosive substances.

• Operate the UPS only from a properly grounded (earthed)
120VAC, 60Hz AC supply.

• To reduce the risk of electric shock, do not remove the
cover, as it has no user-serviceable parts inside except the
internal battery pack. Some components are live, even
when AC power is disconnected. For service, contact a
qualified technician.

1

CAUTION

!

Although your UPS has been designed and manufactured to
assure personal safety, improper use may result in electrical
shock or fire. To ensure safety, please observe the following
rules:

• Turn off and unplug your UPS before cleaning. Do not use
liquid or aerosol cleaners. A dry cloth is recommended to
remove dust from the surface of your UPS.

• Do not install or operate your UPS in or near water.

• Do not place your UPS on an unstable cart, stand or table.

• Do not place your UPS in direct sunlight or near heat
emitting sources.

• Never block or insert any objects into the ventilation holes
or other openings of the UPS. Keep all vents free of dust
accumulation that could restrict airflow.

• Do not place the UPS power cord in any area where it may
be damaged by heavy objects.

• Placing magnetic storage on the top of the UPS may result
in data corruption.

CAUTION

!

If your UPS demonstrates any of the following conditions,
turn off and unplug your UPS from the outlet and contact
your local dealer, Liebert representative, or Liebert
Worldwide Support Group.

• The power cord is damaged.

• Liquid has been spilled on the UPS.

• The circuit breaker or fuse opens frequently.

• The UPS does not operate in accordance with the user
manual.

Provided are a Liebert MultiLink cable and a USB cable for connec­tion to a computer. Do not use the Liebert MultiLink cable for other
applications. Store in a safe place if not required at this time.

When using the communication features on this UPS, ensure the
cabling connected to the DB-9 or UPS communications ports are kept
separated from the power leads to the UPS input and output.

2

CONDITIONS OF USE: The input receptacle must be within 6 feet
(1.8 meters) of the UPS.

Your UPS provides conditioned power to connected equipment. Maxi­mum load must not exceed that shown on UPS rating label. If uncer­tain, consult your local dealer, Liebert representative or the Liebert
Worldwide Support Group.

The equipment can be installed and operated by individuals without
previous training.

CAUTION

!

BATTERY HANDLING PRECAUTIONS
Servicing of batteries should be performed or supervised by

personnel knowledgeable of batteries and required
precautions. Keep unauthorized personnel away from the
batteries.

A battery can present a risk of electrical shock and high
short-circuit current. The following precautions should be
observed when working on batteries:

• Remove watches, rings, and other metal objects.

• Use tools with insulated handles.

• Do not dispose battery or batteries in a fire. The battery
may explode.

• Do not open or mutilate the battery or batteries. Released
electrolyte is harmful to skin and eyes. It may be toxic.

• When replacing the battery, use same number and type of
battery as the suitable recommended type of battery listed
in specification table in back of this manual.

• Handle, transport and recycle batteries in accordance with
local regulations.

3

INTRODUCTION & SYSTEM DESCRIPTION

Congratulations on your choice of the Liebert PowerSure™ PSA Unin­terruptible Power System (UPS). It provides filtered AC power to sen­sitive electronic equipment and other critical loads.

The PowerSure PSA is a line-interactive UPS designed for an office
environment. It provides perfect power protection for PCs, point-of­sale systems, network and similar electronic equipment. It offers a
configurable input voltage window allowing you to precisely match
your equipment’s input power. Three communications options are
available: serial connection, contact closure and USB. The PowerSure
PSA is available in four (4) sizes: 350, 500, 650 and 1000VA at 120
VAC and 230 VAC.

PowerSure PSA models are available for 120 VAC and 230 VAC sup­ply voltages and loads. Please verify that this model matches your AC
Utility and load voltage requirements.

NOTE

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.

This equipment uses, generates and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference with
radio communications. However, there is no guarantee that
interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the UPS and the receiver.

• Connect the UPS into an outlet on a circuit different from
the one on which the receiver is connected.

4

Front View of UPS

PowerSure PS A

Power ON/OFF/

Alarm Silence*

Fault Indicator*

(Red/Green)

Utility Indicator*
(Green/Amber)

PowerSure PSA

Battery Indicator*
(Green/Amber)

* For details, see

Controls and
Indicators section

5

Rear View of UPS

350&500VA
Models

DB-9
port***

Orange output
receptacles*

Battery backup +
surge protection

Black output
receptacles (2)*

Surge protection
only

6-ft. (1.8m)

power cord

USB
port***

DIP
switches**

Site Wiring Fault
Indicator (Red)**

Data Line Protection
Connectors (2)***

Phone/Fax/DSL/Internet/
Modem devices

Input circuit
protector

Battery cover plate
(on rear of 350 & 500VA
models)

650&1000VA
Models

Orange output
receptacles*

Battery backup +
surge protection

NOTE: Two top
receptacles
included on
1000VA models
only

Black output
receptacles (2)*

Surge protection
only

6-ft. (1.8m)

power cord

DB-9
port***

USB
port***

DIP
switches**

Site Wiring Fault
Indicator (Red)**

Data Line Protection
Connectors (2)***

Phone/Fax/DSL/Internet/
Modem devices

Input circuit
protector

Battery cover plate
(bottom of unit for
650&1000 VA models)

For details, see:
* Installation section
** Controls and Indicators section
*** Communications section

6

MAJOR COMPONENTS

Input Output

L

N

G

TVSS &
EMI/RFI

Filters

Battery

Automatic

Voltage

Regulator

Bi-Directional

Converter

L

N

G

Transient Voltage Surge Suppression (TVSS) & EMI/RFI
Filters

These UPS components provide surge protection and filter electro­magnetic interference (EMI) and radio frequency interference (RFI).
They minimize surges or interference present in the utility line and
keep the sensitive equipment protected.

Automatic Voltage Regulator

The Automatic Voltage Regulator (AVR) protects connected equip­ment from power spikes and other abnormalities by raising an under­voltage (boost) and lowering an overvoltage (buck) as needed. This
keeps the UPS output voltage within the connected equipment’s toler­ance and accommodates wide utility voltage fluctuations without uti­lizing the batteries.

Bi-Directional Converter

In normal operation, the Bi-Directional Converter changes utility AC
power into regulated DC power to “float charge” the battery system.
This converter is continuously charging the battery whenever the UPS
is plugged into a power outlet and utility power is within acceptable
limits—even if the UPS is turned OFF.

When utility power fails, the Bi-Directional Converter draws energy
from the battery and inverts it into a regulated stepped sinewave sup­plying power for equipment connected to the orange receptacles.

Battery

The PowerSure PSA utilizes valve-regulated, nonspillable, lead acid
batteries. To optimize battery life, operate the UPS in an ambient
temperature of 68°-77°F (20° -25°C).

7

WHAT’S INCLUDED

PowerSure PSA

The PowerSure PSA is shipped with the following items:

• PowerSure PSA user manual

• MultiLink™ software CD

• MultiLink serial cable (M3LS9P9S), 10-ft. (3m)

• USB cable, 6-ft. (1.8m)

• RJ-11 cord, 7-ft. (2.1 m)

• Warranty card

PowerSure PSA

PowerSure

PSA

MultiLink

software CD

MultiLink

serial cable

(M3LS9P9S)

10 ft. (3m)

USB cable
6 ft. (1.8m)

RJ-11 cord
7 ft. (2.1m)

8

INSTALLATION

This UPS is designed for data processing equipment. Maximum load
must not exceed that shown on the UPS rating label. Do not connect
equipment that could overload the UPS or draw half-wave current
from the UPS, for example: electric drills, vacuum cleaners, laser
printers or hair dryers. Your total load earth leakage current must not
exceed 3.5 mA. Most data processing equipment meets this require­ment if you use no more than two pieces of equipment. If uncertain
about your load, consult your local dealer, Liebert representative, or
Liebert Worldwide Support Group.

1. Visually inspect the UPS for freight damage. Report damage to the
carrier and your local dealer, Liebert representative or the Liebert
Worldwide Support Group.

2. Decide where to place the PowerSure PSA. Find a location that is
near an easily accessible utility outlet. Install the UPS indoors in a
controlled environment, where it cannot be accidentally turned off.
Place it in an area of unrestricted airflow around the unit, away
from water, flammable liquids, gases, corrosives, and conductive
contaminants. Maintain a minimum clearance of 4 inches (100mm)
on each side of the UPS. Maintain an ambient temperature range of
32°F to 104°F (0°C to 40°C).

NOTE

UPS operation in temperatures above 77°F (25°C) reduces
battery life.

Plug computers, monitors & network hubs
into orange receptacles

Plug this type of equipment into black
receptacles ONLY

Inkjet

printer

Scanner Fax

machine

3. Plug the PowerSure PSA’s attached 6-ft. (1.8m) power cord into an
AC outlet. Check that the Site Wiring Fault Indicator on the rear is
not illuminated. If it is lit, refer to the Troubleshooting section.

9

4. Plug any computers and monitors into the orange battery backed up
receptacles.

Other office machines that do not exceed the capacity of the UPS—ink­jet printers, scanners and fax machines—may be plugged into either of
the two (2) black receptacles, which provide surge protection only.

5. Connect Phone/Fax/DSL/Internet/Modem devices to data line connectors.

Serial port for MultiLink cable connection

6. Press and release the ON/OFF/Alarm Silence button to turn on the
UPS. The UPS will beep and the Utility Indicator will illuminate
(green).

7. Turn on connected equipment.

8. Communication options (see Communications section for details):

Option 1—Serial Communications

Serial communications provides parametric data, for example,
input voltage and battery voltage.

a. Connect Multilink serial cable included with the UPS to commu-

nications port.

b. Install the MultiLink software—the software and installation

instructions, as well as the user manual, are on the CD included
in the PowerSure PSA package.

Option 2—Contact Closure Communications

Contact Closure communications provides on-battery and low-bat­tery signals for orderly shutdown.

a. Refer to the MultiLink user manual for instructions on making

your own contact closure cable.

b. Install the MultiLink software—the software and installation

instructions, as well as the user manual, are on the CD included
in the PowerSure PSA package.

Option 3—USB Communications

a. Connect USB cable provided with the UPS to the USB ports on the

PSA and your computer. The PSA will work automatically with your
built-in power management software on Windows XP and 2000 and
Mac OS 10.2 or later (see USB Interface Port section for details).

10

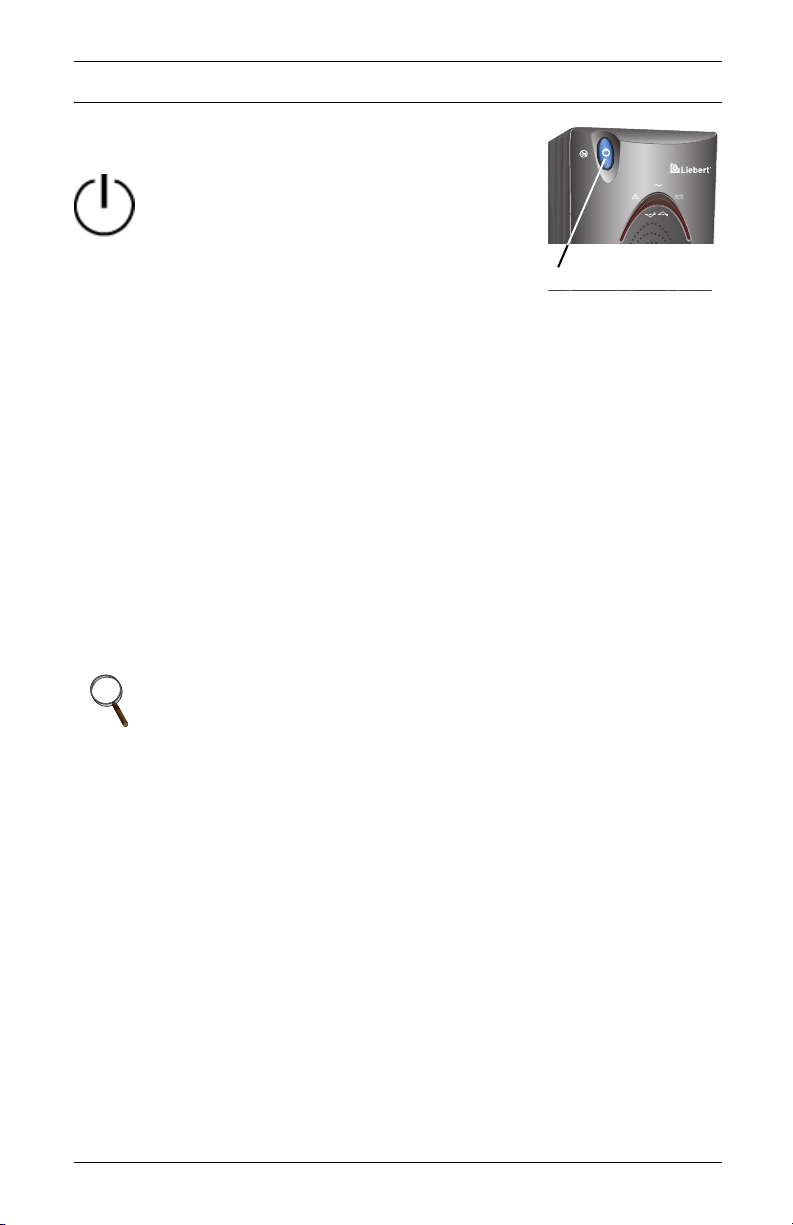

CONTROLS AND INDICATORS

PowerSure PSA

ON/OFF/Alarm Silence Button

This button controls output power to the
connected load and has three functions:

•ON

•OFF

• Alarm Silence

ON/OFF /Alarm Silence

ON When the UPS is off, pressing and releasing the main ON/

OFF button will start the UPS, and an audible alarm sounds
briefly. The UPS is capable of starting on battery (battery
start).

OFF When the UPS is on (in either Normal or Battery mode),

pressing the main ON/OFF button for more than
two (2) seconds will shut down the UPS. An audible alarm
sounds briefly.

Alarm
Silence

When a UPS alarm is active, pressing and releasing the
main ON/OFF button will silence the active audible alarm,
whether utility power is present or not. Once the alarm
silence function has been activated, all active audible
alarms—except for low battery, overload, or over-tempera­ture conditions—will remain silenced until a new alarm con­dition is detected.

PowerSure PSA

NOTE

Do not hold ON/OFF button down for more than 2 seconds
or the UPS will shut down.

11

Status Indicators: Utility, Batt ery, Faul t

There are three (3) status indicators on the front of the UPS (Utility,
Battery and Fault), as shown in the diagram below. Each indicator
illuminates to specify the status of the UPS (see Troubleshooting
section for details).

Utility Indicator (Green/Amber)

The Utility Indicator illuminates when the UPS is operating and sup­plying power to connected loads: green indicates Normal mode, amber
denotes Buck/Boost mode.

Battery Indicator (Green/ Amber)

The Battery Indicator illuminates to indicate the UPS is operating on
battery (green) or to signify a battery warning (amber).

Fault Indicator (Red/Green)

The Fault Indicator illuminates when the UPS detects a problem: red
for an internal UPS fault, green for overload and over-temperature
conditions.

Location and Status of Indicators

Utility Indicator

Green: Normal operation
Amber: Buck/Boost mode

Fault Indicator

Green: Overload/Over temperature
Red: UPS fault

NOTE

See Troubleshooting section for details.

Battery Indicator

Green: On battery
Amber: Battery warning

12

Site Wiring Fault Indicator (Red)

The Site Wiring Fault Indicator on the rear panel, as shown below,
illuminates red when the UPS detects a line-neutral reversal or a poor
neutral-ground. (Refer to Troubleshooting Chart if this indicator is
illuminated.)

Rear of UPS

DIP Switches

Site Wiring Fault
Indicator (Red)

Transfer Voltage Selectors (DIP Switches)

The two-position DIP switch control on the rear panel, shown above,
allows the operator to select the utility transfer voltage at which the
UPS will switch to battery power. DIP switch positions for each volt­age setting are as follows:

DIP switch settings

Left Right Nominal utility Setting

↑ Up ↑ Up 120VAC 85 - 145VAC (default)
↑ Up ↓ Down 110VAC 78 - 138VAC
↓ Down ↑ Up 127VAC 90 - 150VAC
↓ Down ↓ Down 120VAC 85 - 145VAC

CAUTION

!

Never change the voltage settings while the UPS is ON and
powering connected loads. Change DIP switches only when
the UPS is OFF.

CAUTION

!

To ensure protection of the connected equipment, the DIP
switch settings should match the nominal utility input
voltage. DIP switch settings not matching the nominal
utility could potentially damage connected equipment.

13

MODES OF OPERATION

Normal Mode

During Normal mode operation, the PowerSure PSA supplies condi­tioned, computer-grade power to the connected equipment: utility
power passes through the TVSS circuitry and the EMI/RFI filters and
then through the Bi-Directional Converter to connected equipment.

When the UPS is in Normal mode, the Utility Indicator illuminates
green.

Utility Indicator (Green)

The PowerSure PSA continuously monitors the batteries to maintain
them in a fully charged state. The battery charger operates whenever
AC power is present, even if the UPS is switched off. By default, the
UPS is set to perform an automatic battery test after it has been oper­ating continuously for two (2) weeks. The interval at which the UPS
will perform a battery test can be configured via MultiLink.

Buck/Boost Mode

The Automatic Voltage Regulator (AVR) circuitry compensates for
fluctuations in utility power, such as voltage surges and sags. When
the PowerSure PSA detects an abnormality, it raises the undervoltage
(boost) or lowers the overvoltage (buck) as needed. The AVR operates
automatically and maintains the output voltage to the connected criti­cal equipment, without utilizing the batteries.

When the UPS is in Buck /Boost mode, the Utility Indicator illumi­nates amber.

Utility Indicator (Amber)

14

Battery Mode

The UPS switches to Battery mode in the event of an extreme voltage/
frequency condition or complete utility failure. The battery system
supplies power through the Bi-Directional Converter to generate
power for connected equipment.

When the UPS is in Battery mode, the Battery Indicator illuminates
green and an alarm sounds every 10 seconds.

Battery Indicator (Green)

When a low battery condition occurs, the Battery Indicator changes to
flashing amber and the alarm sounds every half-second. Low battery
warning is defaulted to two (2) minutes but can be configured via Mul­tiLink. For more information, refer to Troubleshooting section.

Battery Indicator (flashing Amber)

CAUTION

!

Turning off the UPS while in either Normal mode or Battery
mode will result in the loss of output power.

NOTE

Once utility power is restored, the UPS resumes normal
operation. At this time, the battery charger begins recharging
the battery. The UPS is capable of OFF-State charging, i.e.,
with utility power, the UPS will charge the batteries as long
as it is plugged in.

15

COMMUNICATIONS

DB-9 Connector

The UPS has a DB-9 (9 pin female) connector on the rear to allow UPS
status communications with a computer system running MultiLink™
software. The DB-9 is capable of supplying serial communication, on
battery and low battery signals. MultiLink, Liebert’s UPS monitoring
and shutdown software, is shipped with the UPS, along with a
10 ft. (3m) DB-9 cable required for running MultiLink.

When MultiLink is installed on the host computer, the UPS can signal
“on battery” and “low battery” using opto-couplers. When the UPS is
operating in Battery mode, it can receive a signal from the host com­puter system that will shut down the UPS (after gracefully shutting
down the operating system on the host computer system) when the
remaining battery run time is low. The timing of the signal depends
on MultiLink’s configuration settings. This shutdown signal
(5-12VDC) must have a duration of at least 2 seconds for the UPS to
be shut down. The UPS communicates via serial communications
using Liebert ESP II protocol.

DB-9 Pin Assignment Description

1 Low Battery (open collector)

2 UPS TxD (typical RS-232 levels)

3 UPS RxD (typical RS-232 levels)

4 Battery Mode Shutdown (5-12VDC, 10-24 mA max)

5 Common

6 Any Mode Shutdown (short to Pin 5)

7 Low Battery (open emitter)

8 Utility Fail (open emitter)

9 Utility Fail (open collector)

DB-9 Pin Assignment Collector to Emitter*

Open

6789

54321

* Maximum voltage and current on Pins 1, 7, 8, and 9 is 55 VDC; 10.0 mA.

16

(+)

Collector

Open

(-)

Emitter

Remote Shutdown Via the DB-9 Connector

The PowerSure PSA can be shut down remotely by shorting Pins 5
and 6 or via Pins 4 and 5 of the DB-9 connector.

Shutdown Via Pins 5 & 6

When Pin 6 is shorted to Pin 5, the UPS output is shut off regardless
of what mode the UPS is operating in. The UPS cannot be started as
long as the pins are shorted. When the short is removed, the UPS out­put can be enabled by pressing the ON/ OFF /Alarm Silence button.

Shutdown Via Pins 4 & 5

While the UPS is operating on battery (with no battery test in
progress), a 5-12VDC signal for 2 seconds or longer is required to sig­nal a shutdown. Signals for less than 2 seconds are ignored.

After Pin 4 receives the shutdown signal, a 2-minute shutdown timer
inside the UPS begins a countdown. The timer cannot be stopped. If
utility power returns during the 2-minute timer countdown, the shut­down timer continues until the end of 2 minutes and then the UPS
turns off.

By default, autorestart is enabled so the UPS will restart after
10 seconds. If autorestart is disabled via MultiLink software, the UPS
remains off until a manual restart.

USB Interface Port

The PowerSure PSA has a USB interface port for communication that
will work with built-in Microsoft Power Manger software on the user’s
PC, if so equipped. It will provide UPS status and manages the auto­matic orderly shutdown of the computer. The UPS (USB) communica­tions meets HID standard, version 1.11. All USB models are compatible
with Microsoft Windows 2000, Windows XP and Mac OS 10.2 or later.
All USB models ship with a 6 ft. (1.8m) USB cable.

Microsoft, Windows, and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.

Data Line Protection Connectors

Data line (IN & OUT) connectors are located on the rear of the UPS
and provide transient voltage surge suppression (TVSS) for Phone/
Fax/DSL/Internet/Modem devices.

17

MAINTENANCE

The PowerSure PSA UPS requires very little maintenance. Follow
these practices to prevent problems.

Cleaning the UPS

The following will help ensure trouble-free operation for years:

• Vacuum dust from the ventilation intake occasionally.

• Wipe the cover periodically with a dry cloth.

Maintaining Batteries

The batteries are valve-regulated, nonspillable, lead acid and must be
kept charged to retain their design life. The UPS continuously charges
the batteries when connected to the utility supply, even while the UPS
is switched off.

When storing the UPS, it is recommended to plug in the UPS for at
least 24 hours every four to six months to ensure full recharge of the
batteries.

Battery Replacement

CAUTION

!

A battery can present a risk of electrical shock and high
short circuit current. The following precautions should be
observed before replacing the batteries:

• Remove rings, watches, and other metal objects.

• Do not lay tools or other metal objects on top of the bat­teries.

• If the battery replacement kit is damaged in any way or
shows signs of leakage, contact your local dealer or Lie­bert representative immediately.

• Do not dispose of batteries in a fire. The batteries may
explode.

• Dispose of old batteries according to local codes.

This UPS is equipped with internal “hot swappable” batteries that the
user can replace without shutting down the UPS or connected loads.

NOTE

Caution should be exercised when replacing the batteries
because the load is unprotected from disturbances and power
outages during this procedure.

18

Battery Replacement Procedure

Replacement requires removing the battery cover plate on the back or
bottom of the UPS. No tools are needed.

To replace the batteries:

1. Remove the bat­tery cover plate
on the back/bot­tom of the UPS
(Figure 1).

2. Pull the white
tabs towards you
to remove the
battery from the
UPS (Figure 2).

3. Disconnect the
insulated con­nectors from the
battery termi­nals (Figure 3).

4. Insert a new
battery pack,
and push the
connectors onto
the battery ter­minals (black to
black & red to
red) (Figure 4).

Figure 1 Figure 2

Figure 3 Figure 4

NOTE: There may be a small spark at the battery terminals
when reconnecting the connectors. This is normal and will
not harm you or the UPS.

5. Push the battery

Figure 5 Figure 6

pack into the
UPS (Figure 5).

6. Reattach the
battery cover
plate
(Figure 6).

19

TROUBLESHOOTING

The information below indicates various symptoms a user may
encounter in the event the PowerSure PSA experiences a problem.
Use this information to determine whether external factors caused the
problem. See Troubleshooting Chart for suggested remedy.

Utility
Indicator

Fault
Indicator

Battery
Indicator

Guide to Status Indicators

Fault

Indicator

1. The Fault indicator illuminates, indicating the
UPS detected a problem.

2. An alarm sounds, alerting that the UPS
requires attention. The alarm can be silenced
except for low battery, overload warning and
over-temperature warning conditions.

3. Utility and/or Battery indicators may be illumi­nated as a diagnostic aid to the operator, as
shown below:

Utility

Indicator

Battery

Indicator

Diagnosis/

Audible Alarm

—

——

——

—

—

——

Green

Flashing

Green

Flashing

Green

ON

Green

ON

Green

ON

Red

Flashing

Red

ON

Green

ON

Amber

ON

Green

ON

Green

ON

——

Green

ON

—

——

Green

ON

——

—

GreenONUPS is operating on battery; beep every

Green

—

Amber

Flashing

Amber

Flashing

—

—

GreenONOver temperature (overtemp) warning;

—

Normal operation with utility power
present; no beep.

10 seconds.

Battery test has been initiated; no beep.

ON

UPS is operating in Buck/Boost mode;
no beep.

Battery needs to be replaced; long beep
every minute.

Low battery warning; beep every half­second.

Overload warning, load is >100%; beep
every half-second.

Overload shutdown, load exceeds UPS
capacity (110%); continuous beep.

Over temperature (overtemp) warning;
beep every 5 seconds (Normal mode).

beep every 5 seconds (Battery mode).

Over temperature (overtemp) shutdown;
long beep every 5 seconds.

UPS is on, fault warning; continuous
beep.

UPS has failed & shut down; continuous
beep.

20

Troubleshooting Chart

If the UPS fails to operate properly, turn off the unit and repeat the
steps in the Installation section of this manual. If the problem per­sists, refer to the chart below:

Problem Cause Solution

Check the circuit protector on the rear of
the UPS. If it is tripped, reset it and restart
the UPS.
For further help, call your local dealer,
Liebert representative or the Liebert
Worldwide Support Group.

Check for proper connection of battery or
batteries.

Reset the circuit protector and restart the
UPS.

Have the utility checked by a qualified
electrician.

Wait until the voltage rises to an
appropriate level or have the utility
checked by a qualified electrician.

Wait until voltage lowers to an
appropriate level or have the utility
checked by a qualified electrician.

Check the circuit protector on the rear of
the UPS. If it is tripped, reset it and restart
the UPS.
If the problem persists, disconnect some
of the equipment from your UPS—the
total wattage of your equipment must not
exceed the capacity of the UPS.
For further help, call your local dealer,
Liebert representative or the Liebert
Worldwide Support Group.

Make sure that the UPS is operating in a
32°F to 104°F (0°C to 40°C) environment
and that it has adequate ventilation.

Consult the MultiLink user manual or
contact your LAN administrator.

Have the utility checked by a qualified
electrician.

Recharge battery.

Replace battery.

UPS
will
not
start

UPS starts
on battery,
but will
not switch
to AC

UPS
shuts
down,
Fault
Indicator
Lit

Site Wiring
Fault
Indicator
illuminated

UPS not
providing
expected
back-up
time

Overload/
Short circuit

Battery disconnected
or is completely
discharged

UPS not plugged in Plug in the power cord securely.

Circuit protector
tripped

Power not available
at utility receptacle

Input voltage
below threshold

AC overvoltage

Overload/
Short circuit

Internal UPS fault

High temp shutdown

MultiLink shutdown

Line-neutral reversal,
Poor ground
connection

Overload Reduce load.

Battery not charged
due to a recent outage

Battery needs to be
replaced

21

SPECIFICATIONS

Model Number

Power Rating VA/W

DIMENSIONS: in. (mm)

Unit
WxDxH

Shipping
WxDxH

WEIGHT: lbs (kg)

Unit 16.8 (7.6) 17.2 (7.8) 20.7 (9.4) 29.7 (13.5)

Shipping 18.1 (8.2) 18.5 (8.4) 22.9 (10.4) 31.9 (14.5)

INPUT AC PARAMETERS

Surge Protection 570J

Voltage Range Without
Battery Operation

Frequency Range 46.5 - 63.5 Hz (±0.1 Hz)

Input Power Cord 6 ft. (1.8m) attached, w/ NEMA 5-15 P

OUTPUT AC PARAMETERS

Output Receptacles

Voltage (Normal mode) Nominal (110, 120, 127VAC) ±10%

Voltage (Battery mode) 120 VAC ±8%

Output Current 2.9 A 4.2 A 5.4 A 8.3 A

Waveform (Battery mode) Stepped Sinewave

Frequency 50 Hz or 60 Hz; auto sensing

Overload Warning
(Normal & Battery modes)

Overload Shutdown >110%

BATTERY PARAMETERS

Type Valve-regulated, nonspillable, lead acid

Quantityx VoltagexRating (1)x 12V x7Ah (1)x 12V x9Ah (1)x12 Vx 9Ah (2) x12V x7.5 Ah

Transfer Time 4 - 6 ms typical

Backup Time: At 77°F (25°C), resistive loading, with fully charged batteries:

Full Load 8 minutes 8 minutes 5 minutes 5 minutes

Half Load 26 minutes 24 minutes 16 minutes 18 minutes

Recharge Time

ENVIRONMENTAL

Operating Temperature

Storage Temperature

Relative Humidity 0% to 95%, non-condensing

Operating Elevation Up to 10,000 ft. (3000 m) at 86°F (30°C) without derating

Audible Noise < 40 dBA, at 1 meter

PSA350MT-120 PSA500MT-120 PSA650MT-120 PSA1000MT-120

350VA /210W 500 VA/ 300W 650VA/ 390W 1000 VA/600W

4.6x 7.7x 8.7

(116x196 x222)

7.7x 12.2 x11.5

(196x 310x 293)

Battery backup + surge protection;

4.6x 7.7 x8.7

(116x196 x222)

7.7x12.2 x11.5

(196x310x293)

78VAC - 150VAC, DIP switch selectable

(see DIP switch settings on page 13)

(4) NEMA 5-15R (orange)

(2) NEMA 5-15R (black)

Surge protection

6 hours to 90% of rated capacity,

after full discharge into resistive load

+32°F to +104°F

+5°F to +104°F

(-15°C to +40°C)

4.6x14.1 x8.7

(116x 358x 222)

9.5x19.7 x12.4

(242x 500x 316)

>100%

(0°C to +40°C)

4.6x 14.1x 8.7

(116x358 x222)

9.5x19.7 x12.4

(242x500 x316)

(6) NEMA 5-15R

(orange) Battery

backup + surge

protection;

(2) NEMA 5-15R

(black) Surge

protection

22

AGENCY

Safety UL 1778, c-UL Listed

Surge

ESD EN61000-4-2, Level 3, Criteria A

Susceptibility EN61000-4-3, Level 3, Criteria A

Electrical Fast
Transient/Burst

Emissions FCC Part 15, Subpart B, Class B

Conducted Immunity EN61000-4-6, Level 3, Criteria A

Harmonics EN61000-3-2

Flicker EN61000-3-3

Transportation ISTA Procedure 1A

ANSI C62.41, Category A, Level 3

(IEEE 587, Category A);

EN61000-4-5, Level 3, Criteria A

EN61000-4-4, Level 4, Criteria A

Battery Run Times

Load % 350VA 500VA 650VA 1000VA

10 139 128 93 103
20 72 58 39 47
30 45 41 30 34
40 34 28 21 23
50 26 24 16 18
60 19 17 11 13
70 15 15 10 10
80 12 11 8 8
90 10 10 7 7

100 8 8 5 5

NOTE

Approximate discharge times are in minutes and at 77°F
(25°C) with a resistive load.

Product Warranty Registration

To register for warranty protection:

•Visit the Quick Links section of our Web site at:

http://www.liebert.com

• Click on Product Warranty Registration and fill in the form.
If you have any questions, please contact us at:

US: 800-222-5877
Outside the US: 614-841-6755

[e-mail]

23

24

PowerSure™ PSA

POWER AVAILABILITY

USER MANUAL

The Company Behind the Products

With over a million installations around the globe,
Liebert is the world leader in computer protection
systems. Since its founding in 1965, Liebert has
developed a complete range of support and
protection systems for sensitive electronics:

• Environmental systems—close-control air
conditioning from 1 to 60 tons

• Power conditioning and UPS with power
ranges from 300 VA to more than 1000 kVA

• Integrated systems that provide both
environmental and power protection in a
single, flexible package

• Monitoring and control—from systems of any
size or location, on-site or remote

• Service and support through more than 100
service centers around the world and a 24/7
Customer Response Center

While every precaution has been taken to ensure
the accuracy and completeness of this literature,
Liebert Corporation assumes no responsibility and
disclaims all liability for damages resulting from use
of this information or for any errors or omissions.

© 2003 Liebert Corporation
All rights reserved throughout the world.
Specifications subject to change without notice.

® Liebert and the Liebert logo are registered
trademarks of Liebert Corporation. All names
referred to are trademarks or registered
trademarks of their respective owners.

SL-23270 (3/03) Rev. 1

Technical Support/ Service

Web Site

www.liebert.com

Monitoring

[e-mail]

Outside the US: 614-841-6755

Outside the US: 614-841-6755

Environmental Systems

Outside the United States

800-222-5877

Single-Phase UPS

800-222-5877

[e-mail]

Three-Phase UPS

800-543-2378

[e-mail]

800-543-2778

614-888-0246

Locations

United States

1050 Dearborn Drive

P.O. Box 29186

Columbus, OH 43229

Via Leonardo Da Vinci 8

Zona Industriale Tognana

35028 Piove Di Sacco (PD)

[phone]

Fax: [phone]

23F, Allied Kajima Bldg.

138 Gloucester Road

[phone]

Fax: [phone]

Italy

Asia

Wanchai

Hong Kong
