US-EN Operation and Safety Notes Page 3
US-ES Instrucciones de utilización
y de seguridad Página
284995_aur_Temperaturstation_cover_US.indd 3-4 21.03.17 16:38
Description of signal words .................Page 4
Customer service .........................................Page 4
Introduction .....................................................Page 5
Proper use ..........................................................Page 5
Description of parts and features ......................Page 5
Technical data ....................................................Page 9
Scope of delivery ...............................................Page 10
Important safety notes ............................Page 10
General safety information................................Page 11
Safety instructions for batteries /
rechargeable batteries............................Page 12
Before initial use ..........................................Page 15
General information ..........................................Page 15
Preparing to use the outdoor sensor .................Page 15
Preparing the temperature station for use ........Page 16
Temperature station ...........................................Page 18
Outdoor sensor ..................................................Page 19
Setting the language / time zone / time /
date manually ....................................................Page 19
Displaying summer time .....................................Page 21
Setting the alarm time ........................................Page 21
Calling up the alarm times ................................Page 22
Switching the alarm on / off ..............................Page 22
Using the snooze button ....................................Page 23
Displaying temperature .....................................Page 23
Calling up the minimum / maximum values ......Page 24
Displaying temperature trends ..........................Page 24
Battery state display ..........................................Page 25
Replacing the batteries ......................................Page 25
Troubleshooting ...........................................Page 26
Cleaning and maintenance ...................Page 27
Disposal .............................................................Page 28
Warranty ..........................................................Page 29
3 US-EN
DESCRIPTION OF
SIGNAL WORDS
WARNING indicates a hazardous
situation that, if not avoided, could result
in death or serious injury.
CAUTION indicates a hazardous
situation that, if not avoided, could result
in minor or moderate injury.
NOTICE indicates information considered
important, but not hazard related (e.g.
messages related to property damage).
CUSTOMER SERVICE
Call customer service at
1 (844) 543-5872
Visit the Website Customer Service
Platform at
www.lidl.com / contact-us
Visit a LIDL store for further assistance.
IAN 284995
4 US-EN
Please have your
IAN number ready.
Temperature station
Introduction
Congratulations on your purchase. You have
selected a quality product. The instructions for
use are a part of the product. They contain
important information about the safety, use
and disposal of the appliance. Before using
the product, please learn about all the safety
information and usage instructions. Only use
the product as described and for the specified
applications. If you lend the product to someone else, please also give all the instructions.
Proper use
The product displays the indoor and outdoor
temperatures in degrees Celsius (°C) or degrees Fahrenheit (°F) and their maximum and
minimum values. The product also displays
the time in 12 / 24-hour clock modes and the
date. In addition, the product has two alarm
functions. The product is only suitable for use
in private households and is not intended for
commercial use.
Description of parts
and features
LC display
1
DST display (summer time)
2
WWVB symbol
3
ZZ symbol (snooze function)
4
Date display (day / month)
5 US-EN
5
Seconds display
6
Day of the week display
7
MAX- / MIN display (outdoor temperature)
8
Temperature trend (outdoor temperature)
9
Outdoor temperature
10
Radio signal symbol
11
symbol (outdoor sensor)
12
MAX- / MIN display for indoor
temperature
13
Indoor temperature
14
symbol (temperature station)
15
Temperature trend (indoor temperature)
16
/ symbol (Alarm 1 / Alarm 2)
17
Time
18
2nd time zone (ZONE)
21 3
18
17
16
15
6 US-EN
4
5
6
7
8
9
11121314 10
Temperature station

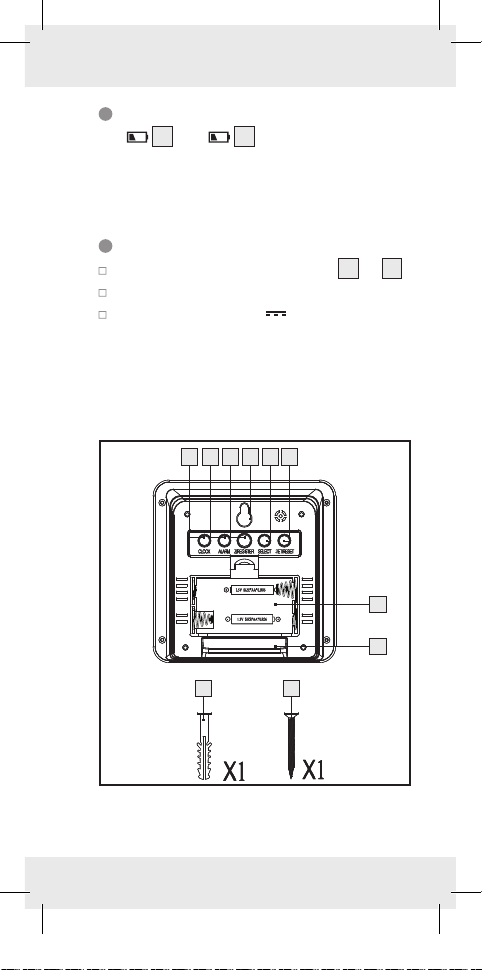

19
CLOCK button
20
ALARM button
21
ZZ / REGISTER button (snooze function /
REGISTER)
22
Hanging slot
23
SELECT button
24
SET / RESET button
25
Battery compartment
26
Stand
27
Screw (D 0.1 in / 3 mm)
28
Dowel (D 0.3 in / 7.7 mm)
222119 20 23 24
28 27
25
26
7 US-EN
Outdoor sensor
29
Control LED
30
Hanging slot
31
Battery compartment
32
Screw (D 0.1 in / 3 mm)
33
Dowel (D 0.3 in / 7.7 mm)
30
31 3332
29
8 US-EN
Technical data
Temperature station:
Model No.: HG02132A-US-RX /
HG02132B-US-RX
FCCID: 2AJ9O-HG2132RX
Temperature
measurement range: 0 °C – + 50 °C
+32 °F – +122 °F
Note: If the temperature is ≤0 °C (32 °F),
the LC display shows “LL.L”. If the temperature
is ≥50 °C (122 °F), the LC display shows
“HH.H”.
Temperature interval: 0.1 °C / 0.1 °F
Radio signal: WWVB
Batteries: 2 x AA 1.
(direct current)
(pre-installed)
Outdoor sensor:
Model No.: HG02132A-US-TX /
HG02132B-US-TX
FCCID: 2AJ9O-HG2132TX
Temperature
measurement range: –20 °C – +60 °C
–4 °F – +140 °F
HF transmission signal: 433 MHz
HF transmission range: max. 98.4 ft /
30 meters (in open
area)
Batteries: 2 x AA 1.
(direct current)
(pre-installed)
5 V
5 V
9 US-EN
Degree of protection: IPX4 (Splash-proof) /
suitable for wet
locations
Scope of delivery
1 Temperature station
1 Outdoor sensor
4 Batteries AA, 1.5 V (pre-installed)
2 Screws (D 0.1 in / 3 mm)
2 Dowels (D 0.3 in / 7.7 mm)
1 Drill template
1 Operating instructions
IMPORTANT
SAFETY
NOTES
READ ALL INSTRUCTIONS. KEEP FOR FUTURE REFERENCE. INCLUDE ALL DOCUMENTATION WHEN PASSING THIS
PRODUCT ON TO OTHERS.
General safety information
Failure to observe
the following warnings can
result in death or serious injuries.
10 US-EN
This product can be used by children
aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the product in a safe way and understand the hazards involved. Children shall
not play with the product. Cleaning and
user maintenance shall not be made by
children without supervision.
Changes or modifications to this product
not expressly approved by the party res
ponsible for compliance could void the
user‘s authority to operate the product.
Note: This product has been tested and
found to comply with the limits for a
Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This product generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that inter-
ference will not occur in a particular installation. If this product causes harmful
interference to radio or television reception, which can be determined by turning
the product off and on, the user is
11 US-EN
encouraged to try and correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
product and receiver.
• Connect the product into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio / TV technician for help.
• The RF Exposure Compliance distance
is 0.78 in / 20 mm.
Do not expose the product to an extremely
high electromagnetic field. This may impair
the correct functioning of the product.
Please note that the guarantee does not
cover damage caused by incorrect handling, non-compliance with the operating
instructions or interference with the product by unauthorised individuals.
Safety instructions
for batteries / rechargeable batteries
Failure to observe
the following warnings can
result in death or serious injuries.
12 US-EN
DANGER TO LIFE! Keep batteries /
rechargeable batteries out of reach of
children. If accidentally swallowed seek
immediate medical attention.
DANGER OF EXPLOSION!
Never recharge disposable
batteries. Do not short-circuit
batteries / rechargeable batteries
and / or open them. Overheating, fire or
bursting can be the result.
Never throw batteries / rechargeable
batteries into fire or water.
Do not exert mechanical loads to batter-
ies / rechargeable batteries.
Risk of leakage of batteries /
rechargeable batteries
Failure to observe
the following warnings can result in
injuries or property damage.
Avoid extreme environmental conditions
and temperatures, which could affect
batteries / rechargeable batteries, e.g.
radiators / direct sunlight.
Avoid contact with the skin, eyes and mu-
cous membranes. In the event of contact
with battery acid, thoroughly flush the
affected area with plenty of clean water
and seek immediate medical attention.
WEAR PROTECTIVE
GLOVES! Leaked or damaged batteries / rechargeable
batteries can cause burns on contact with
13 US-EN
the skin. Wear suitable protective gloves
at all times if such an event occurs.
In the event of a leakage of batteries /
rechargeable batteries, immediately remove
it from the product to prevent damage.
Only use the same type of batteries /
rechargeable batteries. Do not mix used
and new batteries / rechargeable batteries.
Remove the batteries / rechargeable bat-
teries if the product will not be used for a
longer period.
Risk of damage of the product
Only use the specified type of battery /
rechargeable battery!
Insert batteries / rechargeable batteries
according to polarity marks (+) and (-)
on the battery / rechargeable battery
and the product.
Clean the contacts on the battery /
rechargeable battery and in the battery
compartment before inserting!
Remove exhausted batteries / recharge-
able batteries from the product immediately.
SAVE THESE
INSTRUCTIONS
14 US-EN
Before initial use
Activate the batteries first inside the
outdoor sensor, then inside the temperature station.
Note: Before initial use, remove the protective
film from the device display.
General information
When choosing where to
position the devices, make sure that they are
not exposed to direct sunlight, vibrations, dust,
heat, cold or moisture. Do not place the devices near to heat sources, e.g. radiators, as
this may result in damage to the devices.
Please ensure that neighbouring devices
are not operated at the same frequency
of 433 MHz. Such devices may cause
interference to the radio connection.
Do not place the devices next to or on
metal plates. Otherwise the quality of radio wave transmission may be reduced.
Radio signal (WWVB):
The WWVB-Signal (time signal transmitter) is
made up of time pulses transmitted from one
of the highest precision clocks in the world
close to Fort Colins, Colorado.
Preparing to use
the outdoor sensor
Remove the battery compartment cover
from the back of the outdoor sensor.
15 US-EN
Remove the battery safety strip.
The outdoor sensor is now ready for use
and the control LED 29 illuminates briefly.
Close the battery compartment cover.
If this does not work, carry out a restart
of the temperature station if necessary. To
do this, press and keep pressed the
ZZ / REGISTER button 21 (restart the
outdoor sensor only).
Preparing the temperature
station for use
Open the battery compartment 25 on the
back of the temperature station.
Remove the battery safety strip.
Close the battery compartment cover.
Connecting the temperature station
with
the outdoor sensor and the
WWVB radio signal:
After removal of the battery safety strip, the temperature station attempts to establish a connection with the outdoor sensor. This process can
take a few minutes. The Radio signal symbol
10
flashes. Once the temperature station has
successfully connected to the outdoor sensor, the
Radio signal symbol 10 stops flashing and
the temperature is shown in the LC display.
Note: If the temperature station does not
receive the signal from the outdoor sensor
within 3 minutes, the temperature station
automatically starts with the reception of the
radio time signal.
16 US-EN
After successful reception of the outdoor sensor signal or after 3 minutes, the temperature
station starts with the reception of the radio
time signal. This process can take up to 5 minutes and is indicated in the LC display by the
flashing WWVB symbol 2.
After successful reception of the WWVB
radio signal, the WWVB symbol 2 is
displayed continuously in the LC display.
Note: Do not move the temperature station
while it is receiving the signal. Otherwise this
could interfere with reception. If synchronisation
is not possible when the temperature station
is being first set up, try changing the location
(e.g. place the temperature station near to a
window).
Reception may be considerably reduced by
obstructions (e.g. concrete walls) or sources
of interference (e.g. other electrical devices).
If the reception of the radio signal continues
to be interrupted, you can set the time and
date manually (see “Setting the language /
time zone / time / date manually”).
Mounting the temperature station
and / or the outdoor sensor on a wall:
Note: You will require an electric drill and a
crosshead screwdriver for this step.
DANGER TO LIFE,
RISK OF INJURY AND MATERIAL
17 US-EN
DAMAGE! Read the operating and safety
instructions for your drill carefully.
DANGER TO LIFE!
Take care that you do not hit electricity, gas
or water lines when you drill into the wall. If
necessary, check with a pipe and cable detector before drilling.
Temperature station
Note: Before mounting the temperature station, please remove the stand 26 by simply
pulling it off.
Mark the position of the hole (D 0.3 in /
7.7 mm) on the wall.
Note: Use the included drilling template
intended for marking the drill holes.
Drill the hole with an electric drill.
Insert the dowel 28 into the drilled hole.
Using a crosshead screwdriver, screw the
screw 27 into the dowel.

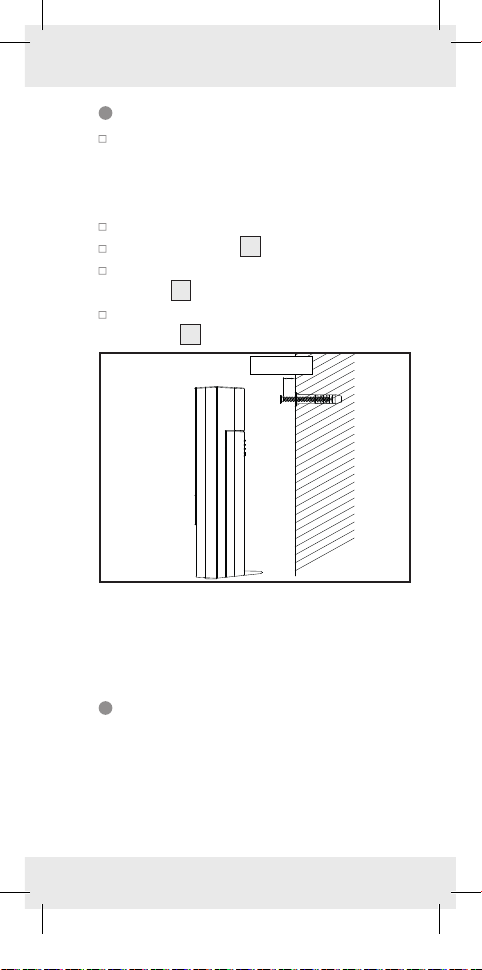

Hang the temperature station by placing
the hanging slot 22 on the screw.
0.125in / 0.3mm
0.125 in/0.3 mm
18 US-EN
Outdoor sensor
0.3in / 8mm
Mark the position of the hole (D 0.3 in /
7.7 mm) on the wall.
Note: Use the included drilling template
intended for marking the drill holes.
Drill the hole with an electric drill.
Insert the dowel 33 into the drilled hole.
Using a crosshead screwdriver, screw the
screw 32 into the dowel.
Hang the outdoor sensor by placing the
hanger 30 on the screw.
0.3 in/8 mm
Note: Ensure that the outdoor sensor should
not be immersed into water and not contact
with direct sunlight. Electronic devices may
adversely affect the wireless signal reception.
Setting the language / time
zone / time / date manually
The reception of WWVB radio signal where
the temperature station has been positioned
may become degraded or interrupted. If this
happens you can set the product manually.
19 US-EN
1. Press and hold down the CLOCK button 19
for about 3 seconds.
2. Press the SET / RESET button 24 to switch
between the 12- and 24-hour clock display modes.
3. Press the CLOCK button to confirm your
settings. The language option flashes.
Tip: If you press and hold down the SET /
RESET button, you accelerate the process
and reach the desired value more quickly.
This quicker method can also be used for
making the following settings. If during
a period of 30seconds no buttons are
pressed, the LC display returns automatically to the default display.
4. Press the SET / RESET button to set the
desired language (GE = German,
FR = French, SP = Spanish, IT = Italian,
EN = English).
5. Press the CLOCK button to confirm your
settings. The time zone display flashes.
6. Press the SET / RESET button to set the
desired time zone for time zone
(–8 hours to -5hours).
Note: Should you be in a country in
which the WWVB-Signal can be received
but the time is different to your current local time, you can use the time zone setting to have the clock display your
current local time. If you find yourself in a
country in which, for example, the local
time is an hour ahead of Pacific Standard
Time (PST), you set the time zone to –8.
20 US-EN
The product is now still controlled by
WWVB but shows the time as one hour
ahead of PST.
7. Press the CLOCK button to confirm your
settings. The hour display flashes.
8. Press the SET / RESET button to set the
desired value.
9. Press the CLOCK button to confirm your
settings.
10. Repeat steps 6 and 7 to set the values for,
minutes, seconds 5, year and date 4
(day / month).
Note: The seconds display can only be
reset to 00.
11. Press the SET / RESET button to set the
DST function (ON/OFF).
12. Press the CLOCK button to confirm your
settings.
13. After this, the LC display returns to the
default display.
Displaying summer time
Summer time is indicated by the DST symbol 1
in
the LC display. The temperature station
tomatically detects from the WWVB radio sig-
nal whether it is summer time or not.
au-
Setting the alarm time
You can set two different alarm times.
1. Press and hold down the ALARM button
20
for about 3 seconds.
21 US-EN
Note: If an alarm time has been set before, then that previously set alarm time
appears in the LC display. If not, then the
display shows 0:00 or AM 12:00.
2. The hour display flashes. Press the SET /
RESET button 24 to set the desired value.
3. Press the ALARM button to confirm your
settings. The minute display flashes.
4. Press the SET / RESET button to set the
desired value.
5. Press the ALARM button to confirm your
settings.
6. Repeat steps 2 to 5 to set the time for
Alarm 2.
Calling up the alarm times
Press ALARM button 20 once or twice to
call up the set time for Alarm 1 or Alarm
2 respectively.
Press the ALARM button again to return
to the default display.
Switching the alarm on / off
Press the SET / RESET button 24 once to
activate Alarm 1. Press the SET / RESET
button twice to activate Alarm 2. Press the
SET / RESET button three times to activate
Alarm1 and Alarm 2.
Note: The symbol or appears in the
LC display.
The alarm signal sounds as soon as the set
alarm time is reached. The alarm signal
22 US-EN
ceases automatically after a period of
2minutes.
Press the SELECT 23 / SET / RESET 24 /
ALARM 20 / CLOCK button 19 to switch
off the alarm signal before it switches off
automatically.
Note: The alarm signal sounds every
day at the set time.
Press the SET / RESET button three times
to deactivate Alarm 1. Press the SET /
RESET button twice to deactivate Alarm
2. Press the SET / RESET button once to
deactivate Alarm 1 and Alarm 2.
Using the snooze button
Press the ZZ/ REGISTER button 21 while
the alarm signal is sounding to activate
the snooze function.
The alarm signal is silenced and the
displays or and ZZ flash.
The alarm signal sounds again after
5 minutes.
Press the SELECT button 23 to deactivate
the snooze function.
Displaying temperature
The LC display shows the indoor temperature
13
and the outdoor temperature 9.
Press and hold down the SELECT button
23
for 3 seconds. The °F display flashes.
23 US-EN
Press the SET / RESET button 24 to switch
between the °C (Celsius) and °F (Fahrenheit) temperature scales.
Press the SELECT button to confirm your
settings.
Calling up the minimum /
maximum values
The temperature station stores the maximum
and minimum values of the outdoor sensor
and of the temperature station itself.
Press the SELECT button 23 to display the
maximum values of the indoor and outdoor temperature.
Press the SELECT button again to display
the minimum values of the indoor and
outdoor temperature.
Press the SET / RESET button 24 while the
maximum and minimum values, are being
displayed to reset the values.
Press the SELECT button, to return to the
default display.
Displaying temperature
trends
After successfully connecting with the outdoor
sensor, the temperature station can display
the temperature trend (outdoor) 8 and the
temperature trend (indoor) 15.
You may see the following displays:
= The temperature is rising.
= The temperature is constant.
= The temperature is falling.
24 US-EN
Battery state display
The 11 and 14 symbols appear in the
temperature station’s LC display if the batteries
in the outdoor sensor or the temperature station
are weak.
Replacing the batteries
Open the battery compartment 25 or 31.
Remove the exhausted batteries.
Insert two new 1.5 V (direct current)
batteries (
ments.
Note: Make sure you fit the batteries the
right way round (polarity). This is shown in
the battery compartments
AA) into the battery compart-
.
222119 20 23 24
25
26
28 27
25 US-EN
30
31 3332
Close the battery compartments.
Troubleshooting
Note: This product has delicate electronic
components. This means that if it is placed
near an object that transmits radio signals, it
could cause interference.
If the display indicates a problem, move
such objects away from the temperature
station / outdoor sensor or remove the
batteries for a short while from the temperature station / outdoor sensor and
then replace them.
Obstacles such as concrete walls can also
cause that the reception is disturbed. In this
case, change the location (eg near a window).
Please take note that the outdoor sensor should
always be set up within max. 98.4 ft / 30 me-
ters (open space) from the temperature sta-
tion. The specified range is the free-field
range and means that no obstacle should be
26 US-EN
between the outdoor sensor and the temperature station. A “visual contact” between outdoor sensor and temperature station often
improves the transmission.
Cold (outdoor temperatures below 32°F /
0 °C) can reduce the battery power of the
outdoor sensor and thereby negatively impair
the radio transmission.
Another factor that may cause harmful interference, are dead or weak batteries in the
outdoor sensor. Replace them by new ones.
If your temperature station is not working correctly, please remove the batteries for a short
while and then replace them.
Cleaning and maintenance
The product should only be cleaned on
the outside with a soft dry cloth.
Under no circumstances should you spray
the outdoor sensor, e.g. with a garden
hose. The outdoor sensor is protected
against splashing water from all directions.
27 US-EN
Disposal
Dispose of the packaging through
your local recycling facilities and
in compliance with all federal,
state and local regulations.
Please note the package markings
b
regarding waste separation, indi-
a
cated by abbreviations (a) and
numbers (b), meaning: 1–7: plastics / 20–22: paper and cardboard / 80–98: composite
materials.
Contact your local waste management authority for additional information on how to dispose of the
used product.
To help protect the environment, please
dispose of the product properly when it has
reached the end of its useful life, do not throw
in the garbage. Information on collection sites
and their opening hours is available from
your local authority.
Improper disposal of batteries can
damage the environment!
Never throw batteries in the garbage. They
may contain toxic heavy metals and must be
handled as special waste. The chemical
28 US-EN
symbols of heavy metals are: Cd = cadmium,
Hg = mercury, Pb = lead. Used batteries
should therefore be disposed of through a local collection point.
Warranty
What does this warranty cover?
The warranty covers:
· Damage, breakage or inoperability due to
defect.
· Damage not accounted for by normal wear
and tear or following the safety and maintenance instructions provided in the user
manual.
What is not covered by the warranty?
The warranty does not cover damage caused
by:
· Normal wear and tear of the product,
including fragile parts (such as switches,
glass, etc.);
· Improper use or transport;
· Disregarding safety and maintenance
instructions;
· Accidents or acts of nature (e.g. lightning,
fire, water, etc.).
· Tampering with the product (such as
removing cover, unscrewing screws etc.)
29 US-EN
What is the period of coverage and
warranty resolution?
The warranty is for 3 years from the date of
purchase. At our discretion, product will
either be refunded or replaced.
What will we not do?
We will not:
· Start a new warranty period upon product
exchange;
· We will not repair product.
How to process the warranty?
We recommend first either:
· Call customer service at 1 (844) 543-5872
· Visit the Website Customer Service Platform
at www.lidl.com / contact-us
· Visit a LIDL store for further assistance
To ensure the quickest warranty return process,
please have the following available:
· The original sales receipt that includes the
date purchased;
· The product and manual in the original
package;
· A statement of the problem.
What must you do to keep the
warranty in effect?
· Retain the original receipt;
· Follow all product instructions;
· Do not repair or modify the product.
30 US-EN
How does state law relate to this
warranty?
Any State Laws that contradict or modify the
warranty listed here to the consumer’s benefit
will be followed.
31 US-EN
Loading...
