AHFL 433 B2
Table of Contents
Introduction ................................3
About these operating instructions ....................... 3
Intended use ....................................... 3
Used Warning types ................................. 4
Safety .....................................5
Important safety instructions ........................... 5
Safety instructions for batteries ......................... 6
Package contents ............................8
Description of parts ..........................9
First use ...................................10
Requirements at the setup location .....................10
Using the outdoor sensor for the first time ................11
Using the weather station for the first time ................11
Handling and operation .....................14
Displays in basic mode ..............................14
Basic settings ......................................17
Displaying the maximum/minimum temperature/humidity ...19
Changing the temperature unit on the outdoor sensor ......19
Background lighting .................................20
Battery replacement indicator .........................20
Switching the channel ............................... 21
US - EN
│
1 ■
AHFL 433 B2
Troubleshooting ............................23
Cleaning ..................................24
Storage ...................................24
Disposal ...................................24
Disposal of device ..................................24
Disposal of batteries ................................25
Disposal of the packaging ............................25
Appendix .................................26
Technical specifications ..............................26
FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3 year limited warranty ..............................28
Distributor ........................................30
■ 2 │ US - EN
AHFL 433 B2
Introduction
About these operating instructions
Congratulations on purchasing your new device.
You have selected a high-quality product. The operating instruc-
tions are part of this product. They contain important information
about the safety, usage and disposal of the product. Before
using the product, please familiarize yourself with all operating
and safety information. Use the product only as described and
for the specified range of applications. Keep these operating
instructions in a safe location. In addition, please pass these
documents on, together with the product, to any future owner.
Intended use
The wireless weather station shows you the inside and outside
temperature in degrees Fahrenheit (°F) or degrees Celsius (°C),
as well as the minimum and maximum temperatures. The inside
and outside humidity (%), as well as the minimum and maximum
values, are also shown. Further indications include recommended
ventilation time, indoor climate rating, indoor climate changes,
and a radio-controlled time display in 12- or 24-hour format.
The product is intended exclusively for private households, and
is not recommended for commercial use. Any use other than the
intended use is considered to be improper. The manufacturer
accepts no responsibility for damage caused by improper use
or repairs, unauthorized modifications, or the use of unapproved
replacement parts. The risk is borne solely by the user.
US - EN
│
3 ■
AHFL 433 B2
Used Warning types
The following types of warning are used in these operating
instructions:
► WARNING indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
► NOTICE indicates information that is considered important, but
not hazardous (e. g. messages related to property damage).
A tip provides additional information that will assist you in using
the device.
■ 4 │ US - EN
AHFL 433 B2
Safety
This section contains important safety instructions for handling
the device. Improper use may result in personal injury and/or
property damage.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE!
SAVE THESE INSTRUCTIONS
■ This device may only be used by children aged 8 years
and above and by persons with limited physical, sensory or
mental capabilities or lack of experience and knowledge, if
it is provided that they are being supervised or have been
instructed on how to use the device safely and are aware
of the potential risks. Children must not play with the device.
Cleaning and user maintenance tasks may not be carried out
by children unless they are supervised.
■ Before using the product for the first time, make sure it is not
damaged! Do not operate devices that are damaged.
■ Only use the weather station in dry indoor areas.
■ Make sure the weather station is not exposed to humidity or
direct sunlight.
US - EN
│
5 ■
AHFL 433 B2
Safety instructions for batteries
Mishandling the batteries can cause fires, explosions,
leakages, or other hazards! In order to handle batteries
safely, please observe the following safety instructions:
► Do not throw the batteries into a fire and do not subject them
to high temperatures.
► Do not open, deform, or short-circuit batteries, since this can
lead to chemical leakage.
► Do not attempt to recharge the batteries. Do not charge
batteries unless they are explicitly labeled as "rechargeable".
There is a risk of explosion!
► Never heat batteries in order to revive them.
► Check the condition of the batteries at regular intervals.
Leaking chemicals can cause permanent damage to the
device. Take particular care when handling damaged or
leaking batteries. Risk of acid burns! Wear protective gloves.
► Chemicals that leak from a battery can cause skin irritation.
In the event of contact with the skin, rinse with plenty of water.
If the chemicals come into contact with your eyes, rinse them
thoroughly with water, and do not rub them. Consult a physician
immediately.
► Keep batteries out of the reach of children. Children might put
batteries into their mouth and swallow them. If a battery has
been swallowed, seek medical assistance immediately. Also,
contact your local poison control center.
■ 6 │ US - EN
AHFL 433 B2
► Do not mix alkaline, carbon-zinc (standard), Ni-Cd (recharge-
able) or other types of batteries.
► Use only the correct type and size of battery indicated.
► Always insert the batteries the right way (observe correct
polarity); otherwise there is a risk that they could explode.
► Clean the battery contacts and also those of the device prior
to battery installation.
► If you do not intend to use the device for a long time, remove
the batteries.
► Remove discharged batteries from equipment promptly to
avoid possible damage from leakage.
► Always replace the whole set of batteries at one time, taking
care not to mix old and new ones.
► If the battery compartment does not close securely, stop using
the product and keep it away from children.
US - EN
│
7 ■
AHFL 433 B2
Package contents
The scope of delivery consists of the following components:
1 wireless weather station
1 outdoor sensor
5 batteries, type AAA
3 wall plugs
3 screws
Operating instructions
Check the package for completeness and signs of visible damage. If the delivery is incomplete or damage has occurred as
a result of defective packaging or during transport, contact the
service hotline.
♦ Remove all parts from the packaging and remove all pack-
aging material.
► Do not allow children to play with the packaging materials!
Keep all packaging materials away from children. Risk of
suffocation!
■ 8 │ US - EN
AHFL 433 B2
Description of parts
See foldout page for illustrations
Figure A
Display
1 Indoor climate change display
2 Time display
3 Display field for outdoors
4 Control surface
5 Control surface
6 Control surface
7 Display field for indoors
Weather station
8 LIGHT button
9 Fixing lugs
0 Battery compartment
q Stand
w Battery compartment cover
US - EN
│
9 ■
AHFL 433 B2
Figure B
Outdoor sensor
e Display
r Indicator LED
t Fixing lugs
z TX button
u °C/°F button
iChannel switch
o Battery compartment
p Battery compartment cover
aStand
First use
Before use, insert a battery first into the outdoor sensor and
then into the weather station.
Requirements at the setup location
► When selecting the setup location, make sure the devices are
not exposed to direct sunlight, vibration, dust, heat, cold or
humidity.
► Do not set up the device near sources of heat, e.g. heaters.
► Mount the outdoor sensor within a maximum radius of 164 ft
to the weather station. Make sure there are no interfering ob-
stacles between the outdoor sensor and the weather station.
Otherwise, there could be transmission interference.
■ 10 │ US - EN
AHFL 433 B2
♦ Both the weather station and the outdoor sensor can be
hung up using the fixing lugs 9/t.
♦ Alternatively, the stands q and a of the weather station
and the outdoor sensor can be folded out for placement on
an even, level surface.
Using the outdoor sensor for the first time
♦ Open the battery compartment oon the back of the
device by sliding the battery compartment cover pin the
direction of the arrow.
♦ Insert two type AAA batteries as indicated in the battery
compartment o.
♦ Then, close the battery compartment o. The indicator LED
lights up briefly, and the current temperature, humidity and
selected channel (e.g. CH 1) are shown on the display e.
The indicator LED r then lights up once per minute, indicating wireless transmission.
Using the weather station for the first time
♦ Open the battery compartment 0on the back of the
device by removing the battery compartment cover w.
♦ Insert three type AAA batteries as indicated in the battery
compartment 0.
♦ Then, close the battery compartment 0.
After a power supply has been connected, the display lights up
and quickly checks all display elements.
The weather station will now attempt to connect to the outdoor
sensor. On the display field for outdoors 3, the reception icon
above the channel display blinks.
US - EN
│
11 ■
r
AHFL 433 B2
If no outside temperature or humidity is shown within approx.
3 minutes, the weather station stops searching for a signal. The
reception icon turns off and the display field for outdoors 3
shows and . The system likely cannot detect a signal due
to structural conditions or because the sensor is too far away.
If the device is unable to connect to the outdoor sensor automatically, you can establish a connection manually:
♦ Press and hold the control surface
icon on the display field for outdoors 3blinks.
♦ Press the TX button z to manually start the wireless signal
for the outdoor sensor.
The weather station automatically starts to receive the WWVB
signal after 3minutes, regardless of whether the outdoor sensor
reception search has been successful or not.
The reception icon
tion icon is not flashing completely ( ) on the display, it means
that the reception of the WWVB signal is too weak and the time
cannot be synchronized. Try to find a set-up location where the
reception icon flashes completely ( ) on the display.

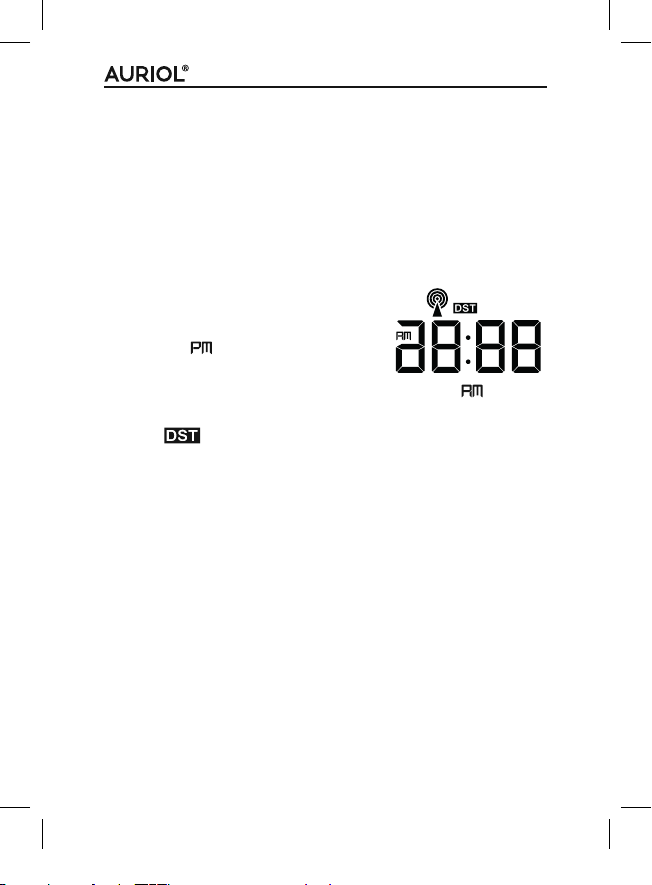

If the WWVB signal is being received correctly, the current Eastern
standard time (EST) is shown on the time display2. In addition,
the reception icon
flashes on the time display2. If the recep-
is permanently shown on the time display2.
4 until the reception
■ 12 │ US - EN
AHFL 433 B2
The default time zone of the weather station is Eastern Standard
Time (EST). To change the time zone please refer to Basic
settings section.
If the device is unable to synchronize with the WWVB signal,
you can also set the time manually (see Basic settings section)
or you can attempt automatic reception again.
♦ Briefly press control surface
search again. The reception icon flashes on the time
display2.
The WWVB signal
WWVB is a National Institute of Standards and Technology
(NIST) time signal radio station near Fort Collins, Colorado.
The 70 kW ERP signal transmitted from WWVB is a continuous
60 kHz carrier wave, the frequency of which is derived from
a set of atomic clocks located at the transmitter site, yielding a
frequency uncertainty of less than 1 part in one trillion.
Under ideal conditions, the weather station can receive the signal
up to a distance of approximately 2000 miles from the transmitter.
Reception of the WWVB signal normally takes between 3 and
5 minutes. If reception of the WWVB signal fails, the weather
station will stop trying to establish reception after approximately
7 minutes. Reception can be considerably restricted by obstacles
(e.g. concrete walls) or interference sources (e.g. other electronic
devices). If reception problems persist, you should change the
location of the weather station (e.g. put it by a window).
5 to attempt the reception
US - EN
│
13 ■
AHFL 433 B2
Handling and operation
Displays in basic mode
After the weather station has received the signal from the outdoor
sensor and the WWVB signal, the device enters basic mode.
In basic mode, the weather station shows the following information on the display:
The time display 2
By default, the time is shown in 12-hour
format. In the time from 12:00 noon to
11:59 p.m.,
em" = afternoon) will appear before the
time. In the time from 12:00 midnight to 11:59 a.m., (Latin for
"ante meridiem" = morning) will appear before the time. During
summer, (daylight saving time) is displayed. This display is
only shown if the WWVB signal is being received.
If you live in an area that does not recognize daylight saving
time (i.e. parts of Arizona and Indiana), you must turn off this
function (see Basic settings section).
(Latin for "post meridi-
■ 14 │ US - EN
AHFL 433 B2
The display field for indoors 7
The inside temperature measured by the
weather station is shown with a precision of a
tenth of a degree. The temperature unit (for
degrees Fahrenheit) appears on the right. You
can also switch the temperature unit to
(degrees Celsius).
appears, the station has detected a temperature below the
If
measurement range of 14 °F to 122 °F (-9.9 °C to 50 °C);
indicates this range has been exceeded. The relative humidity
(RH) measured by the weather station is shown in % above the
temperature display. When the relative humidity is higher than
85% or lower than 30%, the humidity warning icon will
appear. A recommended ventilation time is shown next to the
temperature and the indoor climate rating is shown below the
temperature.
Recommended ventilation time
Based on the temperature and humidity values inside and outside, the weather station provides a recommendation to open
) or close ( ) the window to improve the indoor climate.
(
US - EN
│
15 ■
AHFL 433 B2
Indoor climate rating
Based on the humidity value indoors, the weather station categorizes the current indoor climate into five levels:
Humidity ≥ 85%.
Humidity between 66% and 84%.
Humidity between 45% and 65%.
Humidity between 30% and 44%.
Humidity ≤ 29%.
In addition, the bar graph graphically displays
the measured humidity levels from 0, 3, 6, 9, and
12 hours ago.
Indoor climate change display 1
Using the recorded measurements (inside and outside), the
weather station calculates the change to the indoor climate that
can be expected. The symbols indicate how ventilating the room
would affect the indoor climate:
The expected increase in humidity is 5% or higher.
The expected increase or decrease in humidity is 4%
or less.
The expected decrease in humidity is 5% or higher.
■ 16 │ US - EN
AHFL 433 B2
The display field for outdoors 3
The outside temperature is shown
with a precision of a tenth of a
degree. The temperature unit
(for degrees Fahrenheit) appears
on the right. You can also switch the temperature unit to
(degrees Celsius). If the outside temperature drops to ≤ 37.4 °F,
the frost warning icon appears.
appears, the station has detected a temperature below the
If
measurement range of –40 °F to 140 °F (–40 °C to 60 °C);
indicates this range has been exceeded. The relative humidity
(RH) measured by the outdoor sensor is shown in % above
the temperature display. In addition, the channel used by the
connected outdoor sensor is shown (e.g.
).
Basic settings
♦ Press and hold the control surface 5for about 3 seconds.
The hour indicator in the time display 2blinks.
♦ Press the control surface
set the desired value.
♦ Press the control surface
The minute indicator in the time display 2blinks.
♦ Press the control surface
set the desired value.
♦ Press the control surface
In the time display 2,
♦ Press the control surface
select the desired time format (24-hour or 12-hour format).
4 or control surface 6 to
5 to confirm your input.
4 or control surface 6 to
5 to confirm your input.
blinks.
4 or control surface 6 to
US - EN
│
17 ■
AHFL 433 B2
♦ Press control surface 5 to confirm your input. In the time
display 2, flashes (indicator for temperature unit).
♦ Press control surface
select the desired temperature unit (
♦ Press control surface
rent time zone setting flashes in the time display 2.
♦ Press control surface
the desired time zone:
# Time zone
0 Pacific Standard Time (PST)
1 Mountain Standard Time (MST)
2 Central Standard Time (CST)
3 Eastern Standard Time (EST)
♦ Press control surface
display 2, flashes (current DST setting).
♦ If desired, press control surface
6 to select the setting to deactivate the DST
function.
♦ Press the control surface
The display switches to basic mode.
4 or control surface 6 to
or ).
5 to confirm your input. The cur-
4 or control surface 6 to set
5 to confirm your input. In the time
4 or control surface
5 to confirm your input.
■ 18 │ US - EN
AHFL 433 B2
Displaying the maximum/minimum
temperature/humidity
After connection to the power supply and the outdoor sensor
has been established, the maximum and minimum values for
temperature and humidity are automatically captured and stored
by the weather station.
♦ In basic mode, press the control surface
both display fields (3 and 7), the icon appears next
to the humidity and the highest measured value for both
inside and outside is shown.
♦ If you press the control surface
icon appears and the lowest measured value for both
inside and outside is shown.
♦ After about 5 seconds, the current values for inside and
outside are automatically shown once more.
♦ Press and hold the control surface
to delete the stored values.
6 in basic mode, the
6 once. In
6 for about
3 seconds
Changing the temperature unit on the outdoor
sensor
Upon delivery, the temperature unit is set to degrees Fahrenheit
( ) by default.
♦ Open the battery compartment o on the back of the
device by removing the battery compartment cover p.
♦ Press the °C/°F button u to change the temperature unit
on the outdoor sensor display e.
♦ Close the battery compartment o.
US - EN
│
19 ■
AHFL 433 B2
Background lighting
The background lighting on the display turns off after about
5 seconds to save battery power.
♦ Press the LIGHT button 8 to turn on the display back-
ground lighting for about 5 seconds.
Battery replacement indicator
When the battery icon appears in the display field for inside 7,
you should replace the batteries in the weather station as soon
as possible (see also the chapter Using the weather station for
the first time).
When the battery icon
or in the display e of the outdoor sensor, you should replace the
batteries in the outdoor sensor as soon as possible (see also the
chapter on Using the outdoor sensor for the first time).
appears in the display field for outside 3
■ 20 │ US - EN
AHFL 433 B2
Switching the channel
Switching the channel on the outdoor sensor
You can choose between 3 different channels. Channel 1 is set
by default.
♦ Open the battery compartment o on the back of the
device by removing the battery compartment cover p.
♦ Choose a channel by moving the channel switch i to
CH 1, CH 2 or CH 3.
♦ Press and hold the control surface
on the display field for outdoors 3 blinks.
icon
♦ Press the TX button z to manually start the wireless signal
for the outdoor sensor. After the signal is received, the
temperature and humidity are shown in the display field
for outdoors 3on the new channel.
♦ Close the battery compartment o.
4 until the reception
US - EN
│
21 ■
AHFL 433 B2
Switching the channel display on the weather station
When the weather station has received the signal from the outdoor sensor, it automatically shows the corresponding channel.
However, you can also manually set the display of the different
channels.
♦ Press the control surface
between displays
show channel 2),
(rotate between all channels in a loop).
Only the values from outdoor sensors that are connected to the
weather station are shown. If you use multiple outdoor sensors,
choose a different channel for each outdoor sensor.
4 repeatedly to switch
(only show channel 1), (only
(only show channel 3) and
■ 22 │ US - EN
AHFL 433 B2
Troubleshooting
Unable to connect to the outdoor sensor.
■ There are interfering obstacles or other sources of interference,
such as concrete walls or other wireless transmission devices
between the weather station and the outdoor sensor.
Move the device to another location and try again.
■ The outdoor sensor is too far away from the weather station.
Move the two components closer together. "Visual contact"
between the outdoor sensor and weather station often
improves transmission.
■ The batteries in the weather station or outdoor sensor are
dead.
Replace the batteries.
Synchronization with WWVB signal not possible
■ Disruptive obstacles or other interference sources, such as
concrete walls or other radio transmission devices, are
interfering with WWVB signal reception.
Change the installation location (e.g. near a window)
and try again.
■ The batteries of the weather station are dead.
Replace the batteries.
US - EN
│
23 ■
AHFL 433 B2
Cleaning
► Ensure that no moisture penetrates into the device during
cleaning to avoid irreparable damage to the device.
► Do not use caustic, abrasive or solvent-based cleaners.
They can attack the surfaces of the device.
♦ Clean the surfaces of the device with a soft, dry cloth. For
stubborn dirt, use a slightly damp cloth with a mild cleaning
agent.
Storage
♦ If you plan on not using the product for a long period,
remove the batteries and store it in a clean, dry place away
from direct sunlight.
Disposal
Disposal of device
Electrical devices may not be thrown away as part of normal
household trash. If you can no longer use your electrical device,
dispose of it in accordance with the legal provisions applicable
in your state. This will ensure that old electrical devices are recycled and environmental pollution is kept to a minimum.
Further information about disposal is available on the Internet
at www.epa.gov.
■ 24 │ US - EN
AHFL 433 B2
Disposal of batteries
Some batteries contain heavy metals such as mercury, lead,
cadmium, and nickel; therefore, many communities do not allow
them to be thrown away with your regular trash. Recycling is always
the best option for disposing of used batteries.
Dry-Cell Batteries are used in a variety of electronics and include
alkaline and carbon zinc (9-volt, D, C, AA, AAA), mercuric-oxide
(button, some cylindrical and rectangular), silver-oxide and zincair (button), and lithium (9-volt, C, AA, coin, button, rechargeable)
batteries. Look for in-store recycling bins or community collection
events to dispose of these batteries.
Disposal of the packaging
The packaging materials have been selected for their
environmental friendliness and ease of disposal, and
are therefore recyclable.
Dispose of packaging materials that are no longer
needed in accordance with applicable local
regulations.
Note the marking on the different packaging materials and separate them as necessary. The packaging
materials are marked with abbreviations (a) and
numbers (b) with the following meanings:
1–7: Plastics, 20–22: Paper and cardboard,
80–98: Composites.
US - EN
│
25 ■
AHFL 433 B2
Appendix
Technical specifications
Weather station
to +140
°C
to +60
(DC)
(DC)
Voltage supply 3 x 1.5 V
(Type AAA/LR03)
Temperature measurement
range
Temperature resolution 0.1 °F (0.1 °C)
Measuring range of
humidity
Humidity resolution 1%
Radio clock signal WWVB
Outdoor sensor
Voltage supply 2 x 1.5 V
Temperature measurement
range
Measuring range of humidity
Humidity resolution 1%
Transmission frequency 433 MHz
Transmission strength < 10 dBm
Range Max. 164 ft
Protection class IPX4 (splash-proof)
14 °F to +122 °F
(–9.9 °C to +50 °C)
20 to 95%
(Type AAA/LR03)
–40
°F
(–40
20 to 95%
(area free of obstructions)
°F
°C
)
■ 26 │ US - EN
AHFL 433 B2
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved
by the party responsible for compliance could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for Class B digital devices, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the
receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
US - EN
│
27 ■
AHFL 433 B2
3 year limited warranty
What does this warranty cover?
The warranty covers:
▯ Damage, breakage or inoperability due to defect.
▯ Damage not caused by normal wear and tear or failure to
follow the safety and maintenance instructions provided in
the user manual.
What is not covered by the warranty?
The warranty does not cover damage caused by:
▯ Normal wear and tear of the product, including fragile parts
(such as switches, glass, etc.);
▯ Improper use or transport;
▯ Disregarding safety and maintenance instructions;
▯ Accidents or acts of nature (e.g. lightning, fire, water, etc.);
▯ Tampering with the product (such as removing cover,
unscrewing screws, etc.)
Consequential and incidental damages are also not covered
under this warranty. However, some states do not allow the
exclusion or limitation of incidental or consequential damages, so
this limitation or exclusion may not apply to you.
■ 28 │ US - EN
AHFL 433 B2
What is the coverage period and warranty
resolution?
The warranty is for 3 years from the date of purchase. At our
discretion, the product will either be refunded or replaced.
What will we not do?
We will not:
▯ Start a new warranty period upon product exchange;
▯ Repair the product.
How to process the warranty?
To initiate, please:
▯ Call customer service at 1 (844) 543-5872
▯ Visit the customer service website at
www.lidl.com/contact-us
or
▯ Visit a LIDL store for further assistance
To ensure the quickest warranty return process, please have the
following available:
▯ The original sales receipt that includes the purchase date;
▯ The product and manual in the original package;
▯ A statement of the problem.
What must you do to keep the warranty in effect?
▯ Retain the original receipt;
▯ Follow all product instructions;
▯ Do not repair or modify the product.
US - EN
│
29 ■
AHFL 433 B2
How does state law relate to this warranty?
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. All implied
warranties are limited by the duration and terms of this warranty.
Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
Distributor
LIDL US LLC.
ARLINGTON
VA 22202
FCC Supplier’s Declaration of Conformity
Hygrometer with ventilation recommendation -USA/
AHFL 433 B2,MBO-314696
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Suppliers Name: Lidl US, LLC
Suppliers Address: 3500 S. Clark Street Arlington
Virginia United States
Internet contact information: www.lidl.com
■ 30 │ US - EN
Loading...
