Introduction
About these operating instructions
Congratulations on purchasing your new device.
You have selected a high-quality product. The operating instruc-
tions are part of this product. They contain important information
about the safety, usage and disposal of the product. Before
using the product, please familiarize yourself with all operating
and safety information. Use the product only as described and
for the specified range of applications. Keep these operating
instructions in a safe location. In addition, please pass these
documents on, together with the product, to any future owner.
Intended use
The wireless weather station shows you the inside and outside
temperature in degrees Fahrenheit (°F) or degrees Celsius (°C),
as well as the minimum and maximum temperatures. The inside
and outside humidity (%), as well as the minimum and maximum
values, are also shown. Also displayed are the recommended
ventilation time, indoor climate rating and indoor climate
changes.
The product is intended exclusively for private households, and
is not recommended for commercial use. Any use other than the
intended use is considered to be improper. The manufacturer
accepts no responsibility for damage caused by improper use
or repairs, unauthorized modifications, or the use of unapproved
replacement parts. The risk is borne solely by the user.
US - EN
│
3 ■
AHFL 433 A1
Used Warning types
The following types of warning are used in these operating
instructions:
► WARNING indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
► NOTICE indicates information that is considered important, but
not hazardous (e. g. messages related to property damage).
A tip provides additional information that will assist you in using
the device.
■ 4 │ US - EN
AHFL 433 A1
Safety
This section contains important safety instructions for handling
the device. Improper use may result in personal injury and/or
property damage.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE!
SAVE THESE INSTRUCTIONS
■ This device may only be used by children aged 8 years
and above and by persons with limited physical, sensory or
mental capabilities or lack of experience and knowledge, if
it is provided that they are being supervised or have been
instructed on how to use the device safely and are aware of
the potential risks. Children must not play with the appliance.
Cleaning and user maintenance tasks may not be carried out
by children unless they are supervised.
■ Before using the product for the first time, make sure it is not
damaged! Do not operate devices that are damaged.
■ Only use the weather station in dry indoor areas.
■ Make sure the weather station is not exposed to humidity or
direct sunlight.
US - EN
│
5 ■
AHFL 433 A1
Safety instructions for batteries
Mishandling the batteries can cause fires, explosions,
leakages, or other hazards! In order to handle batteries
safely, please observe the following safety instructions:
► Do not throw the batteries into a fire and do not subject them
to high temperatures.
► Do not open, deform, or short-circuit batteries, since this can
lead to chemical leakage.
► Do not attempt to recharge the batteries. Do not charge
batteries unless they are explicitly labeled as "rechargeable".
There is a risk of explosion!
► Never heat batteries in order to revive them.
► Check the condition of the batteries at regular intervals.
Leaking chemicals can cause permanent damage to the
appliance. Take particular care when handling damaged or
leaking batteries. Risk of acid burns! Wear protective gloves.
► Chemicals that leak from a battery can cause skin irritation.
In the event of contact with the skin, rinse with plenty of water.
If the chemicals come into contact with your eyes, rinse them
thoroughly with water, and do not rub them. Consult a physi-
cian immediately.
► Keep batteries out of the reach of children. Children might put
batteries into their mouth and swallow them. If a battery has
been swallowed, seek medical assistance immediately. Also,
contact your local poison control center.
■ 6 │ US - EN
AHFL 433 A1
► Do not mix alkaline, carbon-zinc (standard), Ni-Cd (recharge-
able) or other types of batteries.
► Use only the correct type and size of battery indicated.
► Always insert the batteries the right way (observe correct
polarity); otherwise there is a risk that they could explode.
► Clean the battery contacts and also those of the device prior
to battery installation.
► If you do not intend to use the appliance for a long time,
remove the batteries.
► Remove discharged batteries from equipment promptly to
avoid possible damage from leakage.
► Always replace the whole set of batteries at one time, taking
care not to mix old and new ones.
► If the battery compartment does not close securely, stop using
the product and keep it away from children.
US - EN
│
7 ■
AHFL 433 A1
Package contents
The scope of delivery consists of the following components:
1 wireless weather station
1 outdoor sensor
5 batteries, type AAA
3 wall plugs (5 mm diameter)
3 screws
Operating instructions
Check the package for completeness and signs of visible damage. If the delivery is incomplete or damage has occurred as
a result of defective packaging or during transport, contact the
service hotline.
♦ Remove all parts from the packaging and remove all pack-
aging material.
► Do not allow children to play with the packaging materials!
Keep all packaging materials away from children. Risk of
suffocation!
■ 8 │ US - EN
AHFL 433 A1
Description of parts
See foldout page for illustrations
Figure A
Display
1 Indoor climate change display
2 Time display
3 Display field for outdoors
4 Control surface
5 Control surface
6 Control surface
7 Display field for indoors
Weather station
8 LIGHT button
9 Fixing lugs
0 Battery compartment
q Base
w Battery compartment cover
US - EN
│
9 ■
AHFL 433 A1
Figure B
Outdoor sensor
e Display
r Indicator LED
t Fixing lugs
z TX button
u °C/°F button
iChannel switch
o Battery compartment
p Battery compartment cover
First use
Requirements at the setup location
► When selecting the setup location, make sure the devices are
not exposed to direct sunlight, vibration, dust, heat, cold or
humidity.
► Do not set up the device near sources of heat, e.g. heaters.
► Mount the outdoor sensor within a maximum radius of 164 ft
to the weather station. Make sure there are no interfering ob-
stacles between the outdoor sensor and the weather station.
Otherwise, there could be transmission interference.
■ 10 │ US - EN
AHFL 433 A1
♦ Both the weather station and the outdoor sensor can be
hung up using the fixing lugs 9/t.
♦ Alternatively, the base q of the weather station can be
folded out for placement on an even, level surface.
Using the outdoor sensor for the first time
♦ Open the battery compartment oon the back of the
device by sliding the battery compartment cover pin the
direction of the arrow.
♦ Insert two type AAA batteries as indicated in the battery
compartment o.
♦ Then, close the battery compartment o. The indicator LED
lights up briefly, and the current temperature, humidity and
selected channel (e.g. CH 1) are shown on the display e.
The indicator LED r then lights up once per minute, indicating wireless transmission.
Using the weather station for the first time
♦ Open the battery compartment 0on the back of the
device by removing the battery compartment cover w.
♦ Insert three type AAA batteries as indicated in the battery
compartment 0.
♦ Then, close the battery compartment 0.
After a power supply has been connected, the display lights up
and quickly checks all display elements.
r
US - EN
│
11 ■
AHFL 433 A1
The weather station will now attempt to connect to the outdoor
sensor. On the display field for outdoors 3, the reception icon
above the channel display blinks.
If no outside temperature or humidity is shown within approx.
3 minutes, the weather station stops searching for a signal. The
reception icon turns off and the display field for outdoors 3
shows and . The system likely cannot detect a signal
due to structural conditions or because the sensor is too far
away.
If the device is unable to connect to the outdoor sensor automatically, you can establish a connection manually:
♦ Press and hold the control surface
icon on the display field for outdoors 3blinks.
♦ Press the TX button z to manually start the wireless signal
for the outdoor sensor.
4 until the reception
■ 12 │ US - EN
AHFL 433 A1
Handling and operation
Setting the time and measurement data storage
♦ Press and hold the control surface 5for about 3 seconds.
The hour indicator in the time display 2blinks.
♦ Press the control surface
set the desired value.
♦ Press the control surface
The minute indicator in the time display 2blinks.
♦ Press the control surface
set the desired value.
♦ Press the control surface
In the time display 2,
♦ Press the control surface
select the desired time format (24-hour or 12-hour format).
♦ Press the control surface
time display 2, blinks (indicator for 24-hour measurement storage).
♦ If desired, press the control surface
6 to choose the setting to deactivate 24-hour
measurement storage.
♦ Press the control surface
The display switches to basic mode.
4 or control surface 6 to
5 to confirm your input.
4 or control surface 6 to
5 to confirm your input.
blinks.
4 or control surface 6 to
5 to confirm your input. In the
4 or control surface
5 to confirm your input.
US - EN
│
13 ■
AHFL 433 A1
If you choose the setting for 24-hour measurement storage,
the saved MIN and MAX values for temperature and humidity
are deleted each day at midnight. If you choose the setting ,
the data is saved permanently until you replace the batteries.
Displays in basic mode
After you have set the time and the weather station has received
the signal from the outdoor sensor, the device enters basic mode.
In basic mode, the weather station shows the following information on the display:
The time display 2
By default, the time is shown in
12-hour format. In the time from
12:00 noon to 11:59 p.m.,
(Latin for "post meridiem"
= afternoon) will appear before the time. In the time from 12:00
midnight to 11:59 a.m., (Latin for "ante meridiem" = morning)
will appear before the time.
■ 14 │ US - EN
AHFL 433 A1

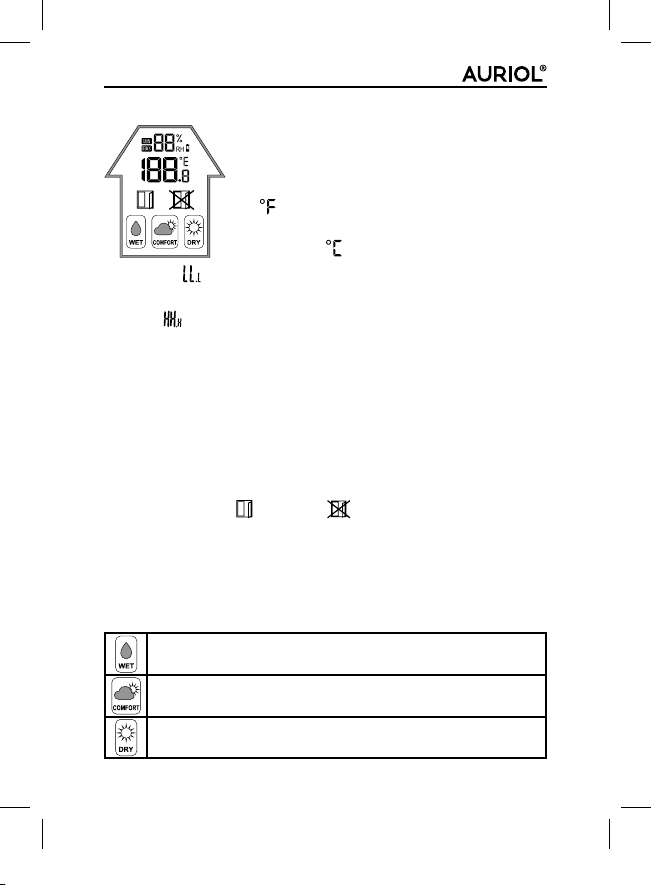

The display field for indoors 7
The inside temperature measured by the
weather station is shown with a precision of a
tenth of a degree. The temperature unit (for
degrees Fahrenheit) appears on the right. You
can also switch the temperature unit to
(degrees Celsius).
appears, the station has detected a temperature below the
If
measurement range of 14 °F to 122 °F (-9.9 °C to 50 °C);
indicates this range has been exceeded. The relative humidity
(RH) measured by the weather station is shown in % above the
temperature display. A recommended ventilation time and the
indoor climate rating are shown below the temperature.
Recommended ventilation time
Based on the temperature and humidity values inside and outside, the weather station provides a recommendation to open
) or close ( ) the window to improve the indoor climate.
(
Indoor climate rating
Based on the humidity value indoors, the weather station categorizes the current indoor climate into three levels:
Humid. Humidity between 66% and 95%.
Optimal. Humidity between 45% and 65%.
Dry. Humidity between 20% and 44%.
US - EN
│
15 ■
AHFL 433 A1
Indoor climate change display 1
Using the recorded measurements (inside and outside), the
weather station calculates the change to the indoor climate that
can be expected. The symbols indicate how ventilating the room
would affect the indoor climate:
More humid. The expected increase in humidity is
5% or higher.
Constant. The expected increase or decrease in
humidity is 4% or less.
Dryer. The expected decrease in humidity is 5% or
higher.

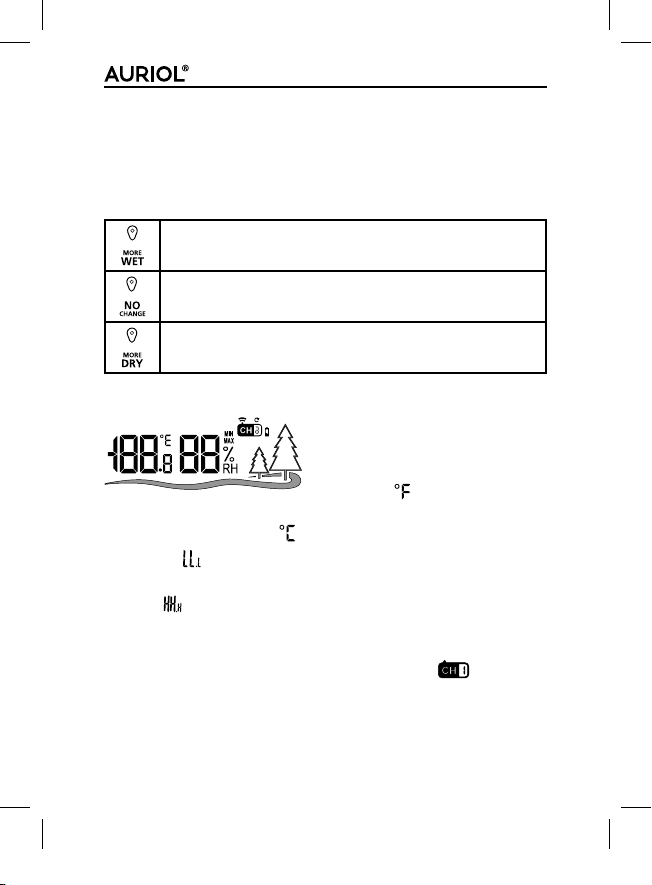

The display field for outdoors 3
The outside temperature is shown
with a precision of a tenth of a
degree. The temperature unit
(for degrees Fahrenheit) appears
on the right. You can also switch the temperature unit to
(degrees Celsius).
appears, the station has detected a temperature below the
If
measurement range of –40 °F to 140 °F (–40 °C to 60 °C);
indicates this range has been exceeded. The relative humidity
(RH) measured by the outdoor sensor is shown in % above
the temperature display. In addition, the channel used by the
connected outdoor sensor is shown (e.g.
).
■ 16 │ US - EN
AHFL 433 A1
Displaying the maximum/minimum temperature/humidity
After connection to the power supply and the outdoor sensor
has been established, the maximum and minimum values for
temperature and humidity are automatically captured and stored
by the weather station.
♦ In basic mode, press the control surface
both display fields (3 and 7), the icon appears next
to the humidity and the highest measured value for both
inside and outside is shown.
♦ If you press the control surface
icon appears and the lowest measured value for both
inside and outside is shown.
♦ After about 5 seconds, the current values for inside and
outside are automatically shown once more.
♦ Press and hold the control surface
to delete the stored values.
6 in basic mode, the
6 once. In
6 for about
3 seconds
Switching between temperature units
Upon delivery, the temperature unit is set to degrees Fahrenheit
( ) by default.
♦ In basic mode, press the control surface
between temperature units ( or ). The display switches
for both the inside and outside temperature.
♦ Press the °C/°F button u to change the temperature unit
on the outdoor sensor display e.
5 to switch
US - EN
│
17 ■
Loading...
