Librestream Onsight Cube Quick Start Manual
CHARGE THE ONSIGHT CUBE
Connect the power adapter to the Power Port and
allow the battery to fully charge. When the Cube is
powered off, charging will take approximately 4 hours.
The battery will charge at a slower rate if the Cube is
powered on.
TURN POWER ON
Press the Power Button for one second
to turn ON the Cube.
TURN POWER OFF
Press the Power Button for one second to turn
OFF the Cube. When running on battery, the Cube
automatically powers off after 5 minutes of inactivity.
FRONT VIEW
TOP VIEW
BACK VIEW
CUBE
• Onsight Cube
• External Power Adapter
• Magnetic USB charging cable
• Wearable Mount, Straps and Clips
• Headband (for Rugged only)
• Monopod and Phone Attachment

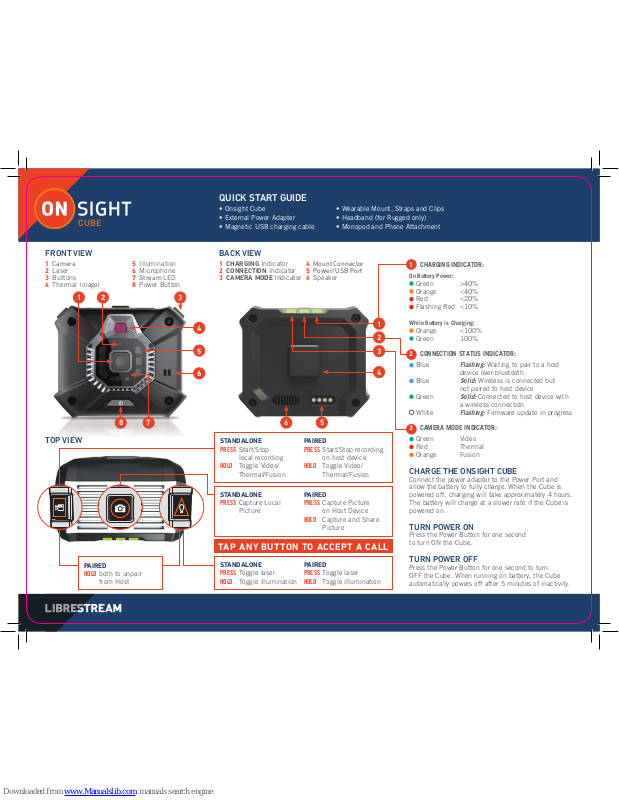

QUICK START GUIDE
1 Camera
2 Laser
3 Buttons
4 Thermal Imager
5 Illumination
6 Microphone
7 Stream LED
8 Power Button
1 CHARGING Indicator
2 CONNECTION Indicator
3 CAMERA MODE Indicator
4 Mount Connector
5 Power/USB Port
6 Speaker
21 3
8 7 56
6
4
1
2
3
5
4
1 CHARGING INDICATOR:
On Battery Power:
Green >40%
Orange <40%
Red <20%
Flashing Red <10%
While Battery is Charging:
Orange <100%
Green 100%
2 CONNECTION STATUS INDICATOR:
Blue Flashing: Waiting to pair to a host
device over bluetooth
Blue Solid: Wireless is connected but
not paired to host device
Green Solid: Connected to host device with
a wireless connection
White Flashing: Firmware update in progress
3 CAMERA MODE INDICATOR:
Green Video
Red Thermal
Orange Fusion
PAIRED
HOLD both to unpair
from Host
STANDALONE
PRESS Start/Stop
local recording
HOLD Toggle Video/
Thermal/Fusion
PAIRED
PRESS Start/Stop recording
on host device
HOLD Toggle Video/
Thermal/Fusion
STANDALONE
PRESS Capture Local
PAIRED
PRESS Capture Picture
on Host Device
HOLD Capture and Share
STANDALONE
PRESS Toggle laser
HOLD Toggle illumination
PAIRED
PRESS Toggle laser
HOLD Toggle illumination
TAP ANY BUTTON TO ACCEPT A CALL
Note: You need an Onsight Connect user license
and a mobile device to share visuals from the
Onsight Cube. For assistance, contact your internal
Onsight administrator or Librestream support at
support@librestream.com
WEARABLE MOUNT
Slide the Cube to the mount.
CLIMBING HELMET
Attach clips and additional straps.
WEARABLE MOUNT
Press lever down for quick release.
HEADBAND
Adjust straps to fi t and use ratchet to tighten or loosen.
HARD HAT
Attach clips and strap.
MONOPOD
Attach the phone holder and adjust the
pole length by turning to lock or unlock.
TRANSFER FILES FROM
THE CUBE TO A WINDOWS PC
• Using the USB cable, physically connect
the Cube USB port to your Windows PC.
• Power on the Cube.
• Go to File Explorer on your PC.
• Navigate to the Cube/Internal Storage/DCIM
to select and copy fi les to your PC.
PAIR WITH AN ONSIGHT-ENABLED
MOBILE DEVICE
To pair the Onsight Cube to your mobile device:
• Power on the Cube.
• Log in to Onsight Connect on your
mobile device.
• Hold your mobile device close to the
front of the Cube to pair.
• You will hear a voice prompt ‘begin pairing’
and ‘host connected’ when complete.
• Press ‘Connect’ when the ‘Invitation
to Connect’ appears.
• The Cube receives its network confi guration
from your paired mobile device.
• You will hear a voice prompt ‘Wifi connected’
• Once paired, the Cube is automatically
selected as the video source.
• The Cube will automatically pair with that
mobile device the next time you log in
to Onsight Connect.
If you have forgotten your Onsight Connect
Password, press ‘Forgot Password’ to receive
an email with the temporary Password. If you
do not have an Onsight Connect User Name,
contact your system administrator.
