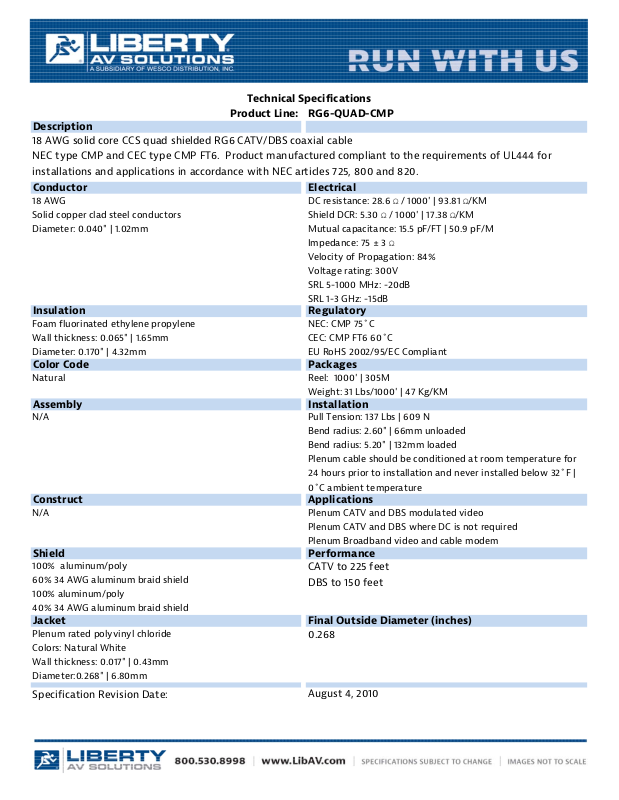

Technical Specifications

Product Line: RG6-QUAD-CMP

Description

18 AWG solid core CCS quad shielded RG6 CATV/DBS coaxial cable
NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for
installations and applications in accordance with NEC articles 725, 800 and 820.

Conductor Electrical

18 AWG
Solid copper clad steel conductors
Diameter: 0.040" | 1.02mm

DC resistance: 28.6 Ω / 1000' | 93.81 Ω/KM
Shield DCR: 5.30 Ω / 1000' | 17.38 Ω/KM
Mutual capacitance: 15.5 pF/FT | 50.9 pF/M
Impedance: 75 ± 3 Ω
Velocity of Propagation: 84%
Voltage rating: 300V
SRL 5-1000 MHz: -20dB
SRL 1-3 GHz: -15dB

Insulation Regulatory

Foam fluorinated ethylene propylene
Wall thickness: 0.065" | 1.65mm
Diameter: 0.170" | 4.32mm

NEC: CMP 75˚C
CEC: CMP FT6 60˚C
EU RoHS 2002/95/EC Compliant

Color Code Packages

Natural Reel: 1000' | 305M

Weight: 31 Lbs/1000' | 47 Kg/KM

Assembly Installation

N/A Pull Tension: 137 Lbs | 609 N

Bend radius: 2.60" | 66mm unloaded
Bend radius: 5.20" | 132mm loaded
Plenum cable should be conditioned at room temperature for
24 hours prior to installation and never installed below 32˚F |
0˚C ambient temperature

Construct Applications

N/A Plenum CATV and DBS modulated video

Plenum CATV and DBS where DC is not required
Plenum Broadband video and cable modem

Shield Performance

100% aluminum/poly
60% 34 AWG aluminum braid shield
100% aluminum/poly
40% 34 AWG aluminum braid shield

CATV to 225 feet
DBS to 150 feet

Jacket Final Outside Diameter (inches)

Plenum rated polyvinyl chloride
Colors: Natural White
Wall thickness: 0.017" | 0.43mm
Diameter:0.268" | 6.80mm

0.268

Specification Revision Date:

August 4, 2010

RG6 Coaxial Sweep to 3.0 GHz

Frequency Attenuation

dB/100FT dB/100m

1 0.40 1.31

50 1.60 5.25
100 2.20 7.22
200 3.00 9.84
400 4.33 14.20
900 7.30 23.94

1000 7.90 25.91
1450 9.70 31.82
1800 11.00 36.08
2200 12.00 39.36
3000 13.80 45.26
