INT-EXRMK Installation Guide
The Intelix INT-EXRMK is a rack mounting kit for the INT-HD70,
INT-HDX100, and INT-HDXL100 series extenders. Measuring 5 rack units
(5RU) high, the INT-EXRMK can hold up to 12 extenders. Two sizes of
support brackets are included with the kit and allow installing the
INT-HD70 series extenders next to INT-HDX100 or INT-HDXL100
extenders. 11 panel blanks are included to finalize the clean, professional
appearance of the installation.
Page 2

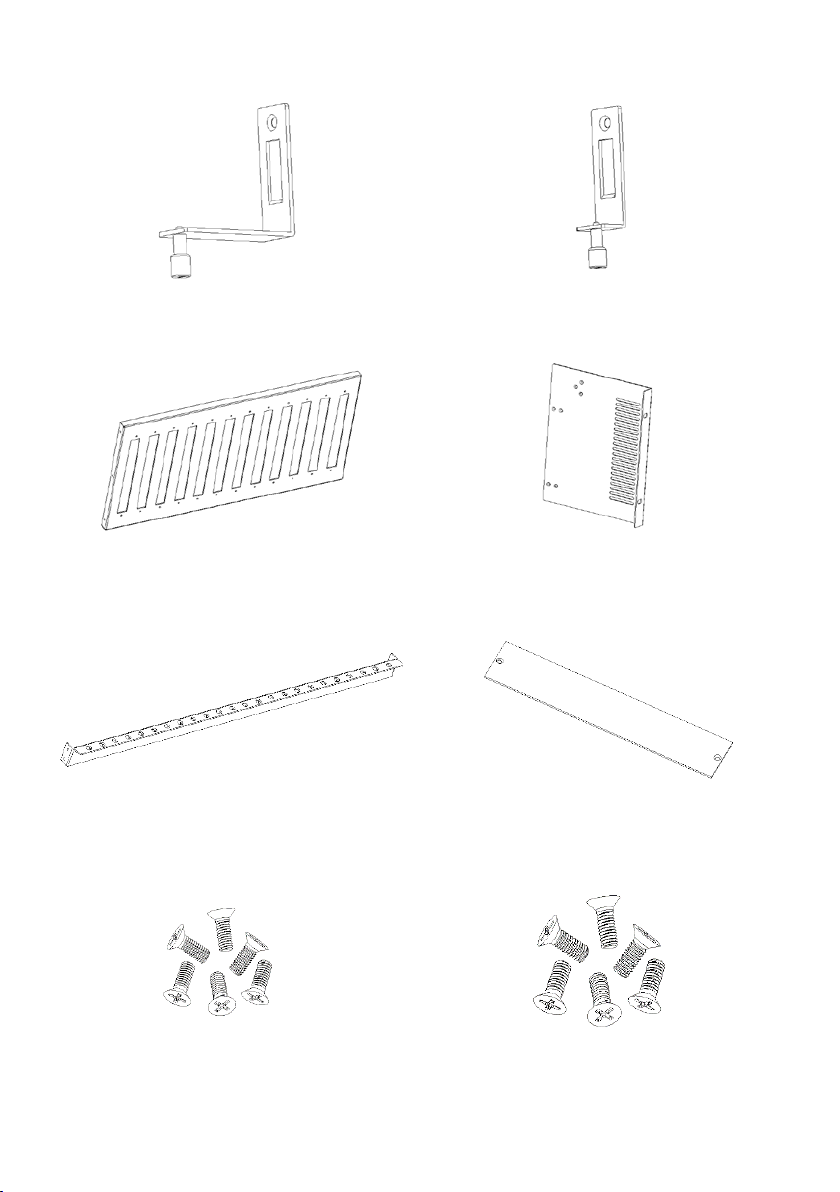

Parts List
Long Support (12 ea) Short Support (24 ea)
Front Panel (1 ea)
Lateral Support (2 ea)
Screw: 2.5x5mm (22 ea)
Side Panel (2 ea)
Front Panel Blank (11 ea)
Screw: 3x6mm (44 ea)
Page 3
Installation Instructions
Verify all components included with the INT-EXRMK rack mount kit are
present before installation.

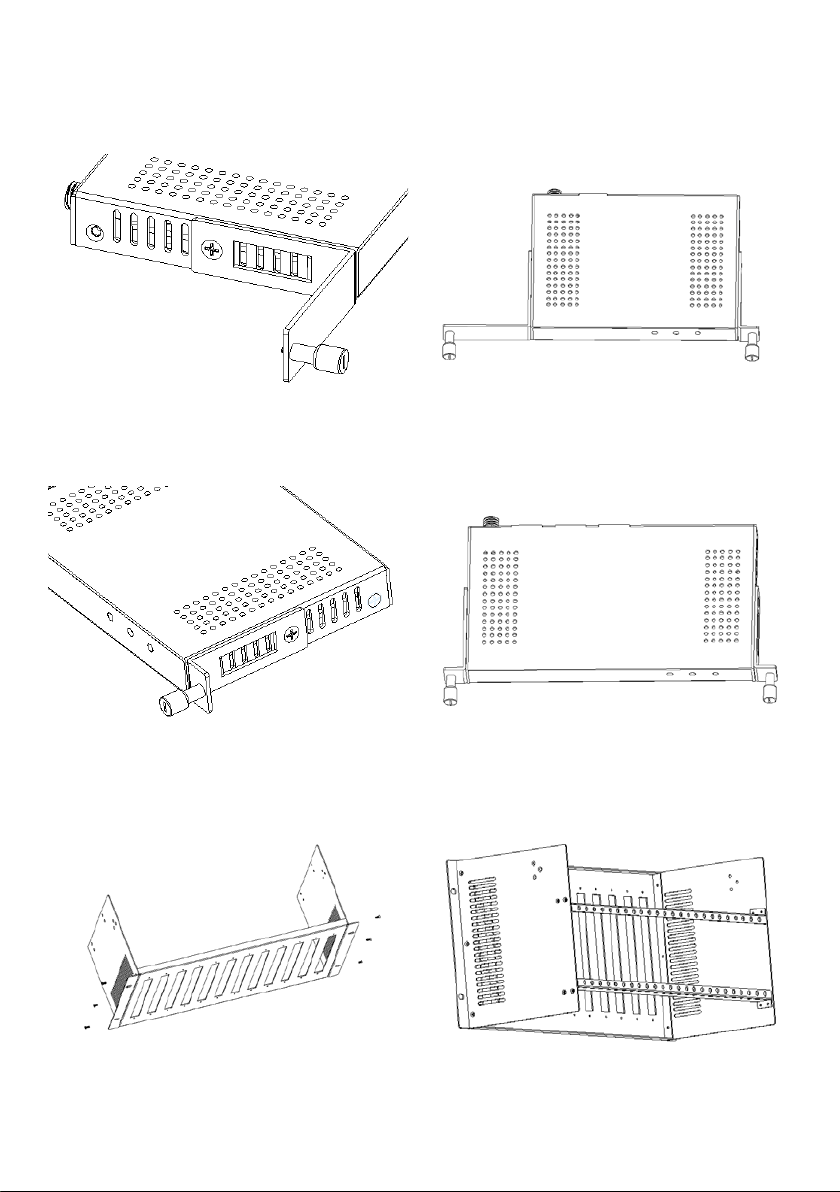

Use one Long Support and one Short Support when mounting the INT-HD70 series extenders.
Secure each support with one 3x6mm Screw.
Use two Short Supports when mounting the INT-HDX100 or INT-HDXL100 series extenders. Secure
each support with one 3x6mm Screw.
Secure the Side Panels to the Front Panel using
3x6mm Screws.
Attach the Lateral Supports to the Side Panels
using 3x6mm Screws.
Page 4

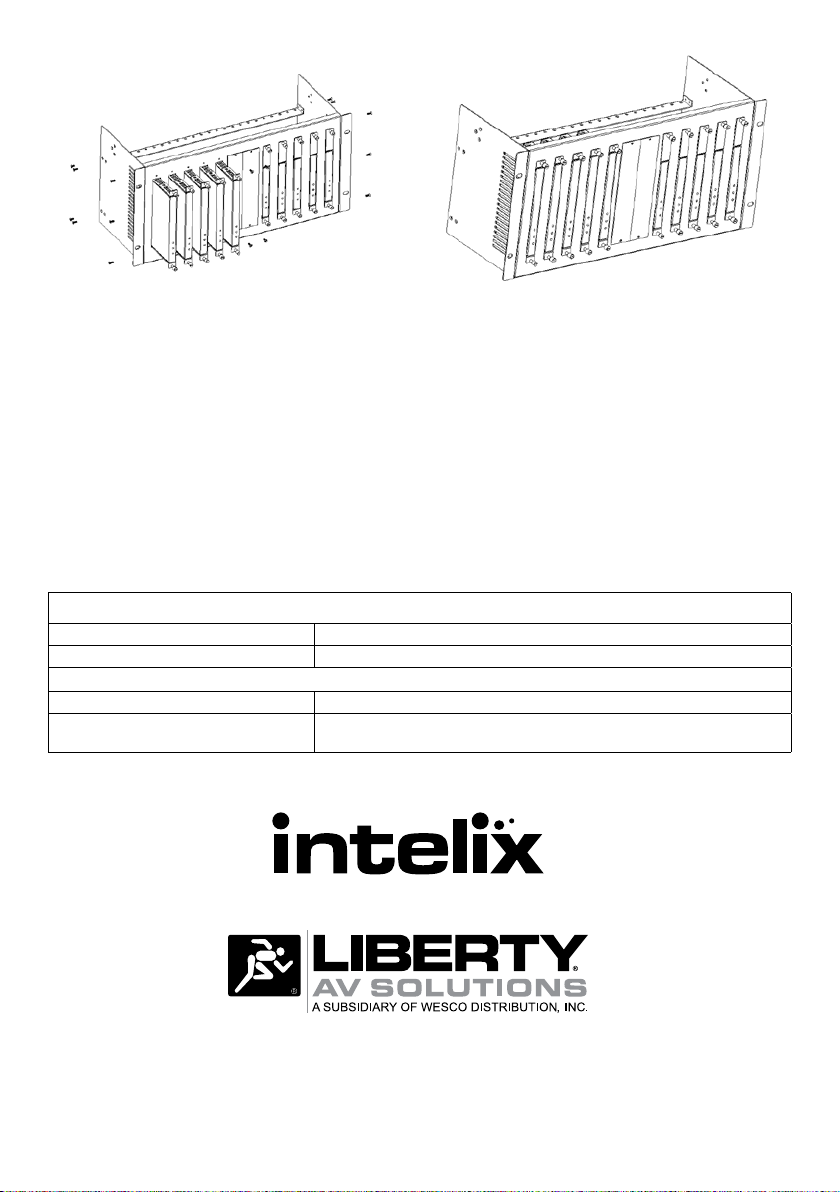

Install the HDBaseT extenders into the rack kit
and tighten the captive screws on the supports.
Attach the Front Panel Blanks using 2.5x5mm
Screws over any vacant spaces.
Chassis
Construction Black Steel
Dimensions (H x W x D) 220 mm x 480 mm x 170 mm (8.66 in x 18.90 in x 6.69 in)
Other
Warranty 2 years
HDBaseT Extender Compatibility INT-HD70-RX, INT-HD70-TX, INT-HDX100-RX, INT-HDX100-TX, INT-
HDXL100-RX, INT-HDXL100-TX
