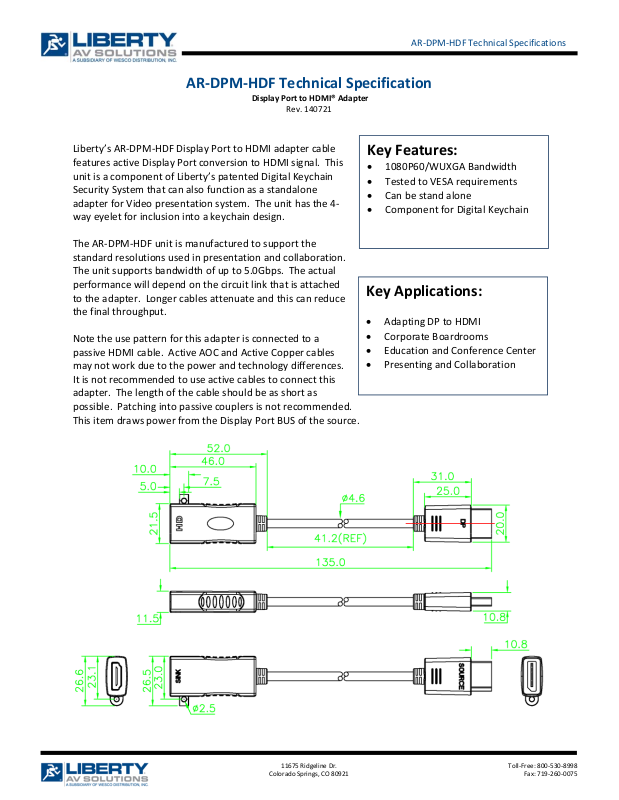

   AR‐DPM‐HDFTechnicalSpecifications



AR‐DPM‐HDFTechnicalSpecification

DisplayPorttoHDMI®Adapter

Rev.140721

 

Liberty’sAR‐DPM‐HDFDisplayPorttoHDMIadaptercable featuresactiveDisplayPortconversiontoHDMIsignal.This unitisacomponentofLiberty’spatentedDigitalKeychain SecuritySystemthatcanalsofunctionasastandalone adapterforVideopresentationsystem.Theunithasthe4‐ wayeyeletfor



TheAR‐DPM‐HDFunitismanufacturedtosupportthe standardresolutionsusedinpresentationandcollaboration. Theunitsupportsbandwidthofupto5.0Gbps.Theactual performancewilldependonthecircuitlinkthatisattached totheadapter.Longercablesattenuateandthis thefinalthroughput.



Notetheusepatternforthisadapterisconnectedtoa passiveHDMIcable.ActiveAOCandActiveCoppercables maynotworkduetothepowerandtechnologydifferences. Itisnotrecommendedtouseactivecablestoconnectthis adapter.Thelengthof possible.Patchingintopassivecouplersisnotrecommended. ThisitemdrawspowerfromtheDisplayPortBUSofthesource.

                     

inclusionintoakeychaindesign.

canreduce

thecableshouldbeasshortas



KeyFeatures:

 1080P60/WUXGABandwidth  TestedtoVESArequirements  Canbestandalone  ComponentforDigitalKeychain

 

KeyApplications:



 AdaptingDPtoHDMI  CorporateBoardrooms  EducationandConferenceCenter  PresentingandCollaboration

 11675RidgelineDr. Toll‐Free:800‐530‐8998



 ColoradoSprings,CO80921 Fax:719‐260‐0075

Page 2

   AR‐DPM‐HDFTechnicalSpecifications





TechnicalSpecifications

I/OConnections

Displayport MaleDisplayPortConnector HDMI FemaleHDMITypeAconnector

HDMISupportedVideo,AudioandEthernet

HDMIMaximumVideoCompatibility WUXGA1920x1200@60HZ,1080P60 VideoCompliance HDMI1.4afor2.25Gbps DisplayPortCompliance DP1.1for1.62Gbps,2.7Gbps TrainingSupport FullLinkTrainingandNoLinkTrainingSupported MaximumBandwidth HDMI:5.0Gbps

CableConstruction

MoldedHoodConstructions CopperFoilShieldedPre‐moldwithPVCovermold.Overmoldisblack DPMoldedHoodDimensions L:31.0mmxW:20.0mmxH:10.8mm.StrainReliefincludedinoveralllength HDMIMoldedHoodDimensions L:52.0mmxW:21.5mmxH:11.5mm.StrainReliefincludedinoveralllength CableJacketMaterial FlameratedPVCwithaglossyblackfinish CableConstruction 32AWGTinnedCopper OverallCableSize 0.181”|4.6mm MinimumBendRadius 1.81”|46mm MaximumTensileLoad 22Lbs|10Kg

EnvironmentalRequirements

OperatingTemperature 0°to+60°C(+32°to+140°F) OperatingHumidity 20%to85%,Non‐condensing StorageTemperature‐20°to+80°C(0°to+176°F)

PowerandRegulatory

Regulatory ULAWM20276VW‐1,EURoHS‐22011/65/EUCompliant



LibertyWire&Cablespecificationsaresubjecttochangewithoutnotice.Contactanaccountrepresentativeforcurrentproductspecifications.LibertyWire&Cablecontinuously strivestoensureproductspecificationsareaccurateandcomplete.Allphysicalspecificationsarenominal.



ItemNumber Description

AR‐DPM‐HDF AdapterCable,DisplayPorttoHDMI



NationalElectricCode®isaregisteredtrademarkoftheNationalFireProtectionAgency(NFPA) NEC®isaregisteredtrademarkoftheNationalFireProtectionAgency(NFPA) HDMI®isaregisteredtrademarkofHDMI,LLC HighDefinitionMultimediaInterface®isaregisteredtrademarkofHDMI,LLC DisplayPort®isaregisteredtrademark

ofVESA



PartMatrix


