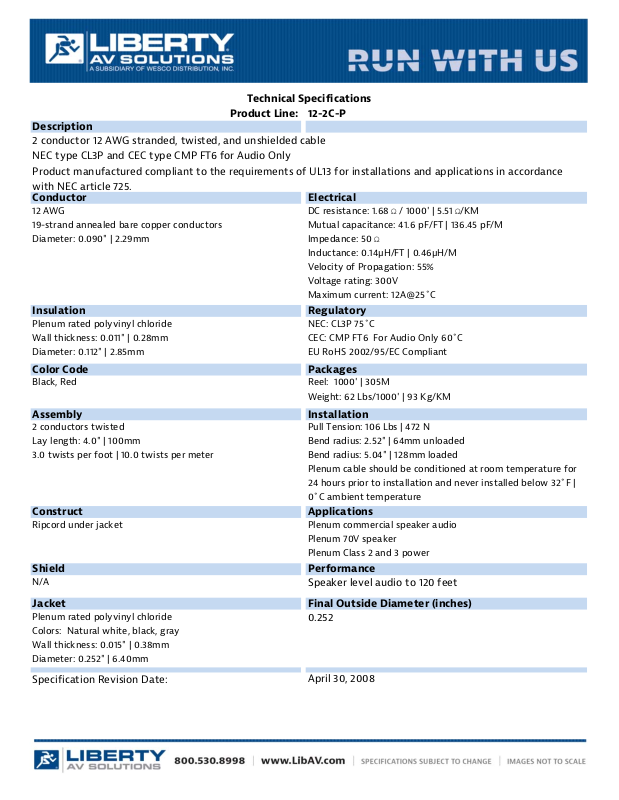

Technical Specifications
Product Line: 12-2C-P
Description
2 conductor 12 AWG stranded, twisted, and unshielded cable
NEC type CL3P and CEC type CMP FT6 for Audio Only
Product manufactured compliant to the requirements of UL13 for installations and applications in accordance
with NEC article 725.
Conductor Electrical
12 AWG
19-strand annealed bare copper conductors
Diameter: 0.090" | 2.29mm
DC resistance: 1.68 Ω / 1000' | 5.51 Ω/KM
Mutual capacitance: 41.6 pF/FT | 136.45 pF/M
Impedance: 50 Ω
Inductance: 0.14μH/FT | 0.46μH/M
Velocity of Propagation: 55%
Voltage rating: 300V
Maximum current: 12A@25˚C
Insulation Regulatory
Plenum rated polyvinyl chloride
Wall thickness: 0.011" | 0.28mm
Diameter: 0.112" | 2.85mm
NEC: CL3P 75˚C
CEC: CMP FT6 For Audio Only 60˚C
EU RoHS 2002/95/EC Compliant
Color Code Packages
Black, Red Reel: 1000' | 305M
Weight: 62 Lbs/1000' | 93 Kg/KM
Assembly Installation
2 conductors twisted
Lay length: 4.0" | 100mm
3.0 twists per foot | 10.0 twists per meter
Pull Tension: 106 Lbs | 472 N
Bend radius: 2.52" | 64mm unloaded
Bend radius: 5.04" | 128mm loaded
Plenum cable should be conditioned at room temperature for
24 hours prior to installation and never installed below 32˚F |
0˚C ambient temperature
Construct Applications
Ripcord under jacket Plenum commercial speaker audio
Plenum 70V speaker
Plenum Class 2 and 3 power
Shield Performance
N/A
Speaker level audio to 120 feet
Jacket Final Outside Diameter (inches
Plenum rated polyvinyl chloride
Colors: Natural white, black, gray
Wall thickness: 0.015" | 0.38mm
Diameter: 0.252" | 6.40mm
Specification Revision Date:
0.252
April 30, 2008
