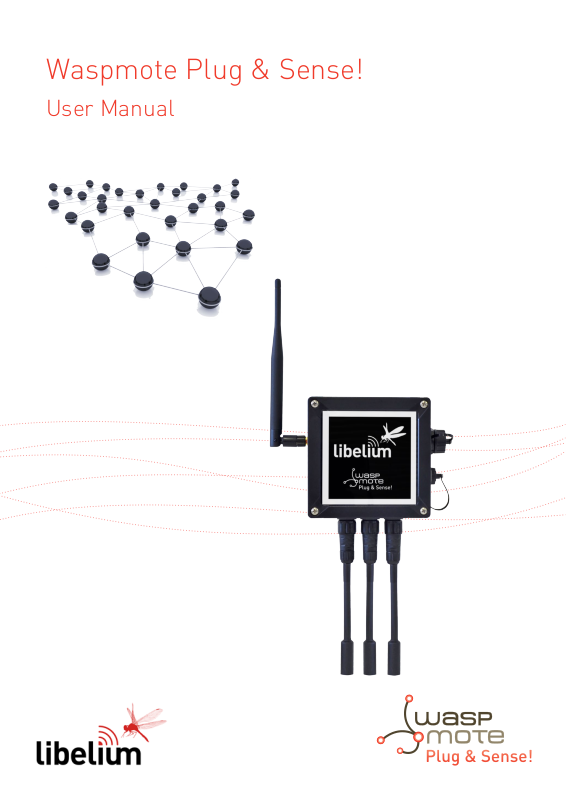

Waspmote Plug & Sense!

User Manual

Index

INDEX

1. Introduction ......................................................................................................................................... 3

2. General and safety information ......................................................................................................... 3

3. Waspmote Plug & Sense!’s Hardware Setup ...................................................................................... 4

3.1. ON/OFF Button ............................................................................................................................................................................4

3.2. External LED ...................................................................................................................................................................................5

3.3. Resetting Waspmote Plug & Sense! with an external magnet ....................................................................................5

3.4. USB ....................................................................................................................................................................................................7

3.4.1. External SIM socket ......................................................................................................................................................8

3.5. Antenna ........................................................................................................................................................................................ 10

4. Waspmote IDE: Download and Installation ..................................................................................... 12

5. Compiling a New Program ................................................................................................................ 13

6. Uploading a New Program to Waspmote Plug & Sense! ................................................................. 15

7. Certications information ................................................................................................................ 21

7.1. USA and Canada certication ..............................................................................................................................................21

-2-

1. Introduction

The aim of this manual is to introduce the user to Waspmote Plug & Sense! in a practical way.

This document applies to the following Waspmote Plug & Sense! models, approved for FCC and IC:

Model FCC ID IC

Waspmote Plug & Sense! 802.15.4 XKM-WPS-2400-V1 8472A-WPS2400V1

Waspmote Plug & Sense! 900 US XKM-WPS-900-V1 8472A-WPS900V1

Waspmote Plug & Sense! WiFi XKM-WPS-WIFI-V1 8472A-WPSWIFIV1

Waspmote Plug & Sense! 4G US XKM-WPS-4G-V1 8472A-WPS4GV1

Waspmote Plug & Sense! LoRaWAN US XKM-WPS-LORA-V1 8472A-WPSLORAV1

Waspmote Plug & Sense! Sigfox US XKM-WPS-SFX-V1 8472A-WPSSFXV1

2. General and safety information

Software:

• Upload code only using Waspmote IDE. If a dierent IDE is used, Waspmote can be damaged and can become unresponsive. This use is not covered under warranty.

• Do not unplug any connector while uploading code. Waspmote can become unresponsive. This use is not covered under warranty.

• Do not connect or disconnect any connector while Waspmote is ON. Waspmote can become unstable or unresponsive, and internal parts can be damaged. This fact is not covered under warranty.

Hardware:

• Do not handle black stickers seals on both sides of the enclosure (Warranty stickers). Their integrity is the proof that Waspmote Plug & Sense! has not been opened. If they have been handled, damaged or broken, the warranty is void.

• Do not open Waspmote Plug & Sense! in any case. This will automatically make the warranty void.

• Do not handle the four metallic screws of Waspmote Plug & Sense!. They ensure waterproof seal.

• Do not submerge Waspmote Plug & Sense! in liquids.

• Do not place nodes on places or equipment where it could be exposed to shocks and/or big vibrations.

• Do not expose Waspmote Plug & Sense! to temperatures below -10ºC or above 50ºC.

• Do not try to extract, screw, break or move Waspmote Plug & Sense! connectors far from necessary usage, waterproof sealing can be damaged and warranty will be voided. For more information: http://www.libelium.com

• Do not connect any sensor not provided by Libelium.

• Do not place Waspmote Plug & Sense! where water can reach internal parts of sensors.

-3-

3. Waspmote Plug & Sense!’s Hardware Setup

Here we show the most basic points about the hardware conguration:

3.1. ON/OFF Button

This button is used to turn ON or OFF Waspmote. It is a latch type button with two static positions as shown below. In ON position, the button remains a bit lower than LED ring.

Figure : On / O button at o position

Figure : Turning On Waspmote

-4-

3.2. External LED

ON / OFF button includes a red ring led, which can be managed by software. This led can be used for instance to know that Waspmote is ON, or for debugging purposes at developing phase. By default, Waspmote Plug & Sense! comes with a code that blinks briey (3 times in less than one second) this led when it is turned ON. The LED can be managed specifying ON time or just setting this state with specic API functions. The user should take into account that the usage of this led will increase power consumption due to external LED consumes 4.4 mA.

Figure : Waspmote turned On

3.3. Resetting Waspmote Plug & Sense! with an external magnet

Waspmote Plug & Sense! it can be reset with an external magnet, with no contact. If one node stops working or if a defective behavior is detected, it would be costly to uninstall the node to bring it back to laboratory. This feature allows the network manager to reset the node in a quick and easy way.

The hardware consists of a reed switch connected to the Waspmote reset line. When the user gets the magnet close to the reedswitch, the reset is activated. When the user moves the magnet away, the reset line is released (the external LED will blink) and Waspmote executes the bootloader rst and then, the setup function. After the setup, it will continue with the loop function. Next pictures shows the right way to reset the node using an external magnet, rst moving it closer, and then moving it away.

Figure : Moving the magnet closer to the node.

-5-

Figure : Moving the magnet away from the node.

The magnet is made of neodymium. It is a special, high-power magnet. We only advise to use the magnet Libelium provides.

It is not mandatory, but highly recommended to consider this feature when designing the project. The user should design the software in a way the node can be reset if things go wrong. Remember that laboratory tests are always needed to validate the feature before your nal deployment.

When the node is already deployed in the eld, and for instance it is installed in a trac light, this feature can be used to reset the node easily, as it is shown in the diagram below, where a technician uses a pole with the magnet attached in one side.

Figure : Applying the magnet in a real deployment

-6-

3.4. USB

This connector is used to upload code into Waspmote with a male to male USB cable provided by Libelium. Just connect one side of the cable to this connector, removing protection cap and connect the other side to a PC to upload a code. Next picture shows an example.

Figure : USB connector and protective cap

Figure : Connecting the USB cable to Waspmote

When uploading processes are nished, do not forget to screw rmly the protection cap to avoid connector damage.

-7-
