Libelium Smart Water Solution Kit Quick Start Manual

Libelium-Eagle.io

Smart Water Solution Kit

Quick Start Guide

-2-

IoT Solution Kit

INDEX

1. Identify the products ........................................................................................................................... 3

2. Open the box ........................................................................................................................................ 3

3. Identify Meshlium device and antennas ............................................................................................ 3

4. Antennas set up ................................................................................................................................... 4

5. Power set up ......................................................................................................................................... 4

6. Internet set up ..................................................................................................................................... 5

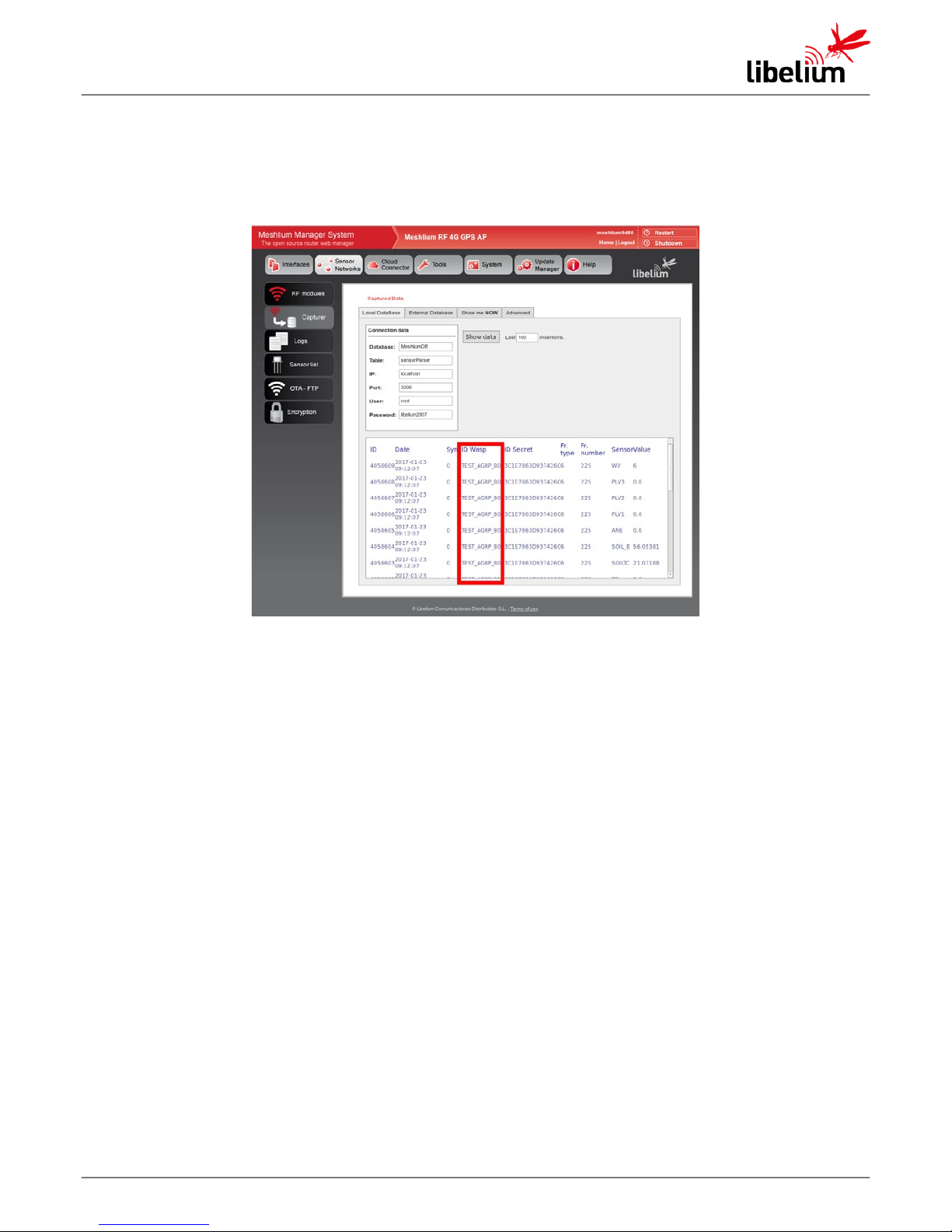

7. Checking data received at Meshlium ................................................................................................. 6

8. Now you can receive data ................................................................................................................... 7

9. Get Ready to send Data ....................................................................................................................... 7

10. Open the box ..................................................................................................................................... 7

11. Recharge Plug & Sense! ..................................................................................................................... 8

12. Antennas set up ................................................................................................................................. 8

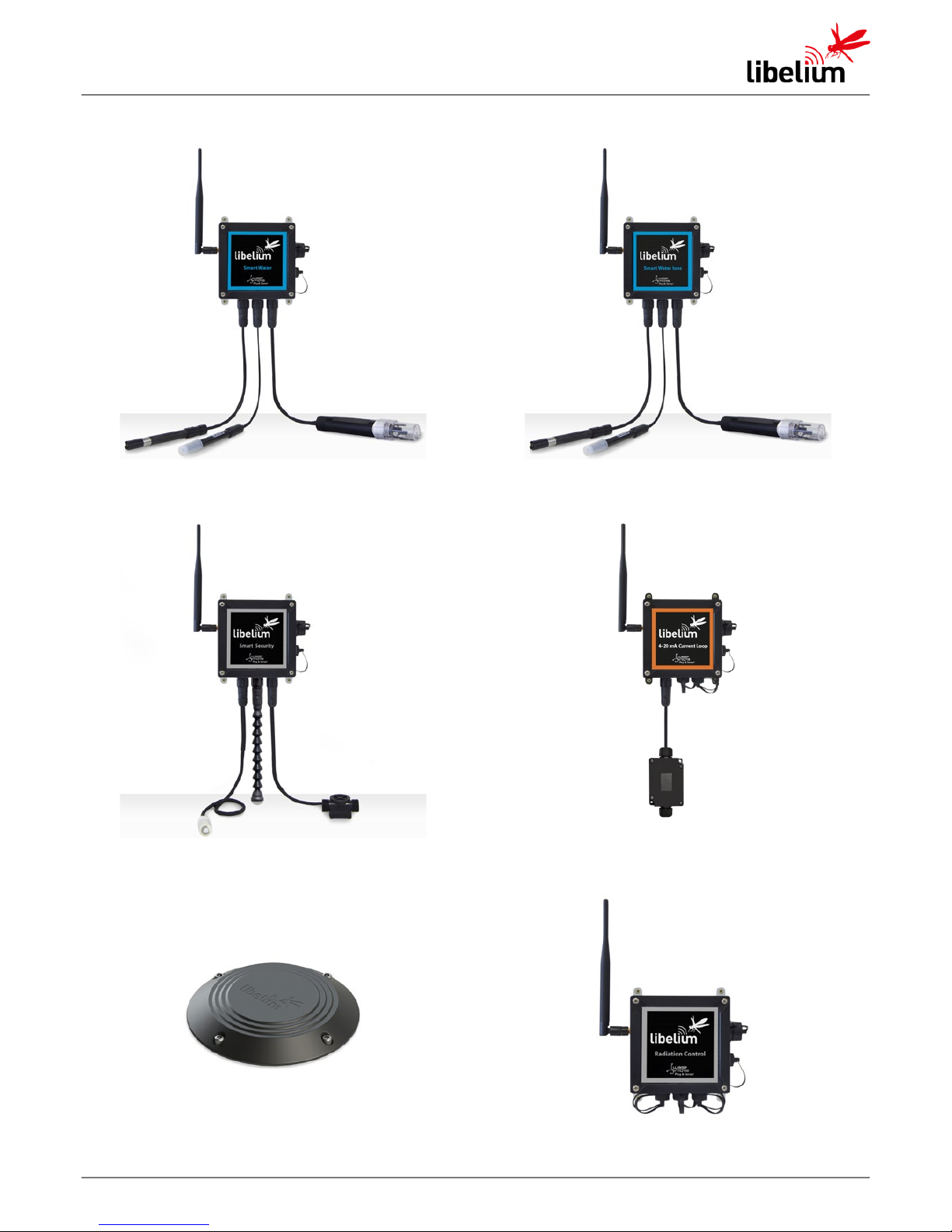

13. Identify Plug & Sense! family ............................................................................................................ 9

14. Check connection diagram ............................................................................................................. 11

15. Sensors setup ................................................................................................................................... 11

16. Connect sensors ............................................................................................................................... 12

17. Connect Solar Panel ........................................................................................................................ 12

18. Turn ON Plug & Sense! ..................................................................................................................... 13

19. Checking if data is received ............................................................................................................ 14

20. Next Steps ........................................................................................................................................ 14

-3-

IoT Solution Kit

1. Identify the products

2. Open the box

3. Identify Meshlium device and antennas

-4-

IoT Solution Kit

4. Antennas set up

Antennas *

a) Dipole 5 dBi (Bluetooth, WiFi, XBee-PRO 802.15.4).

b) 4G / GPS (3 antennas for EU, US or BR models; 2 antennas for AU models).

c) Dipole 4.5 dBi (XBee 868LP, XBee-PRO 900HP).

(*) Number and type of antennas depend on the model purchased.

5. Power set up

-5-

IoT Solution Kit

6. Internet set up

Wi Access:

• Connect to Meshlium Wi AP

- Meshlium_XXXX,

- no password needed

• Access Meshlium IP 10.10.10.1/MeshliumManager using a Web Browser (IE, Chrome, Firefox)

- User: admin

- Password: libelium

Ethernet Access:

• Access Meshlium assigned IP/MeshliumManager using a Web Browser (IE, Chrome, Firefox)

- User: admin

- Password: libelium

• Meshlium will use DHCP to get the IP address from your router, check in your router the IP address given.
