Libelium SIM5215, Waspmote 4G, LE910 Networking Manual

Waspmote 4G

Networking Guide

-2-

v7.3

Index

Document version: v7.3 - 10/2018
© Libelium Comunicaciones Distribuidas S.L.

INDEX

1. Introduction ..........................................................................................................................4

2. 3G (SIM5215) vs 4G (LE910) ................................................................................................... 5

3. Hardware ...............................................................................................................................6

3.1. Specications ..................................................................................................................................... 6

3.2. Versions .............................................................................................................................................. 6

3.3. How to connect the module ............................................................................................................ 7

3.4. Antennas ............................................................................................................................................ 9

3.5. Power consumption........................................................................................................................ 10

3.6. Time consumption .......................................................................................................................... 10

4. Software ............................................................................................................................... 11

4.1. Waspmote library ............................................................................................................................ 11

4.1.1. Waspmote 4G library ..........................................................................................................11

4.1.2. Class constructor .................................................................................................................11

4.1.3. API constants .......................................................................................................................11

4.1.4. API variables .........................................................................................................................12

4.1.5. API functions ........................................................................................................................13

4.1.6. Error codes ...........................................................................................................................13

4.2. Switching on .................................................................................................................................... 16

4.3. Switching o .................................................................................................................................... 16

4.4. SIM card............................................................................................................................................ 16

4.4.1. Entering PIN .........................................................................................................................16

4.4.2. Getting IMEI, IMSI and ICCID ..............................................................................................17

4.5. Checking network connection status ........................................................................................... 18

4.6. Setting operator parameters ......................................................................................................... 19

4.7. SMS ................................................................................................................................................... 19

4.7.1. Setting SMS conguration ..................................................................................................19

4.7.2. Sending SMSs .......................................................................................................................20

4.7.3. Reading SMSs .......................................................................................................................20

4.7.4. Deleting SMSs ......................................................................................................................21

4.8. HTTP client ....................................................................................................................................... 22

4.8.1. HTTP connections ................................................................................................................22

4.8.2. HTTP request methods .......................................................................................................23

4.8.3. Sending Waspmote frames to Meshlium via HTTP .........................................................25

4.8.4. Sending Waspmote frames to Meshlium via HTTPS .......................................................27

4.9. FTP client .......................................................................................................................................... 28

-3-

v7.3

4.9.1. Opening an FTP session .....................................................................................................28

4.9.2. FTP upload............................................................................................................................29

4.9.3. FTP download ......................................................................................................................30

4.9.4. FTP delete le .......................................................................................................................31

4.9.5. FTP working directory .........................................................................................................31

4.9.6. Closing an FTP session ........................................................................................................31

4.10. TCP/UDP connections................................................................................................................... 32

4.10.1. Socket identiers ...............................................................................................................32

4.10.2. Socket information structure ...........................................................................................32

4.10.3. Socket status structure .....................................................................................................33

4.10.4. Creating a TCP/UDP client socket ....................................................................................34

4.10.5. Creating a TCP/UDP server socket ..................................................................................35

4.10.6. Sending data ......................................................................................................................36

4.10.7. Receiving data ...................................................................................................................37

4.10.8. Closing a socket .................................................................................................................38

4.10.9. SSL sockets .........................................................................................................................38

4.11. GPS ................................................................................................................................................. 41

4.11.1. Standalone or Autonomous GPS (S-GPS) .......................................................................42

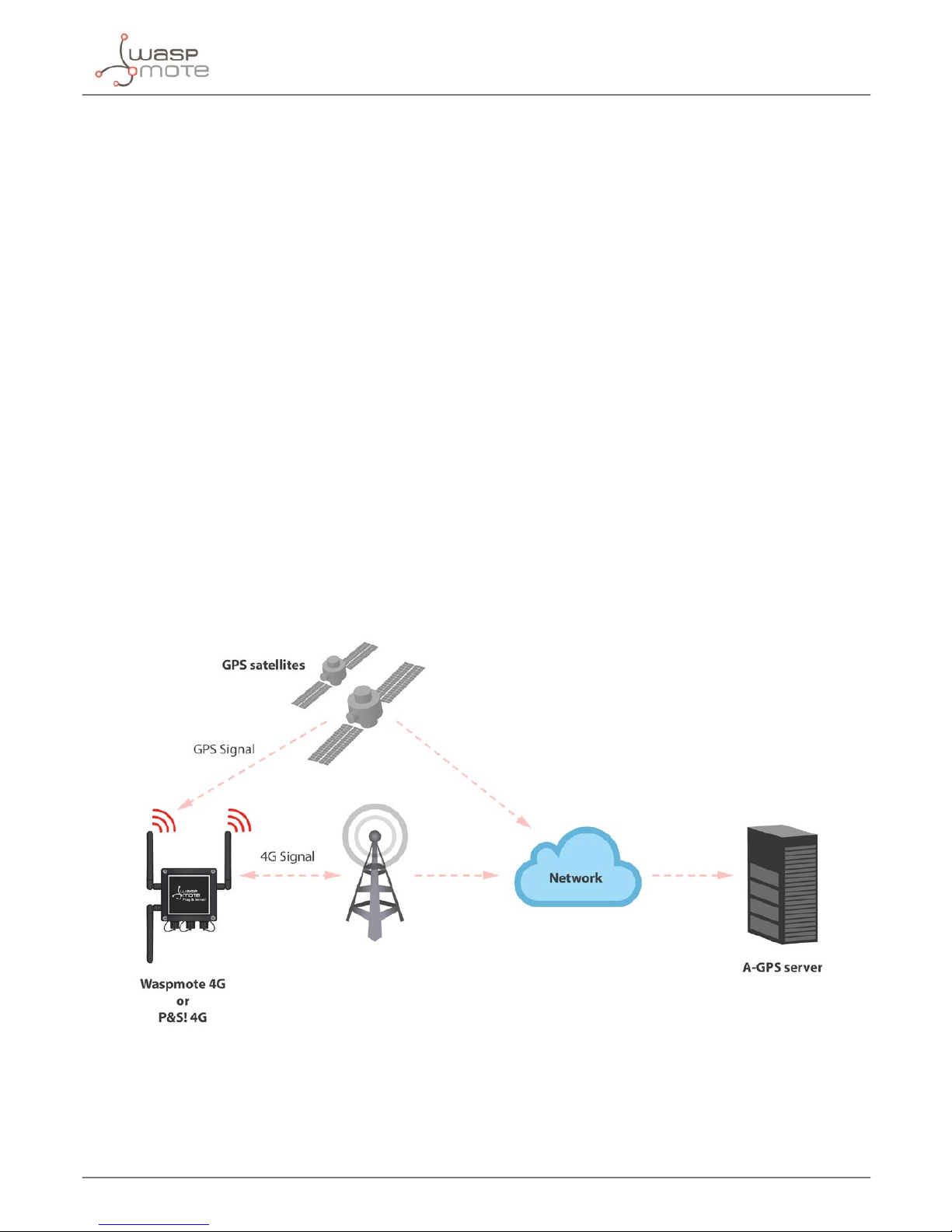

4.11.2. Assisted GPS (A-GPS).........................................................................................................42

4.11.3. Get GPS position ...............................................................................................................42

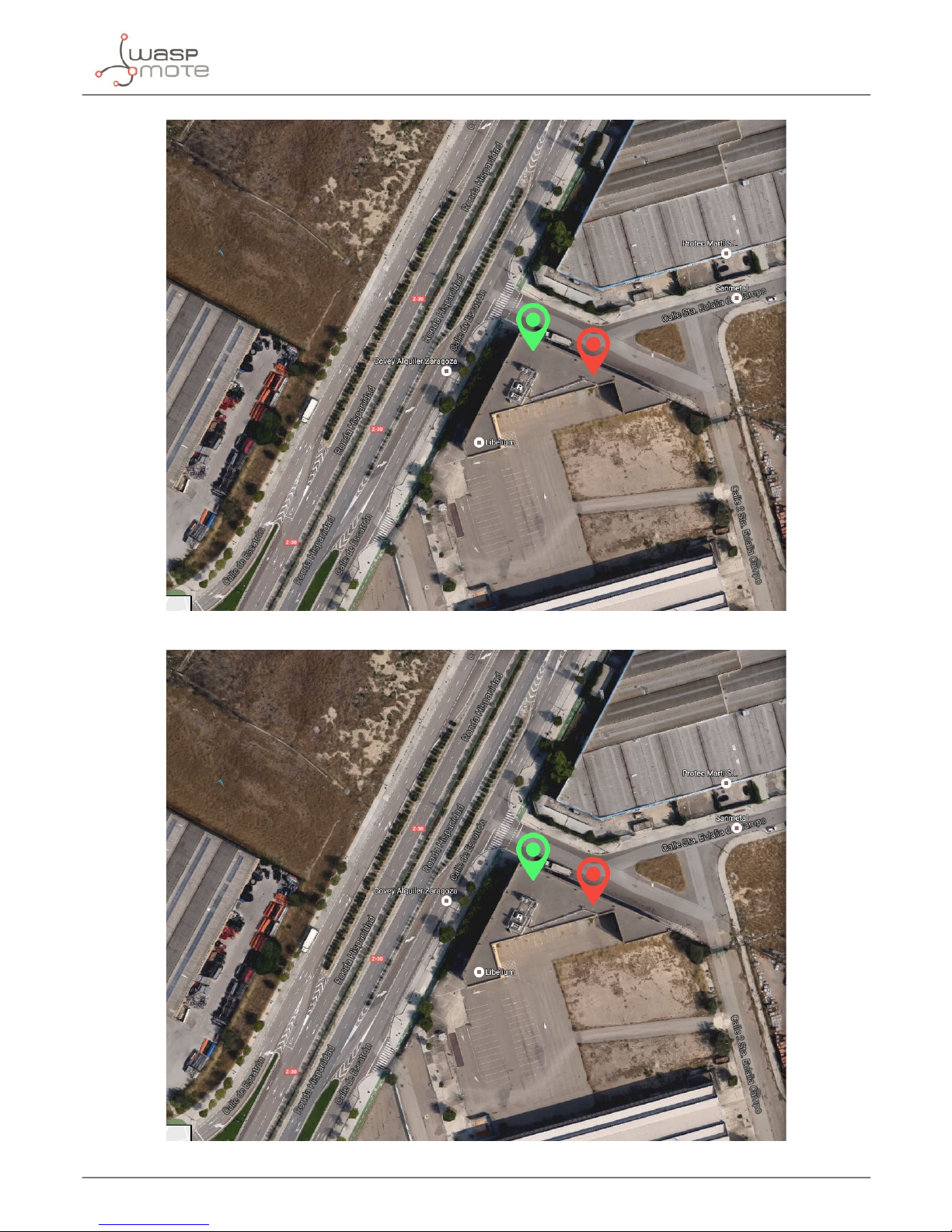

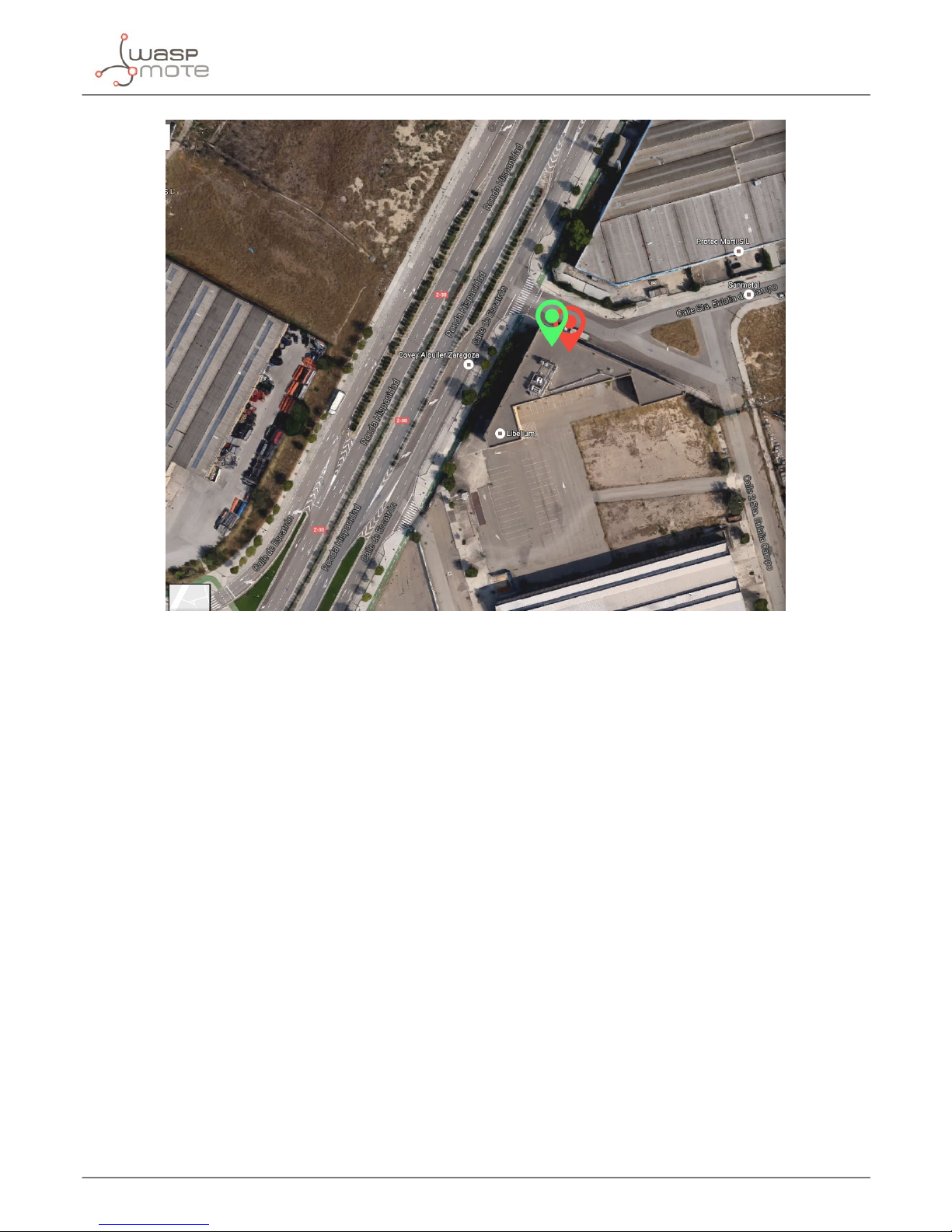

4.11.4. Indoor tracking using 4G and A-GPS mode (geolocation) ............................................44

4.12. e-mail management functions .................................................................................................... 47

4.12.1. Reseting e-mail parameters .............................................................................................47

4.12.2. Setting the SMTP server ...................................................................................................47

4.12.3. Conguring SMTP parameters ........................................................................................47

4.12.4. Setting the sender parameters: address, username and password ..........................48

4.12.5. Saving e-mail parameters ................................................................................................48

4.12.6. Sending an e-mail ..............................................................................................................48

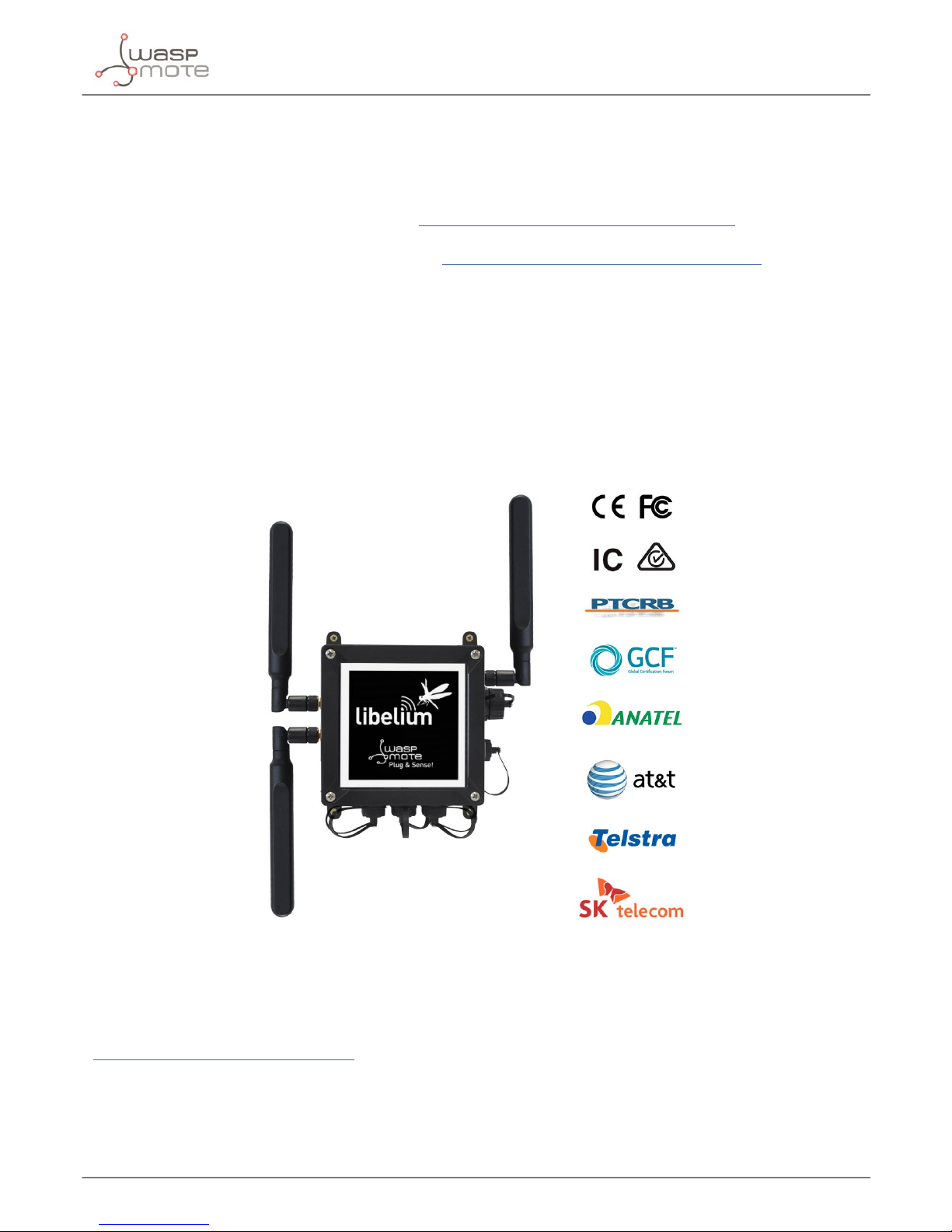

5. Certications ....................................................................................................................... 50

6. Code examples and extended information .....................................................................51

7. API changelog ...................................................................................................................... 52

8. Documentation changelog ................................................................................................53

Index

-4-

v7.3

Introduction

1. Introduction

This guide explains the features and use of the new 4G module. This module was specically integrated for our

new product lines Waspmote v15, Plug & Sense! v15 and Meshlium v4.0, released on October 2016. The 4G module
is not compatible Waspmote v12, Plug & Sense! v12 or Meshlium 3.x.

If you are using previous versions of our products, please use the corresponding guides, available on our
Development website.

You can get more information about the generation change on the document “New generation of Libelium product
lines”. The 4G module has been integrated into the devices Waspmote OEM, Plug & Sense! and Meshlium.

The new 4G module enables the connectivity to high speed LTE, HSPA+, WCDMA cellular networks in order to
make possible the creation of the next level of worldwide compatible projects inside the new “Internet of Things”
era.

The new communication module is specially oriented to work with Internet servers, implementing internally
several application layer protocols, which make easier to send the information to the cloud. We can make HTTP
navigation, downloading and uploading content to a web server. We can also set secure connections using SSL

certicates and setting TCP/IP private sockets. In the same way, the FTP protocol is also available which is really
useful when your application requires handling les.

The module includes a GPS/GLONASS receiver, able to perform geolocation services using NMEA sentences,

oering information such as latitude, longitude, altitude and speed; that makes it perfect to perform tracking

applications.

The new 4G module oers the maximum performance of the 4G network as it uses 2 dierent antennas (normal

+ diversity) for reception (MIMO DL 2x2), choosing the best received signal at any time and getting a maximum
download speed of 100 Mbps.

We chose the LE910 chipset family from Telit as it comprises the most complete 4G/LTE set of variants released

up to date. It counts with many dierent models, each one specically designed for one market but all of them

with the same footprint:

• LE910-EUG (Europe / Brazil): CE, GCF, ANATEL

• LE910-NAG (US / Canada): FCC, IC, PTCRB, AT&T approved

• LE910-AU V2 (Australia): RCM, Telstra approved

Important note: The current stock of the LE910 4G radio that the manufacturer ‘Telit’ is distributing comprises
the v2 version which does not have GPS. The models are:

• LE910-EU V2 for Europe or Brazil

• LE910-NA V2 for US or Canada

These v2 radios are similar to the v1 ones, but support more bands and do not have a GPS receiver.

Important:

• All documents and any examples they contain are provided as-is and are subject to change without notice.
Except to the extent prohibited by law, Libelium makes no express or implied representation or warranty of

any kind with regard to the documents, and specically disclaims the implied warranties and conditions of
merchantability and tness for a particular purpose.

• The information on Libelium’s websites has been included in good faith for general informational purposes

only. It should not be relied upon for any specic purpose and no representation or warranty is given as to its

accuracy or completeness.

-5-

v7.3

3G (SIM5215) vs 4G (LE910)

2. 3G (SIM5215) vs 4G (LE910)

The new 4G module (specic for the new lines Waspmote v15, Plug & Sense! v15 and Meshlium 4.0) introduces

some changes with respect to the 3G module (available for the old lines Waspmote v12, Plug & Sense! v12,
Meshlium 3.5 and the new Waspmote v15):

• The new 4G counts with many dierent models, one specically designed for each market:

- LE910-EU (Europe / Brazil): CE, GCF, ANATEL

- LE910-NAG (US / Canada): FCC, IC, PTCRB, AT&T approved

- LE910-AU V2 (Australia): RCM, Telstra approved

• The GPS module also makes it possible to perform geo-location services using NMEA sentences, oering
information such as latitude, longitude, altitude and speed, what makes it perfect for tracking applications.

• The new 4G module oers the maximum performance of the 4G network as it uses 2 dierent antennas
(normal + diversity) for reception (MIMO DL 2x2), choosing the best received signal at any time and getting a
maximum download speed of 100 Mbps.

Features comparison:

Features [v12] 3G module (SIM5215) [v15] 4G module (LE910)

Chipset manufacturer SIMCom Telit

Cellular protocols 3G / GPRS / GSM 4G / 3G / GPRS / GSM

Certications CE, GCF, FCC, IC, PTCRB

CE, GCF, ANATEL, FCC, IC, PTCRB, AT&T

Compliant, KCC, RCM, NTT DoCoMo, KDDi

GPS No Yes

Camera option Yes No

SD card Yes No

USB connectivity Yes Yes

Download max speed 384 kbps 100 Mbps

Upload max speed 384 kbps 50 Mbps

Antenna diversity No Yes

Cellular carriers (mobile

network operator)

Any

Any + Specially tested with AT&T, SK Telecom,

Telstra, NTT DoCoMo or KDDi

FTP Yes Yes

FTPS (Secure) Yes No

HTTP Yes Yes

HTTPS (Secure) Yes No

TCP/UDP sockets Yes Yes

SSL sockets No Yes

Mails Yes Yes

4G compatibility:

Item Compatible Notes

Waspmote 12 Yes New Waspmote API needed (v025 or newer)

Waspmote 15 Yes New Waspmote API needed (v025 or newer)

Old 3G codes No

The new 4G module provides new improved

examples and libraries

-6-

v7.3

Hardware

3. Hardware

3.1. Specications

The 4G module is based on the LE910 chipset, manufactured by Telit.
The module is managed by UART and it must be connected to socket
1 (direct connection, without Expansion Board). The main features of
the module are listed below:

• Output power:

- Class 4 (2 W, 33 dBm) @ GSM 850 / 900

- Class 1 (1 W, 30 dBm) @ GSM 1800 / 1900

- Class E2 (0.5 W, 27 dBm) @ EDGE 850 / 900

- Class E2 (0.4 W, 26 dBm) @ EDGE 1800 /1900

- Class 3 (0.25 W, 24 dBm) @ UMTS

- Class 3 (0.2 W, 23 dBm) @ LTE

• Data transmission:

- LTE:
» Uplink up to 50 Mbps
» Downlink up to 100 Mbps

- HSPA+:
» Uplink up to 5.76 Mbps
» Downlink up to 42.0 Mbps

- UMTS:
» Uplink/Downlink up to 384 kbps

• Protocols:

- TCP/UDP

- HTTP

- FTP

• GPS receiver (in certain versions)

3.2. Versions

Telit has dierent versions of the LE910 chipset. Each one of them was especially designed to comply with the
RF and cellular regulations in dierent countries or regions of the world. Libelium has integrated the following

versions:

Features LE910 EUG LE910 NAG LE910 AU V2

Region Europe and Brazil

USA and Canada

(Americas)

Australia

Supported 4G bands

B20 (800), B3 (1800), B7

(2600)

B17 (700), B5 (850), B4

(1700), B2 (1900)

B3 (1800), B7 (2600), B28

(700)

3G fall-back Yes Yes No

Supported 3G bands

B5 (850), B8 (900), B1

(2100)

B5 (850), B2 (1900) None

2G fall-back Yes Yes No

Supported 2G bands GSM 900, DCS 1800 GSM 850, PCS 1900 None

GPS/GLONASS Yes Yes No

Certications CE (R&TTE), GCF FCC, IC, PTCRB, AT&T RCM, Telstra

Figure : 4G module

-7-

v7.3

Hardware

Important note: The current stock of the LE910 4G radio that the manufacturer ‘Telit’ is distributing comprises
the v2 version which does not have GPS. The models are:

• LE910-EU V2 for Europe or Brazil

• LE910-NA V2 for US or Canada

These v2 radios are similar to the v1 ones, but support more bands and do not have a GPS receiver.

Features LE910 EU V2 LE910 NA V2

Region Europe USA and Canada (Americas)

Supported 4G bands

B20 (800), B8 (900), B3 (1800), B1

(2100), B7 (2600)

B12 (700), B13 (700), B5 (850), B4

(1700), B2 (1900)

3G fall-back Yes Yes

Supported 3G bands B8 (900), B1 (2100) B5 (850), B2 (1900)

2G fall-back Yes No

Supported 2G bands 900 / 1800 None

GPS/GLONASS No No

3.3. How to connect the module

This module must be connected to the SOCKET1 on the Waspmote board. Like any other cellular radio, the
connection is native so the radio does not need the Expansion Radio Board.

Figure : Module connected to Waspmote in SOCKET1

-8-

v7.3

Hardware

The SIM card used in the 4G module OEM version is a “standard SIM”, also known as “mini SIM”. The next picture
shows how the SIM card must be plugged in the 4G module.

Figure : SIM card installation in OEM version

On the other hand, Plug and Sense! models with 4G radio provide a special connector in order to plug both micro
USB wire and nano SIM card for the 4G module.

Figure : SIM card installation in Plug and Sense! version

Figure : Push-push mechanism in the External SIM/USB socket

-9-

v7.3

Hardware

3.4. Antennas

The 4G module comes with 2 cellular antennas for improving the signal reception: normal (main) antenna and
diversity antenna. Besides, a 3rd antenna is also included for the GPS receiver (when it is available in the 4G
module).

All these 3 antennas are the same model and can be used in any of the 4G sockets. The operating bands of
the dipole antenna go from 698 to 960 MHz and from 1710 to 2690 MHz. The maximum gain of the antenna is
observed at 2.6 GHz: 3.4 dBi.

To get the maximum performance, it is recommended to place the antennas like that:

• The main cellular antenna should be in vertical position, pointing to the sky, in order to radiate better to the
cellular base stations around.

• The diversity cellular antenna should be in horizontal position (orthogonal, 90º, to the main antenna). Besides,
the plane where the antenna is should be also orthogonal to the main antenna’s plain. Finally, it is advised to
place this 2nd cellular antenna as fas as possible from the main antenna. These 3 measures will maximize the
gain due to reception diversity.

• The GPS antenna should be in horizontal position, because the GPS satellite signal will come from above.

Figure : 4G module antennas

-10-

v7.3

Hardware

3.5. Power consumption

The 4G module is directly powered by the battery. The next table shows the Waspmote’s peak current consumption

in dierent states of the 4G module.

State

Mean power

consumption

On 100 mA

Transmitting data 400 mA

Receiving data 400 mA

Non-rechargeable batteries are not advised for the 4G module, because the high peaks of current consumption
could make the voltage of these batteries to go below 3.3 V so Waspmote would reset. The rechargeable battery

will not suer this eect as long as its level is above 20%.

3.6. Time consumption

The following table describes the mean elapsed time for some actions in a single test for several attempts:

Action Mean elapsed time

Power on ~11 s

Start data connection ~4 s

Perform HTTP GET or POST ~0.7 s

Open FTP session ~3 s

Perform FTP upload 10 kB le ~7 s

Perform FTP download 10 kB

le

~6 s

Some of these actions approximately have a xed elapsed time like powering on the module. However, the actions

related to data transmission (HTTP, FTP, etc.) are dependent on external circumstances (MNO, coverage quality,
etc) and show more variability from the mean value.

-11-

v7.3

Software

4. Software

4.1. Waspmote library

4.1.1. Waspmote 4G library

The les related to the 4G module library are:

/Wasp4G/Wasp4G.h
/Wasp4G/Wasp4G.cpp
/Wasp4G/utility/Wasp4G_constants.h
/Wasp4G/utility/Wasp4G_error_codes.h

It is mandatory to include the 4G library when using this module. So the following line must be added at the
beginning of the code:

#include <Wasp4G.h>

4.1.2. Class constructor

To start using the Waspmote 4G library, an object from the Wasp4G class must be created. This object, called _4G, is
already created by default inside the Waspmote 4G library. It will be used along this guide to show how Waspmote
works.

When using the class constructor, all variables are initialized to their default values.

4.1.3. API constants

The API constants used in functions are:

Constant Description

DEBUG_WASP4G

This denition enables/disables the debug mode via USB

port:
0: No debug mode enabled
1: Debug mode enabled for error output messages
2: Debug mode enabled for both error and OK messages

LE910_RATE

Module's communication baud rate

LE910_INCOMING_SMS

Constant to set incoming data type when SMS received

LE910_INCOMING_IP

Constant to set incoming data type when IP received

LE910_MAX_DL_PAYLOAD

Maximum data payload size to be stored in the data

buer

The are several enumeration denitions for the function inputs. Please refer to the corresponding section in order

to know more about the functions input parameters.

-12-

v7.3

Software

4.1.4. API variables

Variable Description

_buffer

The buer of memory used for storing the responses from the module (512

bytes)

_length

The length of the contents stored in _buffer

_def_delay

The time to wait after sending every command until listen for a response

_baudrate

The baudrate to be used when the module is switched on

_uart

The selected UART (regarding the socket used: SOCKET0 or SOCKET1)

_errorCode

It stores the error code returned by the module when calling a function with
error response

_ip

IP address assigned to the 4G module when it is connected to the network

_temp

It stores temperature from the module

_tempInterval

It stores temperature interval from the module

_rssi

It stores the module's RSSI level

_networkType

It stores the network type which module is connected to

_incomingType

It stores the incoming data type to be read via serial

_smsIndex

It stores the SMS index where the incoming message was saved

_smsStatus

It stores the status of the SMS read from module's memory

_smsNumber

It stores the phone number of the SMS read from module's memory

_smsDate

It stores the date of the SMS read from module's memory

_smsTime

It stores the time of the SMS read from module's memory

_socketIndex

It stores the socket index which is getting data from UDP or TCP

_httpCode

It stores the HTTP status code

_lesize

It stores the size of the le when FTP upload/download is performed

_ftpWorkingDirectory

It stores the current working directory of the FTP session

socketInfo

Structure to dene the info to be stored for all sockets

socketStatus

Structure to dene the status to be stored for all sockets

socketStatusSSL

Structure to dene the status to be stored for all sockets

_latitude

It stores latitude from GPS

_latitudeNS

It stores the north/south indicator from GPS

_longitude

It stores longitude from GPS

_longitudeEW

It stores east/west indicator

_altitude

It stores altitude from GPS

_time

It stores time from GPS

_date

It stores date from GPS

_numSatellites

It stores the number of satellites “in sight” of the GPS

_xMode

It stores x mode set from GPS

_speedOG

It stores speed over ground from GPS

_courseOG

It stores course over ground from GPS

_hdop

It stores the horizontal dilution of precision from GPS

-13-

v7.3

Software

4.1.5. API functions

Through this guide there are lots of examples, showing the use of functions. In these examples, API functions are
called to execute the commands, storing in their related variables the parameter value in each case. The functions

are called using the predened object _4G.

All public functions return dierent possible values:

• 0: OK

• Otherwise: ERROR. See corresponding function error code

4.1.6. Error codes

When the 4G module returns an error code, the _errorCode variable stores the corresponding error meaning. Do
not confuse this error code with the returning value from the API functions. There are other types of errors like
“no response from the module” which are not included in the next list. For each function answer, please refer to
the corresponding error values described for each function within the libraries.

The possible module’s error codes are described by constants as the table below:

Constant Value Error code description

WASP4G_CME_ERROR_0000

0 Phone failure

WASP4G_CME_ERROR_0001

1 No connection to phone

WASP4G_CME_ERROR_0002

2 Phone-adapter link reserved

WASP4G_CME_ERROR_0003

3 Operation not allowed

WASP4G_CME_ERROR_0004

4 Operation not supported

WASP4G_CME_ERROR_0005

5

Phone SIM (Subscriber Identity Module) PIN (Personal

Identication Number) required

WASP4G_CME_ERROR_0010

10 SIM not inserted

WASP4G_CME_ERROR_0011

11 SIM PIN required

WASP4G_CME_ERROR_0012

12 SIM PUK (Personal Unlocking Key) required

WASP4G_CME_ERROR_0013

13 SIM failure

WASP4G_CME_ERROR_0014

14 SIM busy

WASP4G_CME_ERROR_0015

15 SIM wrong

WASP4G_CME_ERROR_0016

16 Incorrect password

WASP4G_CME_ERROR_0017

17 SIM PIN2 required

WASP4G_CME_ERROR_0018

18 SIM PUK2 required

WASP4G_CME_ERROR_0020

20 Memory full

WASP4G_CME_ERROR_0021

21 Invalid index

WASP4G_CME_ERROR_0022

22 Not found

WASP4G_CME_ERROR_0023

23 Memory failure

WASP4G_CME_ERROR_0024

24 Text string too long

WASP4G_CME_ERROR_0025

25 Invalid characters in text string

WASP4G_CME_ERROR_0026

26 Dial string too long

WASP4G_CME_ERROR_0027

27 Invalid characters in dial string

WASP4G_CME_ERROR_0030

30 No network service

WASP4G_CME_ERROR_0031

31 Network time-out

WASP4G_CME_ERROR_0032

32 Network not allowed - emergency calls only

WASP4G_CME_ERROR_0040

40 Network personalization PIN required

WASP4G_CME_ERROR_0041

41 Network personalization PUK required

-14-

v7.3

Software

WASP4G_CME_ERROR_0042

42 Network subset personalization PIN required

WASP4G_CME_ERROR_0043

43 Network subset personalization PUK required

WASP4G_CME_ERROR_0044

44 Service provider personalization PIN required

WASP4G_CME_ERROR_0045

45 Service provider personalization PUK required

WASP4G_CME_ERROR_0046

46 Corporate personalization PIN required

WASP4G_CME_ERROR_0047

47 Corporate personalization PUK required

WASP4G_CME_ERROR_0100

100 Unknown

WASP4G_CME_ERROR_0770

770 SIM invalid

WASP4G_CME_ERROR_0103

103 Illegal Mobile Station (MS) (#3)*

WASP4G_CME_ERROR_0106

106 Illegal Mobile Equipment (ME) (#6)*

WASP4G_CME_ERROR_0107

107 GPRS service not allowed (#7)*

WASP4G_CME_ERROR_0111

111 PLMN not allowed (#11)*

WASP4G_CME_ERROR_0112

112 Location area not allowed (#12)*

WASP4G_CME_ERROR_0113

113 Roaming not allowed in this location area (#13)*

WASP4G_CME_ERROR_0132

132 Service option not supported (#32)*

WASP4G_CME_ERROR_0133

133 Requested service option not subscribed (#33)*

WASP4G_CME_ERROR_0134

134 Service option temporarily out of order (#34)*

WASP4G_CME_ERROR_0148

148 Unspecied GPRS error

WASP4G_CME_ERROR_0149

149 PDP authentication failure

WASP4G_CME_ERROR_0150

150 Invalid mobile class

WASP4G_CME_ERROR_0550

550 Generic undocumented error

WASP4G_CME_ERROR_0551

551 Wrong state

WASP4G_CME_ERROR_0552

552 Wrong mode

WASP4G_CME_ERROR_0553

553 Context already activated

WASP4G_CME_ERROR_0554

554 Stack already active

WASP4G_CME_ERROR_0555

555 Activation failed

WASP4G_CME_ERROR_0556

556 Context not opened

WASP4G_CME_ERROR_0557

557 Cannot setup socket

WASP4G_CME_ERROR_0558

558 Cannot resolve DN

WASP4G_CME_ERROR_0559

559 Time-out in opening socket

WASP4G_CME_ERROR_0560

560 Cannot open socket

WASP4G_CME_ERROR_0561

561 Remote disconnected or time-out

WASP4G_CME_ERROR_0562

562 Connection failed

WASP4G_CME_ERROR_0563

563 Transmission error

WASP4G_CME_ERROR_0564

564 Already listening

WASP4G_CME_ERROR_0568

568 Wrong PDP

WASP4G_CME_ERROR_0615

615 FTP not connected

WASP4G_CME_ERROR_0623

623 FTP write data closed

WASP4G_CME_ERROR_0643

643 FTP communication timeout

WASP4G_CME_ERROR_0657

657 Network survey error (No Carrier)*

WASP4G_CME_ERROR_0658

658 Network survey error (Busy)*

WASP4G_CME_ERROR_0659

659 Network survey error (Wrong request)*

WASP4G_CME_ERROR_0660

660 Network survey error (Aborted)*

WASP4G_CME_ERROR_0257

257 Network rejected request

WASP4G_CME_ERROR_0258

258 Retry operation

-15-

v7.3

Software

WASP4G_CME_ERROR_0259

259 Invalid deected to number

WASP4G_CME_ERROR_0260

260 Deected to own number

WASP4G_CME_ERROR_0261

261 Unknown subscriber

WASP4G_CME_ERROR_0262

262 Service not available

WASP4G_CME_ERROR_0263

263 Unknown class specied

WASP4G_CME_ERROR_0264

264 Unknown network message

WASP4G_CME_ERROR_0680

680 LU processing

WASP4G_CME_ERROR_0681

681 Network search aborted

WASP4G_CME_ERROR_0682

682 PTM mode

WASP4G_CME_ERROR_0683

683 Active call state

WASP4G_CME_ERROR_0684

684 SSL already activated

WASP4G_CMS_ERROR_0300

300 ME failure

WASP4G_CMS_ERROR_0301

301 SMS service of ME reserved

WASP4G_CMS_ERROR_0302

302 Operation not allowed

WASP4G_CMS_ERROR_0303

303 Operation not supported

WASP4G_CMS_ERROR_0304

304 Invalid PDU mode parameter

WASP4G_CMS_ERROR_0305

305 Invalid text mode parameter

WASP4G_CMS_ERROR_0310

310 SIM not inserted

WASP4G_CMS_ERROR_0311

311 SIM PIN required

WASP4G_CMS_ERROR_0312

312 Phone SIM PIN required

WASP4G_CMS_ERROR_0313

313 SIM failure

WASP4G_CMS_ERROR_0314

314 SIM busy

WASP4G_CMS_ERROR_0315

315 SIM wrong

WASP4G_CMS_ERROR_0316

316 SIM PUK required

WASP4G_CMS_ERROR_0317

317 SIM PIN2 required

WASP4G_CMS_ERROR_0318

318 SIM PUK2 required

WASP4G_CMS_ERROR_0320

320 Memory failure

WASP4G_CMS_ERROR_0321

321 Invalid memory index

WASP4G_CMS_ERROR_0322

322 Memory full

WASP4G_CMS_ERROR_0330

330 SMSC address unknown

WASP4G_CMS_ERROR_0331

331 No network service

WASP4G_CMS_ERROR_0332

332 Network time-out

WASP4G_CMS_ERROR_0340

340 No +CNMA acknowledgement expected

WASP4G_CMS_ERROR_0500

500 Unknown error

WASP4G_CME_ERROR_1001

1001 SSL certs and keys wrong or not stored

WASP4G_CME_ERROR_1003

1003 SSL already activated

WASP4G_CME_ERROR_1008

1008 SSL not connected

WASP4G_ERROR_TIMEOUT

65534 Timeout error when running a command

WASP4G_ERROR_MESSAGE

65535 Generic "ERROR" message from module

-16-

v7.3

Software

4.2. Switching on

The ON() function switches on the 4G module and it opens the MCU UART for communicating with the module.
After this step, the module will be able to receive commands to manage it.

Example of use:

{
_4G.ON();
}

4.3. Switching o

The OFF() function allows the user to switch o the 4G module and close the UART. This function must be called
in order to save battery when the module is not going to be used.

Example of use:

{
_4G.OFF();
}

4.4. SIM card

4.4.1. Entering PIN

The enterPIN() function allows the user to enter the PIN (Personal Identication Number) of the SIM (Subscriber
Identication Module) card. If the SIM card has no PIN (or the PIN was disabled on the SIM card), it is not necessary

to use this function.

Example for entering the PIN:

{
_4G.enterPIN(“1234”);
}

Besides, there is another function prototype in order to set a new one. It is mandatory to specify the current PIN
number and the new one.

Example for setting a new PIN:

{
_4G.enterPIN(“1234”, ”1111”);
}

Example of entering the PIN number:

www.libelium.com/development/waspmote/examples/4g-01-enter-pin-code

-17-

v7.3

Software

4.4.2. Getting IMEI, IMSI and ICCID

The getInfo() function can get more than one information eld to the module. This function needs one input
to indicate the type of information requested. The resulting information is stored in _buffer, and _length is the

number of bytes in the buer. The information possibilities are:

• Wasp4G::INFO_HW: To request the hardware revision

• Wasp4G::INFO_MANUFACTURER_ID: To request the manufacturer identier

• Wasp4G::INFO_MODEL_ID: To request the model identier

• Wasp4G::INFO_REV_ID: To request the rmware revision

• Wasp4G::INFO_IMEI: To request the IMEI (International Mobile Station Equipment Identity), which is the unique

identier of the module, similar to a MAC address

• Wasp4G::INFO_IMSI: To request the IMSI

• Wasp4G::INFO_ICCID: To request the ICCID

Examples of use:

{
// get IMEI number
_4G.getInfo(Wasp4G::INFO_IMEI);

// get IMSI number
_4G.getInfo(Wasp4G::INFO_IMSI);

// get ICCID number
_4G.getInfo(Wasp4G::INFO_ICCID);
}

Related variables:

_4G._buffer → Buer which stores the information requested

_4G._length → Number of bytes in buer

Example of getting module info:

www.libelium.com/development/waspmote/examples/4g-02-get-module-info

-18-

v7.3

Software

4.5. Checking network connection status

There are 2 functions to check the network connection status: checkConnection() and checkDataConnection().

The checkConnection() function checks the module’s network connection status and returns whether the module:

• is connected to a network

• is not connected to a network

• is searching for a new operator to register to

• registration was denied

This function will wait for the module to be connected to a network for the specied time in second units.

Example of use:

{
_4G.checkConnection(60);
}

Possible error codes for this function:

• 1: not registered, the Mobile Equipment (ME) is not currently searching for a new operator to register to

• 2: not registered, but ME is currently searching for a new operator to register to

• 3: registration denied

• 4: unknown

The checkDataConnection() function checks the module’s network connection status, connects the module to
data service and returns whether the module:

• is connected to data service

• is not connected to a network

• is searching for a new operator to register to

• registration was denied

This function will wait for the module to be connected to a network for the specied time in second units.

Example of use:

{
_4G.checkDataConnection(60);
}

Possible error codes for this function:

• 1: not registered, ME is not currently searching for a new operator to register to

• 2: not registered, but ME is currently searching for a new operator to register to

• 3: registration denied

• 4: unknown

• 6: not registered, ME is not currently searching for a new operator to register to

• 8: not registered, but ME is currently searching for a new operator to register to

• 9: registration denied

• 10: unknown

• 12: if error setting APN

• 13: if error setting login

• 14: if error setting password

• 15: if error activating GPRS connection

-19-

v7.3

Software

4.6. Setting operator parameters

When the 4G module uses data services like TCP/UDP connections, HTTP services, SMTP or FTP transfers, it is

mandatory to congure the parameters provided by the user’s Mobile Network Operator (MNO): APN, login and
password. The owner of a SIM should be notied with these parameters by the MNO.

The set_APN() function allows the user to save these parameters into Waspmote memory. Later, when data

connection functions are called, Waspmote will congure these parameters into the 4G module.

Example of use:

{
_4G.set_APN(“apn”, ”login”, ”password”);
}

The show_APN() function allows the user to display the current settings stored in Waspmote’s memory which are
used by the libraries when data connections are performed.

Example of use:

{
_4G.show_APN();
}

Related variable:

_4G._apn → Stores the APN name

_4G._apn_login → Stores the APN login

_4G._apn_password → Stores the APN password

4.7. SMS

4.7.1. Setting SMS conguration

The congureSMS() function sets the SMS conguration to:

• Correct SMS format to be read from the module

• Select where SMSs are going to be stored

• Congure the indication method for new SMS received

This function must be called before handling SMSs in the main code loop.

Example of use:

{

  _4G.congureSMS();

}

-20-

v7.3

Software

4.7.2. Sending SMSs

The sendSMS() function sends an SMS to the given phone number. The maximum length of the message to be
sent is 164 bytes.

Example of use:

{
char phone_number[] = “*********”;
char text_message[] = “This_is_a_text_message”;
_4G.sendSMS(phone_number, text_message);
}

Possible error codes for this function:

• 1: not registered, ME is not currently searching for a new operator to register to

• 2: not registered, but ME is currently searching for a new operator to register to

• 3: registration denied

• 4: unknown connection error

• 5: if error setting the phone number

• 6: if error sending the body

Example of sending a text message:

www.libelium.com/development/waspmote/examples/4g-04-sending-sms

4.7.3. Reading SMSs

The readSMS() function reads an SMS from the module storage. The user must give the index of the SMS to be
read from memory. In the case a new SMS is received, all SMS related parameters are stored in the Waspmote’s

library structures: index number, status, sender number, date and time. The SMS text eld can be found in _4G._

buffer.

Example of use:

{
uint8_t index = 5;
_4G.readSMS(index);
}

The readNewSMS() function reads the last unread SMS received by the module. There are 2 function prototypes:
with or without timeout. If the user needs to wait for a new text message for a period of time, the timeout must

be specied as input. If no input is dened, the request for new text messages is instantly performed. In the case

a new SMS is received, all SMS related parameters are stored in the Waspmote’s library structures: index number,
status, sender number, date and time. The SMS text eld can be found in _4G._buffer.

Example of use:

{
_4G.readNewSMS(30000);
}

-21-

v7.3

Software

Related variables:

_4G._smsIndex → Stores the SMS index in memory storage

_4G._smsStatus→ Stores the SMS status:

“REC UNREAD” - new received message unread

“REC READ” - received message read

“STO UNSENT” - message stored not yet sent

“STO SENT” - message stored already sent

_4G._smsNumber→ Stores the sender phone number

_4G._smsDate → Stores the date SMS was sent

_4G._smsTime → Stores the time SMS was sent

_4G._buffer → Stores SMS text eld temporary, after calling the read function

_4G._length → Stores the SMS message length

Example of receiving and deleting text messages:

www.libelium.com/development/waspmote/examples/4g-05-receiving-sms

4.7.4. Deleting SMSs

The deleteSMS() function deletes an SMS according to the given index number in the memory storage.

Examples of use:

{
uint8_t index = 2;
_4G.deleteSMS(index);
}

There is a second deleteSMS() function prototype which deletes all the SMSs in the storage memory according to

several possibilities. For this function, 2 inputs are introduced: the SMS index number and the delete ag. If delete
ag is not set to delete one single message, then index is ignored and the module shall follow the rules for delete
ag shown below:

• Wasp4G::SMS_DELETE_MESSAGE: To delete the message specied in index

• Wasp4G::SMS_DELETE_ALL_1: To delete all read messages from memory storage, leaving unread messages
and stored mobile originated messages (whether sent or not) untouched

• Wasp4G::SMS_DELETE_ALL_2: To delete all read messages from memory storage and sent mobile originated
messages, leaving unread messages and unsent mobile originated messages untouched

• Wasp4G::SMS_DELETE_ALL_3: To delete all read messages from memory storage, sent and unsent mobile
originated messages, leaving unread messages untouched

• Wasp4G::SMS_DELETE_ALL_4: To delete all messages from memory storage

Example of use:

{
_4G.deleteSMS(index, Wasp4G::SMS_DELETE_ALL_1);
}

Example of receiving and deleting text messages:

www.libelium.com/development/waspmote/examples/4g-05-receiving-sms

-22-

v7.3

Software

4.8. HTTP client

4.8.1. HTTP connections

HTTP is a great protocol because it is a standard, simple and light way to send information to web servers.

Libelium has created a little web service in order to allow 4G, 3G, GPRS, GPRS+GPS or WiFi modules to test the
HTTP mode. This web service is a little code, written in PHP, which is continuously listening to the HTTP port (port
number 80) of our test server “pruebas.libelium.com”. This is a kind of RESTful service. These communication
modules can send HTTP instances to our web service.

HTTP instances should have the following structures so that our web service can understand.

GET method

In GET method the data are sent to the server append to the main URL with the ‘?’ character. The base sentence
to perform GET method is shown below:

pruebas.libelium.com/getpost_frame_parser.php?<variable1=value1>&<variable2=value2>&<...>&
view=html

Where:

• getpost_frame_parser.php? : It is the main URL, where the web service is running.

• <variable1=value1> : It is a couple with the variable name and value which we want the web service to parse.

• view=html : It is an optional argument. It shows a “pretty” response (HTML formatted)

All arguments must be separated by “&”. The variable name and value must be separated by “=”.

Some examples:

pruebas.libelium.com/getpost_frame_parser.php?var1=3.1415

pruebas.libelium.com/getpost_frame_parser.php?var1=3.1415&view=html

pruebas.libelium.com/getpost_frame_parser.php?var1=3.1415&var2=123456&var3=hello&view=html

POST method

Unlike GET method, with POST method the data are sent to the server into an extra data eld. The URL only

includes the site name and the PHP direction:

pruebas.libelium.com/getpost_frame_parser.php

The data eld is very similar as the used in GET method:

<variable1=value1>&<variable2=value2>&<...>&view=html

Where:

• <variable1=value1> : It is a couple with the variable name and value which we want the web service to parse.

All arguments must be separated by “&”. The variable name and value must be separated by “=”.

Some examples of data eld:

pruebas.libelium.com/getpost_frame_parser.php?variable1=3.141592
pruebas.libelium.com/getpost_frame_parser.php?var1=3.1415&var2=123456&var3=hello

-23-

v7.3

Software

Server response

If the web service receives one instance with the appropriate format, some actions will happen:

• The web service grabs the string and parses it. So the PHP code creates couples with the variables name and
value.

• The web service responses to the sender device (to the sender IP) with an HTML-formatted reply.

Figure : Operating with the web service from a PC browser

Remember this PHP code is really simple and is oered with the only purpose of testing, without any warranty.
The source code is available here:

downloads.libelium.com/waspmote-html-get-post-php-parser-tester.zip

The user may nd it interesting to copy this code and make it run on his own server (physical or virtual). If the user

wants to go further, he can complete the code. For example, once the couples are parsed, the user can modify the

PHP to save data into a txt le, or insert couples into a database, or include a timestamp...

4.8.2. HTTP request methods

The http() function congures HTTP parameters, performs the request selected by the user and handles the data
returned from the server.

This function needs several parameters to work properly depending on the method used. The rst parameter
required by the function is the request method. User can choose among ve methods: GET, HEAD, DELETE, POST

and PUT:

• Wasp4G::HTTP_GET

• Wasp4G::HTTP_HEAD

• Wasp4G::HTTP_DELETE

• Wasp4G::HTTP_POST

• Wasp4G::HTTP_PUT

After choosing the method, the function needs the host URL, port and resource of the HTTP server requested. The

data eld is only necessary when POST or PUT methods are performed.

Example of use (GET, HEAD and DELETE methods):

{
char host[] = “test.libelium.com”;
uint16_t port = 80;
char resource[] = “/test-get-post.php?varA=1&varB=2&varC=3&varD=4”;

_4G.http(Wasp4G::HTTP_GET, host, port, resource);
}

-24-

v7.3

Software

Example of use (POST and PUT methods):

{
char host[] = “test.libelium.com”;
uint16_t port = 80;
char resource[] = “/test-get-post.php”;
char data[] = “varA=1&varB=2&varC=3&varD=4&varE=5”;

_4G.http(Wasp4G::HTTP_POST, host, port, resource, data);
}

Once the request has been sent, the function waits for data from the server and stores it in _buffer. It also stores
the HTTP status code from the server in _httpCode.

Related variable:

_4G._httpCode → Stores the HTTP code from the server

_4G._buffer → Stores data received from server

_4G._length → Stores data length

Possible error codes for this function:

• 1: not registered, ME is not currently searching for a new operator to register to

• 2: not registered, but ME is currently searching for a new operator to register to

• 3: registration denied

• 4: unknown

• 6: not registered, ME is not currently searching for a new operator to register to

• 8: not registered, but ME is currently searching for a new operator to register to

• 9: registration denied

• 10: unknown

• 12: if error setting APN

• 13: if error setting login

• 14: if error setting password

• 15: if error activating GPRS connection

• 16: if error setting URL and port

• 17: if error sending the request

• 18: if error sending POST / PUT data

• 19: if wrong method has been selected

• 20: if timeout waiting the URC

• 21: if error reading the URC

• 22: if error reading the HTTP status

• 23: if error reading the HTTP data length

• 24: if error reading the HTTP data

• 25: if error code from 4G module while waiting for HTTP response

• 26: if timeout waiting for HTTP response

• 27: if HTTP response data length is zero

Example of HTTP GET:

www.libelium.com/development/waspmote/examples/4g-06-http-get

Example of HTTP POST:

www.libelium.com/development/waspmote/examples/4g-07-http-post

-25-

v7.3

Software

4.8.3. Sending Waspmote frames to Meshlium via HTTP

Since Meshlium Manager System v4.0.9, HTTPS method is the default method for sending data. HTTPS is the
recommended technology because it provides many cyber security services. Therefore, the HTTPS service is
always enabled on Meshlium.

However, Meshlium Manager System v4.1.0 and greater versions allow the user to enable the HTTP service in
order to be able to receive HTTP non-secure requests. The user must go to: Manager System —› System —›
Security —› HTTP Service:

Figure : Enable HTTP service in Meshlium Manager System

The sendFrameToMeshlium() function has been developed to send Waspmote frames from Waspmote to Meshlium
via non-secure HTTP request. Meshlium will parse (chop) the frame and will store it in its internal MySQL database.
This function requires the following parameters:

• Meshlium’s IP address

• Meshlium’s remote port

• Data to send: frame.buffer will be used from the generated frame

• Data length: frame.length will be used from the generated frame

-26-

v7.3

Software

Figure : Send frames to Meshlium via 4G

After calling the function, the response from Meshlium will be stored in _buffer. Besides, it will store the HTTP
status code from server in _httpCode. Please refer to the Data Frame Guide in order to know more about how to
create sensor frames with Waspmote libraries.

Example of use:

{
char host[] = “pruebas.libelium.com”;
uint16_t port = 80;

// after frame has been created
_4G.sendFrameToMeshlium(host, port, frame.buffer, frame.length);
}

Related variable:

_4G._httpCode → Stores the HTTP code from the server

_4G._buffer → Stores data received from server

_4G._length → Stores data length

frame.buffer → Stores data frame that will be sent to Meshlium

frame.length → Stores data frame length

-27-

v7.3

Software

4.8.4. Sending Waspmote frames to Meshlium via HTTPS

Since Meshlium Manager System v4.0.9, HTTPS is the default method for sending data.

For HTTPS, the user must keep in mind that the Meshlium’s certicate has to be installed in the Waspmote or

Plug & Sense! radio prior to opening secure connections. The next picture shows how the user can download the
Meshlium’s certicate from Manager System —› System —› Users Manager —› Download Certicate:

Figure : Meshlium certicate export process

The downloaded certicate must be installed following the steps explained in the “SSL sockets” section and the

proper library function. Also, the example linked at the end of this section shows how to perform the installation.

Example of sending frames to Meshlium via HTTPS:

www.libelium.com/development/waspmote/examples/4g-08b-send-to-meshlium-https/

-28-

v7.3

Software

Possible error codes for this function:

• 1: not registered, ME is not currently searching for a new operator to register to

• 2: not registered, but ME is currently searching for a new operator to register to

• 3: registration denied

• 4: unknown

• 6: not registered, ME is not currently searching for a new operator to register to

• 8: not registered, but ME is currently searching for a new operator to register to

• 9: registration denied

• 10: unknown

• 12: if error setting APN

• 13: if error setting login

• 14: if error setting password

• 15: if error activating GPRS connection

• 16: if error setting URL and port

• 17: if error sending the request

• 18: if error sending POST / PUT data

• 19: if wrong method has been selected

• 20: if timeout waiting the URC

• 21: if error reading the URC

• 22: if error reading the HTTP status

• 23: if error reading the HTTP data length

• 24: if error reading the HTTP data

• 25: if error code from 4G module while waiting for HTTP response

• 26: if timeout waiting for HTTP response

• 27: if HTTP response data length is zero

Example of sending frames to Meshlium:

www.libelium.com/development/waspmote/examples/4g-08-send-frames-to-meshlium

4.9. FTP client

4.9.1. Opening an FTP session

The ftpOpenSession() function congures FTP parameters and opens the connection. Several inputs are needed:

• FTP server: IP address or URL

• FTP port number

• Username

• Password

Example of use:

{
char ftp_server[] = “pruebas.libelium.com”;
uint16_t ftp_port = 21;
char ftp_user[] = “[e-mail]”;
char ftp_pass[] = “ftp1234”;

_4G.ftpOpenSession(ftp_server, ftp_port, ftp_user, ftp_pass);
}

-29-

v7.3

Software

Possible error codes for this function:

• 1: not registered, ME is not currently searching for a new operator to register to

• 2: not registered, but ME is currently searching for a new operator to register to

• 3: registration denied

• 4: unknown

• 6: not registered, ME is not currently searching for a new operator to register to

• 8: not registered, but ME is currently searching for a new operator to register to

• 9: registration denied

• 10: unknown

• 12: if error setting APN

• 13: if error setting login

• 14: if error setting password

• 15: if error activating GPRS connection

• 16: if error opening the FTP connection

• 17: if error setting the transfer type

After successfully calling this function, it will be possible to manage the rest of FTP functions for uploading and

downloading les.

4.9.2. FTP upload

The ftpUpload() function uploads a le from the Waspmote’s SD card to the FTP server. The FTP session must be
already open. This function needs 2 dierent inputs: the complete path of the le to be created in the FTP server
and the complete path of the le in the SD card to be uploaded.

Example of use for les in root directory:

{

  charsd_le[]=“FILE1.TXT”;
  charserver_le[]=“FILE2.TXT”;

  _4G.ftpUpload(server_le,sd_le);

}

In the case the le should be uploaded into a subdirectory instead of the root directory, the server lename must
be accordingly dened. The user must keep in mind that subdirectories have to be already created in order to
upload les into them. In other words, it is not possible to create subdirectories in the FTP server.

Example of use for les in subdirectories:

{

  charsd_le[]=“/FOLDER1/FILE1.TXT”;
  charserver_le[]=“/FOLDER2/FILE2.TXT”;

  _4G.ftpUpload(server_le,sd_le);

}

-30-

v7.3

Software

Possible error codes for this function:

• 1: if no SD present

• 2: if le does not exist

• 3: if error opening the le

• 4: if error setting the pointer of the le

• 5: if error getting the le size

• 6: if error opening the PUT connection

• 7: if error exiting from the data mode

• 8: if error sending data

Example of uploading les:

www.libelium.com/development/waspmote/examples/4g-09-ftp-upload

4.9.3. FTP download

The ftpDownload() function downloads a le from an FTP server to Waspmote’s SD card. The FTP session must
be already open. This function needs 2 dierent inputs: the complete path of the le in the FTP server and the
complete path of the le to be created in the SD card.

Example of use for les in root directory:

{

  charsd_le[]=“FILE1.TXT”;
  charserver_le[]=“FILE2.TXT”;

  _4G.ftpDownload(server_le,sd_le);

}

In the case the le should be downloaded into an SD card’s subdirectory instead of the root directory, the SD
lename must be accordingly dened. The user must keep in mind that subdirectories have to be already created
in the SD card in order to create les into them.

Example of use for les in subdirectories:

{

  charsd_le[]=“/FOLDER1/FILE1.TXT”;
  charserver_le[]=“/FOLDER2/FILE2.TXT”;

 _4G.ftpDownload(server_le,sd_le);

}

Possible error codes for this function:

• 1: if server le size is zero

• 2: if error reading the le size

• 3: if SD not present

• 4: if error creating the le in SD

• 5: if error opening the le

• 6: if error setting the pointer of the le

• 7: if error opening the GET connection

• 8: if the module returns error code after requesting data

• 9: if error getting packet size

• 10: if error in packet size mismatch

-31-

v7.3

Software

• 11: if error writing SD error

• 12: if no more retries getting data

• 13: if le size mismatch

Example of downloading les:

www.libelium.com/development/waspmote/examples/4g-10-ftp-download

4.9.4. FTP delete le

The ftpDelete() function deletes in the FTP server. The FTP session must be already open. The function expects

the name of the le to be deleted as input.

Example of deleting a le:

{
_4G.ftpDelete(“FILE_FTP.TXT”);
}

4.9.5. FTP working directory

The ftpGetWorkingDirectory() function requests the current working directory of the previously open FTP session.
The function updates the _ftpWorkingDirectory attribute which stores the information.

Example of getting the FTP working directory:

{
_4G.ftpGetWorkingDirectory();
}

Related variable:

_4G._ftpWorkingDirectory → Stores the current working directory

The ftpChangeWorkingDirectory() function allows the user to change the current working directory. The user
must keep in mind that the directory to access must be already created before attempting to call this function. The
function expects the name of the directory to access to as input parameter.

Example of changing the working directory:

{
_4G.ftpChangeWorkingDirectory(“NEWDIR”);
}

Related variable:

_4G._ftpWorkingDirectory → Stores the new working directory if correctly changed

4.9.6. Closing an FTP session

The ftpCloseSession() function allows the user to close an active FTP session.

Example of closing an FTP session:

{
_4G.ftpCloseSession();
}

-32-

v7.3

Software

4.10. TCP/UDP connections

4.10.1. Socket identiers

The 4G module permits to have up to 6 simultaneous TCP/UDP connections. For that purpose, the libraries dene
the following socket identiers to be used when handling the multi-socket connections:

Wasp4G::CONNECTION_1
Wasp4G::CONNECTION_2
Wasp4G::CONNECTION_3
Wasp4G::CONNECTION_4
Wasp4G::CONNECTION_5
Wasp4G::CONNECTION_6

The 4G libraries dene dierent structures in order to store the information related to all socket identiers. After

opening sockets or sending/receiving data, the structures are updated. So this is useful in order to manage the
most important settings of the connection.

4.10.2. Socket information structure

The SocketInfo_t structure stores the information to be stored for all sockets. For each one of the connections,
the information structure includes:

• Socket identier

• Total number of bytes sent since the socket was opened

• Total number of bytes received since socket was opened

• Total number of pending bytes to read which arrived through the socket

• Total number of bytes sent and not yet acknowledged since the socket was opened

As there are six possible connections at the same time, the global variable is dened as follows:

SocketInfo_t socketInfo[6];

The denition of the structure is:

struct SocketInfo_t
{
uint8_t id;
uint16_t sent;
uint16_t received;

  uint16_t size;

uint16_t ack;
};

The getSocketInfo() function allows the user to update the socket information structure from the 4G module. It

is mandatory to indicate the identier of the socket to be updated.

Example of use:

{
uint8_t socketId = Wasp4G::CONNECTION_1;

_4G.getSocketInfo(socketId);
}

-33-

v7.3

Software

Related variables:

_4G.socketInfo[socketId].id → Socket identier

_4G.socketInfo[socketId].sent → Total number of bytes sent since the socket was opened

_4G.socketInfo[socketId].received → Total number of bytes received

_4G.socketInfo[socketId].size → Total number of pending bytes to read

_4G.socketInfo[socketId].ack → Total number of bytes sent and not yet acknowledged

4.10.3. Socket status structure

The SocketStatus_t structure stores the status for all sockets. For each one of the connections, the status
structure includes:

• Socket identier

• Current socket status. The API denes several constants to describe it:

- Wasp4G::STATUS_CLOSED

- Wasp4G::STATUS_ACTIVE

- Wasp4G::STATUS_SUSPENDED

- Wasp4G::STATUS_SUSPENDED_DATA

- Wasp4G::STATUS_LISTENING

- Wasp4G::STATUS_INCOMING

- Wasp4G::STATUS_OPENING

• Local IP address

• Local port

• Remote IP address

• Remote port

As it is possible to have up to 6 simultaneous connections, the global variable is dened as follows:

SocketStatus_t socketStatus[6];

The denition of the structure is:

struct SocketStatus_t
{
uint8_t id;
uint8_t state;
char localIp[16];
uint16_t localPort;
char remoteIp[16];
uint16_t remotePort;
};

The getSocketStatus() function allows the user to update the socket status structure from the 4G module. It is

mandatory to indicate the identier of the socket to be updated. It is possible to update all socket status by calling

the getAllSocketStatus() function which is faster than iterating through all dierent identiers.

Example of use:

{
uint8_t socketId = Wasp4G::CONNECTION_1;
_4G.getSocketStatus(socketId);
}

Related variables:

-34-

v7.3

Software

_4G.socketInfo[socketId].id → Socket identier

_4G.socketInfo[socketId].state → Socket status

_4G.socketInfo[socketId].localIp → Local IP address

_4G.socketInfo[socketId].localPort → Local port

_4G.socketInfo[socketId].remoteIp → Remote IP address

_4G.socketInfo[socketId].remotePort → Remote port

4.10.4. Creating a TCP/UDP client socket

The openSocketClient() function congures and opens a socket. This function expects several input parameters:

• Socket ID: The rst parameter indicates the identier to be associated to the new TCP/UDP. connection. This

identier is needed in order to send or receive data through the corresponding socket after creating it.

• Protocol: This parameter indicates whether use TCP or UDP protocol for the new socket. The possibilities are:

- Wasp4G::TCP

- Wasp4G::UDP

• Host: Address of the remote host, string type. This parameter can be either:

- Any valid IP address in the format: “xxx.xxx.xxx.xxx”

- Any host name to be solved with a DNS query

- Any valid IPv6 address in the format: xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx or xxx.xxx.xxx.xxx.xxx.xxx.
xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx.xxx

• Remote port: Remote host port to contact from 1 to 65535.

• Local port: Parameter is valid for UDP connections only and has no eect (if used) for TCP connections. UDP
connections local port from 1 to 65535.

Example of creating a TCP client connection:

{
uint8_t socketId = Wasp4G::CONNECTION_1;
char host[] = “xxx.xxx.xxx.xxx”;
uint16_t remote_port = 15010;

_4G.openSocketClient(socketId, Wasp4G::TCP, host, remote_port);
}

Example of creating a UDP client connection:

{
uint8_t socketId = Wasp4G::CONNECTION_2;
char host[] = “xxx.xxx.xxx.xxx”;
uint16_t remote_port = 15010;
uint16_t local_port = 4000;

_4G.openSocketClient(socketId, Wasp4G::UDP, host, remote_port, local_port);
}

Possible error codes for this function:

• 1: not registered, ME is not currently searching for a new operator to register to

• 2: not registered, but ME is currently searching for a new operator to register to

• 3: registration denied

• 4: unknown

• 6: not registered, ME is not currently searching for a new operator to register to

-35-

v7.3

Software

• 8: not registered, but ME is currently searching for a new operator to register to

• 9: registration denied

• 10: unknown

• 12: if error setting APN

• 13: if error setting login

• 14: if error setting password

• 15: if error activating GPRS connection

• 16: if error getting socket status

• 17: Socket with an active data transfer connection

• 18: Socket suspended

• 19: Socket suspended with pending data

• 20: Socket listening

• 21: Socket with an incoming connection. Waiting for the user accept or shutdown command

• 22: Socket in opening process. The socket is not closed but still not in Active or Suspended

• 23: if error in Socket Conguration

• 24: if error in Socket Conguration Extended 3

• 25: if error sending the open command

• 26: if timeout opening the socket

Example of creating TCP/UDP client sockets:

www.libelium.com/development/waspmote/examples/4g-11-tcp-client
www.libelium.com/development/waspmote/examples/4g-13-udp-client

4.10.5. Creating a TCP/UDP server socket

The openSocketServer() function congures and opens a listening socket. This function expects several input
parameters:

• Socket ID: The rst parameter indicates the identier to be associated to the new TCP/UDP connection. This

identier is needed in order to send or receive data through the corresponding socket.

• Protocol: This parameter indicates whether use TCP or UDP protocol for the new socket. The possibilities are:

- Wasp4G::TCP

- Wasp4G::UDP

• Local port: Local listening port from 1 to 65535.

• Keep-Alive: TCP keep-alive timer timeout -The interval between 2 keep-alive transmissions in idle condition:

- 0 → TCP keep-alive timer is deactivated (default)

- 1..240 → TCP keep-alive timer timeout in minutes

Example of creating a TCP server:

{
uint8_t socketId = Wasp4G::CONNECTION_1;
uint16_t local_port = 5000;
uint8_t keep_alive = 240;

_4G.openSocketServer(socketId, Wasp4G::TCP, local_port, keep_alive);
}

-36-

v7.3

Software

Example of creating a UDP server:

{
uint8_t socketId = Wasp4G::CONNECTION_2;
uint16_t local_port = 5000;

_4G.openSocketServer(socketId, Wasp4G::UDP, local_port);
}

Once the server is created, the manageSockets() function permits the user to update all socket status and accept
connections if needed. So when setting up a server or listening socket in Waspmote 4G the best way to handle

with connections is directly calling this function. If no input parameter is dened the calling is executed instantly. If

the timeout is inserted as new input, the function will block until a new incoming connection needs to be managed

or timeout. This timeout must be specied in milliseconds units.

Possible error codes for this function:

• 1: not registered, ME is not currently searching for a new operator to register to

• 2: not registered, but ME is currently searching for a new operator to register to

• 3: registration denied

• 4: unknown

• 6: not registered, ME is not currently searching for a new operator to register to

• 8: not registered, but ME is currently searching for a new operator to register to

• 9: registration denied

• 10: unknown

• 12: if error setting APN

• 13: if error setting login

• 14: if error setting password

• 15: if error activating GPRS connection

• 16: if error getting socket status

• 17: if error in Socket Conguration

• 18: if protocol input not valid

• 19: if error opening the socket

Example of creating TCP/UDP server sockets:

www.libelium.com/development/waspmote/examples/4g-12-tcp-server
www.libelium.com/development/waspmote/examples/4g-14-udp-server

4.10.6. Sending data

The send() function allows the user to send TCP/UDP packets once the socket is active. The function needs 2

dierent inputs parameters:

• Socket ID: the socket identier used for opening the connection.

• Data: This is the stream of data to send to the TCP/UDP socket. This stream of data can be dened as a simple

string message. On the other hand, the data can be dened as an array of bytes, specifying a third input for

the length of the array of bytes to send.

Example for sending a string message:

{
_4G.send(Wasp4G::CONNECTION_1, “This_is_the_data_payload”);
}

-37-

v7.3

Software

Example for sending an array of bytes:

{
uint8_t data[] = {0x31, 0x32, 0x33, 0x34, 0x35}
_4G.send(Wasp4G::CONNECTION_1, data, 6);
}

Possible error codes for this function:

• 1: if error checking socket status

• 2: if incorrect socket status

• 3: if error sending data

• 4: if error waiting conrmation from module

• 5: if error getting socket status

• 6: if timeout getting socket status

All examples related to TCP/UDP sockets (both client and server) show how to send data:

www.libelium.com/development/waspmote/examples/4g-11-tcp-client
www.libelium.com/development/waspmote/examples/4g-12-tcp-server
www.libelium.com/development/waspmote/examples/4g-13-udp-client
www.libelium.com/development/waspmote/examples/4g-14-udp-server

4.10.7. Receiving data

The receive() function allows the user to receive TCP/UDP packets once the socket is active. The function needs

dierent inputs:

• Socket ID: the socket identier used for opening the connection.

• Timeout (optional input):

- If no timeout input is specied, the receive function is a non-blocking function which answers if data has
been received.

- If the timeout is inserted as new input, the function will block until a new packet is received or time is up in

the case no packet is received. This timeout must be specied in milliseconds units.

Example for instant reception:

{
_4G.receive(Wasp4G::CONNECTION_1);
}

Example for blocking reception (i.e. 30 seconds):

{
_4G.receive(Wasp4G::CONNECTION_1, 30000);
}

Related variables:

_4G._buffer → Pointer to the buer where received data is stored

_4G._length → Length of the data received

-38-

v7.3

Software

Possible error codes for this function:

• 1: if no data received

• 2: if error getting socket info

• 3: if timeout waiting for data

• 4: if error receiving data from module

• 5: if error parsing length of data

• 6: if error reading incoming bytes

4.10.8. Closing a socket

The closeSocketClient() function allows the user to close a TCP/UDP client previously open. The function needs

an input parameter for the socket identier.

The closeSocketServer() function allows the user to close a TCP/UDP server previously open. The function needs
2 inputs:

• Socket ID: the socket identier used for opening the connection.

• Protocol: This parameter indicates the protocol used by the socket:

- Wasp4G::TCP

- Wasp4G::UDP

4.10.9. SSL sockets

The 4G module includes a stack for establishing SSL sockets. For this feature, the user must keep in mind that it is

necessary to install the proper security data in the module. For handling the SSL socket new functions are dened

for opening the socket, sending data, receiving data and closing the socket.

Currently, for SSL sockets only one single connection is permitted. So, regarding the socket identiers the only

available option is: Wasp4G::CONNECTION_1.

The manageSSL() function allows the user to store, delete and read security data (Certicate, CA certicate, private
key) into the non volatile memory of the module. The function expects several inputs:

• Socket ID: the socket identier used for opening the connection.

• Action: the action to perform:

- Wasp4G::SSL_ACTION_DELETE: Delete data from memory

- Wasp4G::SSL_ACTION_STORE: Store data into memory

- Wasp4G::SSL_ACTION_READ: Read data from memory

• Data type:

- Wasp4G::SSL_TYPE_CERT: Certicate

- Wasp4G::SSL_TYPE_CA_CERT: CA certicate

- Wasp4G::SSL_TYPE_RSA: RSA Private key

• Data (optional): this input is needed when the user selects to store a new security data into module’s memory.

Possible error codes for this function:

• 1 if error setting security data

• 2 if error waiting module conrmation

• 3 if error getting security data

• 4 if error deleting security data

• 5 if invalid action input

-39-

v7.3

Software

The openSocketSSL() function allows the user to open a remote connection via socket secured through SSL.
Several inputs are needed for calling this function:

• Socket ID: the socket identier used for opening the connection

• Host: Remote SSL server address

• Remote port: Remote TCP port to contact from 1 to 65535.

Possible error codes for this function:

• 1: not registered, ME is not currently searching for a new operator to register to

• 2: not registered, but ME is currently searching for a new operator to register to

• 3: registration denied

• 4: unknown

• 6: not registered, ME is not currently searching for a new operator to register to

• 8: not registered, but ME is currently searching for a new operator to register to

• 9: registration denied

• 10: unknown

• 12: if error setting APN

• 13: if error setting login

• 14: if error setting password

• 15: if error activating GPRS connection

• 16: if error getting SSL Socket Status

• 17: if socket disabled

• 19: if socket already open

• 20: if error opening the socket

• 21: if no response from module

The sendSSL() function allows the user to send data through a secure socket. Several inputs are needed for
calling this function:

• Socket ID: the socket identier used for opening the connection.

• Data: Data to send.

Possible error codes for this function:

• 1: if error checking socket status

• 2: if incorrect socket status

• 3: if error sending data

• 4: if no response from module

• 5: if error getting socket status

• 6: if timeout waiting for correct socket status

The receiveSSL() function allows the user to receive data through a secure socket. Several inputs are needed for
calling this function:

• Socket ID: the socket identier used for opening the connection.

• Timeout (optional input):

- If no timeout input is specied, the receive function is a non-blocking function which answers if data has
been received.

- If the timeout is inserted as new input, the function will block until a new packet is received or time is up in

the case no packet is received. This timeout must be specied in milliseconds units.

-40-

v7.3

Software

Possible error codes for this function:

• 1: if no answer from module

• 2: if SSL socket disconnected

• 3: if error code from module

• 4: if no response from module

• 5: if error parsing length of received data

• 6: if error getting received data

• 7: if error waiting module conrmation

The closeSocketSSL() function allows the user to close a secure socket. The function needs an input parameter

for the socket identier.

Example for SSL socket:

www.libelium.com/development/waspmote/examples/4g-15-ssl-sockets

-41-

v7.3

Software

4.11. GPS

Nowadays there are several positioning techniques to provide the localization to end devices. One of them is the
A-GPS positioning technique based on the help of a cellular network deploying an A-GPS server.

Remember the AU version does not have a GPS receiver.

At this point, it is advisable to introduce the denition of Time to First Fix (TTFF): TTFF indicates the time and

process required for a GPS device to get adequate satellite signals and data to provide accurate navigation.

A-GPS uses the following sets of data to provide accurate position:

• GPS satellite signals

• Almanac data

• Ephemeris data

If a GPS device has been turned o for a long period of time, when it is turned on it will take longer to acquire

these data sets and get a “Time to First Fix”. One way to speed up TTFF is to use the A-GPS Positioning Technique.

A “cold” start indicates the scenario in which the GPS must get all data in order to start navigation, and may take
up to several minutes.

A “warm” start indicates the scenario in which the GPS has most of the data it needs in memory, and will start
quickly, a minute or less.

Before dealing with the A-GPS service, a Standalone GPS solution is described. The gure below shows an overview

of the involved functional entities.

Figure : GPS overview

-42-

v7.3

Software

4.11.1. Standalone or Autonomous GPS (S-GPS)

Standalone or autonomous GPS mode (S-GPS) is a feature that allows the GPS receiver, installed on the 4G
module, to perform its First Fixing activity without assistance data coming from cellular network. The GPS receiver
estimates its position directly from GPS satellites in its line of sight. The S-GPS is sometime slower to compute

its First Fix; this phenomenon is evident in very poor signal conditions, for example in a city where the satellites

signals are corrupted by the multipath propagation.

4.11.2. Assisted GPS (A-GPS)

Assisted GPS mode is a feature that allows the GPS receiver, installed on the module, to perform its First Fix using
assistance data provided by entities deployed by Cellular Network.

There are a couple of A-GPS standards. Waspmote libraries implement the Secure User Plane Location (SUPL)
architecture. This Location Service architecture is composed of 2 basic elements: a SUPL Enabled Terminal (SET)
and a SUPL Location Platform (SLP). The SET corresponds to the 4G module. The SLP manages several tasks:
authentication, location request, etc. This module supports the SUPL ver. 1.0.

Waspmote libraries manage the SET Initiated Session scenario where the module, on its initiative, connects to an
SLP Server through an IP network, 2 modes are available:

• MS-Assisted

• MS-Based

In MS-Assisted mode, the module receives acquisition assistance, reference time and other optional assistance
data from the network. The mobile service provider continuously logs GPS information (mainly the almanac) from
the GPS satellites using an A-GPS server in its system. With the help of this data, the A-GPS server calculates the
position and sends it back to the module.

In MS-Based mode, the module receives ephemeris, reference location, reference time and other optional
assistance data from the A-GPS server. With the help of this data, the module receives signals from the visible
satellites and calculates the position.

Note: if the required satellites visibility is not available, no GPS position is provided by the A-GPS receiver.

4.11.3. Get GPS position

The gpsStart() function allows the user to power on the GPS engine. Depending on the input parameter a

dierent GPS mode is selected. The possibilities are:

• Wasp4G::GPS_MS_ASSISTED: Assisted GPS in MS-Assisted mode

• Wasp4G::GPS_MS_BASED: Assisted GPS in MS-Based mode

• Wasp4G::GPS_MS_AUTONOMOUS: Standalone or Autonomous GPS mode

Possible error codes for this function:

• 1: if error setting the reset mode

• 2: if error checking current GPS status

• 3: if error starting the GPS engine in standalone mode

• 4: if error setting NETWORK_UTRAN mode

• 5: if error dening the PDP context

• 6: if error setting authentication user ID

-43-

v7.3

Software

• 7: if error setting authentication password

• 8: if error setting socket conguration

• 9: if error setting quality of service

• 10: if error setting the SLP server

• 11: if error setting the supported SUPL version

• 12: if error updating terminal information

• 13: if error enabling unsolicited response

• 14: if error locking context for LCS use

• 15: if error enabling GNSS (or GLONASS)

• 16: if error in GPS Start Location Service Request

• 17: if error checking data connection

• 18: if incorrect GPS mode

The waitForSignal() function waits until GPS signal is received for valid data. The input parameter denes
the timeout to wait for signal in millisecond units. If the function returns a correct answer means that the GPS
attributes have been updated:

• Latitude

• Latitude indicator: North or South

• Longitude

• Longitude indicator: East or West

• Time

• Date

• Number of satellites

• HDOP: Horizontal Dilution of precision. If this value is less than 1 indicates the highest possible condence
level to be used for applications.

The convert2Degrees() function performs the conversion from the latitude and latitude variables given by the 4G
module to degrees so it is more legible and intuitive. The input parameters must be the latitude/longitude and the
corresponding indicator. The returning value is the converted value in degrees units.

The gpsStop() function powers down the GPS engine of the 4G module. It is possible to switch from a SUPL session
to the autonomous GPS mode. Firstly, the GPS feature must be stopped, and then restart with the autonomous
mode.

Example of GPS modes:

www.libelium.com/development/waspmote/examples/4g-16-gps-autonomous-mode
www.libelium.com/development/waspmote/examples/4g-17-agps-ms-assisted
www.libelium.com/development/waspmote/examples/4g-18-agps-ms-based

-44-

v7.3

Software

4.11.4. Indoor tracking using 4G and A-GPS mode (geolocation)

Assisted GPS, also known as A-GPS or AGPS, enhances the performance of standard GPS in devices connected to
the cellular network. A-GPS improves the location performance of cell phones (and other connected devices) in
two ways:

• By helping obtain a faster “time to rst x” (TTFF). A-GPS acquires and stores information about the location of
satellites via the cellular network so the information does not need to be downloaded via satellite.

• By helping position a phone or mobile device when GPS signals are weak or not available such as indoor

locations. GPS satellite signals may be impeded by tall buildings, and do not penetrate building interiors well.
A-GPS uses proximity to cellular towers to calculate position when GPS signals are not available.

In this section, the execution of the A-GPS in MS-Based mode is shown. For this purpose, the corresponding
example was used:

www.libelium.com/development/waspmote/examples/4g-18-agps-ms-based

In this example, the GPS is started in MS-based mode. Once location is acquired, the GPS is stopped and started

again in Standalone mode. In the following gures, it is possible to see how the GPS module gets its rst position

41 seconds after switching on the 4G module. The green icon is the true device position. The red icon is the

position the 4G module returns along dierent iterations. Finally, we can see how the module achieves a great

location detection after 73 seconds.

Figure : First iteration (41 seconds after starting the 4G module). Distance error: 42 meters.

-45-

v7.3

Software

Figure : Figure: Second iteration (53 seconds after starting the 4G module): Distance error: 28 meters.

Figure : Figure: Third iteration (63 seconds after starting the 4G module): Distance error: 28 meters.

-46-

v7.3

Software

Figure : Fourth iteration (73 seconds after starting the 4G module): Distance error: 7 meters.

The location given by the A-GPS module may vary depending on the spot used to perform the test. The accuracy
will improve when the device is situated in a high density or poor cellular antennas area. The location accuracy
may vary from 10 to 100 meters so a real test in each case is mandatory before implementing a nal application.

-47-

v7.3

Software

4.12. e-mail management functions

4.12.1. Reseting e-mail parameters

The emailReset() function resets the current e-mail parameters in the memory of the module to the default
ones. The values reset are:

• e-mail user name

• e-mail password

• e-mail sender address

• e-mail SMTP server

Example:

{
_4G.emailReset();
}

4.12.2. Setting the SMTP server

The emailSetServerSMTP() function sets the SMTP server address, used for e-mail sending. The function expects
an input parameter for the SMTP server address. This parameter can be either:

• Any valid IP address in the format: xxx.xxx.xxx.xxx

• Any host name to be solved with a DNS query (factory default is the empty string “”)

Example:

{
_4G.emailSetServerSMTP(“smtp.mydomain.com”);
}

4.12.3. Conguring SMTP parameters

The emailCongureSMTP() function sets the parameters needed to the SMTP connection. The input parameters
for this function are:

• Security: parameter indicating if the SSL encryption is enabled. The possibilities are:

- Wasp4G::EMAIL_NONSSL

- Wasp4G::EMAIL_SSL

• Port: SMTP port to contact (default 25). Range is from 1 to 65535.

Example:

{

  _4G.emailCongureSMTP(Wasp4G::EMAIL_NONSSL,25);

}

Note: some servers support an obsolete implementation of SMTPS on port 465. The module only supports the standard
implementation of SMTP over SSL/TLS described in RFC 3207. So do not use port 465 on servers with an obsolete
implementation of SMTPS: the module will not work properly. Use instead port 25 or port 587.

-48-

v7.3

Software

4.12.4. Setting the sender parameters: address, username and password

The emailSetSender() function sets the sender parameters. The input parameters related are:

• Address: the address string to be used for sending the e-mail.

• Username: the username string to be used for sending the e-mail.

• Password: the authentication password to be used during the authentication step of the SMTP.

Example:

{
char address[] = “[e-mail]”;
char user[] = “[e-mail]”;
char password[] = “myPassword”;

_4G.emailSetSender(address, user, password);
}

Possible error codes for this function:

• 1: if error setting the sender address

• 2: if error setting the sender user

• 3: if error setting the sender password

4.12.5. Saving e-mail parameters

The emailSave() function saves the actual e-mail parameters in the memory of the module. The values reset are:

• e-mail user name

• e-mail password

• e-mail sender address

• e-mail SMTP server

Example:

{
_4G.emailSave();
}

4.12.6. Sending an e-mail

The emailSend() function sends an e-mail message. The input parameters needed for this function are:

• Address: destination address.

• Subject: subject of the message. The maximum length is 100 characters.

• Body: the main text message of the e-mail.

Example:

{
char address[] = “[e-mail]”;
char subject[] = “Subject of email”;
char message[] = “This is an e-mail message from Waspmote”;

_4G.emailSend(address, subject, message);
}

Possible error codes for this function:

-49-

v7.3

Software

• 1: if error sending mail

• 2: if error waiting for module conrmation

Example of sending e-mail:

www.libelium.com/development/waspmote/examples/4g-19-send-email-smtp

-50-

v7.3

Certications

5. Certications

Libelium oers 2 types of sensor platforms, Waspmote OEM and Plug & Sense!:

• Waspmote OEM is intended to be used for research purposes or as part of a major product so it needs nal
certication on the client side. More info at: http://www.libelium.com/products/waspmote/

• Plug & Sense! is the line ready to be used out of the box. It includes market certications. See below the
specic list of regulations passed. More info at: http://www.libelium.com/products/plug-sense/

Plug & Sense! 4G is certied for:

• CE (Europe)

• FCC (US)

• IC (Canada)

• ANATEL (Brazil)

• RCM (Australia)

• PTCRB (US)

• AT&T (US)

Figure : Certications of the Plug & Sense! 4G product line

The 4G module is also used on Meshlium, which was certied too.

You can nd all the certication documents at:

http://www.libelium.com/certications

-51-

v7.3

Code examples and extended information

6. Code examples and extended information

In the Waspmote Development section you can nd complete examples:

www.libelium.com/development/waspmote/examples

-52-

v7.3

API changelog

7. API changelog

Keep track of the software changes on this link:

www.libelium.com/development/waspmote/documentation/changelog/#4g

-53-

v7.3

Documentation changelog

8. Documentation changelog

From v7.2 to v7.3

• Added indications to send frames to Meshlium via HTTP or HTTPS (HTTPS is the default mode for Meshlium
Manager System version equal or greater than v4.0.9)

• Added indications about the SIM card format for both OEM and Plug and Sense! product versions

From v7.1 to v7.2

• Added description about the new V2 radio versions

From v7.0 to v7.1

• Added a new section to show the user how to connect the module to waspmote
