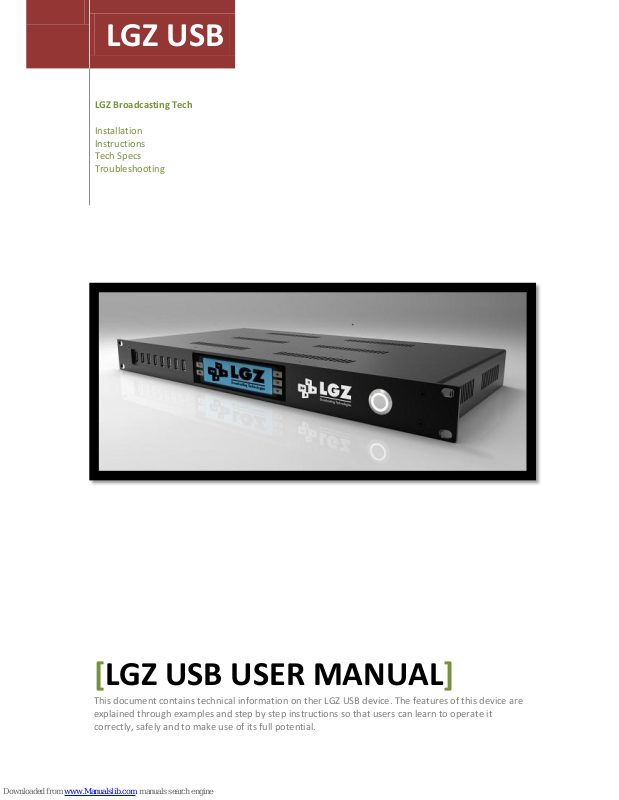

[LGZ USB USER MANUAL]
This document contains technical information on ther LGZ USB device. The features of this device are
explained through examples and step by step instructions so that users can learn to operate it
correctly, safely and to make use of its full potential.
LGZ USB
[LGZ USB USER MANUAL]
2
User Manual | 2013 version 1.2 | LGZ Broadcasting Tech
Purpose and use
The LGZ USB device is intended to help broadcasters, ob-trucks and tv-stations save onto USB sticks
or USB hard drives video and audio data for quick review and distribution. It can record in real time 1
HD/SD-SDI stream directly onto 8 USB devices simultaneously encoded in high quality H.264. The
recorded data is easily played back onto any PC, MAC or smart TV. The LGZ USB can easily format the
USB devices connected to it to make sure they are empty and correctly formatted for the best
results.
The device is easily operated and can record onto USB devices in either SD or HD quality. With this in
your installation, you will be able to record your productions and as soon as they are done, distribute
copies of it to your customers or anyone in need of a copy for review or storage purposes.
In this document you’ll learn how to properly use and handle this device meant to facilitate your
work.
[LGZ USB USER MANUAL]
LGZ USB
LGZ Broadcasting Tech | Copyright 2013 | Purpose and use
3
Table of content
Purpose and use ...................................................................................................................................... 2
1. Technical Specifications ................................................................................................................... 4
1.1 Transport and installation ....................................................................................................... 4
1.2 Power Supply .......................................................................................................................... 4
1.3 Cooling system ........................................................................................................................ 4
Technical Specifications table ................................................................................................................. 5
2. Usage Examples ............................................................................................................................... 6
2.1 Choose quality ......................................................................................................................... 6
2.2 Conservation of type ............................................................................................................... 6
3. Getting started ................................................................................................................................ 7
3.1 Navigating the menus .............................................................................................................. 7

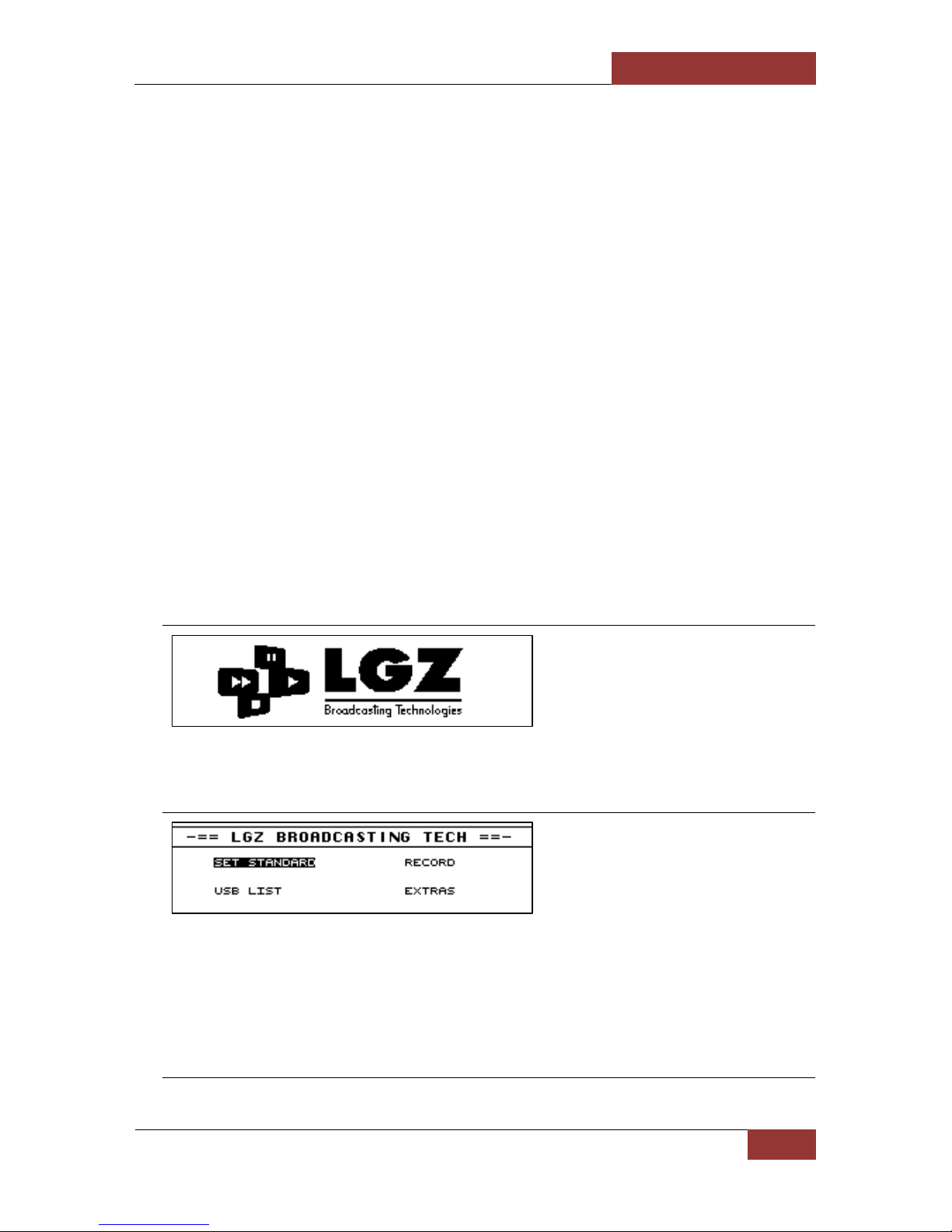

3.2 Screenshots of the menus ....................................................................................................... 7
3.3 Inputs / Outputs .................................................................................................................... 10
3.4 Remote Access ...................................................................................................................... 10
4. Web Interface ................................................................................................................................ 11
4.1 List of features ....................................................................................................................... 11

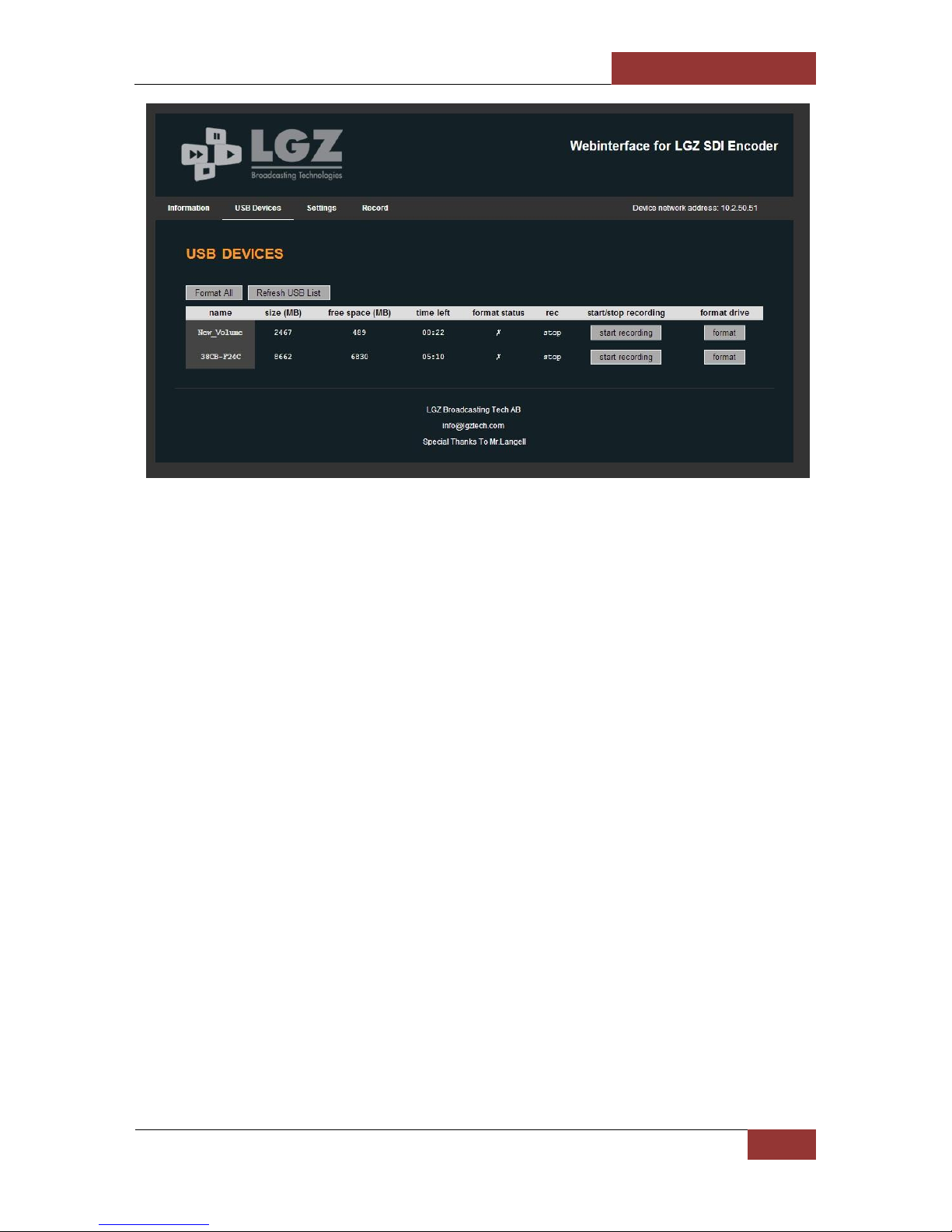

4.2 Web Interface screenshots .................................................................................................... 12
5. Important to Know ........................................................................................................................ 16
LGZ USB
[LGZ USB USER MANUAL]
4
User Manual | 2013 version 1.2 | LGZ Broadcasting Tech
1. Technical Specifications
1.1 Transport and installation
The device must be transported safely packed in the box it is delivered in. It can also be
transported if mounted properly and safely in a 19” rack itself designed and purposed for the
transport intended.
When used, the device must be placed on a flat surface or mounted in a 19” rack with the use of
4 screws, one in each of the mounting holes on the front side.
1.2 Power Supply
The device is turned on or off by pressing once the ON/OFF switch on the devices front. The
switch will be lit when the device is on. Booting up usually takes less than 30 seconds but can
take up to 2 minutes.
The device should be fed adequate and stable power AC 100-240V 12A 50/60Hz. It means that it
practically works in most countries but do make sure that you are indeed connecting it to a
suitable power socket as to not blow its fuse. If the quality of the power isn’t good enough, it
could result in a power failure or even damage to the device. In the event of a power loss the
device will turn off which might result in the loss of all the data on the USB devices connected to
it.
1.3 Cooling system
The device theoretically generates a maximum of 1109 BTU/hour. In practice that number is
lower. The heat is dissipated through the chassi and a fan on the devices backside. Air circulation
is made possible by holes on the devices topside and sides. Make sure no to cover these holes or
leave appropriate distances above the device for a correct airflow. Failure to do this may result in
overheating in which case the chassi might become quite hot and the device turns off to avoid
heat damage.
OBS! Do not cover the devices sides, backside or topside. Leave appropriate space for a correct
airflow.
[LGZ USB USER MANUAL]
LGZ USB
LGZ Broadcasting Tech | Copyright 2013 | Technical Specifications table
5
Technical Specifications table
LGZ USB Comments
Video Inputs
(option for Decklink
Studio card)
1 x HD/SD-SDI
Additional input types
available with the Decklink
Studio option
Video format
SD-SDI PAL 576i
HD-SDI 720p50
HD-SDI 1080i50
(1080i5994, 720p60 and
480i are also available since
software 1.8)
Audio Inputs
2 channels (embedded)
(audio pair can be chosen)
AES stereo available with
Decklink Studio option
ON/OFF Switch
1 x on front
Press once to turn on or off
Interface
1 x LCD screen with buttons
All features can also be
controlled via the Web
Interface
Dimensions
1U 19” rackmountable
35 cm deep. Can be
mounted without support rail
Weight
4 kg
Power supply
300W 100-240V
50-60Hz
Temperature (in use)
10 ~ 45°C
Temperature (storage)
- 30 ~ 60°C
Air humidity (in use)
20 % ~ 80 %
High temperature differences
may result in condensation.
Shock resistance (storage)
5G
Shock resistance (lagring)
70G
Heat build-up
1109 BTU/hour
Maximum theoretical value
Altitude (in use)
-20 ~ 3000m
Altitude (storage)
-20 ~11000m
Sound level
~ 40 dB
dB SPL level at 1m distance
